Fig. 5: Electron transfer and carboxylation genes in microbial populations from Conch and Octopus Springs.

From: Respiratory processes of early-evolved hyperthermophiles in sulfidic and low-oxygen geothermal microbial communities

Fig. 5

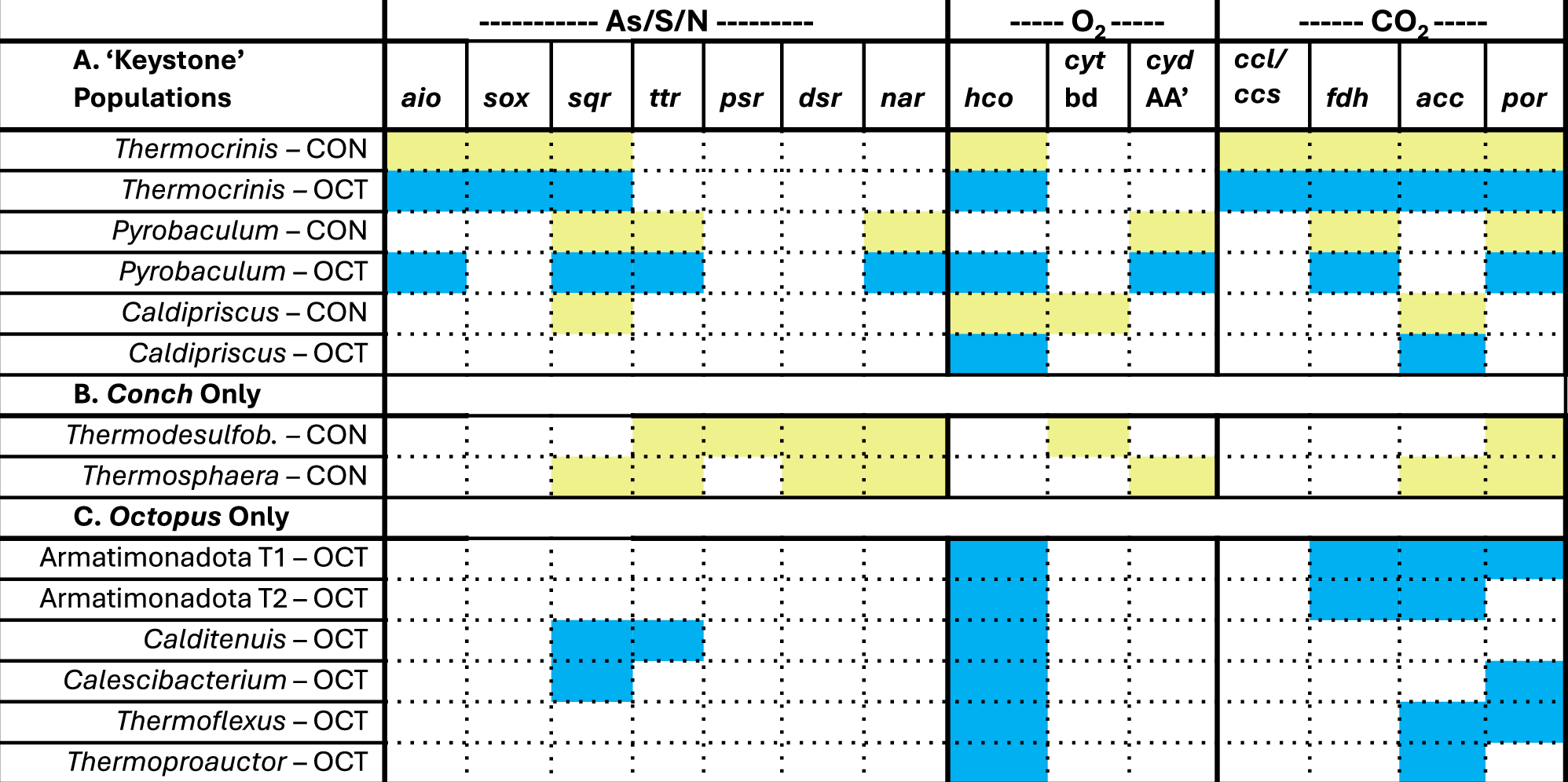

Keystone microbial populations present in both springs (A), or populations present only in Conch (B) or only in Octopus (C) Springs [sox sulfur oxidation pathway, aio arsenite oxidase, sqr sulfide:quinone oxidoreductase, ttr tetrathionate reductase, psr polysulfide reductase, dsr dissimilatory sulfite/sulfate reductase, hco heme Cu oxidases, cytbd cytochrome bd ubiquinol oxidase, cydAA’ archaeal cytochrome oxygen reductase, ccl/ccs citryl-CoA lyase/citryl-coA synthetase, fdh formate dehydrogenase, acc acetyl CoA carboxylase, por pyruvate oxidoreductase].
