Fig. 2: Calculation results of the straight and Z-shaped Sā€‰=ā€‰3 IS-PhCWGs (W1WGs).

From: High transmission in 120-degree sharp bends of inversion-symmetric and inversion-asymmetric photonic crystal waveguides

Fig. 2

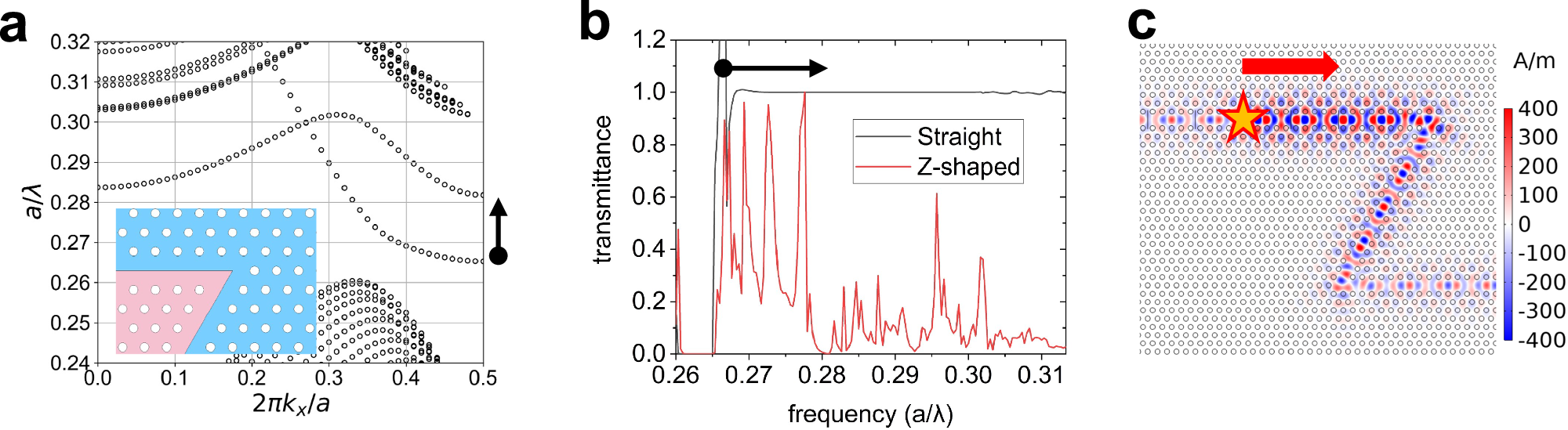

a The 2-dimensional band structure. The black arrow shows the single-mode region. The inset shows one corner of the bent waveguide. b The transmittance spectra of the straight W1WG (black curve) and Z-shaped W1WG. The average transmittance is 0.47, and the F-P reflectivity is 0.40. c The out-of-plane magnetic field Hz of the Z-shaped W1WG at a/Ī»ā€‰=ā€‰0.270. The transmittance is 0.39. The five-pointed star indicates the location of the wave source. The arrow points toward the propagation direction.
