Fig. 6: Benchmark result to compare prediction methods.

From: NuFold: end-to-end approach for RNA tertiary structure prediction with flexible nucleobase center representation

Fig. 6

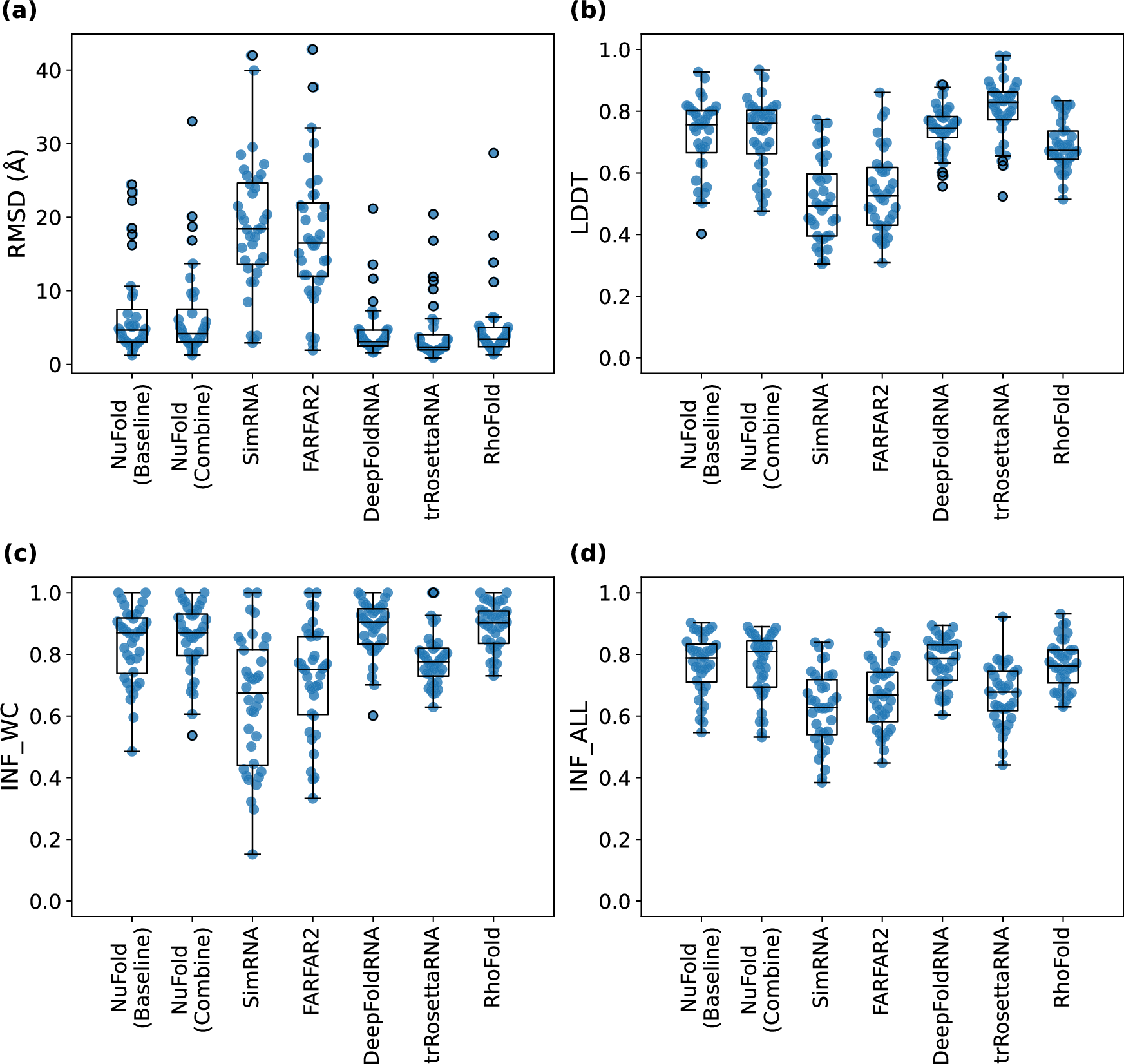

Results on the 36 test RNAs are shown in the box plot. Individual points show results of each test RNA. The center line of the box shows the median, two ends of the box show the first and the third quantile, and the whiskers extend to the minimum and maximum values within 1.5 times the interquartile range. Individual data points outside this range are shown as outliers. a RMSD; b LDDT; c INF_WC; d INF_ALL.
