Fig. 5: Energy storage performance of the MLCCs.

From: Giant energy storage density with ultrahigh efficiency in multilayer ceramic capacitors via interlaminar strain engineering

Fig. 5

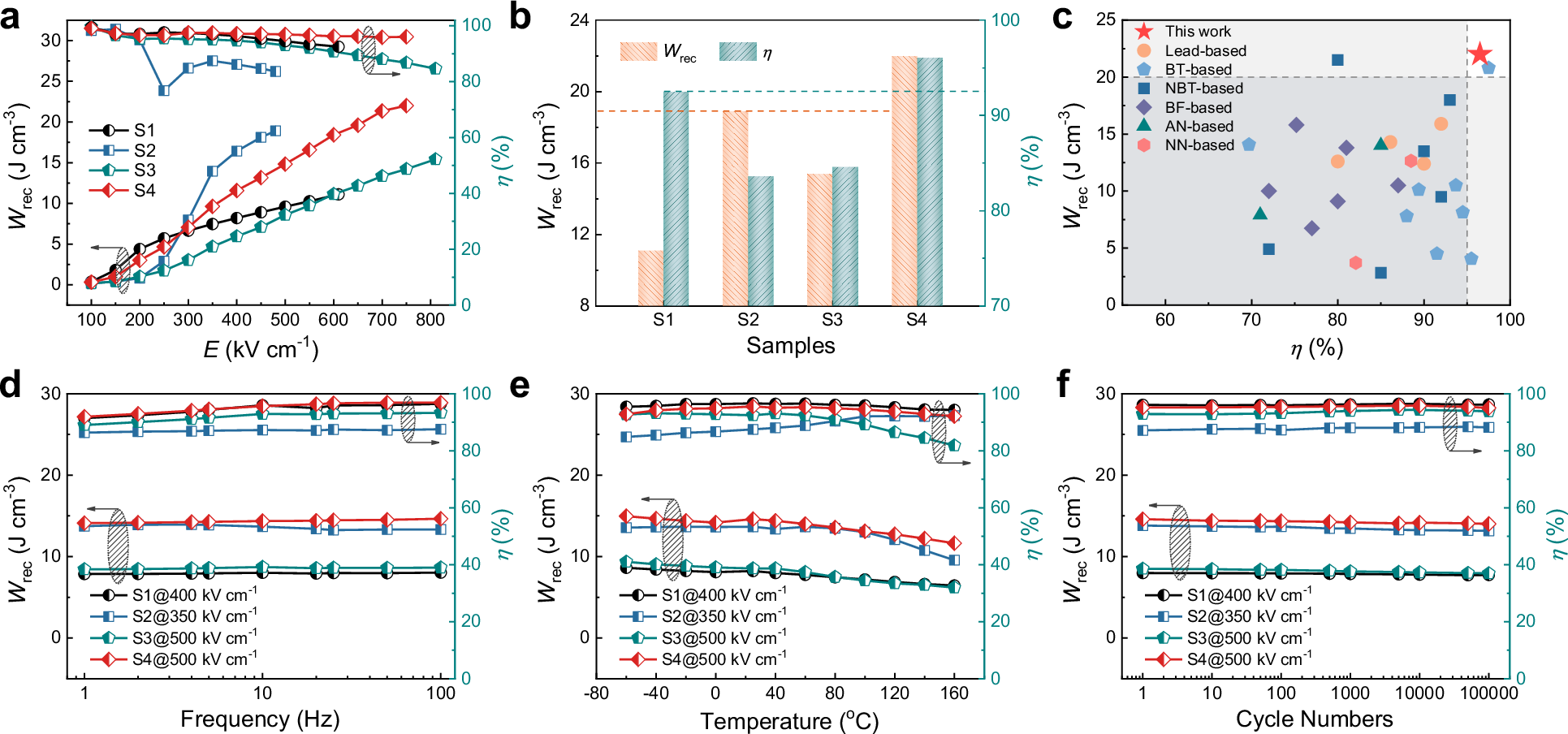

a Recoverable energy density and energy efficiency of S1-S4 MLCCs as a function of the electric field. b Comparisons of recoverable energy density and energy efficiency of S1-S4 MLCCs with electric fields at their corresponding breakdown strength. c Comparison of the energy storage performance of our MLCC with strain engineering (S4) with those of representative MLCCs. Detailed information for the MLCCs is listed in Supplementary Table S8. d Frequency stability, e temperature stability, and f cycling stability of recoverable energy density and energy efficiency of S1-S4 MLCCs.
