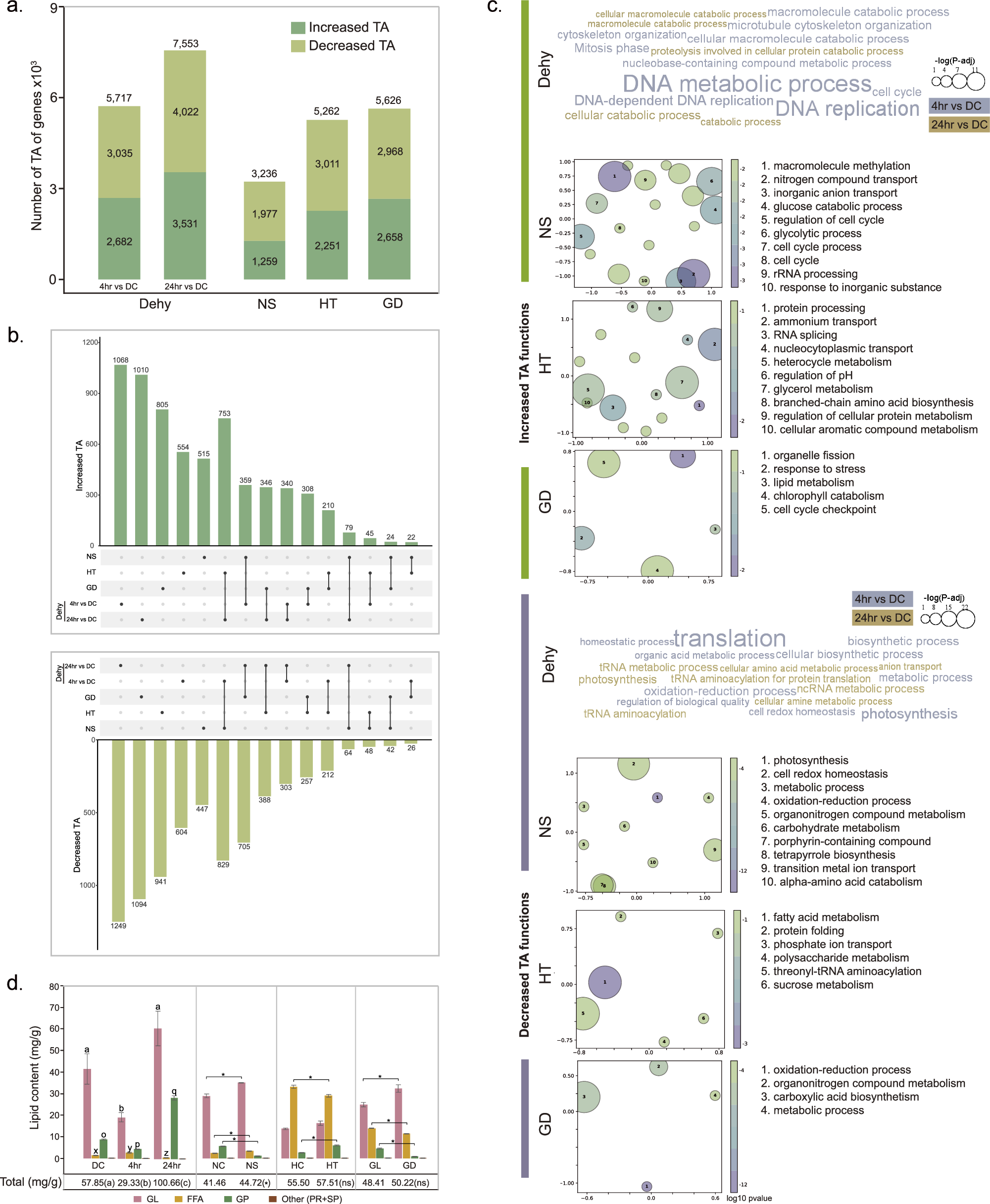

Fig. 5: Overview of the changes in transcript abundance (TA) of genes and total lipids of B. minor under different conditions.
From: Chromosome-level genomes of two Bracteacoccaceae highlight adaptations to biocrusts
a comparison of increased and decreased TAs under four types of environmental conditions. b UpSet plot showing overlap among increased/decreased TAs in B. minor under different environmental conditions. c GO functional enrichment (biological process) for the increased and decreased TA of genes under the four types of environmental conditions in B. minor. Bubble size indicates the generality of the GO term in the underlying Gene Ontology Annotation (GOA) database. d Bar charts showing the average content level of total lipids and main subtype lipids of three biological replicates in B. minor in each environmental condition. Error bars represent standard error (n = 3), letters (abc, xyz, opq) and asterisks denote significant differences (t-test, P < 0.05, see exact P-value in Supplementary Data 17), ns no significance. DC Dehydration Control, 4 hr: under dehydration for 4 h, 24 hr: under dehydration for 24 h, Dehy Dehydration, NC Nitrogen Starvation Control, NS Nitrogen Starvation, HC High Temperature Control, HT High Temperature, GT Glucose-Light, GD Glucose-Dark, GL Glycerolipids, FFA Free Fatty Acids, GP Glycerophospholipids, PR Prenol Lipids, SP Sphingolipids. Abbreviations are explained in Supplementary Data 18.
