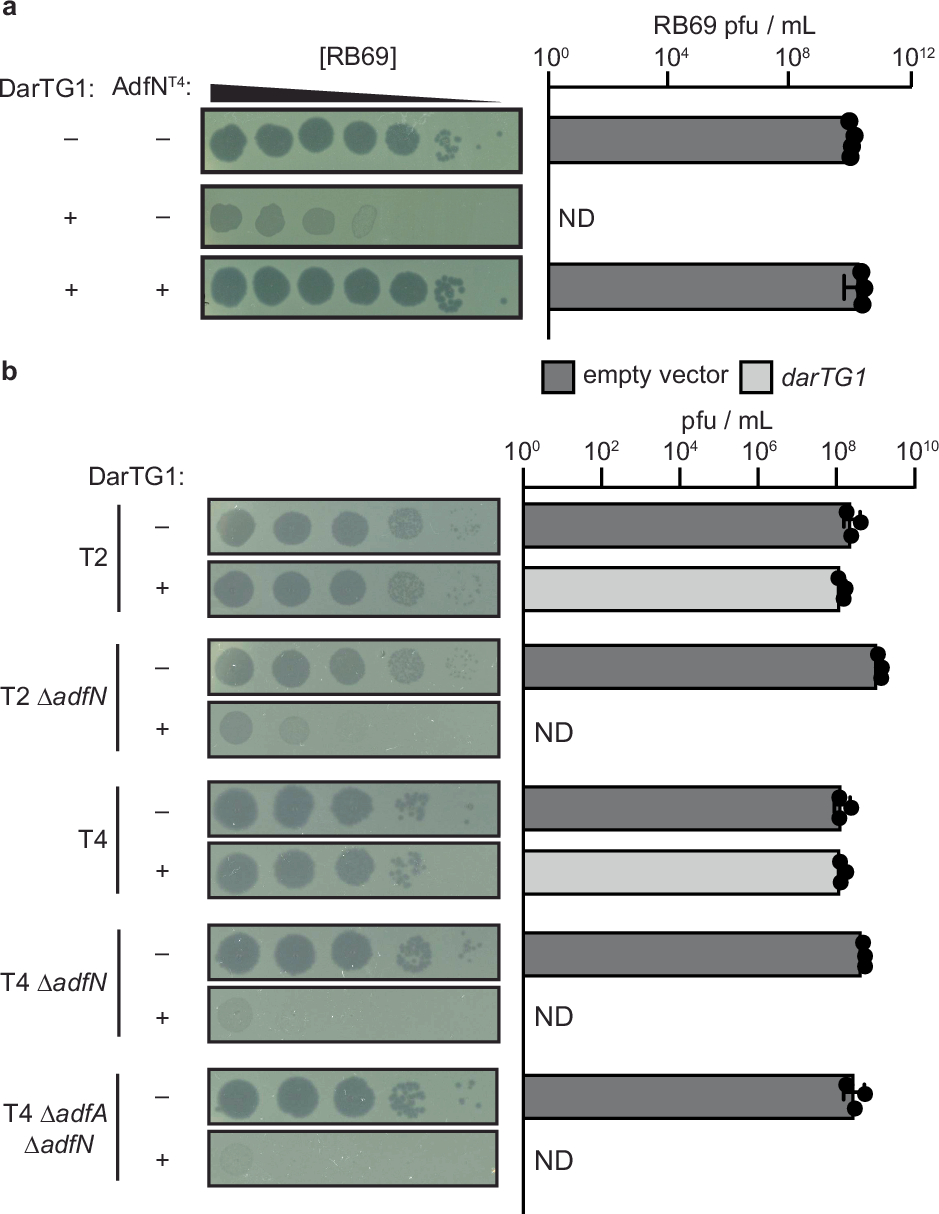

Fig. 3: AdfNT4 is necessary and sufficient for defense against DarTG1.
From: Phages carry orphan antitoxin-like enzymes to neutralize the DarTG1 toxin-antitoxin defense system
a Representative plaque assay and titers of RB69 on a strain without DarTG1 or with DarTG1 and either an empty vector (EV) or a vector encoding adfNT4. b Representative plaque assay and titers of the parental or mutant phages on empty vector (dark gray) or a strain carrying darTG1 on a plasmid (light gray). The average of three independent replicates is presented with error bars representing standard deviation. Pfu/mL, plaque forming units per milliliter. ND, none detected. Source data are provided as a Source Data file.
