Abstract

Microorganisms must distribute their limited resources among different physiological functions, including those that do not directly contribute to growth. In this study, we investigate the allocation of resources to flagellar swimming, the most prominent and biosynthetically costly of such cellular functions in bacteria. Although the growth-dependence of flagellar gene expression in peritrichously flagellated Escherichia coli is well known, the underlying physiological limitations and regulatory strategies are not fully understood. By characterizing the dependence of motile behavior on the activity of the flagellar regulon, we demonstrate that, beyond a critical number of filaments, the hydrodynamics of propulsion limits the ability of bacteria to increase their swimming by synthesizing additional flagella. In nutrient-rich conditions, E. coli apparently maximizes its motility until reaching this limit, while avoiding the excessive cost of flagella production. Conversely, during carbon-limited growth motility remains below maximal levels and inversely correlates with the growth rate. The physics of swimming may further explain the selection for bimodal resource allocation in motility at low average expression levels. Notwithstanding strain-specific variation, the expression of flagellar genes in all tested natural isolates of E. coli also falls within the same range defined by the physical limitations on swimming and its biosynthetic cost.

Effect of inoculum size and antibiotics on bacterial traveling bands in a thin microchannel defined by optical adhesive

Article Open access 22 October 2021

Molecular mechanism of flagellar motor rotation arrest in bacterial zoospores of Actinoplanes missouriensis before germination

Article Open access 29 October 2024

Flagellar dynamics reveal fluctuations and kinetic limit in the Escherichia coli chemotaxis network

Article Open access 21 December 2023

Introduction

Microorganisms, like all living systems, must achieve multiple physiological objectives, which may change when they encounter new environments. They have therefore evolved numerous regulatory mechanisms responsible for distributing their limited resources to specific physiological functions^1,2. Bacteria, including Escherichia coli, have become a convenient model to address this fundamental resource allocation problem³, with a primary focus on proteome partitioning^4,5,6,7. To allocate their resources into protein biosynthesis as a function of growth rate, bacteria appear to obey linear rules known as growth laws^4,5: the fraction of the proteome responsible for biomass production expands with growth rate, whereas the fraction responsible for nutrient uptake and catabolism decreases with growth rate. This leads to the negative linear correlation between the expression of carbon catabolic genes and growth rate that is known as the C-line⁵, which has been proposed to maximize growth. However, although growth maximization is an important strategy^4,5,6,8, it does not always apply^9,10 and cells may instead prioritize other targets such as energy yield or stress response^11,12. Furthermore, while previous studies have mostly focused on the optimized expression of catabolic^4,5,8,10, anabolic^5,6 or ribosomal^2,5,6 genes, how microbes allocate resources to multiple functions that are not directly required for growth remains unclear¹³.

The most prominent example of such a costly physiological function is swimming motility. Motile bacteria are propelled by the rotation of long helical flagellar filaments powered by a motor that is typically proton-driven¹⁴, which enables them to follow spatial gradients of nutrients or harmful chemicals sensed by the chemotaxis signaling pathway^15,16. The biosynthesis of the motility apparatus (primarily flagellar filaments) consumes several percent of the total cellular protein budget in E. coli and other bacteria (2–8% in E. coli, depending on growth conditions)^{2,17,18,19,20}, imposing a major burden on cell growth. Consistent with this high fitness cost, a clear trade-off between growth and motility was observed during experimental evolution of E. coli^21,22,23.

The flagellar regulon in E. coli is controlled by catabolite repression²⁴, such that flagellar gene expression increases in minimal medium during growth on poor carbon sources in accordance with the C-line^7,25. The physiological relevance of such an investment strategy remains debated. One proposed explanation is that it ensures an anticipatory allocation of resources towards motility, in proportion to the potential benefit of finding additional nutrient sources via chemotaxis, which is higher in nutrient-poor environments²⁵. Another, related, interpretation is that an increased investment in motility in nutrient-replete conditions may promote the chemotaxis-driven range expansion of bacterial populations²⁶. Alternatively, it has been suggested that an elevated flagellar gene expression at lower growth rates compensates for changes in the bacterial cell size, in order to maintain a constant minimal number of flagella per cell that is needed to keep most of the population motile²⁷. While these interpretations are not necessarily mutually exclusive, they may also be affected by the physiology of the particular E. coli strain or by the growth conditions being used. Moreover, while these studies primarily focused on explaining the relative growth-dependent changes in flagellar gene expression, the dependence of motility on the absolute investment was only explored within the range below the native level of flagellar gene expression²⁷. In contrast, the factors that determine the upper physiological limit of resource allocation in motility remained unknown.

In this study, we aimed to more comprehensively understand the motility-growth trade-off over a wider range of flagellar expression levels, quantifying the relation between the expression of flagellar genes and motile behavior, as well as the impact of motility on the growth fitness of E. coli. We further compared strategies of resource investment used by a number of laboratory strains and natural isolates of E. coli. We demonstrate that major limitations on resource investment in motility, at both high and low levels of gene expression, arise from hydrodynamic constraints on bacterial swimming. Although bacterial motility initially increases with the investment in expression of flagellar genes, consistent with the previous study²⁷, it saturates at high levels of expression despite further elevation in the number of flagella. Mathematical modelling suggests that this saturation is due to the physical limitation on E. coli’s ability to enhance its swimming by adding more than a certain number of flagella. Together with the fitness cost of flagellar biosynthesis and operation, this creates the physiologically relevant range within which the expression level of flagellar genes can enhance motility at a cost of growth fitness.

We observe that within this range, strategies of resource allocation towards motility depend on the medium, growth rate and E. coli isolate. In the nutrient-rich medium, E. coli MG1655 and other tested K-12 strains appear to maximize their motility up to the physical limit while avoiding an excessive cost of expression beyond this limit. Motility-growth trade-off is also observed during carbon-limited growth, where motility is however not maximized, but rather varies inversely proportionally to the growth rate and appears to correlate with the level of motility at which the benefit of chemotaxis towards additional nutrients saturates. This finding is consistent with the previous report for E. coli MG1655²⁵ but contrasts with the conclusions drawn for another E. coli K-12 strain HE204²⁷. Furthermore, the expression of flagellar genes becomes bimodal at very low expression levels, possibly to avoid the production of poorly motile cells. Finally, the motility of natural E. coli isolates is limited to the same range as observed for the K-12 derivatives, although its levels vary between isolates and, in some cases, are sensitive to the mechanical properties of the growth environment, probably reflecting the niche-specific selection.

Results

Native regulation of flagellar genes in nutrient-rich medium maximizes swimming while limiting the cost of expression

To investigate how motility and growth depend on the allocation of cellular resource to flagellar biosynthesis over a broad range of expression levels, we engineered a derivative of E. coli K-12 strain MG1655 with titratable expression of the flhDC operon that encodes the master activator of the entire flagellar regulon (Fig. 1a, Supplementary Data 1 and Methods). Different from a recent study with a similar design based on the P_tet promoter²⁷, we utilized a stronger P_tac promoter inducible by isopropyl β-D-1-thiogalactopyranoside (IPTG). To reduce its basal activity, the lacI repressor gene was inserted upstream of the P_tac promoter and the strain was transformed with pTrc99a plasmid vector carrying another copy of lacI. For comparability and to be consistent with the previous work²⁵, other strains were also transformed with pTrc99a. Expression of the flagellar regulon in the resulting Ptac strain at different levels of P_tac-flhDC induction was quantified using a green fluorescent protein (GFP) reporter for flagellin (fliC gene) promoter activity (P_fliC), which was previously shown to well reflect the production of flagella in E. coli^22,25,28. Reporter activity was measured using either a plate reader to follow changes in the mean expression over time (Supplementary Fig. 1a, b), or flow cytometry to determine the distribution of single-cell expression levels within the cell population at a defined time point in mid-exponential phase (Fig. 1b). We confirmed that both readouts yielded similar results for E. coli cultures grown in nutrient-rich tryptone broth (TB) medium, and that our design of the inducible Ptac strain enabled covering the expression levels of flagellar genes both well below and well above the native MG1655 (wild-type; MG1655 WT) expression (Fig. 1c and Supplementary Fig. 1b). This is in contrast to the previous study²⁷, which only covered the expression range below the native level in strain HE204 that was engineered to have an MG1655-like regulation of flagellar gene expression²⁶.

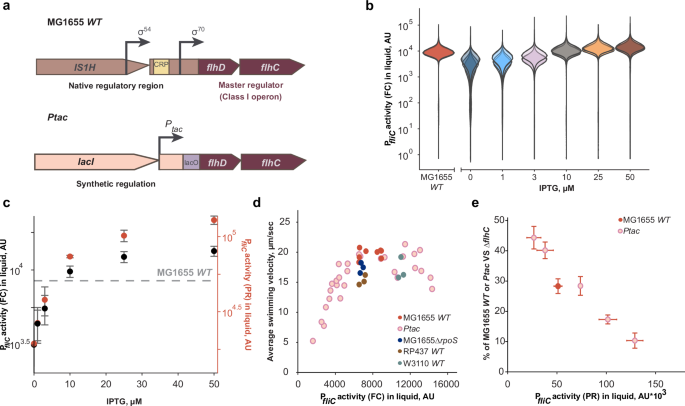

**Fig. 1: Dependence of motility and its cost on the expression of flagellar genes in nutrient-rich medium.**

To investigate how motility changes as a function of gene expression below and above the wild-type levels, we characterized swimming behavior in populations of MG1655 WT and Ptac cells grown in a batch culture for 4-5 generations to the mid-log phase (OD₆₀₀ = 0.4–0.6) using differential dynamic microscopy (DDM)²⁹ (see Supplementary Note 1 and Supplementary Fig. 2). We observed that population-averaged cell swimming velocity initially increased with expression at low levels of induction, but saturated at high levels of expression (Fig. 1d). Notably, this saturation occurred around the level of flagellar gene expression seen in the wild-type strain. A similar pattern was observed when either the fraction of well-swimming cells within the population, as determined by our motility assay, or the swimming velocity of only these cells were plotted individually (Supplementary Fig. 1c, d). The cell swimming velocity at the highest expression level was even slightly reduced (Fig. 1d and Supplementary Fig. 1d). Notably, although flagellar gene expression and motility are well known to be growth-phase dependent in wild-type E. coli strains^30,31 (Supplementary Fig. 1b), no apparent effect of sampling OD₆₀₀ was observed in the narrow range used in our experiments (Supplementary Fig. 1e).

Two other derivatives of E. coli K-12, W3110³² and RP437³³ that are both wild-type for motility, mapped to the same part of the expression-motility curve as MG1655 WT and were only slightly less motile (Fig. 1d), due to the lower flaction of motile cells for W3110 and to the lower swimming speed for RP437 (Supplementary Fig. 1c, d). Although RP437 is commonly studied as a wild type for E. coli chemotaxis, its poorer swimming performance may be a consequence of its extensive mutagenization³³. Consistently, a previous study showed that the motility of this strain can be improved by experimental evolution²². Furthermore, since activity of flagellar regulon is counterregulated by the stationary phase sigma factor RpoS (σ^S)^34,35,36, we also measured the impact of the ΔrpoS deletion on the expression-motility relation. Both flagellar gene expression and motility of MG1655ΔrpoS were similar to those in the wild-type MG1655 (Fig. 1d and Supplementary Fig. 1c, d), suggesting that the well-known rpoS polymorphism among E. coli strains³⁷ is unlikely to affect the observed dependence of motility on gene expression in the mid-log phase.

Since much of the previous work on the cellular resource allocation in E. coli, including investment motility, has been performed under the conditions of balanced growth^1,26,27,38, we also measured the dependence of motility on gene expression during balanced growth for MG1655 WT and for the lowest and highest induction levels in Ptac strain. These balanced growth data mapped well to the expression-swimming curve obtained under batch culture conditions (Supplementary Fig. 1f). Most importantly, flagellar gene expression and motility in MG1655 WT mapped to the same point where motility plateaus, confirming that our conclusions also hold under balanced growth. Furthermore, the overall dependence of motility on expression and the position of MG1655 WT in these experiments were not affected by the absence of the lacI-carrying pTrc99a plasmid (Supplementary Fig. 1f), although the basal expression in Ptac strain increased as expected.

We further investigated the cost of motility in a competitive growth assay, as commonly done to quantify relative growth fitness of bacteria³⁹, by co-culturing CFP-labeled MG1655 WT or Ptac strains with a non-flagellated YFP-labeled ΔflhC strain. The fitness cost of flagellar regulon activity over a culture passage was determined as the reduction in relative cell number of the tested strain in the co-culture from the initial 50% at inoculation, as done previously^22,25. This cumulative fitness cost gradually increased with the level of flagellar genes expression over the entire range of induction tested (Fig. 1e). Thus, expression of flagellar genes beyond the native level in E. coli K-12 strains does not appear to provide any additional benefit, but nevertheless imposes an increasing fitness cost.

Hydrodynamic constraints limit cell velocity at high levels of flagellar production

The saturation of E. coli motility at high levels of flagellar gene expression could be due either to some bottleneck in the biogenesis of functional flagella or to limits in the physical propulsion by multiple flagella. To distinguish between these two possibilities, we first determined how the activity of the flagellar regulon corresponds to changes in flagellation. Staining flagella with an amino-specific fluorescent dye⁴⁰ revealed a clear dependence of the number and length of flagella on the expression of the flagellar regulon (Fig. 2a). The average number of flagellar filaments per cell showed an approximately linear increase with the activity of the P_fliC reporter (Fig. 2b, Supplementary Fig. 3a). The length of flagellar filaments also showed a moderate increase followed by an apparent saturation (Fig. 2c, Supplementary Fig. 3b). These results were consistent with increased amounts of intra- and extracellular flagellin, determined by immunoblotting (Supplementary Fig. 4). Importantly, this correlation was observed not only below the wild-type expression levels, as reported before²⁷, but also well above those in MG1655 WT. Thus, E. coli cells can synthesize more flagella at levels of flagellar gene expression that exceed those of wild-type cells, but this increase does not translate into higher swimming velocity.

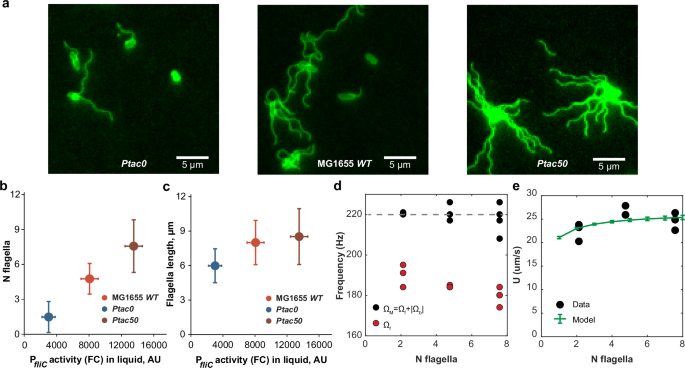

**Fig. 2: Limitation of *E. coli* motility at high expression of flagellar genes.**

Alternatively, this saturation of swimming with flagellar number could be explained by the physics of E. coli motility. The hydrodynamics of flagella-propelled bacterial swimming can be captured by mathematical models^41,42 that consider the balance between the hydrodynamic friction forces and torques on the flagellum, obtained from resistive force theory (RFT)^43,44, and the cell body^45,46. We therefore used this force balance analysis to describe the swimming of a multi-flagellated bacterium (Supplementary Note 2 and Supplementary Fig. 5). We assume that multiple flagella form a tight bundle that rotates to propel the cell, with the experimentally determined increase of flagellar length and flagellar number as a function of gene expression (Fig. 2a–c). The model also accounts for the elongated shape of the bacterial cell body and its wobbling around the direction of motion, and for flagellar motors being evenly distributed along the cell body (Supplementary Fig. 5a–c). Furthermore, our experimental measurements of flagellar and cell body rotation frequencies in swimming cells suggest that motors operate at a constant speed of approximately 220 Hz that does not depend on the number of flagella (Fig. 2d).

Although existing versions of the RFT models^43,44 use different expressions for the flagellar friction coefficients, leading to quantitative differences in their predictions, the fractional change of velocity of swimming cells and flagellar and cell body rotation frequencies with the number of flagella is well predicted by all models (Supplementary Fig. 5d–f), and experimental data could be quantitatively matched by adjusting a single parameter in the model (Fig. 2e). The initial increase stems from the increase of flagellar length and the increased thickness of the bundle formed by multiple flagella. Saturation then occurs in the RFT model at high number of filaments because the viscous drag of the cell body becomes negligible compared to the drag of the flagella themselves. As a consequence, any increase in thrust resulting from adding more flagella is offset by an equal increase in viscous drag, since the two have identical dependencies on flagellar length and bundle thickness. Similar effects are at play upon increased flagellar length in monoflagellated bacteria⁴². The model might overestimate the motility of E. coli with a single flagellum, because its assumption of a rigid filament is valid for flagellar bundle but not necessarily for an individual flagellum. The model also tends to underestimate the cell wobbling angle θ, likely because it neglects the hook elasticity⁴⁷, but the predicted dependence of the swimming speed on flagellar number changes little when using more realistic values of θ⁴⁸ (Supplementary Fig. 5g, h).

The constant motor speed further implies in our model that the load per motor is low even for single flagellated cells and decreases as the number of flagella increases (Supplementary Fig. 5i), because multiple motors share the torque generation necessary for bundle rotation and cell propulsion. Although the model neglects possible additional torque resulting from solid friction between flagella, this result implies that under our conditions the motors operate in the low-torque regime at near-maximum speed, reported to vary from 100 to 300 Hz dependent on temperature⁴⁹. This interpretation would also be consistent with other experimental observations^50,51,52. Alternatively, our results could indicate the existence of some hypothetical compensatory regulation of the motor speed dependent on load below its maximum (see Supplementary Note 2 for discussion).

Summarily, although our model is clearly simplified and does not capture all the complexity of flagella bundle hydrodynamics⁵³, it strongly indicates that the ability of E. coli to increase its swimming velocity by increasing the number and length of flagella is indeed limited by the hydrodynamics and mechanics of flagellar propulsion in viscous media.

Flagellar gene expression under carbon-limited growth does not maximize motility

We next investigated whether the C-line-dependent regulation of E. coli flagellar genes in carbon sources that support different growth rates²⁵ similarly serves to maximize swimming, or to maintain a constant level of motility as suggested before²⁷, or whether it may optimize an alternative target. Consistent with previous studies^7,24,25, the expression of flagellar genes in the MG1655 WT strain grown in the minimal medium was much lower in the presence of a good (glucose) than a poor (succinate) carbon source (Fig. 3a). Expression in the Ptac strain at a given induction was also lower during growth on glucose, but this dependence was weaker, as expected for promoters that are not catabolite repressed⁵⁴. Importantly, the average swimming velocity (Fig. 3b) as well as growth fitness cost (Supplementary Fig. 6a) in the Ptac strain showed the same dependence on flagellar gene expression for both carbon sources in the minimal medium. In the previous study²⁷, motility of cells grown on different carbon sources only mapped to the same dependence when expression was plotted in units per cell, rather than per biomass, which is likely consistent with our flow-cytometry based measurements that rather reflect the total amount of fluorescent reporter protein per cell.

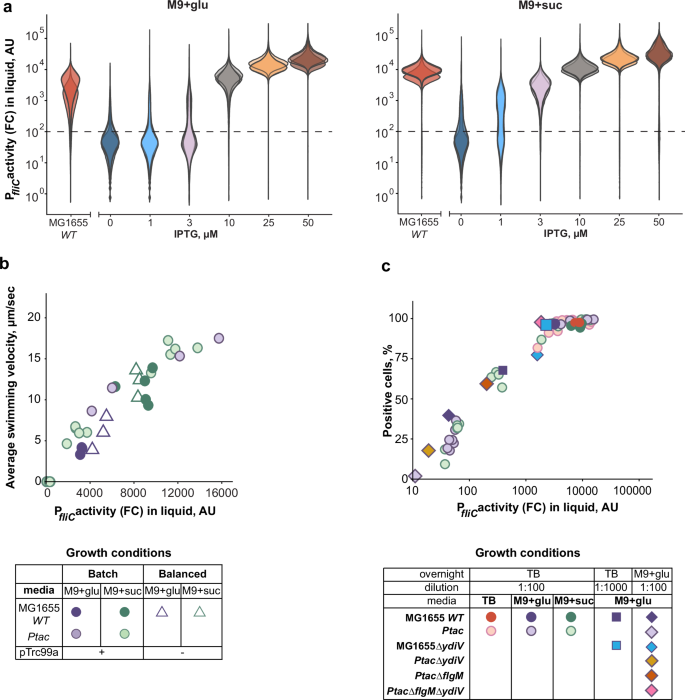

**Fig. 3: Motility of *E. coli* as a function of gene expression in minimal medium.**

Different from the growth in nutrient-rich medium, the swimming velocity of MG1655 WT cells growing in minimal medium was clearly not maximized and depended strongly on the carbon source (Fig. 3b). Similar result was obtained under balanced exponential growth and without pTrc99a (Fig. 3b and Supplementary Fig. 6b), which is closest to the experimental conditions used by Honda et al.²⁷. Thus, the much weaker dependence of motility on the growth rate reported in that study is most likely due to the difference between E. coli strains (see Discussion).

Since in minimal media MG1655 WT did not maximize swimming, the native gene expression under carbon-limited growth might correlate with the potential benefit that could be achieved by performing chemotaxis towards sources of additional nutrients. Indeed, not only cell motility but also the benefit of chemotaxis in the presence of nutrient gradients increase in poor carbon sources²⁵. Following this previous study, we measured the benefit of chemotaxis by providing localized sources of amino acids in co-culture between the Ptac strain (labeled with CFP) and its motile but non-chemotactic ΔcheY derivative (labeled with YFP) for different levels of flagellar gene induction (Supplementary Fig. 7a). Besides confirming previous finding that such measured fitness benefit of chemotaxis was generally higher in the presence of succinate as the primary carbon source compared to glucose²⁵, we observed that also the saturation of chemotaxis benefit occurred at higher expression levels of flagellar genes in succinate (Supplementary Fig. 7b). Importantly, the point of saturation was close to the native level of expression in the respective carbon source.

Bimodality of flagellar regulon activity at low expression levels

Another notable finding was the appearance of two distinct subpopulations, with almost negative and strongly positive expression, at low average levels of reporter activity in the Ptac strain (Fig. 3a and Supplementary Fig. 8). Interestingly, this separation is a function of the average reporter activity and does not depend on the carbon source (Fig. 3a, c), and it was also observed at low expression in TB (Supplementary Fig. 9a, b). In this low expression range, the proportion of positive cells in the population increased up to a critical level of expression, after which the distribution became unimodal and it was rather the mean of the positive peak that increased with expression (Fig. 3c).

Flagellar gene expression in MG1655 WT cells grown under our standard conditions was above the critical level where bimodal behavior becomes apparent, even in the presence of glucose. To determine whether bimodality may also emerge in the wild type, we further reduced flagellar gene expression using prolonged growth under catabolite repression in glucose, either by starting from a higher (1:1000) dilution of the TB-grown overnight culture or pre-growing the overnight culture in glucose (Fig. 3c, Supplementary Fig. 9c). Indeed, upon such reduction the MG1655 WT cell population exhibited a bimodal pattern of expression similar to that observed in the Ptac strain. Thus, bimodality appears to depend solely on the expression level and not on the details of transcriptional regulation of the flhDC operon, on the growth medium or on the dilution factor.

Flagellar gene expression has previously been shown to be pulsatile in E. coli^28,55 and bistable in the closely related species Salmonella enterica⁵⁶, and both bistability (in S. enterica) and pulsatility (in E. coli) of expression were attributed to negative regulation of FlhDC activity by YdiV (RflP)^55,57. We therefore tested whether regulation by YdiV could be responsible for the emergence of bimodality in our experiments. As expected, the expression level of flagellar genes in MG1655ΔydiV strain was elevated, and it was above the bimodality threshold in glucose even when the culture was inoculated from TB at a 1:1000 dilution (Fig. 3c and Supplementary Fig. 9c). However, the batch culture inoculated from the overnight pre-culture grown in glucose showed the expression level that was sufficiently lowered, and two distinct subpopulations could be clearly distinguished in both the MG1655ΔydiV and PtacΔydiV strains (Supplementary Fig. 9c, d and Fig. 3c). These data suggest that negative regulation by YdiV is not sufficient to explain the bimodal activation of the P_fliC reporter. We next investigated the involvement of another negative regulator, the anti-sigma factor FlgM that inhibits the expression of class 3 flagellar genes including fliC⁵⁸. The deletion of flgM in Ptac strain expectedly increased the average P_fliC activity, and it resulted in a broad and only weakly bimodal distribution of expression levels (Supplementary Fig. 9e). Bimodality could no longer be seen in PtacΔflgMΔydiV (Supplementary Fig. 9f), but the average expression in this strain remained high and could not be reduced below the bimodality threshold. Thus, negative regulation mediated by both YdiV and FlgM is important for the bimodal expression of flagellar genes, with FlgM apparently playing a more important role.

Activity of the flagellar regulon and motility in natural isolates of E. coli

Finally, to investigate how investment in motility varies among E. coli strains that may have adapted to different ecological niches, we used the ECOR collection, which contains 72 isolates from different hosts and geographical regions⁵⁹. From this collection, we first selected 61 strains that were sensitive to kanamycin and thus transformable with the P_fliC reporter plasmid, and then discarded 23 non-swimming isolates that did not spread in porous (0.27%) TB agar. From the remaining 38 spreading isolates, a subset of 24 strains with moderate and good spreading abilities was chosen for further investigation (Supplementary Data 2). Since the presence of pTrc99a had no impact on either cell motility or the activity of the P_fliC reporter in TB (Supplementary Fig. 1f), ECOR strains were not transformed with pTrc99a.

Although the majority of ECOR strains grew faster than MG1655 (Supplementary Fig. 10a) they exhibited a similar growth-phase dependence of flagellar regulon activity (Supplementary Fig. 10b). Therefore, we used the same range of OD₆₀₀ (OD₆₀₀ = 0.4–0.6) as for MG1655 WT and Ptac to measure their expression and swimming. The activity of the P_fliC reporter varied widely among the TB-grown isolates, yet it was consistently below or similar to that of the MG1655 WT strain (Fig. 4a and Supplementary Fig. 10b, c). However, the swimming velocity of the majority of ECOR strains grown in liquid TB medium was lower than that of MG1655 WT or Ptac strains at comparable levels of P_fliC reporter activity (Fig. 4a and Supplementary Fig. 10c). Since previous studies showed that the motility of several pathogenic E. coli strains⁶⁰ and other bacteria⁶¹ can be activated when cells are grown on a surface or in a porous medium, we measured the ability of ECOR strains to spread in porous 0.27% TB agar. Indeed, the spreading of most ECOR strains, including those that were poorly motile when grown in liquid, was comparable to that of MG1655 WT and Ptac (Fig. 4b).

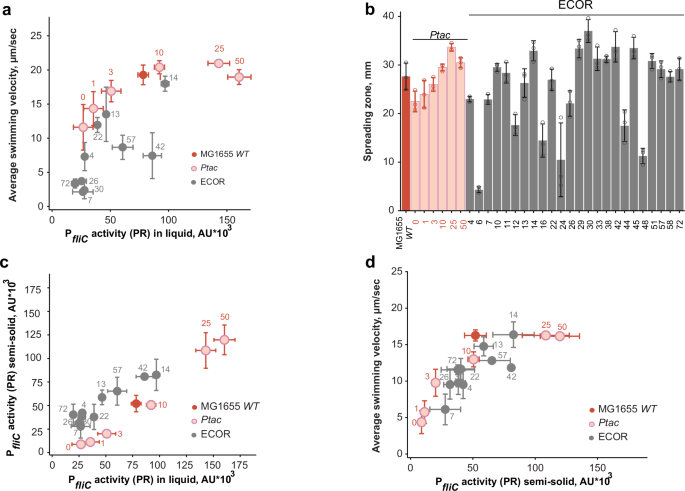

**Fig. 4: Activity of the flagellar regulon and motility in natural isolates of *E. coli*.**

A possible explanation for this difference could be mechanosensitive activation of flagellar genes in cells grown in porous media or on a semi-solid agar surface, where flagella rotate under high load^60,62,63,64. We therefore measured the activity of the P_fliC reporter in cultures grown on 0.5% TB agar plates. In this case, expression in individual strains correlated well with their spreading (Supplementary Fig. 10d). While for several isolates we indeed observed an upregulation of reporter activity in such surface-grown compared to liquid-grown cultures (e.g. ECOR-72), this was not the case for the majority of ECOR strains (Fig. 4c, Supplementary Fig. 10e and Supplementary Data 2). However, when the motility of cells grown on an agar surface was subsequently analyzed in motility buffer (see Methods for details), the population-averaged cell swimming velocity was indeed higher for many ECOR strains compared to liquid-grown cultures, now showing a dependence of population-averaged swimming velocity on expression similar to that for the MG1655 WT and Ptac strains (Fig. 4d, Supplementary Fig. 10f and Supplementary Data 2). This increase in motility was mostly due to changes in the fraction of swimmers (Supplementary Fig. 10g) whereas the swimming velocity of motile cells differed much less between liquid- and surface-grown cultures (Supplementary Fig. 10h). Thus, the observed poor motility of many ECOR isolates grown in liquid medium cannot be generally attributed to the low activity of the flagellar regulon but rather hints at some deficiency in flagellar assembly or function in liquid-grown cell. Notably, however, both flagellar gene expression and swimming of all ECOR strains were always below or comparable to that of MG1655 WT, suggesting that the investment in motility by natural E. coli isolates is under similar constrains as in the K-12 strains.

Discussion

How microorganisms regulate the allocation of their limited cellular resources under varying environmental conditions remains an open question. Although it might be expected that gene expression levels should have been evolutionarily tuned to maximize an organism’s fitness, such optimization is a multifactorial problem with mostly uncharacterized constraints and trade-offs between conflicting objectives. Particularly challenging to understand are microbial strategies for allocating resources to costly functions that do not directly benefit growth or are not used under certain conditions, which can account for up to half of cellular protein resources^13,65,66.

Here, we investigated resource allocation to flagellar motility, the most prominent of such non-growth-related cellular functions in bacteria, by titrating expression of the flagellar gene regulon and quantifying its impact on E. coli motility. While it was already shown that the number of flagella and cell motility increase proportionally to expression in the range below the wild-type level²⁷, it remained unknown whether flagella biogenesis and motility continue to increase above the native expression. By covering a wider expression range than done previously, we demonstrate that E. coli can increase its flagellation beyond the level observed in wild-type strains. The effect on growth fitness increases proportionally with resource investment over this wide range, too, which is consistent with the fact that flagella biosynthesis is the major component of motility costs^17,22,25. In contrast, cell swimming velocity only increases as a function of flagellar gene expression until the number of flagella reaches ~5, which corresponds to the number observed in the wild-type MG1655 cells, but saturates above this level. This dependence of swimming velocity on the number and length of filaments was well captured by a mathematical model describing the swimming of a multi-flagellated bacterium using resistive force theory, in agreement with previous modeling of multiflagellar propulsion^48,53,67. Thus, the observed saturation of cell velocity appears to be the consequence of hydrodynamic constraints on E. coli motility.

Further supporting the general nature of this relation, not only the K-12 strains, but also the majority of motile natural isolates of E. coli mapped to the same unique expression-swimming relation under conditions that favored their motility. Although the activity of the flagellar regulon differed among the wild-type E. coli strains tested and between conditions, it was invariably confined to the sub-saturating regime. In a subset of the natural isolates, flagellar gene expression in the nutrient-rich medium was most likely selected to maximize swimming velocity as in MG1655 and other tested K-12 strains. This suggests that the regulation of motility in MG1655 is well representative of highly motile E. coli strains. Such maximization of motility may be indicative of the high importance of swimming, e.g., for colonization of the environment^19,26,68. However, even in these strains including MG1655, the expression levels remain constrained by the critical level at which swimming velocity saturates, suggesting that cells avoid unnecessary resource expenditures that provide no additional benefit. The expression levels in other E. coli isolates map to different points on the expression-swimming curve, covering the range below the saturation of motility. Such heterogeneity likely arises from different selection pressures on motility in the ecological niches occupied by different isolates, with motility being more or less beneficial in a particular niche. This is indeed consistent with the findings that differences in motility allow coexistence and niche segregation between E. coli strains, both in vitro^25,69 and in an animal host⁷⁰.

While many E. coli strains, including the K-12 derivatives and some natural isolates, swim similarly well when grown in either liquid or porous media, we observed that the majority of natural isolates exhibit good motility only when grown in porous or semi-solid media, possibly reflecting conditions in the animal gut. The mechanisms underlying this effect require further characterization; however, this phenomenon does not seem to be solely explained by a previously reported mechanosensitive upregulation of the entire flagellar gene regulon in porous media⁶⁰. Many E. coli isolates swim poorly when grown in liquid despite having comparatively high activity of the flagellar regulon, and only achieve motility that could be expected based on their gene expression when grown on semi-solid medium. For these isolates, growth in liquid may result in the assembly of poorly functional motors or flagella. One potential mechanism for such flagellar motor remodeling in E. coli could be the previously described recruitment of additional force-generating units under load^62,64. However, it remains to be seen whether this recruitment is sufficiently long-lasting to explain why these isolates retain high motility even after transfer to a liquid environment. Of note, growth in 0.27% or on 0.5% agar as used in our experiments is not sufficient to induce E. coli swarming, a distinct type of flagella-mediated surface motility associated with the overproduction of flagella and cell elongation that can also be observed in K-12 strains⁷¹. Therefore, the observed surface-dependent activation of motility does not correspond to swarming, although a potential regulatory connection between the two phenomena cannot be ruled out.

When grown under carbon limitation, E. coli cells exhibited similar expression-swimming and expression-cost relations in the presence of both good and poor carbon sources. However, under these conditions, the native expression of flagellar genes in E. coli MG1655 clearly does not maximize swimming. Instead, it seems to correlate well with the saturation of the benefit that E. coli could derive from chemotaxis-dependent accumulation at the source of additional nutrients, consistent with the strategy of anticipatory investment in motility under carbon limitation²⁵. This contrasts with the study by Honda et al.²⁷, who observed only a minor difference in motility between E. coli cultures grown on different carbon sources, likely due to the difference between strains. Although the HE204 strain used by Honda et al. was engineered as a motile version of the originally non-motile E. coli NCM3722 strain^26,27 by placing the same IS1H insertion element as present in MG1655 upstream of the flhDC operon, the detailed regulation of flagellar gene expression in this engineered strain may differ from that in the naturally motile MG1655, resulting in higher basal expression of flagellar genes and lower responsiveness to the carbon catabolite repression. Such growth-related difference between these strains would not be unexpected given that NCM3722 (and its HE204 derivative) grow markedly faster than MG1655²⁶. Nevertheless, our conclusions are not mutually exclusive, and it is possible that the increase in flagellar gene expression in poor carbon sources can both compensate for the decrease in the cell size and in addition result in higher motility of E. coli under these conditions.

The reduced activity of the flagellar regulon under carbon-limited growth revealed another prominent feature of its regulation in E. coli, namely the emergence of two distinct subpopulations of cells below a certain threshold of average P_fliC reporter activity. This bimodality may be related to the recently described pulsatile activation of flagellar genes in E. coli at intermediate expression levels of the master regulator FlhDC^28,55. Although this previous work concluded that the pulsatility of expression is caused by the negative regulation of FlhDC by YdiV²⁸, which acts as a digital expression filter⁵⁵, our experiments suggested that a downstream negative regulator FlgM, plays at least an equally important role. Furthermore, based on the established quantitative relation between gene expression and swimming motility, we could speculate on possible physiological reasons for such differentiation into distinct subpopulations. The bimodality of gene expression in microorganisms is commonly interpreted as stochastic bet-hedging behavior, which may be a better strategy in an unpredictable environment than a single adaptive phenotype^72,73,74. While similar arguments were used to rationalize the differentiation of a bacterial population into motile and non-motile phenotypes^28,55,56, here we propose a different, though not mutually exclusive, explanation. We hypothesize that the bimodality, which occurs when the expression falls below the level at which two flagella per cell are synthesized and flagellar length decreases, serves to avoid the emergence of “average”, poorly motile phenotypes with a single and shorter flagellum, which may be unable to benefit from motility, yet still incur the fitness cost. Such “enforced” bet hedging may provide an alternative explanation for the evolutionarily selected bimodality of gene expression, which is likely to apply not only to bacterial motility, but also to other cases where an intermediate phenotype is less fit than either of the extreme phenotypes. Thus, the hydrodynamics of flagella-mediated motility may not only determine the upper limit of swimming velocity at high levels of flagellar gene expression, but may also explain its bimodality at low levels of expression.

Methods

Strains and growth media

All E. coli strains, including natural isolates from the E. coli Reference Collection (ECOR)⁵⁹ and plasmids used in this study are described in Supplementary Data 1 and 2. The strain with inducer-dependent expression of flhDC operon (Ptac) was constructed previously²⁵ by replacing the native regulatory region of the flhDC operon, including the upstream IS1H insertion element, in the MG1655Δflu background with the tac promoter inducible by isopropyl β-D-1-thiogalactopyranoside (IPTG). To reduce the basal expression of the flhDC operon, the lacI gene encoding the Lac repressor was additionally inserted upstream of the tac promoter. Deletion of the ydiV and flgM genes in MG1655Δflu and its Ptac derivative was performed by P1 transduction from the KEIO collection⁷⁵ followed by curation of the resistance cassette by FLP recombination⁷⁶. Deletion of the flu gene encoding the major E. coli adhesin, antigen 43, in the MG1655 group strains was used to prevent autoaggregation of motile planktonic cells⁷⁷ and thus facilitate subsequent characterization of motility²⁵.

To evaluate the activity of the flagellar regulon, strains were transformed with the plasmid carrying the GFP reporter for fliC promoter (P_fliC) as described previously²⁵. For pairwise growth competition experiments, performed as before²⁵, the strains were labeled by expression of either cyan or yellow fluorescent proteins (CFP or YFP) from the pTrc99a vector under the control of the IPTG-inducible synthetic P_trc promoter⁷⁸. Since pTrc99a carries an extra copy of lacI, which reduces the leaky expression from the genomic P_tac promoter and thus the inducibility of expression in the Ptac strain, an empty pTrc99a vector was transformed into MG1655 WT, Ptac and other E. coli K-12 strains for comparability.

E. coli strains were grown in either lysogeny broth (LB; 10 g l⁻¹ of tryptone, 5 g l⁻¹ of yeast extract, 5 g l⁻¹ of NaCl), tryptone broth (TB; 10 g l⁻¹ of tryptone, 5 g l⁻¹ of NaCl), and either M9 (5× stock made with 64 g l⁻¹ (239 mM) of Na₂HPO₄-7H₂O, 15 g l⁻¹ (110 mM) of KH₂PO₄, 2.5 g l⁻¹ (43 mM) of NaCl, 5.0 g l⁻¹ (93 mM) of NH₄Cl, 2 mM MgSO₄, 0.1 mM CaCl₂, 1 μM FeSO₄, and 1 μM ZnCl₂) or Tanaka (20 mM (NH₄)₂SO₄, 34 mM Na₂HPO₄, 0.3 mM MgSO₄, 64 mM KH₂PO₄, 10 μM CaCl₂, 1 μM FeSO₄, and 1 μM ZnCl₂)⁷⁹ minimal media supplemented with 0.4% glucose or 15 mM succinate as the sole carbon source. Ampicillin (100 μg ml⁻¹) and/or kanamycin (100 μg ml⁻¹), and isopropyl β-d-1 thiogalactopyranoside (IPTG) were added to the media when necessary.

Growth conditions

E. coli strains were grown either in batch cultures or under balanced growth. Unless specified otherwise, for the measurements in batch day cultures were prepared by 1:100 dilution of a TB-grown overnight (37 °C, 200 rpm) in 10 ml of the respective medium supplemented with kanamycin (100 μg ml⁻¹) for the strains transformed only with P_fliC-GFP reporter plasmid (including all ECOR isolates). For pTrc99a-carrying strains, ampicillin (100 μg ml⁻¹) was also added to the medium. When minimal medium was used, cells were washed three times in medium without carbon source before inoculation. Cultures were incubated at 34 °C with shaking (270 rpm) and harvested at mid-exponential phase (OD₆₀₀ = 0.4–0.6 for TB or 0.3–0.5 for M9) measured with spectrophotometer (Ultrospec 10 cell density meter, Amersham Biosciences).

For the balanced growth, we used the same setup as described in Honda et al.²⁷. Briefly, MG1655 WT and Ptac strains were streaked from stocks on LB agar plates supplemented with kanamycin (100 μg ml⁻¹) and, where relevant, with ampicillin (100 μg ml⁻¹) and incubated overnight at 37 °C. Next day, 2–3 colonies were individually inoculated in 2 ml of LB and grown for 4–5 h (seed culture). After that, 1 ml of the seed culture was pelleted (6000 rpm, 5 min), washed once in the target medium, and diluted 1:9 in the target medium. OD₆₀₀ values of the diluted samples were determined with spectrophotometer. Based on the measurements the samples were further diluted in fresh target medium (pre-culture) to the final OD₆₀₀ = 0.002 and grown overnight (34 °C, 270 rpm). The corresponding IPTG amounts were added to the pre-cultures of an inducible Ptac strain. In the case of TB medium, two “pre-culture” steps were performed to prevent cells from reaching stationary phase. Based on the measured OD₆₀₀ values, pre-cultures were diluted to the final OD₆₀₀ = 0.01–0.02 in 10 mL of the target medium (experimental culture). Both expression and swimming were analyzed during steady-state growth (OD₆₀₀ = 0.1–0.5).

Reporter activity measurements

P_fliC reporter activity was measured by either flow cytometry or plate reader assay. For flow cytometry, cultures grown in batch or under balanced growth conditions were diluted 1:50 in tethering buffer (6.15 mM K₂HPO₄, 3.85 mM KH₂PO₄, 0.1 mM EDTA, 1 µM methionine, 10 mM sodium lactate, pH 7.0) and fluorescence was detected using a 488 nm laser (100 mW) and a 510/20 nm bandpass filter for GFP on a BD LSRFortessa SORP cell analyzer (BD Biosciences, Germany). 30,000 individual events were analyzed in each experimental run. Gating was first performed on an FSC-A/SSC-A plot and on an SSC-W over SSC-H plot to exclude doublets⁸⁰. Events in the samples with fluorescence intensities higher than the background signal from the MG1655 WT or Ptac strain without the reporter plasmid were considered ‘positive’ (Supplementary Fig. 8). The proportion of ‘positive’ events per sample and summary statistics (mean, median fluorescence values) of both the ‘positive’ and the ‘whole’ population were assessed during the measurements using BD FACSDiva^TM Software v8.0.1. Data were collected in FCS 3.0 file format and analyzed using the flowCore package in R v4.2.2.

For growth and expression measurements in the BioTek Synergy H1 plate reader. Unless specified otherwise, overnight cultures were inoculated into the 96-well plates (Greiner Bio-One) at a dilution of 1:1000 and grown at 34 °C with double orbital shaking at a frequency of 548 cycles per minute (CPM) and a shaking amplitude of 2 mm for 24 h (TB) or for 48-64 h (M9). GFP fluorescence was quantified using a monochromator-based filter set (excitation 485 nm, emission 530 nm, with a bandpass ≤ 18 nm for detection). Fluorescence and optical density (OD₆₀₀) were measured every 10 min. Since the experiment with ECOR strains was performed independently using a different fluorescence detector gain, the GFP/OD₆₀₀ signal of MG1655 WT reaches a higher value on Supplementary Fig.10 compared to Supplementary Fig.1. For experiments shown in Supplementary Fig. 7, the TECAN Infinite M1000 PRO plate reader was used instead for consistency with the previous study²⁵.

Reporter activity in ECOR isolates was also measured after growth in liquid TB medium in flasks or on the surface of semi-solid TB agar (0.5%). For the liquid medium setup, day cultures were prepared in the same manner as batch cultures of MG1655 WT and Ptac. For growth on the semi-solid medium, 20 µl of the same overnight culture was spread on the surface of TB agar using glass beads. After drying for 15–20 min, the plates were incubated at 34 °C for the same time as it took the strain to reach OD₆₀₀ = 0.4–0.6 (i.e., 2.5–4 h) in liquid medium. Cells were gently washed from the plates with 2 ml of motility buffer (6.15 mM K₂HPO₄, 3.85 mM KH₂PO₄, 0.1 mM EDTA, 67 mM NaCl, pH 7.0) and adjusted if necessary to final OD₆₀₀ = 0.5, and 1 ml of a liquid-grown culture was also washed once in motility buffer. After another washing step, the cells were resuspended in 1 ml motility buffer supplemented with 1% glucose and 0.001% Tween-80. GFP fluorescence was measured in a TECAN Infinite 200 PRO plate reader at 480 nm wavelength, 9 nm bandwidth for excitation and 510 nm wavelength, 20 nm bandwidth for emission.

Analysis of swimming velocity and flagellar rotation

Bacterial cell motility was analyzed as previously described in refs. ^25,81. Briefly, 1 ml of the same cell culture as prepared for flow cytometry was gently centrifuged (1500 g, 5 min), washed twice in motility buffer, and resuspended in 1 ml motility buffer supplemented with 1% glucose and 0.001% Tween-80. 3–5 µl of this cell suspension was introduced into a custom-made chamber between two coverslips, forming a cylindrical drop of ~500 µm height and ~3 mm diameter. Motility was imaged at least 100 µm away from all the edges of the drop to avoid boundary effects, by phase-contrast video-microscopy (Nikon TI Eclipse, 10x objective with NA = 0.3, Phase 1 ring, CMOS camera EoSens 4CXP), with 10,000 frames being recorded at a rate of 100 frames per second (fps). Motility parameters, in particular the fraction of swimming cells and the swimming velocity of swimmers, were extracted from the movies using differential dynamic microscopy (DDM)²⁹ (see Supplementary Note 1).

To determine the frequency of flagellar rotation, samples were prepared in the same manner as described for swimming velocity analysis. A 10,000-frame movie with a field of view of 512 × 512 px² (1 px = 0.7 µm) was acquired far from the sample surfaces under dark field illumination (Nikon TI Eclipse, 10x objective with NA = 0.3, CMOS camera EoSens 4CXP) at a rate of 800 fps. Dark field illumination is obtained by combining an aligned Ph3 condenser ring with the 10x objective on the Nikon TI Eclipse microscope. All data were analyzed using the dark field flicker microscopy (DFFM) method⁵⁰ (see Supplementary Note 1) implemented in ImageJ (https://imagej.nih.gov/ij/) with custom-written plugins. The plugins for DDM (previously published) and DFFM are available at https://gitlab.gwdg.de/remy.colin/FourierImageAnalysis. Briefly, DFFM uses the flickering that results from changes in the direction in which light is scattered by anisotropic objects as they rotate to measure the rotation speeds of the cell body and flagella.

Motility assay in soft agar

Motility driven spreading of E. coli in 0.27% TB soft agar was analyzed as previously described in ref. ⁶⁰. Briefly, 2 µl of overnight cultures grown in TB (37 °C, 200 rpm) were transferred to the soft agar plates, and the diameters of the spreading zones were measured after 4–5 h of incubation at 34 °C by capturing images with an iPad camera and quantifying the diameter of the spreading zone using ImageJ.

Pairwise growth competition

Growth competition assays were performed as previously described in ref. ²⁵. Briefly, the overnight cultures of the MG1655 WT or Ptac strain expressing CFP and the ΔflhC strain expressing YFP, grown individually in TB (37°C, 200 rpm), were mixed in a 1:1 ratio to final OD₆₀₀ = 0.0025 in 2.5 ml of fresh media and cultured for 24 h (TB) or 48-72 h (M9 minimal medium) at 34 °C and 200 rpm. The expression of YFP and CFP was induced with 10 µM IPTG for the co-culture containing the MG1655 WT strain or by the corresponding IPTG concentrations used for induction of the chromosomal Ptac promoter. For the chemotactic benefit assay, differentially labeled non-chemotactic ΔcheY strain and MG1655 WT or Ptac strains were grown in Tanaka minimal medium for 72 h without shaking in the presence of nutrient gradients generated by 40 µl volume agarose beads (2% agarose) containing 12% casein hydrolysate as described previously²⁵. The initial and final proportions of CFP- and YFP-labeled cells were measured by flow cytometry on the BD LSRFortessa SORP cell analyzer (BD Biosciences). The sample was excited with lasers at 447 nm (75 mW), 514 nm (100 mW), and 488 nm (20 mW), with the latter used to identify all cells. CFP and YFP emission signals were detected at 470/15 nm and 542/27 nm, respectively. The fraction of CFP/YFP-‘positive’ events per sample was assessed during the measurements using BD FACSDiva^TM Software v8.0.1. Summary statistics were collected in csv file format and analyzed in R v4.2.2.

Measurements of flagellar length and number

For flagella staining, 1 ml of the mid-exponential cell culture grown in TB as described above was centrifuged (3000 g, 3 min) and gently washed three times in Buffer A (10 mM KPO₄ buffer, 0.1 mM EDTA dipotassium salt, 67 mM NaCl, 0.001% Tween-80, pH 7.0). The cell pellet was resuspended in 400 µl of Buffer B (same as Buffer A but adjusted to pH 7.8 with NaHCO₃), and 8 µl of 10 µg ml^-1 Alexa Fluor 594 succinimidyl ester dye dissolved in DMSO was added to the mixture. Samples were incubated at 30 °C in the dark with gentle shaking (100 rpm) for 90 min, washed three times in Buffer A and diluted fivefold in Buffer A. 3–5 µl of cell suspension was applied to a 1% agarose pad (in tethering buffer) and transferred to a 2-well µ-Slide (ibidi, Germany).

Fluorescence widefield images were acquired using a Zeiss Elyra 7 inverted microscope with a 63x oil/1.46 oil objective and a further 1.6X magnification. The sample was excited with a 561 nm 500 mW laser (1% power) using a quadruple band dichroic and emission filter. The fluorescence emission of the succinimidyl ester was detected at 595/50 nm interval with a PCO 4.2 Edge sCMOS camera, the exposure time was 100 ms. The number of flagella was quantified for 106 cells in total from multiple fields of view per condition, including both flagellated and non-flagellated cells. The length of flagellar filaments was measured using segmented line tool of ImageJ.

Immunoblot analysis of intra- and extracellular flagellin

To shear flagellar filaments, a 1 ml aliquot of the mid-exponential cell culture was passed through a 1 ml syringe with the 26 G needle 20 times, and centrifuged at 2500 g for 10 min. The supernatant and cell pellet, resuspended in 333 µl of TB medium, were further analyzed by immunoblot. To transfer the samples to the membrane after SDS-PAGE, a PerfectBlue Semi-Dry Electroblotter (Peqlab, VWR, Germany) was used at constant amperage for 1 h (150 mA for 8*6 cm membrane and 1.5 mm thick gel). After transfer, the membrane was stained with Revert™ 700 Total Protein Stain for Western Blot Normalization (LI-COR Biosciences, Germany) and, after blocking, incubated overnight (4 °C, orbital shaking) with the anti-flagellin rabbit polyclonal FITC-conjugate primary antibody (AA 2-498-FITC, ABIN2831532, 1.5 mg/ml) diluted 1:10,000. Next day, IRDye 800CW donkey anti-rabbit IgG secondary antibody (LI-COR Biosciences; P/N: 926-32213, 1 mg/ml) was added to the membrane at a dilution of 1:10,000. Fluorescence was measured using an Odyssey Clx Infrared Imaging System (LI-COR Biosciences, Germany) in two channels (700 and 800 nm). Images were analyzed and processed using ImageJ.

The model of flagellum-mediated bacterial swimming

The model for multiflagellated propulsion extends the classical force balance analysis for uniflagellated propulsion^41,82 and accounts for our measurements of swimming speed, cell body rotation speed, and flagellar rotation speed, as well as flagellar length, flagellar number, and cell size. The model is described in detail in Supplementary Note 2. Briefly, we assume that the multiple flagella form a single tight bundle^83,84, described in the framework of resistive force theory^43,44,82,85 as a rigid helix of larger thickness for a higher number of flagella, supported by macroscopic experiments at low Reynolds number with multiple helices^86,87. We account for the increase in both flagellar length and flagellar number with increasing flhDC induction. The cell body is described as a counter-rotating rod^45,46 of fixed size, consistently with our observation. The flagellar motor speed is assumed to be constant, in agreement with our measurements of the flagella and cell body rotation speeds. The balance of forces and torques acting on the cell body and the flagellar bundle provides predictions of the swimming speed and the rotation frequencies. All model calculations were performed using Matlab R2020a. The code used is available at https://gitlab.gwdg.de/remy.colin/RFTMultiflagella.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All data are available in the main text or in Supplementary Information. Source data are provided with this paper.

Code availability

Matlab codes for the model are available at https://gitlab.gwdg.de/remy.colin/RFTMultiflagella. The plugins for DDM (previously published) and DFFM are available at https://gitlab.gwdg.de/remy.colin/FourierImageAnalysis.
