Introduction

The introduction of disorder can have many effects on a classical phase transition1, including altering the universality class of a continuous transition2, converting a transition from first to second order3, and even changing the ground state of the system4. Quantum phase transitions (QPT)s are expected to be affected more profoundly by disorder, with consequences for both the static and dynamical behavior5,6. When a d-dimensional quantum system is mapped to a (d + z) dimensional classical system, where z is the dynamical critical exponent, quenched disorder becomes correlated in the imaginary time dimension. However, systematic approaches to characterizing this hypersensitivity to disorder at a QPT pose distinct theoretical and experimental challenges.

A thorough experimental investigation of the role of disorder in phase transitions requires probing the system at various strengths of that disorder. Typically, randomness is introduced by a structural or compositional mechanism that entails studying a sequence of separate samples over a range of disorder, which can be difficult to synthesize controllably. Here, we adopt an alternate approach by investigating an erbium-based quantum magnet with quenched disorder provided by isotopic variation. Er-167, at 23% natural abundance, is the only stable isotope with non-zero nuclear spin. The energy scale of the hyperfine coupling makes it possible to vary the influence of the quenched disorder simply by changing the temperature.

LiErF4 is an insulating tetragonal crystal with four erbium ions per unit cell (Fig. 1 top). Erbium’s 4f electrons (J = 15/2) provide large localized moments that are dipolar-coupled. The electronic ground state of an erbium ion is a Kramers doublet with a 26 K energy gap to its first excited state. This subspace can be treated as an effective spin- ½ system. The crystal field induces strong easy plane anisotropy which, within the effective subspace, is fully described by an anisotropic g-factor (g⊥ / g||)2 = 13.8. In-plane anisotropy, originating from order by disorder, causes the moments to point along the a or b-axis7. These symmetries correspond to the XY/h4 universality class.

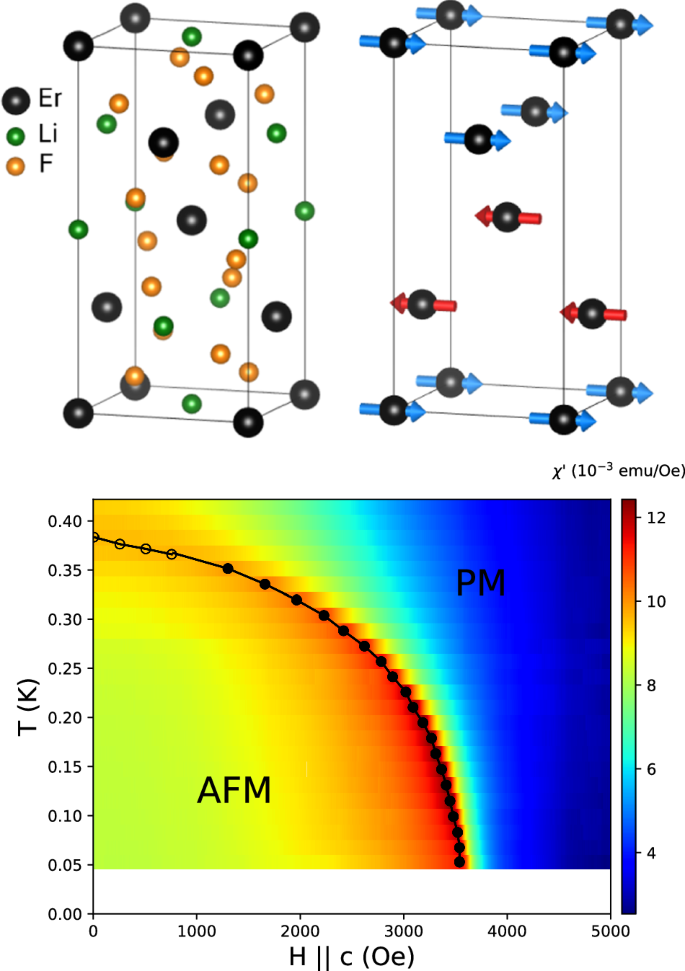

Fig. 1: Structure and magnetism of LiErF4.
Fig. 1: Structure and magnetism of LiErF4.
Full size image

(top left) Body-centered tetragonal unit cell of LiErF4. Lattice constants are a = 5.162 Å (horizontal), c = 10.70 Å (vertical). Er, Li, and F sites are represented as black, green, and orange spheres, respectively. (top right) Arrows on the Er sites represent the double layer antiferromagnetic spin structure of the ordered state. (bottom) The data points mark the measured phase diagram as a function of temperature and c-axis magnetic field, obtained by sweeping temperature (open circles) and field (filled circles). TN and Hc are defined by the maximum in susceptibility for a given temperature and field sweep, respectively. Imagemap shows the susceptibility data from Fig. 2.

LiErF4 orders antiferromagnetically8 with a bilayer structure at TN = 373(5) mK7. The observed TN is approximately half of mean-field predictions, and its critical exponents have been reported as β = 0.15(2) and α = −0.28(4). These exponents are consistent with a 2D quasi-Ising description where the exponents lie in a universal window bounded by the exponents of the 2D Ising (β = 0.125) and XY (β = 0.23) models. The strength of the in-plane anisotropy tunes between these bounds9. This reduction in dimensionality is surprising for a material whose 2D nature is not evident from its structure; however, it has been observed in similar materials10.

A QPT to a paramagnetic state is induced by applying a magnetic field of order 4 kOe along the c-axis (Fig. 1 bottom). βH = 0.31(2) was reported for this QPT which is near the values of both the 3D Ising (βH = 0.3265(3)) and XY (βH = 0.349(2)) models. This agrees with a d + 1 mapping from the classical phase transition. Mean field calculations of the critical field are sensitive to which crystal field parameters are used; values ranging from 5.75 kOe7 to 9.5 kOe11 have been reported. However, all calculations overestimate the experimentally observed critical field, Hc, and along with the dimensional reduction and the non-mean field critical exponents, point to the role of spin fluctuations at the transition.

For erbium sites occupied by Er-167 atoms, the nuclear moment (I = 7/2) couples antiferromagnetically to the electronic moment. A coupling strength of Ahf = 6 mK was found by electron-paramagnetic-resonance spectroscopy12. This coupling splits the Kramers doublet into a multiplet. At the level of a single ion calculation, these states have a span of 160 mK (see Fig. S2). In LiHoF4, an Ising ferromagnet within the same family of materials, the hyperfine coupling slaves the nuclear spins to the electronic spins at sufficiently low temperature, increasing the critical field13 and allowing a new class of low energy, electronuclear excitations14, but does not alter its universality class15. The increase in Hc is a general effect due to a reduction in effective field felt by the electronic spins16. Since Ho has only one stable isotope, no disorder is introduced by the nuclear moment.

Mean field calculations on LiErF4 that include nuclear moments on 23% of sites find a similar increase in Hc of ~500 Oe7,11. The choice of crystal field parameters does not strongly impact the change in Hc. Since the nuclear spin locks with the electronic spin, the local XY/h4 symmetry of the system is unbroken by the disorder and belongs to the category of random mass (also referred to as random-Tc) disorder1. Random field disorder is a stronger form of disorder which breaks the local symmetry. Previous work on LiErF4 examined the effect of random-field disorder by substituting Er with Ho and found a reentrant glassy state with 6% substitution17.

Results

We plot in Fig. 2 field sweeps of the ac magnetic susceptibility in the linear and zero-frequency limits along the c-axis on a needle crystal with dimensions (0.35 x 0.35 x  1.65 mm3) at a series of temperatures. A critical field of Hc(T = 0) = 3645(6) Oe is found by fitting the phase boundary to a power law form. This field is 10% lower than a reported value of Hc(T = 0) = 4000 Oe7. We attribute this discrepancy to demagnetization effects (see Methods). At temperatures above 150 mK (Fig. 2 top), we observe steadily increasing critical divergence as the temperature drops, corresponding to the diminishing strength of thermal fluctuations. Below 150 mK (Fig. 2 middle), the opposite trend is observed: the sharpness of the transition is reduced continuously as the temperature decreases. This evolution in the shape of the divergence can be parameterized by the full width of the peak at 90% of its maximum for each T (Fig. 2 bottom). This heuristic metric reinforces the trend apparent in the raw data of two qualitatively distinct regimes separated at T = 150 mK. In a conventional description of a QPT with a single energy scale, monotonic thermal broadening is expected and can be understood as a finite size effect in the imaginary time dimension18. The unexpected broadening in the low temperature regime suggests the presence of a second energy scale that is not electronic in origin. To check for the possibility of glassy dynamics, we performed 3 GHz susceptibility measurements using a microwave loop gap resonator19 on a sample cut from the same parent sample. We found qualitatively similar behavior, narrowing and then broadening of the peak in the susceptibility below T ~ 150 mK, with no observable alteration to Hc(T) (see Fig. S1). Similar glassy materials have far stronger frequency dependence in their freezing temperature: \(\frac{{\Delta T}_{F}}{{T}_{F}{\Delta \log }_{10}(\,f)} \sim 0.08\)17. A six-decade increase in frequency should correspond to an increase in Hc ~ 59%. The absence of variation in Hc argues against a reentrant transition to a spin glass state.

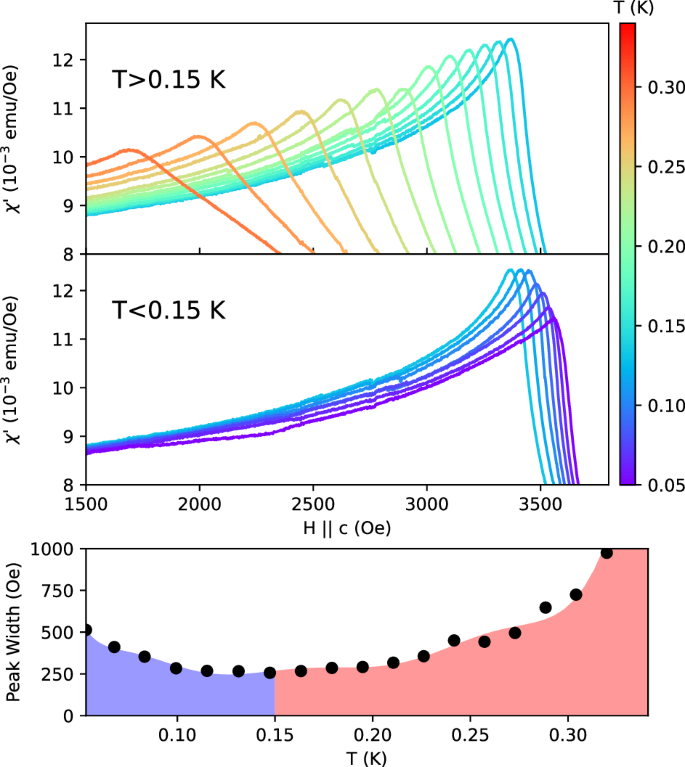

Fig. 2: Ac magnetic susceptibility of LiErF4.
Fig. 2: Ac magnetic susceptibility of LiErF4.
Full size image

0.5 Oe drive field and 10 kHz frequency vs. c-axis magnetic field at a series of fixed temperatures above (top) and below (middle) T = 150 mK. (bottom) Width of the peak at 90% of its maximum value. Red and blue shading identify the high and low temperature regimes, respectively.

To elucidate the nature of the T→0 behavior, we measured the specific heat, C(T,H), on a single-crystal thin plate (1 x 1 x 0.04 mm3) of LiErF4 (Fig. 3). Data was collected over a temperature range of 0.058 K to 4 K and at fields parallel to c up to 4.25 kOe. These measurements were taken to lower temperatures and higher fields than previously reported7,20, and allow us to fully characterize the specific heat through the QPT. Within this temperature range, contributions from phonons are negligible7.

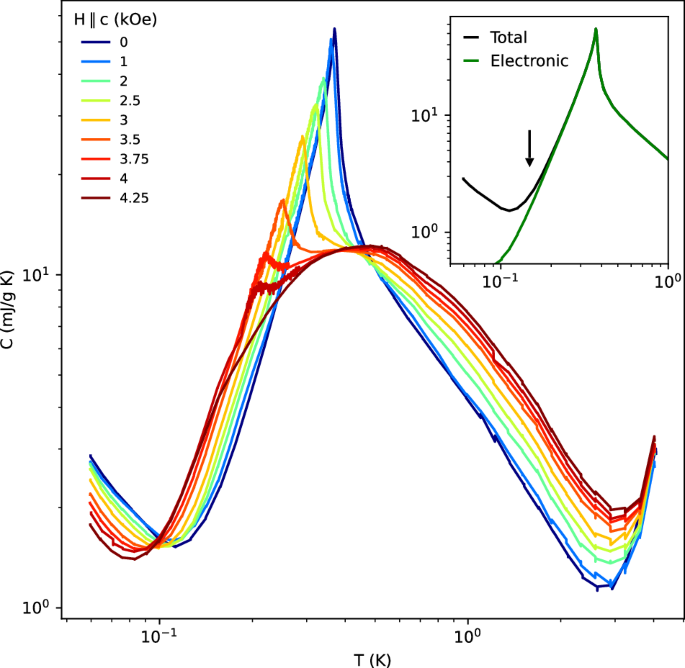

Fig. 3: Specific heat vs. temperature for a series of magnetic fields along the c-axis.
Fig. 3: Specific heat vs. temperature for a series of magnetic fields along the c-axis.
Full size image

(inset) Total and purely electronic heat capacities at zero field. Arrow at T = 150 mK marks where the disordered nuclear spin bath couples to the electronic spins.

The high-T upturn in C(T) is due to the crystal field splitting and is negligible in the temperature range of the magnetic ordering. The peak at the ordering transition is well described by a power law of the form:

$$C\left(T\right)={A}^{+/-}{\left|\frac{T-{T}_{N}}{{T}_{N}}\right|}^{-\alpha }+D$$
(1)

where A+ and A− are the amplitudes in the paramagnetic and anitiferromagnetic states, respectively, and D is a non-critical background. We find that the specific heat exponent agrees within error of the previously reported value \(\alpha\) = −0.28(4)7. As seen in Fig. 3, at the lowest temperatures there is an additional upturn in the specific heat, attributable to a Schottky contribution20. The Schottky anomaly occurs when the coupling between nuclear and electronic spins begins to dominate over thermal fluctuations. We account for the Schottky contribution by assuming the standard \({T}^{-2}\) high-temperature form21. This allows us to subtract off the Schottky contribution to the specific heat and isolate the purely electronic contribution (Fig. 3 inset). The electronic and total heat capacities begin to separate at 150 mK, coincident with the broadening of the divergence of the magnetic susceptibility, pointing to the naturally occurring isotopic abundance as the relevant source of disorder. Furthermore, an integration of the electronic specific heat gives entropy S = R ln(2) for all fields (see Fig. S3). The lack of excess entropy rules out a more exotic ground state, such as a quantum spin liquid, as a source of the broadening.

We present in Fig. 4 a power law analysis of the susceptibility field sweeps to probe the low-temperature critical behavior. The order parameter of an antiferromagnet is the staggered magnetization, and the critical behavior of the susceptibility along the c-axis does not correspond to a conventional \(\gamma\) exponent. However, it can be understood under the general theory of critical scaling at QPTs developed by Belitz and Kirkpatrick22. In this framework, a “control-parameter susceptibility” is defined as

$$\,{\chi }_{r}=-\frac{{\partial }^{2}f}{\partial {r}^{2}}\,$$
(2)

where f is the free energy and r is the athermal tuning parameter that induces the QPT. Two critical exponents are defined for this susceptibility: one at zero temperature as a function of field,

$${\chi }_{r}\left(H,T=0\right)={{B}^{+/-}\left(\left|\frac{H-{H}_{c}}{{H}_{c}}\right|\right)}^{-{\alpha }_{H}}+{\chi }_{0}$$
(3)

and the other at H = Hc as a function of temperature,

$${\chi }_{r}\left(H={H}_{c},T\right)={{\rm{a}}}{T}^{-{\alpha }_{T}}$$
(4)

where B+ and B- are the amplitudes in the paramagnetic and anitiferromagnetic states, respectively, \({\chi }_{0}\) is a non-critical background, and a is the amplitude at the critical field. Here the notation α is used because, in the case of r = T, the control parameter susceptibility is given by C/T. For a QPT induced by a magnetic field along the c-axis, χr corresponds to \({\chi }_{c},\) the magnetic susceptibility along the c-axis.

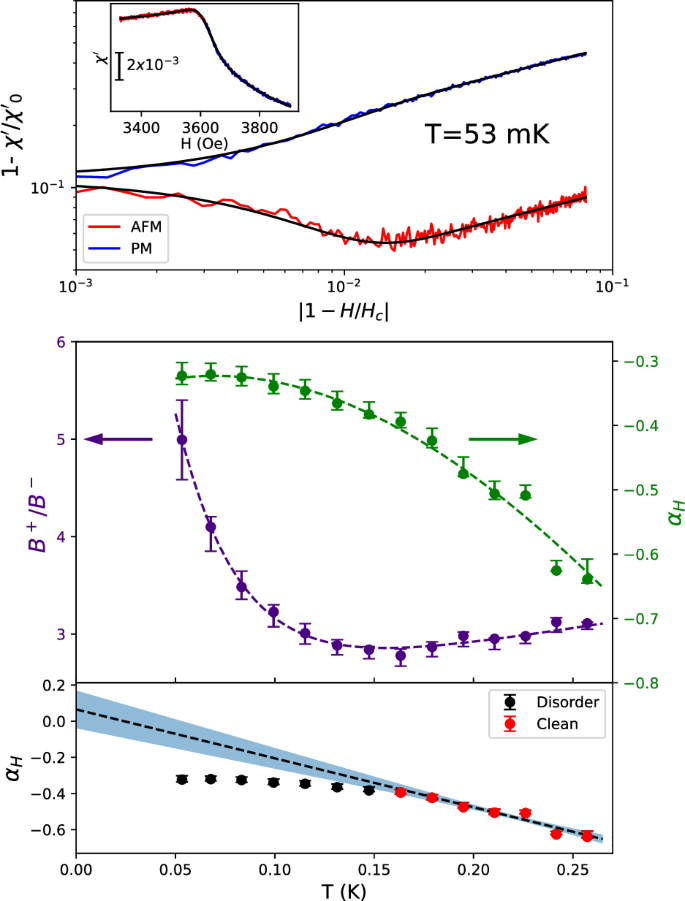

Fig. 4: Critical behavior of the ac susceptibility of LiErF4 in the paramagnet (PM) and antiferromagnet (AFM).
Fig. 4: Critical behavior of the ac susceptibility of LiErF4 in the paramagnet (PM) and antiferromagnet (AFM).
Full size image

(top) Susceptibility at T = 53 mK (black) and fits to a critical divergence form with Gaussian field broadening (see text for details). Red and blue denote H < Hc and H > Hc, respectively. (inset) Susceptibility vs magnetic field at T = 53 mK. The scale bar marks absolute units of emu/Oe. The data is well described by a pure power law over 0.8 decades. Near the transition, deviations from linearity occur due to the Gaussian convolution. (middle) Temperature dependence of the amplitude ratio and critical exponent describing the control parameter susceptibility and a transition between universality classes. Error bars are estimated by refitting with a fit range varied by ±5% of a decade. (bottom) Critical field exponent replotted, showing a linear extrapolation to T = 0 of the data in the clean, high-temperature limit (red points). Shaded region shows the 1σ error band of the extrapolation.

We model a macroscopic distribution of Hcs with width \(\delta {H}_{c}\), most likely arising from demagnetization fields due to shape effects, by convolving the power law with a Gaussian. The convolution allows us to fit the susceptibility through the transition and improves the fit stability of the amplitude and critical exponent23. Our fit gives \(\delta {H}_{c} \sim 30{Oe}\to \,\frac{\delta {H}_{c}}{{H}_{c}}=8\times {10}^{-3}\). The data is well fit by this functional form over a range of reduced fields spanning −0.8 to 0.8 for temperatures up to at least 273 mK. The error in the fit parameters is dominated by the systematic error associated with the fit range. At high temperatures, αH increases rapidly as temperature decreases. It begins to saturate at T ~ 150 mK and reaches αH = −0.32(2) in the T→0 limit. The amplitude ratio B+/B− begins to increase at 150 mK and captures the same behavior as the heuristic width metric in Fig. 2. At our base temperature of 53 mK, B+/B− has not saturated, but we can establish a lower bound of B+/B− > 5 at T = 0.

Discussion

The amplitude ratio, B+/B−, typically marks a particular universality class24. The rapid increase in the ratio at low temperatures indicates that the universality class changes as the nuclear and electronic spins lock. Further evidence that the change in amplitude ratio is due to the nuclear spins is seen in a comparison between field sweeps taken on LiErF4 samples with a natural isotopic abundance and with isotopically pure erbium-16825. The isotopically pure sample has a much sharper peak than the natural sample at 35 mK, reaffirming the role of nuclear spins.

The Harris criterion \(d\nu \, > \, 2\) is a necessary condition for a universality class to be unchanged by random mass disorder, where ν is the critical exponent of the correlation length26,27. The Harris criterion determines if the correlation length grows rapidly enough for the effective strength of disorder to go to zero at the transition. Since only dimensions with random disorder contribute to the Harris criterion, QPTs obey \(d\nu \, > \, 2\) rather than (d+z)ν > 2. Hence QPTs require a larger ν relative to an analogous classical transition as a manifestation of their sensitivity to disorder1. Since the isotopic disorder in our system does not break local symmetry, it falls within the category of random mass disorder, and the Harris criterion is applicable.

Given that \({\beta }_{H}\) is far from the mean field value (\({\beta }_{{MF}}=0.5\)) and that mean field calculations overestimate Hc, we assume that the dimensionality of the system is below its upper critical dimension and that a hyperscaling relation is valid. Under this assumption, we can express the Harris criterion in terms of the critical exponents of the control parameter susceptibility using Eqs. 2.23a and 2.23b of Belitz and Kirkpatrick22:

$$d\nu=\frac{2{\alpha }_{T}-{\alpha }_{H}\left(1+{\alpha }_{T}\right)}{{\alpha }_{T}} > 2$$
(5)

When \({\alpha }_{T} \, > \, 0\), this inequality can be simplified to

$$\,{\alpha }_{H} \, < \, 0,$$

which is analogous to the standard form of the Harris criterion expressed in terms of the classical critical exponent, α < 0. The Harris criterion pertains to the critical exponents of clean systems. Since αT remains positive in both the clean and disordered universality classes7, we can focus solely on the sign of αH in the clean universality class to determine the validity of the Harris criterion in the present measurements. The rapid change of αH in the clean regime is cut off by the disorder and prevents us from definitively characterizing \({\alpha }_{H}^{{clean}}\) in the zero-temperature limit. A linear extrapolation of the clean regime to T = 0 finds \({\alpha }_{H}^{{clean}}=0.06(10)\), (see Fig. 4) which is consistent within error bars with a specific heat exponent for both the classical 3D Ising \((\alpha=0.110(1))\) and 3D XY \((\alpha=-0.015(1))\) models. However, a change in universality implies that the Harris criterion was violated, \({\alpha }_{H}^{{clean}} > 0\) at T = 0, and the operative universality class is classical 3D Ising. The critical exponents of all universality classes with a finite effective disorder strength at a phase transition follow the Chayes-Chayes-Fisher-Spencer relation \(d{\nu }^{{disorder}} > 2\)28. This relation differs from the Harris criterion in that it uses the critical exponents of the disordered universality class. We find that our disordered universality class is consistent with this relation because \({\alpha }_{H}^{{disorder}} < 0\).

In conclusion, magnetic susceptibility and specific heat measurements reveal that the QPT in antiferromagnetic LiErF4 is affected profoundly by naturally-occurring isotopic disorder. At temperatures below 150 mK, nuclear spins slave to electronic spins, reducing the effective field and introducing random mass disorder. We identify \({\chi }_{c}\) as a relevant observable to study the critical behavior of a field-induced QPT and relate its critical exponents to the Harris criterion and the Chayes-Chayes-Fisher-Spencer relation. Our data is consistent with a violation of the Harris criterion in the clean high-temperature regime, above the energy scale of the hyperfine coupling, and a change in universality class when disorder becomes manifest at low T. The critical exponents of the disordered universality class obey the Chayes-Chayes-Fisher-Spencer relation.

The unconventional power behavior of the susceptibility in the disordered universality class that characterizes LiErF4 may well point to Griffiths physics and motivates further studies of the paramagnetic regime (see Supplementary Note for further discussion). More generally, nuclear moments present a well-characterized platform to manipulate disorder in situ, with sensitivity to temperature and magnetic field, and potential tunability of the low-T electronuclear spectrum itself.

Methods

Sample

Two parent single crystal samples were obtained from commercial sources. TN at zero field was used to determine sample quality. Susceptibility measurements found sample 1 and sample 2 had TN ‘s of 379 mK and 349 mK, respectively. Hence sample 1 was used for susceptibility, specific heat, and microwave measurements, while sample 2 was characterized with susceptibility measurements for comparison. Measurements in the needle limit (0.35×0.35×1.65 mm3) and plate limit (3 x 3 x 0.4 mm3) were made on samples cut from sample 1 to investigate demagnetization effects on Hc. At T = 53 mK, Hc was measured as 3560 Oe and 4669 Oe for the needle and plate, respectively. The geometry had no effect on TN at zero field. Additionally, measurements were made on a needle (1.25 x 1.25 x 6 mm3) cut from sample 2. An Hc of 3223 Oe was measured at T = 53 mK, corresponding to a reduction of ~10% in Hc and TN relative to sample 1. Broadening was observed at T = 150 mK regardless of geometry or parent sample, substantiating the critical role ascribed to nuclear spin disorder.

Susceptibility

Susceptibility measurements were made using a commercial susceptometer (PPMS DR, Quantum Design). Measurements were taken in the linear regime with a drive field of 0.5 Oe and with frequencies of 1 kHz (power law fits) and 10 kHz (phase diagram). No variation in Hc was observed between these frequencies.

Specific heat

Measurements were made on a plate sample (1 x 1 x 0.04 mm3) cut from sample 1 using a commercial sub-Kelvin calorimeter (PPMS DR, Quantum Design) operating in a standard relaxation mode. Away from the phase boundary, data were taken in discrete steps using small thermal pulses \((\,\frac{\Delta T}{T}=0.02)\) fit to a two-tau model. Near the transition, measurements were made with a large pulse, \(\frac{\Delta T}{T}=0.15\), to obtain higher point density, and the specific heat was extracted by analyzing the evolution of the slope of the T(t) response of the calorimeter29.
