Fig. 4: Performance of LSCs-ECSs integrated device.

From: Integrated device of luminescent solar concentrators and electrochromic supercapacitors for self-powered smart window and display

Fig. 4: Performance of LSCs-ECSs integrated device.The alternative text for this image may have been generated using AI.

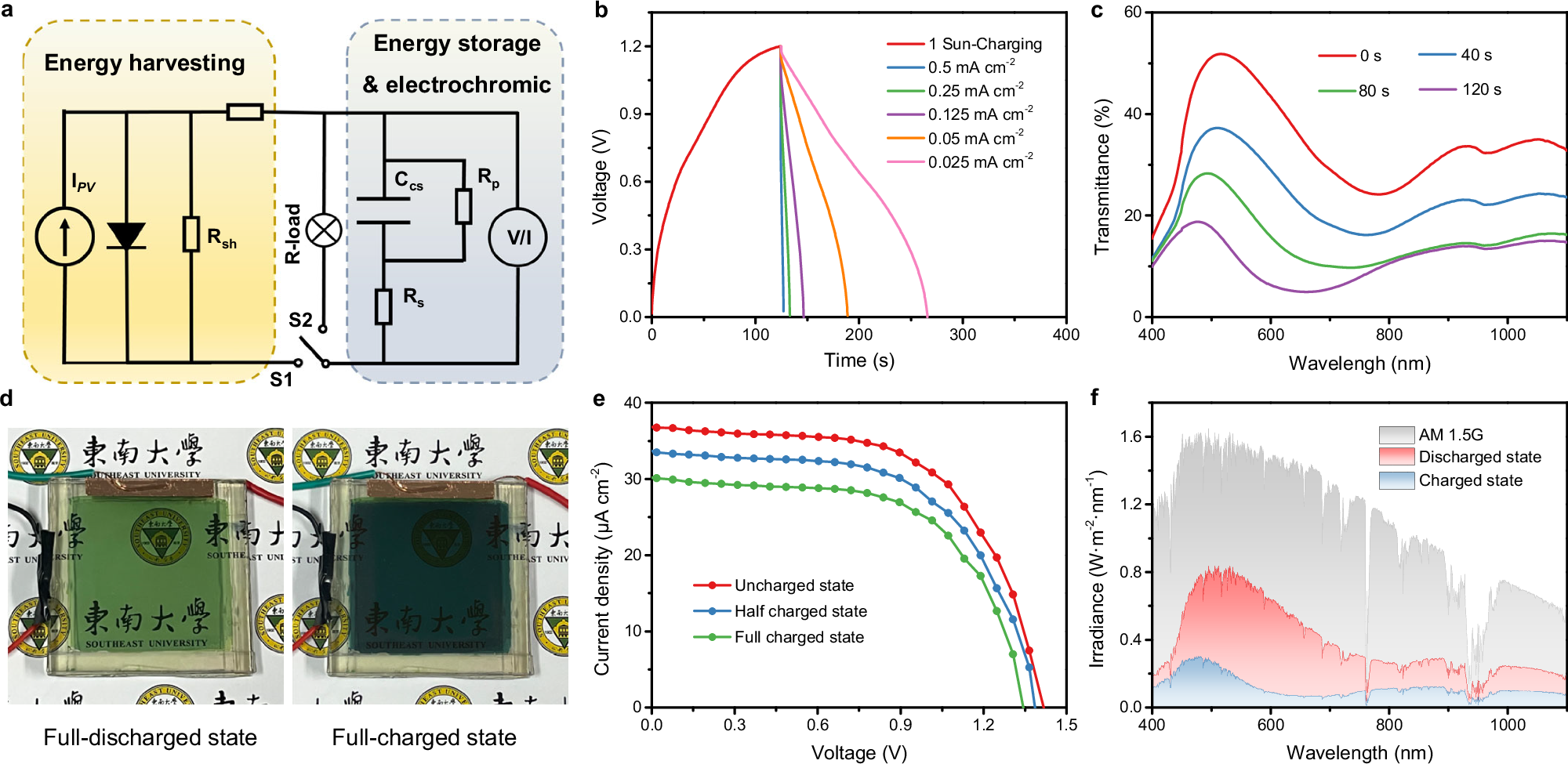

a Electric circuit diagram of device. b The V-t curves of integrated device during charging process under the 1 sun condition and discharging process under dark environment at different current densities. c Transmittance spectra of integrated device at different charging time under the 1 sun condition. d Photographs of integrated device under full-discharged state and full-charged state. e J-V curves of integrated device with different charging state under the 1 sun condition. f Solar irradiance spectra of integrated device at charging/discharging state states. Source data are provided as a Source Data file.
