Introduction

With the development of photovoltaics (PV) technologies, coping with the huge building energy consumption (30–40% of global energy consumption reported by International Energy Agency, IEA) doesn’t seem to be a difficult task anymore1,2,3. In order to realize zero emissions for buildings, besides laying opaque solar panels on the roof, photovoltaic conversion using the glass curtain wall on the side of the building has become a current research hotspot4,5,6,7,8. As one type of translucent photovoltaic glass, luminescent solar concentrators (LSCs) are composed of luminophore-embedded transparent matrix with edge-coupled PV cells9,10. Photons incident on the front sides of LSCs are absorbed and re-emitted by the luminophores, and then converged to the edge-coupled PV cells through the waveguide, thus realizing photovoltaic conversion11,12,13,14. Compared to solar cells, LSCs have an outstanding advantage, namely immune to the loss of power generation efficiency induced by the shadow effect, because of the nature of converting the luminescence of the luminophores rather than sunlight into electric energy by the edge PV cells. It is believed that LSCs are potential candidate for translucent glass curtain walls at the sides of buildings, especially in the case of urban buildings with the serious shadow effect15,16,17. In this sense, translucent LSCs on the sides of buildings can be complemented with opaque solar cells on the roof, helpful for achieving the aim of zero emissions in buildings.

Since the output energy by LSCs is instant and unstable in different light environments, LSCs are usually required to connect with cumbersome solar energy management systems with both energy storage modules and voltage regulator module18,19,20. For example, the solar energy management system was used for either LSCs-based self-powered temperature alarm devices or LSCs-based speed measurement devices21,22. However, such solar energy management systems appear redundant and cumbersome for these reported devices. As for the application of photovoltaic glass, the connected solar energy management system may cause a series of problems, such as blocking the opening of sliding window, increasing the required space for installation, and not in line with architectural aesthetics23,24. In this sense, it is highly desired to develop an integrated device between LSCs and translucent energy storage devices that is suitable for building windows. Up to now, it is still a research blank to assemble such an integrated device.

Electrochromic smart windows with reversible optical change for controlling indoor lighting by regulating the transmittance of sunlight have attracted great attentions25,26,27,28. It is worth noting that previously reported electrochromic devices typically require an external power supply to drive the color-changing reaction, reducing the independence and flexibility of use as a smart window and resulting in additional energy consumption29,30,31. To address this issue, different types of self-powered electrochromic smart windows have been proposed. One example is a self-powered smart window based on redox reactions. The redox reaction of a strongly reducing electrode with oxygen in the air produces a large electrode potential difference, which is used to drive the self-charging color change process of the device32,33. However, the slow self-charging rate (the potential reaches 1.435 V in 10 min) and poor cycle life of such devices limit their use as architectural windows34. Another example is the integration of translucent solar cells with electrochromic devices to prepare self-powered electrochromic systems35,36. Besides the complex assembly process and high cost of translucent solar cells, the trade-off between the high average visible transmission (AVT) demand for windows and the high photoelectric conversion efficiency (PCE) requirement for solar cells is also a challenge. In particular, the translucent solar cells prepared by halide perovskites suffer from halogen segregation under the built-in electric field, resulting in a weak stability of device37,38,39. In contrast, the all-optical operation mechanism (including sunlight absorption, fluorescence emission, and optical waveguide) of LSCs avoids the problem of halogen segregation and thus can substantially improve the stability of devices. From this point, translucent LSCs potentially act as a stable candidate for architectural photovoltaics for self-powering electrochromic devices. Nevertheless, such self-powered electrochromic smart windows based on LSCs have not been reported yet.

In this work, we reported an integrated device of LSCs and electrochromic supercapacitors (ECSs) in a manner of “face-to-face” tandem. Due to the integration of ECSs, the cumbersome energy storage module can be avoided. Moreover, the ECSs with a stable voltage window of 0–1.4 V can match the output voltage of the used LSCs (0–2.07 V), making it possible to avoid the voltage regulator module. As a result, solar management system is not required for LSCs-ECSs integrated devices. After being charged by LSCs, the ECSs can act as an energy storage module to supply low-power devices such as timers. In addition, the LSCs-ECSs integrated device also shows reversible electrochromic behavior with changed AVT between 10.2% and 36.8% during the charging/discharging cycle of ECSs. Due to the unique trifunctions of photovoltaic conversion, energy storage, and electrochromism, the LSCs-ECSs integrated device can be used to build smart windows and information instruction displays. Compared to the combining devices between the separated solar cells and the separated ECSs, the currently reported LSCs-ECSs integrated devices inherit all the advantages of LSCs, making it possible to assemble integrated devices in a “face-to-face” manner.

Results and discussion

The “face to face” tandem LSCs-ECSs integrated device in Fig. 1 consists of two components: (1) quasi-solid state ECSs constructed by polyaniline (PANI) film electrode as the anodic electrochromic material and WO3 film as the cathodic electrochromic material for both energy storage and electrochromism and (2) LSCs consisted of the red-emitting CsPbI3/PMMA composite with edge-coupled silicon solar cells for energy harvesting. In the following text, the performance of ECSs, LSCs, and LSCs-ECSs integrated devices is discussed in detail.

Fig. 1: The diagram for the structure and modulation mechanism of the LSCs-ECSs integrated device.
Fig. 1: The diagram for the structure and modulation mechanism of the LSCs-ECSs integrated device.
Full size image

Under solar irradiation, the electrical energy generated by the LSCs will be stored in the ECSs, while causing a decrease in the transmittance of the ECSs to block light incidence.

Quasi-solid state ECSs for energy storage and electrochromism

To assemble quasi-solid state ECSs, PANI and WO3 electrodes were prepared on ITO by electrochemical deposition as confirmed by Fourier transform infrared spectroscopy (FTIR), X-ray diffraction (XRD) and X-ray photoelectron spectroscopy (XPS) results in Supplementary Fig. 140,41,42. After sandwiching the electrolyte of polyvinyl alcohol (PVA)-sulfuric acid (H2SO4), a 5 × 5 cm2 ECS was assembled as illustrated in Supplementary Fig. 2.

To optimize the performance of PANI electrodes, PANI films of different thicknesses were prepared by adjusting the electrodeposition time. According to the cyclic voltammetry (CV) curve in Supplementary Fig. 3, galvanostatic charge-discharge (GCD) curve in Supplementary Fig. 4, and electrochemical impedance spectroscopy (EIS) in Supplementary Fig. 5, the PANI electrode with an electrodeposition time of 600 s exhibited high specific capacity (13.8 mF cm−2 at a current density of 0.1 mA cm−2 calculated by Eq. 1 in Supplementary Information) and excellent electrochemical behavior, thus it was selected for the next step of the study43,44. Similarly, we also optimized the WO3 electrode by controlling the deposition time. By comparing the CV in Supplementary Fig. 6a, GCD in Supplementary Fig. 6b, and EIS in Supplementary Fig. 7 of WO3 electrodes with different electrodeposition times, WO3-45 with a high specific capacity up to 46.8 mF cm−2 at 0.5 mA cm−2 in Supplementary Fig. 8 was selected as the counter electrode of PANI-600 due to their almost equal integral areas of CV curves in Supplementary Fig. 6c. In this case, both electrodes can store almost the same  amount of electric quantity.

The electrochemical performance for a quasi-solid state PANI-600/WO3-45 ECSs was tested. (1) From the CV curves in Fig. 2a, the electrochemical performance of the ECSs remains stable under the large electrochemical window (0–1.4 V). Among them, the pair of redox peaks 1.28 V/1.2 V belongs to WO3. The left two pairs of distinct redox peaks were observed at 0.67 V/0.6 V and 0.8 V/0.75 V on the low-rate scanning curves, corresponding to the reaction process of PANI. It should be emphasized that the stable voltage window of 0–1.4 V for PANI-600/WO3-45 ECSs can match the output voltage of the PV cell on the side of LSCs according to Supplementary Table 1. As a result, the use of voltage regulation modules can be avoided. (2) From the GCD results in Fig. 2b, the charging and discharging processes exhibit nonlinearity at different current densities from 0.1 mA cm−2 to 2 mA cm−2 due to the fact that the form of energy storage belongs to Faraday pseudocapacitor storage rather than the double layer capacitor storage45,46. The specific area capacitance and mass capacitance (calculated by Eq. 2 in Supplementary Information) of the PANI-600/WO3-45 ECSs was calculated from the discharge curve as 8.57 mF cm−2 and 12.2 F g−1 at a current density of 0.1 mA cm−2, respectively. In Fig. 2c, the specific area capacitance of ECSs shows a corresponding decrease in the high discharge current, which is related to the nature of the supercapacitor itself47. Further, the energy density and power density in Fig. 2c, which are important parameters of PANI-600/WO3-45 ECSs, were calculated by Eq. 3 and 4 in Supplementary Information as 23.3 mW h m−2 and 0.7 mW m−2 at a current density of 0.1 mA cm−2, respectively40,48. In the inserted image of Fig. 2a, c single device is enough to light up a timer, indicating the potential applications of the ECSs in the field of energy supply. (3) From the fitting and simulation result of EIS in Supplementary Fig. 9, the PANI-600/WO3-45 ECSs clearly exhibited a small charge transfer resistance of ~2.5 Ω (the semicircle diameters in the mid-frequency part), facilitating the rapid redox reaction on electrode49,50. In addition, the Warburg impedance (between mid- and low-frequency part) of the PANI-600/WO3-45 ECSs indicates an obvious ions diffusion behavior in WO3-4551,52. The straight lines with larger slope in the low-frequency part describe rapid ion transport during the electrochemical processes, corresponding to the high ionic conductivity (up to 285.5 mS cm−1) of the PVA-H2SO4 electrolyte as shown in Supplementary Table 253.

Fig. 2: The performance of PANI-600/WO3-45 ECSs.
Fig. 2: The performance of PANI-600/WO3-45 ECSs.
Full size image

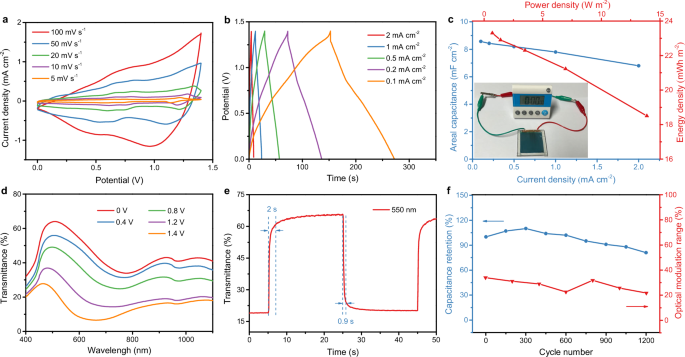

a CV curves at different scan rates under 0–1.4 V voltage window. b GCD curves at different current densities. c Ragone plot and the areal capacitance at different current densities. Inset: Optical image shows a ECSs was enough to light up a timer. d Transmittance spectra at 0 V, 0.4 V, 0.8 V, 1.2 V, and 1.4 V. e Real-time transmittance changes during reversible switching measured at 550 nm. f Capacitance and electrochromic stability in the visible region at current density of 1 mA cm−2 for 1200 cycles. Source data are provided as a Source Data file.

Beside energy storage, PANI-600/WO3-45 ECSs exhibit an adjusted AVT (calculated by Eq. 5 in Supplementary Information) during charging/discharging process, due to the matching electrochromic behavior of PANI and WO3. In Fig. 2d, the transmission of both PANI and WO3 electrodes decreases/increases during the charging/discharging process of ECSs, resulting in the color change from light green to dark blue. According to Supplementary Fig. 10 and 11, the PANI-600 and WO3-45 electrodes deliver a good light modulation ability in the visible light region and the coloration efficiency of 182.5 cm2 C−1 and 73.8 cm2 C−1 at 700 nm, respectively. At the voltage of 0 V (namely the state of full-discharging), the PANI-600/WO3-45 ECSs exhibit an AVT of 49% from 400 to 780 nm with a light green color induced by the PANI electrode in the reduced state. As the voltage rises, the transparent WO3 electrode and the PANI electrode undergo a synergistic redox reaction, and the color of the device gradually deepens. At the voltage of 1.4 V, the dark blue PANI-600/WO3-45 ECSs have an AVT of only 14%. In Fig. 2e, the real-time transmittance curve measured at 550 nm reveals that PANI-600/WO3-45 ECSs deliver a faster coloration time and bleaching time of 0.9 s and 2 s, respectively. It shows the rapid response rate of ECSs. Moreover, the PANI-600/WO3-45 ECSs also show a certain light modulation ability in short-wave infrared (SWIR) regions (780–1100 nm), reaching an integrated optical transmittance of 41% and 16% at 0 V and 1.4 V, respectively.

From the long cycle test result in Fig. 2f and Supplementary Fig. 12, the PANI-600/WO3-45 device exhibits capacitance retention of 82% after 1200 cycles of charging and discharging at a current density of 1 mA cm−2. In particular, the specific capacitance of the ECSs increases after 200–300 cycles, due to the in-situ activation of the electrodes caused by diffusion of electrolyte54,55. In terms of electrochromic stability in Fig. 2f and Supplementary Fig. 13, the optical modulation range, which is defined as the difference for the average transmittance in the visible region between 1.4 V charging state and 0 V discharging state, shows an overall decreasing trend from 34.1% before cycling to 22% after 1200 charge/discharge cycles, together with prolonged response time in Supplementary Fig. 14. Moreover, the transmittance spectrum of ECSs appears a new peak around 700 nm after 800 cycles, which leads to increased trend of optical modulation range during 800 cycles and 1000 cycles. Such new peak is probably caused by the detachment of the electrode material according to the scanning electron microscope (SEM) and XPS results in Supplementary Fig. 15, which is commonly reported due to the volume expansion and contraction of the electrode film56.

It should be emphasized that the injected/ejected charge balance between the two electrodes is crucial for the performance of ECSs. In validation experiments, we purposely prepared WO3 electrodes with a lower specific capacitance of 9.7 mF cm−2 via spin-coating technique (marked as WO3-S) in Supplementary Fig. 16. Such electrode prepared by spin-coating technique is difficult to match with PANI-600 for maintaining the injected/ejected charge balance during the redox reaction. Though the assembled PANI-600/WO3-S ECSs show the adjustable AVT from 58% (0 V) to 17% (1.4 V) during the charging/discharging process, it is also observed the small reaction current and ignorable redox peaks of WO3 in the CV curves, low specific capacitance of 3.6 mF cm−2, low energy density of 9.88 mWh m−2 and larger charge transfer resistance of ~7 Ω (Supplementary Fig. 17a–e). In addition, the capacitive performance of the PANI-600/WO3-S ECSs decreased to 77% after 1100 cycles in Supplementary Fig. 17f. Obviously, the ECSs assembled by mismatched positive and negative electrodes exhibit poor electrochemical capacity. According to the reference, supercapacitors assembled with mismatched positive and negative electrodes are not only difficult to maximize performance but also produce over-discharge phenomena. Under such a deep discharge process, the electrode materials are often damaged seriously affecting the stability of the device57,58.

The self-powered LSCs-ECSs integrated devices

Before the assembling of the LSCs-ECSs integrated device, a red light emitting LSCs was first prepared via in situ blade coating on a glass substrate (Supplementary Fig. 18) for photon collection using ligand-modified CsPbI3 nanocrystals and PMMA as luminophores and luminescent layer matrix, respectively. XRD in Supplementary Fig. 19a and energy dispersive spectroscopy in Supplementary Fig. 19b indicate the uniformly distributed cubic phase CsPbI3 nanocrystals in PMMA59,60,61. As-prepared CsPbI3/PMMA composite films exhibit a high AVT of 80% in Fig. 3a, red-emission peak around 688 nm at the optimum excitation wavelength of 470 nm in Fig. 3b, and the absolute photoluminescence quantum yield (PLQY) of 54.9% as tested in the integrating sphere in Supplementary Fig. 2062. According to Fig. 3c, d, the absorption efficiency (ηabs), edge-emission efficiency (ηedge), and internal optical efficiency (ηint) are calculated as 11.6%, 72.4%, and 39.8% by Eq. 6 in Supplementary Information. Thus, the resulting external optical efficiency (ηext) of LSCs is 4.6% (calculated by Eq. 7 in Supplementary Information)63, which is higher than that of most reported LSCs in Supplementary Table 3. From the current density-voltage (J-V) curve of LSCs in Fig. 3e, the PCE and light utilization efficiency (LUE) values of the 5 × 5 cm2 device under the 1 sun condition are calculated as 0.56% and 0.45% by the Eq. 8 in Supplementary Information and Supplementary Table 464,65,66. The integrated short-circuit current density (Jsc) obtained by testing the average position-dependent external quantum efficiency (EQELSC(λ)) of the LSCs in Supplementary Fig. 21 corresponds to the Jsc value extracted from the J-V curve. In addition, the light intensity of the composite film can still reach 21% of the initial light intensity at a light path length of 9 cm in Fig. 3f. After one month of storage in ambient air (temperature: 298 K, relative humidity: 35%) in Supplementary Fig. 22, the PLQY and PCE of the device can still maintain 85% and 81%, indicating that the PMMA polymer has a certain protective effect on CsPbI3 nanocrystals.

Fig. 3: The performance of LSCs.
Fig. 3: The performance of LSCs.
Full size image

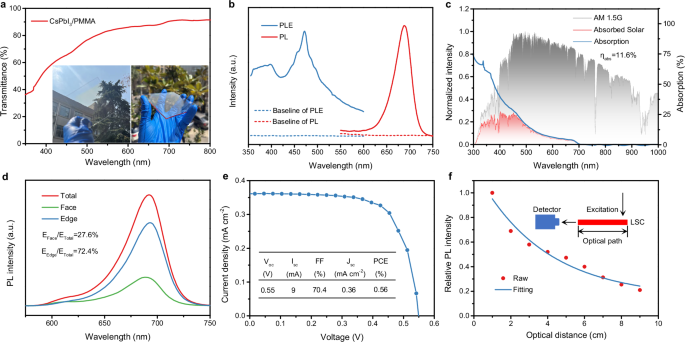

a Transmittance of CsPbI3/PMMA composite films. Inset: photographs of CsPbI3/PMMA composite films with glass substrate in ambient light. b Photoluminescence (PL) and photoluminescence excitation (PLE) spectra of the CsPbI3/PMMA composite films. The baseline was measured by using a transparent glass. c Absorption curves of CsPbI3/PMMA composite films, and the standard solar spectrum AM 1.5 G. d Front and side emission of LSCs. e The J-V curve of the PV cell coupled with the edges of LSCs under the 1 sun condition. Voc, Isc, FF, and Jsc are the open-circuit voltage, the short-circuit current, the fill factor, and the short-circuit current density, respectively. f PL intensity of CsPbI3/PMMA LSCs with different optical paths. Inset: schematic of PL intensity measurement with different optical paths. Source data are provided as a Source Data file.

For assembling the LSCs-ECSs integrated device, PANI-600/WO3-45 ECSs and LSCs with both working areas of 5 × 5 cm2 were assembled together via UV curing agent following by series connection PV cell to electrodes of ECSs. The two switches were connected to the circuit as shown in Fig. 4a. As a result, ECSs were charged/discharged by LSCs/R-load in the case of turning on the S1/S2 switch. First, the charging process by turning on the S1 switch was measured. In this process, the light energy collected by the LSCs is converted into electrical energy and stored in the ECSs. (1) We studied the charging time of the LSCs-ECSs integrated device in different environments. In the case of 1 sun, the integrated device was successfully charged to 1.2 V in 124 s, as shown in the charging curve in Fig. 4b and Supplementary Movie 1. The integrated devices show moderate self-powered efficiency and capacitance stability but a relatively short charging time for achieving relative high voltage compared with different types of self-charging devices (Supplementary Table 5). In the case of low light environment, it requires 400 s when the device is charged to 0.45 V in Supplementary Fig. 23 under the LED illumination (8 W, 6500 K, 800 lm, Warm White). (2) In the charging process, the transmittance and color of the device were changed due to the oxidation of PANI and reduction of WO3. From Fig. 4c, the AVT of the LSCs-ECSs integrated device change from 36.8%, 25%, 16.7% to 10.2% at the charging time from 0 s, 40 s, 80 s to 120 s, along with obvious color changes from light green to dark blue as shown in Fig. 4d. In SWIR regions, the device achieves the integrated optical transmittance of 31.4% in the discharged state, which decreases to only 13.4% after 120 s of charging. (3) The decreased transmittance of ECSs during the charging process can also lead to the decreased output power of LSCs due to the decreased amounts of photons received by the LSCs. As shown in J-V curves of Fig. 4e, a slight drop in both open circuit voltage and short circuit current density can be seen and the PCE values of LSCs were 0.13%, 0.12%, and 0.1%, respectively, when the ECSs is charged to 0 V, 0.6 V and 1.2 V. Similar results were also observed during the charging process in low light environment under the LED illumination in Supplementary Fig. 24. Second, the ECSs was discharged by R-load when the S2 switch was turned on. Based on this discharge curve in Fig. 4b, the area capacitance of the device in Supplementary Table 6 was calculated to be 0.96–2.94 mF cm−2 in the current density range of 0.5–0.025 mA cm−2. It may satisfy energy requirement of some low-power devices such as timer as shown in Fig. 2c.

Fig. 4: Performance of LSCs-ECSs integrated device.
Fig. 4: Performance of LSCs-ECSs integrated device.
Full size image

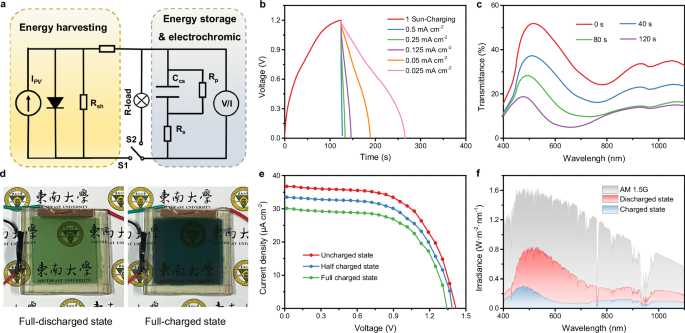

a Electric circuit diagram of device. b The V-t curves of integrated device during charging process under the 1 sun condition and discharging process under dark environment at different current densities. c Transmittance spectra of integrated device at different charging time under the 1 sun condition. d Photographs of integrated device under full-discharged state and full-charged state. e J-V curves of integrated device with different charging state under the 1 sun condition. f Solar irradiance spectra of integrated device at charging/discharging state states. Source data are provided as a Source Data file.

The application of self-powered LSCs-ECSs integrated device

Being of the trifunctions of photovoltaic conversion, energy storage, and electrochromism, the LSCs-ECSs integrated devices can be used in many fields. First, since the ECSs achieve an energy density of 23.3 mWh m−2 as we have discussed above, the charged LSCs-ECSs integrated devices can act as an energy storage device to continuously supply for low-power devices, such as a timer in Fig. 2c and Supplementary Movie 2.

Second, LSCs-ECSs integrated devices can act as quick-convertible smart window for building or automobile by replacing traditional windows. If needing a light/dark environment, the switch S2/S1 can be turned on. Then the device can quickly discharge/charging, realizing the state change of the smart window between blackout and light transmission. Considering that the integrated device is capable of modulating visible and SWIR light, the solar irradiation transmittance in the full-charged or full-discharged state was calculated to evaluate the actual solar irradiation modulation in Fig. 4f. In the discharged state, the integrated device blocks 69.4% of the near-infrared radiation as well as maintaining 38% transmittance in the visible region; while the integrated device in the charged state blocks 86.9% of the solar radiation in the short wave near-infrared region, hence it is possible to control the light and heat entering into building or automobile by the smart window.

Third, the LSCs-ECSs integrated device can be also applied as a self-powered display. Herein, a layer of PANI with a pattern of “OPEN”, PVA-H2SO4 electrolyte, and another layer of PANI with a pattern of “CLOSE” were used to assemble ECSs in Fig. 5a. To enable fast switching between “OPEN” and “CLOSE”, a three-gear control switch is introduced into the circuit as shown in the equivalent circuit diagram (Fig. 5b). At the charging voltage of 1 V by LSCs under 1 sun condition, the ECSs were displaying a different message in a different state of the switch. (1) When the switch is placed on the gear “0”, the connection of LSCs and ECSs was broken. In this situation, both “OPEN” and “CLOSE” appear in green color, making it impossible to clearly communicate a clear text message (Fig. 5c). (2) When the switch is switched to gear “I”, the bottom pattern “OPEN” rapidly changes to dark blue due to the oxidation of PANI, making it easy to be observed. In comparison, the top pattern “CLOSE” changes to undertint green, which is not easy to observe. As a result, a distinct “OPEN” was displayed. (3) During the transition from gear “I” to gear “II”, the device is rapidly discharged and then recharged in reverse, resulting in a clear display of the “CLOSE” text message. The complete operational sequence of the self-powered display device is captured in Supplementary Movie 3. The device is capable of charging to 1.1 V within 2 s for fast display of text messages as shown in the V-t curve of Fig. 5d. In addition, the device can be discharged into standby mode within 2 s with the assistance of a series resistor. Similar results were also observed in low light environment under the ambient LED illumination (8 W, 6500 K, 800 lm, Warm White). The display is still able to charge quickly to more than 0.5 V under the LED illumination and convey clear information as shown in Supplementary Fig. 25 and Supplementary Movie 4.

Fig. 5: The self-powered display based on the LSCs-ECSs integrated device.
Fig. 5: The self-powered display based on the LSCs-ECSs integrated device.
Full size image

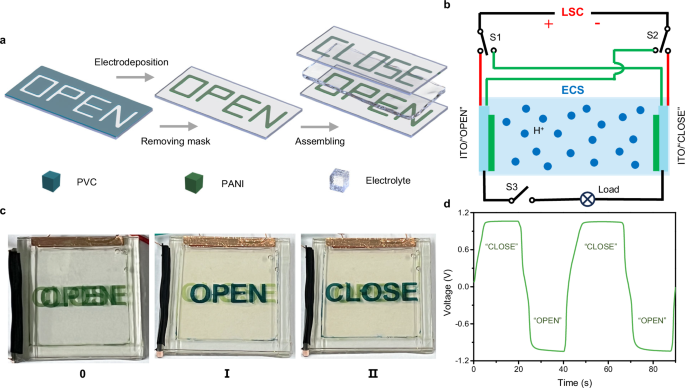

a Schematic illustration of the fabrication process of electrochromic display. Polyvinyl chloride (PVC) sticker is used as a mask. b An equivalent circuit of the self-powered display. S1 and S2 are connected to the red or green wires simultaneously to realize the switching on of gear “I” or “II”, respectively. When S3 is individually switched on, the device is in gear “0”. c The optical photographs of the self-powered display in three different states of switch. d The V-t curves of the self-powered display under 1 sun condition. Source data are provided as a Source Data file.

In conclusion, we demonstrated a trifunctional LSCs-ECSs integrated device with photovoltaic conversion, energy storage, and electrochromism by connecting LSCs and ECSs in series via a “face-to-face” approach. This self-powered integrated device achieves an area capacitance of 2.94 mF cm−2 and can be quickly charged to 1.2 V within 124 s under 1 sun condition for supplying low-power devices. Moreover, the integrated device has reversible electrochromic behavior (AVT between 10.2% and 36.8%). Based on the color-changing nature of the integrated device, we have prepared self-powered displays that can rapidly display textual information within 2 s. However, the current LSCs-ECSs integrated device still has the small energy density, which is far from the requirement of practical energy storage product. The possible solution in future includes using high specific capacity materials as electrodes, doping the electrolyte with multivalent ions, broadening the operating voltage window, and integration of ions batteries as alternative energy storage modules. Moreover, the cycling stability of LSCs-ECSs integrated device still needs to be further improved before practical application. The possible solution in future includes the developing of novel electrochromic materials with better stability and introducing hierarchical porous electrode scaffold for loading the electrochromic materials to reduce the structural damage caused by lattice volume changes.

Methods

Materials

Octylammonium iodide (OAI, >99.5%), lead iodide (PbI2, 99.99%), and Cesium Iodide (CsI, 99.9%) were purchased from Xi’an Polymer Light Technology Corp. Polymethyl methacrylate (PMMA) was purchased from Sinopharm. N, N-dimethylformamide (DMF, AR) was purchased from Nanjing Reagent. UV-curable adhesive (K2018) was purchased from KSIMI. Ethanol (CH3CH2OH), Sulfuric acid (H2SO4), hydrogen peroxide (H2O2), Sodium tungstate dihydrate (Na2WO4), Acetic acid (CH3COOH) and Acetone (CH3COCH3) were purchased from Sinopharm Chemical Reagent Co. Ltd. Tungsten hexachloride (WCl6, 99.5%) was purchased from Macklin Reagent Co. Ltd. Aniline and Poly (vinyl alcohol) 1799 (PVA) were purchased from Aladdin Shanghai Aladdin Biochemical Technology Co., Ltd. All materials were used without further purification. Si-PV was purchased from Telesky International Limited. The indium tin oxide (ITO) substrates (8 Ω sq−1) were purchased from Luoyang Guluo Glass Co., Ltd (China).

Fabrication of electrodeposited PANI film

In a typical synthesis, the ITO glass was washed with acetone, ethanol, and deionized (DI) water successively and dried. In a three-electrode system (Ag/AgCl as the reference electrode and Pt foil as the counter electrode), ITO glass was immersed into the electroplating precursors (0.05 M aniline, 1 M H2SO4) and applied a voltage of 1 V for different electrodeposition time of 300 s, 450 s, 600 s, 750 s, and 900 s. The above PANI electrodes are named PANI-300, PANI-450, PANI-600, PANI-750, and PANI-900 based on the deposition time.

Fabrication of electrodeposited WO3 film

First, 0.1 M Na2WO4 was dissolved in water at 60 °C with constant stirring, and then 0.08 M H2O2 and 0.36 M H2SO4 were added slowly and sequentially. after stirring for 5 min, a yellow electroplating solution of WO3 was obtained. Then, in a three-electrode system (Ag/AgCl as the reference electrode and Pt foil as the counter electrode), ITO glass was immersed into the electroplating solution and applied a voltage of −0.5 V for different electrodeposition time of 15 s, 30 s, 45 s, and 60 s. The above WO3 electrodes are named WO3-15, WO3-30, WO3-45, and WO3-60 based on the deposition time.

Fabrication of spin-coated WO3 film

The WO3 films were prepared by the sol-gel spin-coating techniques. 0.5 g of WCl6 powder was dissolved in 10 ml of anhydrous ethanol and 1 ml of glacial acetic acid was added to the mixed solution. The solution was then stirred at room temperature for 30 min, and 1 ml of H2O2 was added to the mixed solution and further stirred for 30 min. Subsequently, the resulting light green color solution was stirred at 40 °C until a homogeneous and transparent solution was obtained. The resulting solution was then spin-coated onto the treated ITO substrate at 2000 rpm and subjected to solvent evaporation at 100 °C. Finally, the electrodes were annealed by holding at 250 °C for 2 h in a tube furnace. The spin-coated WO3 are named WO3-S.

Quasi-solid state ECSs assembly

The ECSs were assembled using two pieces of ITO glass with PANI or WO3 film. 3MTMVHBTM tape was used to seal three sides of the device. Then, the PVA-H2SO4 electrolyte was injected into the device by a syringe through the unsealed side.

Fabrication of CsPbI3/PMMA LSCs

0.027 mmol CsI, 0.027 mmol PbI2, and 0.019 mmol Octylammonium iodide (C8H20NI, OAI) were dissolved in 10 mL DMF under magnetic stirring. Then, PMMA (0.9 g) was dispersed into the above solution. The mixture was kept stirring for 24 h at room temperature to form the viscous slurry. After that, the precursor slurry was blade-coated onto the clean glass to obtain a uniform film. The obtained glass substrate was transferred into heating plate and maintained at 130 °C for 5 min for the crystallization of OA-modified CsPbI3 nanocrystals.

Fabrication of LSCs-ECSs integrated devices

A glass with a CsPbI3/PMMA composite film is directly affixed to the backside of the electrodes of the ECSs by using a UV-curable adhesive, where the CsPbI3/PMMA composite film is sandwiched in the center. Then, the samples were irradiated with a UV lamp (365 nm) for curing. Finally, the PV cells (the specific performance parameters as shown in Supplementary Table 1) are attached to the edges of the above structure, and their exposed light-absorbing parts are wrapped in black tape so as not to interfere with the optoelectronic testing of the integrated device.

Fabrication of ECSs for display

A PVC sticker is applied as a template to the conductive side of the ITO, and the desired PANI pattern is generated in the exposed area by electrodeposition. After separating the stickers, the resulting patterned PANI electrodes were symmetrically assembled on both sides of the gel electrolyte to form the ECS (electrochromic display section). Two commercial monocrystalline silicon cells with an open-circuit voltage of 0.69 V and a short-circuit current of 58 mA (the specific performance parameters in Supplementary Table 7) were connected in series, and then coupled to one side of the LSCs, and their exposed portions were taped with black tape. The other parts are the same as the LSCs-ECSs integrated device preparation process described above. Finally, a three-gear transfer switch is used to connect the entire circuit.

Characterizations

XRD investigation was carried out by using the Bruker D8 advance with monochromatized Cu Kα radiation (λ = 1.5418 Å). XPS was measured by Thermo Scientific Escalab 250Xi. FTIR was implemented by Bruker Vertex80v. The energy dispersive X-ray spectroscopy and SEM images were measured by FEI Quanta FEG 250.

Electrochemical test

The electrochemical test of the ECSs was carried out by the electrochemical workstation (CHI660D, Shanghai, China). The ionic conductivity of PVA-H2SO4 electrolyte was tested using an ionic conductivity meter (DZB-712F). The in situ transmittance spectra and response times were recorded from a Shimadzu 3600 UV-vis near-infrared spectrophotometer coupled with the electrochemical workstation. The masses of the PANI-600 and WO3-45 films obtained by cumulative weighing method were 0.5 mg cm−2 and 0.2 mg cm−2, respectively. Transmittance was recorded with Shimadzu 3600 UV-vis near-infrared spectrophotometer. Coloration efficiency of ECSs was calculated from the following formulae: CE = ΔOD/(Q/A); ΔOD = log (Tb/Tc), where Q/A is the injected charge Q per unit electrode area A. Tb and Tc are the transmittances of the films in their bleached and colored states at the specified wavelengths, respectively. The response times were defined as the times required for 90% of change in the full optical modulation at the specified wavelengths.

Optoelectronic test

Photoluminescence (PL) and photoluminescence excitation (PLE) spectra were recorded with a Shimadzu RF-5301 PC spectrofluorometer, and the excitation wavelength was set as 470 nm. The PLQYs of CsPbI3/PMMA composite films were measured by Edinburgh FS5 with the excitation wavelength at 470 nm at room temperature. The EQE of LSCs was measured on Enlitech QE-R. For the edge efficiency of the LSCs, the total emission from the LSCs was first tested with an integrating sphere, and then the emission from the surface of the LSCs was measured by masking the four edges of the LSCs with black tape. The difference between the total emission and the surface emission is the edge emission. The edge efficiency values of the LSCs were obtained by calculating the integral area of the three curves. The absorbance (A = 1 − 10−OD, blue line) was convolved with the normalized AM1.5 solar spectrum. The ratio of the obtained solar absorption integral area to the normalized solar spectrum is the absorption efficiency of the LSCs. The properties of the Si cells used for the performance testing of LSCs were as follows, Voc of 0.6 V, Isc of 0.076 A, fill factor of 70.3%, Jsc of 38 mA cm−2, PCE value of 16.5%. I-V curves were measured by solar simulator (model 66902) from Newport, which had a 300 W Xenon lamp with an irradiance of 100 mW cm−2 (AM 1.5 G). The LED lamp was purchased from Philips (CorePro E27 LED GLS Bulb 8 W, 6400 K, 800 lm, Warm White).
