Fig. 5: The self-powered display based on the LSCs-ECSs integrated device.

From: Integrated device of luminescent solar concentrators and electrochromic supercapacitors for self-powered smart window and display

Fig. 5: The self-powered display based on the LSCs-ECSs integrated device.The alternative text for this image may have been generated using AI.

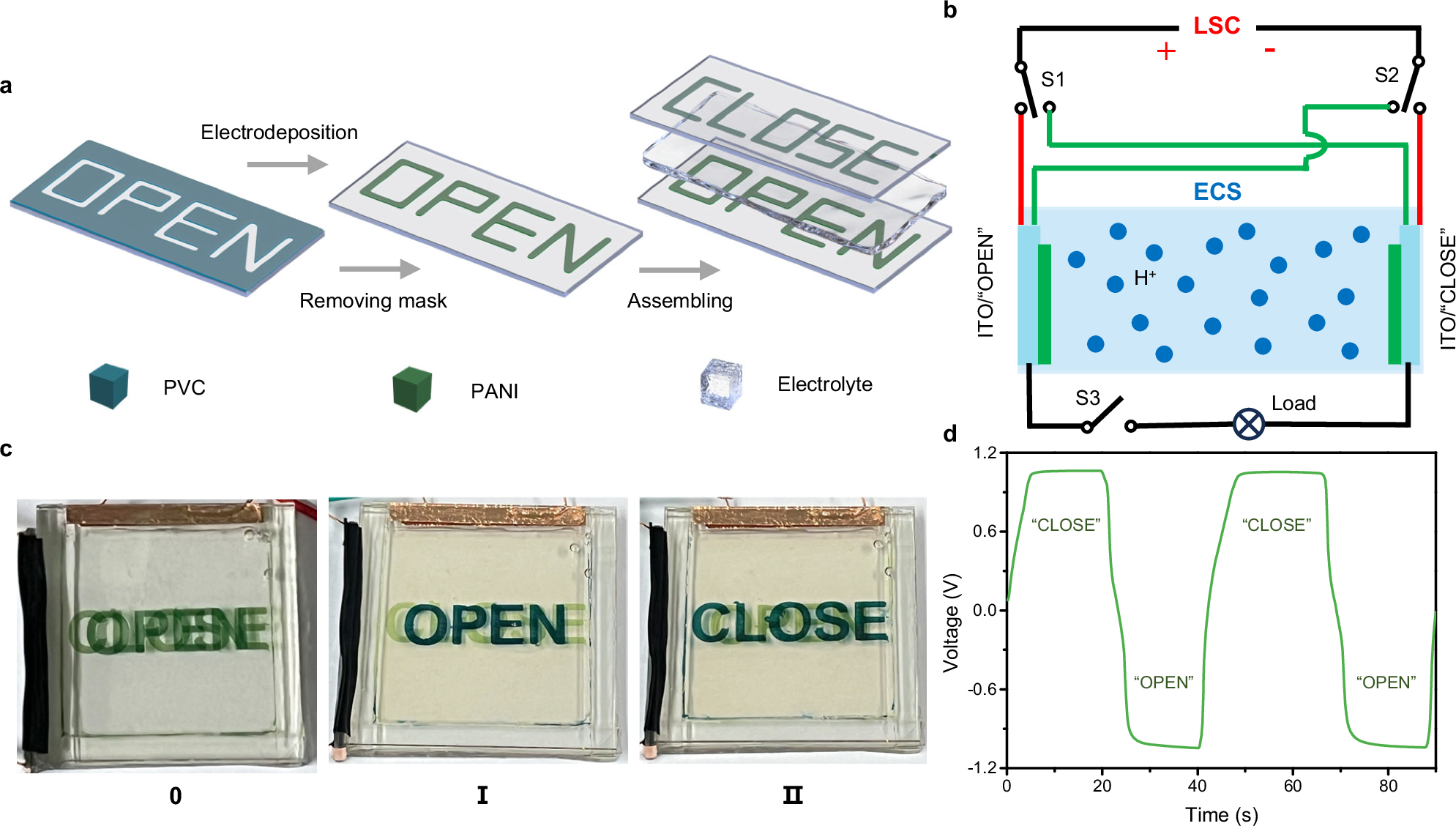

a Schematic illustration of the fabrication process of electrochromic display. Polyvinyl chloride (PVC) sticker is used as a mask. b An equivalent circuit of the self-powered display. S1 and S2 are connected to the red or green wires simultaneously to realize the switching on of gear “I” or “II”, respectively. When S3 is individually switched on, the device is in gear “0”. c The optical photographs of the self-powered display in three different states of switch. d The V-t curves of the self-powered display under 1 sun condition. Source data are provided as a Source Data file.
