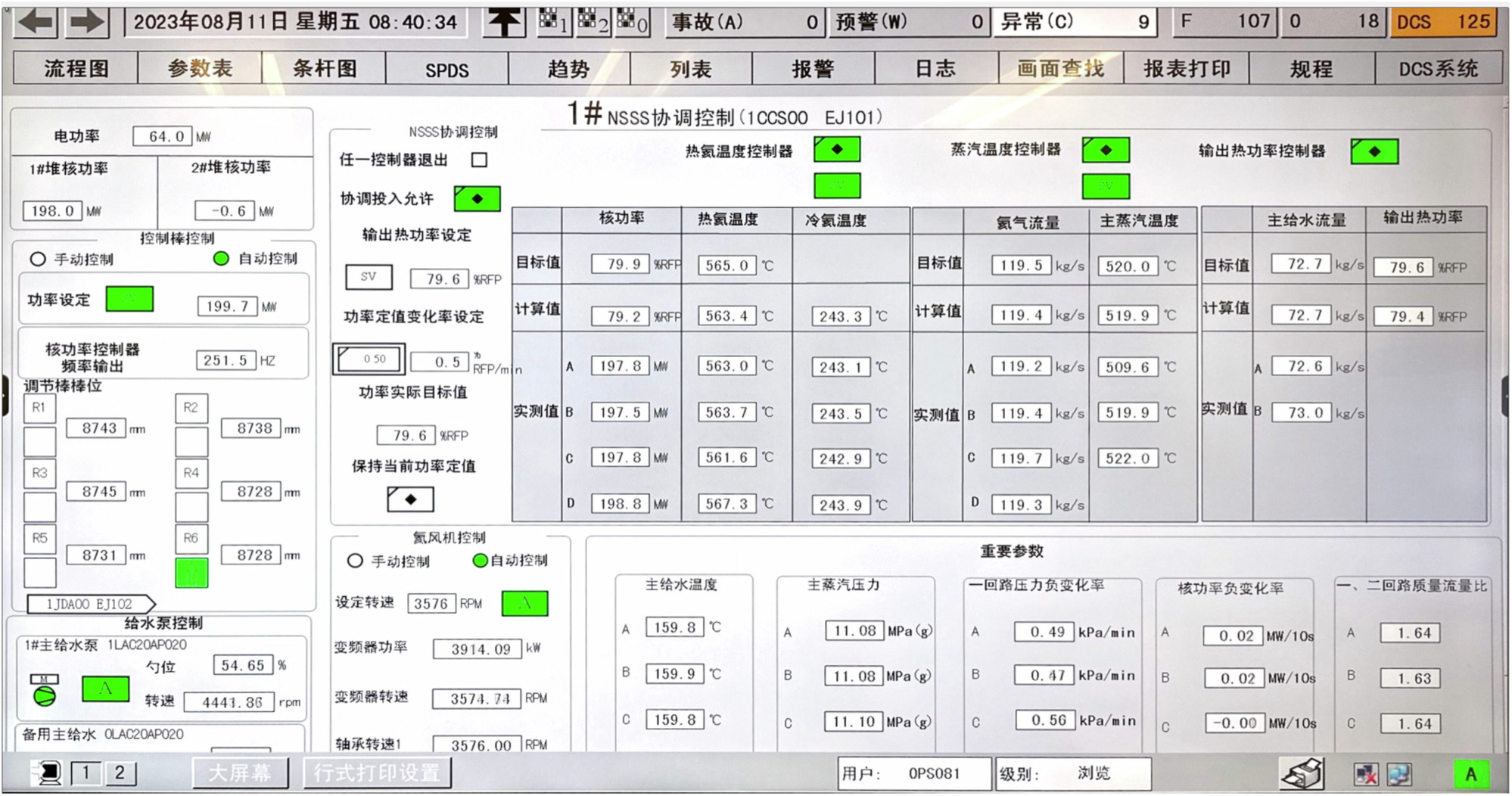

Fig. 5: Human machine interface (HMI) of the coordinated control system.
From: Testing the feasibility of multi-modular design in an HTR-PM nuclear plant
This HMI is running on the operator station of #1 module.
