Abstract
Due to the small size and biocompatibility of molecules, molecular logic-based computation is a gateway to the informational basis of life processes. Logic-based computation operates widely with discrete molecules of up to nanometric sizes. The contribution of molecule-based bulk materials of milli/centimetric size to the field has begun in more recent years. However, artificial molecule-based meso-scale systems which intrinsically perform logic operations are very rare. Here, we show that self-assembled systems consisting of cyclophane octacarboxylates and a cationic surfactant can perform such functions, where a membrane itself behaves as a Reset-Set Flip-Flop which is integrated with 7 more logic elements. Now that molecular logic-based computation operates across a wide range of contiguous size-scales, the way opens for its general use in information processing aspects of biology and synthetic biology.
Similar content being viewed by others
Introduction
The informational basis of life is illustrated by computational operations performed by molecules with various levels of organization, e.g. a biomolecule itself (nanometric), a cell (micrometric) or a brain (decimetric)1,2,3,4,5,6,7. Molecular logic8,9,10,11,12,13,14,15,16,17,18,19,20,21 sheds light on these bioprocesses. For instance, edge detection in the visual attention process is performed by groups of glial cells in the retina22. This has been emulated at the level of bacteria23, biomolecular systems24 and small molecules25,26 via logic schemes. We now show that a membrane system is switchable in a Boolean manner involving more than 10 logic elements. This would be important as a way of scaling logic operations from the molecular- to the meso-dimension. For the present purpose, the most convenient definition of meso-scale is the scale of sizes larger than nanometric and smaller than micrometric. Although a few molecular-scale logic devices have been embedded in membranes27,28,29 and some devices have been based on molecular polymeric materials30,31,32,33,34, membrane logic is very rare35. Conditional building-up and breakdown of membranes and proteins occurs continuously in nature, as seen during autophagy36 for instance. However, we are not aware of any Boolean schemes being identified in these situations. We also show that logical complexity can be increased when molecules assemble and organize into a membrane. We do this by partnering anionic p-cyclophanes like 1-537,38,39,40,41,42,43 with a cationic detergent 1044 for binding/unbinding studies. Anionic p-cyclophanes and relatives37,38,39,40,41,42,43,45,46,47,48,49,50 have a track record of binding organic cations in water51, e.g. relatives of 137 capture steroidal cations49. A few of these39,40,41,42,43,50 can be shape-switched by electrochemical and chemical stimuli to unbind the guests in a logical manner1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21.
Results
Synthesis
We approach p-cyclophane octacarboxylate 1 (Fig. 1A) via a convenient route (Supplementary methods 1, Supplementary Figs. 1, 2a-2f & Supplementary note 1) which is different from Koga’s original synthesis involving a close relative of ethyl ester 237. Cyclophane diketoneoctacarboxylate 4 is obtained by KMnO4 oxidation of 1. NaBH4 reduction of 4 produces cyclophane dialcoholoctacarboxylate 3. 3 can be oxidized back to 4. Cyclophane tetracarboxylates 5 and 639, as well as the control compounds 7 and 852,53,54,55,56, are prepared according to literature procedures (Supplementary methods 2 & Supplementary Fig. 3). Guest 9 and relatives have been used previously for studies in supramolecular chemistry38,39. Detergents 10-12 are commercially available.

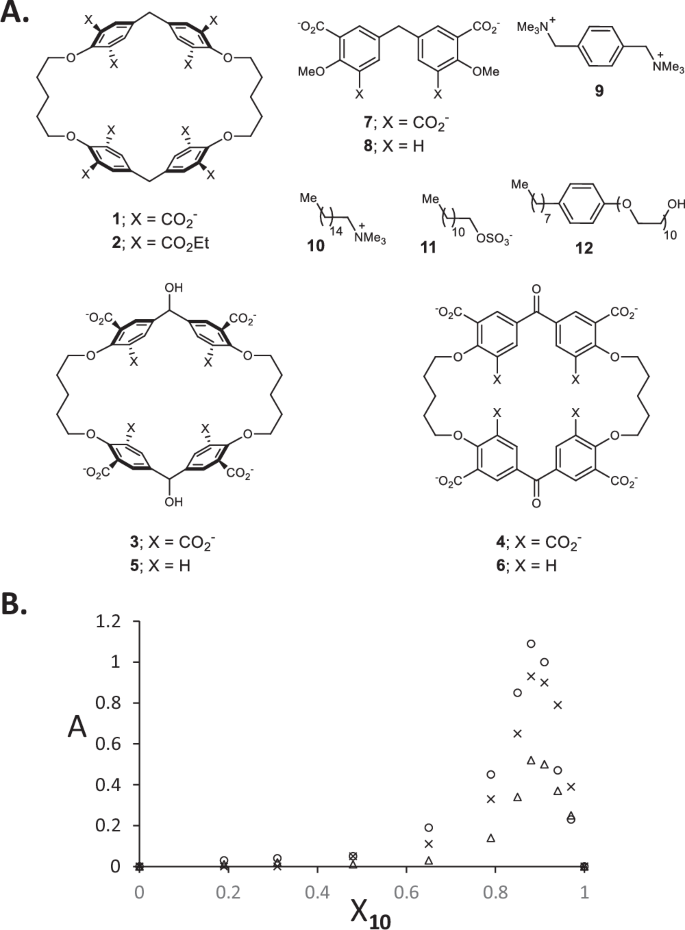

A Structures of the molecules employed in this work. The counterions for 1, 3-8 and 11 are Na+, for 9 is Br− and for 10 is Cl−. B Turbidity (as measured by absorbance (A) at 500 nm with 1 cm path length) versus mole fraction of 10 (X10) in mixture with 1 (circles), 4 (triangles) and 3 (crosses) in water.
Physical measurements
An interaction between cyclophane octacarboxylate 1 and cationic detergent 10 is immediately signaled by a turbidity in basic aqueous solution when they are mixed (Supplementary note 2 & Supplementary Fig. 4). For the present purpose, the most convenient definition of turbidity is in terms of absorption of light (at a sufficiently long wavelength) caused by the scattering of light by the suspended particles. Since our compounds do not absorb light in the visible region, a wavelength of 500 nm was found to be practical. This turbidity effect maximizes at ca. 1:8 (1:10) stoichiometry (Fig. 1B). Similar results are found when cyclophane octacarboxylates 3 and 4 are combined with cationic detergent 10. Replacement of 10 by anionic 11 or nonionic 12 detergents does not result in turbid solutions. Mixtures of 10 and cyclophanes with fewer carboxylate units (5 and 6) or acyclic control compounds (7 and 8) also show no turbidity. So, the formation of a meso-scale membrane capable of scattering visible light appears to require a macrocycle with sufficient carboxylate units on both faces. Dynamic light scattering data allows an estimate of the size of these assemblies. The particle size distribution maximizes at 179, 194 and 615 nm for cyclophanes 1, 4 and 3 respectively, when mixed with detergent 10 (Supplementary note 3 & Supplementary Fig. 5a–c). However, the distribution is skewed somewhat towards larger particles in the case of cyclophane 3, perhaps because it is noticeably less soluble in basic water than cyclophanes 1 and 4. Broadly similar results are obtained from nanoparticle tracking analysis (Supplementary note 4 & Supplementary Fig. 6a–c).
The lack of interactions between cyclophanes 1, 4 and 3 and detergents 11 and 12 is confirmed by the critical micelle concentrations of 11 and 12 in water being essentially undisturbed by the cyclophanes (Supplementary note 5 & Supplementary Table 1). In contrast, the critical aggregation concentration of detergent 10 drops by an order of magnitude in the presence of cyclophanes 1, 4 and 3 (Supplementary note 5 & Supplementary Table 1).
Importantly, transmission electron microscopy of the turbid aqueous solutions with MoO42− staining shows fragments of multi-layered lamellae (Fig. 2A, Supplementary note 6 & Supplementary Fig. 7a–c). These can be understood to have originated from the self-assembly process schematized in Fig. 2C. Cyclophane octacarboxylate 1 is known37,38,39 to orient its phenylene rings orthogonal to the mean macrocycle plane. Ion-pairing of octacarboxylate 1 with 8 molecules of 10 produces the 1·108 unit, where the alkyl chains of 10 are approximately orthogonal to the mean macrocycle plane. These units can line up axially (relative to the mean macrocycle plane) and polymerize supramolecularly using hydrophobic interactions and some degree of interdigitation of alkyl chains57,58, as commonly found in cell membranes59. Having four alkyl chains on each face of the cyclophane offers a high probability for such alkyl chain interdigitation and close-packing even if one of those chains is included inside the cyclophane cavity. The columns arising in this way stack laterally to give multi-layered lamellae, akin to a bamboo thicket (Fig. 2B). Staining of these lamellae, by MoO42− units which associate at cationic sites, leads to the fragments which are observed (Fig. 2A). Cyclophane dialcoholoctacarboxylate 3 has a very similar conformation to 1 because of the sp3 hybridized carbon between the phenylene groups, and has very similar ability to achieve the self-assembly process of Fig. 2C. Cyclophane diketoneoctacarboxylate 4 has a conformation where the phenylene groups flatten into the mean macrocycle plane due to the sp2 hybridized carbon between these groups39. Still, the availability of four alkyl chains on each face of the cyclophane allows axial stacking of 4·108 units. The different abilities of 3 and 4 to produce multi-layered assemblies with detergent 10 under certain conditions due to the different arrangements of the alkyl chains (Fig. 3A) will be demonstrated in a later section. Ion-pairing of detergent 10 with either cyclophane tetracarboxylate 5 or 6 cannot provide an axially stackable unit with similar ability for alkyl chain interdigitation. Control compounds 7 and 8 are even worse in this regard, since they lack the pre-organization ability of a macrocycle.
A Transmission electron micrographs for assemblies of 10 formed with 1, 3 and 4 in water, stained with MoO42−. Positively charged stains such as Gd3+ are unsuccessful. The scale bars are 50 nm. B A bamboo thicket. C Schematic representation of the self-assembly of 10 with any of the cyclophanes 1, 3 or 4 via supramolecular polymerization of the 1·108 unit, for example. The resulting multi-layered lamellae, reminiscent of a bamboo thicket, are degraded into multi-layered fragments during staining for electron microscopy. MoO42− is represented by orange spheres.

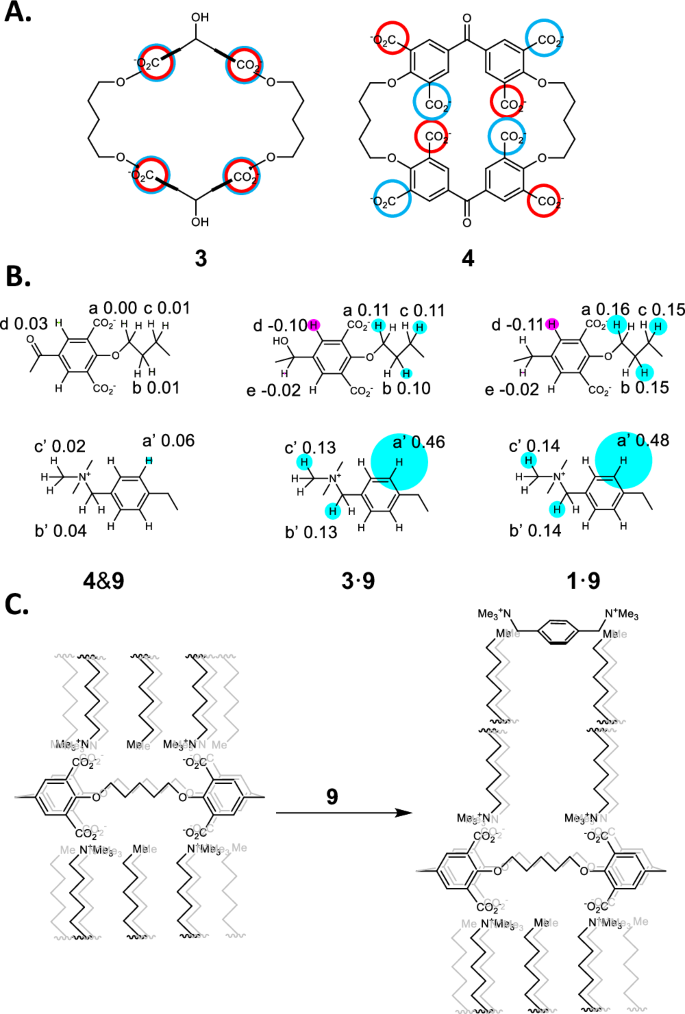

A View orthogonal to the mean macrocycle plane of the arrangement of alkyl chains of 10 bound to cyclophanes 3 and 4. Chains pointing up or down are symbolized by blue or red circles respectively. B Δδ maps arising from 1H NMR spectra of 4&9, 3·9 and 1·9 respectively. -Δδ values are noted on the partial molecular structures. Relative magnitudes of Δδ values are shown by the radii of circles centered on one of the appropriate protons. Signs of Δδ values, whether negative or positive, are symbolized by blue or red circles respectively. C 9-induced depolymerization of poly(1·108).
Quantification of the interlayer spacings observed in the multi-layered lamellar fragments shown in Fig. 2A gives 3.2 ± 0.3, 3.0 ± 0.1 and 2.4 ± 0.4 nm for the combination of cationic detergent 10 with octacarboxylate 1, dialcoholoctacarboxylate 3 and diketoneoctacarboxylate 4 respectively. Clearly, the membranes arising from the two cyclophanes 1&3 with phenylene rings oriented orthogonal to the mean macrocycle plane have essentially identical interlayer spacings of 3.1 nm. In contrast, the membrane generated from the cyclophane 4 with phenylene rings flattened into the mean macrocycle plane has a significantly smaller interlayer spacing of 2.4 nm.
p-Xylyldiammonium dications, e.g. 9, are known to nest inside the cavity of cyclophane dialcoholtetracarboxylates like 539, because of their geometric complementarity and because of favorable hydrophobic and electrostatic interactions. In contrast, the cavity of cyclophane diketonetetracarboxylates like 639, is too small, owing to the phenylene groups flattening into the mean macrocycle plane (vide supra), so that binding of 9 is not seen. A parallel behavior is found when 9 is mixed with cyclophanes 1, 3 & 4. The evidence is found in the corresponding 1H NMR spectra (Fig. 3B, Supplementary note 7 & Supplementary Fig. 8a–c), where the complexation-induced chemical shift differences (Δδ) are much smaller for the pair of 9 and 4, as compared to the other guest-host pairs. Binding constants (log β) of 3.6 are found from concentration-dependent studies for complexes 9·1 and 9·3 in water, whereas the corresponding value for the putative complex 9·4 is <2.
Now we consider the disruption of the membranes arising from each member of the redox-pair of cyclophanes 4 (diketone) and 3 (dialcohol). Turbid aqueous solutions of 3·108 are destabilized by the gradual addition of the competing guest xylyldiammonium 9, which results in clarification characterized by a mid-point of 10−4.1 M of 9 (Fig. 4A). This mid-point concentration value of 9 for the depolymerization is significantly smaller than what would be indicated (10−3.6 M) by the binding constant (logβ=3.6) for 9’s interaction with the cyclophane 3. Essentially the same mid-point concentration of 9 is found when the model cyclophane 1 is examined in the same way, as might be anticipated from the similar orientation of phenylene units in both cases. When an analogous experiment is conducted with the diketone macrocycle with collapsed phenylene ‘walls’, i.e. with turbid solutions of 4·108, clarification occurs at ca. 10−5 M of 9, even though 9 interacts with cyclophane 4 hardly at all even at concentrations of 10−3 M. This suggests that the destabilization of these membranes by 9 occurs without initial association with the cyclophane units, which would be rather inaccessible within the membrane anyway. This is also not a salt effect, since the addition of NaCl causes essentially the same salt-induced turbidity changes in membranes arising from each of the three cyclophanes 1, 3 and 4. These changes are also bimodal and occur at much higher salt concentrations of ca. >10−1.5 M (Supplementary note 8 & Supplementary Fig. 9). The relative hydrophobicity of dicationic 9 would allow it to break up the interdigitation of cyclophane-bound 10 by binding at this rather hydrophobic location, while providing some cationic amphiphilic action of its own (Fig. 3C), so that the size of the membrane particles decrease below that which would scatter visible light. Several membranes based on other macrocycles such as pillararenes which are switchable with gases60,61,62, ions61,63 or small molecules61 via different mechanisms are known. However, these membranes are mostly mono- or bi-layered vesicles, and are not the rare multi-layered lamellae (Fig. 2A) observed in the present work. Following photoinduced electron transfer to chlorinated solvents, certain triphenylamines outfitted with amide units and long alkyl chains give rise to fibrils via supramolecular polymerization64. Since these are thermally reversible, they are also relevant examples of switchable meso-scale systems. It is also relevant to note a report65 where the concept of Boolean drug release following depolymerization of materials33,34 has been miniaturized to the nanoparticle level. However, the nanoparticles are irreversibly degraded during the release process.

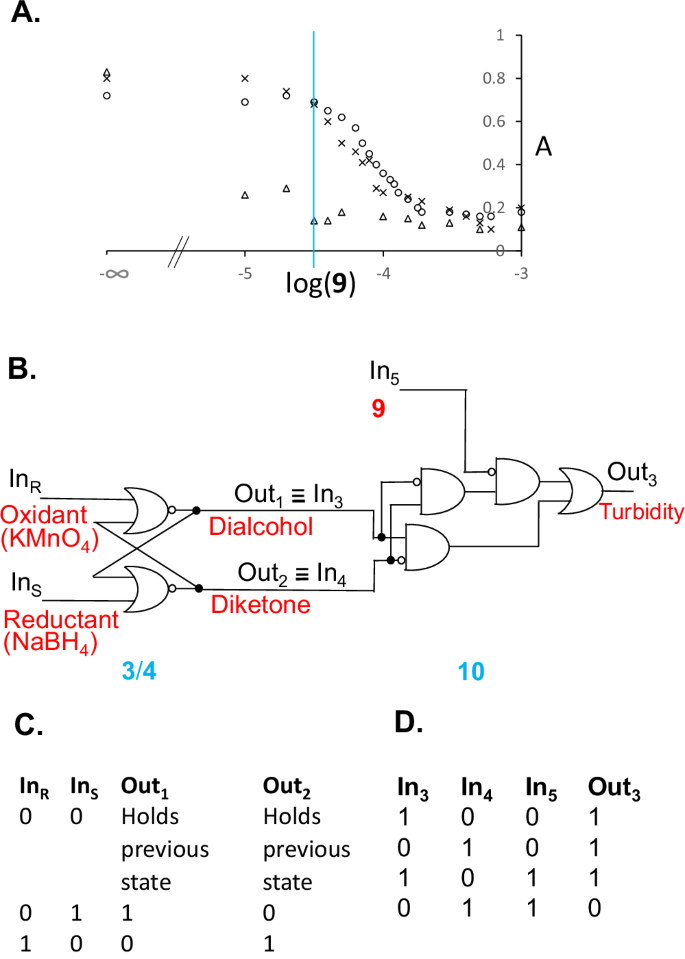

A Turbidity (as measured by absorbance (A) at 500 nm with 1 cm path length) versus log(9) for 10 in mixture with 1 (circles), 4 (triangles) and 3 (crosses) in water. For ease of comparison, the turbidity values for the case involving 3 are plotted after dividing by 2. B Physical electronic representation of a RS flip-flop integrated with a substantial array of logic elements corresponding to the 9-induced reversible membrane formation/collapse by redox pair 3/4 in the presence of 10. C, D Truth tables for the sequential and combinational logic components involved in part B. Input5 (9) is taken as ‘high’ (1) when its concentration is 10−4.5 M, and ‘low’ (0) when it is absent. Output3, the turbidity when (9) = 10−4.5 M, is taken as ‘high’ (1) when the absorbance is >0.4. Otherwise, Output3 is ‘low’ (0).
Discussion
Building a memory with two states begins with a ketone 4 and an alcohol 3 which are interconvertible by chemical redox reactions. Since the redox pair 4/3 is structurally elaborated into two cyclophane macrocycles, the function of switchable binding/unbinding of guests comes into view. Employment of surfactant 10 as the guest introduces membrane formation into the aqueous system. The transmission electron microscopy results which gave an interlayer spacing of 2.4 nm for the system containing 4&10 and a spacing of 3.1 nm for the case involving 3&10 can be analyzed further.
The ‘height’ of the phenylene units of cyclophanes 3 or 1 (perpendicular to the mean macrocycle plane) can be approximated by the appropriate oxygen-oxygen interatomic distance in isophthalate66 (0.74 nm) plus the van der Waals radii of the termini (0.15 nm each)67. Similarly, the ‘height’ of the flattened phenylene units of cyclophane diketone 4 can be approximated by the thickness of an aromatic pi-electron cloud (0.34 nm)68, although this might be tempered by transannular steric interactions. The difference between these two sets of phenylene unit ‘heights’ is 0.7 nm. Remarkably, this is identical to the difference between the observed interlayer spacing of the membranes arising from cyclophanes 3 (or 1) and cyclophane diketone 4. This fits the model of Fig. 2C if the degree of alkyl chain interdigitation of 10 and the orientation of those alkyl chains with respect to the mean macrocycle plane are constant across all three cases.
10, in its extended form, occupies a length of 2.50 nm69. So, the interlayer spacing of the membranes arising from cyclophanes 1&3 as partners can be calculated to be 2.50 + 1.04 = 3.54 nm for full interdigitation of alkyl chains. The observed value of 3.1 nm can be ascribed to some coiling of the chains of 10. A similar consideration applies to the case concerning cyclophane diketone 4.
The significantly higher stability of the membrane based on cyclophane dialcohol 3, c.f. that based on diketone 4, in the face of disruption by 9, can be attributed to the erect phenylene walls producing nanotubes of regular diameter with the eight hydrocarbon chains of surfactant 10 being positioned equidistant from the macrocycle axis leading to strong interdigitation and close-packing (Fig. 3A). Notably, all eight carboxylates of 3 are equidistant from the macrocycle axis, and these pair with the cationic trimethylammonium headgroups of the eight copies of 10. In contrast, the collapsed phenylene walls of cyclophane diketone 4 would split the alkyl chains into two groups proximal and distal to the macrocycle axis (Fig. 3A), which would be less conducive to efficient alkyl chain interdigitation and close-packing. In this instance, there would be four carboxylates which are close to the macrocycle axis and four outside the macrocycle frame. Steric considerations orient the neighboring carboxylates of the former set towards opposite faces of the macrocycle, which control the orientations of the latter set in turn.
Previously, we have shown that redox interconversions of the simple alcohol-ketone system emulate the features of a computer memory element, the RS Flip-Flop39,40,41,42,43,70. Once reduced (reductant InputS = 1), the alcohol is maintained (Output1 alcohol state = 1) whether no reductant (reductant InputS = 0) or excess reductant (reductant InputS = 1) is applied subsequently. Once oxidized (oxidant InputR = 1), the ketone remains the only product (Output2 ketone state = 1) whether no oxidant (oxidant InputR = 0) or excess oxidant (oxidant InputR = 1) is applied thereafter. By building dialcohol-diketone macrocyclic host systems, we could integrate various downstream logic gates with the RS Flip-Flop, depending on the property being exhibited by the molecular device. The 9-induced switching behavior of the turbidity output in the current work leads to the most complex logic gate array seen thus far. When Input5 (9) is considered to be ‘high’ (1) when its concentration is 10−4.5 M and to be ‘low’ (0) when it is absent, the behavior described above can be accommodated in the truth tables in Fig. 4C, D. Analysis of this table according to the ‘sum of products’ approach of Boolean logic analysis71, gives rise to the minimized gate array shown in Fig. 4B. It contains 7 logic elements downstream from the RS Flip-Flop. Although the redox-interconvertible 4/3 system only displays RS Flip-Flop logic behavior, its self-assembly with detergent 10 produces a more complex logic action when switched by additive 9. When 9 is absent, and since only dialcohol or diketone can exist at a given moment, i.e. they can’t both be present and they can’t both be absent, the downstream gate array simplifies first to a XOR and finally to an OR gate (Supplementary note 9).
A potential use of our findings on membrane logic systems would be in the diagnosis of membrane-related diseases72 just as nanometric logic systems were proposed for diseases concerning electrolytes73,74 and commercialized later for blood diagnostics (https://www.optimedical.com). However, the significance of our findings for biological systems needs to be tempered because these experiments were conducted in basic aqueous solution. Furthermore, chemically-switchable logic systems accumulate chemical waste. However, there are examples where waste does not interfere with their operation at least in the short term40. Ref. 40 is also an example closely related to the present work where three cycles of operation have been run successfully. However, the present work is currently validated for single use. A further limitation is introduced by the fact that the redox interconversions of 3 and 4 are not quantitative at present. The sharpness of switching of turbidity (Fig. 4A) will be tempered somewhat owing to this.
In conclusion, the molecular-level redox interconversion between a cyclophane-based dialcohol and a diketone has been transformed into the differential binding of a cationic surfactant within multi-layered lamellar superstructures of submicrometer size. The latter assemblies are maintained or collapsed in the presence of a small aromatic dication under specified aqueous conditions. Such switching ‘on’ or ‘off’ at the meso-scale corresponds to the integration of a molecular memory with a substantial array of combinational logic gates. In contrast, the guest binding/unbinding output of the cyclophane dialcohol/diketone system on its own behaves only as a RS Flip-Flop at the molecular level. Here, the scaling-up in size also increases the complexity of the logic gate array which is displayed.
Methods
Synthesis and characterization of cyclophanes leading to membranes
All starting materials were purchased from Sigma-Aldrich. All procedures are given in the supplementary methods 1 and 2.
Instrumentation
1H-NMR spectra were obtained from solutions in DMSO-d6, deuterium oxide, chloroform-d or methanol-d4, and conducted on Bruker DPX-300, DPX-400, DPX-500 or DPX-600 spectrometers. The temperature was set at 20 °C. The chemical shift δH are given in parts per million using the signal for tetramethylsilane as reference. The coupling constants J are given in Hertz (Hz); the signals are described as follows: s = singlet, d = doublet, t = triplet, m = multiplet. 13C-NMR spectra were obtained from solutions in chloroform-d or methanol-d4, and were conducted on Bruker DPX-300 or DPX-400 spectrometers. The temperature was set at 20 °C. The chemical shift δC are given in ppm relative to tetramethylsilane in DMSO-d6. Mass spectra were recorded using a Waters GCT Premier (EI) or VG Quattro II TripleQuadrupole mass spectrometers (Electrospray). Mass spectrometry was performed by Analytical Services and Environmental Projects (ASEP) at Queen’s University, Belfast. Infrared spectra were recorded using a Perkin-Elmer Spectrum Two 91020 spectrophotometer in potassium bromide (KBr) disks. UV-Vis absorption spectroscopic measurements were made using an Agilent Cary 60 UV-Vis Spectrophotometer. Fluorescence emission spectroscopic measurements were made using a PerkinElmer LS55 Spectrometer. Surface tension measurements were made using an FTÅ200 instrument. The samples were loaded into a syringe and the syringe contents were pushed out by the instrument automatically. Photographs were taken when the drop was about to fall from the needle. All samples were tested ten times and an average was taken to improve the precision. Dynamic light-scattering measurements to measure the hydrodynamic diameters of the assemblies were conducted in aqueous solution at 25 °C with a Malvern Zetasizer Nano ZS. Nanoparticle tracking analysis measurements were made using a Malvern NanoSight NS300 instrument. The measurements were carried out at room temperature and laser type Blue 488 (nm) was used. Transmission electron microscopy was performed with a JEOL JEM-1400 transmission electron microscope operating at an accelerating voltage of 120 kV.
Data availability
The authors declare that the data supporting the findings of this study are available within the article and its supplementary information files. All data are available from the corresponding author upon request.
References
Katz, E., ed., Molecular and Supramolecular Information Processing (Wiley-VCH, Weinheim, 2012).
Katz, E., ed., Biomolecular Information Processing (Wiley-VCH, Weinheim, 2012).
Szacilowski, K., Infochemistry (Wiley, Chichester, 2012).
de Silva, A. P., Molecular Logic-based Computation (Royal Society of Chemistry, Cambridge, 2013).
Katz, E., Enzyme-based Computing Systems (Wiley-VCH, Weinheim, 2019).
Katz, E., ed., DNA- and RNA-based Computing Systems (Wiley-VCH, Weinheim, 2020).
Balzani, V., Credi, A. & Venturi, M., Molecular Devices and Machines 2nd edn. (VCH, Weinheim, 2008).
de Silva, A. P., Gunaratne, H. Q. N. & McCoy, C. P. A molecular photoionic AND gate based on fluorescent signaling. Nature 364, 42–44 (1993).
de Silva, A. P., Leydet, Y., Lincheneau, C. & McClenaghan, N. D. Chemical approaches to nanometre-scale logic gates. J. Phys. Condens. Matter 18, S1847–S1872 (2006).
Andreasson, J. & Pischel, U. Molecules with a sense of logic: a progress report. Chem. Soc. Rev. 44, 1053–1069 (2015).
Daly, B., Ling, J., Silverson, V. A. D. & de Silva, A. P. Taking baby steps in molecular logic-based computation. Chem. Commun. 51, 8403–8409 (2015).
Erbas-Cakmak, S. et al. Molecular logic gates: the past, present and future. Chem. Soc. Rev. 47, 2228–2248 (2018).
Yao, C. Y., Lin, H. Y., Crory, H. S. N. & de Silva, A. P. Supra-molecular agents running tasks intelligently (SMARTI): Recent developments in molecular logic-based computation. Mol. Syst. Des. Eng. 5, 1325–1353 (2020).
Andreasson, J. & Pischel, U. Light-stimulated molecular and supramolecular systems for information processing and beyond. Coord. Chem. Rev. 429, 213695 (2021).
Nicoli, F. et al. Binary logic operations with artificial molecular machines. Coord. Chem. Rev. 428, 213589 (2021).
Magri, D. C. Logical sensing with fluorescent molecular logic gates based on photoinduced electron transfer. Coord. Chem. Rev. 426, 213598 (2021).
Liu, L., Liu, P., Ga, L. & Ai, J. Advances in applications of molecular logic gates. ACS Omega 6, 30189–30204 (2021).
Nikitin, M. P. Non-complementary strand commutation as a fundamental alternative for information processing by DNA and gene regulation. Nat. Commun. 15, 70–82 (2023).
Rajasekaran, V. V., Kundu, S., Mondal, D. & Schmittel, M. A constitutionally dynamic cage acts as a convertible and adaptable information manager in supramolecular logic. ChemSystemsChem 5, e202300009 (2023).
Paul, I., Valiyev, I. & Schmittel, M. Chemically fueled logic AND gate with double encoding in the time domain. J. Am. Chem. Soc. 146, 2435–2444 (2024).
Kundu, S., Mondal, D., Rajasekaran, V. V., Goswami, A. & Schmittel, M. Three-input Logic AND Gate Drives Sequential Three-step Catalysis by Parallel Activation of H+ and Ag+ as a Catalyst Duo. Inorg. Chem. 61, 17007–17011 (2022).
Lazareva, O. F., Shimizu, T. & Wasserman, E. A., eds., How Animals See the World (Oxford University Press, Oxford, 2012).
Tabor, J. J. et al. A synthetic genetic edge detection program. Cell 137, 1272–1281 (2009).
Chirieleison, S. M., Allen, P. B., Simpson, Z. B., Ellington, A. D. & Chen, X. Pattern transformation with DNA circuits. Nat. Chem. 5, 1000–1005 (2013).
Ling, J., Naren, G. W., Kelly, J., Moody, T. S. & de Silva, A. P. Building pH sensors into paper-based small-molecular logic systems for very simple detection of edges of objects. J. Am. Chem. Soc. 137, 3763–3766 (2015).
Ling, J., Naren, G. W., Kelly, J., Fox, D. B. & de Silva, A. P. Small molecular logic systems can draw the outlines of objects via edge visualization. Chem. Sci. 6, 4472–4476 (2015).
de Silva, A. P., Dobbin, C. M., Vance, T. P. & Wannalerse, B. Multiply reconfigurable ‘plug and play’ molecular logic via self-assembly. Chem. Commun. 1386–1388 (2009).
Uchiyama, S., McClean, G. D., Iwai, K. & de Silva, A. P. Membrane media create small nanospaces for molecular computation. J. Am. Chem. Soc. 127, 8920–8921 (2005).
Gao, J. J. et al. Cellular AND gates: Synergistic recognition to boost selective uptake of polymeric nanoassemblies. Angew. Chem. Int. Ed. 59, 10456–10460 (2020).
Schneider, H.J., Tianjun, L., Lomadze, N. & Palm, B. Cooperativity in a chemomechanical polymer: A chemically induced macroscopic logic gate. Adv. Mater. 16, 613–615 (2004).
Schneider, H.J. Logic-gate functions in chemomechanical materials. Chemphyschem 18, 2306–2313 (2017).
Komatsu, H. et al. Supramolecular hydrogel exhibiting four basic logic gate functions to fine-tune substance release. J. Am. Chem. Soc. 131, 5580–5585 (2009).
Ikeda, M. et al. Installing logic-gate responses to a variety of biological substances in supramolecular hydrogel-enzyme hybrids. Nat. Chem. 6, 511–518 (2014).
Badeau, B. A., Comerford, M. P., Arakawa, C. K., Shadish, J. A. & DeForest, C. A. Engineered modular biomaterial logic gates for environmentally triggered therapeutic delivery. Nat. Chem. 10, 251–258 (2018).
Wei, J. H., Xing, J. F., Hou, X. F., Chen, X. M. & Li, Q. Light-operated diverse logic gates enabled by modulating time-dependent fluorescence of dissipative self-assemblies. Adv. Mater. 36, 2411291 (2024).
Ohsumi, Y., The Nobel Prize in Physiology and Medicine, The Nobel Prize, https://www.nobelprize.org/prizes/medicine/2016/ohsumi/lecture/ (2016)
Miyake, M., Kirisawa, M. & Koga, K. Biomimetic studies using artificial systems. 6. Design and synthesis of novel cyclophanes having 8 carboxyl groups on the aromatic rings. Chem. Pharm. Bull. 41, 1211–1213 (1993).
Miyake, M., Kirisawa, M. & Koga, K. A novel water-soluble cyclophane as a host for cationic, anionic, and neutral aromatic guests. Chem. Pharm. Bull. 40, 3124–3126 (1992).
Daly, B. et al. Molecular memory with downstream logic processing exemplified by switchable and self-indicating guest capture and release. Nat. Commun. 10, 49 (2019).
Yao, C. Y. et al. Taming tris(bipyridine)ruthenium(II) and its reactions in water by capture/release with shape-switchable symmetry-matched cyclophanes. J. Am. Chem. Soc. 144, 4977–4988 (2022).
Yao, C. Y., Lin, H. Y., Morgenfurt, P., Keyes, T. E. & de Silva, A. P. Multiple molecular logic gate arrays in one system of (2-(2’-pyridyl)imidazole)Ru(II) complexes and trimeric cyclophanes in water. Chem. Sci. 13, 10856–10867 (2022).
Yao, C. Y. et al. Shape-shifting p-Cyclophanes as portals to switching, sensing, delivery and logic operations in water. Org. Chem. Front. 10, 1570–1576 (2023).
Lin, H. Y. et al. Remarkably selective binding, behaviour modification and switchable release of (Bipyridine)3Ru(II) vis-à-vis (Phenanthroline)3Ru(II) by trimeric cyclophanes in water. JACS Au 3, 2257–2268 (2023).
Rubingh, D. N. & Holland, E. M., eds., Cationic Surfactants: Physical Chemistry (Dekker, New York, 1991).
Meric, R., Vigneron, J.-P. & Lehn, J. M. Efficient complexation of quaternary ammonium-compounds by a new water-soluble macrobicyclic receptor molecule. J. Chem. Soc. Chem. Commun. 129–131 (1993).
Diederich, F., Cyclophanes (Royal Society of Chemistry, Cambridge, 1991).
Deng, C.-L., Cheng, M., Zavalij, P. Y. & Isaacs, L. Thermodynamics of pillararene guest complexation: blinded dataset for the SAMPL9 challenge. N. J. Chem. 46, 995–1002 (2022).
Li, X. B. et al. Supramolecular enhancement of charge transport through pillar[5]arene-based self-assembled monolayers. Angew. Chem. Int. Ed. 62, e202216987 (2023).
Cameron, K. S. et al. Anionic cyclophanes as potential reversal agents of muscle relaxants by chemical chelation. Bioorg. Med. Chem. Lett. 12, 753–755 (2002).
Seward, E. M., Hopkins, R. B., Sauerer, W., Tam, S. W. & Diederich, F. Redox-dependent binding ability of a flavin cyclophane in aqueous-solution - hydrophobic stacking versus cavity-inclusion complexation. J. Am. Chem. Soc. 112, 1783–1790 (1990).
Escobar, L. & Ballester, P. Molecular recognition in water using macrocyclic synthetic receptors. Chem. Rev. 121, 2445–2514 (2021).
Seebach, F. 4,4’-Dihydroxy-3,3’,5,5’-tetra(hydroxymethyl)diphenylmethane. Ber. Dtsch. Chem. Ges. 74, 1501–1507 (1941).
Miyake, M., Kirisawa, M. & Koga, K. Anionic cyclophanes as hosts for cationic guests. Tetrahedron Lett. 32, 7295–7298 (1991).
Reddy, C. S., Devi, M. V., Kumar, G. R., Sunitha, M. & Nagaraj, A. Synthesis and biological evaluation of novel bis[1,2,4]triazolo[3,4-b][1,3,4]oxadiazoles. J. Heterocycl. Chem. 50, 557–562 (2013).
Luther, B. J., Reddy, T. B. & Rao, M. V. B. Synthesis of bis[1,3,4]-oxadiazol-2-yl-amino-2-aryl-1,3-thiazolan-4-ones. J. Applicable Chem. 3, 1311–1318 (2014).
Srinivas, A. Synthesis and antimicrobial activity of bis[4-methoxy-3-(6-aryl-7H-[1,2,4]triazolo[3,4-b][1,3,4]thiadiazin-3-yl)phenyl]methanes and bis[(triazolo[3,4-b]thiadiazepin-3-yl)phenyl]methanes. Acta Chim. Slov. 63, 173–179 (2016).
Xu, Z.-C. & Cafiso, D. S. Phospholipid packing and conformation in small vesicles revealed by two-dimensional 1H nuclear magnetic resonance cross-relaxation spectroscopy. Biophys. J. 49, 779–783 (1986).
Huster, D. & Gawrisch, K. NOESY NMR crosspeaks between lipid headgroups and hydrocarbon chains: Spin diffusion or molecular disorder? J. Am. Chem. Soc. 121, 1992–1993 (1999).
Fuhrhop, J.H. & Koning, J., Membranes and Molecular Assemblies: The Synkinetic Approach (Royal Society of Chemistry, Cambridge, 1994).
Jie, K. C., Zhou, Y. J., Yao, Y., Shi, B. B. & Huang, F. H. CO2-responsive pillar[5]arene-based molecular recognition in water: Establishment and application in gas-controlled self-assembly and release. J. Am. Chem. Soc. 137, 10472–10475 (2015).
Jiang, L. et al. Supramolecular vesicles co-assembled from disulfide-linked benzimidazolium amphiphiles and carboxylate-substituted pillar-[6]arenes that are responsive to five stimuli. Angew. Chem. Int. Ed. 56, 2655–2659 (2017).
Zhou, Y. J., Li, E. R., Zhao, R. & Jie, K. C. CO2-Enhanced bola-type supramolecular amphiphile constructed from pillar[5]arene-based host−guest recognition. Org. Lett. 20, 4888–4892 (2018).
Duan, Q. P. et al. pH-responsive supramolecular vesicles based on water-soluble pillar[6]arene and ferrocene derivative for drug delivery. J. Am. Chem. Soc. 135, 10542–10549 (2013).
Moulin, M. et al. The hierarchical self-assembly of charge nanocarriers: A highly cooperative process promoted by visible light. Angew. Chem. Int. Ed. 49, 6974–6978 (2010).
Zhang, P. H. et al. A programmable polymer library that enables the construction of stimuli-responsive nanocarriers containing logic gates. Nat. Chem. 12, 381–390 (2020).
Jeevaraj, M. et al. Supramolecular patterns and Hirshfeld surfaces in the crystal structure of bis(2-amino-4-methoxy-6-methylpyridinium)isophthalate. Acta Cryst. E Cryst. Commun. 73, 1595–1598 (2017).
Mantina, M., Chamberlin, A. C., Valero, R., Cramer, C. J. & Truhlar, D. G. Consistent van der Waals radii for the whole main group. J. Phys. Chem. A 113, 5806–5812 (2009).
Bernal, J. D. The structure of graphite. Proc. Roy. Soc. Lond. A 106, 749–773 (1924).
Okuyama, K., Ishii, T., Vongbupnimit, K. & Noguchi, K. Structural studies of cetyltrimethylammonium chloride and its complex with p-phenylphenol. Mol. Cryst. Liq. Cryst. Sci. Technol. A. Mol. Cryst. Liq. Cryst. 312, 101–115 (1998).
Andreasson, J. & Pischel, U. A simplicity-guided approach toward molecular set-reset memories. N. J. Chem. 34, 2701–2703 (2010).
Gregg, J. R., Ones and Zeros (IEEE Press, New York, 1998).
Dias, C. & Nylandsted, J. Plasma membrane integrity in health and disease: Significance and therapeutic potential. Cell Discov. 7, 4 (2021).
Bryan, A. J., de Silva, A. P., de SiIva, S. A., Rupasinghe, R. A. D. D. & Sandanayake, K. R. A. S. Photo-induced electron transfer as a general design logic for fluorescent molecular sensors for cations. Biosensors 4, 169–179 (1989).
Magri, D. C., Brown, G. J., McClean, G. D. & de Silva, A. P. Communicating chemical congregation: A molecular AND logic gate with three chemical inputs as a “lab-on-a-molecule” prototype. J. Am. Chem. Soc. 126, 4950–4951 (2006).
