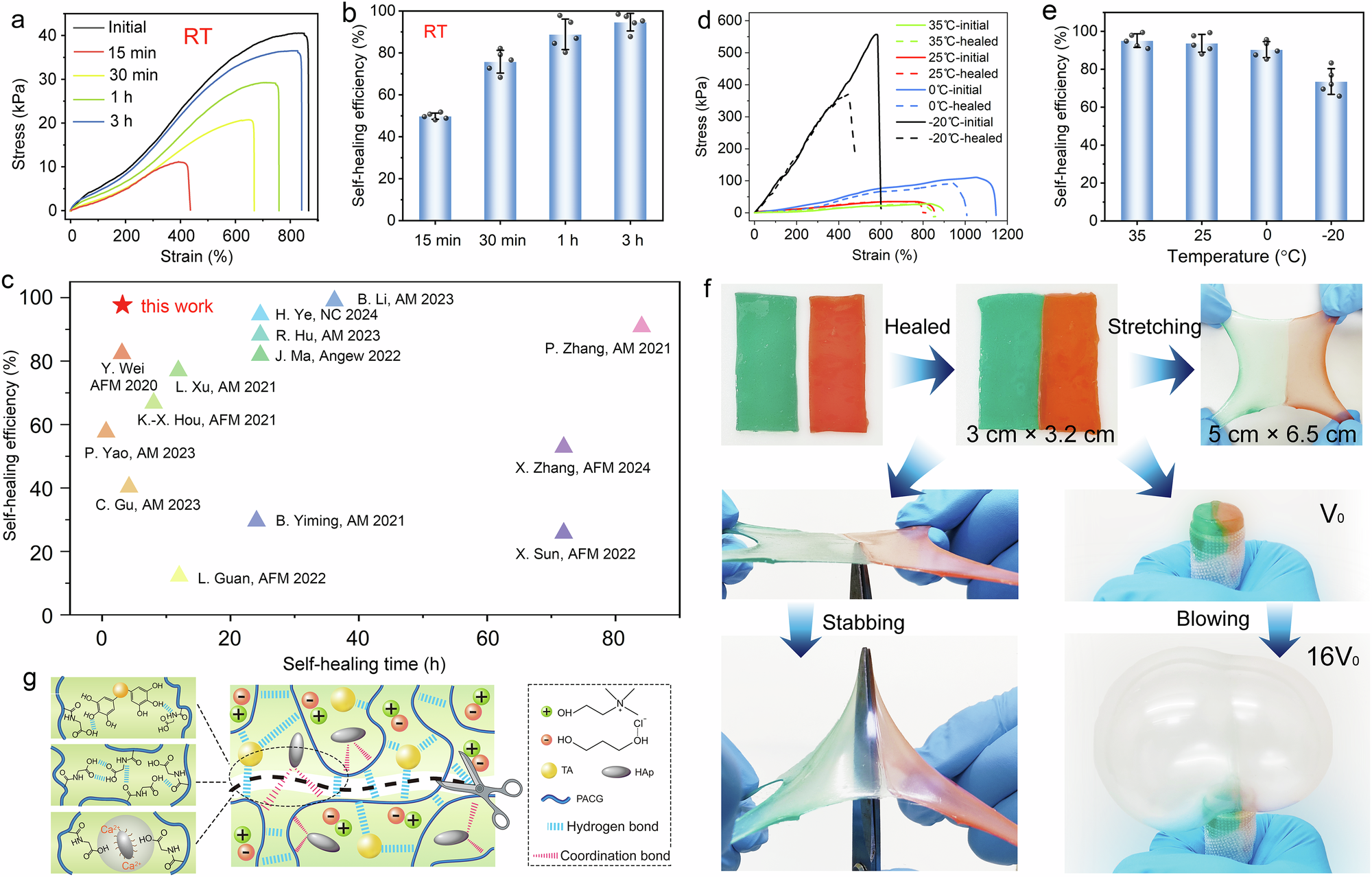

Fig. 4: The self-healing performance of ATH6 eutectogel.
From: A crosslinked eutectogel for ultrasensitive pressure and temperature monitoring from nostril airflow
a The tensile stress-strain curves of original ATH6 and self-healed eutectogels. b The calculated self-healing efficiency of ATH6 eutectogel with different self-healing time at RT. Data are presented as the mean values ± SD, n = 5 independent samples. c The comparison of the self-healing efficiency and time of this work with the previously reported works. d The tensile stress-strain curves of original and self-healed ATH6 eutectogel at different self-healing temperatures. e The calculated self-healing efficiency of ATH6 eutectogel at different temperatures. Data are presented as the mean values ± SD, n =  5 independent samples. f The visual demonstration of self-healed ATH6 eutectogel which can resist different kinds of extreme mechanical stimulus. Scale bars: 5 mm. g The self-healing mechanism of ATH6 eutectogel.
