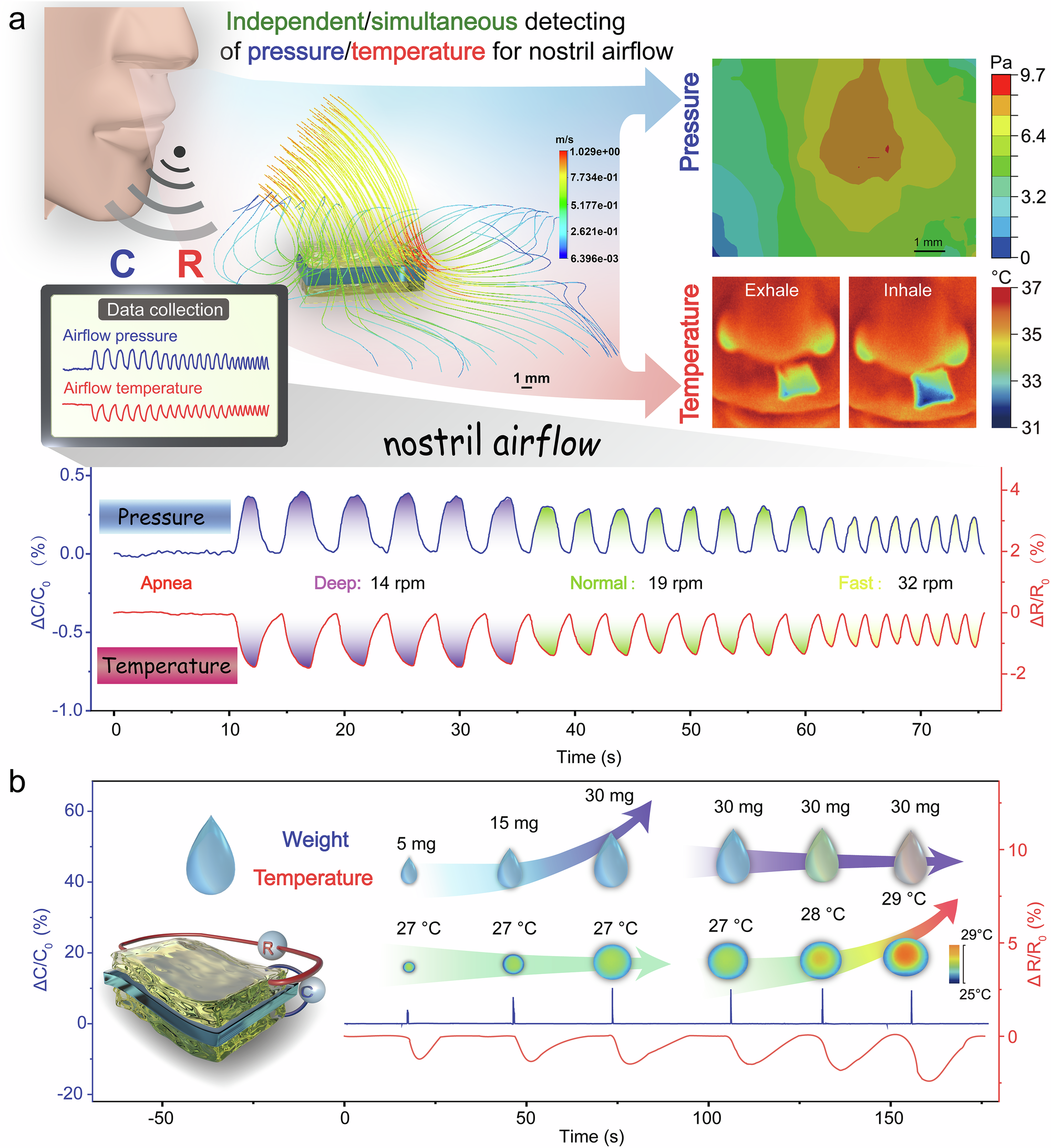

Fig. 8: Simultaneous and independent monitoring of pressure and temperature.
From: A crosslinked eutectogel for ultrasensitive pressure and temperature monitoring from nostril airflow
a Simultaneous detection of the pressure and temperature variation of nostril airflow by outputting different kinds of electrical signals of capacitance and resistance, respectively, the airflow field and pressure distribution of exhaled nostril airflow was simulated, and the thermal distribution of nostril airflow was visualized by an infrared camera. b The sensing test of water droplets to the dual-modal sensor by varying the weight or temperature of the water droplet.
