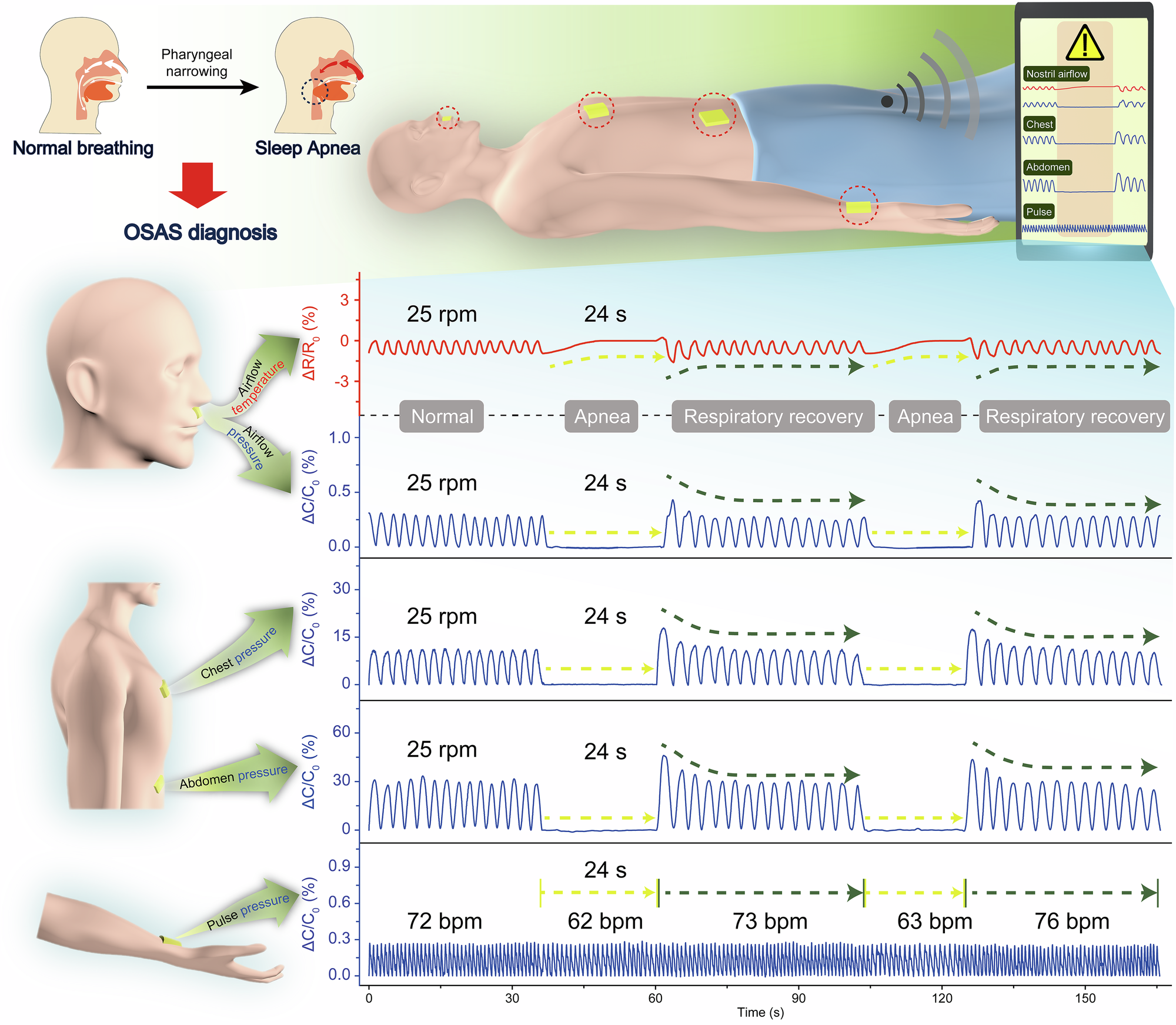

Fig. 9: Monitoring OSAS by ATH6 sensor.
From: A crosslinked eutectogel for ultrasensitive pressure and temperature monitoring from nostril airflow
The schematic illustration of the symptoms of OSAS disease, and monitoring the apnea state and the respiratory recovery process when mimicking OSAS via simultaneously displaying five kinds of channels.
