Fig. 3: Conformational snapshots of Wzc.
From: Molecular basis for the phosphorylation of bacterial tyrosine kinase Wzc

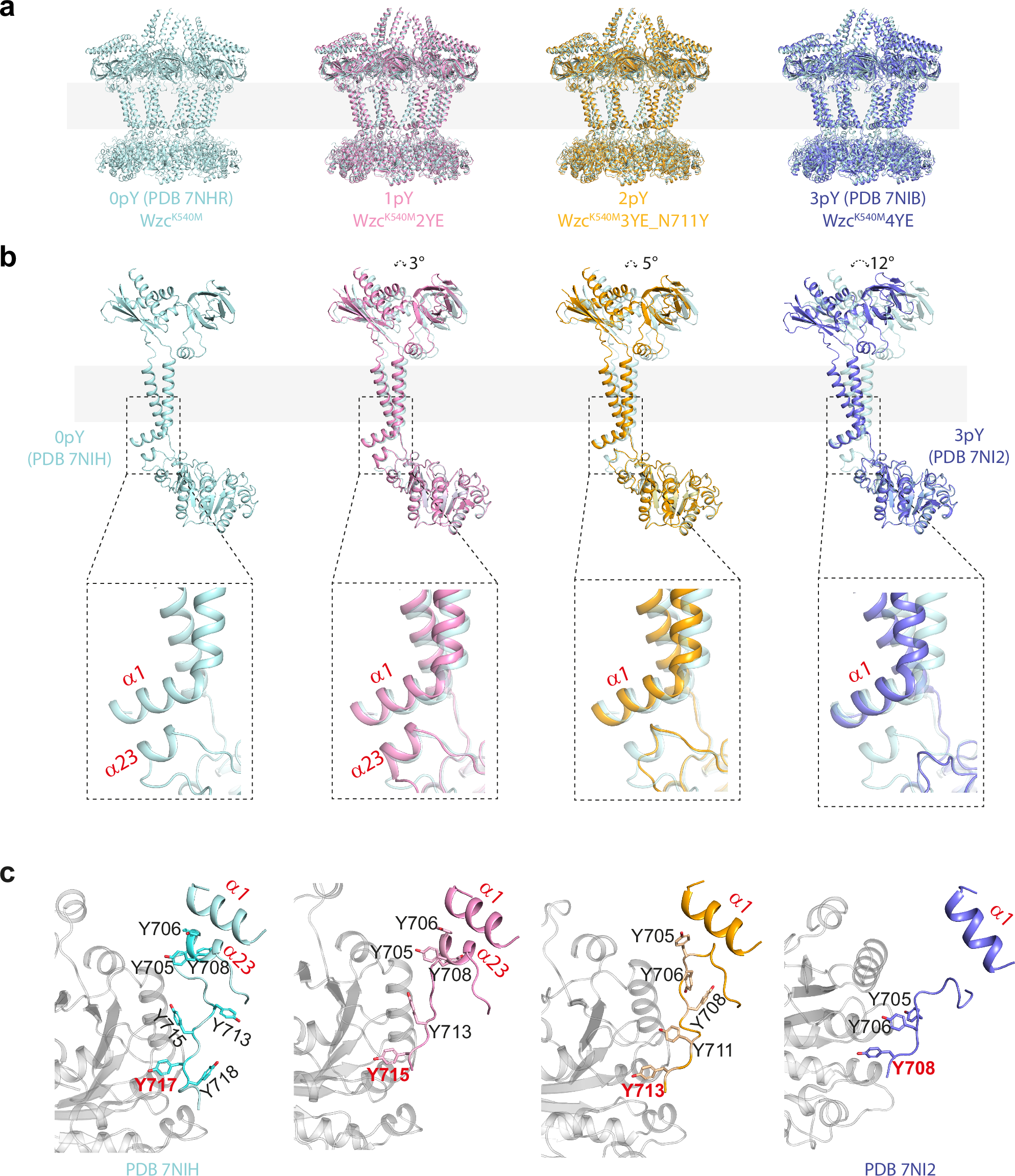

a The structures of the octamers reveal shifts in periplasmic and transmembrane domains relative to WzcK540M. b Superposition using the kinase domain of the monomer from each snapshot shows the movement in the transmembrane helices and periplasmic domain. Zoomed insets highlight conformational changes involving helices α1 and α23. c Structure of the C-terminal region beginning at residue 700 and helix α1 is highlighted, with the kinase domain of neighbouring monomer coloured grey.
