Fig. 4: Comparison of the structures of Wzc octamers.
From: Molecular basis for the phosphorylation of bacterial tyrosine kinase Wzc

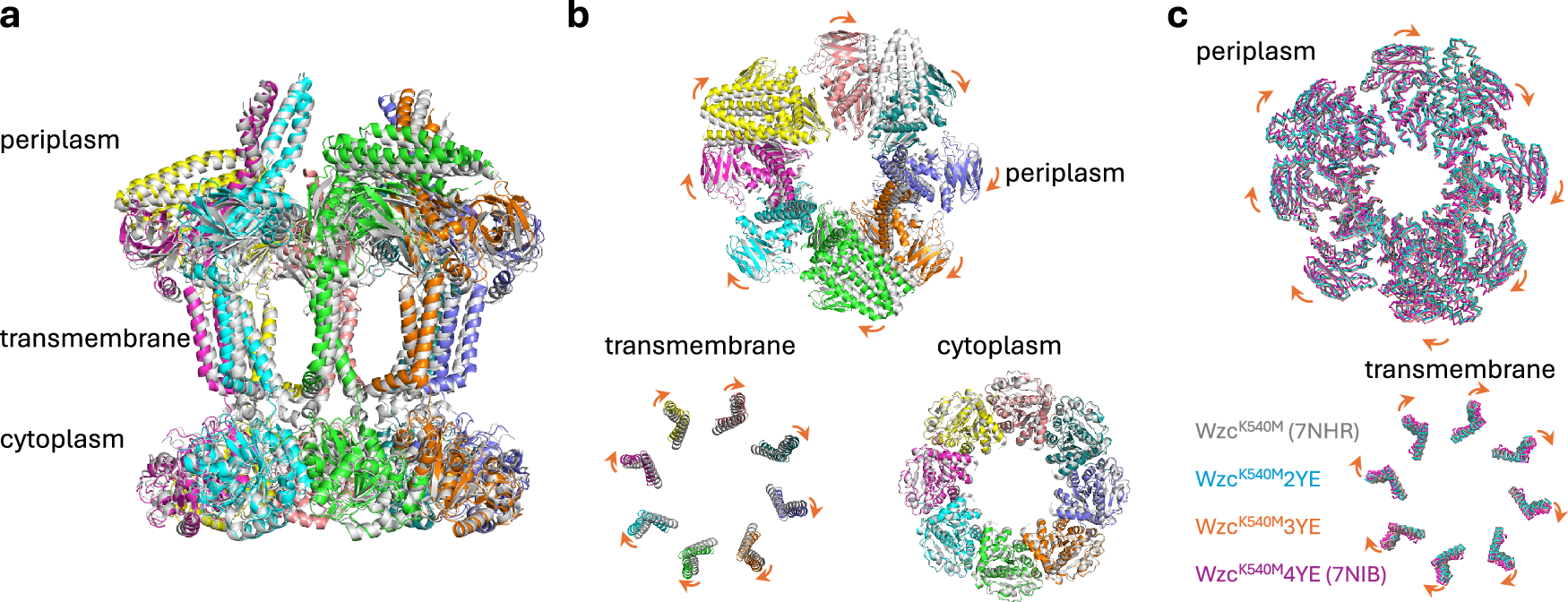

a Side view, b top view comparing the structures of WzcK540M (PDB ID: 7NHR) and WzcK540M4YE (PDB ID: 7NIB). WzcK540M (PDB ID: 7NHR) is coloured gray, and WzcK540M4YE (PDB ID: 7NIB) is coloured by chain. c Structure comparison of the four states. The octameric cytoplasmic kinase domain is used for the structural alignment.
