Cryo-EM structures of the small-conductance Ca2+-activated KCa2.2 channel

Nam, Young-Woo; Im, Dohyun; Garcia, Ana Santa Cruz; Tringides, Marios L.; Nguyen, Hai Minh; Liu, Yan; Orfali, Razan; Ramanishka, Alena; Pintilie, Grigore; Su, Chih-Chia; Cui, Meng; Logothetis, Diomedes E.; Yu, Edward W.; Wulff, Heike; Chandy, K. George; Zhang, Miao

doi:10.1038/s41467-025-59061-1

Download PDF

Article
Open access
Published: 17 April 2025

Cryo-EM structures of the small-conductance Ca²⁺-activated K_Ca2.2 channel

Nature Communications volume 16, Article number: 3690 (2025) Cite this article

7369 Accesses
15 Citations
14 Altmetric
Metrics details

Subjects

Abstract

Small-conductance Ca²⁺-activated K⁺ (K_Ca2.1-K_Ca2.3) channels modulate neuronal and cardiac excitability. We report cryo-electron microscopy structures of the K_Ca2.2 channel in complex with calmodulin and Ca²⁺, alone or bound to two small molecule inhibitors, at 3.18, 3.50, 2.99 and 2.97 angstrom resolution, respectively. Extracellular S3-S4 loops in β-hairpin configuration form an outer canopy over the pore with an aromatic box at the canopy’s center. Each S3-S4 β-hairpin is tethered to the selectivity filter in the neighboring subunit by inter-subunit hydrogen bonds. This hydrogen bond network flips the aromatic residue (Tyr362) in the filter’s GYG signature by 180°, causing the outer selectivity filter to widen and water to enter the filter. Disruption of the tether by a mutation narrows the outer selectivity filter, realigns Tyr362 to the position seen in other K⁺ channels, and significantly increases unitary conductance. UCL1684, a mimetic of the bee venom peptide apamin, sits atop the canopy and occludes the opening in the aromatic box. AP14145, an analogue of a therapeutic for atrial fibrillation, binds in the central cavity below the selectivity filter and induces closure of the inner gate. These structures provide a basis for understanding the small unitary conductance and pharmacology of K_Ca2.x channels.

Structural mechanisms for inhibition and activation of human small-conductance Ca²⁺-activated potassium channel SK2

Article Open access 15 January 2026

Cryo-EM investigation of ryanodine receptor type 3

Article Open access 05 October 2024

Structural and electrophysiological basis for the modulation of KCNQ1 channel currents by ML277

Article Open access 29 June 2022

Introduction

Small-conductance Ca²⁺-activated K⁺ (K_Ca2.x, also called SK) channels are critical modulators of neuronal and cardiac excitability. The three members of this subfamily, K_Ca2.1-K_Ca2.3, are characterized by a small unitary conductance (~9.5 pS in symmetrical K⁺^1,2), Ca²⁺-calmodulin (CaM)-dependent gating³, and a unique pharmacology⁴ that distinguishes them from other ion channels. They are potently and selectively inhibited by venom peptides (apamin from bee venom; scyllatoxin and tamapin from scorpion venoms) and by small molecule agents (UCL1684, AP14145, and NS8593). In the nervous system, K_Ca2.x channels underlie the medium afterhyperpolarization, a spike-frequency adaptation required for normal neurotransmission⁵. Loss-of-function mutations of K_Ca2.2 channels cause tremors in rats⁶ and neurodevelopmental disorders including cerebellar ataxia in humans^7,8, while gain-of-function mutations of K_Ca2.3 channels cause Zimmermann-Laband syndrome in humans^9,10. In the heart, K_Ca2.x channels modulate the duration of the action potential¹¹ and genome-wide association^12,13, functional¹⁴, and clinical¹⁵ studies have firmly linked the channels to atrial fibrillation, the most prevalent cardiac arrhythmia. AP30663, an analog of AP14145 and a small molecule inhibitor of K_Ca2.x channels, was recently shown in a phase II clinical trial to cardiovert chronic atrial fibrillation to sinus rhythm (15). Despite their immense physiological and medical importance, high-resolution structural information does not exist for this class of K⁺ channels.

We used single-particle cryo-electron microscopy (cryo-EM) to determine structures of full-length K_Ca2.2_WT and K_Ca2.2_F244S mutant channels complexed to CaM in the Ca²⁺-activated state. The cryo-EM structures of the K_Ca2.2_WT complex bound to UCL1684 (apamin mimetic) and AP14145 (analog of the therapeutic AP30663) were also determined. Site-directed mutagenesis, molecular dynamics simulation (MDS), and electrophysiological studies were used to assess K⁺ permeation through the pore, measure unitary conductance, and verify binding configurations of pharmacological agents. Our studies provide a framework for understanding the small unitary conductance and the unique pharmacological properties of K_Ca2.x channels.

Results

Architecture of the Ca²⁺-bound apo_K_Ca2.2/CaM complex

We purified full-length rat K_Ca2.2 in complex with rat CaM in the presence of 2 mM Ca²⁺ (Supplementary Fig. 1). Rat K_Ca2.2 is ~98% identical to human K_Ca2.2, and rat CaM is 100% identical to human CaM. Through cryo-EM single particle reconstruction, we obtained a 3D cryo-EM map of the Ca²⁺-bound apo_K_Ca2.2/CaM complex with a resolution of 3.18 Å (Supplementary Fig. 2, Supplementary Table 1). A total of 361 K_Ca2.2 residues (Ile118 to Asn478; remaining residues not visible) and 146 CaM residues (Asp2 to Ala147) were fitted into the density map to obtain a model of the Ca²⁺-bound apo_K_Ca2.2/CaM complex (referred to henceforth as apo_K_Ca2.2) (Fig. 1a). This complex, containing four K_Ca2.2 subunits and four CaM molecules in fourfold symmetry, is 90 Å long and 142 Å wide when viewed from the plane of the membrane (Fig. 1a). Side-chain densities are clearly resolved in the transmembrane S1-S6 helices, the extracellular S3-S4 loop, the inner S₄₅A and S₄₅B helices, the CaM-binding HA and HB C-terminal helices, and CaM (Supplementary Fig. 3a, b). K_Ca2.2 residues are visibly more resolved and have higher Q-scores¹⁶ than CaM residues, suggesting that the K_Ca2.2 structure is more stable than CaM (Supplementary Fig. 3c, d).

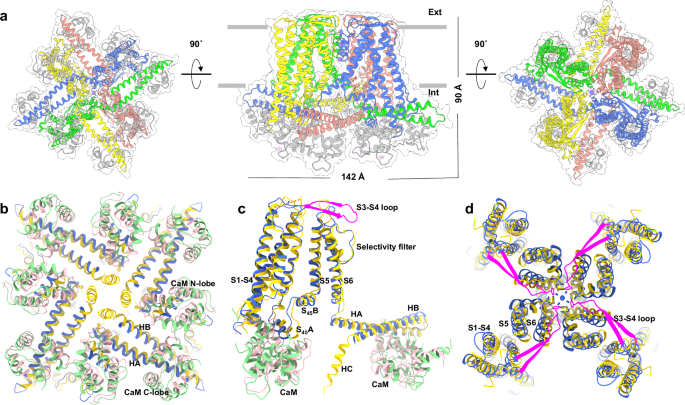

Fig. 1: Cryo-EM structure of apo_KCa2.2 in the Ca2+-bound state. — **Fig. 1: Cryo-EM structure of apo_K_Ca2.2 in the Ca²⁺-bound state.**

Since the small-conductance K_Ca2.2 and the intermediate-conductance Ca²⁺-activated K_Ca3.1 channel share a Ca²⁺-CaM dependent mechanism of activation⁴ and ~40% amino acid sequence identity (Supplementary Fig. 4), we superimposed our apo_K_Ca2.2 structure onto the structure of the Ca²⁺-bound apo_K_Ca3.1/CaM activation state I¹⁷ (Protein Data Bank [PDB]: 6cnn) (referred to henceforth as apo_K_Ca3.1_1). In both Ca²⁺-bound structures, CaM interacts with helices in the S4-S5 loop (S₄₅A) and the C-terminus (HA and HB) (Fig. 1b), suggesting that K_Ca2.2 and K_Ca3.1 share a similar Ca²⁺/CaM gating mechanism, confirming earlier electrophysiological and mutagenesis studies⁴.

Unique outer pore of the Ca²⁺-bound apo_K_Ca2.2/CaM complex

One unique feature of apo_K_Ca2.2 is the conformation of its unusually long extracellular loop between transmembrane helices S3 and S4 (S3–S4 loop, Supplementary Fig. 4). The S3-S4 loop in apo_K_Ca2.2 forms a β-hairpin configuration consisting of two antiparallel β-sheet strands with one turn between them (Fig. 1c, Supplementary Fig. 3). The four S3-S4 β-hairpins stretch over the selectivity filter forming an outer canopy (Fig. 1d). At the tips of these four β-hairpins, the side chains of Phe244 form an aromatic box with a central opening¹⁸ positioned directly above the selectivity filter (Fig. 1d).

Figure 2a shows the cryo-EM density map and the fitted model of the selectivity filter and the S3-S4 β-hairpins of the apo_K_Ca2.2 structure seen from the plane of the membrane. Both regions are well resolved. In apo_K_Ca2.2, each S3-S4 β-hairpin is tethered to the selectivity filter in the neighboring subunit by a network of inter-subunit hydrogen bonds (Fig. 2b), which is different from the intra-subunit network that stabilizes apo_K_Ca3.1_1’s pore (Fig. 2c). In apo_K_Ca2.2, Arg241, Phe244 and Tyr246 in the S3-S4 β-hairpin are tied by inter-subunit hydrogen bonds and a salt bridge to Asp364 in the selectivity filter (Fig. 2b). Interaction between the S3-S4 β-hairpins and the selectivity filter causes the critical tyrosine (Tyr362) in the G[Y/F]GD signature sequence to flip 180^o relative to the position of corresponding aromatic residues in the filters of other Ca²⁺-activated and voltage-activated K⁺ channels (Fig. 2d). The 180^o flip of Tyr362 relative to the aromatic residues in other K⁺ channels is also shown in the side view of the selectivity filters (Supplementary Fig. 5). The reorientation of Tyr362 causes the outer selectivity filter of K_Ca2.2 to be wider (Fig. 3a, b) than the outer selectivity filters of other K⁺ channels (Supplementary Fig. 5). In this widened outer selectivity filter, K⁺ is missing from S1 (Fig. 3a) and the entry of water partially hydrates K⁺ at S2 (Fig. 3b). The inner selectivity filter of apo_K_Ca2.2 is the same as apo_K_Ca3.1_1, and in both structures K⁺ is found at S3 and S4 (Fig. 3a). An additional K⁺, S0, is found at the opening of the aromatic box of apo_K_Ca2.2 (Fig. 3a). Analysis using the Hole program¹⁹ shows that apo_K_Ca2.2’s outer filter is wider than other Ca²⁺-activated and voltage-activated K⁺ channels, while its outer vestibule is narrower due to the aromatic box (Fig. 3c, d).

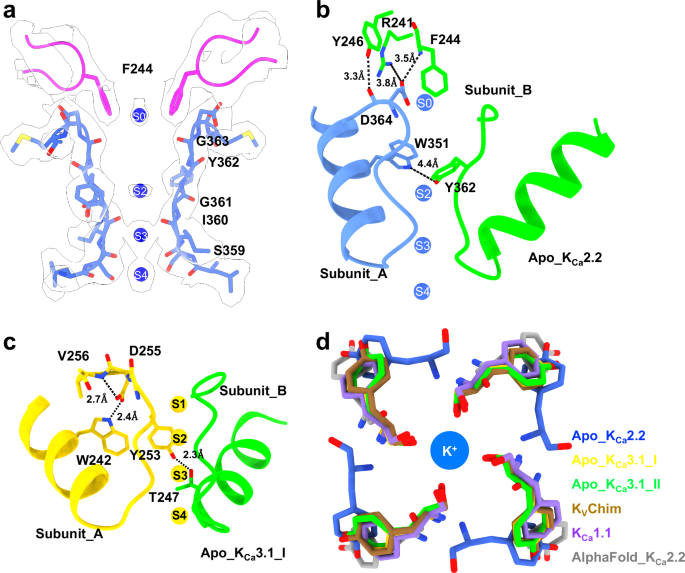

Fig. 2: Tethering of the S3-S4 β-hairpins to the selectivity filter and 180o flip of the critical tyrosine in the signature sequence in apo_KCa2.2. — **Fig. 2: Tethering of the S3-S4 β-hairpins to the selectivity filter and 180^o flip of the critical tyrosine in the signature sequence in apo_K_Ca2.2.**

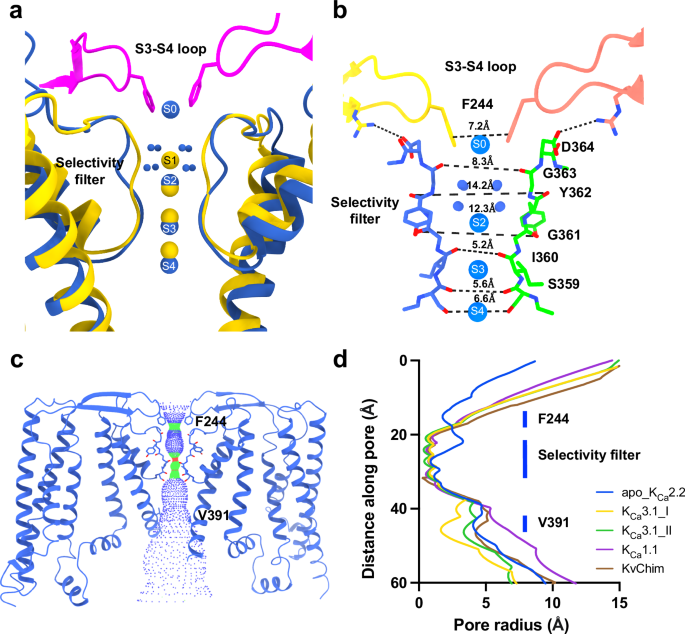

Fig. 3: Unique conformation of the selectivity filter in apo_KCa2.2. — **Fig. 3: Unique conformation of the selectivity filter in apo_K_Ca2.2.**

We replaced Phe244, one of the three residues tethering the S3-S4 β-hairpins to the selectivity filter, with the corresponding serine residue (K_Ca2.2_F244S, Supplementary Fig. 4) in the intermediate-conductance (39 pS unitary conductance in symmetrical K⁺ ^20,21) K_Ca3.1 channel that lacks such tethers. We then determined the cryo-EM structure of the Ca²⁺-bound K_Ca2.2_F244S/CaM mutant complex (referred to henceforth as apo_K_Ca2.2_F244S) to a resolution of 3.50 Å with C4 symmetry (Supplementary Figs. 6 and 7, Supplementary Table 1). The cryo-EM density corresponding to the S3-S4 β-hairpins is absent from the apo_K_Ca2.2_F244S map (Fig. 4a). Unlike the S3-S4 β-hairpins tethered to the selectivity filter in apo_K_Ca2.2, the S3-S4 loops in apo_K_Ca2.2_F244S are invisible (Fig. 4b). While the selectivity filter of apo_K_Ca2.2 is stabilized by inter-subunit hydrogen bonds (Fig. 2b), the selectivity filter of apo_K_Ca2.2_F244S is stabilized by an intra-subunit network (Fig. 4c) similar to that of apo_K_Ca3.1_1’s pore (Fig. 2c). This rearrangement causes Tyr362 in the selectivity filter of apo_K_Ca2.2_F244S to flip 180° relative to the same residue in apo_K_Ca2.2 and align with Tyr253, the corresponding aromatic residue of apo_K_Ca3.1_1 (Fig. 4d). The apo_K_Ca2.2_F244S cryo-EM data suggest that the unique conformation of the selectivity filter in apo_K_Ca2.2 is caused by the tethering of the S3–S4 loops to the selectivity filter.

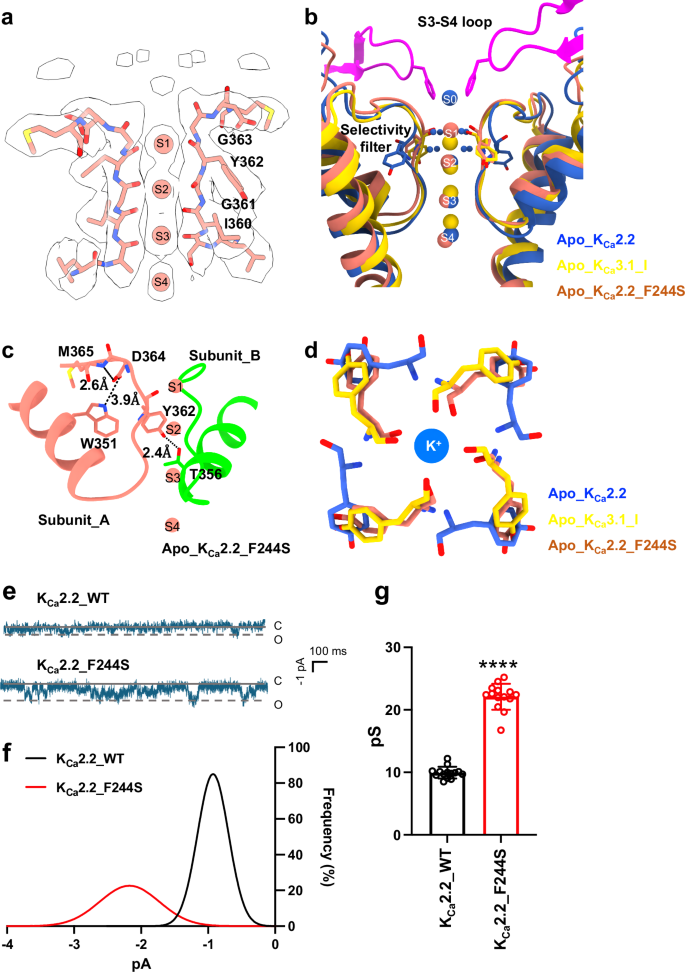

Fig. 4: Untethering of the S3-S4 loop from the selectivity filter and enhanced unitary conductance by the KCa2.2_F244S mutation. — **Fig. 4: Untethering of the S3-S4 loop from the selectivity filter and enhanced unitary conductance by the K_Ca2.2_F244S mutation.**

We examined whether the small unitary conductance of K_Ca2.2 was related to the interaction between the S3-S4 loop and the selectivity filter (Fig. 2b). In electrophysiological studies on HEK293 cells, we compared the unitary conductance of K_Ca2.2_WT versus K_Ca2.2_F244S. The unitary conductance of the K_Ca2.2_F244S mutant (22.1 ± 2.1 pS, n = 14) was significantly larger than that of K_Ca2.2_WT (9.9 ± 0.9 pS, n = 14) (Fig. 4e–g), suggesting that the widened outer pore caused by tethering of S3-S4 loop to the selectivity filter contributes to the small unitary conductance of K_Ca2.2.

We performed all-atom MDS to assess K⁺ permeation through the pores of apo_K_Ca2.2 and apo_K_Ca2.2_F244S (Supplementary Fig. 8). We measured K⁺ permeation events through both structures embedded in lipid bilayers in the presence of symmetric 300 mM KCl aqueous solution and a transmembrane voltage potential of 300 mV during 1-μs-long simulation runs (Supplementary movie 1 and 2, and Supplementary Fig. 8h, i). Restraints were applied to keep the inner gate open during these runs to determine the contribution of K_Ca2.2’s outer pore to unitary conductance. Under the same conditions, outward K⁺ permeation events are more readily observed through apo_K_Ca2.2_F244S than through apo_K_Ca2.2, even though the large variability among replicates prevented us from performing statistical analysis (Supplementary Fig. 8j). Large variability exists among replicate simulations probably due to the differences of initial configurations and the inherent stochastic nature of the simulations. Additionally, the complexity of these systems (apo_K_Ca2.2 and apo_K_Ca2.2_F244S), with many degrees of freedom, likely contributed to the variability observed in the MDS replicates. Nonetheless, the MDS results are qualitatively consistent with the experimentally measured unitary conductance values (Fig. 4g).

AlphaFold, the artificial intelligence-driven protein structure-prediction tool²², failed to predict the widened outer pore of apo_K_Ca2.2 resulting from the tethering of the S3-S4 loop to the selectivity filter. We compared the structural model of K_Ca2.2 predicted by AlphaFold (alphafold_K_Ca2.2) with our cryo-EM structure (apo_K_Ca2.2). AlphaFold correctly predicted the β-hairpin configuration of the S3-S4 loops and modeled them extending towards the pore (Supplementary Fig. 9a). However, AlphaFold_K_Ca2.2 lacks the tether between the S3-S4 β-hairpins and the selectivity filter, its outer selectivity filter is stabilized by an intra-subunit hydrogen bond network resembling that of apo_K_Ca3.1_1 (Fig. 2c, Supplementary Fig. 9b), and the conformation of its outer pore resembles that of other Ca²⁺-activated and voltage-activated K⁺ channels (Supplementary Fig. 9c). Furthermore, the central aromatic (Phe244) box, a key feature of apo_K_Ca2.2, is absent in AlphaFold_K_Ca2.2, with the four Phe244 residues positioned too far from each other to form the central aromatic box via cation-π interactions (Supplementary Fig. 9a)¹⁸. Our comparison of apo_K_Ca2.2 and AlphaFold_K_Ca2.2 highlights the usefulness of experimentally determined cryo-EM structures to understand the small unitary conductance of K_Ca2.2 channels.

Structure of K_Ca2.2/CaM bound to blocker UCL1684

To define the structural basis for the pharmacological inhibition of K_Ca2.x channels, we set out to determine structures of K_Ca2.2/CaM bound to inhibitors. Apamin, an 18-mer peptide from bee venom, is the archetypal inhibitor of K_Ca2.x channels²³. Since addition of apamin caused aggregation of the K_Ca2.2/CaM protein complex, we studied UCL1684, a small molecule apamin-mimetic. UCL1684 blocks K_Ca2.2 at picomolar concentrations and is predicted to interact with the extracellular side of the channel overlapping the apamin binding site^24,25,26.

The cryo-EM map of the Ca²⁺- and UCL1684-bound K_Ca2.2/CaM complex (henceforth referred to as UCL1684_K_Ca2.2) was determined to a resolution of 2.99 Å with C4 symmetry (Supplementary Figs. 10 and 11, Supplementary Table 1). The cryo-EM density for UCL1684 is also clearly visible in the refined maps under C1 symmetry (Supplementary Fig. 12). The cryo-EM density map of UCL1684_K_Ca2.2 with fitted model shows UCL1684 on top of the canopy, close to the opening in the aromatic box (Fig. 5a, b). We successfully built a model for UCL1684 into its cryo-EM density due to the compound’s quaternary chemical structure (Supplementary Fig. 13a). The rigid cyclophane cage made up of two phenyl rings and two quinoline rings fits perfectly into the hydrophobic pocket formed by the aromatic (Phe244) box (Fig. 5a, b, Supplementary Fig. 13b). UCL1684 (500 nM) inhibited the K_Ca2.2_WT current effectively (Supplementary Fig. 13c, d). We used electrophysiology and mutagenesis to test UCL1684-K_Ca2.2 interactions predicted by the structure. Since UCL1684 does not inhibit K_Ca3.1, we replaced Phe244 in K_Ca2.2 with the corresponding residue from K_Ca3.1. The K_Ca2.2_F244S mutation abolished the blockade by UCL1684 without affecting the inhibition by the small molecule inhibitor, AP14145 (Fig. 5c–e). The mutation did not affect Ca²⁺-dependent channel activation (Supplementary Fig. 14). These results indicate that UCL1684 binds to the outer canopy and occludes the opening in the outer box.

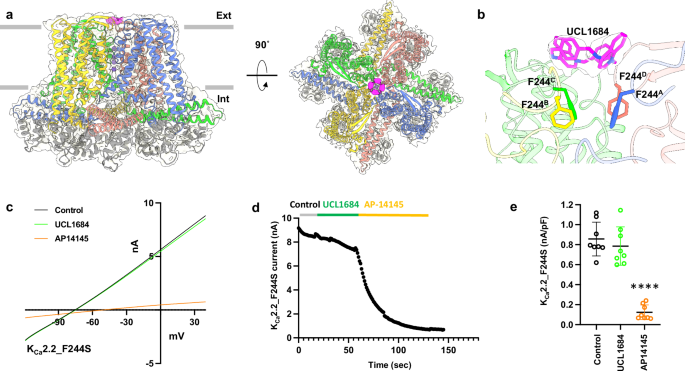

Fig. 5: Interactions of small molecule blocker UCL1684 with KCa2.2. — **Fig. 5: Interactions of small molecule blocker UCL1684 with K_Ca2.2.**

Guided by the UCL1684_K_Ca2.2 structure, we generated a docking model of apamin for heuristic purposes (Supplementary Fig. 15). The model shows apamin making contact with residues in the S3-S4 β-hairpins (Phe244, Ser245, Tyr246, Ala247). The essential RXCQ motif of apamin sits close to Asn368 (Supplementary Fig. 15). In support of the model, mutations of Ser245, Tyr246 and Ala247 have been reported to significantly alter the channel’s sensitivity to apamin^23,27. Further, the RXCQ motif of Lei-Dab7, a derivative of a scorpion toxin and a potent inhibitor of K_Ca2.2, was reported to form a close contact with the residue in human K_Ca2.2 corresponding to Asn368²⁸. These earlier studies provide support for the apamin docking model and suggest that peptide inhibitors from both bee venom and scorpion venom may make similar contacts with the outer canopy and aromatic box of K_Ca2.2.

Structure of K_Ca2.2/CaM bound to inhibitor AP14145

AP14145, a negative gating modulator of K_Ca2.2, inhibits the channel at low micromolar concentrations²⁹. AP14145 effectively terminated atrial fibrillation in goats³⁰ and even terminated vernakalant-resistant atrial fibrillation in pigs³¹. Its analog, AP30663¹⁵, effectively converted chronic atrial fibrillation to sinus rhythm in a phase II clinical trial. AP30663 was not commercially available when we performed the cryo-EM study. We determined the structure of K_Ca2.2/CaM bound to AP14145 in the presence of 2 mM Ca²⁺. The cryo-EM map of the Ca²⁺- and AP14145-bound K_Ca2.2/CaM complex (henceforth referred to as AP14145_K_Ca2.2) was determined to a resolution of 2.97 Å under C4 symmetry (Supplementary Figs. 16, 17 and Supplementary Table 1). The cryo-EM density of AP14145 is clearly visible below the selectivity filter in the central cavity near the side chains of both Ser359 and Ala384 (Fig. 6a, b). The cryo-EM density for AP14145 is also apparent in the refined maps under C1 symmetry (Supplementary Fig. 18). We could not delineate the precise orientation of AP14145 and the positioning of its sidechains within its K_Ca2.2 binding site because of symmetry mismatch arising from the nonsymmetrical AP14145 molecule (Supplementary Fig. 13a) binding to the fourfold symmetrical K_Ca2.2 channel. We used electrophysiology and mutagenesis to test AP14145’s predicted interactions with Ser359 and Ala384 in K_Ca2.2. Since AP14145 does not inhibit K_Ca3.1, we replaced Ser359 and Ala384 in K_Ca2.2 with the corresponding residues from K_Ca3.1. Corresponding double mutations in K_Ca2.3 channels have been used to explore the binding sites of negative gating modulators (NS8593³² and AP14145²⁹). AP14145 (30 μM) inhibited the K_Ca2.2_WT current effectively (Supplementary Fig. 13e, f), while the S359T + A384T double mutant abolished inhibition by AP14145 without affecting blockade by UCL1684 (Fig. 6c–e) or altering Ca²⁺-dependent channel activation (Supplementary Fig. 14). In summary, our cryo-EM, mutagenesis, and electrophysiology data together show binding of AP14145 near Ser359 and Ala384 in K_Ca2.2’s central cavity.

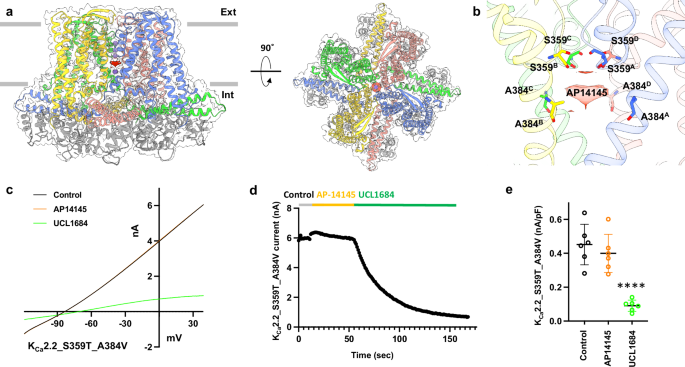

Fig. 6: Interactions of small molecule inhibitor AP14145 with KCa2.2. — **Fig. 6: Interactions of small molecule inhibitor AP14145 with K_Ca2.2.**

A clue to how AP14145 inhibits the K_Ca2.2 channel came from superimposition of AP14145_K_Ca2.2 onto the apo_K_Ca2.2 and UCL1684_K_Ca2.2 structures (Fig. 7a, b). The inner gate defined by Val391 is ~12.4 Å in apo_K_Ca2.2, while the inner gate in AP14145_K_Ca2.2 is ~6.5 Å (Fig. 7a, b). In the Supplementary Movies 3 and 4, AP14145 is seen to narrow the inner gate through the movement of the transmembrane S6 helices and the rotation of Val391 side chains. The N-lobe of CaM moves closer toward the pore axis together with S₄₅A helix, as a result of the binding of AP14145 (Supplementary Fig. 19, Supplementary Movies 3 and 4). The narrowing of the inner gate by AP14145 was also shown by comparing pore radii determined with the ‘Hole program’¹⁹ (Fig. 7c, d).

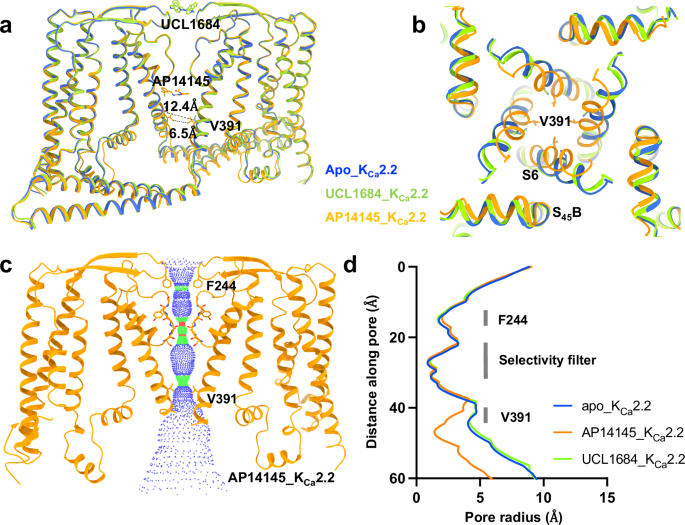

**Fig. 7: Mechanism of inhibition by AP14145.**

Discussion

Unlike any K⁺ channel structure determined thus far, apo_K_Ca2.2’s pore is covered on the outside by a canopy formed by the extracellular S3-S4 loops in a β-hairpin configuration. A network of inter-subunit hydrogen bonds ties the β-hairpins to the selectivity filter. This network flips the aromatic residue (Tyr362) in the G[Y/F]GD signature sequence by 180^o, causing the outer selectivity filter to widen and water to enter the widened filter, displacing K⁺ at S1 and partially hydrating K⁺ at S2. Disruption of the tether in the apo_K_Ca2.2_F244S structure narrows the outer selectivity filter and reverts Tyr362 to the position seen in other K⁺ channels. The unitary conductance of K_Ca2.2_WT (9.9 ± 0.9 pS) was significantly smaller than that of K_Ca2.2_F244S (22.1 ± 2.1 pS), suggesting that the widened outer selectivity filter of apo_K_Ca2.2 contributes to the small unitary conductance of K_Ca2.2 channels. The structural features reported here are not predicted by the artificial intelligence-driven protein structure-prediction tool, AlphaFold²², highlighting the need for experimentally determined structures to understand the unique features of the K_Ca2.2 channel, particularly its small unitary conductance and pharmacology.

We determined the cryo-EM structures of K_Ca2.2 channels bound to two distinct inhibitors (UCL1684 and AP14145). UCL1684, an apamin mimetic, binds to the outer canopy and occludes the opening in the aromatic box. A mutation that removes the aromatic box, F244S, abolishes UCL1684 blockade (Fig. 5). A docking model of apamin based on the UCL1684_K_Ca2.2 structure shows the peptide sitting atop the canopy, occluding the aromatic box like UCL1684, and making several additional contacts both in the canopy and the outer pore (Supplementary Fig. 15). The docking configuration is consistent with and supported by earlier mutagenesis studies. Scorpion venom peptides (scyllatoxin, tamapin) that block K_Ca2.x channels may also bind to the canopy and close the opening in the aromatic box²⁸. AP14145, a negative gating modulator, binds in the central cavity below the selectivity filter and induces closure of the inner gate (Fig. 7). AP30663¹⁵, its analog in clinical trials for the treatment of atrial fibrillation, likely binds to the same residues in the central cavity and induces a similar closure of the inner gate. It may be possible to use the AP14145_K_Ca2.2 structure to guide the design of new inhibitors of K_Ca2.2 that act by the same mechanism.

There is no cryo-EM structure for the other two members of the K_Ca2 subfamily, K_Ca2.1 and K_Ca2.3. Since the three K_Ca2.x channels exhibit greater than 70% sequence identity and share the Tyr246 residue that ties the S3-S4 β-hairpins to the selectivity filter in apo_K_Ca2.2 (Supplementary Fig. 4), the outer canopy and unique conformation of K_Ca2.2’s outer pore may also be a feature of human K_Ca2.1 and K_Ca2.3. Rat K_Ca2.1 may be an outlier. The presence of Leu213 in place of Tyr246 in rat K_Ca2.1 (Supplementary Fig. 4) may disrupt the critical tether between the S3-S4 β-hairpins and the selectivity filter, resulting in an altered pore conformation. In support, earlier functional and mutagenesis studies predicted that rat K_Ca2.1 exhibits a very different outer pore shape and sensitivity to inhibitors than other K_Ca2.x channels²³.

The cryo-EM structures for the intermediate-conductance K_Ca3.1 channel¹⁷ and the large-conductance K_Ca1.1^33,34,35 have been previously reported. K_Ca2.x and K_Ca3.1 channels are activated via a Ca²⁺-CaM mediated mechanism, which is distinct from the gating mechanism of K_Ca1.1 channels^33,34,35. While apo_K_Ca2.2 and apo_K_Ca3.1_1 (PDB 6cnn) are similar in the cytoplasmic domain accounting for their shared mechanism of Ca²⁺/CaM-dependent gating and sensitivity to pharmacological activators (e.g. 1-EBIO³⁶ and SKA-31³⁷), they exhibit significantly different architectures in the outer pores. This difference may explain why charybdotoxin, a scorpion peptide that blocks both the K_Ca3.1 channel^38,39 and the large-conductance Ca²⁺-activated K_Ca1.1⁴⁰ channel by inserting a lysine residue into the selectivity filter, has no effect on K_Ca2.x channels. The canopy in K_Ca2.2 would prevent charybdotoxin from reaching its binding site in the outer vestibule. Differences in the outer pore may also contribute to the difference in unitary conductance between K_Ca2.x channels and K_Ca3.1 channels.

In conclusion, our structures provide a foundation for understanding the small unitary conductance of K_Ca2.x channels and define the mechanism of action of two distinct pharmacological inhibitors.

Methods

Protein expression

The cDNA of full-length rat K_Ca2.2 (accession no. NM_019314) with a C-terminus Strep-II tag was sub-cloned into pEG BacMam (a gift from Eric Gouaux; Addgene plasmid # 160451; http://n2t.net/addgene:160451; RRID:Addgene_160451). The amino acid sequence of the expressed K_Ca2.2 protein is as follows:

MSSCRYNGGVMRPLSNLSSSRRNLHEMDSEAQPLQPPASVVGGGGGASSPSAAAAASSSAPEIVVSKPEHNNSNNLALYGTGGGGSTGGGGGGGGGGGGSGHGSSSGTKSSKKKNQNIGYKLGHRRALFEKRKRLSDYALIFGMFGIVVMVIETELSWGAYDKASLYSLALKCLISLSTIILLGLIIVYHAREIQLFMVDNGADDWRIAMTYERIFFICLEILVCAIHPIPGNYTFTWTARLAFSYAPSTTTADVDIILSIPMFLRLYLIARVMLLHSKLFTDASSRSIGALNKINFNTRFVMKTLMTICPGTVLLVFSISLWIIAAWTVRACERYHDQQDVTSNFLGAMWLISITFLSIGYGDMVPNTYCGKGVCLLTGIMGAGCTALVVAVVARKLELTKAEKHVHNFMMDTQLTKRVKNAAANVLRETWLIYKNTKLVKKIDHAKVRKHQRKFLQAIHQLRSVKMEQRKLNDQANTLVDLAKTQNIMYDMISDLNERSEDFEKRIVTLETKLETLIGSIHALPGLISQTIRQQQRDFIETQMENYDKHVTYNAERSRSSSRRRRSSSTAPPTSSESSPSTWSHPQFEK

Un-tagged rat calmodulin (CaM) cDNA (accession no. BC063187) was also cloned into pEG BacMam. The amino acid sequence of the expressed CaM protein is as follows:

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Bacmids for K_Ca2.2 and CaM were generated separately by transformation of DH10Bac E. coli cells with the pEG BacMam plasmids carrying rat K_Ca2.2 and rat CaM cDNAs, respectively. Baculoviruses of K_Ca2.2 and CaM were generated by transfection of Sf9 insect cell with bacmids using Cellfectin^TM II reagent (Gibco), respectively. Sf9 insect cells were culture in Sf-900^TM II SFM medium (Gibco) at 27 °C. P2 baculoviruses after two rounds of amplification were used for cell transduction. K_Ca2.2 and CaM were co-expressed in HEK293S GnTI− cells (ATCC) using a BacMam method⁴¹. Briefly, HEK293S GnTI− cells were cultured in FreeStyle™ 293 expression media (Gibco) at 37 °C under 8% CO₂ to a density of ~3 × 10⁶ cells/ml, before transduction with K_Ca2.2 baculoviruses (10% v/v) and CaM baculoviruses (2% v/v). At 12 h after transduction, 10 mM sodium butyrate was added, and the temperature was changed to 30 °C. The cells were harvested at 72 h post transduction by centrifugation for 20 min at 6200 × g, 4 °C. Expression of the protein complex of K_Ca2.2_F244S mutant and wildtype CaM was performed using the same technique. The cell pellets were frozen at −80 °C until purification.

Protein purification

Protein purification was performed at 4 °C. Cell pellets from 4 L culture (~40 g) were thawed in hypotonic lysis buffer containing 50 mM Tris pH 8.0, 20 mM KCl, 0.5 mM MgCl₂, 2 mM CaCl₂, 0.05 mg/ml DNase, Halt™ protease inhibitor cocktail (Thermo Fisher) and 1 mM PMSF. Cell pellets were resuspended using a Dounce homogenizer and then stirred for 30 min at 4 °C. The resulting lysate was clarified by centrifugation at 39,800 × g for 30 min at 4 °C. The crude membrane preparation was resuspended with a Dounce homogenizer in solubilization buffer containing 50 mM Tris pH 8.0, 200 mM KCl, 2 mM CaCl₂, 1.2% glyco-diosgenin (GDN), and Halt™ protease inhibitor cocktail for 2 h at 4 °C. The solubilized membranes were clarified by centrifugation at 39,800 × g for 30 min at 4 °C. The resulting supernatant was incubated with Strep-Tactin XT 4Flow resin (IBA LifeSciences) for 2 h. The resin was then washed with 20 column volumes of wash buffer containing 50 mM Tris pH 8, 150 mM KCl, 2 mM CaCl₂, and 0.02% GDN. The protein complex was eluted with wash buffer supplemented with 50 mM biotin. The eluted protein was concentrated using an Amicon Ultra centrifugal filter (MWCO 100 kDa cutoff). The concentrated protein was subjected to size-exclusion chromatography (Superdex™ 200 Increase, Cytiva) equilibrated with 20 mM Tris pH 8, 150 mM KCl, 2 mM CaCl₂, 0.01% lauryl maltose neopentyl glycol (LMNG), and 0.001% cholesteryl hemisuccinate (CHS) (Supplementary Fig. 1). The peak fractions at ~10.6 ml of elution volume were collected and concentrated to ~3 mg/ml. Purification of the protein complex of K_Ca2.2_F244S mutant and wildtype CaM was performed using the same technique.

Cryo-EM sample preparation, data collection and processing

The purified protein complexes were brought to the Stanford SLAC Cryo-EM Center (S²C²) for cryo-EM studies. For the determination of AP14145_K_Ca2.2 and UCL1684_K_Ca2.2 structures, saturating concentrations of AP14145 and UCL1484 were mixed with the K_Ca2.2/CaM protein complex 30 min before the grid preparation, respectively.

Cryo-EM grid preparation

Vitrobot Mark IV (ThermoFisher Scientific) was used to prepare grids at 4 °C and 100% humidity. 3.5 μl of purified protein was applied to a glow-discharged Quantifoil R1.2/1.3 300 mesh Copper grid. The grid was then blotted for 4.5 s before being plunged into liquid ethane.

Cryo-EM grid screening and data collection

Grids were screened on a Talos Arctica 200 kV transmission electron microscope (TEM). Dose fractionated movies were subsequently collected using EPU on a Titan Krios G3i (ThermoFisher Scientific) with a K3 detector (Gatan) and a BioQuantum energy filter at the pixel size of 0.86 Å. A total cumulative dose of ∼50 electrons per Å² was used for recording the movies of 40 frames (1.25 electrons per Å² per frame) with a defocus range of –1.3 to –2.3 μm. The statistics for data collections are summarized in Supplementary Table 1.

Cryo-EM image processing

For the apo_K_Ca2.2 dataset, preprocessing of micrographs (motion correction and CTF estimation) were carried out using CryoSparc⁴². About 2000 particles were manually picked and subjected to 2D classification to generate picking templates. Template-picked particles were cleaned up by multiple rounds of 2D classification. An ab initio reconstruction was performed, followed by heterogenous and non-uniform refinements to 3.60 Å resolution (C1 symmetry imposed), or 3.18 Å resolution (C4 symmetry imposed) in the CryoSparc⁴² program (Supplementary Fig. 2). To examine possible conformational heterogeneity, 3D classification using both the RELION program⁴³ and the CryoSparc program was performed on the refined map generated with the CryoSparc⁴² program. Within the classes generated by 3D classification in the RELION and the CryoSparc programs, only one class contained secondary features of the transmembrane helices and the cytoplasmic domain. Because 3D classification did not improve resolution of the cryo-EM map, the cryo-EM map generated by non-uniform refinement at 3.18 Å resolution described above was used for model building.

The apo_K_Ca2.2_F244S, AP14145_K_Ca2.2, and UCL1684_K_Ca2.2 datasets were similarly processed using the CryoSparc program⁴². An ab initio reconstruction of apo_K_Ca2.2_F244S was performed, followed by heterogenous and non-uniform refinements to 3.50 Å resolution (C4 symmetry imposed) in the CryoSparc⁴² program (Supplementary Fig. 6). An ab initio reconstruction of UCL1684_K_Ca2.2 was performed, followed by heterogenous and non-uniform refinements to 3.22 Å resolution (C1 symmetry imposed), or 2.99 Å resolution (C4 symmetry imposed) in the CryoSparc⁴² program (Supplementary Fig. 10). An ab initio reconstruction of AP14145_K_Ca2.2 was also performed, followed by heterogenous and non-uniform refinements to 3.56 Å resolution (C1 symmetry imposed) or 2.97 Å resolution (C4 symmetry imposed) in the CryoSparc⁴² program (Supplementary Fig. 16). Resolutions were estimated using the gold standard criterion at the threshold of 0.143. The local resolution was calculated in CryoSparc.

Model building

Coordinates of the Ca²⁺-bound K_Ca3.1 activated state I (PDB: 6cnn; apo_K_Ca3.1_1) were used as the initial model. The initial model was manually docked into the cryo-EM density map and then adjusted in UCSF Chimera. Phenix.real_space_refine⁴⁴ was used to build and refine the model. Model building was achieved using phenix⁴⁴ and Coot⁴⁵ iteratively. Models for Ca²⁺, K⁺, and UCL1684 were built by visual inspection of the shape of the density in Coot⁴⁵ followed by refinement in phenix⁴⁴. The statistics for model refinements are summarized in Supplementary Table 1. All structural graphics were generated using UCSF ChimeraX⁴⁶.

Patch-clamp electrophysiology

Human Embryonic Kidney (HEK293) cells transiently transfected with the rat wildtype or mutant K_Ca2.2 cDNAs were used for manual patch-clamp experiments. Site-directed mutagenesis of K_Ca2.2_F244S and the K_Ca2.2_ S359T_A384T was performed on the rat K_Ca2.2 cDNA through molecular cloning services (Genscript). The wildtype and mutant cDNAs, constructed in the pIRES2-AcGFP1 vector (Clontech), were transfected into HEK293 cells by a calcium–phosphate method. Whole-cell and inside-out K_Ca2.2 currents were recorded 1–2 days after transfection, with an Axon200B amplifier (Molecular Devices) at room temperature.

The resistance of the patch electrodes ranged from 2 to 3 MΩ. For whole-cell recordings, the intracellular solution containing (in mM): 120 KCl, 10 Hepes (pH 7.2), 1.75 MgCl₂, and 10 EGTA/KOH was mixed with CaCl₂ to obtain the desired free Ca²⁺ concentrations, calculated using the MaxChelator software (https://somapp.ucdmc.ucdavis.edu/pharmacology/bers/maxchelator/webmaxc/webmaxcS.htm). The extracellular solution contained (in mM): 145 NaCl, 4 KCl, 10 Hepes (pH 7.4), 1 MgCl₂, and 2 CaCl₂.

For inside-out recordings, the intracellular solution containing (in mM): 140 KCl, 10 Hepes (pH 7.2), 1 EGTA, 0.1 Dibromo-BAPTA, and 1 HEDTA was mixed with Ca²⁺ to obtain the desired free Ca²⁺ concentrations, calculated using the MaxChelator software. The extracellular solution contained (in mM): 140 KCl, 10 Hepes (pH 7.4), 1 MgSO₄.

AP14145 (N-[2-[[(1R)-1-[3-(Trifluoromethyl)phenyl]ethyl]amino]-1H-benzimidazol-7-yl]acetamide hydrochloride) was purchased from Tocris Bioscience. AP14145 dilutions were prepared freshly in extracellular solution from 100 mM stock solutions in DMSO.

UCL1684 (6,12,19,20,25,26-Hexahydro-5,27:13,18:21,24-trietheno-11,7-metheno-7H-dibenzo [b,n] [1,5,12,16]tetraazacyclotricosine-5,13-diium dibromide) was purchased from Tocris Bioscience. UCL1684 dilutions were prepared freshly in extracellular solution from 5 mM stock solutions in DMSO. Final DMSO concentrations never exceeded 0.1% (v/v).

pClamp 10.5 (Molecular Devices) was used for data acquisition and analysis. To characterize the responses of the K_Ca2.2_F244S and the K_Ca2.2_ S359T_A384T mutants to AP14145 and UCL1684, whole-cell recordings were performed. Seals (>1 GΩ) were formed before the whole-cell configuration was obtained. Currents were elicited by repetitive 1 s voltage ramps from − 120 mV to 40 mV, with a holding potential of −70 mV applied every 5 s. Currents were filtered at 2 kHz and digitized at a sampling frequency of 10 kHz.

To measure the Ca²⁺ -dependent activation of the K_Ca2.2_F244S and the K_Ca2.2_ S359T + A384T mutants, inside-out patch recordings were performed. Seals (>1 GΩ) were formed before the inside-out patch configuration was obtained. The intracellular face was initially exposed to a zero-Ca²⁺ bath solution, and subsequently to a series of bath solutions with varying Ca²⁺ concentrations. Currents were recorded by repetitive 1 s voltage ramps from − 100 mV to 100 mV from a holding potential of 0 mV. One minute after switching of bath solutions, ten sweeps with a 1 s interval were recorded. To construct the concentration-dependent positive modulation of channel activities, the current amplitudes at −90 mV in response to various concentrations of Ca²⁺ were normalized to that obtained at 10 μM of Ca²⁺. The normalized currents were plotted as a function of the concentrations of Ca²⁺. EC₅₀ values and Hill coefficients were determined by fitting the data points to a standard concentration–response curve.

Data analysis was performed using pClamp 10.5 (Molecular Devices) in a blinded fashion. Concentration-response curves were analyzed in GraphPad Prism 9.0.2 (GraphPad Software Inc.). All data are shown as mean ± SD unless otherwise indicated. One-way ANOVA and Tukey’s post hoc tests were used for data comparison of three or more groups. The unpaired Student’s t-test (two-sided) was used for data comparison if there were only two groups. Figures were made using GraphPad Prism 9.0.2 (GraphPad Software Inc.).

K_Ca2.2 single-channel recordings

K_Ca2.2_WT and K_Ca2.2_F244S mutant cDNAs were transfected into HEK293T cells using the PEI transfection reagent system, respectively. Single-channel currents were recorded from inside-out patches ~12 h after transfection. The extracellular solution (pipette solution) contained (in mM): 140 KCl, 10 Hepes (pH 7.4), 1 MgSO₄. The intracellular solution (bath solution) containing (in mM): 140 KCl, 10 Hepes (pH 7.2), 1 EGTA, and 1 HEDTA was mixed with Ca²⁺ to obtain free Ca²⁺ of 0.2 µM, calculated using the MaxChelator software. Borosilicate glass electrodes (2-3 MΩ) were pulled with a Narishige PC-100 pipette puller and polished with a Narishige MF-830 micro forge. Currents were filtered at 100 kHz and acquired using a Tecela Pico 2 system controlled by WinWCP software (Strathclyde Electrophysiology Software) at -100 mV step from a holding potential of -60 mV. Data were digitally filtered at 1 kHz before analysis. Single channel amplitudes were measured directly from the single channel activity recorded in the excised patches containing a single channel during the voltage step. The average amplitudes were estimated from full channel openings.

MD simulations

The protonation states of titratable residues in the apo_K_Ca2.2 and apo_K_Ca2.2_F244S structures were determined using the H++ server (http://biophysics.cs.vt.edu/)⁴⁷. The apo_K_Ca2.2 and apo_K_Ca2.2_F244S structures were incorporated into an explicit lipid bilayer consisting of POPC, POPE, POPS, and cholesterol in a molecular ratio of 25:5:5:1⁴⁸, along with a water box with dimensions of 170.5 Å × 170.5 Å × 131.7 Å. This setup was achieved using the CHARMM-GUI Membrane Builder webserver (http://www.charmm-gui.org/?doc=input/membrane)⁴⁹. Ca²⁺ ions were included at the two EF-hands of the CaM N-lobe according to the apo_K_Ca2.2 cryo-EM structure. No Ca²⁺ ion was included at the CaM C-lobe. To the systems, 300 mM KCl and additional neutralizing counter ions were added. The total number of atoms in the systems were 357,302 and 357,214 for apo_K_Ca2.2 and apo_K_Ca2.2_F244S, respectively. Parameter and coordinate files were generated using the tleap (AMBER) program, employing the ff14SB and Lipid17 force fields for proteins and lipids, respectively. MD simulations were conducted using the PMEMD.CUDA program in AMBER 20 with periodic boundary conditions, creating isothermal-isobaric ensembles. A voltage of 0.09 V/nm was added to the systems from the intracellular to the extracellular side (~300 mV membrane potential). Long-range electrostatics were calculated using the particle mesh Ewald (PME) method⁵⁰ with a 10 Å cutoff. Prior to production runs, energy minimizations were performed. The system was then heated from 0 K to 303 K using Langevin dynamics with a collision frequency of 1 ps⁻¹. During heating, the apo_K_Ca2.2 and apo_K_Ca2.2_F244S structures were position-restrained with an initial constant force of 500 kcal/mol/Å², gradually reduced to 10 kcal/mol/Å² to allow lipid and water molecules freedom of movement. Subsequently, the systems underwent 5 ns equilibrium MD simulations. Finally, a total of 1 µs production MD simulations were conducted (with a position-restrained force of 50 kcal/mol/Å² applied to residues Val390, Val391, and Ala392 to prevent the inner gate from closing) at Argonne Leadership Computing Facility, saving coordinates every 100 ps for subsequent analysis. GROMCAS analysis tools were employed for trajectory analysis of the MD simulations⁵¹.

2D interaction diagram of UCL1684 and the K_Ca2.2 channel

The 2D diagram depicting the interactions between UCL1684 (Supplementary Fig. 13b) and the K_Ca2.2 channel was generated using the UCL1684_K_Ca2.2 structure in the Discovery Studio program (Dassault Systemes Biovia LLC).

Molecular docking of apamin into the outer pore of the K_Ca2.2 channel

We docked apamin into the K_Ca2.2 channel structure using the Glide program within the Schrödinger software (Schrödinger Inc.). The grid box was defined based on the apamin mimetic UCL1684’s binding site, with a box size of 32 Å x 32 Å x 32 Å. For docking simulations, we utilized a total of 10 NMR apamin structures from the database (PDB: 7oxf). The top-ranked pose of apamin within the binding site, determined by XP score, was selected. Subsequently, we performed Induced Fit Docking (IFD) docking simulations (Schrödinger Inc.) to account for the flexibility of both the channel and the toxin. The top XP score-ranked pose was then subjected to a 200-step energy minimization using the smart minimizer and the Generalized Born implicit membrane (GBIM) in the Discovery Studio program (Dassault Systemes Biovia LLC).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All data supporting the findings of this study are available within the paper and its Supplementary information files, and available from the corresponding author upon request. The atomic coordinates have been deposited in the Protein Data Bank (PDB) under accession codes 8v2g [https://doi.org/10.2210/pdb8v2g/pdb] (apo_K_Ca2.2); 9eio [https://doi.org/10.2210/pdb9eio/pdb] (apo_K_Ca2.2_F244S); 8v3g [https://doi.org/10.2210/pdb8v3g/pdb] (UCL1684_K_Ca2.2); and 8v2h [https://doi.org/10.2210/pdb8v2h/pdb] (AP14145_K_Ca2.2). The cryo-EM maps have been deposited in the Electron Microscopy Data Bank (EMDB) under accession codes EMD-42911 (apo_K_Ca2.2); EMDB-48088 (apo_K_Ca2.2_F244S); EMD-42947 (AP14145_K_Ca2.2); and EMD-42914 (UCL1684_K_Ca2.2). The following previously published PDB codes are referred to: 6cnn [https://doi.org/10.2210/pdb6cnn/pdb]; 6cno [https://doi.org/10.2210/pdb6cno/pdb]; 2r9r [https://doi.org/10.2210/pdb2r9r/pdb]; and 5tj6 [https://doi.org/10.2210/pdb5tj6/pdb]. The source data underlying Figs. 4g, 5e, 6e, and Supplementary Fig. 8j, 13d, 13f, 14c are provided as a Source Data file. Source data are provided with this paper.
