Fig. 1: Schematic of bone regeneration induced by Janus collagen-based (CDCC) membrane. | Nature Communications

Fig. 1: Schematic of bone regeneration induced by Janus collagen-based (CDCC) membrane.

From: Immunomodulatory multifunctional janus collagen-based membrane for advanced bone regeneration

Fig. 1

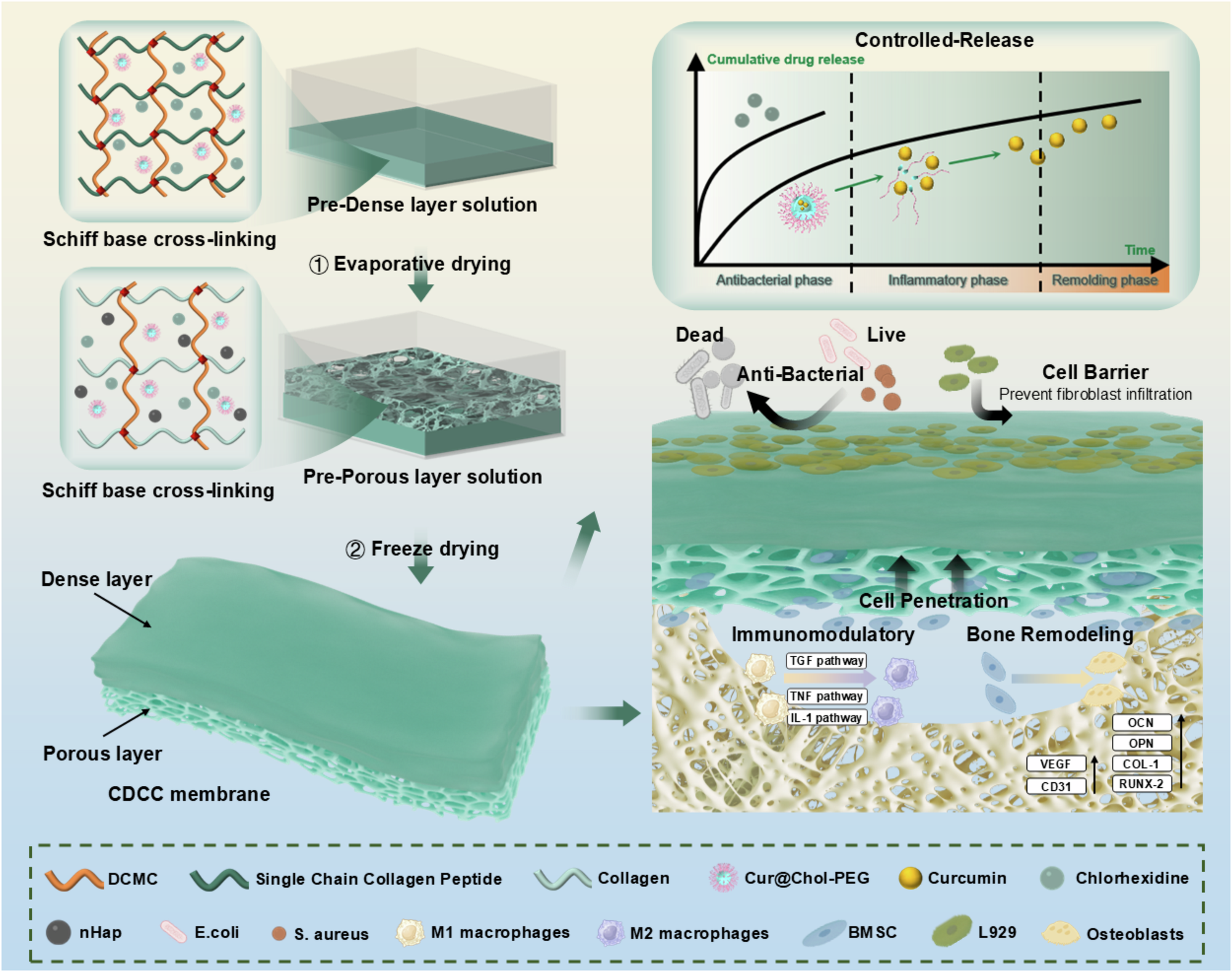

Schematic diagram of the preparation of multifunctional CDCC membrane and its application for advanced bone regeneration in the rat skull defect area. Figure 1 created with BioRender.com released under a Creative Commons Attribution NonCommercial-NoDerivs 4.0 International license (https://BioRender.com/ou7zczv).
