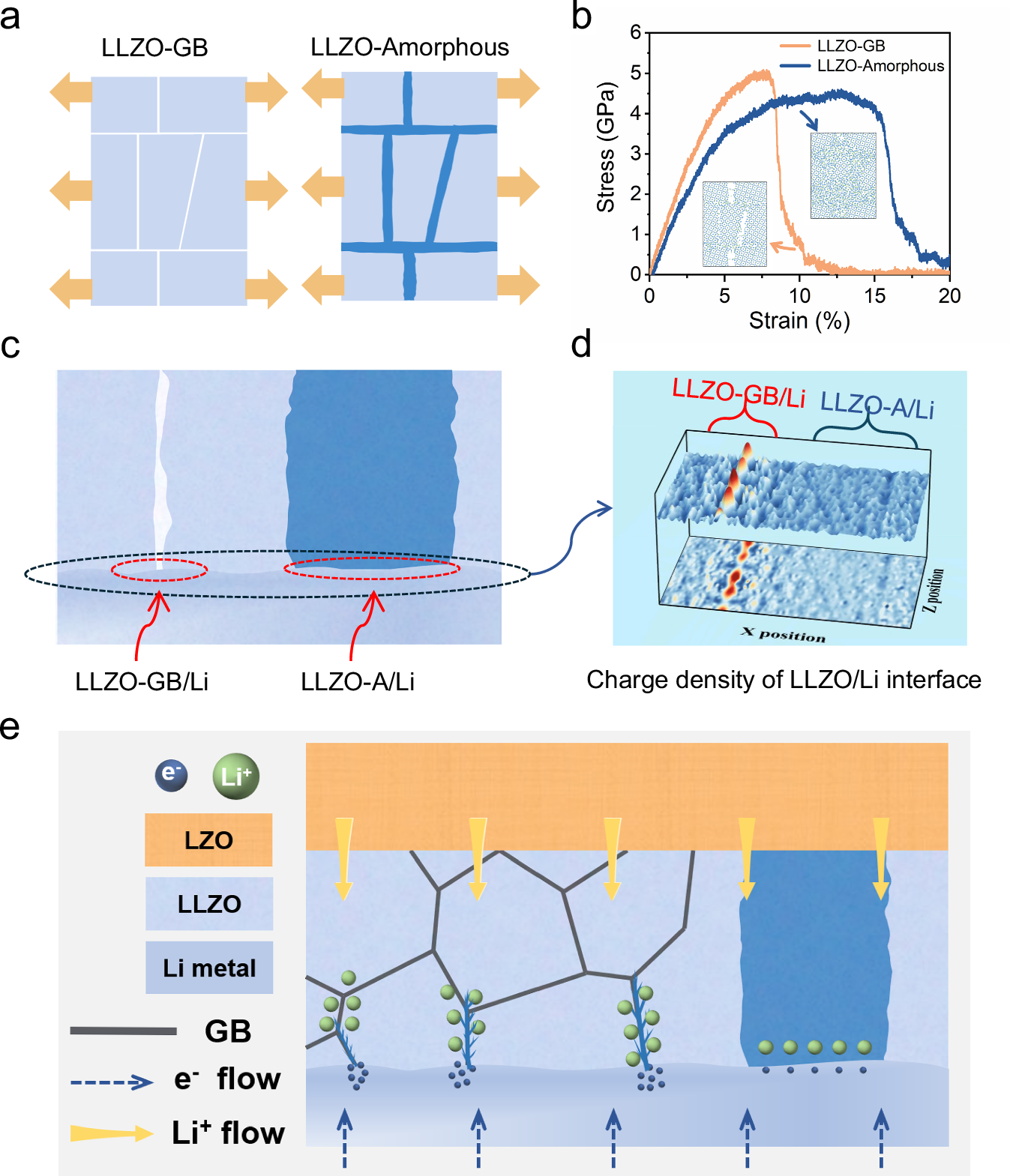

Fig. 6: Mechanism of inhibiting lithium dendrite formation.

a Schematic of the LLZO-GB and LLZO-Amorphous; b Tensile stress-strain curves for different systems; c Schematic diagram of the calculation model of charge density; d Projection of charge density distribution on the interface; e Lithium dendrite formation mechanism during charging.
