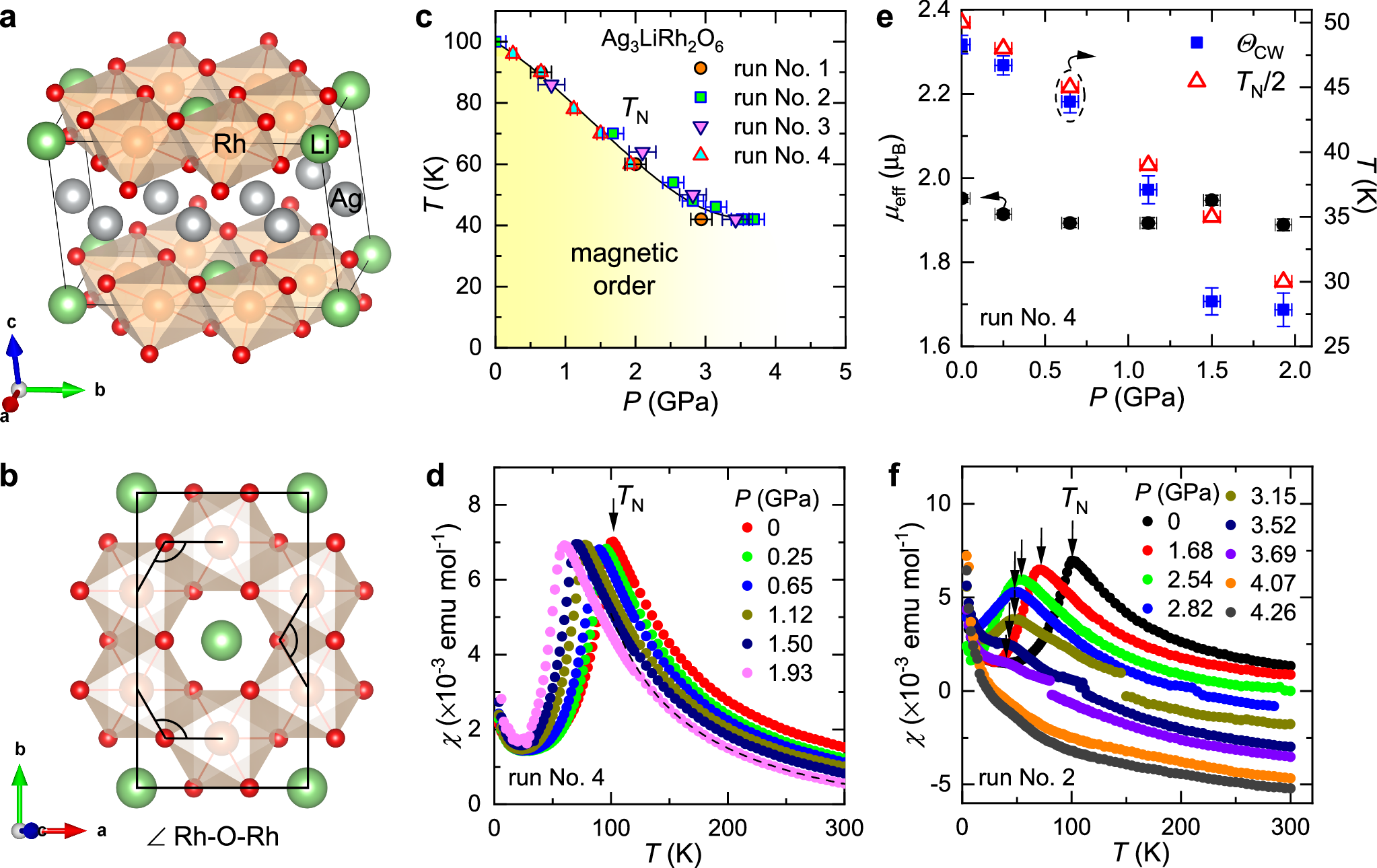

Fig. 1: Magnetization data.
From: Pressure tuning of competing interactions on a honeycomb lattice
a Unit cell of Ag3LiRh2O6 in the monoclinic space group C2/m with Ag atoms between the [LiRh2O6] honeycomb layers. b ∠Rh-O-Rh bond angles within a honeycomb layer. c Suppression of TN with increasing pressure. d TN is identified by the peak in χ(T) at different pressures. e Both TN and ΘCW decrease in parallel with pressure while μeff remains nearly unchanged. All data in this panel are from run No. 4. f The peak in susceptibility data (TN) disappears at P > 4 GPa.
