Interlayer engineering of lattice dynamics and elastic constants of 2D layered nanomaterials under pressure

Abstract

Interlayer coupling in two-dimensional (2D) layered nanomaterials can provide us strategies to evoke their superior properties, such as the layer-dependent phonon vibration, the formation of moiré excitons and related nontrivial topology. However, to accurately quantify interlayer potential and further measure elastic properties of 2D materials remain challenging, despite significant efforts. Herein, the layer-dependent lattice dynamics and elastic constants of 2D nanomaterials have been systematically investigated via pressure-engineering strategy based on ultralow frequency Raman spectroscopy. The shear and layer-breathing modes Raman shifts of 2H-MoS₂ with various thicknesses are analyzed by the monoatomic chain model (MCM). Intriguingly, it is found that the layer-dependent dω/dP of shear (S_N,1) and breathing (LB_N,N-1) modes display the opposite trends, quantitatively consistent with MCM analysis, our molecular dynamics simulations and density functional theory calculations. The diatomic chain model is combined with Raman data to analyze the intralayer and interlayer shear force constants and their pressure coefficients, revealing a strong dependence on the number of layers. These results can be generalized to other van der Waals systems, and may shed light on the potential applications of 2D materials in nanomechanics and nanoelectronics.

Introduction

The van der Waals interactions between the atomic layers facilitate us to mechanically exfoliate and transfer various two-dimensional (2D) layered nanomaterials, and further to controllably stack their heterostructures^{1,2,3,4,5,6,7}. Despite its relatively weak characteristic, van der Waals interactions play an essential role in the exotic physical properties of these quantum systems, such as the layer-dependent phonon vibration, the twist angle-dependent moiré superlattices, the prominent spin-orbital couplings in 2D heavy fermions, and the correlated topological insulators^{8,9,10,11,12,13}. Therefore, the quantitative determination and modulation of interlayer coupling strength in 2D materials are of significant importance for us to boost their practical applications in twistronics and optoelectronics. However, it remains a huge challenge. In the previous studies, the interlayer van der Waals interactions in transition metal dichalcogenides have been tentatively quantified according to the pressure-enhanced valance band splitting¹⁴. Obviously, this approach had material-specific prerequisite, severely relying on the 2D samples displaying the noticeable splitting energy in their valance bands. In addition, the interlayer strength of van der Waals pressure has been measured by trapping pressure-sensitive molecules between graphene layers¹⁵. Nevertheless, it is important to note that these organic molecules themselves can spontaneously induce the efficient charge transfer and consequently influence the intrinsic interlayer interactions of 2D materials. Moreover, a synchrotron X-ray diffraction experiment has been established to quantify the interlayer interactions in TiS₂, and an unexpected accumulation of electron density in the interlayer region was found¹⁰, which is difficult to popularize due to the limitations of the complex apparatus. Besides, the surface indentation method could measure the perpendicular-to-the-plane elasticity or the adhesion forces between the AFM tip and the supported 2D nanoflake. However, to prevent contamination, the experiment must be carried out in a high vacuum, and the results should be evaluated against benchmarks rather than treated as standalone measurements of adhesion energy or forces^16,17. In response to these limitations, a strategic approach based on ultralow frequency (ULF) Raman spectroscopy has been developed to quantify the interlayer interactions in multilayer graphene¹⁸. Such non-invasive, rapid and convenient technique can be widely extended to numerous 2D materials, and it is suitable for diverse experimental environments as well.

Hydrostatic pressure can effectively modulate the lattice structures and physical properties of 2D nanomaterials, without deliberately introducing any impurities or defects¹⁹. Extreme pressure can induce interlayer slippage, structural evolutions, metal-insulator transitions, and antiferromagnetic to ferromagnetic transition in 2D materials and heterostructures, owing to their pressure-sensitive interlayer and intralayer interactions^19,20,21,22. Typically, interlayer interactions response more sensitively to pressure than intralayer interactions governed by strong covalent bond. At the same time, the interlayer coupling strength of 2D layered nanomaterial strictly depends on its layer number (N)^12,23. For instance, diamond anvil cell (DAC) combined with in-situ synchrotron X-ray diffraction has been utilized to investigate the evolutional mechanism and stability of bulk MoS₂ under high pressure, and the obtained equation of state suggested its corresponding bulk modulus of bulk MoS₂ as ~79.5 GPa, while the modulus of ultrathin MoS₂ remains uncertain²⁴. In few-layer MoS₂, the interlayer coupling could promote the structural transition from 2H to AB’ configuration of quadlayer MoS₂ under pressure, as revealed by the high and low frequency Raman vibration²⁵. Additionally, the performance of multi-terminal field-effect transistors, employing few-layer MoS₂ as the channel semiconductor and BN as the dielectric layer, can be notably improved under hydrostatic pressure, accompanied by structural modification²⁶. As the thickness reduced to monolayer limit, high pressure can principally tune its electronic energies and band structure, such as the transition from direct to indirect band gap²⁷. Overall, lattice vibration and structural stability of ultrathin MoS₂ were initially studied under high pressure, implying that both interlayer and intralayer force constants dramatically changed with pressure^{25,28,29,30,31,32,33}. To the best of our knowledge, the comprehensive studies on the pressure-regulated lattice dynamics and elastic constants of MoS₂ with various N is still lacking, and the associated mechanism remains unclear.

In this work, pressure engineering approach is developed to systematically investigate the layer-number dependent interlayer interactions in 2D layered materials using in situ ULF Raman spectroscopy, by taking MoS₂ as the typical paradigm. Our experimental results are analyzed with the linear chain model and consistent with the density functional theory (DFT) calculations and molecular dynamics (MD) simulations as well. It is found that force constants and moduli of MoS₂ are dramatically enhanced with pressure, and the evolution of interlayer interactions exhibited a clear layer number (thickness) dependence. More importantly, we find that the monoatomic chain model (MCM) can effectively explain layer dependence of the interlayer and intralayer vibrational pressure coefficients, providing a clear physical model for these pressure coefficients. The results in this study can provide a pivotal reference to clarify the servo response of mechanical properties of 2D materials under extreme pressure.

Results and discussion

Here we took the commonly studied 2H-MoS₂ (space group P6₃/mmc) with layered structure as a paradigmatic example. In principle, the relevant results can be rationally generalized to a wide family of van der Waals materials and their heterostructures. According to the lattice dynamics theory, each primitive unit cell of MoS₂ consists of two molecules²⁸, that is, two Mo atoms and four S atoms. Hence, there exists 18 normal vibrational modes at the Brillouin zone center with the irreducible representations as Γ = 2A_2u ⊕ 2E_1u ⊕ E_2u ⊕ B_1u ⊕ A_1g ⊕ 2B_2g ⊕ E_1g ⊕ 2E_2g, where except for one ${A}_{2{{\rm{u}}}}$ and one ${E}_{1{{\rm{u}}}}$ acoustic modes, the remained ones originate from the long-wavelength optical phonons³⁴. In experiment, three Raman peaks of bulk MoS₂, i.e., low frequency ${E}_{2{{\rm{g}}}}^{2}$ at 32 cm⁻¹ and high-frequency ${E}_{2{{\rm{g}}}}^{1}$ (383 cm⁻¹) and ${A}_{1{{\rm{g}}}}$ (408 cm⁻¹), are usually observed without considering the resonance effect³⁵. Importantly, the ${E}_{2{{\rm{g}}}}^{2}$ (shear mode (S)), and in-plane ${E}_{2{{\rm{g}}}}^{1}$ and out-of-plane ${A}_{1{{\rm{g}}}}$ modes vibrate along the intralayer and interlayer directions, respectively, as shown in Fig. 1a. Notably, the intralayer vibrations refer to the relative motions of atoms within an individual layer, whereas the interlayer vibrations are the collective excitations of the entire MoS₂ layer perpendicular or parallel to the normal direction. More interestingly, these vibrational frequencies are principally sensitive to the N³⁶. When the thickness of bulk 2H-MoS₂ is shrank to few layer, the point group ${D}_{6h}^{4}$ is changed to ${D}_{3d}$ (even number) or D_3h (odd number), as shown in Supplementary Note 1³⁷. For even N, its layer breathing (LB) and S modes are classified as either Raman-active or IR-active; for odd N, the LB modes can be either Raman-active or IR-active, while the S modes can be Raman-active or both Raman-active and IR-active. In normal, N-layer MoS₂ typically includes (N-1) two-fold degenerated S modes and (N-1) nondegenerate LB modes, as shown in Supplementary Fig. 1 and 2. Supplementary Fig. 3 to 7 show S_N,1 and LB_N,N-1 vibrational modes of 2 L to 6 L 2H-MoS₂ under ambient pressure from MD simulations, respectively. By analyzing the amplitudes in time domain and frequency domain, along with the corresponding phases, we can assign the specific phonon mode for a given vibrational frequency.

Fig. 1: Collective LB and S modes as well as high-frequency intralayer Raman modes of 2H-MoS₂ under ambient pressure.

a Scheme of Raman-active normal modes of 2D layered MoS₂, including the collective LB (B_2g) and S (${E}_{2{{\rm{g}}}}^{2}$) modes, and intralayer ${E}_{2{{\rm{g}}}}^{1}$ and A_1g modes. b Representative optical image of the exfoliated MoS₂ on a polydimethylsiloxane (PDMS) surface, and the layer numbers of MoS₂ are labeled. c Stokes and anti-Stokes Raman spectra of the few-layer and bulk MoS₂ on a diamond surface. The dashed lines and arrows are used for guide. d Raman shifts of few-layer MoS₂ as a function of N. The open circles denote the experimental (Exp.) data. The blue (S mode) and red (LB mode) crosses mean the obtained calculation results based on the MCM, and the data on each dashed line are from the same branch. MCM monoatomic chain model, S shear, LB layer breathing.

Figure 1b displays the representative few-layer MoS₂ nanoflake exfoliated from the high-quality bulk crystal, with the thickness exactly determined by the combined optical contrasts and low-frequency Raman spectra. Figure 1c presents the detailed Stokes and anti-Stokes Raman spectra of MoS₂ nanoflake with various N, acquired using our homemade Raman system with its layout shown in Supplementary Fig. 8. The extracted N-dependent Raman shifts are summarized in Fig. 1d. As N increases, the high-frequency ${E}_{2{{\rm{g}}}}^{1}$ and ${A}_{1{{\rm{g}}}}$ modes shift oppositely till saturation when N exceeds around 5, well consistent with the literature³⁵.

Next, for the low-frequency ${E}_{2{{\rm{g}}}}^{2}$ and ${B}_{2{{\rm{g}}}}$ modes, the MCM can be used to explain the experimental results, when considering that each individual layer rigidly vibrates against its adjacent layer. In this scenario, each MoS₂ layer can be simplified as a rigid ball with the mass density μ (the total mass per unit area), and interlayer interactions can be represented by the elastic constant α between balls. Therefore, by diagonalizing the N × N dynamical matrix, the frequencies of (N-1) two-fold degenerate S modes and (N-1) LB modes can be calculated as ω (S_N,_N-j) = ω(S_bulk)sin(jπ ⁄ 2N), and ω(LB_N,N-j) = ω(LB_bulk)sin(jπ ⁄ 2N), respectively³⁷, where the ${{{\rm{\omega }}}}({{{{\rm{S}}}}}_{{{{\rm{bulk}}}}})\,=\,1/{{{\rm{\pi }}}}{{{\rm{c}}}}\sqrt{{{{{\rm{\alpha }}}}}^{\parallel }/{{{\rm{\mu }}}}}$ and ${{{\rm{\omega }}}}({{{{\rm{LB}}}}}_{{{{\rm{bulk}}}}})\,=\,1/{{{\rm{\pi }}}}{{{\rm{c}}}}\sqrt{{{{{\rm{\alpha }}}}}^{\perp }/{{{\rm{\mu }}}}}$ are attributed from the S and LB modes of bulk crystals and ${j}\,=\,1,\,2,\,3,\,\ldots,\,N-1$. ${\alpha }^{\parallel }$ (${\alpha }^{\perp }$) corresponds to the in-plane (out-of-plane) interlayer force constant per unit area between the nearest-neighbors, μ is the total mass per unit area of each layer, and c is the speed of light. Obviously, ${{{\rm{S}}}}_{N,1}/{{{\rm{LB}}}}_{N,1}$ with j = N−1 is the highest-frequency branch, while ${{{\rm{S}}}}_{N,N-1}/{{{\rm{LB}}}}_{N,N-1}(j\,=\,1)$ means the lowest-frequency branch. As shown in Fig. 1d, our experimental data can be well fitted with the MCM, implying the negligible coupling of MoS₂ layer with its substrate. Besides, the third highest-frequency S_N,3 mode together with the lowest-frequency ${{{\rm{LB}}}}_{N,\,N-1}$ and the third lowest-frequency LB_{N, N-3} modes of few layer MoS₂ have been observed in Raman spectra as well, despite their weak intensities³⁸. The α^|| and α^⊥ for 2H-MoS₂ under ambient condition were derived as 2.8 × 10¹⁹ and 8.6 × 10¹⁹ N m⁻³, respectively, which is quantitatively consistent with those in the literature³⁸. Furthermore, we performed the detailed DFT calculations and MD simulations to gain more insights on the N-dependence of vibrational frequency of MoS₂, and the results were in good agreement with the experimental data, as illustrated in Supplementary Fig. 9.

To probe the pressure effect on the interlayer and intralyer couplings of MoS₂, we transferred the few-layer MoS₂ onto the diamond culet and the extreme hydrostatic pressure can be generated with a symmetrical DAC, as shown in Fig. 2a. Such a GPa-level pressure can conveniently shorten both the interlayer and intralayer distances, and thus effectively modulate the relevant Raman frequencies. Figure 2b exhibits the evolution of Raman spectra of 6 L MoS₂ under high pressure up to 9.6 GPa with the mixture of methanol-ethanol-water (MEW, 16:3:1) used as the pressure transmitting medium (PTM), and the structural transitions may happen at such high pressure²⁵. From our MD simulations, four low-frequency Raman modes as S_6,1, S_6,3, LB_6,3 and LB_6,5 can be detected under ambient pressure (Supplementary Fig. 10), as discussed previously in Fig. 1c. When subjected to high pressure, the LB_6,3 mode weakened dramatically and became undetectable in our experiments (Fig. 2b and Supplementary Fig. 11). The intensity of three remained modes gradually decreased as the pressure increased, primarily owing to the phonon scattering with the surrounding transmitting medium or the enriched charge carriers. Under high pressure, all Raman frequencies of S_6,1, S_6,3, and LB_6,5 exhibit the significant blueshift, which can be well explained by the compressed lattice constants and resultant enhanced lattice structure of MoS₂ under pressure. When the pressure totally released, the Raman vibrations basically return to the initial state, as shown in Fig. 2b. Typically, the lattice constant c is reduced by 6.4% at ~10 GPa²⁴. Impressively, the S modes strengthened more rapidly with a larger slope dω/dP than LB mode in Fig. 2c. In general, LB modes involve the out-of-plane atomic motions and should therefore be more sensitive to the variation of interlayer spacing than S modes. However, the intuitive analysis is indeed inconsistent with our experimental data in Fig. 2c. Below, we will make the detailed discussion on this unexpected phenomenon. On the other hand, the full width at half-maximum (FWHM) of each peak became larger under high pressure, and the LB mode presents more prominent, indicating its shorter lifetime τ, due to the anharmonic decay of phonon transport. For instance, the FWHM of LB_6,5 mode was enlargred from ~2.3 (0 GPa) to 9.5 cm⁻¹ (8 GPa), resulting in the reduced τ from 14.3 to 3.5 ps based on the uncertainty principle ΔE ∼ ℏ/τ.

Fig. 2: Low-frequency LB and S modes of 6L-MoS₂ under high pressure applied by a DAC.

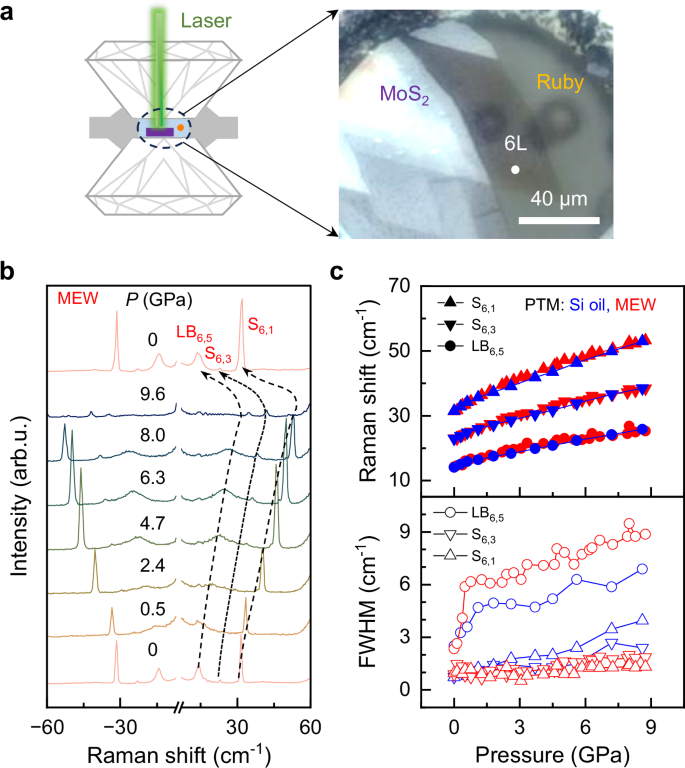

a 2H-MoS₂ nanoflakes transferred onto diamond surface. The MEW was used as the PTM, and the initial pressure was calibrated as 0.5 GPa. b Stokes and anti-Stokes Raman spectra of 6L-MoS₂ under various pressures with MEW as the PTM. The dashed lines indicate the vibrational frequencies of LB_6,5, S_6,3, and S_6,1 modes. c Pressure-dependent Raman shifts (upper panel) and FWHM (lower panel) of S_6,1, S_6,3, and LB_6,5 modes of 6 L MoS₂ nanoflake with the MEW (red) and silicone oil (blue) media. DAC diamond anvil cell, MEW methanol-ethanol-water, PTM pressure transmitting medium.

In addition, when PTM was replaced with silicone oil, blue shift trend of low frequency Raman vibration of MoS₂ is qualitatively consistent with those by MEW, as shown in Fig. 2c. Notably, the FWHM of S vibration widens more significantly than that in MEW, while the increase of FWHM in LB vibration is smaller than that in MEW. This phenomenon indicates that MEW offers good hydrostatic performance in the current pressure range (P < 10 GPa)³⁹, producing negligible shear stress on MoS₂ sample, which leads to widened FWHM for S modes. Therefore, the significant widening of FWHM for LB vibration in MEW is mainly due to the effect of hydrostatic pressure.

To investigate the N-dependence of low-frequency Raman shifts of 2H-MoS₂ under high pressure, we measured the Raman spectra of MoS₂ nanoflakes with different N in DAC. The acquired Raman results of the lowest-frequency LB_N,N-1, and the highest-frequency S_N,1 modes are displayed in Fig. 3a, as well as the DFT and MD calculations. Apparently, for a MoS₂ nanoflake with the given N, both LB_N,N-1, and S_N,1 modes monotonically display the evidently blueshifted vibrational energies (Fig. 3a) and the boardened linewidths (Fig. 3b) with pressure, similar with the results of 6L-MoS₂ in Fig. 2. Interestingly, LB and S modes present distinct Raman shift rates with pressure, that is, dω(LB_N,N-1)/dP (dω(S_N,1)/dP) becomes smaller (larger) as the N increases. These exotic results was further confirmed by the theoretical calculations using both DFT and MD approaches (Fig. 3a). The quantitative anlysis will be discussed later in Fig. 4. The Raman vibrations of bilayer MoS₂ still remained observable when the pressure exceeds 9.6 GPa, instead of the total vanishing in methanol-ethanol-water mixture, as shown in Supplementary Figs 12–16. Furthermore, the FWHM of LB_N,N-1 mode was superior to that of S_N,1 mode, and both of them decreased with N, as shown in Fig. 3b, which is rather consistent with the literature results^36,40. As the applied pressure increases, for a given N of MoS₂, the FWHM values of LB modes became remarkably widened, due to the reduced phonon lifetime caused by pressure. The layer-dependent broadening of FWHM under high pressure is discussed in more detail in Supplementary Fig. 17.

Fig. 3: Pressure-dependent Raman results of both LB and S modes of few-layer 2H-MoS₂ (2 to 9 layers) obtained by experiments (Exp.) and theoretical calculations (DFT and MD).

a The measured and calculated (DFT and MD) Raman results of LB_N,N-1 (upper panel) and S_N,1 (lower panel) modes of MoS₂ with different N, which cover 2 to 9, and bulk as indicated with dashed lines. b The experimental FWHM of LB_N,N-1 (red) and S_N,1 (blue) modes of MoS₂ with different N. Note that the logarithmic scale is used in the y-axis. The red and blue arrows indicate the increasing of pressure. DFT density functional theory, MD molecular dynamics.

Fig. 4: Pressure-modulated elastic constants and lattice dynamics of few-layer 2H-MoS₂.

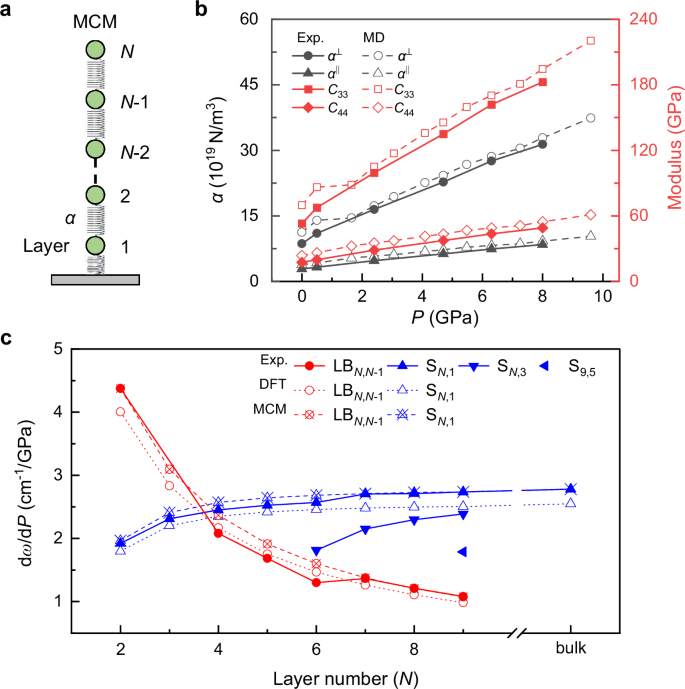

a MCM of MoS₂ on a solid substrate. b Evolution of force constants (${\alpha }^{\perp }$ and ${\alpha }^{\parallel }$) and moduli (C₃₃ and C₄₄) of LB and S modes of MoS₂ under high pressure. The solid and empty symbols denote the exp. and MD results, respectively. The changes in the force constant and modulus under high pressure seem linear, leading to the nonlinear dependence of Raman scattering on pressure. cN-dependence of Raman shifting rates of dω(LB)/dP and dω(S)/dP of MoS₂. Note that dω(LB)/dP and dω(S)/dP intersect when N approaches to ~4. The soild, empty, and empty with X intersection symbols denote the exp., DFT, and MCM results, respectively. The dahsed and solid lines are guides for the eyes.

To better understand pressure effect on the interlayer interactions of MoS₂, we utilized MCM to thoroughly analyze the low-frequency Raman modes of N-layer MoS₂ under various pressures as shown in Fig. 4a and Supplementary Fig. 18, which allowed us to evaluate the S (${\alpha }^{\parallel }$) and LB (${\alpha }^{\perp }$) force constants, as well as the S modulus (C₄₄) and LB modulus (C₃₃). In terms of nanomechanics, we understand that ${C}_{33}\,={\,\alpha }^{\perp }t$ and ${C}_{44}\,={\,\alpha }^{\parallel }t$, where t corresponds to the equilibrium distance between the neighboring layers of MoS₂ under the specific pressure condition^18,24. As shown in Fig. 4b, the elastic constant ${\alpha }^{\parallel }$ of S mode dramatically increased from 2.8 × 10¹⁹ (0 GPa) to 8.4 × 10¹⁹ (8 GPa) N m⁻³. In contrast, the ${\alpha }^{\perp }$ of LB mode responds more quickly on pressure from 8.6 × 10¹⁹N m⁻³ at 0 GPa to 31.4 × 10¹⁹N m⁻³ at 8 GPa, owing to the more significant compression of interlayer distance (β_c = 10.4 × 10⁻³/GPa, β_a = 2.6 × 10⁻³/GPa)²⁴ under pressure. The derived C₃₃ and C₄₄ moduli presents similar behavior after calibrating the thickness of MoS₂ under pressure, which is consistent with our MD calculations and literature results⁴¹. The obtained force constants by fitting through MCM theory are consistent with those calculated from MD simulations, and the MD-derived force constants are based on the bulk MoS₂ under hydrostatic pressure. This indicates that the few-layer and bulk samples should be in the similar stress environment. Additionally, during decompression process, Raman spectra of 2H-MoS₂ exhibited good recovery in Supplementary Fig. 19.

We further summarized all the dω/dP data of LB and S modes for MoS₂ with different N, obtained by experiments and DFT calculations, as shown in Fig. 4c. It is clear that as N increased, dω(S_N,1)/dP gradually increased and then became saturated at about 6 layers, while dω(LB_N,N-1)/dP conversely decreased and became saturated at ~9 layers. Moreover, when the N was less than 4, the dω(LB_N,N-1)/dP values were obviously larger than dω(S_N,1)/dP, however, the results are reversed when N ≥ 4. This can be well explained by the MCM, as shown in Fig. 4c. For the ${{{\rm{S}}}}_{N,1}$ mode, we know d$\omega$(${{{\rm{S}}}}_{N,1}$)/dP = [d$\omega$(S_bulk)/dP]sin[π(N-1)/2 N]. Since d$\omega$(S_bulk)/dP is kept as a constant, d$\omega$(${{{\rm{S}}}}_{N,1}$)/dP monotonically increases as the N. Breathing mode LB_{N, N-1} has the similar result, d$\omega$(LB_N,N-1)/dP = [d$\omega$(LB_bulk)/dP]sin(π/2 N), and thus d$\omega$(LB_N,N-1)/dP decreases as N increases. Morevoer, C₃₃ is more sensitive to pressure than C₄₄, leading to d$\omega$(LB_bulk)/dP > d$\omega$(S_bulk)/dP. When N = 2, d$\omega$(S_2,1)/dP < d$\omega$(LB_2,1)/dP can be decuded. When N approaches the infinity, d$\omega$(LB_N,N-1)/dP ~ 0 <d$\omega$(${{{\rm{S}}}}_{N,1}$)/dP ~ d$\omega$(S_bulk)/dP. So there must be a crossover between d$\omega$(${{{\rm{S}}}}_{N,1}$)/dP and d$\omega$(LB_N,N-1)/dP at a finite N, well consistent with our experimental results in Fig. 4c. Alternatively, this phenomenon might be understood by different stress states of MoS₂ nanoflakes with different N as well⁴². For the ultrathin MoS₂ (N ~ 2), it mostly endures the uniaxial compression. For the thicker and bulk MoS₂, hydrostatic pressure dominates Raman responses of MoS₂ over stress conditions.

To further investigate this phenomenon, we compared the pressure responses of MoS₂ with different N in two PTMs: silicone oil (Supplementary Fig. 20) and MEW. As shown in Supplementary Fig. 21, the MCM theory can accurately predict the dω/dP variation for low-frequency Raman modes of MoS₂ in both cases. In the silicone oil with inferior hydrostaticity³⁹, the obtained dω/dP is generally lower than that in MEW with better hydrostatic pressure. This indicates that few-layer MoS₂ has stress states similar to those of bulk samples, otherwise, the MCM theory may become invalid. Given the strong correlation between the experimental and simulation results, it is believed that MoS₂ samples endure hydrostatic pressure environment when using MEW medium, regardless of its layer number. Furthermore, we found that the MCM theory is applicable to 3R-MoS₂ (Supplementary Fig. 22) and the previously reported 2H-MoTe₂¹² (Supplementary Fig. 23) as well. However, for bilayer MoS₂ with a twist angle ( ~ 10 ± $0.6^\circ$), the high-pressure Raman response dramatically differs from that of naturally stacked bilayer MoS₂, due to phonon renormalization effect (Supplementary Fig. 24).

In order to further elaborate the influence of external pressure on elastic constants of MoS₂, diatomic chain model (DCM) theory proposed by Wieting^28,43, which considers both intralayer and interlayer interactions, was adopted to analyze our experimental data, as shown in Fig. 5a. In this model (inset of Fig. 5a), the shear and compressive force constants between the chalcogen planes of the neighboring layers are defined as ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}$ and ${C}_{{{\rm{b}}}}^{{{\rm{c}}}}$, and between the molybdenum and chalcogen planes in a layer are ${C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ and ${C}_{{{\rm{w}}}}^{{{\rm{c}}}}$, respectively. Based on Raman results of the in-plane ${E}_{2{{\rm{g}}}}^{1}$ and ${E}_{2{{\rm{g}}}}^{2}$ in Figs. 5a, 3a and Supplementary Note 2 in Supplementary Information, the values of ${C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ and ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}$ under each pressure can be deduced readily, as shown in Fig. 5b and Supplementary Fig. 25. The values of ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}$ rapidly increased with pressure, among which bilayer MoS₂ changes the slowest as shown in Fig. 5b, and the change rate increases gradually with the increase of N in Fig. 5c. It is obvious that the slope values become saturated as N increases to 6, quantitatively consistent with the results of MCM mentioned above in Fig. 4c. Similarly, the slope change of ${C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ has the comparable trend with that of ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}$. The linear slope d${C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{{\rm{d}}}P$ of N = 2 and bulk MoS₂ were calculated as 0.27 × 10⁻² and 0.58 × 10⁻²cm⁻¹/GPa, respectively. In addition, the ratio of ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ indicates the relative strength of interlayer and intralayer interactions, and thus the greater the ratio, the stronger the interlayer coupling. Figure 5d shows the calculated ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ data of MoS₂ with different N. With the increase of the N, the ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ ratio became larger, indicating that the interlayer interactions and the N displayed the basically positive correlation. The value of ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ gradually increases with pressure, but it remained less than 4.5% under ~8 GPa, indicating that the NL MoS₂ still retained the acceptable 2D characteristic even under such high pressure.

Fig. 5: DCM used to analyze the high-frequency Raman vibrations and elastic constants of 2H-MoS₂ under high pressure.

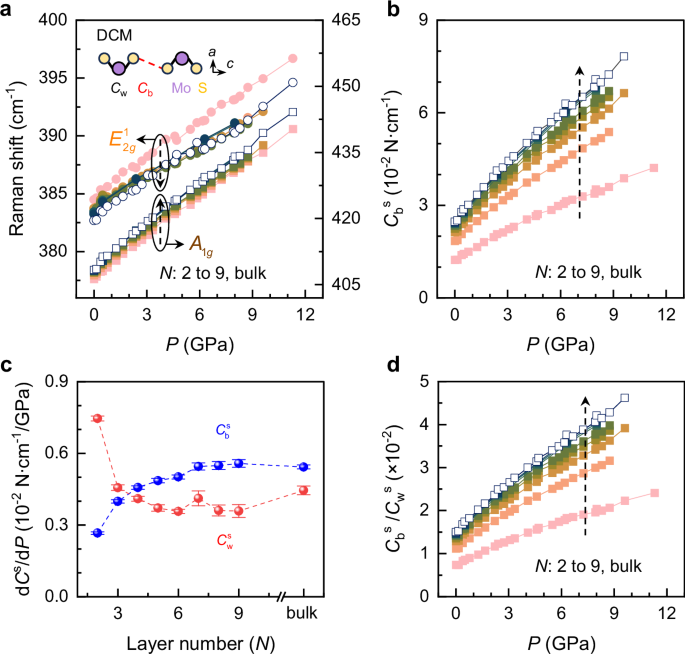

a High-frequency Raman modes A_1g and ${E}_{2{{\rm{g}}}}^{1}$ of MoS₂ with various N, and N changed from 2 to 9, and bulk. Inset shows the DCM of MoS₂. b Pressure-dependence of shear force constant ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}$ between the chalcogen planes of the neighboring layers with various N. c The extracted ${{\rm{d}}}{C}_{{{\rm{w}}}}^{{{\rm{s}}}}/{{\rm{d}}}P$ and ${{{\rm{d}}}C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{{\rm{d}}}P$ slops of MoS₂ as a function of N under pressure. The ${C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ is the shear force constant between Mo and S atomic planes in an individual layer. The error bars represent the standard deviation obtained from linear fitting. d The obtained ${C}_{{{\rm{b}}}}^{{{\rm{s}}}}/{C}_{{{\rm{w}}}}^{{{\rm{s}}}}$ of MoS₂ with different N. DCM diatomic chain model.

In conclusion, we systematically investigated the interlayer and intralayer interactions of 2D layered MoS₂ under extreme pressure by the ULF Raman spectroscopy, together with DFT calculations and MD simulations. The obtained N-dependent Raman results were analyzed through the MCM and DCM. Both interlayer and intralayer force constants gradually increased as pressure increased, with a more significant increment in the interlayer coupling owing to its rapid pressure response. Furthermore, it was found that the shift rates of LB_N,N-1 modes gradually decreased as N became larger, dramatically different from the S_N,1 modes, which can be explained using the MCM model under high pressure. Additionally, the MCM model could be used to predict the low-frequency Raman vibrational response of various naturally stacked 2D materials under high pressure, not just 2H-MoS₂. The current study is expected to offer insights into pressure-engineering of physical properties of 2D materials and further promote their potential applications in nanomechanics and optoelectronics.

Methods

Preparation of MoS₂ nanoflakes and the characterizations

Few-layer MoS₂ nanoflakes were prepared by mechanical exfoliation from the commercial MoS₂ crystals with high quality (2D Semiconductors, USA). Polydimethylsiloxane was utilized as the template, instead of the conventional Scotch tape to exclusive any tape residual, and then MoS₂ nanoflakes were directly transferred onto the culet of diamond. The entire dry-transfer process can guarantee the clean MoS₂ surface without any contamination or dirt. Layer number of few-layer MoS₂ nanoflakes was exactly determined by combining optical contrast and low-frequency Raman spectra.

High-pressure raman spectroscopy

We used a symmetric DAC with a ~400 μm culet to generate high pressure on MoS₂ nanoflakes. A T301 gasket with the central ~160 μm hole drilled by laser milling was used as the sample chamber. The pressure was calibrated by the shifted fluorescence peak of the tiny ruby ball, placed near to the MoS₂ nanoflakes in DAC. The methanol-ethanol-water (16:3:1) mixture was used as pressure transmitting medium, in order to compare the hydrostatic pressure effect on Raman spectra of MoS₂.

All Raman spectrum were acquired through our homemade Raman system, which is based on the SmartRaman confocal-micro-Raman module (Institute of Semiconductors, Chinese Academy of Sciences) and equipped with the Horiba iHR550 spectrometer and 532 nm laser as an excitation source. Importantly, the laser power was optimized to be low enough, in order to avoid the possible over-heating effect. A single-longitudinal-mode laser with narrow linewidth and high stability (MSL-III-532), and a narrow linewidth (better than 10 cm⁻¹) bandpass filter (BPF) based on the volume Bragg grating (VBG) technique was used to detect the low-frequency Raman modes³⁷. Three VBG-based notch filters (BNF) (bandwidth: ~8–10 cm⁻¹) with high transmittance (up to 80%–90% dependent on the laser wavelength) and an optical density (OD) 3–4 were strategically used to suppress the strong Rayleigh background, and the BPF was utilized to remove any plasma line of laser source. Moreover, two mirrors behind the reflecting filter (BPF) were used to align the laser beam to the center of the first BNF, as shown in Supplementary Fig. 8. The angles of three BNFs were precisely tuned to block the Rayleigh line up to 10⁻⁹–10⁻¹². An iHR550 spectrometer was equipped to detect the Raman scattering signals.

DFT calculations

DFT calculations were performed by the Vienna Ab initio Simulation Package^44,45. The projector-augmented wave method⁴⁶ was adopted to describe the core-valence interaction. The exchange-functional was treated by the generalized gradient approximation of the Perdew-Burke-Ernzerhof functional⁴⁷. The energy cut-off for the plane wave basis expansion was set to 500 eV and the convergence criterion of geometry relaxation was set to 5 meV/Å. The self-consistent calculations applied a convergence energy threshold of 10⁻⁵eV. A 12 × 12 × 1 Monkhorst-Pack k-point grid⁴⁸ was used to sample the Brillouin zone of the unit cell of bulk MoS₂. The van der Waals interaction was included through Grimmes’s DFT-D3 method⁴⁹. The phonon modes were calculated using the finite displacement method.

MD simulations

To evaluate the dynamic characteristics of multi-layer MoS₂, we performed a series of large-scale MD simulations for the vibrations of multi-layer MoS₂ under different pressures. All MD simulations were performed via the large-scale atomic/molecular massively parallel simulator (LAMMPS)⁵⁰. We constructed 2- to 6-layer 2H-MoS₂ samples with the same in-plane dimensions of 10.52 × 9.91 nm² and an interlayer spacing of 0.62 nm. During simulations, we used the reactive empirical bond-order (REBO) potential⁵¹ and registry-dependent interlayer potential (ILP)^52,53 to describe the bonded intralayer and non-bonded interlayer interactions of Mo and S atoms, respectively. The REBO potential can accurately describe the thermodynamic, structural, and mechanical properties of single-layer MoS₂⁵¹. The ILP incorporates the long-range vdW attraction and the short-range Pauli repulsion between two layers of multi-layer MoS₂ system^52,53. Since the ILP is benchmarked against DFT calculations and is augmented by a nonlocal many-body dispersion treatment of long-range correlation, this potential can effectively capture the physical and mechanical properties of polarizable multi-layer MoS₂ systems^52,53.

We first performed MD simulations to investigate the vibration modes of 2- to 6-layer 2H-MoS₂ under 0 GPa. All simulated samples were equilibrated by initial energy minimization and subsequent free relaxation for 250 ps. During free relaxation, the pressures were controlled as zero, and the temperature was kept at 300 K via an isothermal-isobaric ensemble⁵⁴. Periodic boundary conditions were imposed along two in-plane directions, while free boundary condition was applied along the out-of-plane direction. After free relaxation, we monitored the centroid coordinates of each MoS₂ layer at an interval of 1 fs for 50 ps, and obtained the evolution curve of vibration displacement of each layer with time. Then, we performed fast Fourier transform (FFT) on the vibration displacement-time curves to make the spectrum and modal analyzes on the variation of simulated samples. Furthermore, we performed MD simulations to further investigate the vibration modes of bulk 2H-MoS₂ under different pressures. We constructed the 2H-MoS₂ bulk by applying periodic boundary conditions along all three directions of a 6-layer 2H-MoS₂ throughout simulations. The sample was equilibrated by initial energy minimization and subsequent free relaxation at 300 K for 100 ps. After equilibration, the hydrostatic pressure was controlled to reach the target values (0, 0.5, 1.7, 2.4, 3.1, 4.1, 4.7, 5.5, 6.3, 7.3, 8.0, and 9.6 GPa). The simulated sample was relaxed for 250 ps under a given pressure. Both pressure and temperature were controlled using an isothermal-isobaric ensemble⁵⁴. We obtained the time-evolution curve of vibration displacement for each layer by monitoring the variation of centroid coordinate of each layer with time, and then performed spectrum and modal analyses on these time-evolution curves via FFT. Subsequently, we calculated the vibration frequencies (ω(S_bulk) and ω(LB_bulk)) and the interlayer force constants (${\alpha }_{0}^{\perp }$ and ${\alpha }_{0}^{\parallel }$) per unit area of bulk sample by plugging the highest frequencies of S and LB modes obtained from MD simulations into the MCM. Then, we obtained the variation of the frequencies (ω(S_N,1) and ω(LB_N,N-1)) with the layer number N by substituting the vibration frequencies (ω(S_bulk) and ω(LB_bulk)) of S and LB modes of bulk sample into the MCM. Using the conversion relationship between the frequency and the Raman shift, we can determine the dependence of the Raman shift of multi-layer 2H-MoS₂ on the layer numbers.
