Fig. 4: One proton-separation energies of neutron-deficient At, Bi, and Fr nuclei. | Nature Communications

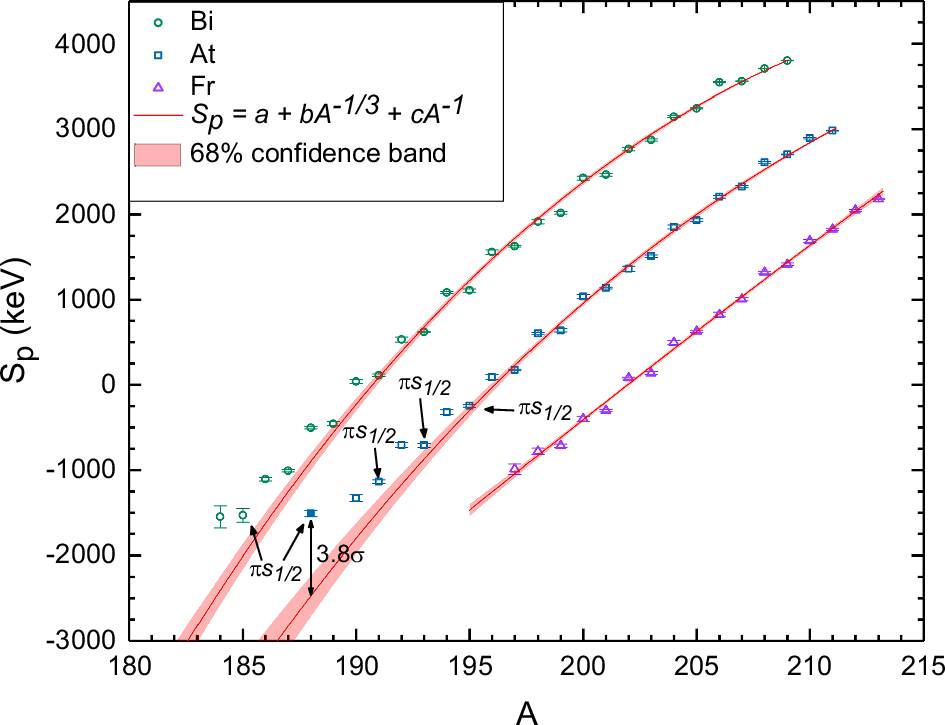

Fig. 4: One proton-separation energies of neutron-deficient At, Bi, and Fr nuclei.

From: New proton emitter 188At implies an interaction unprecedented in heavy nuclei

Fig. 4: One proton-separation energies of neutron-deficient At, Bi, and Fr nuclei.

The data are from this work (solid square), from ref. 74, and from Atomic Mass Evaluation AME202043. The Sp > 0 data points are fitted with a liquid-drop model based function, which is then extrapolated to proton-unbound nuclei. Isotopes with proposed (This work,8,34,35) dominant s1/2 proton component in the wave function of the ground state are indicated. All uncertainties are one standard deviation.
