Fig. 4: The impact of green space on the inundation ratio at different precipitation levels. | Nature Communications

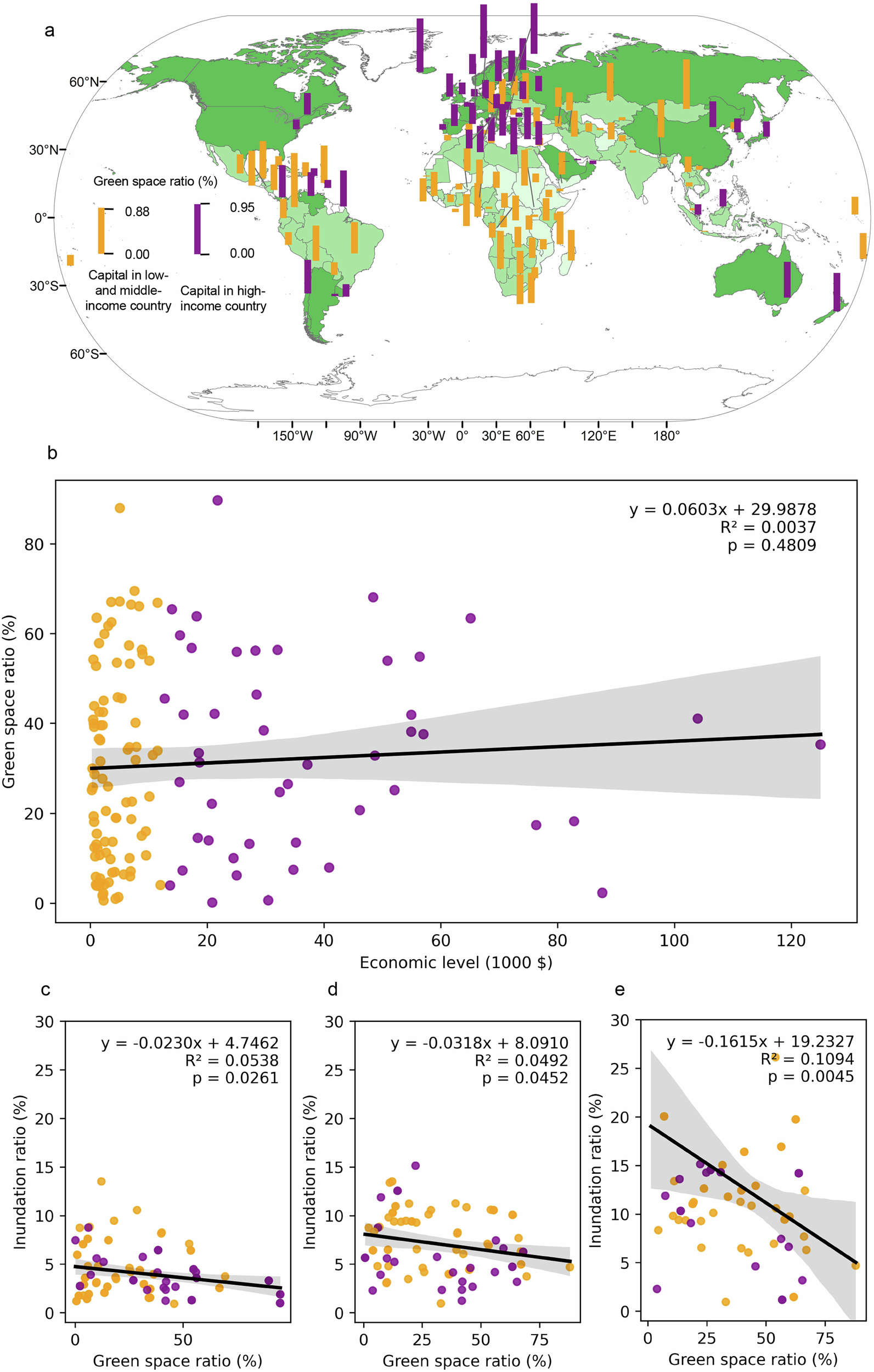

Fig. 4: The impact of green space on the inundation ratio at different precipitation levels.

From: Exploring how economic level drives urban flood risk

Fig. 4: The impact of green space on the inundation ratio at different precipitation levels.The alternative text for this image may have been generated using AI.

a The green space ratio in 138 capitals; b correlation between green space ratio and economic level; correlation between inundation ratio and green space ratio at different precipitation levels, (c) ≤100 mm/d, (d) 100–200 mm/d, (e) >200 mm/d. The yellow dots represent the capitals of low- and middle-income countries, while the purple dots represent the capitals of high-income countries.
