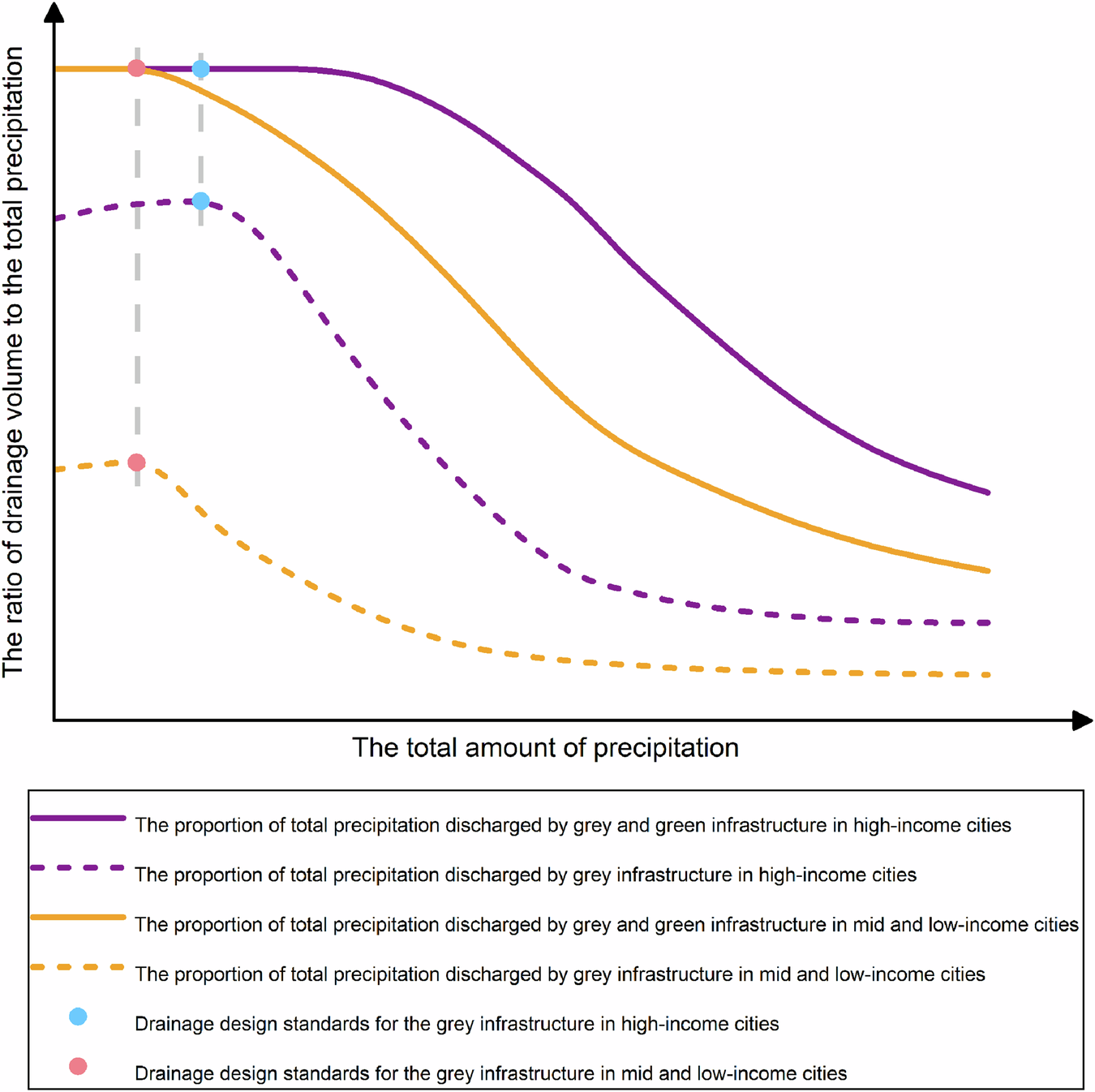

Fig. 6: A schematic illustration of the drainage capabilities of gray and green infrastructures in cities with different economic levels under various precipitation intensities.

From: Exploring how economic level drives urban flood risk

Fig. 6: A schematic illustration of the drainage capabilities of gray and green infrastructures in cities with different economic levels under various precipitation intensities.The alternative text for this image may have been generated using AI.

The horizontal axis represents the total amount of precipitation, and the vertical axis represents the ratio of the drainage volume of different infrastructures to the total precipitation.
