Introduction

Since their initial report in 2011, transition metal carbides and/or nitrides, known as MXenes, particularly their mono- or few-layered nanosheets, have distinguished themselves among numerous two-dimensional (2D) materials owing to their unique properties1,2. Amalgamating the superiorities of both adjustable structural components and versatile physicochemical properties, MXenes can be synthesized using a programmable structural editing protocol to achieve extraordinary performance in a wide range of customized applications3,4. Surface chemistry modification plays a crucial role in tailoring the band structures and work functions of MXenes to achieve a broad range of tunable properties, especially in electronics5 and optoelectronics6,7,8,9. The pristine surface groups of MXene nanosheets are primarily determined by the synthesis process. The conventional wet chemistry etching route selectively removes the A layers from MAX phases using hazardous fluoride-containing acids, resulting in a mixture of -OH, -O and -F terminations on the surface of MXene nanosheets10. Although these electronegative terminations impart the nanomaterials with favorable aqueous processability without the need for surfactants or binders, further development of MXenes-based functional materials is challenged by their mediocre and uncontrollable adjustment. This limitation persisted until the introduction of the molten salts etching route, which allowed for full control of the surface terminations11,12,13. Through substitution and elimination reactions in molten salts, a variety of affluent terminations such as -Cl, -Br, -I, -S, -Se, and -Te, can be successfully synthesized, creating new design opportunities for the structural and electronic properties of molten salt-synthesized MXenes, termed as MS-MXenes3,9,14. However, the higher adhesion energy or stronger surface hydrophobicity of the terminations hinder the separation of layers upon covalent surface modifications, thereby limiting their application in micro-nano electronics such as tribovoltaic nanogenerators (TVNGs)9,15,16. It is well-known that TVNG have displayed the practical feasibility of energy harvesting and sensing, facilitated by adjustable sliding surface carriers and interface wettability17,18.

The intercalation behavior of external species is crucial throughout the production of MXene nanomaterials, encompassing stages from etching and exfoliation to delamination and post-treatment4,19. Ideally, numerous intercalants, including cations, solvent molecules, and organic molecules, can intercalate into and expand the subnanometer 2D galleries via weakening interflakes interactions, potentially delaminating multi-layered MXenes into mono-layered or few-layered nanoflakes20,21,22. However, current exfoliation strategies for MS-MXenes face several challenges, including the reliance on hazardous reagents (e.g., n-butyllithium and sodium hydride), and low yields for high-quality single-layered flakes9,13. Other methods, like the introduction of tetramethylammonium cations, result in brittle and rigid few-layered membranes due to improper intercalation degree15. Although the LiF-involved molten salt etching route facilitates the delamination process by enhancing the interaction between -F groups and tetrabutylammonium hydroxide (TBAOH) intercalants, it runs counter to fluoride-free intention and limits the recovery rate to ~20%16. Recently, Zhang et al. reported a more efficient strategy using LiCl as a delaminating agent and N-methylformamide (NMF) as an optimized solvent for further swelling of powders23. However, scaling up remains challenging due to the complexity of the process, the difficulty in removing organic solvents, and the lack of universality or efficiency for other categories of MS-MXenes.

In response to these issues, electrochemical exfoliation has emerged as one of the most promising and convenient strategies to prepare MS-MXene nanosheets with high quality and high yield, suitable for targeted applications24,25,26,27,28. This powerful synthetic toolkit typically involves the electrochemical intercalation of solvated cations or anions in the electrolyte, followed by a sonication and exfoliation process26,29,30. Combined with easy procedures and mild reaction conditions, the method offers a higher degree of control over the intercalation process by regulating cut-off voltage and discharge current31,32. Although electrochemical techniques have been utilized to synthesize MXene materials, they are largely limited to obtain multi-layered MXenes particles with complex surface chemistry, and even miscellaneous phases, which hinder their subsequent functional modifications and applications33,34. Intriguingly, solvent molecules in electrolyte often co-intercalate into layered materials, significantly expanding the interlayer space. For instance, propylene carbonate solvated lithium ions (Li(PC)n+) are responsible for the intensive exfoliation of graphite layers, due to the formation of an ineffective solid electrolyte interphase film and the continuous decomposition of solvent molecules within the interlayer space35,36,37. It has been reported that the electrolyte solvent profoundly affects the pseudocapacitive charge storage of Ti3C2-MXene, with carbonate solvent (e.g., PC) contributing to a maximized capacitance38.

In this work, we present a powerful and versatile structural-editing protocol for gaseous molecules-mediated electrochemical exfoliation of MXenes synthesized via molten salts etching route, based on solvation-co-intercalation-decomposition of Li(PC)n+ ions. By regulating the cut-off voltage during the synthesis process, we optimized the recovery rate of few-layer MXene nanosheets to an impressive 93%, while retaining the pristine surface chemistry, such as -Cl or -Br terminations. In-situ X-ray diffraction (XRD), in-situ differential electrochemical mass spectrometry (DEMS), and ex-situ Fourier transform infrared spectroscopy (FT-IR) measurements intuitively corroborated the crucial appearance and role of gaseous molecules to break up the intense interactions between layers of MS-MXenes. Subsequently, MXenes with various terminations (-F, -Cl, or -Br) in water or ethanol dispersions were employed as lubricants to improve the output current density of TVNGs, with optimal performance found in Ti3C2Br2, thanks to an effective contact electrification process.

Results and discussion

Material Characterization

Figure 1 illustrates the gaseous molecules-mediated electrochemical intercalation-based exfoliation process for Ti3C2Cl2 and Ti3C2Br2 MXene nanosheets and their optimal applications in semiconductor-semiconductor tribovoltaic nanogenerator (SS-TVNG). Initially, multi-layered Ti3C2Cl2 and Ti3C2Br2 were successfully synthesized by selectively removing Al atoms from Ti3AlC2 using a Lewis acid molten salts etching route. The representative accordion-like structures and their energy dispersive spectroscopy (EDS) images (Supplementary Figs. 1a–f) demonstrate the uniform distribution of Cl or Br elements as functional terminations across all MXene lamellae. XRD patterns (Supplementary Fig. 2) further verify the high-quality MXene prepared by molten salts and the (002) interlayer spacing, which is 1.10 nm for Ti3C2Cl2 and 1.20 nm for Ti3C2Br2. Next, the electrochemical intercalation-assisted exfoliation route of MS-MXenes was performed in a half-cell configuration, in which MS-MXenes pellets served as working electrodes and Li metal acted as the counter electrode (Supplementary Fig. 3). Initially, a commercial electrolyte, 1 M LiPF6 in ethylene carbonate (EC) : diethyl carbonate (DEC) : ethyl methyl carbonate (EMC) = 1 : 1 : 1(Vol%), was used to conduct the lithiation process of MS-MXenes. However, there was no shift of (002) peak to lower angles, and numerous bulk materials with by-product on their surfaces were observed, indicating ineffectiveness of this electrolyte and its correlation with the electrochemical intercalation behavior of Li ions (Supplementary Fig. 4a, b). Consequently, various solvents were screened to decipher the electrochemical intercalation process of solvated ions and their significant roles in assisting exfoliation of 2D nanosheets, including lithium bis(trifluoromethylsulfonyl)amine (LiTFSI) in PC, 1,2-dimethoxyethane (DME), dimethyl carbonate (DMC), dimethyl sulfoxide (DMSO), 2-methyltetrahydrofuran (2Me-THF), acetonitrile (ACN), and EC.

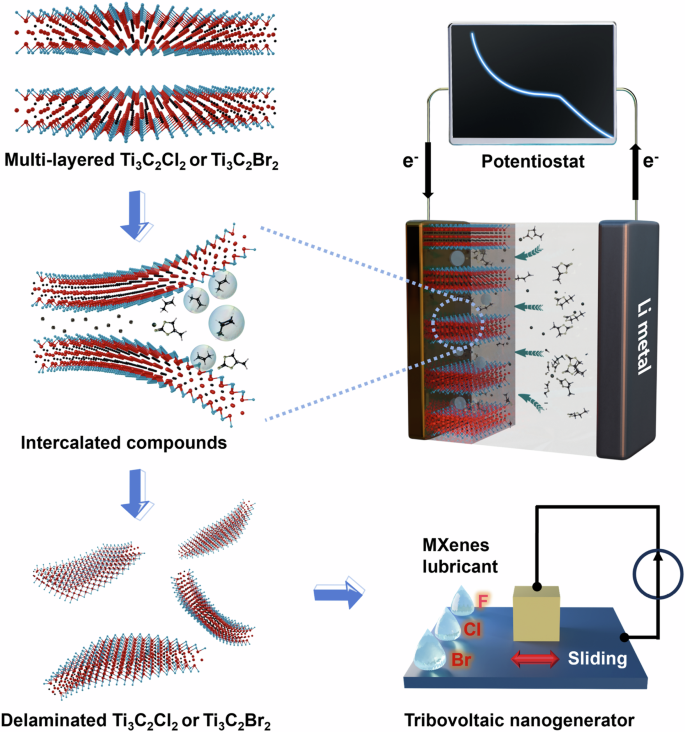

Fig. 1: Schematic illustrations of the gaseous molecules-mediated electrochemical exfoliation process for Ti3C2Cl2 or Ti3C2Br2 MXene nanosheets, with their applications in tribovoltaic nanogenerator.
Fig. 1: Schematic illustrations of the gaseous molecules-mediated electrochemical exfoliation process for Ti3C2Cl2 or Ti3C2Br2 MXene nanosheets, with their applications in tribovoltaic nanogenerator.
Full size image

The red, black, blue, and white ball represents titanium, carbon, halogen, and oxygen element, repectively.

The prepared configurations were connected to a potentiostat for effectively controlling galvanostatic discharge currents and tuning cut-off voltages. After sonication to facilitate exfoliation, the products were centrifugated at 5000 rpm to eliminate the sediment. The successful preparation of few-layered nanosheets can be thoroughly characterized as follows (Fig. 2a–m). Zeta potential measurements during a two-week period were conducted to confirm the excellent stability of the suspension of PC-derived MS-MXene. Additionally, digital photographs of the delaminated MS-MXene solutions further demonstrate its consistent stability after two weeks, in sharp contrast to the precipitation of others within 2 h (Supplementary Fig. 5). As shown in Supplementary Fig. 6, only the PC-based electrolyte resulted in the typical (002) peak of few-layer MXene paper among numerous exfoliated products, indicating that PC serves as a desirable alternative for intercalation and swelling of MS-MXene. To further elucidate the evolution of van der Waals (vdW) gaps in a PC-based electrolyte, XRD patterns of multi-layered Ti3C2Cl2 or Ti3C2Br2, intercalated compounds, and delaminated papers were recorded, showing dramatically enlarged interlayer spacing and weakened interlayer vdW interactions (Fig. 2e and Supplementary Fig. 7). The process is visually demonstrated in photographs where, compared with the original pellet and others in different solvents, heavy swelling was observed for the intercalated compounds in the PC-based electrolyte (Supplementary Fig. 8). The prepared few-layered Ti3C2Cl2/Ti3C2Br2 nanosheets exhibit 2D flake morphology of MXene in the transmission electron microscopy (TEM), atomic force microscopy (AFM) images, and scanning electron microscopy (SEM), with lateral sizes around hundreds of nanometers (Fig. 2a–d and f). The expected hexagonal crystalline symmetry is visible in the selected area electron diffraction (SAED) patterns (Fig. 2a, b), highlighting the effectiveness of this mild protocol in preserving the highest quality of the pristine MS-MXenes. Additionally, AFM images (Fig. 2c, d) further manifested their thin structure, with average thicknesses of ~2.15 nm for Ti3C2Cl2 nanosheets and ~2.32 nm for Ti3C2Br2 nanosheets, which indicates obtained flakes consist of only two-layers. Thanks to the mild and effective elimination process, a free-standing and flexible paper of few-layered Ti3C2Cl2/Ti3C2Br2 can be obtained (Fig. 2j). More importantly, the preserved surface chemistry, with uniformly distributed Cl or Br elements in the cross-sectional mapping images, makes this delamination approach promising for uncovering the intrinsic physiochemical properties of halogen-terminated MXene flakes (Fig. 2g–i and Supplementary Fig. 9a–c). X-ray photoelectron spectroscopy (XPS) characterization was conducted to verify the absence of residual decomposed byproducts that might harm the quality of the few-layered MXene nanosheets and their subsequent applications. Analysis of the core-level Ti 2p XPS spectrum indicates the Ti-C component is at 454.8 eV, Ti-Cl components at 456.1 eV and 456.6 eV, and a minor Ti-O component is at 458.4 eV (Supplementary Fig. 10a). Additionally, the core-level Cl 2p XPS spectrum evidences the strong bonds between Cl terminations and Ti atoms at M-sites of MXenes (Supplementary Fig. 10b). These results indicate the exclusive presence of only Cl terminations on the surface of Ti3C2Cl2 nanosheets, without oxidation issues. As expected, similar results were observed for the few-layered membrane of Ti3C2Br2 nanosheets (Supplementary Fig. 10c, d). Unlike some methods where harsh conditions or physical mechanical exfoliation can lead to the loss or alteration of desirable surface terminations (like Cl or Br), this electrochemical approach preserves these functional groups. This retention is crucial as it maintains the material’s surface chemistry, enhancing its properties for specific applications.

Fig. 2: Characterization of delaminated MS-MXenes.
Fig. 2: Characterization of delaminated MS-MXenes.
Full size image

TEM images of few-layered a Ti3C2Cl2 and b Ti3C2Br2 nanosheets, inset: corresponding selected area electron diffraction (SAED) patterns. AFM images of few-layered c Ti3C2Cl2 and d Ti3C2Br2 nanosheets. e XRD patterns of multi-layered Ti3C2Cl2, intercalated compounds and delaminated Ti3C2Cl2 with Cu Kα radiation as X-ray source. f SEM image of few-layered Ti3C2Cl2 nanosheets on an AAO substrate. Cross-sectional g SEM image and corresponding mapping images of h Ti and i Cl for membrane made by few-layered Ti3C2Cl2 nanosheets. j Digital photograph of a piece of delaminated Ti3C2Cl2 paper. The electrochemical lithium ion-intercalation experimental setup: k IEST battery testing system and l potentiostat. m Optical image of delaminated MS-MXenes solutions. Each experiment in (a-d) and (f-i) was repeated three times with similar results. Source data are provided as a Source Data file.

In brief, the utilization of PC solvent plays a critical role in delaminating MS-MXene nanosheets with an excellent recovery rate of 93%. Numerous coin cells can operate on the battery testing system in the meantime to guarantee satisfying product output (Fig. 2k). Further scaling up preparation process can be achieved in a two-electrode Swagelok cell by handling 3.5 g of multi-layered MS-MXene powders, which is also suitable for these laboratories lack of battery assembly facilities (Fig. 2l and Supplementary Fig. 3b, c). A digital photograph of the collected delaminated MXenes solution is shown in Fig. 2m, exhibiting its superior recovery rate. Theoretically, the scale of preparation can be further expanded with larger cells and equipment supports. The ability to produce MXenes at high recovery rate not only reduces the cost per unit but also accelerates the research and development cycle for new applications, giving industries confidence to invest in MXene-based technologies. This scalability is crucial for transitioning from laboratory research to commercial and industrial utilization.

Mechanism of electrochemical intercalation-based exfoliation strategy

The crucial role of the PC-based electrolyte in electrochemical intercalation-assisted exfoliation of MS-MXenes could be elucidated through in-situ XRD, in-situ DEMS, and ex-situ FT-IR measurements. We conducted in-situ XRD measurements on the multi-layered Ti3C2Cl2 electrode to monitor the successive variation of interlayer spacing induced by intercalated solvated Li+ (here, Li(PC)n+) as the voltage decreased to specific levels (Fig. 3a–c). Three distinct stages were identified, intercepted by voltages of 0.86, 0.5, and finally 0.01 V (Fig. 3a). As shown in the XRD patterns (Fig. 3b, c), Stage 1 is characterized by a decreasing low-angle peak area as the discharge voltage drops from 3.0 to 0.86 V, which can be ascribed to the intercalation of abundant Li+ ions. Strikingly, Stage 2 exhibits a smooth plateau between 0.86 V and 0.5 V, during which the XRD peaks gradually fade, implying a temporarily reduced degree of order in the intercalated compound or the emergence of an amorphous phase from decomposed electrolyte. In stage 3, the patterns remain consistent, suggesting the unencumbered migration of Li+ in the overlarge interlayer space. It is noteworthy that, at 0.01 V, the (002) peak reappears after cleaning up byproducts of electrolyte decomposition, corresponding to the remarkably left-shifted characteristic peak of Ti3C2Cl2 (Fig. 2e). To delve deeper into the electrochemical reactions, DEMS was utilized to detect the products formed during the charge-discharge process. Remarkably, propylene molecules were detected at around 0.86 V, in accordance with the process of gradually disappeared (002) XRD peak at Stage 2 (Fig. 3d). There have been several reports about the electrochemical reduction of PC electrolyte with Li salts35,37,39, and the decomposition mechanism at particular potential is exhibited in Supplementary Fig. 11. During the electrochemical process, the electrolyte undergoes decomposition, producing gas that plays a critical role in the exfoliation of MXene layers. This gas generation introduces localized pressure between the layers, aiding in their separation without the need for harsh mechanical or chemical treatments. In addition, the decomposed gas effectively infiltrates between the MXene layers, creating an expansion force that promotes swelling. This controlled swelling effect is crucial for achieving a uniform delamination, thus resulting in high-quality few-layered MXenes. Additionally, trace amounts of hydrogen gas from the reduction of residual water in electrode or electrolyte were detected at the beginning of measurement (Supplementary Fig. 12). Furthermore, ex-situ FT-IR characterization was employed to investigate electrolyte decomposition products at different discharge stages (Fig. 3e). The appearance of characteristic peaks for stretching vibration of Li2CO3 at 0.5 V and 0.01 V in the intercalated compounds, forcefully supports the decomposition of the PC-based electrolyte, consistent with known behavior in Li metal battery (Supplementary Fig. 11)35,37,39.

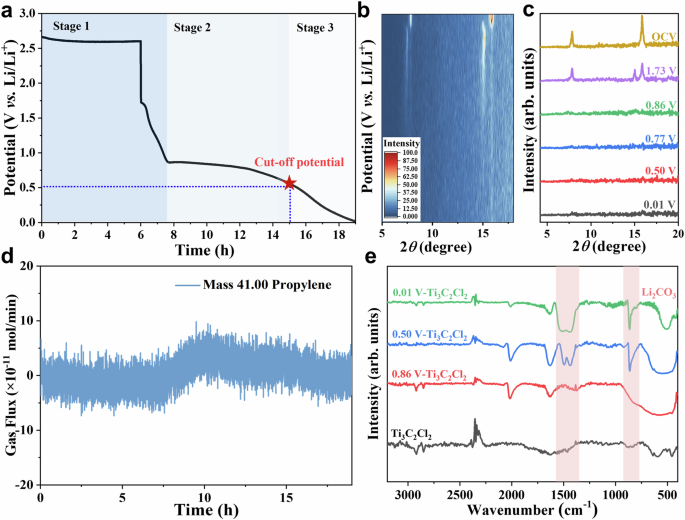

Fig. 3: Characterization of electrochemical exfoliation process.
Fig. 3: Characterization of electrochemical exfoliation process.
Full size image

a Discharge curve of the fabricated half-cell with multi-layered Ti3C2Cl2 pellet as work electrode, Li metal as counter electrode and 1 M LiTFSI in PC as electrolyte. Stage 1, 2, and 3 represents the voltage window of open-circuit voltage (OCV) to 0.86 V, 0.86 V to 0.50 V, and 0.50 V to 0.01 V in the discharging process, respectively. b In-situ XRD patterns for Ti3C2Cl2 upon electrochemical intercalation process, including 45 data sets at various cut-off potentials. c In-situ XRD curves at specific cut-off potentials, including OCV, 1.73 V, 0.86 V, 0.77 V, 0.50 V, and 0.01 V. d In-situ differential electrochemical mass spectrometry (DEMS) analysis of gaseous products in the half-cell. e Ex-situ FT-IR spectra of the pristine Ti3C2Cl2 and intercalated compounds at various cut-off potentials. The red shaded bars represent Li2CO3. Source data are provided as a Source Data file.

This is further supported by cyclic voltammetry (CV) measurements of the Ti3C2Cl2 electrode in various electrolytes. Using 1 M LiTFSI in PC electrolyte, the Ti3C2Cl2 electrode exhibited the largest CV area at the scan rate of 2 mV/s, indicating the superior Li+ storage capacity with sufficient intercalation of Li(PC)n+ below 1.57 V, consistent with discharge tests, facilitating the decompostion reaction during 0.5-0.86 V (Supplementary Fig. 13 and Table S3). The mechanism using gas from electrolyte decomposition is inherently scalable. The generation of gas can be controlled by adjusting the electrochemical parameters, providing a flexible method that can be scaled from small lab setups to larger production environments. This method ensures reproducibility across batches, as the uniform gas generation leads to consistent exfoliation results, which is a significant advantage over methods that rely on less controllable mechanical forces. In contrast, the conventional liquid exfoliation route using DMSO intercalation to obtain acid-etched MXene nanosheets is unsuitable for halogenated MXenes. This is evidenced by the absence of shifted characteristic peaks in the XRD patterns and the unstable dispersion of the resulting products (Supplementary Fig. 14a–c). Additionally, the AFM image reveals their unexfoliated and rough morphology (Supplementary Fig. 14d).

Optimization of cut-off voltages for high recovery rate

Based on the above experimental verification, an “intercalation-swelling-delamination” mechanism is proposed for producing few-layered Ti3C2Cl2 or Ti3C2Br2 nanosheets, incorporating with theoretical decomposition reaction (Fig. 4a–c and Supplementary Fig. 11). More intuitively, ex-situ SEM images at specific discharge potential reveal the evolution of the layered structure from compact to aerated, benefiting from the collapse of distinctive interaction between MS-MXenes layers, stimulated by the gaseous propylene molecules. From the systematic research outlined above, it is evident that the selection of cut-off voltage is crucial in determining the recovery rate of MS-MXenes by effectively modulating the amount or status of intercalated Li(PC)n+ species. Recovery rates at various cut-off potentials were calculated, revealing that the optimized recovery rate could reach as high as 93%, further underscoring the critical role of gaseous molecules generation within the potential range of 0.5-0.86 V (Fig. 4d). Herein, the recovery rate is defined as the mass ratio of the collected few-layered membrane to the original multi-layered MXene pellet. The highly efficient exfoliation process is also highlighted in the video (Supplementary Video 1), demonstrating how the intercalated compounds generate the desired amounts of exfoliated sheets within minutes when immersed in deionized water, without the need for sonication. Notably, the higher recovery rate is irrelevant to discharging to lower potential than 0.5 V, where the highly negative zeta potential of −40.4 mV enhances strong electrostatic repulsion between few-layered Ti3C2Cl2/Ti3C2Br2 nanosheets, ensuring uniform sizes and stable colloidal dispersion for modulating electronic properties (Supplementary Fig. 15a–d). It has been reported that the functional groups on MXene surfaces significantly impact their electronic structure and optical absorption40,41. Directly associated with electron charge transfer or electronegativity, the work function (WF) can be calculated following the formula of WF = hv - (Ecut-off - EF) from the ultraviolet photoelectron spectroscopy (UPS) characterization results, in sequence of Ti3C2Br2 (~3.74 eV), Ti3C2Cl2 (~4.06 eV) and Ti3C2Tx (~4.49 eV) (Fig. 4e and Supplementary Fig. 16). Furthermore, electrical conductivity of the three types of MXenes films was measured using a four-point probe set-up. The results indicate that Ti3C2Br2 (2.09 × 103 S/m) and Ti3C2Cl2 (2.24 × 104 S/m) offer more moderate values compared to those obtained from a wet chemistry route (1.70 × 105 S/m) (Fig. 4e). This can be ascribed to vacancies created during the molten salt etching process, a phenomenon also documented in previous studies42,43. The UV-vis spectra (Supplementary Fig. 17) of delaminated Ti3C2Tx, Ti3C2Cl2, and Ti3C2Br2 solutions exhibit evident absorption peaks in the near-infrared (NIR) region, with Ti3C2Cl2 and Ti3C2Br2 showing a 60 nm red shift to 860 nm, in stark contrast to conventional Ti3C2Tx. In addition, the good hydrophilicity of conventional Ti3C2Tx is confronted with severe oxidation or decomposition issues caused by H2O. Fortunately, modulating surface terminations allows MXene materials to achieve adjustable surface wettability, freeing them from the trade-off between processability and durability in practical applications. Contact angle tests (Fig. 4f) provide clear evidence of the increased hydrophobicity of MXenes with surface groups transitioning from -F, -O, and -OH ( ~37°) to -Cl (~68°) or -Br (~83°), which is expected to retain the intrinsic properties of multi-layered structures and bodes well for applications related to interface interaction. Ethanol contact angles present similar trends with little differences (Fig. 4f).

Fig. 4: Mechanisms of electrochemical exfoliation process.
Fig. 4: Mechanisms of electrochemical exfoliation process.
Full size image

SEM images at specific discharge cut-off potentials: a 0.86 V, b 0.50 V and c 0.01 V, with insets showing schematic diagrams of the intercalation reaction mechanism. The red, black, blue, and white ball represents titanium, carbon, halogen, and oxygen element, respectively. d Recovery rate (%) of few-layered Ti3C2Cl2 nanosheets at different cut-off potentials, with inset displaying the Tyndall effect in the delaminated Ti3C2Cl2 solution. e Work function and electrical conductivity of MXenes with different terminations. f Water contact angles (CA) and ethanol contact angles on the HF-etched Ti3C2Tx freestanding film (top), Ti3C2Cl2 freestanding film (middle), and Ti3C2Br2 freestanding film (bottom). Each experiment in (a-c) was repeated three times with similar results. Source data are provided as a Source Data file.

By focusing on the innovative use of gas from electrolyte decomposition, this mechanism not only improves the efficiency and recovery rate of MXene production but also preserves the structural and chemical integrity necessary for advanced applications. This represents a significant improvement over existing exfoliation strategies, highlighting the potential for more sustainable and economically viable MXene synthesis. Its universality can be further validated by the consistent results observed in the Na-ion battery (Supplementary Fig. 18 and Video S2). More significantly, this versatile electrochemical intercalation approach is applicable to a variety of 2D materials beyond MXenes like transition metal dichalcogenides (TMDs), including TiS2, TaS2, and CrSe2. The colloidal solutions of few-layered TiS2, TaS2, and CrSe2 can be successfully obtained while the TEM images and corresponding SAED patterns further manifest their thin morphology and intact crystal structure (Supplementary Fig. 19).

Effects of different MXenes lubricants on output performance of TVNGs

When two semiconductors slide past each other, chemical bonds at the interface continuously break and reform. During this interfacial bonding process, energy quanta known as bindingtons are released. If these bindingtons possess sufficient energy, they can excite electron-hole pairs. These newly generated charge carriers are then separated by the built-in electric field, producing a current that flows between the two ends of the device, connected through an external circuit. The overall process was called as the tribovoltaic effect44,45,46. Contact electrification is the principal mechanism to form TVNGs, which is drastically influenced by the interface interaction and electronic nature of the two contacted semiconductor materials47,48. Adjusting the sliding surface carriers and interface wettability provides an effective route to increase electrical output and mitigate wear issues of the TVNGs, by introducing lubricants between the sliding semiconductors. Although Ti3C2Tx MXene aqueous dispersion has been utilized to lubricate the sliding friction interface, previous studies often stopped at investigating the inherent surface properties and electronic nature of MXene nanoflakes, defined by the terminations on MXenes surface49. Herein, we explored p/n-GaN SS-TVNG applications (Fig. 5a) with different functional groups (including -F, -Cl, and -Br) based MXenes lubricants by recording their electrical output and stability tests. The SS-TVNG operating parameters and MXene dispersions used in experiments are provided in Supplementary Table S1 and Table S2. Electrical output results were provided to assess the enhancement effect of various MXene dispersions at varying concentrations on SS-TVNG output. As shown in Fig. 5b, c and Supplementary Fig. 20, the output of SS-TVNG at dry condition is only about 44 nA, which is significantly increased to microampere level when using MXene lubricants in water or ethanol solutions. It is noteworthy that the output shows a typical dependence on the concentration, peaking at an optimum MXenes concentration. Specifically, at low concentrations (≤1 mg/ml) in both dispersions, the enhancement effects of -Cl or -Br terminations surpass those of -F terminated MXene, with aqueous dispersion providing the best overall performance (Supplementary Fig. 21). To better understand the mechanism of interface lubricant from various MXenes lubricants, the I-V characteristics of the p/n-GaN static heterojunctions with or without MXene droplets were tested, with raw data in Supplementary Fig. 22 and 23. Static interface resistances can be calculated from the current value at 4 V forward bias, exhibiting a remarkably facilitated interface transmission after introducing MXene lubricants, contrasting with 279.80 MΩ in the dry state (Fig. 5d, e). In water solutions, the interface resistances trend follows -Br > -Cl > -F, with higher concentration solution forming a viscous film on sliding interface, reducing the contact area and thus electrical output. Nevertheless, the resistance difference is minor for the ethanol-based lubricants. Additionally, a reverse behavior is observed in the signal output from TVNG, which can be the electrostatic induction generated between the undissipated charges on the upper and lower semiconductor surface, demonstrated by output current, voltage, and capacitance measurements of TVNG (Supplementary Fig. 24).

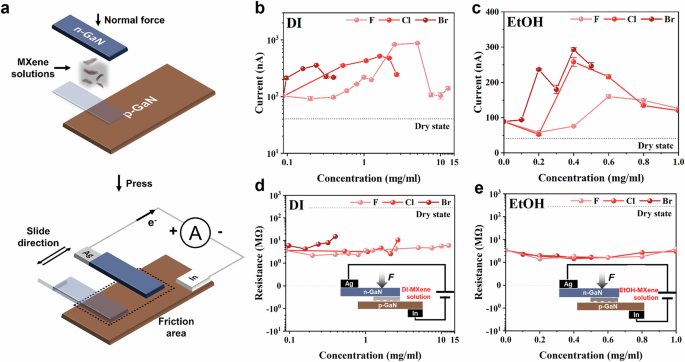

Fig. 5: Effects of different MXenes lubricants on output performance of TVNGs.
Fig. 5: Effects of different MXenes lubricants on output performance of TVNGs.
Full size image

a 3D structure of TVNG and its external circuit connection diagram. b, c Short-circuit current under varying concentrations of MXene with different terminations in (b) water or (c) ethanol solutions. The number of repetition groups for each group is 5, and data are presented as mean values +/- SD. d, e Static resistance of TVNG under a bias of 4 V for MXenes with different terminations in (d) water or (e) ethanol solutions. Source data are provided as a Source Data file.

All these impressive results demonstrate that Ti3C2Cl2 and Ti3C2Br2 lubricants reveal a superior enhancement effect on TVNG output compared to Ti3C2Tx, which can be ascribed by solid-liquid contact friction and electrification between MXene droplets and semiconductor wafers, as depicted in Fig. 6a. Negative charges generated by contact electrification on the semiconductor surface separate from the liquid droplets during sliding, generating current signals in subsequent hard solid-solid p-n contacts, amplified by larger contact angles of Ti3C2Br2 and secondly Ti3C2Cl2 (Fig. 4f). Based on experimental results, this interface effect dominates in the low concentration range. Figure 6b further illustrates the energy band diagram of the p-n junction in the SS-TVNG to better understand the principle of output enhancement from the perspective of the electric field. The charge separated by discontinuous solid-liquid interfaces forms a triboelectric field in the same direction as the p-n junction, providing more electron-hole pairs than under dry conditions, thereby boosting the total electric field and signal output during SS-TVNG contact friction. The similar mechanism has also been reported in other works involving liquid-solid contact based on a water-based triboelectric nanogenerator50. Simultaneously, the addition of MXene droplets affects interface resistance, acting as a variable resistor in the equivalent circuit and primarily influencing TVNG output in the high concentration range. Moreover, MXene lubricants also play a crucial role in protecting semiconductor surface and extending the device lifespan, proved by wear resistance tests conducted on dry, dispersed, and MXene dispersion-added SS-TVNGs for over 10000 cycles. Optical images (Fig. 6c and Supplementary Fig. 25) show that interfaces with MXene dispersions exhibit fewer scratches than those with only DI water or under dry conditions.

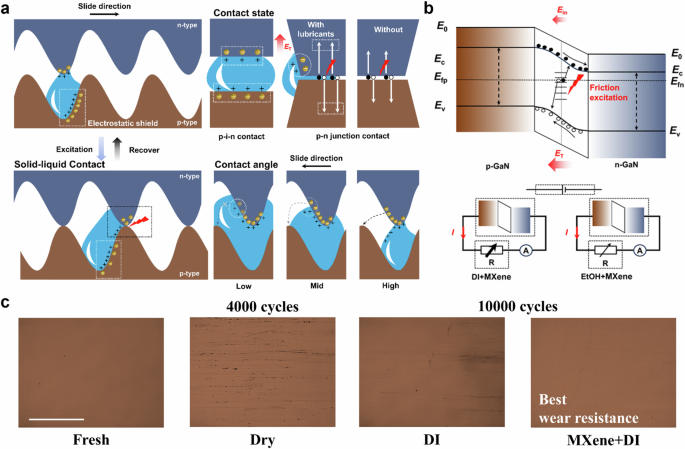

Fig. 6: Mechanism of MXenes lubricants on output performance of TVNGs.
Fig. 6: Mechanism of MXenes lubricants on output performance of TVNGs.
Full size image

a Mechanism diagram illustrating the enhancement effect on SS-TVNG induced by solid-liquid contact. b Band structure diagram of the p-n junction in the device, showing the influence of frictional electric field and interface resistance. c Optical images of fresh TVNGs, and TVNGs after stability tests without and with MXene lubricants (Scale bar: 500 μm).

Interestingly, further characterization of their optical properties revealed that these few-layered MXene materials with different terminations can offer a wide range of infrared (IR) emissivity. The IR radiation performance was validated through IR imaging of delaminated Ti3C2Tx, Ti3C2Cl2 and Ti3C2Br2 membranes with different radiation temperatures, demonstrating their distinctive identification or camouflage capacities (Supplementary Fig. 26). These findings not only highlight the potential use of MXenes in IR identification or camouflage applications, but also paves the road for selective thermal management using MXenes by simply adjusting their surface chemistry.

In a summary, we pioneered an efficient electrochemical exfoliation approach to achieve high recovery rate for few-layered MXenes terminated with -Cl/-Br groups, by leveraging gaseous propylene molecules. The results underscore the significance of electrochemistry-modulated “intercalation-swelling-delamination” mechanism, supported by the strategic use of decomposed gas from electrolytes, while this approach achieves high recovery rate and maintains crucial surface functionalities. Motivated by the substantial impact of surface groups modification on tailoring electronical and surface properties of MXenes, the obtained Ti3C2Br2 dispersion as interface lubricant contribute to high output performance TVNG. The scalability and adaptability of this method open new pathways for industrial applications, setting a new benchmark in material science and reflecting the potential of MXenes to drive technological innovations that meet global demands for sustainable and high-performance solutions.

Methods

Materials

Ti3AlC2 (99%, 300 mesh) were purchased from Jilin 11 Technology Co., Ltd, China. CdCl2 (anhydrous, 99.99%), CdBr2 (anhydrous, 99.99%), KCl (anhydrous, 99.99%), NaCl (anhydrous, 99.99%), lithium bis(trifluoromethylsulfonyl)amine (LiTFSI, 99.99%), propylene carbonate (PC, anhydrous, 99.99%), dimethyl sulfoxide (DMSO, anhydrous, 99.99%), 1,2-dimethoxyethane (DME, anhydrous, 99.99%), dimethyl carbonate (DMC, anhydrous, 99.99%), acetonitrile (ACN, anhydrous, 99.99%), 2-methyltetrahydrofuran (2Me-THF, anhydrous, 99.99%), Ethylene carbonate (EC, anhydrous, 99.99%), HF (49 wt%), tetrabutylammonium hydroxide (TBAOH, ~40 wt% in H2O) were purchased from Aladdin. HCl (36-38%) were purchased from Sinopharm Chemical Reagent Co., Ltd. The p-type and n-type GaN sapphire-based epitaxial wafers were obtained from Jiangsu Wuxi Jingdian Semiconductor Materials Co., Ltd.

Synthesis of multi-layered halogenated MXenes

Ti3AlC2 (0.3 g) powder was mixed with CdCl2 in NaCl/KCl salts at the ratio of 1:3:6:6 by using a mortar and pestle. The resulting mixture was heated in an alumina crucible under Ar at 650 °C for 5 h with a ramping rate of 5 °C/min. And Ti3AlC2 (0.1 g) powder was mixed with CdBr2 at the ratio of 1:8 by using a mortar and pestle. The resultant mixture was heated in an alumina crucible at 650 °C for at least 12 h. After washing with HCl or HBr and following DI water, the product was filtrated and dried under vacuum at 110 °C for 3 h to obtain Ti3C2Cl2 or Ti3C2Br2 powder for electrode materials.

Synthesis of few-layered halogenated MXene nanosheets

Few-layered Ti3C2Cl2 or Ti3C2Br2 nanosheets were synthesized by electrochemical intercalation assisted exfoliation route. At first, a series of electrolyte solutions were prepared, i.e., 1 M LiTFSI in propylene carbonate (PC), dimethyl sulfoxide (DMSO), 1,2-dimethoxyethane (DME), dimethyl carbonate (DMC), acetonitrile (ACN), 2-methyltetrahydrofuran (2Me-THF) and ethylene carbonate (EC). Ca. 0.1 g of synthesized Ti3C2Cl2 or Ti3C2Br2 powders were compressed into a cylindrical pellet (Φ 14 mm) under 1 MPa. Then, in an Ar-filled glovebox with H2O and O2 < 0.01 ppm, a coin cell or a two-electrode Swagelok (TMAX-2E) cell was configured with the pellet as work electrode, Li foil (Φ 14 mm) as counter electrode and pp film as a separator in aforementioned electrolyte solutions. The cell was connected to galvanostatic charge-discharge analyzer (ECT6008, IEST, 0.01% accuracy) and discharged with a galvanostatic discharge current of 2 mA and a cutoff voltage of 0.86 V, 0.5 V and 0.01 V. After discharging process, the cell was disassembled and the Ti3C2Cl2 or Ti3C2Br2 work electrode was taken out for further washing by acetone, anhydrous ethanol and deionized water to remove residual electrolyte and byproducts. Then the fresh sediment was further exfoliated by ultrasonication in ice bath. After centrifugation at 1356 xg for 30 min, a stable few-layered Ti3C2Cl2 or Ti3C2Br2 suspension could be obtained. And the membrane was prepared by vacuum filtration on Celgard 3501 membrane (0.25 μm, 50 mm in diameter), and then dried at 60 °C under vacuum for 8 h. The recovery rate is the percentage of the original multi-layered MXene that was able to be split into few-layered flakes that were then able to be recovered into a film, and that the remaining mass is what is separated by centrifugation.

Synthesis of few-layered MXenes with mixed Tx (F, OH, O) termination

2 g of Ti3AlC2 powder was added into 100 mL of 10 wt% HF solution, followed by reaction at 25 °C for 24 h. After washing with DI water until pH up to ~6, collected sediments were mixed with TBAOH solution for intercalation and further exfoliated by ultrasonication. After centrifugation at 1356 xg for 30 min, a few-layered Ti3C2Tx suspension could be obtained.

Preparation and electrical measurement of tribovoltaic nanogenerators

The structure of the designed semiconductor-semiconductor tribovoltaic nanogenerator (SS-TVNG) consists of p-type and n-type GaN epitaxial wafers as upper and lower friction surfaces. MXene droplets were added to the friction interface of the SS-TVNG, and the friction process was controlled using a linear motor. And a micro-liquid feeder was employed with the aim of controlling the droplet size to 20 microliters. The operational parameters of the TVNG are shown in Table S1. For signal statistics, the first signal in each friction cycle was analyzed (as shown in Fig S16), and all were positive. Table S2 shows the concentrations of different MXene dispersions and their dilutions. MXene dispersions were prepared in anhydrous ethanol and deionized water (DI) and tested at related ratios of 20%, 40%, 60%, 80%, and 100%. High concentration -F group dispersions were diluted and tested.

Characterization

The morphologies of materials were characterized by a thermal field emission scanning electron microscope (SEM, Thermo Scientific, Verios G4 UC) equipped with an energy dispersive spectroscopy (EDS) system. X-ray diffraction (XRD) analysis of the products was performed by using a Bruker D8 ADVANCE X-ray diffractometer with Cu Kα radiation and in-situ XRD analysis by Haoyuan, DX-2700BH, China with Cu Kα radiation (λ = 1.5406 Å). The morphology and crystalline lattice were investigated by high resolution transmission electron microscope (HR-TEM, Talos F200x). The height distributions were measured by Atomic Force Microscope (AFM, Dimension Icon, Bruker). In-situ differential electrochemical mass spectrometry (DEMS, IEST) coupled with galvanostatic charge-discharge analyzer (ECT6008, IEST, 0.01% accuracy) was obtained to analyze the products of decomposed electrolyte in the electrolytic cell. Fourier transform infrared spectroscopy measurements (FTIR, Bruker INVENIOR) were utilized to analyze components. Dynamic light scattering (DLS) and zeta potential (ζ) were measured on a Zetasizer Nanoseries (Malvern Instruments Ltd). Ultraviolet photoelectron spectroscopy (UPS) characterization was conducted on Shimadzu AXIS SUPRA + . Ultraviolet-visible absorption spectroscopy was recorded on a Lambda 1050+ spectrophotometer. The water contact angles on various few-layered membranes were detected by a contact angle apparatus (DCAT21, Ningbo Jin Mao Import & Export Co., Ltd.). The electrical conductivity was measured using a four-point probe set-up (Model 280 DI, Four dimensions, Inc). Electrical characterization of the TVNG output was acquired via a Tektronix Keithley 6517B Electrostatic Meter. I-V curves were recorded on a Tektronix Keithley 4200-SCS Semiconductor Characterization System. Optical characterization of the TVNG surface was performed with a ZEISS Axio Imager m2M optical microscope. X-ray photoelectron spectroscopy (XPS) data was collected using a Shimadzu AXIS SUPRA+ with a monochromatized Al Kα X-ray source (1486.71 eV).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
