Introduction

Ammonia (NH3) synthesis is a critical industrial process, with demand primarily driven by its fundamental use in agricultural fertilizers and other high-value chemical industries1,2,3. Ammonia synthesis (N2 + 3H2 → 2NH3) is a thermodynamically exothermic reaction (ΔH = −92 kJ mol−1)4, which theoretically suggests that decreasing the process temperature would be advantageous for ammonia conversion. For kinetic reasons, however, the conventional Haber-Bosch process typically operates under extremely harsh conditions, at high temperature (above 400 °C) and pressure (above 200 bar), which results in not only significant energy consumption and environmental impact, but low conversion2,5,6,7,8,9. As a result, the thermochemical Haber-Bosch process requires large-scale centralized manufacturing facilities. In recent years, interest has grown in using ammonia as an efficient hydrogen carrier for the emerging hydrogen economy10,11,12,13,14. Hydrogen energy is increasingly recognized as a sustainable and clean energy source that can significantly reduce greenhouse gas emissions and dependence on fossil fuels15. However, storing and transporting hydrogen poses significant challenges. Ammonia, with its high hydrogen content (17.6 wt%) and relatively low liquefaction temperature (−33 °C at 1 atm)16,17,18, offers a viable solution for hydrogen storage and transportation.

Mechanochemical ammonia synthesis has emerged as a promising decentralized technique19,20,21,22,23,24, offering an alternative to traditional centralized methods. Utilizing mechanical energy to drive chemical reactions under near ambient conditions, the method reduces the overall energy footprint. In our previous study, we introduced potassium (K) as a chemical promoter to enhance ammonia yield when using an iron (Fe) catalyst20. However, potassium’s high sensitivity to air can pose challenges in industrial scale applications. Therefore, developing a safer and less sensitive promoter with similar performance is crucial for practical use. Given the principles and dynamic reaction environments of mechanochemistry, generating high-density defects can raise initial state (IS) and thus potentially enhance catalytic activity25,26,27,28,29.

In this study, we explore the use of silicon nitride (Si3N4) as a physical promoter to the Fe catalyst for mechanochemical ammonia synthesis. The work aims to elucidate the mechanistic role of Si3N4. Si3N4 is a robust ceramic material known for its high hardness, low sinterability, and high oxidation resistance30, making it a promising candidate for generating high-density defects on an Fe catalyst. Through defect engineering, Si3N4 facilitates hydrogenation processes by enhancing the catalytic activity of Fe, which can improve hydrogen adsorption and activation, thereby promoting NH3 efficiency. Consequently, Si3N4 is attractive both because of its technical advantages and its potential role in addressing pressing sustainability challenges.

Crystalline silicon modules currently comprise over 90% of globally installed solar power capacity, and the exponential growth of silicon-based photovoltaic (PV) waste presents a significant environmental concern31. Current projections indicate an accumulation of 49 million tons of PV waste by 2050, making the repurposing of silicon waste increasingly crucial. Our approach offers a unique solution by potentially utilizing silicon from PV waste for Si3N4 production, thereby simultaneously addressing ammonia synthesis efficiency and waste management challenges. This innovative approach creates a bridge between renewable energy waste management and sustainable chemical manufacturing, realizing principles of the circular economy and industrial symbiosis.

Adding only 3.0 at% of Si3N4 to Fe during mechanochemical ammonia synthesis resulted in an approximately 5.6-fold improvement compared to using the Fe catalyst alone. The high-adsorption capacity of the Fe catalyst with high-density defects, induced by the hard physical Si3N4 promoter, could be responsible for the enhanced catalytic performance in the first nitrogen dissociation step (Fig. 1). Si3N4 also creates a diverse surface landscape with multiple hydrogen adsorption sites, potentially advantageous for the second hydrogenation step into ammonia.

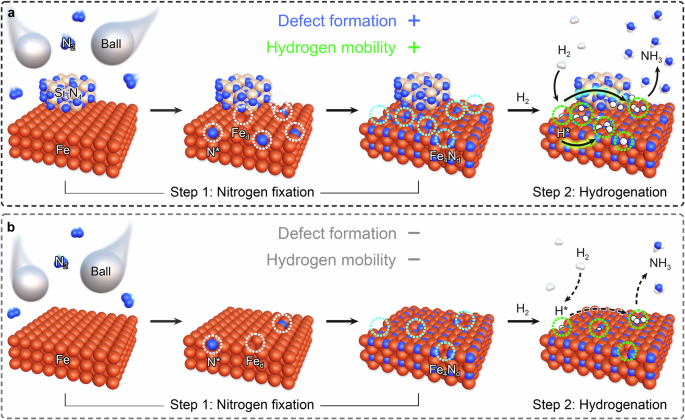

Fig. 1: Mechanistic investigation of defect-induced promotion in mechanochemical ammonia synthesis.
Fig. 1: Mechanistic investigation of defect-induced promotion in mechanochemical ammonia synthesis.
Full size image

Proposed reaction pathway illustration of a Si3N4/Fe and b unpromoted Fe catalysts. Color code: Fe—orange, Si— apricot, N—blue, H—white, and ball—gray.

By exploiting the synergistic effects of dynamic mechanical forces and physical promoters including Si3N4, it is possible to design new catalytic systems that operate under milder conditions, thereby reducing the energy footprint associated with traditional high-temperature and high-pressure ammonia synthesis. These findings pave the way for the development of next-generation catalysts that leverage mechanochemical principles for efficient and sustainable ammonia production.

Results

Si-based promoter comparison

Prior to conducting the main experiments, we performed control experiments to determine whether the lattice nitrogen in Si3N4 directly participates in the ammonia synthesis reaction. In one control experiment, Si3N4 was used as a physical promoter and mechanochemically treated in the presence of hydrogen (H2) without a Fe catalyst. The second control experiment was carried out with Fe and Si3N4 (Si3N4/Fe) in the presence of argon (Ar) and H2 under identical conditions. Both control experiments yielded no detectable ammonia concentrations (less than 1 ppm) (Supplementary Figs. 1, 2). The results indicated that the Si3N4 was not a nitrogen source or catalyst for ammonia synthesis, but a physical promoter. These insights underscore the mechanistic role of the Si3N4 promoter in facilitating N2 dissociation and H2 activation on the Fe catalyst under milder conditions.

Exploring mechanochemical ammonia synthesis, a comparative analysis of Si-based promoters—Si3N4, silicon carbide (SiC), and silicon oxide (SiO2)—alongside a Fe catalyst was conducted under identical reaction conditions (Fig. 2a). Si3N4 emerged as the superior promoter, enhancing both ammonia yield and selectivity (Supplementary Figs. 3, 4). Despite the favorable physical properties of SiC, its catalytic performance was suboptimal due to the formation of methane byproduct. SiO2 exhibited a beneficial effect on ammonia yield, likely due to improved thermal stability and the dispersion of active Fe species, despite the general detrimental effect of oxygen on metal catalysts32. N2 dissociation studies, crucial for elucidating the ammonia synthesis mechanism, revealed a strong correlation with NH3 synthesis activity. Si3N4 promoted Fe (Si3N4/Fe) demonstrated high N≡N triple bond activation capacity, while the SiC and SiO2 systems showed diminished performance. Notably, our investigation using high-purity Fe balls revealed enhanced selectivity for NH3 production with significantly reduced methane formation (Supplementary Fig. 5). While trace amounts of CH4 were still detected, it could be attributed to residual carbon in the reaction vessel. These findings suggest that the chemical nature of the promoter significantly impacts its interaction with N2 molecules and, consequently, the overall catalytic performance of mechanochemical ammonia synthesis.

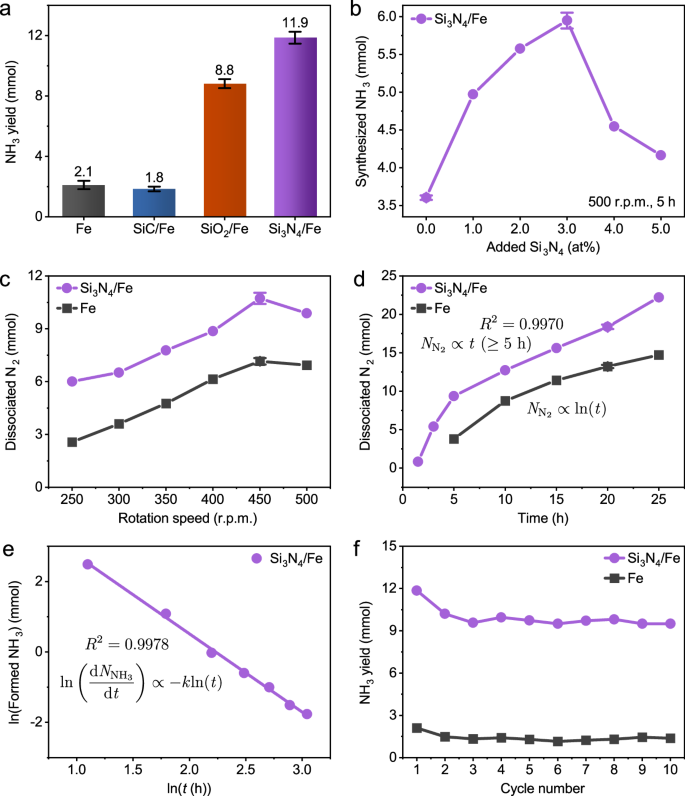

Fig. 2: Evaluation of physical promoter performance during mechanochemistry.
Fig. 2: Evaluation of physical promoter performance during mechanochemistry.
Full size image

a NH3 yield from various silicon-based promoters added at the same loading amount (3.0 at%). N2 dissociation was conducted at 9 bar for 20 h, followed by hydrogenation at 9 bar for 3 h. b Synthesized ammonia at varying amounts of Si3N4 for a rotation speed of 500 r.p.m. and a milling time of 5 h. c The amount of dissociated N2 as a function of rotation speed after 240,000 total rotating cycles. d The dissociated N2 by ball-milling time at 450 r.p.m. N2 adsorption exhibits a linear dependence on ball-milling time for Si3N4/Fe, while N2 dissociation follows a linear relationship with the natural logarithm of time [ln(t)] for Fe. e The natural logarithm of synthesized NH3 vs. the natural logarithm of milling time for Si3N4/Fe. f Stability test results. Error bars represent the standard deviation of at least three independent experiments.

The phase dependence of Si3N4 was also investigated to determine the difference between alpha (α-), beta (β-), and amorphous Si3N4 (am-Si3N4). Among tested promoters, β-Si3N4 demonstrated the highest physical promoter effect for both the nitrogen dissociation and subsequent hydrogenation steps, whereas am-Si3N4 exhibited a lower yield due to its high surface area covering a significant portion of the Fe active sites (Supplementary Figs. 6, 7). Consequently, all of the following experiments were conducted with β-Si3N4, unless specified.

Next, we investigated the optimal loading amount of Si3N4 promoter. The catalytic activity increased with Si3N4 loading up to 3.0 at%, as evidenced from the increased amount of dissociated N2 (Supplementary Fig. 8a) and synthesized NH3 (Fig. 2b). However, in contrast to using potassium (K) as a chemical promoter (electron donor to Fe)20, the activity of Si3N4/Fe sharply declined when the Si3N4 loading exceeded 3.0 at%, which could be attributed to a decrease in the number of Fe active sites covered by Si3N4. Therefore, the optimal promoter loading turned out to be 3.0 at% for both the N2 adsorption (N2 dissociation) and hydrogenation (into NH3) steps. Unless otherwise specified, all subsequent experiments were conducted using an Si3N4 loading of 3.0 at%.

In-depth performance evaluation

The kinetics of the two-step mechanochemical ammonia synthesis, involving N2 dissociation and subsequent hydrogenation into ammonia, were first investigated for optimization. As shown in Fig. 2c, the optimum rotation speed for N2 adsorption was found to be 450 r.p.m., irrespective of the presence of Si3N4. The catalytic activity exhibited a volcano-type dependence on rotation speed. The high hardness and abrasion resistance of Si3N4 enabled the creation of more defects on Fe under dynamic reaction conditions, resulting in an improved N2 dissociation performance. The Si3N4/Fe and Fe catalytic systems both had the highest surface-adsorbed nitrogen (N*) fixation rate at 500 r.p.m. (Supplementary Fig. 9a). However, there was a marginal difference in N2 absorption rates between 450 and 500 r.p.m. for Si3N4/Fe and Fe.

The amounts of N2 dissociation with respect to milling time were also investigated for both Si3N4/Fe and Fe catalytic systems at a fixed rotation speed of 450 r.p.m. Following an initial stabilization period of 5 h, Si3N4/Fe demonstrated linear N2 adsorption kinetics over time, suggesting a repeated defect formation that enabled continuous N2 cleavage. (Fig. 2d and Supplementary Fig. 9b). Conversely, Fe showed natural logarithmic adsorption, suggesting saturation with milling time. Si3N4/Fe demonstrated improved catalytic performance, and dissociating 20 mmol N2 required much less time (21.9 h) than Fe (54.0 h). It is noteworthy that the ball-milling method typically exhibits an induction period before the reaction starts, as the Fe catalyst requires activation by comminution. The induction time (1.3 h) required for Si3N4/Fe was also much shorter than Fe (2.8 h). Furthermore, the energy efficiency of Si3N4/Fe in the nitrogen dissociation step was 2.5 times higher than Fe (Supplementary Fig. 10a). These findings underscore the role of Si3N4 as a physical promoter that enhances the performance of mechanochemical ammonia synthesis.

Mechanochemical hydrogenation into ammonia (the second step), which was revealed to be an endothermic reaction19,20,33, was conducted at the rotation speed of 500 r.p.m. Si3N4/Fe exhibited different reaction kinetics from Fe: the natural logarithm of the hydrogenation rate linearly decayed with the natural logarithm of reaction time (Fig. 2e). This is in contrast to the unpromoted Fe, where the natural logarithm of the hydrogenation rate linearly decayed with time (Supplementary Fig. 11). The absolute decay constant was determined to be 2.22 for Si3N4/Fe, much higher than for Fe (0.25). The difference in the hydrogenation rates of the two catalytic systems could originate with distinct hydrogen kinetics. As hydrogenation progressed, the ammonia yield rate exponentially dropped in both systems. A single hydrogenation cycle proved insufficient to fully dissociated N* species on FeN* into NH3, most likely because of decreasing N* concentration as the reaction progressed. Further comparative experiments and stability tests were performed using the chemical promoter potassium (K). In the initial ammonia synthesis cycle, no significant differences were observed between the catalytic performance of the physical promoter (Si3N4) and the chemical promoter (K) (Supplementary Fig. 12a). However, over subsequent cycles, both the physically promoted Si3N4/Fe and the unpromoted Fe catalysts maintained stable performance, whereas the chemically promoted FeK exhibited a substantial decay in activity (Fig. 2f and Supplementary Fig. 12b).

Both total reactor pressure and hydrogen content were reduced after hydrogenation as the Si3N4 content was increased (Supplementary Fig. 8b, c). This result suggests that H2 cleavage preferentially occurred on the Si3N4 surface in the form of adsorbed hydrogen adatom (H*) species, and then transferred to the N* species on the in-situ formed metastable iron nitride (Fe-N) into ammonia. Moreover, the Si3N4/Fe system yielded 28.7 mmol kWh−1 ammonia, a value 5.6 times higher than Fe (5.1 mmol kWh−1) (Supplementary Fig. 10b). This substantial improvement in energy efficiency highlights the pivotal role of Si3N4 in the hydrogenation step, which is the rate-determining step (RDS) in this mechanochemical process. The increased hydrogen mobility contributes to the kinetics for the hydrogenation step, enabling efficient ammonia synthesis at lower temperatures.

Defect mediated catalyst characterization

Figure 3a shows X-ray diffraction (XRD) patterns of the nitrogenated Si3N4/Fe (denoted as Si3N4/FeN*), which exhibited a shift towards lower angles compared to the pristine Fe powder (COD 96-900-2673). This peak shift in the XRD patterns indicates lattice expansion. It can be attributed to the diffusion of dissociated N* moieties into the Fe matrix, occupying interstitial positions. The mobility of N* atoms within the lattice implies that they are diffused into the Fe matrix, providing diverse active sites for efficient reaction. Si3N4/FeN* demonstrated a broader full width at half maximum of 2.75° compared to the pristine Fe (0.311°), indicating a substantial reduction in grain size (Si3N4/FeN*: 3.26 nm, pristine Fe: 28.88 nm). This grain size reduction is highly beneficial for ammonia synthesis, as it provides a larger surface area for efficient nitrogen uptake and an increased IS, relatively decreasing the activation barrier.

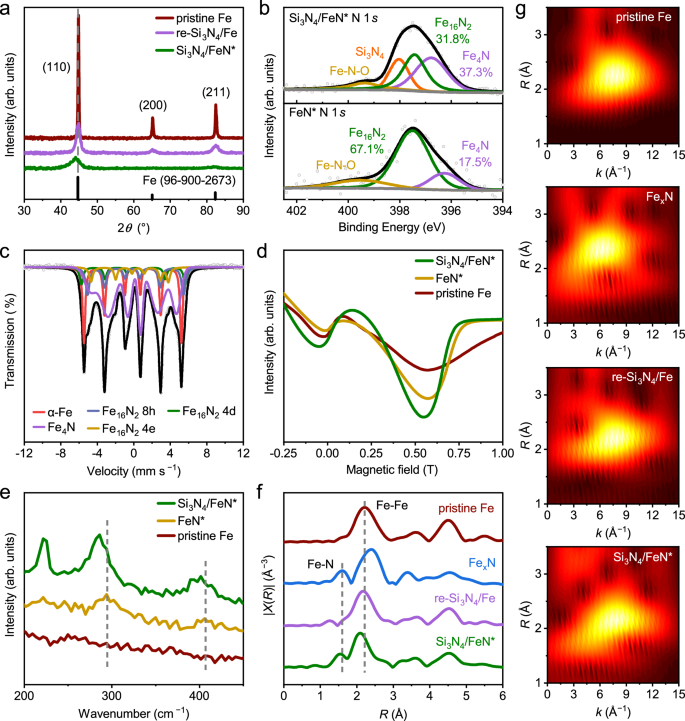

Fig. 3: Defect mediated catalyst characterization.
Fig. 3: Defect mediated catalyst characterization.
Full size image

a XRD patterns of N2 adsorbed Si3N4/FeN* and regenerated Si3N4/Fe in comparison with pristine Fe. b High-resolution XPS N 1 s spectrum of Si3N4/FeN* and re-Si3N4/Fe powders. c Mössbauer spectra of Si3N4/FeN* at room temperature. d ESR and e Raman spectra of pristine Fe and nitrogenated Fe (FeN*) powders. f EXAFS spectra of pristine Fe, commercial FexN (x = 2–4), re-Si3N4/Fe, and Si3N4/FeN*. g Corresponding wavelet transform analyses.

The addition of Si3N4 had a pronounced effect on grain size reduction, as evidenced by comparing Si3N4/FeN* with FeN* (FeN* 1.14°, 7.86 nm, Supplementary Fig. 14). The presence of Si3N4 effectively suppresses grain growth through the pinning effect of N* atoms34. The regenerated Si3N4/Fe (denoted as re-Si3N4/Fe) exhibited XRD peaks at angles similar to the pristine Fe powder. This suggests effective catalyst regeneration (comminution ↔ aggregation) with retention of structural integrity for continuous use. In addition, the grain size of the regenerated Si3N4/Fe (2.33°, 3.85 nm) remained smaller than the regenerated Fe (re-Fe, 1.31°, 6.85 nm), suggesting that Si3N4 was more effectively pulverized than the Fe catalyst and experienced less deactivation by aggregation during regeneration.

Morphological and structural characteristics were examined using transmission electron microscopy (TEM) and scanning electron microscopy (SEM). TEM micrographs revealed the presence of multiple crystalline phases, including Fe4N, Fe16N2, and α-Fe, as well as Si3N4 in the milled Si3N4/FeN* system (Supplementary Fig. 15). Notably, Si3N4/FeN* exhibited a higher degree of structural defects and lattice distortions than unpromoted FeN*. The crystalline Fe4N phase was observed within the defective amorphous Fe surface in Si3N4/FeN*. SEM imaging and elemental mapping revealed that the milled Si3N4/FeN* system possessed a more uniform particle size distribution and enhanced elemental dispersion than FeN* (Supplementary Fig. 16). The combination of increased structural defects observed with TEM, and the improved dispersion observed with SEM analyses, suggests that as a physical promoter the Si3N4 contributed significantly to the morphology of the re-Si3N4/Fe catalyst. The Si3N4 promoter likely generated high-density defects and increased surface area, and thus enhanced overall catalytic performance.

X-ray photoelectron spectroscopy (XPS) was conducted to elucidate the chemical states of the materials (Fig. 3b). Si3N4/FeN* was determined to have a higher proportion of Fe4N (396.6 eV, 37.3%) than Fe16N2 (397.2 eV, 31.8%), while the FeN* predominantly exhibited Fe16N2 content (397.5 eV, 67.1%) (Supplementary Fig. 17)35. The enhanced nitrogen content can be attributed to the high-density defects induced by Si3N4. The lower binding energy results in a higher surface electron density, thereby providing more favorable conditions for hydrogenation. Minor surface oxidation was also observed, likely due to sample handling, despite storage in a glovebox (Supplementary Figs. 17 and 18)36,37. Post-hydrogenation analysis revealed the peak shifted toward higher binding energies. This peak shift could be ascribed to the interaction between nitrogen and hydrogen, potentially resulting in the formation of NHx* intermediates. The protonation of nitrogen during hydrogenation alters the electron density distribution.

Mössbauer spectroscopy was utilized to elucidate the active phases of the catalyst systems, capitalizing on its exceptional sensitivity to Fe. The resultant spectra revealed that Si3N4/FeN* consisted of a heterogeneous mixture of amorphous Fe4N (52.3%), Fe16N2 (25.5%), and α-Fe (22.2%) (Fig. 3c). Notably, the Fe16N2 exhibited three distinct coordination environments (4 d, 8 h, 4e) that differed based on the Fe-N bond lengths. In an ideal scenario, the site occupancy ratio should be 1:2:138. The analyzed ratio closely approximated this ideal ratio (Supplementary Tables 1, 2). In contrast, the proportions of Fe16N2 (29.6%) and α-Fe (33.0%) were higher in FeN* compared to Si3N4/FeN*, but Fe4N (37.4%) was still the predominant phase (Supplementary Fig. 19). The Fe16N2 site ratio in FeN* also approached the ideal 1:2:1 distribution. The presence of Si3N4 favored the formation of Fe4N, which is known to be more active for hydrogenation into ammonia.

Electron spin resonance (ESR) and Raman spectroscopy analyses demonstrate that the physical promoter Si3N4 induced an increased defect density within the catalyst structure. ESR analysis revealed that Si3N4/FeN* displays a significantly enhanced signal intensity compared to both pristine Fe and FeN* (Fig. 3d). This progressive intensification of the ESR signal provides compelling evidence that the addition of Si3N4 generates supplementary defect sites, enhancing nitrogen adsorption through the redistribution of electron spins across the Fe surface. Complementing these findings, the Raman spectrum associated with the Fe phase exhibited asymmetrically broadened peaks, indicative of iron nitride phases in both Si3N4/FeN* and FeN*, which were not present in pristine Fe (Fig. 3e)39. Notably, a characteristic peak in the spectrum of Si3N4/FeN* was observed to redshift, which is attributed to strain within the Fe lattice. The strain weakens Fe-Fe bonds and creates coordinatively unsaturated Fe sites. Such lattice distortions significantly modify the d-band center of transition metal catalysts, bringing it closer to the Fermi level and thereby enhancing reactivity toward N2 activation. This enhanced interaction can facilitate back-donation from Fe d-orbitals to the π* antibonding orbitals of N2.

Extended X-ray absorption fine structure (EXAFS) spectroscopy (Fig. 3f) revealed structural changes in the Fe-based catalyst systems with/without Si3N4 promotion. Si3N4/FeN* shows a distinct Fe-N peak at 1.54 Å. Notably, the Fe-Fe peak (2.1 Å) for Si3N4/FeN* shifted to lower R-value than the pristine Fe (2.2 Å), suggesting lattice contraction despite nitrogen incorporation. This unexpected phenomenon likely resulted from mechanochemically induced high-density defects and lattice distortions, promoting metastable Fe-N phases. Wavelet transform analysis (Fig. 3g) complemented these findings by providing a 2D representation of the R-space and k-space information. Si3N4/FeN* exhibited Fe-N interactions at higher k values (4.5 Å−1) than FexN (where x = 2–4, 3.1 Å−1), indicating its stronger Fe-N bonding. The Fe-Fe scattering path in the nitrogen-adsorbed catalyst shifts to a lower k value (7.6 Å−1) relative to the pristine Fe (7.8 Å−1), consistent with the observed Fe-Fe bond contraction. These results collectively support the formation of unique Fe-N structures and highlight the structural changes induced by mechanochemistry.

Hydrogen dissociation analyses

Although pure Si3N4 itself did not show good reactivity (Supplementary Fig. 23), we assumed that Si3N4 also enhanced hydrogen adsorption by Fe during hydrogenation step in mechanochemistry because the amount of hydrogen uptake increased as the amount of Si3N4 increased. The hydrogen temperature programmed reduction (H2-TPR) profiles provided compelling evidence (Fig. 4a). Si3N4/FeN* exhibited a prominent reduction peak at a substantially lower temperature (369 °C) than the FeN* (437 °C), indicating improved reducibility and accessibility of active sites. This shift towards a lower reduction temperature suggests that Si3N4 facilitated the dissociative adsorption of hydrogen molecules, potentially lowering the activation energy for the second hydrogenation step. It is noteworthy that the inset graph revealed the complex reduction behaviors of Si3N4/FeN* in the temperature range of 100–300 °C. These multiple reduction steps in the low-temperature region indicated a synergistic effect between Si3N4 and Fe, creating an optimal surface environment that could promote efficient hydrogen dissociation.

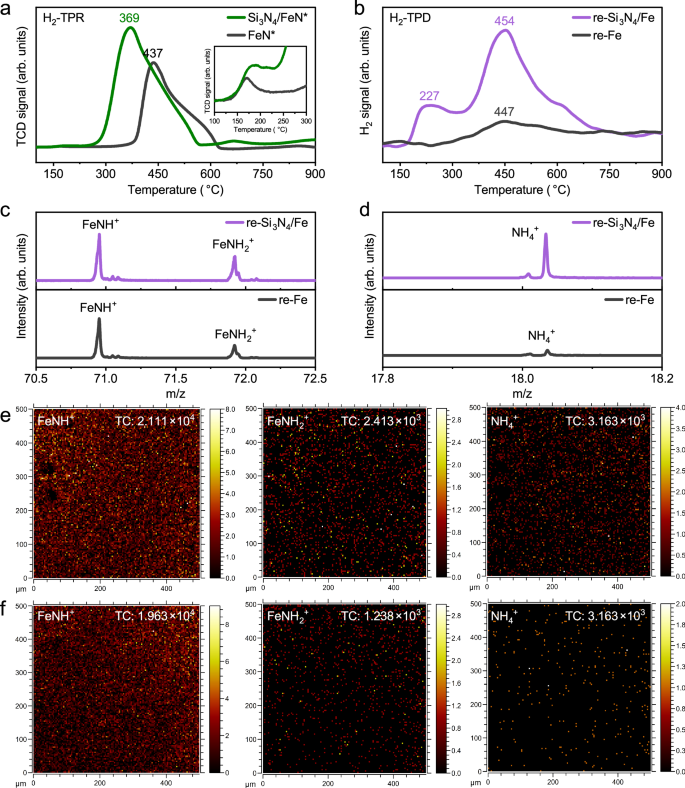

Fig. 4: Hydrogen dissociation analyses.
Fig. 4: Hydrogen dissociation analyses.
Full size image

a H2-TPR profiles for Si3N4/FeN* and FeN* powders. b H2-TPD-MS analyses of pre-hydrogenated samples. TOF-SIMS MS signals of hydrogenation intermediates of c FeNH+ and FeNH2+ and d NH4+. Corresponding 2D chemical maps of e re-Si3N4/Fe and f re-Fe. TC refers to total counts, which represents the sum of all detected secondary ion signals at each pixel.

To further clarify the catalyst behavior in hydrogen atmosphere, temperature programmed desorption mass spectroscopy (TPD-MS) profiles were conducted. The H2-TPD profile of the re-Si3N4/Fe catalyst exhibited two distinct desorption peaks at 227 and 454 °C, indicating the presence of multiple hydrogen adsorption sites with different binding energies (Fig. 4b). This heterogeneity in adsorption sites suggests that Si3N4 creates a more diverse surface landscape40, potentially facilitating the dissociative adsorption of H2 molecules and their subsequent reaction into ammonia. Moreover, the significant increase in peak intensities in re-Si3N4/Fe implies a higher concentration of active sites and improved surface area utilization (Supplementary Fig. 24). This result matched XPS and ESR spectra well.

The mechanistic pathway of hydrogen dissociation and incorporation was further elucidated through time-of-flight secondary ion mass spectrometry (TOF-SIMS) analysis. The re-Si3N4/Fe system exhibited MS signals for FeNH+ (m/z 70.9) and FeNH2+ (m/z 71.9) species (Fig. 4c–f), accompanied by SiNH+ (m/z 43.0) and SiNH2+ (m/z 44.0) intermediates (Supplementary Fig. 25), suggesting a cooperative hydrogen activation mechanism involving both Fe and Si3N4 interfaces. In contrast, the re-Fe catalyst demonstrated weaker signals for analogous FeNHx+ species. The substantially higher emission of NH4+ species (m/z 18.0) observed in re-Si3N4/Fe relative to re-Fe provided compelling evidence for enhanced hydrogen activation and ammonia formation in the hybrid catalyst system. The presence of both SiNHx+ intermediates alongside the enhanced FeNHx+ signals demonstrates a synergistic effect, where Si3N4 facilitates H2 dissociation on Fe sites and mediates its transport to reaction centers. The corresponding 2D chemical maps visualized efficient successive hydrogenation progression in re-Si3N4/Fe.

Theoretical study

To elucidate the atomic-level effects of physical promoters on NH3 synthesis, DFT calculations were conducted on the surface of Fe catalyst systems with three types of physical promoters: SiO2, SiC, and Si3N4, as investigated in the experiments (Fig. 2a). At high temperatures, the RDS of ammonia synthesis is typically the N2 dissociation step. However, at low temperatures, as in our experimental setup, the RDS shifts to the hydrogenation step because of strong H* adsorption on Fe surfaces, which readily blocks catalytic active sites19. Based on this, we evaluated both N2 dissociation and hydrogenation reactions, with a higher focus on hydrogenation. When evaluating the energy barriers for N2 dissociation on the Fe(110) catalyst surface with these promoters, minimal changes were observed compared to the clean Fe(110) surface (Supplementary Fig. 27). Similarly, the hydrogenation of N* into NH3 showed only marginal variations in energy barriers at the RDS. This indicates that the overall impact of these physical promoters on the catalytic activity of the clean Fe(110) surface is negligible.

However, the primary role of physical promoters is the significant comminution of catalyst particles, driven by the high hardness of the promoters, which leads to the creation of more defective surfaces. In our previous work19, we demonstrated that Fe catalysts with surface defects, such as vacancies or adatoms, exhibited reduced energy barriers for N2 dissociation. Furthermore, it has been reported that the Fe(211) surface, characterized by a corrugated geometry, has a lower energy barrier for N2 dissociation41,42, and that the N* hydrogenation process leading to NH3 formation is also accelerated on this surface (Supplementary Fig. 28). These findings suggest that surface defects play a crucial role in lowering reaction energy barriers. Therefore, we extended our study to include defective surface models that could be induced by the physical promoters, focusing on vacancies and adatoms due to their high feasibility.

Although adatoms are more readily formed than vacancies on the clean Fe(110) surface, vacancy formation becomes energetically more favorable when surface-adsorbed promoters are present. This results from the strong interaction between the Fe surfaces and promoter clusters, which weakens the bonds between Fe surface atoms (Supplementary Table 4). This effect is particularly pronounced for SiC and/or Si3N4 promoters.

DFT calculations in this work also reveal that defective Fe (Fed) surfaces with SiO2 or Si3N4 promoters, denoted as SiO2/Fed or Si3N4/Fed, respectively, exhibit lower energy barriers for both N2 dissociation and N* hydrogenation compared to the clean Fe(110) surfaces (Supplementary Fig. 29). This is attributed to the stronger interaction between the Fed surface and the promoters (Supplementary Fig. 30). The promoter effect persisted in the system with a larger cluster (Si6N8), verifying that the small-sized model reflects its essential role and suggesting comparable trends could be expected for even larger nanoclusters (Supplementary Fig. 31). However, the SiC promoter does not significantly lower these barriers, consistent with our experimental results (Fig. 2a).

According to our DFT calculations, Si3N4 is the most effective promoter, significantly reducing the energy barriers for both N2 dissociation (0.40 eV) and the hydrogenation steps at the RDS (1.29 eV) (Fig. 5a, b, Supplementary Table 5). Additionally, the Si3N4 promoter weakens hydrogen adsorption (Supplementary Table 6) and reduces the adsorbed hydrogen (H*) diffusion energy barrier by half, facilitating the diffusion of H* species to surface-bound N* species and ultimately enhancing NH3 formation (Fig. 5c). The calculated reaction rate constants (Supplementary Fig. 32) and turnover frequencies (TOF, Fig. 5d and Supplementary Fig. 33) confirm the superior reaction kinetics of the Si3N4-promoted Fe (Si3N4/Fe) surface to the clean Fe(110) surface or the SiO2 or SiC promoted Fe surfaces.

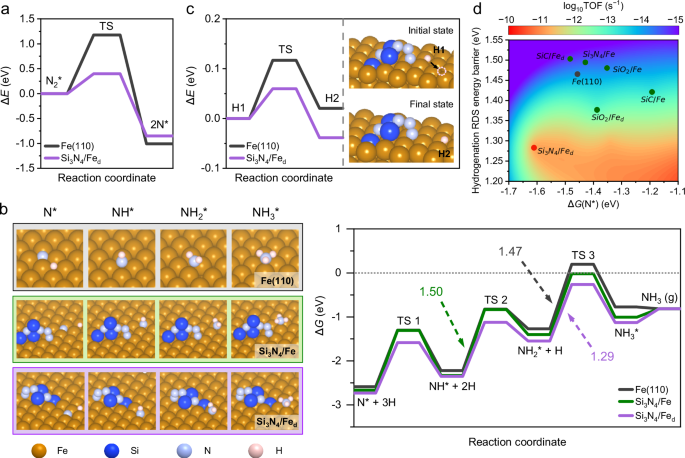

Fig. 5: DFT calculations.
Fig. 5: DFT calculations.
Full size image

a N2 dissociation energy diagram of the Fe(110) and Si3N4/Fed surfaces. b Free energy changes of the N* hydrogenation to ammonia on the clean Fe(110) surface, a Si3N4 cluster on Fe surface (Si3N4/Fe), and Si3N4 cluster on defective Fe (Si3N4/Fed). Optimized geometries of N*, NH*, NH2*, and NH3* on the three different catalyst surfaces are shown with the graph. Color code: Fe—tan, Si—blue, N—light blue, and H—pink. c Comparison of the H* diffusion on the Fe(110) and Si3N4/Fed surfaces. d 2D activity heatmap describing the turnover frequency (TOF) from N* into ammonia.

Moreover, Fe-N phases, such as Fe4N and Fe16N2, which are likely formed after N* adsorption on the Fe catalyst (the first nitrogen dissociation step), significantly lower the energy barriers for the second and third hydrogenation steps of N* (Supplementary Fig. 34 and Supplementary Table 7). Although the clean Fe16N2 phase exhibits a relatively high RDS energy barrier for hydrogenation, the combination of a Si3N4 cluster and a surface vacancy on the Fe catalyst dramatically reduces the energy barrier. Experimentally, we observed that the presence of Si3N4 promoters led to an increased formation of Fe-N phases, such as Fe4N and Fe16N2 (Fig. 3c and Supplementary Table 1), which further enhances catalytic efficiency in NH3 synthesis. We additionally evaluated the effect of SiO2 promoter on these phases, as SiO2 also exhibited a higher ammonia production than that on clean Fe(110) (Fig. 2a). Our calculations showed that the use of SiO2 lowers the hydrogenation energy barriers on both Fe4N and Fe16N2 surfaces (RDS Ea: 1.23 eV for SiO2/Fe4N d and 1.21 eV for SiO2/Fe16N2 d) compared to the clean Fe4N and Fe16N2 phases (Supplementary Fig. 35). However, these barriers remained slightly higher than those with the Si3N4 promoter, which explains the much higher ammonia yield with SiO2 compared to that with the clean Fe(110), but still lower than that with Si3N4.

In summary, the Si3N4 promoter, with high hardness, enhances ammonia formation not only by increasing surface defects, but also by lowering the energy barriers for N2 dissociation and N* hydrogenation, attributed to the strong interactions between Si3N4 clusters and the defective Fe (Fed) surface. Additionally, the improved hydrogen diffusion further accelerates the hydrogenation process. The influence of Si3N4 extends beyond the clean Fe catalyst surface, significantly enhancing the catalytic activity of the Fe4N and Fe16N2 phases, which are more abundantly formed in the presence of the Si3N4 promoter, as demonstrated in our experiments.

Discussion

When the physical promoter was employed for mechanochemical ammonia synthesis, a synergistic effect was observed. The high hardness and abrasion resistance of the Si3N4 facilitated the generation of high-density defects and active sites on the Fe catalyst during ball-milling, thereby improving N2 dissociation and H2 activation kinetics. Moreover, Si3N4 acted as a dispersing agent, preventing catalyst agglomeration and maintaining a large area of active Fe surface. Our study provides a deeper understanding of the interplay between physical promotion and catalytic performance in mechanochemical ammonia synthesis, which could guide future research in developing more effective catalysts for various chemical processes.

Based on the results here, we anticipate that the mechanochemical approach, augmented by physical promotion, will provide significant advantages for new modes of ammonia synthesis in a hydrogen-based economy. The ability to conduct ammonia synthesis at lower temperatures and pressures could open avenues for decentralized, small-scale production facilities, which could be pivotal for the widespread adoption of ammonia as a hydrogen carrier. By enabling more efficient ammonia production, this mechanochemical methodology could play a vital role in overcoming the challenges associated with hydrogen storage and transportation, thereby facilitating the broader implementation of hydrogen-based energy systems and contributing to the development of sustainable energy infrastructure.

Methods

Chemicals and materials

High-purity silicon nitride powders, comprising β-phase (β-Si3N4, predominantly β-phase, ≤10 micron) and α-phase (α-Si3N4, predominantly α-phase, ≤10 micron), were supplied from Sigma-Aldrich. Additionally, iron (Fe) powder (iron sponge, ~100 mesh, 99.9% metals basis), amorphous Si3N4 (am-Si3N4, silicon(IV) nitride, amorphous, nanopowder, 98.5 + %), β-phase silicon carbide (β-SiC, silicon carbide, beta-phase, 99% metals basis), silicon oxide (SiO2, silicon(IV) oxide, 99.5% metals basis), potassium (K, potassium, chunks, in mineral oil, 98%), and iron nitride (FexN, x = 2–4) were purchased from Alfa Aesar. To maintain the integrity of the materials, all chemicals were stored in an argon (Ar) atmosphere glove box (UNIlab pro, MBRAUN) with a purity of 99.999% (KOSEM Corp.). Mechanochemical experiments were conducted using a planetary ball-milling machine (Pulverisette 6, Fritsch) equipped with a hardened steel ball-milling jar (250 ml) and balls (Ø = 5 mm). All experiments using Si3N4 were conducted with β-Si3N4, unless specified. To ensure reproducibility, each experiment was independently repeated at least three times to determine the error bars.

Nitrogen dissociation kinetics

A mechanochemical experiment was conducted by loading 12.0 g of iron (Fe) catalyst and 0.9 g of Si3N4 into a hardened steel ball-milling jar with 500 g of steel balls in an Ar-filled glove box. The jar was then sealed and evacuated using a vacuum pump to remove any residual argon. Subsequently, high-purity nitrogen gas (N2, 99.999%, KOSEM Corp.) was introduced into the jar at a pressure of 9 bar. The experiment was performed with 30 min of milling followed by a 10 min break to manage heat generation. This process was repeated for a total of 240,000 cycles to optimize the rotation speed for nitrogen adsorption. To determine the amount of adsorbed nitrogen, additional experiments were conducted at a milling speed of 450 r.p.m. for 5, 10, 15, 20, and 25 h, respectively. The pressure difference in the jar was measured using a pressure gauge, allowing for the calculation of the amount of adsorbed nitrogen.

Ammonia synthesis kinetics

Ammonia (NH3) synthesis was performed via hydrogenation of the as-prepared Si3N4/FeN* and FeN* powders. Prior to hydrogenation, nitrogen adsorption was conducted at 450 r.p.m. for 20 h. Subsequently, the residual nitrogen gas in the jar was displaced with high-purity hydrogen gas (H2, 99.999%, Daesung Industrial Gases Co.) using the same gas displacement method employed earlier for switching from argon (Ar) to nitrogen (N2). The charged H2 gas pressure was maintained at 9 bar. Because hydrogenation is an endothermic process, the hydrogenation cycle was implemented for 3 h, consisting of 60 min of milling followed by a 10 min break at a rotation speed of 500 r.p.m. After hydrogenation, the total gas pressure in the reactor was measured using a pressure gauge. Gas chromatography (GC, Agilent 7890B) was used to determine the gas concentration, allowing for the calculation of the amount of synthesized NH3. To investigate the time dependence on NH3 synthesis, the experiment was repeated seven times, with H2 (9 bar) being recharged every 3 h. Finally, the powders were collected in an Ar-filled glove box to prevent surface oxidation.

Silicon-based promoter comparison

A total of 12.0 g of iron (Fe) powder was loaded into a stainless-steel ball-milling jar along with 500 g of stainless-steel balls. Subsequently, each silicon-based promoter, including Si3N4, β-SiC, or SiO2, were added at a concentration of 3 at% with respect to Fe (0.03 × moles of Fe). The Fe powder and promoter was carefully handled and loaded into the ball-milling jar within an Ar-filled glove box to prevent contamination. The mechanochemical reaction was performed in two sequential steps. First, nitrogen dissociation was conducted by sealing the jar, evacuating residual argon using a vacuum pump, and introducing high-purity N2 at a pressure of 9 bar. The ball-milling was performed at a rotation speed of 450 r.p.m. for 20 h, with a cycle of 30 min milling followed by a 10 min break to manage heat generation. After the nitrogen dissociation step, the pressure in the jar was measured using a pressure gauge to calculate the amount of dissociated nitrogen. For the subsequent hydrogenation step, the residual nitrogen gas was evacuated, and high-purity H2 was introduced at a pressure of 9 bar. The hydrogenation was conducted at a rotation speed of 500 r.p.m. for 3 h, with a cycle of 60 min milling followed by a 10 min break. After hydrogenation, the total gas pressure in the reactor was measured using a pressure gauge, and gas samples were analyzed using GC to determine the concentration of synthesized NH3.

Control and systematic experiments

Three control experiments validated the mechanistic role of Si3N4 in ammonia synthesis. First, to assess lattice nitrogen release, Si3N4 was ball-milled under H2 atmosphere (9 bar) for 3 h without Fe catalyst at 500 r.p.m., yielding no detectable ammonia (<1 ppm). It confirms Si3N4 does not serve as a nitrogen source. Second, a blank test using Si3N4/Fe under 9 bar of Ar for 20 h at 450 r.p.m., followed by hydrogenation at 500 r.p.m. for 3 h in 9 bar of H2. It verifies that atmospheric N2 is essential for the reaction. Third, investigation of methane byproduct formation using high-purity iron balls (Fe 99.99%) was conducted N2 dissociation for 20 h at 450 r.p.m. and 9 bar of N2, and NH3 synthesis for 3 h at 500 r.p.m. and 9 bar of H2.

Promoter loading amount and phase effects

For studies on promoter loading amount effect, Fe powders (12.0 g) were loaded into a stainless-steel ball-milling jar, followed by the addition of β-Si3N4 at ratios ranging from 0.0 to 5.0 atomic percent (at%) to Fe. For studies on the Si3N4 phase effect, Fe powders (12.0 g) were loaded into a ball-milling jar along with 3 at% of each distinct Si3N4 phase, α-Si3N4, β-Si3N4, or amorphous Si3N4 (am-Si3N4). Nitrogen dissociation and hydrogenation were, respectively, carried out under 9 bar of N2 for 12 h at 450 r.p.m. and 9 bar of H2 for 5 h at 500 r.p.m., as was employed to determine the promoter loading amount effect. The phase effect studies were conducted under the same experimental conditions as the kinetic studies.

Chemical promoter comparison and stability test

To compare the performance of ammonia synthesis catalysts with different promoters, both the chemical promoter (K) and the physical promoter (Si3N4) were prepared under an inert atmosphere in an Ar-filled glove box to prevent contamination. Each promoter was used in equimolar quantities to ensure a consistent atomic basis for comparison, and for the catalytic experiments, either metallic K or Si3N4 was combined with 12.0 g of Fe powder and loaded into a steel jar. The experiments were conducted nitrogen dissociation followed by hydrogenation. Stability tests were performed over a series of 10 cycles, each cycle consisting of two sequential stages. Nitrogen dissociation at N2 9 bar for 20 h, followed by hydrogenation at H2 9 bar for 3 h.

Catalyst characterizations

The crystal structures of the samples were characterized by XRD using a D/max2500V instrument (Rigaku) with Cu-Kα radiation (λ = 1.5418 Å). The XRD patterns were recorded with a step size of 0.02° and a scan rate of 2° min−1. Mössbauer spectroscopy measurements were performed using a 57Co (Rh) source at room temperature (Palacky University, 01216CN). The Mössbauer spectra were obtained in transmission geometry with a triangular velocity waveform. The isomer shifts of α-Fe were calibrated at room temperature. Hard X-ray absorption spectroscopy (XAS) measurements were conducted at the 6D UNIST-PAL beamline in the Pohang Accelerator Laboratory (South Korea). The XAS data were analyzed using Athena software. The morphology of the samples was characterized by field emission scanning electron microscopy (FE-SEM) using a Nova NanoSEM (FEI company) and a spherical-aberration-corrected transmission electron microscope (JEM-2100F, JEOL) for high-resolution atomic imaging.

XPS measurements were performed using a Thermo Fisher K-alpha XPS spectrometer in an Ar atmosphere glove box. The XPS spectra were deconvoluted using XPSPEAK41 software. The temperature-programmed reduction of hydrogen (H2-TPR) was conducted on a chemisorption analyzer (Microtracbel, BELCAT II). The sample was heated from room temperature to 250 °C, maintained for 60 min in an Ar atmosphere, and then heated to 900 °C at 10 °C min−1 in a 5% H2/Ar atmosphere. The released gases were continuously detected by a thermal conductivity detector. TPD-MS powders were pretreated using the same process, then gas adsorption was conducted at 100 °C for 60 min in a 5% desorption gas/helium (He) or Ar atmosphere. Subsequently, TPD-MS was conducted under He or Ar atmosphere. TOF-SIMS was performed using an ION-TOF GmbH instrument equipped with a 25 keV Bi+ primary ion source and a 2 kV Cs+ sputtering beam. Prior to TOF-SIMS analysis, the hydrogenated powders were compressed into 13 mm diameter pellets. All measurements were conducted in positive ion mode to identify and characterize the chemical species present.

Raman spectra were recorded using a DXR3 Raman microscope (Thermo Fisher Scientific) with a 532 nm laser excitation source at a power of 9 mW. ESR spectra were acquired using a Bruker EMXplus 9.5/12 spectrometer, fitted with an Oxford Instruments ESR900 cryostat. All measurements were performed at 295 K under non-saturating conditions. The spectrometer was operated at an X-band microwave frequency of 9.83 GHz, with a modulation frequency of 100 kHz, a modulation amplitude of 4.0 G, and a microwave power of 0.633 mW. N2 adsorption-desorption isotherms were obtained using a BELSORP-max at 77 K over a relative pressure range of P/P0 = 10−6 to 0.99. Before the measurements, all samples were degassed under vacuum at 100 °C for 16 h to remove adsorbed impurities. The specific surface area of each sample was then calculated using the Brunauer-Emmett-Teller (BET) method.

Computational details

Spin-polarized density functional theory (DFT) calculations were performed using the Vienna Ab initio Simulation Package software43,44 with the projector-augmented wave method45. The exchange-correlation energy was treated using the generalized gradient approximation using the revised Perdew-Burke-Ernzerhof 46 functional. A plane-wave energy cutoff of 500 eV was applied, and the Brillouin zone was sampled using a 2 × 2 × 1 Monkhorst-Pack k-point grid. During geometry optimization, all atoms in the top two layers, including adsorbates, were allowed to relax until reaching a force threshold of 0.05 eV Å−1, with electronic self-consistency iteration convergence set to 10−5 eV. A smearing width of 0.05 eV was employed to account for partial occupancies, and the DFT-D3 method by Grimme et al.47 was used to improve the description of long-range van der Waals interactions. Additionally, a dipole correction was applied along the z-axis. For the Fe–N phases, a Hubbard U correction was applied to the Fe 3 d orbitals using the approach of Dudarev et al.48 to better account for localized electron correlation effects. Effective U values of 0.9 eV and 0.4 eV were used for Fe16N2 and Fe4N, respectively49,50.

The Fe surface model was cleaved from an optimized Fe bulk crystal along the (110) plane, resulting in a slab measuring 11.48 Å × 12.17 Å × 6.09 Å, with a 20 Å vacuum layer separating periodic images. During geometry optimizations, the top two layers were free to relax, while the bottom two layers were held fixed. Free energy for each reaction intermediate was calculated using the following equation:

$$\Delta G={\Delta E}_{{{{\rm{DFT}}}}}+\Delta {ZPE}-T\Delta S$$
(1)

where ∆EDFT is the DFT energy of each system, ∆ZPE accounts for zero-point energy corrections, and T∆S is to correct the entropy changes. The NIST web database51 was used to calculate the ∆ZPE and T∆S of the gas-phase molecules.

Prior to modeling various physical promoters for NH3 synthesis, USPEX52 was employed to identify the most stable cluster structures of the promoters. The SiO2 structure was sourced from the literature53, where it has been extensively studied. However, due to the limited availability of studies on SiC and Si3N4 clusters, we utilized the USPEX code to determine their most stable geometries (Supplementary Notes and Supplementary Fig. 36). The physical promoters can induce defects on the catalyst surfaces; hence, we also evaluated the formation energies of defective surfaces such as vacancies and adatoms. The formation energies of these defective surfaces (Ef) were calculated with the following equation:

$${E}_{{{{\rm{f}}}}}={E}_{{{{\rm{defective}}}}}{{{-}}}{E}_{{{{\rm{clean}}}}}+{{{{\rm{n}}}}} \, {E}_{{{{\rm{Fe}}}}}$$
(2)

where Edefective represents the total energy of the defective surface model, Eclean is the total energy of the clean slab model without defects, n is the number of defects (positive for vacancies and negative for adatoms), and EFe is the energy of a single Fe atom calculated from the Fe bulk crystal.

The activation energies for N2 dissociation and N* hydrogenation (* denotes a surface site) leading to ammonia were determined using the climbing image nudged elastic band54 method. The transition states were verified through vibrational frequency analysis to ensure they exhibited only one imaginary frequency. The results were visualized using the VESTA software55.
