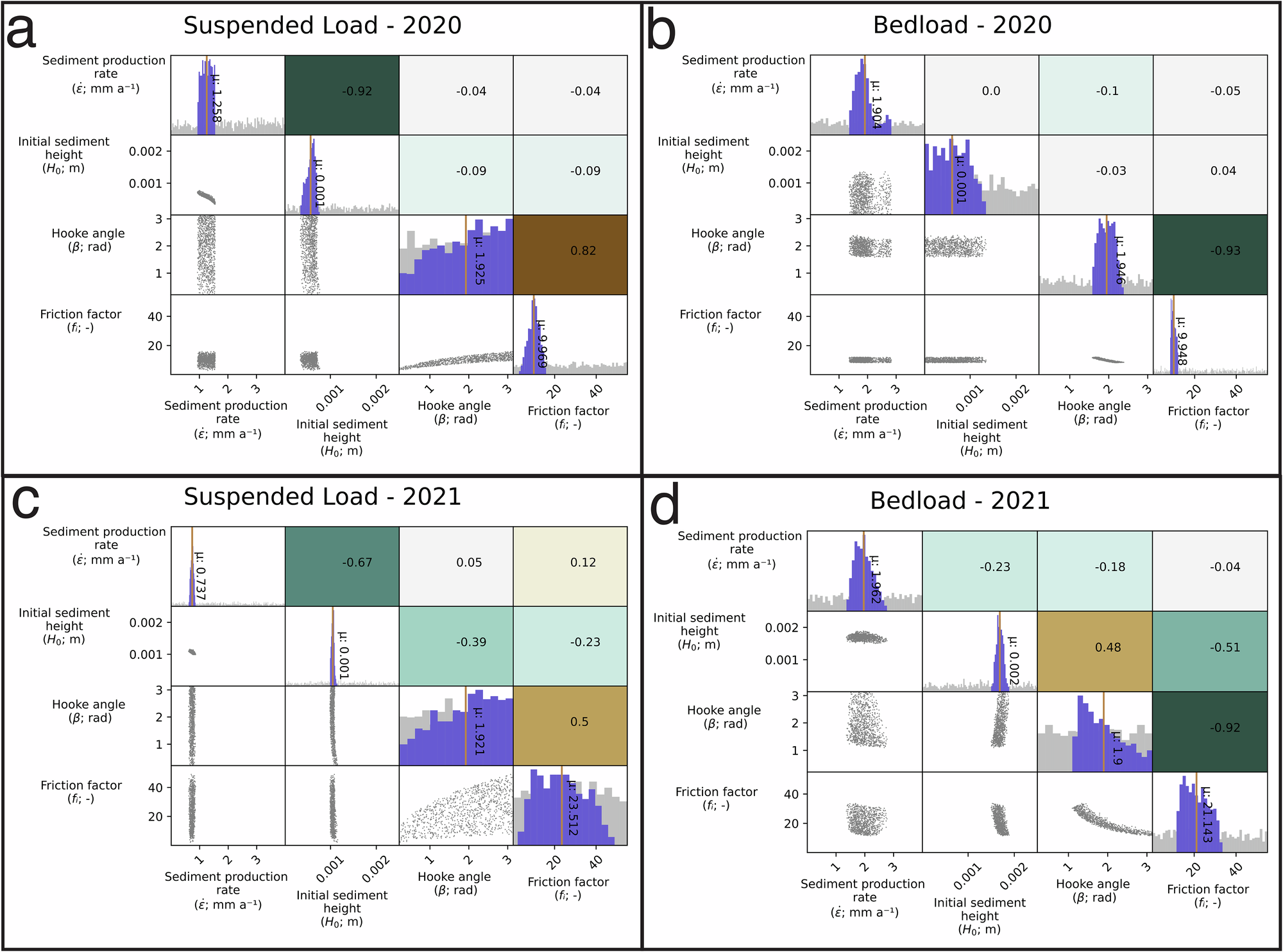

Fig. 4: Correlation plots for the four numerical experiments (suspended load (SSL) and bedload (BL), 2020 and 2021).
From: Different geomorphic processes control suspended sediment and bedload export from glaciers
Note a similar trend in correlations between suspended load in 2020 (a) and 2021 (c). Parameter correlations for bedload experiments given in (b) and (d). Red vertical lines show mean parameter values. Posterior histograms are in purple on diagonal, with the uniform prior distributions denoted by gray histograms. Green (brown) colors denote negative (positive) Pearson’s correlation value of the corresponding scatter plot. Boxes filled with gray denote insignificant correlation at the 95% confidence interval.
