Introduction

Solid-state qubits are one of the most promising quantum sensors due to their sensitivity and resolution at the nanoscale1,2,3. By fabricating shallow qubits near the surfaces, one can realize a nanoscale sample-to-sensor distance4,5,6, which greatly enhances the coupling strength between them and eventually reaches the sensitivity of a single proton limit7. However, these shallow solid-state qubits commonly exhibit reduced coherence time due to the influence of surrounding spin baths, limiting the sensitivity of quantum sensing8. The spin baths associated with shallow solid-state qubits originate from various nuclear and electron spins within the bulk and on the surface. Taking nitrogen-vacancy (NV) centers in diamonds as an example, various strategies have been employed to mitigate the spin noise within the bulk9,10.

Nonetheless, it is very difficult to reduce the surface electron spins, which are unavoidable due to the unpaired electrons on the diamond surface. Unpaired surface electron spins induce noise sources such as proximal spin noise and electric noise8,11,12,13,14,15 and dominate the decoherence mechanism of the NV center, especially for shallow NV centers (1–20 nm). Hence, it remains challenging to improve the quality of shallow qubits. Up to now, the stability and coherence time of shallow NV centers have been very limited11,12,13,15. To address this issue, researchers have explored different approaches, including modulation of the electronic spin bath by an atomic force microscope through electric field manipulation16 and covering the diamond surface with liquids of high dielectric constant17. However, special instrumentation and strong local electric field created by these methods hinder their compatibility with general quantum sensing applications.

Drawing inspiration from band alignment modifications achieved through tailored surface and interface functionalization of semiconducting materials in photovoltaic applications18,19, we propose an interface engineering method using graphene patching on the oxygen-terminated (O-terminated) diamond to reduce the spin noise from surface unpaired electrons16,20 and enhance the coherent time of shallow NV centers, which can be readily adapted to additional sensing applications. Systematic characterization of 20 shallow NV centers revealed coherence enhancement across all NVs. The alternating current (AC) magnetic field sensitivity of shallow NV centers is enhanced to 23 nT/Hz1/2, approaching the best sensitivity (9 nT/Hz1/2) reported for deep NV centers in an enriched 12C and 28Si diamond with phosphorus-doping21. We use Carr-Purcell-Meiboom-Gill (CPMG) sequence to further extend the coherence time of shallow NV centers to greater than 1 ms, approaching the T1 limit (1.6 ± 0.3 ms) of NV centers (see Supplementary Note 1).

To demonstrate quantum sensing capabilities of our coherence-enhanced shallow NV centers, we perform the sensing of both weak 13C nuclear spins inside diamond and 11B nuclear spin baths of the hexagonal boron nitride (h-BN) outside the diamond. Unlike internal spins, probing external spins imposes extreme challenges due to their weaker coupling and rapid decoherence. Achieving such sensitivity requires not only exceptional spin coherence but also an extremely close distance between the NV center and the target spins, a feat previously considered near-impossible without a purified diamond sample and vast selected NV centers. Using our interface engineering approach, we demonstrate external spin-sensing with shallow NV centers in non-purified diamond, achieving nanoscale NMR of molecular structures, quantum materials, and biological systems at the atomic scale. Our findings highlight the potential of this interface engineering method for improving the quantum performance of shallow solid-state qubits.

The surface engineering method utilizes the gapless energy band structure of graphene as an electron source to pair with the unpaired electrons on the O-terminated diamond surface. To elucidate the physical mechanisms underlying this interface engineering method, we employed double electron-electron resonance (DEER) spectroscopy, density functional theory (DFT) calculations, and Raman spectroscopy. DEER spectroscopy of shallow NV centers exhibits at least an order of reduction in the unpaired electron spin concentration, ~1011 cm−2, after interface engineering. Raman spectra of graphene indicate hole doping with a density on the order of  ~1012 cm−2 when transferred to an O-terminated diamond surface. Independent DFT calculations support this finding, showing that the O-termination has a lower Fermi level and facilitates electron transfer from graphene to pair with the unpaired electrons of carbon atoms on the diamond surface. It should be noted that we reach a quantitative agreement without any fitting parameters.

Results

Quantum performance enhancement of shallow NV centers

To create an O-terminated diamond, the diamond sample is cleaned with triacid boiling22,23 (see Supplementary Note 2). Triacid treatment is commonly applied for the NV center experiment, as surface oxidation helps stabilize the NV negatively charged state. However, the unpaired electron due to the imperfection of the diamond surface remains a critical spin noise source. To resolve the surface spin noise, we transfer graphene to cover the entire implanted diamond surface following the transfer procedure (see “Methods”) immediately after the triacid boiling. The resultant graphene-diamond heterojunction is illustrated in Fig. 1a. The graphene provides electrons to pair with the surface unpaired electrons to remove spin noise, as shown in Fig. 1b.

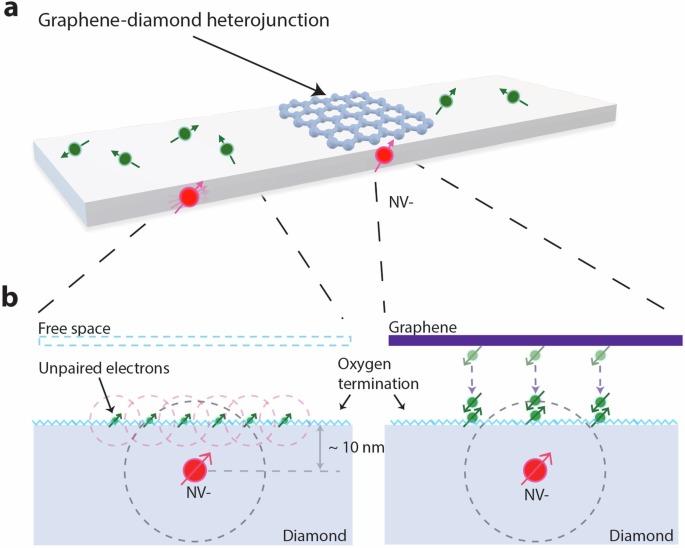

Fig. 1: An illustration of the interface engineering method and the proposed charge transfer mechanism.
figure 1

a Schematic showing an NV center near the diamond surface. The surface has unpaired electrons (green arrows) that produce spin noise. At the graphene O-terminated diamond heterojunction, there is less noise fluctuation on the NV center. b An illustration showing how unpaired electrons on the diamond surface cause decoherence on the shallow NV center under an external magnetic field. Upon patching graphene on the O-terminated surface, electrons transfer from graphene towards the diamond surface, pairing up the surface electrons.

Full size image

We perform single-spin measurements on 20 shallow NV centers ~5–20 nm (see Supplementary Note 1) in the depth of an implanted (100)-O-terminated diamond and compare their performance with and without graphene. Hahn-echo (T2) measurements of NV centers are highly sensitive to the surrounding noise spectrum; thus, it is ideal to probe the changes in nearby spin baths. Figure 2a shows a comparison of the Hahn-echo decay of the same NV center (~14 nm below the diamond surface) before and after the graphene patching. The measurements are performed at 286 G. We fit the Hahn-echo signal to a stretched exponential \({e}^{-{(\tau /{T}_{2})}^{p}}\) that takes into account the spin bath correlations24, where p is a fitting parameter. The T2 time has a significant enhancement upon graphene transfer. The improvement is observed in all NV centers, ranging from 1.2 to at most 3.3 fold, as summarized in Fig. 2b. Notably, the coherence time for NV20 extended to as long as 522 μs, indicating the noise is strongly suppressed with graphene patching. Compared with state-of-the-art techniques for enhancing T2 in shallow NV centers, including electric field manipulation (maximum  ~170 μs)16 and surface termination (maximum  ~70 μs)23, our approach achieves a longer coherence time (maximum 522 μs), approaching the bulk diamond limit while maintaining both simplicity and stable performance. This represents a significant improvement for shallow NV applications in quantum sensing. For \({{{{T}}}_{2}}^{*}\), we observed no significant enhancement due to low-frequency spin noise induced by laser illumination25,26, which lies outside the scope of our noise elimination targets.

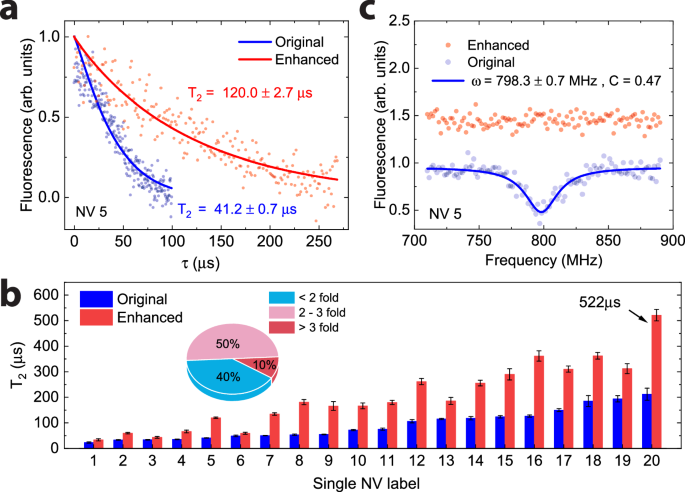

Fig. 2: Comparison of the coherence time and unpaired electron spins between an O-terminated diamond and graphene-diamond heterojunction.
figure 2

a Hahn-echo decay curves from the same NV center. The Hahn-echo coherence time T2 is improved  ~3-fold after graphene patching. b Summary of the Hahn-echo coherence time T2 enhancement of all 20 shallow NVs after graphene patching. They are arranged in ascending order of the T2 before enhancement. Error bars represent the fitting uncertainty. c DEER spectroscopy detected by NV5. Blue dots denote the surface unpaired electron signals resonated at ω = γeB = 798 MHz, where C is the contrast. The surface unpaired electron spins signal disappears after graphene patching, denoted by red dots. The red and blue curves are offset for clarity.

Full size image

To confirm unpaired electron spins as the dominant spin noise on the diamond surface, we performed DEER measurements on 7 shallow NV centers (NV 1, 2, 3, 5, 7, 16, and 17) and probed the proximal spin baths. By driving the corresponding resonance frequency, this method is able to measure surface spins16,20,27,28,29 and other qubits in the bulk diamond lattice30,31. The unpaired electrons from the diamond surface carbon atoms will precess along our applied magnetic field and create spin noise in the NV center. Under an applied 286 G magnetic field, the precession of unpaired electron spins results in a radio frequency at ω = γeB = 798 MHz, where γe = 2.8 MHz/G is the gyromagnetic ratio of a free electron. Since 98.9 % of carbon atoms are 12C, which is spinless, the unpaired electrons from carbon atoms will precess at Larmor frequency without hyperfine interactions. The DEER signal S(ω) is fitted with the Lorentzian function as

$$S(\omega )=1-C\frac{\Delta {\omega }^{2}}{{(\omega -{\omega }_{0})}^{2}-\Delta {\omega }^{2}},$$
(1)

where C is the contrast, ω0 is the center of the Lorentzian, and Δω is the half-width at half maximum (HWHM).

The DEER spectra are shown in Fig. 2c. For the spectrum of an O-terminated diamond, the fitted resonance frequency is ω0 = 798.3 ± 0.7 MHz, and the HWHM Δω = 15.4 ± 1.4 MHz. This shows noticeable surface spins with an O-terminated diamond surface. Upon the graphene transfer, in sharp contrast, the unpaired electron spins signal is no longer detectable. To further investigate this effect, we conduct DEER decay measurements, which have previously been demonstrated to estimate the concentrations of unpaired electron spins on the diamond surface27. For the 7 single NVs, an average of 0.72 × 1011 cm−2 is observed (see Supplementary Note 1). The resonance frequency of the DEER spectrum confirms that the dominant sources of the spin noise come from the unpaired electron spin baths. Therefore, the enhancement in the T2 time and the reduction of the unpaired electron spins DEER signal confirm the pairing of unpaired electrons with the use of graphene, revealing the significant effect of proposed interface engineering.

Studying the charge transfer mechanism with Raman spectra

To confirm the occurrence of charge transfer on the graphene, we use Raman spectroscopy, a nondestructive optical probe, to study the changes in the electronic properties of graphene. In Fig. 3a, two characteristic G and 2D bands are measured after a standard transfer procedure (see “Methods” for details) on silicon and diamond samples, respectively. The positions of the bands are centered at  ~1585 cm−1 for G and  ~2685 cm−1 for 2D of the silicon sample in excellent agreement with previous studies32 that indicate a successful graphene transfer. Since the graphene 2D band overlaps with the second-order Raman band of a diamond, the 2D band positions and intensities in our subsequent analysis are obtained by subtracting the signal from the same diamond without graphene while keeping the same measurement parameters.

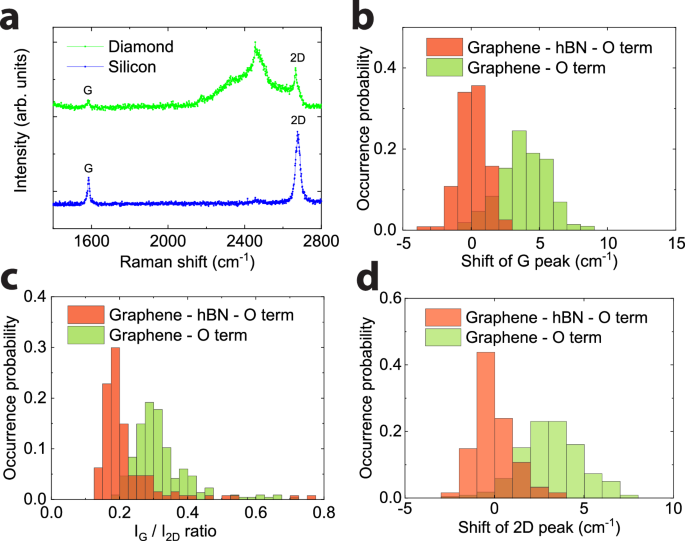

Fig. 3: Shift and intensity of Raman spectra in graphene indicate charge transfer in graphene O-terminated diamond heterojunction.
figure 3

a Raman spectrum showing the characteristic G and 2D bands of graphene on silicon and diamond substrate after a standard transfer process. b A statistical trend of the relative G band shift of graphene in direct contact with the O-terminated diamond (green) and with h-BN buffer (orange). The graphene on the h-BN flake at 1584 cm−1 is set as the 0 shift reference. c A statistical trend of the relative 2D band shift of graphene in direct contact with the O-terminated diamond (green) and with h-BN buffer (orange). The graphene on the h-BN flake at 2683 cm−1 is set as the 0 shift reference. d A statistical trend of the relative intensity IG/I2D ratio in direct contact with O-terminated diamond (green) and with h-BN buffer (orange). Histograms are collected by Raman mapping analysis over a graphene transfer region with around 200 data.

Full size image

To study the influences of O-terminated diamond acting on graphene, we introduce some uniform h-BN flakes (see Supplementary Note 3) between the graphene and diamond interfaces. The h-BN serves as an atomically flat and decreased native charge density platform to probe the intrinsic Raman signal of graphene33. To avoid sample inhomogeneity, we carry out Raman mapping analysis to obtain the band shift statistically. The characteristic band (1584 cm−1 for G, 2683 cm−1 for 2D) of graphene on a uniform h-BN sample is set as a reference point34 for comparison with diamond. In Fig. 3b, graphene directly in contact with the O-terminated sample shows  ~3.8 cm−1 blue shift of the G band relative to the h-BN one. This shift is unlikely to be attributed to surface impurities and roughness, as these factors typically alter the phonon velocity of graphene, resulting in a red shift in the G band35. Previous studies showed that the charge doping of graphene can induce a G band blue shift36,37,38,39,40. The increase of the intensity ratio IG/I2D shown in Fig. 3c also suggests an occurrence of charge doping in graphene41 when it is in direct contact with O-terminated diamond. The charge doping changes the Fermi surface, which moves the Kohn anomaly away from the phonon wavevector q = 0, leading to a stiffening of the G band38. The h-BN data remain a good reference due to its high dielectric constant42 that the flakes serve as charge-insulating layers between the diamond surface and graphene, prohibiting charge transfer. Moreover, the blue shift in the 2D band shown in Fig. 3d indicates hole doping38,41,43, suggesting net electron export in the graphene layer. Therefore, we deduce that hole doping occurs at graphene directly patched to the O-terminated diamond, which is not observed when an insulating h-BN flake is interposed.

The doping-induced Fermi level shift from the Dirac point can be estimated using the relation:

$${\epsilon }_{F}=\,{{\mbox{sgn}}}\,(n)\sqrt{| n| \pi }\hslash {v}_{F},$$
(2)

where n denotes the doping concentration, sgn( ⋅ ) returns the sign of the variable, and vF represents the Fermi velocity (ℏvF = 5.52 eV Å38). Pisana et al.38 and Lazzeri et al.43 further give the doping-induced G band shift relation:

$$\hslash \Delta \omega={\alpha }^{{\prime} }| {\epsilon }_{F}|+\frac{{\alpha }^{{\prime} }\hslash {\omega }_{0}}{4}\ln \left(\frac{| {\epsilon }_{F}| -\hslash {\omega }_{0}/2}{| {\epsilon }_{F}|+\hslash {\omega }_{0}/2}\right),$$
(3)

where ω0 is the frequency of the G band and \({\alpha }^{{\prime} }\) is determined by

$${\alpha }^{{\prime} }=\frac{\hslash A{\left\langle {D}_{\Gamma }^{2}\right\rangle }_{F}}{\pi M{\omega }_{0}{(\hslash {v}_{F})}^{2}}.$$
(4)

Here, A denotes the unit cell area, \({\langle {D}_{\Gamma }^{2}\rangle }_{F}\) denotes the deformation potential of the E2g mode, ℏ is the reduced Planck constant, and M is the carbon mass. When there is a  ~3.8 cm−1 G band shift, the hole doping concentration is estimated using Eqs. (2–4) as  ~1012 cm−2, which is larger than the result observed in the DEER measurement (0.72 × 1011 cm−2). The shift in graphene’s Raman peak signifies electron transfer from graphene to the diamond surface. The majority of these electrons pair with dangling bonds to suppress surface spin noise, while the remaining fraction could be captured by surface adsorbates, such as water molecules44,45. DEER measurements selectively probe the unpaired electron spin bath linked to 12C and oxygen atoms that cannot capture the surface absorption events. The charge transfer values derived from Raman measurements correlate well with the defect concentration of the O-terminated surface obtained by DFT and synchrotron-based X-ray absorption spectroscopy46.

DFT calculation

To investigate the atomistic mechanisms of interfacial engineering, we perform DFT calculations on the heterojunctions of graphene on a (100)-O-terminated diamond surface [O_D(100)], and also (100)-hydroxyl-terminated (OH-terminated) diamond surface [OH_D(100)]. These two surface terminations are representative in our NV measurements (see the Methods section) and previous experimental studies23,47. The diamond surfaces are functionalized by the functional groups C–O–H, C=O, and C–O–C. The concentration of C–O–H, C=O, and C–O–C in OH_D(100) is 50%, 25%, and 25%, respectively. The concentration of C–O–H, C=O, and C–O–C in O_D(100) is 16.7%, 33.3%, and 50%, respectively. Here, these concentrations are calculated as the ratio of the number of each specific functional group to the total number of functional groups on the surfaces. There is one unpaired electron in one carbon atom in the O_D(100) surface. Such unpaired electrons are the primary source of spin noise. Considering our simulation lattice of 2.46 × 17.05 Å, the concentration of unpaired electrons is 2.4 × 1014 cm−2, which is four orders of magnitude larger than the concentration in our DEER measurement and also the value estimated by Eqs. (2–4). In the DEER measurement, the unpaired electron concentration is 0.72 × 1011 cm−2. Reproducing a low unpaired electron concentration as found in the DEER measurement requires a much larger computational cell (1.6 × 105 Å2), which exceeds our current computational capabilities. Here, we used a small unit cell to study the mechanism of charge transfer.

In the heterojunction between graphene and G/O_D(100), we performed the spin-polarized calculations. The electron band structures with spin up and spin down are shown in Fig. 4a, b, respectively. The Fermi energy level of the heterojunction is below the Dirac point of graphene, indicating that some electrons of graphene are transferred to O_D(100). The charge difference plot in the Supplementary Note 4 also confirms this finding, where we estimated the transferred electron density as 3 × 1013 cm−2. This value is larger than the estimated doping concentration in the Raman measurements, because our unit cell is small. The Löwdin population analysis48 also shows that the atomic charge of graphene decreases from 3.956 to 3.949 electrons after patching the graphene on O_D(100). In summary, the observed hole doping is consistent with the G band and 2D band blue shift as found in the Raman measurements. The transferred electrons are paired with the surface unpaired electrons on the diamond surface and thus decrease the spin noise. As a result, the T2 coherence time of the NV center increases.

Fig. 4: DFT calculation on graphene-diamond heterojunctions.
figure 4

Electronic band structure of the heterojunction G/O_D(100) for a spin up, b spin down, and c heterojunction G/OH_D(100) with degenerate spins. The Fermi level is set to 0. The Dirac point of graphene is marked by a blue dashed box. The computational setups and lattice structures can be found in the method section and supporting information.

Full size image

On the other hand, for the heterojunction G/OH_D(100), we found that the Dirac point of graphene is very close to the Fermi energy level as shown in Fig. 4c, indicating an insignificant charge transfer in the heterojunction G/OH_D(100), which is consistent with the charge difference plot in the Supplementary Note 4. Therefore, our DFT calculations suggest that only choosing the right combination of patching materials and surface terminations can induce a favored charge transfer for electron pairing.

Other surface treatment studies

To experimentally validate the significance of surface terminations and patching materials, we conducted further investigations on other heterojunctions. Our DFT calculations in Fig. 4 show that the OH-terminated diamond has a similar Fermi level to that of graphene, suggesting minimal electron transfer from graphene. To confirm this theoretical prediction, we piranha-boil our diamond to create an OH-terminated diamond47 followed by the standard graphene transfer (see “Methods” for details). In Fig. 5a, the Hahn-echo coherence time T2 of the NV center shows no significant improvement in the OH-terminated implanted diamond. The Raman spectroscopy results in Fig. 5b, c exhibit a reduced blue shift of ~0.9 cm−1 in the G band and less pronounced changes in the IG/I2D ratio, indicating reduced charge doping in graphene compared to O_D(100). Since the OH-terminated surface has fewer unoccupied states that host unpaired electrons and more occupied OH functional groups, electron transfer from graphene is weakened, resulting in incomplete patching for G/OH_D(100), which echoes with the DFT calculation results. Broadway et al. reported significant variations in diamond surface carrier density depending on cleaning and termination methods49. Therefore, graphene patching on an OH-terminated surface is incompetent in enhancing shallow spin coherence. Although the occupied OH functional groups exhibit less unpaired spin noise, they tend to absorb various molecules, introducing other noise sources to the NV and leading to shorter coherence time compared to graphene-patched O-terminated samples.

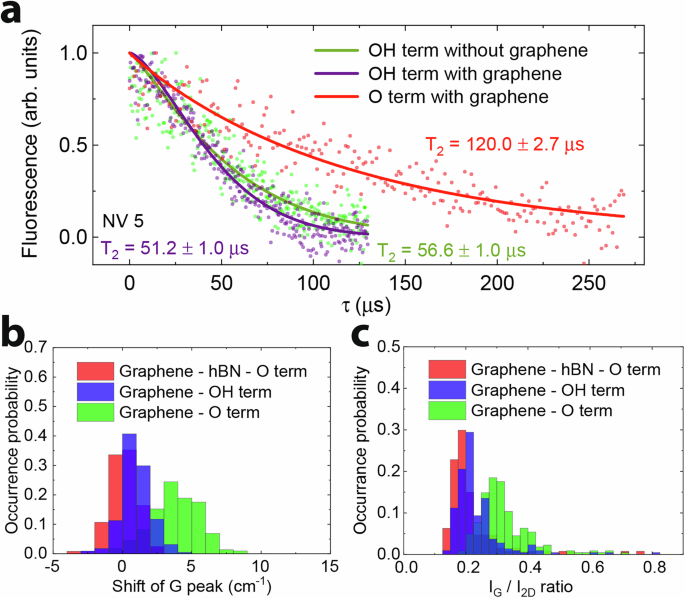

Fig. 5: Summary of T2 and Raman of OH-terminated diamond.
figure 5

a The Hahn-echo measurement of OH-terminated diamond. b A statistical trend of the relative G band shift of graphene on different interfaces. The graphene on the h-BN flake at 1584 cm−1 is set as the 0 shift reference. c A statistical trend of the relative intensity IG/I2D ratio change on different interfaces. The histograms are collected by mapping the Raman spectra over a large area of the heterojunction with around 200 data.

Full size image

Regarding patching materials, graphene, as a two-dimensional semi-metal, can shift its Fermi level to align with the contact material. Conversely, patching materials with a large band gap, such as h-BN (~5.6 eV), are ineffective as electron providers for pairing unpaired spins, showing no enhancement of coherence time under h-BN patching. Therefore, integrating data from Raman spectroscopy, DFT, and NV measurements, we conclude that both surface termination and patching material are crucial for our interfacial engineering, which reduces unpaired electrons on the diamond surface and extends coherence time.

Sensing demonstration—weakly coupled 13C

With greatly extended coherence time after our interfacial engineering, we study the sensitivity enhancement in shallow NV sensing. We first extend the coherence time further using CPMG dynamical decoupling techniques. In Fig. 6a, the coherent time T2 of the shallow NV center is further enhanced to above 1 ms. Our interface engineering method removes high-frequency electron noise on the surface, while the low-frequency noise from nuclear spins is filtered out by a dynamical decoupling sequence. We then analyze the theoretical magnetic field sensitivity of the shallow NV centers to illustrate the improvement in sensing applications. The AC magnetic field sensitivity in echo measurements is given by the following equations21,50:

$${\eta }_{a.c.}\approx \frac{\pi \hslash }{2g{\mu }_{B}}\frac{\sqrt{\tau+{t}_{overhead}}}{C\tau }{e}^{{(\tau /{T}_{2})}^{p}},$$
(5)
$$C=1/\sqrt{1+\frac{2({n}_{0}+{n}_{1})}{{({n}_{0}-{n}_{1})}^{2}}}.$$
(6)

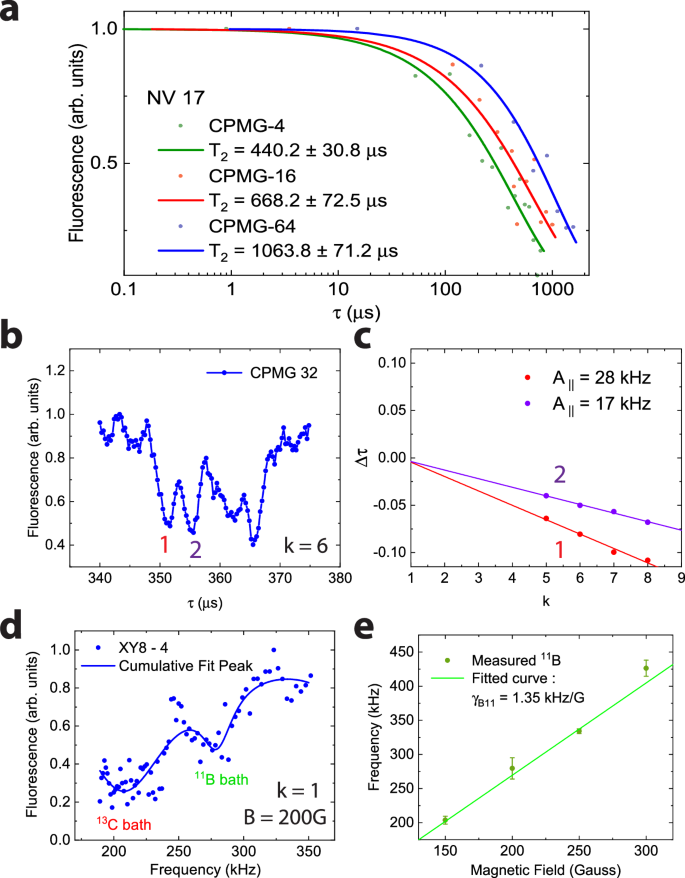

Fig. 6: Sensing of weakly coupled 13C and 11B spin bath by T2-enhanced shallow NV center.
figure 6

a CPMG sequences with different numbers of π pulses, N = 4, 16, 64, are applied to measure the coherence time of shallow NV centers in diamond. b Coherence as a function of total evolution time for a decoupling sequence CPMG-32. The sharp peaks in the coherence signal correspond to coherent interactions with individual weakly coupled 13C nuclear, where k = 6 is the order of the resonance. c The positions τk corresponding to the k-th order resonance peaks observed in (b). Δτ = τk/TL−(2k−1)/4 is the relative shift to the Larmor period TL, and the Δτ vs k confirms the resolution of weakly coupled 13C spin. The coupling constants are resolved to be A∥ = 17 kHz/G and A∥ = 28 kHz/G. d XY8-4 sequence applied to measure the decoherence signal of the 11B spin bath due to the h-BN capping layer (e), Tracking 11B bath signal in XY8-4 with varying magnetic field magnitude B = 150, 200, 250, 300 G. Error bars represent the linewidth from the peak fitting.

Full size image

Here, C represents the readout fidelity, which is calculated using the average photons (n0 and n1) of the spin states ms = 0 and ms = ±1. The typical value of C is 0.03 (100k counts/s and 30% contrast) when the NV centers are saturated7. Which toverhead is the overhead time of the pulse sequence, τ is the free evolution interval, and p is the fitted power of the exponent of the T2. Taking our recorded shallow NV center with the longest coherence time as an example, T2 enhanced from 212 to 522 μs, fitted parameter p = 2.1, and toverhead = 3 μs, the AC magnetic field sensitivity at its best working τ improved from 50 to 23 nTHz−1/2, resulting in a doubling of sensitivity, close to the best recorded AC magnetic field sensitivity of a single NV center in the bulk diamond, which has been reported to be 9 nT/Hz1/221. However, to achieve such sensitivity, required enriched 12C (99.998%) CVD growth diamond, which required a series of complex fabrication processes, while our device only required simple post-treatment. Upon the implementation of the CPMG-64 sequence, the sensitivity is further enhanced to 16 nTHz−1/2. By transferring graphene on nano-pillar51, photon collection rates can be substantially enhanced (>300k counts/s52), thereby increasing the C value and further improving sensitivity.

To gain further insights into how the reduction of surface electron noise benefits shallow NV centers in measuring weak magnetic signals, we demonstrate the measurement of weakly coupled 13C nuclear spins with our graphene-patched O-terminated sample. Although some research has shown sensing of weakly coupled 13C nuclear spins with a deep NV center in bulk diamond with coupling strength (ωh)  ~2π × 1−10 kHz53,54, the detection of weakly coupled 13C spins is limited in shallow NV centers due to constraints on their T2 times. With our interface engineering techniques, we demonstrated the observation of weakly coupled 13C with hyperfine strength (ωh)  ~2π × 28 kHz and 17 kHz with  ~17 nm shallow NV center at room temperature, which is comparable to the coupling strength sensed in bulk at cryogenic temperature with longer T1 of the NV electron spin54. This is a dramatic improvement followed by enhanced electron spin coherence time. Here we choose N = 32 of the CPMG-N sequence to analyze the weakly coupled 13C spin. We track the hyperfine peaks near the NV collapse for a few periods (k = 5, 6, 7, 8), and two 13C hyperfine peaks can be identified53, which is A∥ = 17 kHz and A∥ = 28 kHz, see Fig. 6b, c. The coupling constant can be calculated by:

$${A}_{\parallel }=\frac{(2k-1)\pi }{{\tau }_{k}}-2{\omega }_{L},$$
(7)

Where τk is the position of the hyperfine peak and ωL is the observed Larmor period.

The detection of weakly coupled nuclear spins using interfacially engineered shallow NV centers demonstrates their potential for developing a reporter spin network capable of sensing, coherent coupling, and imaging individual proton spins on the diamond surface with nanometer resolution55.

External sensing demonstration—11B in h-BN

The ability to detect external nuclear spins is of paramount importance for nanoscale quantum sensing, as it unlocks the study of spin environments beyond the host crystal—such as molecules, 2D materials, and biological systems. Measuring external spins, however, is significantly more challenging than detecting intrinsic spins like 13C, as it requires a high-quality shallow NV center with long coherence time (T2) to measure the weak magnetic signal on the diamond surface. Lovchinsky et al.56 achieved 11B detection using isotopically purified (12C) 5-nm-deep NVs with 150 μs T2, a feat demanding complex fabrication, including high-purity 12C crystal growth and precision ion implantation, and NV pre-selection. While with graphene patching NVs, we are able to sense weak nuclear spins with 2 times greater sensing depth (~10 nm) without any post-selection of the NV centers. To demonstrate our device’s ability to perform external spin-sensing, we perform the measurement of 11B nuclear spins in a few micrometers of h-BN sample transferred on top of our graphene-patched O-terminated sample, which we use as a capping layer to protect the heterojunction.

The gyromagnetic ratio of 11B is given by γB11 = 1.363 kHz/G. Therefore, the precession frequency of the 11B nuclear spin is given by fB11 = γB11B. With our T2-enhanced shallow NV center, we drive the XY8-4 sequence to sense the magnetic signal given by the 11B nuclear spin. We calculate the corresponding interrogation time of the 11B bath as:

$$\tau=\frac{(2k-1)}{2{\gamma }_{B11}B}{N}_{\pi }$$
(8)

where k is the order of resonance and Nπ is the number of π pulses in our sequence. In our study, we chose k = 1 and Nπ = 32. Therefore, for example, in Fig. 6d with 200 G, the corresponding interrogation time for the decoherence to occur is 58.7 μs, corresponding to 272 kHz. We measured 279 kHz in this magnetic field; the discrepancy can be explained by the linewidth of the measurement, which is shown as the error in the measurement. We then vary the magnetic field (B = 150, 200, 250, and 300 G) and measure the corresponding signal. We can then fit the line of the measured frequency against the magnetic field, and the fitted slope of the line is our measured γB11. The theoretical γB11 is given by 1.36 kHz/G, which is within the error of our measured γB11, which is 1.35 ± 0.01 kHz/G, see Fig. 6e.

Our results demonstrate that the enhanced sensitivity of the NV center enables external NMR measurements even with only an atomically thin graphene layer between the h-BN sample and the NV sensor.

Discussion

The interfacial engineering of shallow NV diamonds with graphene patching on O-terminated diamond represents a significant advance in the field of quantum sensing. By addressing the noise from surface unpaired spins, this method extends the coherence time of shallow NV centers to over 1 ms, nearing the T1 limit for NV centers. The use of Raman spectroscopy and DFT calculations to understand the role of diamond surface termination in triggering graphene charge transfer is particularly noteworthy. This approach not only achieves higher sensitivity but is also readily adapted to additional sensing applications. We have shown its ability to detect single weakly coupled 13C nuclear spins and external 11B from the capping h-BN.

For practical deployment in quantum sensing, many NV optimization methods face practical trade-offs between performance and experimental flexibility. To facilitate practical usage, the device must prioritize straightforward sample loading and exchange. To address the critical need for both high sensitivity and sample accessibility, we designed a new hetero-structure as a device that integrates h-BN with our graphene-diamond hetero-structure (Fig. 7). The acid-resilient h-BN protects the graphene from strong oxidation during the common triacid cleaning, preserving coherence-enhancing properties. Therefore, our h-BN-graphene-diamond device can be repeatedly cleaned and reloaded for a new target sample without removing the patching graphene. This allows our device to be reused without compromising the enhancement effect. It serves a robust platform for near field measurement in most sensing scenarios including bio, high pressure, material study as shown in Fig. 7. This work paves the way for future research to facilitate the study of dilute protein assemblies56,57, DNA58 and paramagnetic species59 with single NVs and provides potential detection of exotic two-dimensional magnetic materials and their interactions at the atomic level.

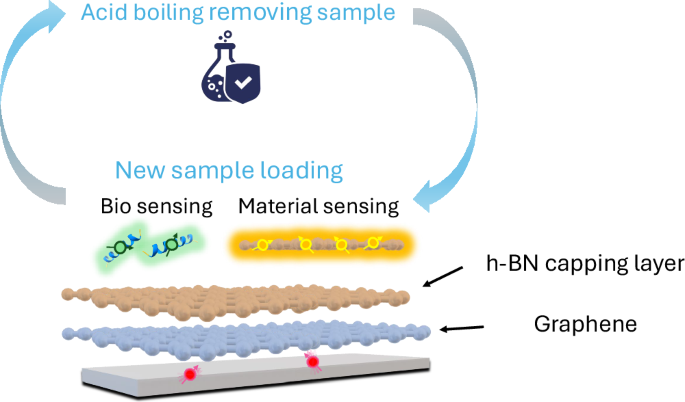

Fig. 7: Schematic diagram of h-BN-graphene-diamond hetero-structure as a sensing device.
figure 7

The h-BN-graphene-diamond hetero-structure can be repeatedly cleaned and reused for new experiments without removing the patching graphene.

Full size image

Methods

Graphene transfer process

The graphene is initially sandwiched between a sacrificial layer on top and a polymer layer at the bottom. The polymer layer is detached by floating the sacrificial-layer-graphene assembly in deionized water. Subsequently, the substrate (diamond or h-BN on diamond) is introduced into the deionized water, and the sacrificial-layer-graphene is positioned above it. The sacrificial-layer-graphene-substrate assembly is then air-dried for 30 min and annealed at 150 °C for 1 h. Following this, the device is stored under vacuum for a minimum of 24 h to enhance the attachment of the sacrificial-layer-graphene. To remove the sacrificial layer, the device is immersed in 50 °C acetone for 1 h, followed by immersion in isopropyl alcohol for an additional hour. The sample is then dried using nitrogen gas (N2) and is ready for subsequent measurements.

NV spectroscopy

All T2 measurements are performed under a 286 G external magnetic field, which is aligned to the 20 single NVs in the implanted diamond. The same NVs are used to compare their performance with and without graphene and are confirmed by using confocal scanning microscopy. The Rabi frequencies of the NV centers are fixed for a fair comparison (see Supplementary Note 1). The same 286 G external magnetic field and 7 NVs (NV 1, 2, 3, 5, 7, 16, and 17) are used in DEER measurements. After locating the resonant frequency of the unpaired electrons, DEER Rabi measurements are performed to further confirm the unpaired electron spin noise source60 and also to obtain the accurate time of flipping the unpaired electron spin (tπ), which allows us to perform DEER decay measurement (see Supplementary Note 1).

Raman spectroscopy

The Raman spectra were obtained by Renishaw inVia Qontor Spectrometer System. The data were obtained by a spectrometer with 600 lines/mm grating, 532 nm excitation, and a low power level (500 uW) to avoid any heating effect. The Raman spectra were then fitted with Gaussian functions. To obtain statistically meaningful data, Raman mapping was carried out in a region of 10 × 10 μm2 per sample by scanning along the x and y axes, thus providing around 200 independent probe spots.

Sample properties

For single NV centers in implanted diamond, a 6 nm p+ boron layer was first grown on the diamond and followed by a 9.8 keV 15N ion implantation at a dose of ~109 N/cm2 and subsequent annealing at 950 °C for 2 h. The boron-doped layer was then etched away by RIE O2 plasma, and in total, 16 nm of diamond were etched. This technique can further enhance the T2 by removing multi-vacancy qubits in the diamond10. NV is at a depth of ~5–20 nm below the diamond surface (see Supplementary Note 1). The diamond used in Raman measurements is the same implanted diamond sample.

A home-built confocal microscopy is used for NV measurements. The objective is Olympus UMPlanFl, 100x 0.95NA. The laser power is 2 mW.

Surface termination

The diamond sample is acid-boiled for oxygen termination(triacid boiling) and hydroxyl termination (piranha boiling) before graphene transfer and optical measurements. Triacid cleaning uses a mixture of concentrated perchloric, nitric, and sulfuric acids to provide a range of oxygen functional groups on the surface of the diamond sample23,47,61. This is verified by XPS measurement. (see Supplementary Note 2) The detailed procedures of the triacid boiling are performed according to previous work22. To create OH-terminated diamond, we use piranha solution (H2O2/H2SO4 mixture) to clean the diamond at 75 °C. With piranha cleaning, some dangling bonds of the diamond will be terminated by OH by forming C–OH47,62. It is confirmed with Attenuated Total Reflectance Fourier-transform infrared measurement as a stronger C–OH signal is observed when compared with the triacid cleaning method. (see Supplementary Note 2).

DFT calculation

DFT calculations were performed with the plane-wave pseudo-potential method implemented in the QUANTUM ESPRESSO package63. We used the Perdew-Burke-Ernzerhof64 exchange-correlation (xc) functional, and the D3 van der Waals65,66 corrections to model the long-range dispersion interactions. The kinetic energy cutoff for plane waves was 70 Ry. We used the SG15 Optimized Norm-Conserving Vanderbilt67,68 pseudo-potentials. For G/O_D(100), we did the spin-polarized calculation and used the Marzari-Vanderbilt smearing with a degauss value 10−4 Ry to broaden the occupation function near the Fermi level69.

A rectangular supercell of graphene containing 16 carbon atoms has the lattice dimensions of 2.46 and 17.05 Å. The lattice dimension of the square unit cell of the diamond (100) surface slab is 2.52 Å. To match the lattice of graphene, we used a (1 × 7) diamond supercell. We compressed the diamond lattice by 2.38% and 3.34%, respectively, to match that of graphene. The Dirac point of the rectangular graphene cell is located on the Γ → X path70. The diamond supercell contains 16 carbon layers. We used a Monkhorst-Pack k-point mesh of 8 × 1 × 1. We optimized structures using convergence criteria for energy and force of 10−5 Ry and 10−4 Ry/Bohr, respectively. There is a 20 Å vacuum between neighboring slabs with periodic boundary conditions, and we further applied the dipole correction71.
