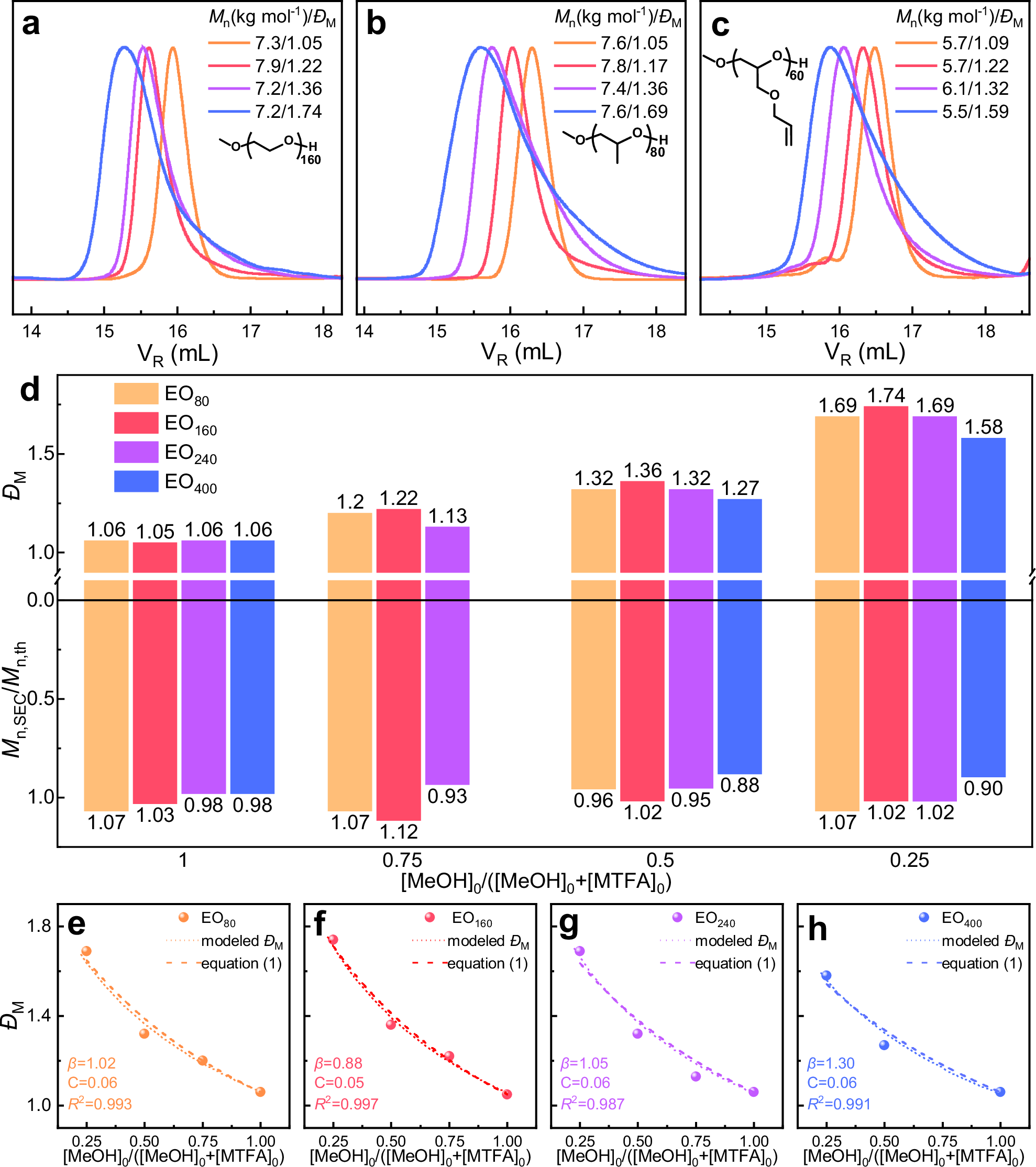

Fig. 2: Polyethers with dual control over molar mass and ÐM.
From: Dispersity-controlled ring-opening polymerization of epoxide
SEC traces of dual-controlled PEOs with DP of 160 (a EO1601–4), dual-controlled PPOs with DP of 80 (b PO801–4), and dual-controlled PAGEs with DP of 60 (c AGE601–4). d [MTFA]0/[MeOH]0 dependence of ÐM (top) and controlled number-average molar mass from SEC traces (bottom). e–h The fitting of experimental ÐM with the modeled ones and those from Eq. (1), the fitting parameters for modified Müller equation are on the left.
