Introduction

The periodic arrangement of atoms/ions/molecules within crystalline materials is the backbone of their diverse electronic, magnetic, and topological properties. Conventionally, crystalline materials are synthesized based on the principle of enthalpy minimization. However, in recent years, there has been a surge of interest in high-entropy materials that break this paradigm, where high configurational entropy drives structure formation1,2,3,4,5,6,7. Originally introduced for multicomponent alloys8,9, this concept was extended to oxide ceramics in 2015 by demonstrating the stabilization of Mg0.2Co0.2Ni0.2Cu0.2Zn0.2O in a rock-salt structure10. Since then, high entropy oxides (HEOs) have been synthesized with a variety of structures, such as fluorites (AO2−δ)11, perovskites (ABO3)12,13,14,15,16, spinels (AB2O4)17,18,19, and pyrocholores (A2B2O7)20,21,22, where at least one of the crystallographic sites is occupied by five or more elements in equal or nearly equal atomic fractions. Despite not all being entropy-stabilized5, these compositionally complex oxides (CCOs) exhibit interesting properties beyond their single element counterparts and hold potential for applications such as energy storage, catalysis, and microwave absorption, etc.23,24,25,26,27,28,29.

Local lattice distortions [Fig. 1a, b] in high entropy alloys (HEAs), a critical factor influencing their mechanical and physical properties, remain an open issue30. The presence of multiple sublattices adds further challenges in comprehending the interplay among disorder, distortions, and electronic/magnetic properties in CCO31. In conventional oxides with low disorder, distortions around individual cations are generally related to their ionic radii, coordination numbers, and oxidation states, which control electron hopping and magnetic exchange interaction strength. The local distortions around each cation within the disordered sublattice of CCO are expected to be highly variable and likely to deviate significantly from the average long-range structure probed by the diffraction technique. It is also necessary to determine the extent of this local distortion variation across neighboring elements and how it affects the material’s properties. To address these issues, we employ the extended X-ray absorption fine structure (EXAFS) technique, in conjunction with density functional theory (DFT) calculations. EXAFS is an element-specific method used to study the local chemical distribution (length scale up to ~5–6 Å) around particular atoms32,33,34. EXAFS spectra are specifically sensitive to the coordination number, bond distances, and atomic species surrounding the absorber, providing a relatively simple way to understand the local structural distortion. Interestingly, EXAFS studies have shown that the variation in cation-specific bond lengths is confined only to the first coordination shell in the case of rock-salt HEOs35,36. This work rigorously investigates the crucial influence of local structural distortions on the magnetic behavior of a spinel oxide within a compositionally complex setting.

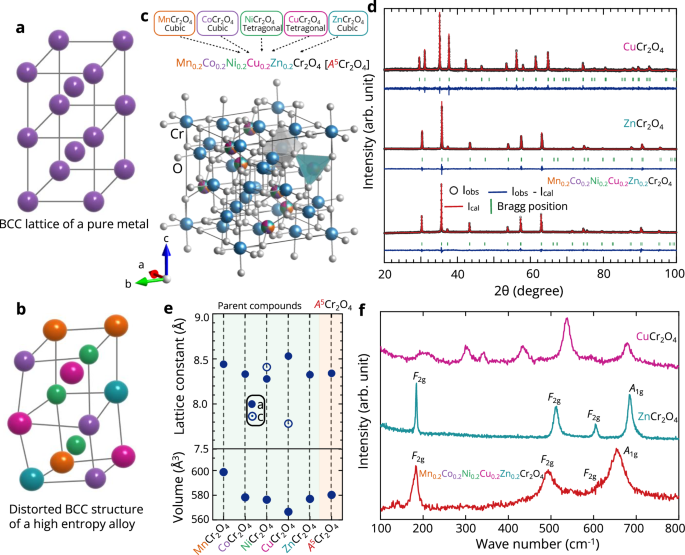

Fig. 1: Long-range structural characterization.
Fig. 1: Long-range structural characterization.
Full size image

Schematic to show (a) body centered cubic (BCC) lattice structure of a pure metal, and (b) a distorted BCC structure for a high entropy alloy with five different elements present in near equal fraction. c Schematic of A5Cr2O4 with cubic spinel structure having Cr at the octahedral site and A (= Mn, Co, Ni, Cu and Zn) at the tetrahedral site. d Rietveld refined XRD data for CuCr2O4 and ZnCr2O4 along with A5Cr2O4. e The lattice parameters for the parent compounds and A5Cr2O4 as obtained from the Rietveld analysis. The parameter a in the tetragonal phases of NiCr2O4 and CuCr2O4 have been multiplied by \(\sqrt{2}\) for ease of comparison. f Raman spectra of A5Cr2O4 has been compared with cubic ZnCr2O4 and tetragonal CuCr2O4. The allowed Raman modes for cubic and tetrogonal spinels are A1g+Eg+3F2g, and 2A1g+B1g+3B2g+4Eg, respectively46,47. In our experiments, we found 4 modes for cubic and 8 modes for tetragonal compounds.

The normal AB2O4 spinel consists of a diamond lattice formed by the tetrahedrally coordinated A site and a pyrochlore lattice formed by the octahedrally coordinated B site [Fig. 1c]. The spinel family has been extensively studied for over a century due to the observation of various phenomena, such as magnetic ordering, frustrated magnetism, orbital ordering, charge ordering, metal-insulator transitions, etc37. This study centers on the ACr2O4 family, a group of normal spinel compounds that display diverse low-temperature magnetic behaviors. Interestingly, their Curie-Weiss temperatures (θCW), ranging from -400 K to 200 K, directly correlate with the Cr-Cr separation38. In this work, we have synthesized (Mn0.2Co0.2Ni0.2Cu0.2Zn0.2)Cr2O4 (hereafter referred to as A5Cr2O4). The individual members MnCr2O4 and CoCr2O4 are cubic and become ferrimagnetic at Tc values of 41 K and 93 K, respectively39,40,41,42. Additionally, they exhibit multiferroic behavior below 18 K and 27 K39,40,41,42. Due to the Jahn-Teller activity of the Ni2+ and Cu2+ ions, NiCr2O4 and CuCr2O4 undergo cubic to tetragonal transitions below 310 K and 853 K, respectively. They transform into an orthorhombic phase at 65 K and 125 K, respectively, accompanied by a ferrimagnetic transition43. On the other hand, ZnCr2O4 is cubic at room temperature and exhibits an antiferromagnetic ordering transition below 12 K44.

In the present work, we probe the modification of the local structure of A5Cr2O4 compared to that of its five undoped counterparts (ACr2O4, A = Mn, Co, Ni, Cu, Zn) at room temperature. X-ray diffraction (XRD), Raman spectroscopy, and X-ray absorption spectroscopy (XAS) of the transition metal L3,2 edges confirmed the desired normal spinel structure of A5Cr2O4 with cubic symmetry. Our comprehensive EXAFS measurements and DFT based calculations revealed that the element-specific local structural distortions in A5Cr2O4 persist beyond the first neighbor. Interestingly, the Jahn-Teller distortions typically observed in the CuCr2O4 are absent in A5Cr2O4. Rather, CuO4 units are highly flexible to accommodate local distortions while maintaining a uniform long-range cubic structure. We further show that the near-identical Cr-O and Cr-Cr bond lengths in A5Cr2O4 and NiCr2O4 are responsible for their similar θCW.

Results

Synthesis and global structural symmetry

The synthesis of polycrystalline samples of five parent compounds ACr2O4 (A = Mn, Co, Ni, Cu and Zn) and A5Cr2O4 was carried out using a conventional solid-state synthesis route (details are provided in the Methods section). The powder XRD pattern of A5Cr2O4 at room temperature is compared with that of two parent members, tetragonal CuCr2O4 and cubic ZnCr2O4, in Fig. 1d. Similar to ZnCr2O4, the diffraction pattern of A5Cr2O4 can be indexed and refined with a normal spinel structure with cubic symmetry having a space group of \(Fd\bar{3}m\) (space group number: 227). The diffraction patterns and structural information obtained from the refinement of all six compounds are shown in the Supplementary Table 1 and Figure 1. The lattice constants and lattice volumes of five parent members and A5Cr2O4 at room temperature are shown in Fig. 1e. For comparison, the lattice constant a of the tetragonal members NiCr2O4 and CuCr2O4 is multiplied by \(\sqrt{2}\) (see Supplementary Fig. 2). The trend in lattice parameters and volume can be understood by considering the ionic radii of A2+ ions. The average ionic radii (0.592 Å) of the A-site for A5Cr2O4 are closer to those of Zn2+ (0.60 Å) and Co2+ (0.58 Å) [ionic radii of Mn2+: 0.66 Å, Ni2+: 0.55 Å, and Cu2+: 0.57 Å]45, leading to similar unit cell volumes of A5Cr2O4 and ACr2O4 (A = Co and Zn). Although NiCr2O4 is tetragonal, the Jahn-Teller distortion is very small at 300 K, and the unit cell volume is very similar to A5Cr2O4. It can also be inferred from Fig. 1e that the Mn and Cu ions are likely to experience internal stress (compressive for Mn and tensile for Cu) when introduced into A5Cr2O4, leading to local structural distortions.

The Raman spectrum of A5Cr2O4 has been further compared with cubic ZnCr2O4 and tetragonal CuCr2O4 in Fig. 1f. ZnCr2O4 shows F2g(1), F2g(2), F2g(3) and A1g modes at 185 cm−1, 511 cm−1, 604 cm−1, 684 cm−1, respectively, similar to earlier report46. Due to the lower symmetry, CuCr2O4 exhibits additional Raman modes47. The similarity between the Raman spectra of A5Cr2O4 and ZnCr2O4 further establishes its cubic symmetry. More significantly, we observe shifts and broadening of Raman modes, providing direct evidence of substantial lattice distortions within the compositionally complex A5Cr2O448, which we probe further in detail using element-sensitive EXAFS technique.

Transition metal valency and crystal field environment

Prior to investigating local distortions, we determine the location of cations within octahedral and tetrahedral sites. For this, we carried out element-specific XAS experiments on the L3,2 edges of transition metal ions because the XAS spectral line shape for the 2p63dn → 2p53dn+1 transition is strongly dependent on the valency, spin character of the initial state and crystal field environment of the system49. The XAS spectra for the L3,2 edges of Cr, Mn, Co, Ni, and Cu in A5Cr2O4, recorded in total electron yield mode, were compared with those of the corresponding parent compounds, as shown in Fig. 2a–e. In all parent ACr2O4 compounds, the cations A2+ occupy the tetrahedral site, while Cr3+ occupies the octahedral site37. It is evident from Fig. 2a–e that the spectra of Cr, Mn, Co, and Ni for A5Cr2O4 look exactly similar to the corresponding edges of the parent compounds50,51,52. Although the main features of Cu L3,2 XAS for A5Cr2O4 are quite similar to those of the parent CuCr2O4, the features at approximately 933.9 eV and 953.7 eV are more intense. This slight difference may be attributed to the differences in crystal field parameters due to the variation in local structures around Cu (demonstrated in the latter part of the manuscript). Overall, our XAS measurements confirmed that the compound has a normal spinel structure, similar to that of its parent counterparts. Figure 2f shows the expected spin configurations for each of the cations of A5Cr2O4, according to the oxidation state found by XAS. This is further corroborated by the Curie-Weiss analysis of magnetic susceptibility, which is discussed in the later section of the manuscript.

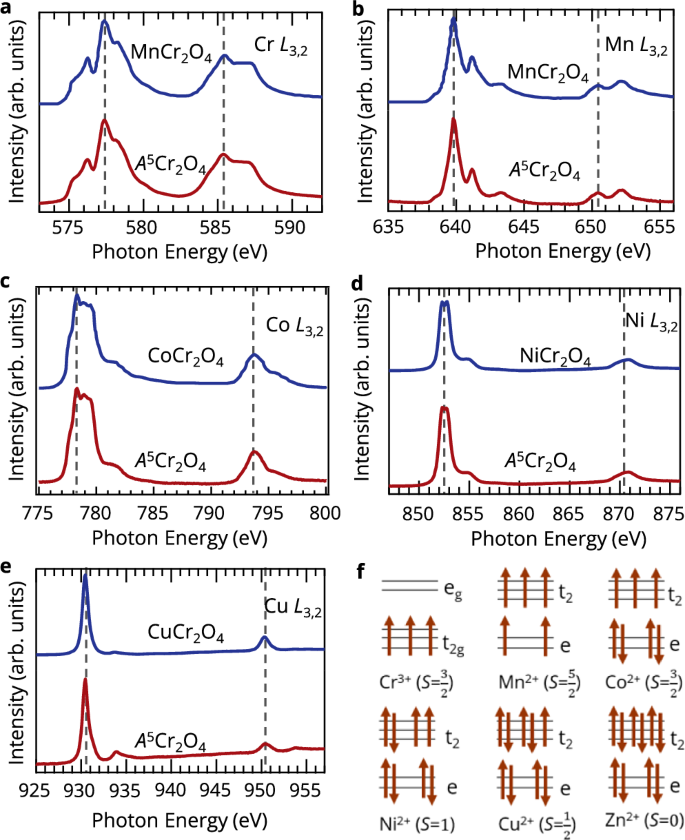

Fig. 2: Determination of oxidation state using X-ray absorption spectroscopy.
Fig. 2: Determination of oxidation state using X-ray absorption spectroscopy.
Full size image

a Cr L3,2 edge in MnCr2O4 and A5Cr2O4. b Mn L3,2 edge in MnCr2O4 and A5Cr2O4. c Co L3,2 edge in CoCr2O4 and A5Cr2O4. d Ni L3,2 edge in NiCr2O4 and A5Cr2O4. e Cu L3,2 edge in CuCr2O4 and A5Cr2O4. The spectra of Cr and Mn for MnCr2O4 is taken from ref. 51. The spectra of Co for CoCr2O4 is adapted from ref. 75. f Spin configurations of Cr, Mn, Co, Ni, Cu, and Zn cations in A5Cr2O4. The energy gap between t2g (t2) and eg (e) is not according to the scale.

Investigation of local distortions

To investigate the local structural distortions around each cation in A5Cr2O4, we analyzed EXAFS data for each of the metal K-edge in A5Cr2O4 as well as all the parent compounds (the details of experiment and data analysis have been provided in Methods section). Supplementary Fig. 3 displays XANES (X-ray absorption near edge structure) region of the K-edge XAS spectra, confirming octahedral coordination of Cr and tetrahedral coordination of A elements. The K edge EXAFS spectra are shown in Fig. 3. As anticipated, the Mn, Co, Ni, Cu, and Zn K-edge EXAFS features [Fig. 3(a)] are similar, but distinct from the Cr K-edge.

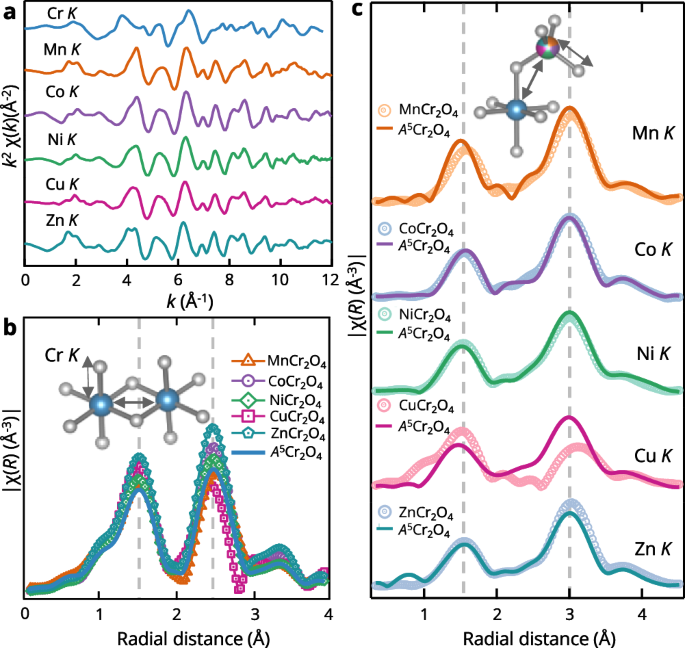

Fig. 3: Probing the local structure using EXAFS.
Fig. 3: Probing the local structure using EXAFS.
Full size image

a The k weighted EXAFS spectra in A5Cr2O4. The Fourier transform of the EXAFS spectra at (b) Cr K-edge and c A K-edges in the parent oxides and A5Cr2O4. Inset panels show the first and second nearest neighbor distances (b) for Cr, (c) for A site.

The Fourier transform (FT) of k2. χ(k) of Cr and A K-edges for each of the parent compounds and A5Cr2O4 are shown in Fig. 3b, c, respectively. The first peak at 1.55 Å in both Cr and A K-edge data suggests similar Cr-O and A-O distances. The second peak at 2.5 Å in Cr K-edge data corresponds to Cr-Cr distance, while the one at 3 Å in A K-edge data corresponds to A-Cr distance, implying different cation environments around Cr and the A cations. We also note that the real scattering distance shifts by approximately 0.5 Å as the phase shift in the Fourier transform remains uncorrected.

The FT of k2. χ(k) for Cr K in A5Cr2O4 [Fig. 3(b)] shows similar features like the parent compounds (except CuCr2O4). However, Fig. 3(c) reveals significant changes in local structures around Cu and Mn in A5Cr2O4 compared to CuCr2O4 and MnCr2O4, respectively. This is likely due to the difference in crystal symmetry (cubic vs. tetragonal) and lattice volume changes. Local structures around Co, Ni, and Zn in A5Cr2O4 are similar to their parent compounds, except for a slight change in Zn-Cr distance. To quantify all differences in local structures, we performed fittings for the Cr K edge and A K-edge (A = Mn, Co, Ni, Cu and Zn) spectra, as discussed below.

Local structure around Cr

For the Cr K-edge EXAFS, we employed a k range of 2 to 12 Å−1 and an R range of 1 to 3.7 Å for the fittings (see Fig. 4a, Supplementary Fig. 4, and Supplementary Tables 2–6). Based on structural symmetries from XRD, we employed a cubic structural model for EXAFS fittings of ACr2O4 (A = Mn, Co, Zn) and a tetragonal model for CuCr2O4. For NiCr2O4, although XRD showed tetragonal symmetry, the weak Jahn-Teller distortion and resulting subtle splitting were below the resolution limit of EXAFS and could not be reliably resolved. Therefore, a cubic model was adopted to obtain all bond lengths. For completeness, we have also included the comparison of fitting parameters using both cubic and tetragonal models for NiCr2O4 in the Supplementary Tables 3–4.

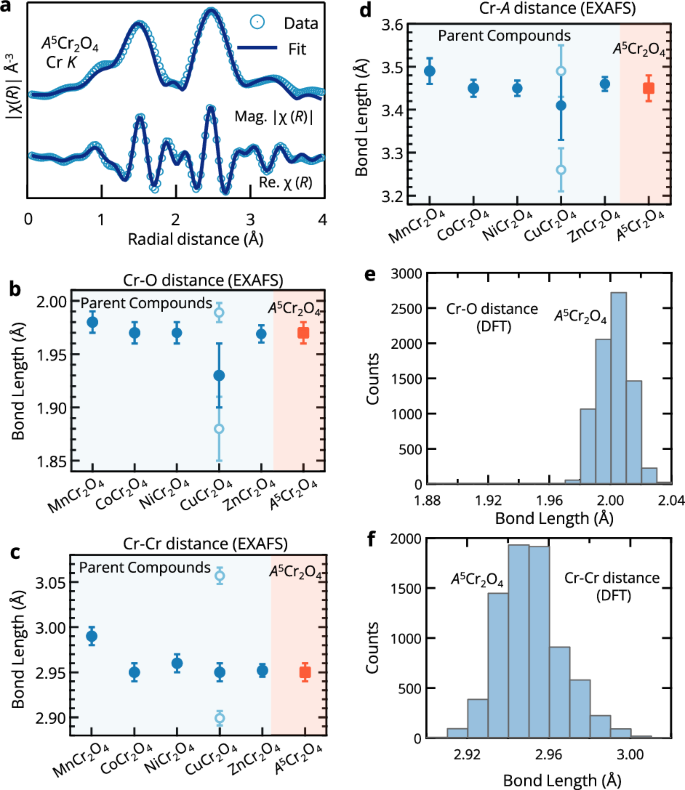

Fig. 4: Analysis of local structure in the octahedral environment.
Fig. 4: Analysis of local structure in the octahedral environment.
Full size image

a The Fourier transformed EXAFS spectrum along with the fitted data [the magnitude ∣χ(R)∣ and the real part Re. χ(R)] in A5Cr2O4. The bond distances between Cr and b first neighbor O, c second neighbor Cr and d third neighbor A ions as obtained from EXAFS fittings for every pristine chromite spinel and A5Cr2O4. Due to tetragonal distortion, CuCr2O4 displays two bond lengths (drawn as open circles), whose weighted average (denoted by the closed circle) is also plotted for the ease of comparison. The error bars represent the standard error of the mean in each bond length. Histogram plots for (e) Cr-O, and f Cr-Cr bond lengths, obtained from DFT calculations of 10 different disordered structures.

In the cubic model, the Cr site has 6 O as the first neighbor, 6 Cr as the second neighbor, and 6 A cations as the third neighbor. The bond lengths obtained from the EXAFS fittings have been shown in Fig. 4b–d, respectively. In the tetragonal structure, the six equivalent bond lengths split into two distinct groups: four with one distance and two with another. Therefore, for CuCr2O4, the weighted average (denoted by closed circles) is also plotted for easier comparison in Fig. 4b–d. From the analysis, we could infer that the bond distances Cr-O (1.97 Å), Cr-Cr (2.96 Å) and Cr-A (3.46 Å) in A5Cr2O4 are akin to that of CoCr2O4, ZnCr2O4 and NiCr2O4. Consistent with the difference in lattice constant, these bond lengths are higher in MnCr2O4. In addition, the average Cr-O and Cr-A bond distances of CuCr2O4 are lower than A5Cr2O4. Since two of the parent compounds NiCr2O4 and CuCr2O4 exhibit tetragonal structures at 300 K, we attempted to analyze the Cr K-edge EXAFS of A5Cr2O4 using tetragonal symmetry. However, this yielded unphysical fitting parameters (Supplementary Table 9), signifying the absence of local Jahn-Teller distortions around Cr.

To further examine any local Jahn-Teller like distortions around Cr, we performed DFT calculations on 10 supercells, each containing 448 atoms. These supercells were generated by randomly distributing 12 Mn, 13 Co, 13 Ni, 13 Cu, and 13 Zn atoms across the 64 A-sites, creating 10 distinct disordered structures (calculation details are in the Methods section). Histograms of Cr-O and Cr-Cr bond distances, derived from these calculations, are shown in Fig. 4e, f, respectively. While a narrow distribution of Cr-O bond distances  ~ (2.0 ± 0.02 Å) was observed, no Jahn-Teller distortions were found (our DFT calculations accurately capture Jahn-Teller distortions in CuCr2O4, as shown in Supplementary Table 9). The Cr-Cr bond distances also exhibit a distribution, with the peak position [Fig. 4f] closely matching the EXAFS-derived value for A5Cr2O4 [Fig. 4c]. However, EXAFS is limited in revealing precise distributional information due to its averaging of local environments around all Cr ions.

Local structure around A sites

To probe the local distortions around A-sites, we performed fittings for the A K-edge spectra (A = Mn, Co, Ni, Cu and Zn) in every parent compound and A5Cr2O4 in the k range of 2 to 14 Å−1 and the R range of 1 to 4.5 Å (details are in the Methods section, see Fig. 5a, Supplementary Fig. 4, and Supplementary Tables 2–6). Based on XRD results, either cubic or tetragonal symmetry was used for these fittings and all coordination numbers were also kept fixed. Fits with variable coordination numbers (see Supplementary Table 8 and section S2.3) corroborate the reliability of our fixed coordination number approach.

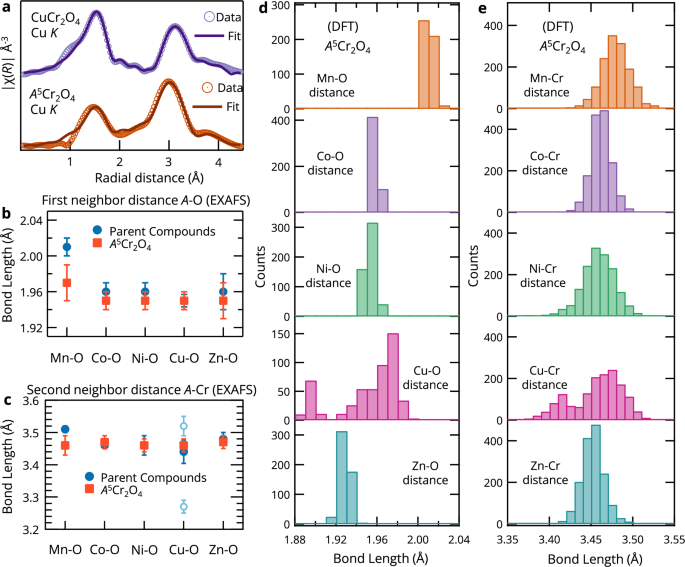

Fig. 5: Analysis of local structure in the tetrahedral environment.
Fig. 5: Analysis of local structure in the tetrahedral environment.
Full size image

The magnitude of the Fourier transformed EXAFS spectra along with fittings obtained at the (a) Cu K-edge in CuCr2O4 and A5Cr2O4. The bond lengths depicted in [b-c] are obtained from EXAFS fittings for every pristine chromite spinel and A5Cr2O4. In (c), due to teragonal distortion, CuCr2O4 displays two bond lengths between A and Cr cations (drawn as open circles), whose weighted average (closed circle) is plotted for the ease of comparison. The error bars represent the standard error of the mean in each bond length. Histogram plots for (d) first neighbor A-O, and e second neighbor A-Cr bond lengths, found from DFT calculations of 10 different disordered structures.

We first focus on the parent compounds. For the cubic MnCr2O4, EXAFS analysis indicates that Mn is coordinated with 4 O atoms at 1.99 Å, 12 O atoms at 3.32 Å, 12 Cr atoms at 3.50 Å, and 4 Mn atoms at 3.64 Å. Notably, the Mn-O bond distance, identified as the third neighbor by XRD, was found to be shorter than the Mn-Cr bond distance (second neighbor) in EXAFS fitting. We observe this trend across all six compounds, as well as in previous EXAFS studies53,54. This deviation in bond distances is likely due to the weak scattering contribution from O as a third neighbor, a consequence of its low atomic number. Therefore, the subsequent sections of this paper will primarily focus on the first-neighbor A-O and second-neighbor A-Cr distances. It should be noted that in cubic symmetry, A-Cr distances are equivalent to the Cr-A distances, which were independently determined from Cr K-edge EXAFS fitting. For tetragonal CuCr2O4, EXAFS analysis shows that the Cu atom is coordinated with 4 O at 1.95 Å in the first shell, 8 Cr at 3.52 Å, and 4 Cr at 3.26 Å in the second shell.

The EXAFS fittings of each A-site of A5Cr2O4 were performed considering cubic symmetry in accordance with the XRD result. Excellent fitting has been found for each case, including Cu K-edge [Fig. 5a] and Ni K-edge (Supplementary Fig. 4c). We have also attempted to fit Cu K EXAFS of A5Cr2O4 using tetragonal symmetry, similar to the parent compound CuCr2O4. However, such fitting results in unphysical parameters (Supplementary Table 9 in section S2.4), indicating the absence of tetragonal distortion, even locally. The comparison of each neighbor distance among the pristine members and doped compound reveals several interesting trends (Fig. 5b, d). The Mn-O distance in MnCr2O4 is the largest, attributed to its larger unit cell volume compared to other pristine materials. Notably, the first neighbor A-O distance of A5Cr2O4 depends on the specific element positioned at the A-site. The Co-O, Ni-O, and Cu-O distances are very similar, whereas Mn-O and Zn-O distances differ. Also, all the A-O bond distances are smaller than those in the corresponding parent ACr2O4, indicating that these local variations are not simply due to changes in the overall crystal volume. Furthermore, second neighbor A-Cr distances [Fig. 5c], determined from A-site EXAFS in A5Cr2O4, vary mildly with the specific A cation.

Next, we discuss the bond lengths at the A site in A5Cr2O4 based on DFT calculations. The histogram plots for the first neighbor A-O distances and the second neighbor A-Cr distances are presented in Fig. 5d, e, respectively. Despite considering ten different disordered structures in our calculations, the distances for Mn-O, Co-O, Ni-O, and Zn-O do not show any statistical distribution, suggesting well-defined bond lengths. In contrast, the Cu-O bond distances display a broad range of values. Notably, the trends observed for the A-O bond distances closely align with our EXAFS results, with Mn-O being the longest and Zn-O the shortest. Interestingly, the second neighbor distances for Mn-Cr, Co-Cr, Ni-Cr, and Zn-Cr also show a distribution, as illustrated in Fig. 5e. The peak positions of these distributions are similar to the Cr-A distances obtained from EXAFS, shown in Fig. 5(c). Furthermore, the distribution width for Cu-Cr bonds is significantly broader compared to the other A-Cr bonds. This finding corroborates our EXAFS analysis, which revealed a higher σ2 (mean squared variation of bond length) for Cu-O and Cu-Cr distances compared to other A-O and A-Cr bonds (see Supplementary Fig. 5).

Accommodation of local distortions

Our EXAFS and DFT analyzes demonstrate that element-specific structural distortions in A5Cr2O4 extend beyond the first coordination shell of the A sites. Notably, the broad distribution of Cu-O bond distances, alongside specific values for other A-O distances, highlights the crucial role of the highly flexible CuO4 tetrahedral units in accommodating these local distortions. Consequently, this flexibility influences other bond distances: the connection between CuO4 and CrO6 unit via a common oxygen (inset of Fig. 3(c)) leads to a broad Cu-Cr distance distribution, while Cr-O and Cr-Cr distances show narrower distributions without Jahn-Teller distortion. Additionally, the connectivity of each CrO6 octahedron to five AO4 units (A = Mn, Co, Ni, Cu, Zn) contributes to the narrower distributions of other Cr-A bond lengths.

Correlation between structural distortions and magnetic interaction

The bond lengths are expected to play a crucial role in comprehending the strength of magnetic interactions in ACr2O4 spinels. The theory of ground state magnetic configuration of cubic AB2O4 is very often described by the following Hamiltonian with classical Heisenberg spins considering B-B, and A-B exchanges, initially proposed by Lyons, Kaplan, Dwight, and Menyuk37,55,56.

$$H=2{J}_{AB}{S}_{A}{S}_{B}\left({\sum }_{\langle ij\rangle }^{A,B}\overrightarrow{{\sigma }_{i}^{A}}.\overrightarrow{{\sigma }_{j}^{B}}+\frac{3u}{4}{\sum }_{\langle ij\rangle }^{B,B}\overrightarrow{{\sigma }_{i}^{B}}.\overrightarrow{{\sigma }_{j}^{B}}\right)$$
(1)

The sums are over nearest-neighbor A-B and B-B pairs and the parameter u = \(\frac{4{J}_{BB}{S}_{B}}{3{J}_{AB}{S}_{A}}\) and \(\overrightarrow{{\sigma }_{j}^{\alpha }}=\overrightarrow{{S}_{j}^{\alpha }}/{S}_{j}^{\alpha }\) with α=A and B. The interaction within the diamond sublattice (JAA) has also been claimed to be important in recent studies57,58. In chromite spinels, the magnetic interaction between two Cr is a direct exchange and thus depends strongly on the Cr-Cr distance57. The superexchange between A and Cr is mediated through interconnecting oxygen, and the strength will depend on the bond lengths A-O and Cr-O, A-O-Cr bond angle, and the electronic configuration of A site ions. Surprisingly, the θCW, which is a measure of molecular field and considered as an approximate indicator of the strength of mean-field magnetic interaction between the ions59, directly correlates with the Cr-Cr distance38. Thus, we have focused on finding out the relation between θCW and the bond lengths at 300 K obtained from the EXAFS analysis.

The temperature-dependent magnetic susceptibility [χ=M/H] for A5Cr2O4, measured under a magnetic field (H) of 5000 Oe in field cooled condition has been depicted as an inset of Fig. 6(a). We found a magnetic transition around 41 K. The main panel represents the fitting of the inverse of dc susceptibility at high temperature using molecular field theory of a ferrimagnet60.

$${\chi }^{-1}=\frac{T-{\theta }_{CW}}{{C}_{A}+2{C}_{B}}-\frac{{C}^{{\prime\prime} }}{T-{\theta }^{{\prime} }}$$
(2)

The first term is the hyperbolic high-temperature linear part with a Curie-Weiss form, where CA and CB correspond to Curie constants related to the two magnetic sublattices MA and MB, respectively. θCW is the Curie-Weiss temperature. The second term is the hyperbolic low-T asymptote, where C″ and \({\theta }^{{\prime} }\) are constants akin to different Weiss coefficients that represent the inter and intrasublattice interactions. From this fitting, we have obtained a Curie-Weiss temperature of θCW = -432 K and the effective magnetic moment of 6.33 μB/f.u. using the formula μeff = \(\sqrt{\frac{3{K}_{B}({C}_{A}+2{C}_{B})}{{N}_{A}}}\)61, where KB is Boltzmann’s constant and NA is Avogadro’s number. Interestingly, μeff is very similar to the expected value of 6.26 μB/f.u., calculated by considering the average magnetic moments of A2+ (A = Mn, Co, Ni, Cu; Zn2+ is nonmagnetic) and Cr3+ of A5Cr2O4 (μeff = \(\sqrt{2{\mu }_{{{\rm{Cr}}}}^{2}+{\mu }_{A}^{2}}\)). The most surprising finding is that despite having a series of magnetic interactions [Cr-A and A-\({A}^{{\prime} }\) with A, \({A}^{{\prime} }\)= Mn, Co, Ni, Cu], the θCW of A5Cr2O4 is comparable to NiCr2O443 (also see Supplementary Fig. 6) and MnCr2O457. The effective magnetic moment also closely resembles NiCr2O4 (6.64 μB/f.u.). These findings also indicate that the net magnetic interaction, felt by a magnetic ion in CCO, can be treated using a mean-field approach.

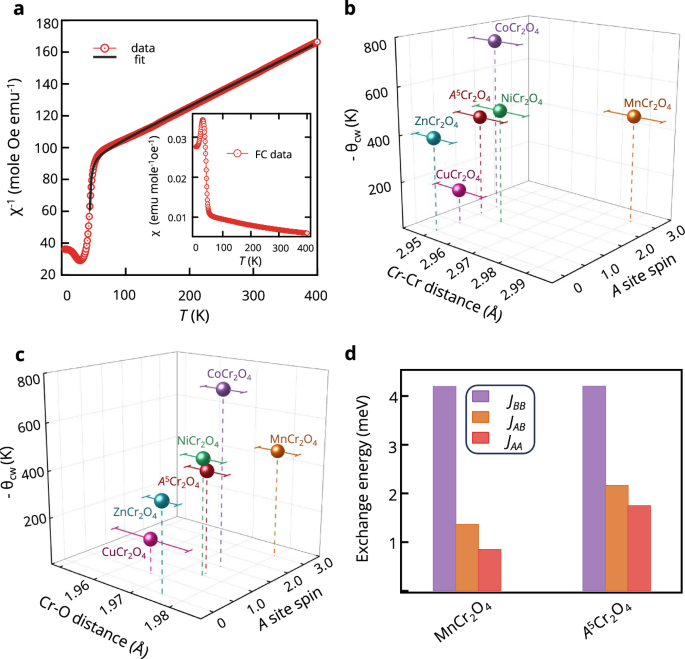

Fig. 6: Magnetic characterization and its connection with local structure.
Fig. 6: Magnetic characterization and its connection with local structure.
Full size image

a Fitting of inverse magnetic dc susceptibility using Curie-Weiss equation above TN in A5Cr2O4 at 5000 Oe. Inset features field cooled (FC) dc susceptibility as a function of temperature. b The Curie-Weiss temperature -θCW is plotted as a function of Cr-Cr bond distance and A-site spin. c -θCW is plotted as a function of Cr-O bond distance and A-site spin. Both plots include data for the parent oxides and the A5Cr2O4. The error bars represent the standard error of the mean in each bond distance. d A comparison of the magnetic exchange interaction energy between two Cr cations (JCrCr), between Cr and A (JACr), and between two A cations (JAA) in MnCr2O4 and A5Cr2O4.

To understand the effect of local distortions on magnetism, ∣θCW∣ for all six compounds have been plotted as a function of EXAFS derived bond lengths and the A-site spin value in Fig. 6(b), (c). The θCW of the parent compounds ACr2O4 is obtained from refs. 43,57,62 and an average of A-site spin (SA = 1.1) for A5Cr2O4 has been considered for these plots. The Cr-Cr bond length (Fig. 6(b)) is considered as it corresponds to the Cr-Cr direct exchange. The Cr-O bond length is also plotted in connection with the A-O-Cr superexchange path (Fig. 6(b)). While the A-O bond length also plays a role in A-O-Cr superexchange strength, we were unable to create a similar plot for A-O bond lengths because this distance depends on the specific atom occupying the A-site in A5Cr2O4. The θCW of A5Cr2O4 is closer to the value of NiCr2O4 and MnCr2O4. We have further evaluated the mean-field magnetic exchange parameters from our magnetization data, following the process described in Ref. 57 (see Supplementary section S4). The exchange interaction parameters JBB (interactions between two Cr3+), JAB (between A2+ and Cr3+), and JAA (between two A2+ cations) have been compared in Fig. 6d. The exchange parameters for MnCr2O4 have been adapted from Ref. 57. Interestingly, the JBB interaction shows almost no difference between these compounds. However, the JAB and JAA values for A5Cr2O4 are higher than those of MnCr2O4. The extraction of these Js using equation 2 is not possible for NiCr2O4 due to an anomaly in the magnetic susceptibility at the cubic-to-tetragonal transition  (~ 315 K, see Supplementary Fig. 6). However, Fig. 6b, c clearly demonstrate the close similarity between A5Cr2O4 and NiCr2O4 in terms of key parameters like Cr-Cr distance, Cr-O distance, and A-site spin and θCW. This strong resemblance highlights the crucial role of local bond lengths around the Cr ions in determining the mean-field magnetic interactions within A5Cr2O4.

Our DFT calculations also show that the local Cr moment increases with Cr-Cr and Cr-A distances (Supplementary Fig. 7). This indicates that the moments become more localized as they are placed further away. A more rigorous analysis of the connection between structure and magnetism may be obtained from the variation of the magnetic exchange parameters63. The extraction of pairwise exchange parameters for such a complicated disordered system is a highly non-trivial task and will be attempted to be done in the near future.

Discussions

We have synthesized a compositionally complex spinel oxide A5Cr2O4, with Cr3+ ions occupying the octahedral site and a uniform distribution of A2+ (A = Mn, Co, Ni, Cu, and Zn) ions in the tetrahedral site. Our investigation of the local structure employing element-specific EXAFS analysis and DFT calculations with various disordered configurations reveals several unique features that distinguish it from previously reported high entropy oxides. Unlike HEOs with rock-salt structures35,64, where local Jahn-Teller distortions around Cu2+ ions are typically preserved, our study reveals a complete absence of such distortions in A5Cr2O4. In contrast to other HEOs, where local distortions are limited to the first nearest neighbors of the doped cations35,36, in the present study, A5Cr2O4 exhibits variation in local distortions extending beyond the first neighbors. Despite a broad distribution of Cu-O bond distances, other A-O distances acquire specific values, implying the high flexibility of CuO4 tetrahedral units to maintain an overall cubic structure by adjusting their positions. Such adjustment also leads to a broad distribution of second neighboring Cu-Cr distances and a narrow distribution of other A-Cr, Cr-Cr and Cr-O bond lengths. Despite substantial local distortions, the mean-field magnetic interaction energies of A5Cr2O4 are remarkably similar to those of NiCr2O4 due to their closely matched average A-site spin value, as well as their average Cr–O and Cr–Cr bond lengths.

Unveiling the temperature dependence of A5Cr2O4’s long-range and local structures presents a compelling avenue for future research as some of the constituent members undergo structural transitions below room temperature43. Future investigations into the spin arrangements and potential multiferroic phases are warranted. Furthermore, we believe that our approach, which compares EXAFS analysis of CCO with the constituent parent members along with the DFT calculations for a set of disordered configurations, would be a powerful tool for revealing subtle details regarding structural modifications in other compositionally complex materials.

Methods

Sample synthesis and characterizations

Polycrystalline samples of five parent compounds ACr2O4 (A = Mn, Co, Ni, Cu and Zn) were synthesized by conventional solid-state synthesis with a stoichiometric amount of Cr2O3 and AO. The first heating was carried out at 900 °C, followed by a second heat treatment at 1300 °C with intermediate grindings. The annealing of MnCr2O4 and CuCr2O4 was performed in argon and oxygen atmosphere, respectively, while the rest of the compounds were heated in air. The A5Cr2O4 was synthesized in a similar route in the air. The sample purity of all samples was checked by powder XRD using a laboratory-based Rigaku Smartlab diffractometer. The final XRD patterns were further refined by the Rietveld method using the FULLPROF suite65. Temperature-dependent magnetization measurements were carried out in the range of 5 K to 400 K using a commercial SQUID-VSM MPMS from M/s Quantum Design, USA.

Spectroscopy

All spectroscopic experiments were carried out at ambient temperatures. The Raman spectra were recorded using a Confocal Photoluminescence Raman Spectro Microscope. Data were collected using 532 nm laser and 1800 rules/mm grating in 100–800 cm−1 wavenumber range. XAS spectra for L3,2 edges of Cr, Mn, Co, Ni, Cu of the A5Cr2O4 were recorded in total electron yield mode at the beamline 4.0.2 of the Advanced Light Source, USA. Ni L3,2 edge of NiCr2O4 and Cu L3,2 edge of CuCr2O4 were also measured.

EXAFS measurements for all transition metal K-edge for all five parent compounds and A5Cr2O4 have been performed at the P65 beamline, PETRA III Synchrotron Source (DESY, Hamburg, Germany) and at beamline 20-BM of the Advanced Photon Source, USA. For these transmission mode experiments, the absorbers were prepared by uniformly coating fine powders on scotch tape. The incident and transmitted photon energies were recorded simultaneously using gas ionization chambers as detectors. For each K edge, at least three scans were taken to average the statistical noise. All EXAFS data presented in this manuscript were acquired during the same beamtime at the P65 beamline. Therefore, the experimental setup was identical for all parent ACr2O4 and A5Cr2O4 samples.

EXAFS analysis details

The analysis was conducted using well-established procedures from the DEMETER Suite66. The spectra for each transition metal edge were calibrated with the corresponding standard metal foils. In pristine ACr2O4 oxides, we performed fittings for the A K-edge spectra (A = Mn, Co, Ni, Cu, and Zn), using a k range of 2 to 14 Å−1 and R range of 1 to 4.5 Å. For the Cr K-edge, we employed a k range of 2 to 12 Å−1 and an R range of 1 to 3.7 Å for the fittings. To prevent interference from the adjacent absorption edge in A5Cr2O4, we truncated the spectra above 12 Å−1 in k-space. The fittings were performed in the k range of 2 to 11 Å−1 and R range of 1 to 3.7 Å in all six edges (see Figs. 4a, Fig. 5a, Supplementary Fig. 3, and Supplementary Tables 2–6). In our fitting process, we primarily considered the following parameters: coordination number (N), amplitude reduction factor (\({S}_{0}^{2}\)), energy shift (E0), the change in bond length (ΔR), and the mean squared displacement (σ2).

For the A K edge fitting in cubic ACr2O4 (A = Mn, Co, Ni, Zn), we utilized four paths associated with the direct scattering: the first neighbor A-O, the second neighbor A-Cr, the third neighbor A-O, and the fourth neighbor A-A. The parameters \({S}_{0}^{2}\) and E0 values were obtained from the analysis of the standard metal spectra. The parameter \({S}_{0}^{2}\) was varied while E0 was kept fixed to the value obtained from the standard metal spectra. As a result, we had four values for ΔR, four values for σ2, one value for \({S}_{0}^{2}\), and one value for E0, totaling ten parameters. For the Cr K fitting, we focused on three coordination shells: Cr-O, Cr-Cr, and Cr-A. Using a similar approach, we employed a total of eight parameters for this fitting. It is important to note that the AK and Cr K fittings were conducted separately, and the parameters used in the two fittings are not correlated.

In CuCr2O4, at the Cu K edge, the Jahn-Teller distortion leads to splitting in the second and third coordination shells of Cu-Cr and Cu-O respectively. Hence, two different values for ΔR and σ2 were used within a single shell for both of these paths. As a result, six paths involving direct scatterers were used in the fitting, compared to four paths in the cubic phase. This change increased the total number of parameters from ten in the cubic phase to fourteen in the tetragonal phase. For the Cr K edge, the Jahn-Teller distortion causes splitting in all three coordination shells: Cr–O, Cr–Cr, and Cr–Cu. Here, we used six paths in the fitting, instead of three in the cubic phase, which increased the number of total parameters from eight to fourteen.

The coordination number N was kept fixed during the analysis. All parent compounds are normal spinels, ruling out any site occupancy disorder between the A (tetrahedral) and Cr (octahedral) site (second neighbors). However, we did try fittings by varying the coordination numbers of the first shell (A–O and Cr–O). Although a small deviation from the stoichiometric value was observed, this deviation was consistent between all the parent compounds and the compositionally complex A5Cr2O4 (Supplementary Table 8 in section S2.3). Furthermore, the coordination numbers obtained from fitting agree with the stoichiometric values within the statistical error of the fit. Given the excellent agreement between the magnetic properties of our parent compounds and previously published results, we attribute these small deviations in oxygen coordination number to the inherent resolution limitations of EXAFS fitting.

In A5Cr2O4, our XAS measurements and XANES spectra confirm a normal spinel structure. These confirm the presence of all A (Mn, Co, Ni, Cu, and Zn) cations at the tetrahedral site, similar to all the parent compounds. Therefore, Cr was modeled in octahedral site and the A ions in tetrahedral site for the EXAFS fitting. For the fitting of the A-site EXAFS in A5Cr2O4, we chose the \({S}_{0}^{2}\) value determined from the fitting of the corresponding A-site in the parent compound ACr2O4. In line with the spinel structure, we considered the following direct scattering paths for the A K absorber: first neighbor pair A-O (coordination 4), second neighbor A-Cr (12), third neighbor again A-O (12), and fourth neighbor A-A (4). In this compound, there is a potential presence of five A elements (Mn, Co, Ni, Cu, and Zn) in the fourth coordination shell with a total coordination number of 4. For instance, in the Co K EXAFS, we have the fourth neighbor pairs as Co-Mn, Co-Ni, Co-Cu, Co-Zn, and Co-Co. Hence, in the fittings of every A K edge we used all the five pairs as fourth neighbors each with a coordination of 0.8.

In the Cr K EXAFS fitting of A5Cr2O4, we allowed \({S}_{0}^{2}\) to vary. We used the following direct scattering paths: the first neighbor pair Cr–O (6), the second Cr–Cr (6), and the third Cr-A (6). In this case, the third neighbor, Cr-A, has a coordination number of 6, and five A elements can be present. Hence, we considered the pairs Cr–Mn, Cr–Co, Cr–Ni, Cr–Cu, and Cr–Zn, each of which with a coordination of 1.2.

In addition, we checked with various combinations of elements and coordination at the A site as the fourth neighbor from A and third neighbor from Cr (Supplementary Table 8). Furthermore, the multi-edge analysis was also conducted (Supplementary Table 7) finding no significant variations in the bond lengths, reported within the main text.

DFT calculations

A cubic spinel structure of A5Cr2O4 was utilized to generate ten different random oxide supercells of 2 × 2  × 2 dimensions, consisting of 448 atoms (64 A, 128 Cr, and 256 O atoms). To form the random distribution, 12 Mn, 13 Co, 13 Ni, 13 Cu, and 13 Zn atoms were distributed among the 64 available A sites. Each of the ten random oxides was created by randomly rearranging the A sites while keeping the number of each type of atom constant We conducted structural optimization using the Vienna Ab initio Simulation Package (VASP) based on plane wave basis set and projector augmented wave pseudopotentials67,68. The POSCAR files of the ten different structures have been supplied as a separate file along with the manuscript. The exchange-correlation potential was described using the generalized gradient approximation (GGA) with the Perdew, Burke, and Ernzerhof (PBE) functional69. A static Hubbard correction was effectively applied to account for localized Coulomb interactions in highly correlated 3d transition metals, following the Dudarev approach70. The Ueff values were set to 4.0, 3.0, 5.0, 8.0, 8.0, and 3.0 eV for Mn, Co, Ni, Cu, Zn, and Cr, respectively, in line with the reported values for transition metal oxides71,72,73,74. This setup resulted in a good agreement in bond lengths between experimental data and DFT calculations. For Brillouin zone integration, a Gamma-centered 1 × 1 × 1 k-point grid was employed. The lattice constants were considered  based on experimental results. The equilibrium atomic positions were obtained via energy minimization, employing the conjugate gradient method until the force components on each atom fell below 0.01 eV/Å.
