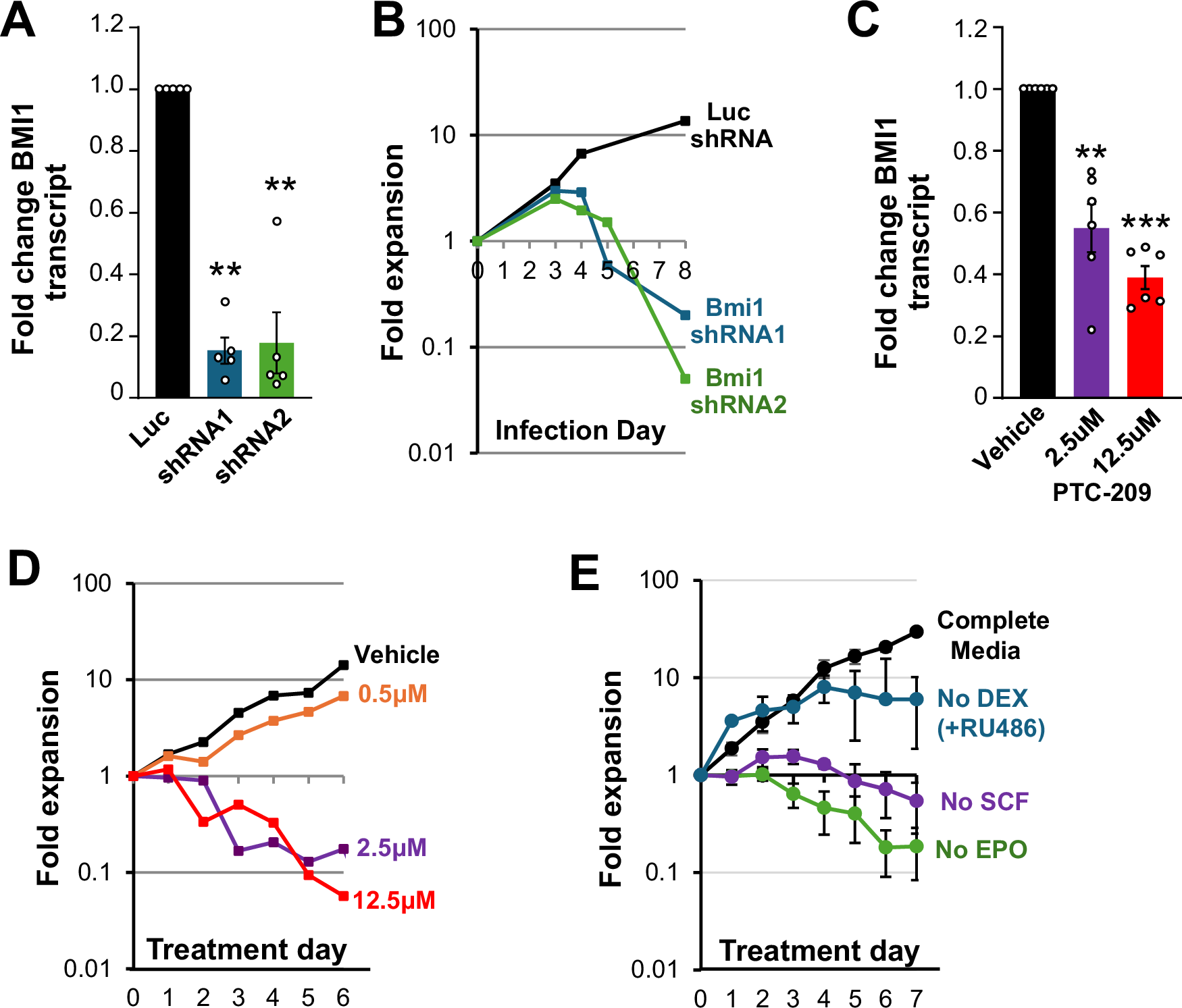

Fig. 4: BMI1 regulates the self-renewal of human SREs.
From: BMI1 regulates human erythroid self-renewal through both gene repression and gene activation
A shRNA knockdown of BMI1 decreases BMI1 transcript levels compared to control luciferase shRNA culture. 3 independent iSRE cultures derived from 3 donors, mean ± SEM. p-value was calculated based on one-tailed Student's t-test. **p < 0.01. B shRNA knockdown of BMI1 leads to rapid collapse of iSRE cultures. Representative example shown, 3 independent iSRE cultures derived from 3 donors. C PTC-209 inhibition of BMI1 for 24 hours decreases BMI1 transcript levels compared to vehicle-treated controls. 3 independent iSRE cultures derived from 3 donors, mean ± SEM. p-value was calculated based on a one-tailed Student's t-test. **p = 0.010. ***p = 7.8e-6. D PTC-209 treatment leads to a dose-dependent inhibition of iSRE self-renewal. Representative example shown of 3 independent iSRE cultures, derived from 3 donors. E iSRE self-renewal remains dependent on the continued presence of exogenous erythropoietin (EPO), stem cell factor (SCF), and Dexamethasone (Dex). 6 independent iSRE cultures from 3 donors, mean ± SEM. All experiments were conducted with iSREs between expansion days 25 and 35. Source data are provided as a Source Data file.
