Introduction

Most earthquakes occur along subduction zones at convergent plate boundaries, where tectonic plates collide and one plate sinks beneath another. Among these events, intermediate-depth earthquakes are defined as those occurring between 70 and 300 km depth range1,2. Although intermediate-depth earthquakes generally pose lower seismic hazard than shallower events, these events can still produce destructive ground accelerations3,4, potentially resulting in substantial fatalities and extensive economic losses5. An example is the Mw7.8 1939 Chillán intermediate-depth earthquake6, which tragically led to a larger loss of life in Chile than any of the megathrust events on record. An improved understanding of the rupture behavior and maximum magnitude of intermediate-depth earthquakes is thus imperative for seismic hazard assessment.

For most subduction zones, intermediate-depth seismicity forms upper and lower (double) seismic planes inside the slab7,8,9. To explain the stresses in these planes, forces including slab pull10 and the flexure of the subducted lithosphere11 have been proposed, where unbending of slabs can lead to downdip compressional and tensional stress within the upper and lower plane, respectively. However, given that the pressure and temperature at intermediate-depths exceed those typical of the brittle-ductile transition12, the physical mechanism for shear faulting remains unclear. There are two major hypotheses: the embrittlement of rock caused by slab dehydration, where water released from the subducting plate increases fluid pressure and causes the surrounding rock to fracture1,13, and thermal runaway, an instability where shear heating softens rock, creating a feedback loop of focused strain that culminates in rapid slip14,15. Observational efforts to test these hypotheses have typically focused on seismicity distributions9,16,17, whereas studies examining rupture properties have revealed characteristics including relatively high stress drops, fast rupture velocities, and a systematic decrease in aftershock productivity with increasing depth, which may be influenced by slab dehydration18,19,20. However, the rupture extent of large intermediate-depth earthquakes, their local temperature and mineral compositions, and their interaction with the double seismic zone, remain poorly constrained. This limits our capability to test the physical boundaries of the proposed source mechanisms including dehydration embrittlement and thermal runaway.

On July 19, 2024, an earthquake of Mw 7.4 struck Northern Chile near Calama, named here the 2024 Calama earthquake. This event occurred within the oceanic lithosphere where the Nazca plate subducts beneath South America. In the region, other similarly large intraplate, intermediate-depth events have been reported, the Mw 8.0 Calama 1950 and Mw 7.8 Tarapacá 2005 events (Fig. 1)6. The 1950 earthquake occurred almost at the same longitude but a few tens km to the South from Calama 2024 (Fig. 1), albeit with location uncertainty of 50-100 km21. Its rupture was constrained by analog teleseismic data only, indicating a normal faulting focal mechanism with poor constraints on rupture dynamics21. The 2005 Tarapacá event occurred further north with a subhorizontal rupture19,22,23. Cabrera et al. 20 noted that deeper events located at elevated temperatures present relatively fewer aftershocks but some other studies24,25 did not find this pattern.

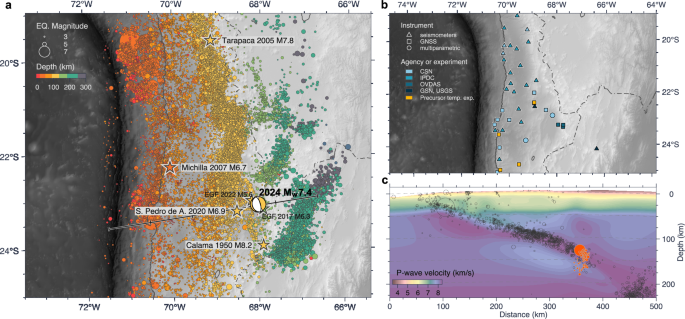

Fig. 1: Tectonic setting and seismicity in northern Chile.
Fig. 1: Tectonic setting and seismicity in northern Chile.
Full size image

a Map of seismicity in Northern Chile, based on the relocated catalog of Potin et al. 31. The largest historical events in the region, and the two used empirical Green’s function events, are marked with stars. The beachball shows the Global CMT solution (https://globalcmt.org) of the 2024 Mw7.4 Calama earthquake. b Distribution of seismic and geodetic stations used in this study. c Cross-section along the profile shown in (a), red circles are aftershocks relocated in this work. Black circles represent background seismicity within 25 km of the cross-section plane, and orange circles indicate the Mw7.4 mainshock and its aftershock sequence. Background seismic tomography is from Potin et al. 31.

At a similar latitude as the 2024 Calama earthquake, several well-recorded events of magnitudes below 7, including the 2007 Mw 6.7 and 2020 Mw 6.9 earthquakes, occurred within the 300°–400 °C isotherms in the oceanic crust and upper lithospheric mantle (Fig. 1)26,27. This pattern suggests a role of slab thermal structure in confining ruptures. However, the 2024 Calama event, with its significantly larger magnitude, likely involved a more spatially extensive rupture and fault geometry than previous earthquakes. Hence, it provides a unique opportunity to investigate intermediate-depth earthquakes, providing an important probe of the thermodynamic regime. For example, the thermal state of the slab, which affects mineral phase transitions, plays a critical role in determining whether dehydration embrittlement is feasible, thus influencing rupture processes.

In this work, we perform a comprehensive investigation of the rupture process, aftershock sequence, and thermal environment for the 2024 Mw 7.4 Calama earthquake. We use a range of seismic data, including accelerograms and seismograms from a dense local network, along with teleseismic recordings (Fig. 1 and supplementary Fig. S1), to constrain the spatiotemporal evolution of the event. Additionally, we use coseismic displacement from continuous GNSS data (Fig. 1) to invert for the final static slip distribution. Our results reveal that the 2024 event ruptured multiple asperities along a steeply dipping fault plane, extending across an unexpectedly large depth range of over ~50 km. This implies that the rupture might have reached beyond the cold core of the slab. Comparison with geodynamic models indicates that the rupture indeed extended beyond the region where conditions are favorable for efficient serpentine dehydration. These observations suggest a possible rupture transition from dehydration embrittlement to shear thermal runaway for large intermediate-depth earthquakes.

Results

Subevent characterization of the rupture process

Local strong motion data and teleseismic waveforms show a complex pattern of P and S waves indicative of rupture of different sub-sources for the 2024 Calama event (supplementary Fig. S2). This motivates a subevent inversion for the spatiotemporal rupture process of the Mw7.4 earthquake based on teleseismic P and SH waves from 54 global seismic stations and regional full waveforms from 47 strong motion stations (supplementary Fig. S1). Our method partitions complex rupture observations into a series of simpler point source subevents with their own timing, location, source duration, and moment tensors28,29,30. A nonlinear inversion is implemented by Markov Chain Monte Carlo sampling, and we iteratively increase the number of subevents until the waveforms are fit sufficiently well (See the Methods section for more details). Locations and moment tensors of subevents are free parameters and provide information on fault geometries when those are not otherwise constrained.

We find that the 2024 Calama Mw 7.4 earthquake can be best modeled with five distinct subevents, where the best-fit subevent number is optimized based on the trade-off between waveform misfit and model complexity (Supplementary Fig. S3). In particular, a 5-subevent model provides noticeably better fits to complex waveform features compared to models with fewer subevents (Supplementary Fig. S3). The five subevents span over ~20 s, with an eastward progression over a horizontal distance of ~25 km (Fig. 2a). In contrast, the vertical extent of the rupture is much larger, with the subevents spanning a depth range of ~50 km (Fig. 2b). The rupture progression initiated with a Mw 6.6 subevent centered at 125 km depth (E1), close to our relocated hypocenter at 128 km. The rupture then triggered deeper subevents E2 (Mw 6.9) and E3 (Mw 7.0), which are close, slightly east of E1 but at a larger depth of 142 km. As the rupture advances, subevents E4 (Mw 7.0) and E5 (Mw 7.2) occurred even deeper, with centroids at 160 km and 174 km, respectively. Waveform fits (Fig. 2d, supplementary Figs. S4, S5) and model uncertainties (Fig. 2c, supplementary Fig. S6) indicate that the source parameters for each subevent are well resolved. The wide, asymmetric duration distributions for later subevent parameters (supplementary Fig. S6), as truncated by the limits of the search algorithm, indicate that their durations are not tightly constrained with long-period data. However, subevent timings and locations are well constrained. Given that the rupture may have initiated at depths shallower than the centroid of E1 and extended to depths larger than the centroid of E5, the whole depth range ruptured by the Mw 7.4 earthquake likely exceeded 50 km.

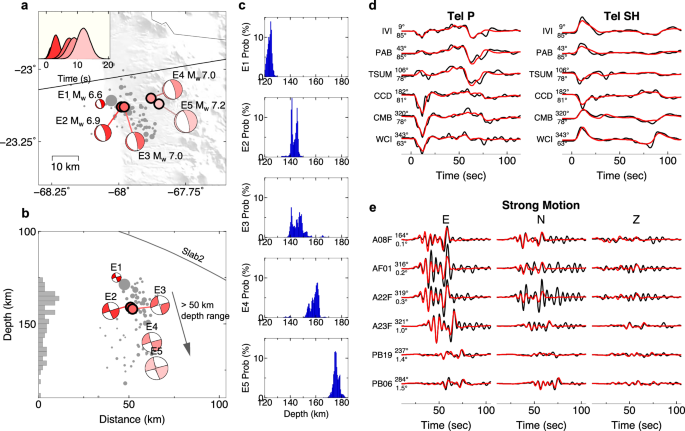

Fig. 2: Rupture process of the 2024 Calama Mw 7.4 event.
Fig. 2: Rupture process of the 2024 Calama Mw 7.4 event.
Full size image

a Subevent locations and focal mechanisms (red beach balls). The hypocenter is collocated with the first subevent E1. The aftershocks detected by Chile Seismic Network (CSN) are displayed by the gray dots in the background. The inset box shows the moment rate functions for all subevents. b Cross section along the profile in (a) showing the subevents propagated sub-vertically, consistent with the aftershock locations (gray dots), favoring the steep down-dip plane dipping eastward. The top black solid line indicates the slab surface from Slab241. Histogram shows the density of aftershocks as a function of depth. c Marginal probability distributions of subevent centroid depths. d–e Representative data (black) and synthetic (red) waveform fits for teleseismic P and SH waves (0.005–0.2 Hz), and regional strong motion (0.02–0.2 Hz) full waves. The numbers leading the traces are azimuths and distances.

The compact horizontal yet substantial vertical extent of the subevents suggests that the rupture propagated along a steeply eastward-dipping fault plane. This geometry aligns well with the steep nodal plane of the subevent moment tensors (Fig. 2b). We also relocated the aftershocks for 2024 Calama event by manually identifying the P and S phases of seismograms recorded at local seismic stations for all aftershocks reported by the Chilean Seismic Network (CSN) using a 3D velocity model31; results are shown in Figs. 1c, 2c, and supplementary data 1. Our detected and relocated aftershock seismicity indicates an eastward-dipping band spanning depths of 120-180 km, which closely matches the subevent hypocenters (Fig. 2b). The early, shallow subevents E1-E2 account for only 20% of the total moment release but are associated with high aftershock density. In contrast, the later, deeper subevents (E3-E5) contribute the bulk (80%) of the seismic moment, yet have lower aftershock density and more scattered aftershock distributions (see histogram in Fig. 2b). This suggests a more complete stress drop in the larger asperities ruptured during the later stages of the earthquake, given that the larger seismic moment over a compact rupture area implies a higher stress release. This interpretation is supported by the depletion of aftershocks for the later rupture stage, as a thermally driven comprehensive rupture would leave minimal residual stress to trigger aftershocks.

Validation of the fault geometry and rupture extent

To further validate the rupture characteristics and depth extent for the 2024 Calama, we conducted directivity analysis on the broadband recordings. If there were no vertical rupture propagation, the apparent duration of both downgoing and upgoing body waves would be identical, i.e., no Doppler effect. However, for a unilaterally propagating rupture along dip, we expect a directivity effect: shorter and longer duration in the direction of rupture and opposite to it, respectively. To constrain source durations, we use two local earthquakes, the 2017/04/15 Mw 6.2 and 2022/12/10 Mw 5.6, to generate empirical Green’s functions (EGFs)32,33 (Fig. 1a), and deconvolve the downgoing P and upgoing SH waves for the shared regional and global seismic stations for the apparent source time functions (STFs)34,35. Since the smaller events have similar depth and focal mechanisms, the derived EGFs allow removal of the shared path and site effects. Following deconvolution, we correct the stretching on the apparent source duration caused by the horizontal rupture toward the east as inferred from the subevent model. We then invert for the rupture dimension and velocity through regression, as those are linear functions of the vertical slowness and the corrected source durations for each station and phase36,37,38.

The apparent STFs for downgoing P and upgoing SH waves have distinct durations and shapes (Fig. 3). Convolved with EGFs, they provide excellent fits to the observed waveforms of the Calama earthquake (Supplementary Figs. S7–S10). The downgoing STFs show coherent phases that align with the five subevents determined from the waveform inversion, with total duration of ~12-13 s (Fig. 3a). In contrast, the upgoing STFs have much longer durations of ~30 s, which suggests pronounced downward rupture directivity (Fig. 3b). The upgoing STFs also contain over 10 pulses, which reflect smaller scale asperities superimposed on the 5 major, lower frequency subevents ruptured coseismically (Fig. 3b). These details are preserved along the shorter travel distance and less-attenuating upgoing path, whereas the long teleseismic path for the downgoing waves acts as a low-pass filter. Applying a low-pass filter below 0.4 Hz to the upgoing STFs reveals comparable longer period subevent pattern (Supplementary Fig. S11). Meanwhile, the temporal gaps in the upgoing source time functions are necessitated by the waveform data in the deconvolution (Supplementary Fig. S12). Therefore, we interpret these high-frequency asperities as real, resolvable features of the rupture. Our regression analysis on the observed STF durations yields an optimal rupture length of 78 km and average velocity of 4.2 km/s, along a fault plane with 71° eastward dip. This angle coincides with the average dip of the 5 subevents’ steeper fault planes. Moreover, the large downdip rupture dimension aligns with the depth range of the subevents and aftershocks (120–180 km) and explains the anomalously broad teleseismic sP and sS depth phases (supplementary Fig. S4). Our relocated aftershock distribution aligns well with the sub-vertical plane inferred from the subevents (Fig. 2). We also searched for precursor events and further aftershocks using template matching. No precursors were observed and the aftershock productivity is high compared to other similar events in the area20 (supplementary Figs. S13, S14).

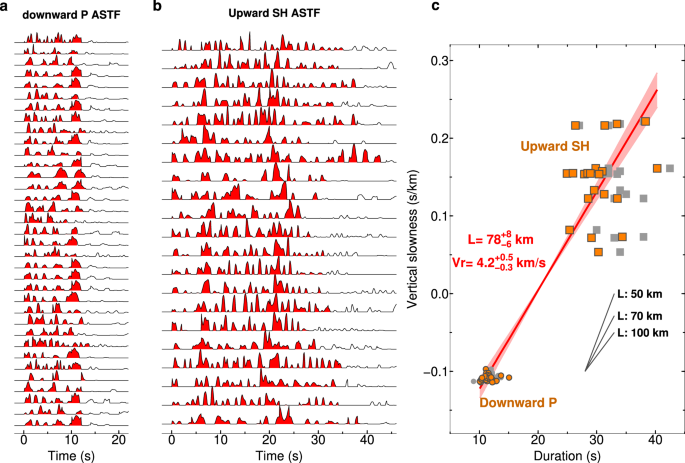

Fig. 3: Determination of rupture extent and velocity using source time function deconvolution.
Fig. 3: Determination of rupture extent and velocity using source time function deconvolution.
Full size image

a Downward apparent source time functions (ASTFs) deconvolved from downgoing teleseismic P waves. The waveforms of the target event and EGFs are filtered between 0.02-0.2 Hz. STF durations are defined by the red shading which contains most of the energy. b Upward ASTFs deconvolved from upgoing regional SH waves. The waveforms of the target event and EGFs are filtered between 0.03–1 Hz. c Inversion for the rupture extent and velocity. Gray and orange squares indicate the apparent source durations as a function of the vertical slowness, before and after the horizontal rupture directivity correction, respectively. The orange line indicates a linear fit to the observed trend, corresponding to a rupture length of 78 km and rupture velocity of 4.2 km/s. The surrounding-colored area illustrates the 95% confidence limit of the slope, corresponding to the error range of the resolved rupture parameters. The black lines indicate the slopes for rupture lengths of 50, 70, and 100 km, respectively.

The mainshock produced horizontal displacements of ~1 cm extending more than 250 km from the epicenter and a subsidence of ~20 cm above the rupture. Using these GNSS-derived displacements, we estimated the geodetic co-seismic slip distribution (Fig. 4). We tested both the sub-horizontal and sub-vertical planes based on the focal mechanism and our proposed hypocenter (Supplementary Fig. S15). Acknowledging the inherent challenge of resolving fault geometry and the detailed slip distribution for such a deep source, we found that both planes can fit the GNSS observations (supplementary Figs. S16–S18). However, the fit for the vertical plane model is slightly better and has relatively smoother inferred coseismic slip. The insignificant misfit differences suggest that geodetic data may not tightly constrain fault geometry. Nonetheless, the effective slip distribution for the sub-vertical plane is consistent with our subevent inversion, directivity analysis, and aftershock patterns. In conjunction, these provide much stronger seismological constraints on the rupture geometry.

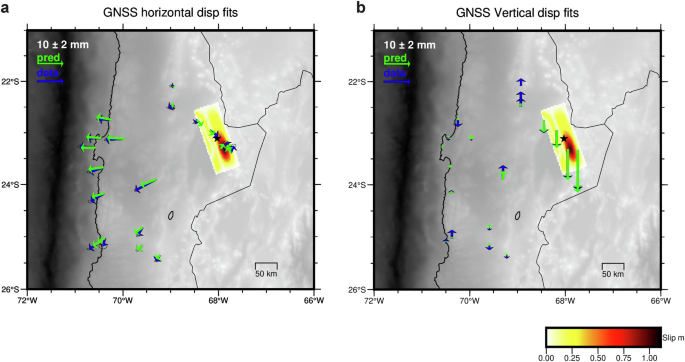

Fig. 4: Geodetic constraints on the fault geometry and slip distribution.
Fig. 4: Geodetic constraints on the fault geometry and slip distribution.
Full size image

a Coseismic slip distribution and GNSS horizontal displacement fits for the sub-vertical fault plane. Blue and green arrows indicate observed and model-predicted displacements, respectively. b Coseismic slip distribution and GNSS vertical displacement fits for the rupture along the sub-vertical fault plane. Full fits to both vertical and horizontal component displacements for the two fault planes are shown in supplementary Figs. S17, S18.

Rupture across the dehydration isotherm suggests a mechanism transition

The large depth extent of the 2024 Calama event renders it an important probe for understanding the mechanisms of intermediate-depth earthquakes in general. The event likely ruptured a substantial portion, if not reached the base of the subducting lithosphere. This is further supported by the distinct character of later waveform arrivals in the strong motion data, which necessitates deep depths of subevents E4-E5, as indicated by our forward modeling tests (Supplementary Fig. S19). The rupture could extend well beyond the inferred 600 °C to 650 °C isotherm at depths of 120-180 km, which bound the region capable of hosting dehydration embrittlement13,39, a key mechanism invoked to explain the intermediate-depth seismicity in northern Chile17. Compared with other intraplate earthquakes20, 2024 Calama had a significant number of aftershocks, which suggests that at least part of its rupture occurred in a colder, brittle regime. This is more analogous to shallower events such as the 2007 Michilla Mw 6.7 and 2020 Calama Mw 6.9 earthquakes26, rather than events in high-temperature zones (>600 °C) where aftershocks are typically suppressed.

We further assess the temperature environment of the region by computing steady-state, semi-kinematic thermal geodynamic models for the subduction zone along a 2D cross section40. The slab geometry is constrained by multiple independent datasets, including regional seismicity, seismic tomography, and the latest high-resolution CSN earthquake catalog31,41. Our models also incorporate the incoming plate thermal structure inferred from plate age, and an adiabatic temperature gradient (see Methods section). As for all such models, isotherms are strongly affected by plate age and convergence rate, the product of which is a scaled Peclet number, the “thermal parameter”; it determines how deep cold isotherms are subducted before they diffuse away. Our results indicate that although the Mw 7.4 earthquake likely nucleated near the cold core of the slab, its ~78 km downdip rupture extended far beyond the 650 °C isotherm that bounds the zone where serpentine can efficiently dehydrate to olivine (Fig. 5). This finding is robust to variations in thermal modeling setups and other methodological choices. Adopting alternative slab geometries (e.g., Slab241) or varying slab age still implies that 2024 Calama ruptured beyond the serpentinite dehydration isotherm (Supplementary Fig. S20). Even under the alternative hypothesis that the slab resides deeper, the thickness of its cold core is still well constrained. Meanwhile, our thermal model is consistent with other thermal models for the wider region42,43; those also feature a cold core too thin to contain the entire Calama rupture (Supplementary Fig. S21). Note that other hydrous minerals such as chlorite, talc, and amphiboles can also dehydrate under varying pressure-temperature conditions44,45,46. However, most amphiboles dehydrate at lower temperatures and thus release fluids at shallower depths, while chlorite and talc are present in substantially lower abundances than serpentine13,45. As a result, antigorite serpentine remains the dominant contributor to fluid release and large-scale faulting. Therefore, once the rupture extended beyond into warmer regions, mechanisms other than dehydration embrittlement likely governed further rupture propagation.

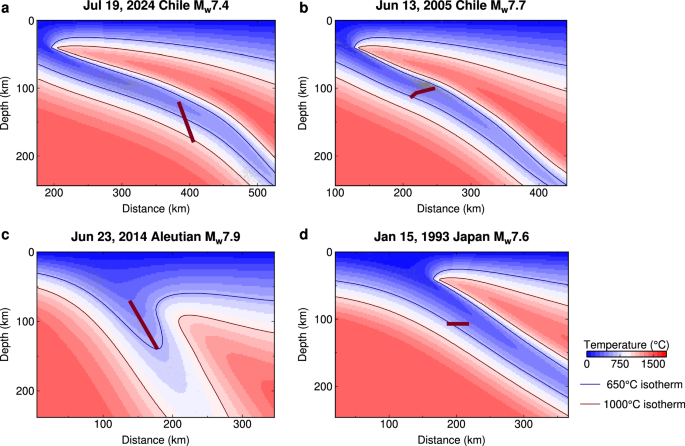

Fig. 5: Thermal environment of the 2024 Calama earthquake rupture.
Fig. 5: Thermal environment of the 2024 Calama earthquake rupture.
Full size image

This figure compares the rupture extents and thermal environments for a the 2024 Chile Mw 7.4 earthquake with b–d other historical large intermediate-depth earthquakes. The color shows temperature derived from thermodynamic simulations along cross sections shown in Table S3. The dark red lines indicate the estimated rupture extent for the 2024 Chile Mw 7.4 (this study), 2005 Chile Mw 7.722, 2014 Aleutian Mw 7.94, and 1993 Japan Mw 7.650, respectively. The thin blue and red lines are the 650 °C and 1000 °C isotherms, respectively. Background gray circles indicate the seismicity from the NEIC catalog since 2000.

We suggest that the rupture likely transitioned into thermal runaway, involving localized shear heating that weakens the rock and sustains rupture propagation. Thermal runaway alone is unlikely to be a general mechanism for earthquakes, due to the lack of a spontaneous self-localization14,15. However, slow deformation over geological time scales allows significant strain to accumulate. Once a triggering mechanism like dehydration embrittlement can initiate localized failure, shear thermal runaway, even at high temperatures, can act as a positive feedback loop of shear heating that may substantially weaken the fault, generating large slip asperities, and as a consequence more complete moment release47,48,49. Our observations agree with such a transition: the second rupture stage occurs at depths with sparse historical seismicity and low aftershock density (Fig. 1), yet releases 80% of the total seismic moment (E3-E5) (Fig. 2). This suggests that a secondary mechanism such as shear thermal runaway can play a critical role for fault weakening at larger depths, including for intermediate-depth earthquakes.

Discussion

Hypotheses for intermediate-depth earthquakes typically focus on seismicity concentrated within the cold core of the slab, where dehydration embrittlement is considered dominant, and transitions from dehydration embrittlement to other mechanisms, such as thermal runaway, are rarely observed. Among historical Mw > 7.5 intermediate-depth events, the 1993 Mw 7.6 Kushiro-oki, the 2005 Mw 7.7 Tarapacá, and the 2014 Mw 7.9 Rat Island earthquakes are the few that have well-defined fault planes and along-dip rupture extent4,22,23,50. In analogy to our Calama models, we estimate the temperature environment for those other intermediate-depth earthquakes (Fig. 5). All three comparables have rupture areas generally confined to the cold slab core, below the 650 °C serpentine dehydration isotherm, where dehydration of gabbro and basalt occurs within the slab, facilitating potential brittle deformation. 2024 Calama event does present a striking exception where the rupture extends into substantially warmer regions, perhaps up to 1000 °C. This inference is robust with respect to oceanic plate age variations (supplementary Fig. S20).

A potential contributing tectonic factor for Calama is the high degree of megathrust coupling51, which may enhance slab pull forces and impose additional stress on the downgoing slab. This loading, combined with the slab’s thermal structure, may facilitate a transition from dehydration embrittlement to shear thermal instability, enabling failure beyond the cold slab core. Our findings complement earlier suggestions that thermal runaway, where localized heating from shear stress reduces resistance and facilitates rapid slip, may occur for moderate-size intermediate-depth events52,53. We demonstrate that such a mechanism may also operate in large-scale intermediate-depth ruptures.

A similar transition from mineral phase change-driven to shear heating-accommodated rupture has also been proposed for deeper earthquakes (300-700 km), such as for 1994 Bolivia, 2013 Okhotsk, and 2018 Fiji earthquakes28,48,54. For both depth ranges, the slab’s thermal structure appears to be the common control governing the mechanism transitions from the colder core to the warmer slab halo. These temperature patterns influence phase changes and associated weakening processes, albeit through distinct mechanisms. For intermediate-depth earthquakes like the 2024 Calama event, the initial trigger is the dehydration of the hydrous minerals such as serpentine and similar hydrous minerals in the cold slab core (Fig. 6). In contrast, for the deep earthquakes, the transformational faulting of metastable olivine is likely the first driver12,48,54. Despite the different initial triggers, both settings involve thermal runaway as the subsequent mechanism that allows the rupture to propagate further, into hotter, otherwise ductile regions. However, the details governing these transitions, potentially involving factors including compositional and grain size variations affecting stress state, frictional properties, and variations in hydration status, remain to be further investigated.

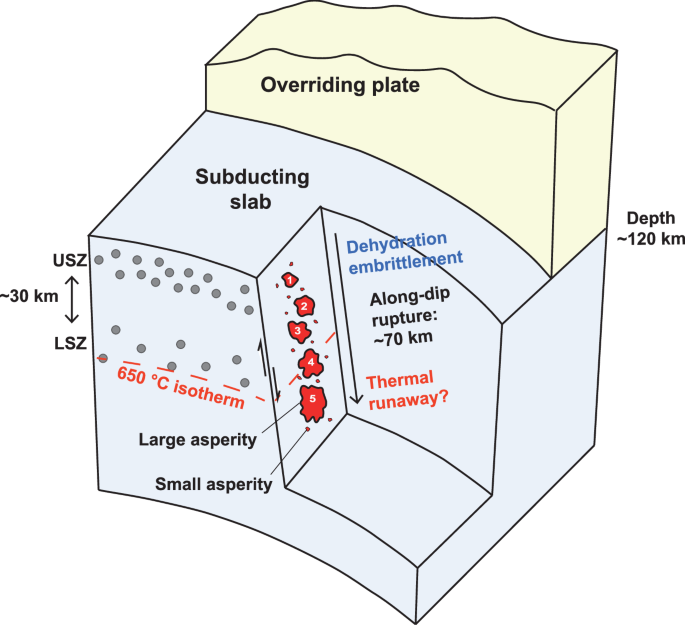

Fig. 6: Summary schematic of the intraslab rupture and mechanism transition for the Mw 7.4 event.
Fig. 6: Summary schematic of the intraslab rupture and mechanism transition for the Mw 7.4 event.
Full size image

The earthquake ruptured seismic asperities of various scales (red polygons), and penetrated through the 650 °C boundary allowable for serpentine dehydration, which suggests transitioning to another mechanism, likely shear thermal runaway. Gray dots represent seismicity that delineates the upper and lower seismic zones.

Besides its remarkably large effective fault plane, 2024 Calama also ruptured at a relatively fast velocity exceeding ~93% of the local shear wave velocity (VS). This is above the typical rupture speeds for large intermediate-depth earthquakes, usually in the range of 0.2–0.8 of VS23,55,56,57. While methods that analyze far-field Mach cones in surface waves are effective for constraining horizontal supershear58,59, for Calama 2024, which primarily propagated down-dip, body-wave analysis on Doppler-like compression of source durations provides the most robust constraint on rupture velocity. Rupture speeds at ~0.9 VS fall in the “forbidden zone” between Rayleigh and shear wave speeds, where the rupture is theoretically unsustainable as the fault generates rather than absorbs strain energy60,61,62. Hence, it is likely that the inferred rupture velocity of 2024 Calama is an average of mixed rupture, including both regular subshear and episodic supershear propagation. This inference is consistent with the subevents and deconvolved source time functions (Figs. 2, 3), where the rupture is characterized by a series of distinct pulses, suggesting propagation through a heterogeneous field of asperities (Fig. 6).

We attribute the inferred, episodic supershear speeds to the triggering of these asperities, where dynamic stress perturbations from seismic waves initiate failure on the nearby faults. Dynamic triggering has been widely observed for smaller earthquakes triggered by distant large events63,64,65, and has been suggested to generate deep earthquakes in the warmer regions of the slabs49,66. However, the complex rupture behavior we observed for the Calama earthquake, characterized by distinct source time function pulses that suggest sequential activation of multiple asperities during the rupture, has rarely been documented for intermediate-depth events.

Asperities likely reflect compositional and structural heterogeneities along the fault, and they can play a critical role in modulating rupture dynamics62,67,68,69. For intermediate-depth events such as 2024 Calama, asperities might be loaded near critical to the background loading, such as from slab bending. Spontaneous rupture may be unlikely on the asperities in warmer and less brittle regions, but once the rupture initiates in the cold slab core, dynamic stress perturbations may activate surrounding asperities, possibly triggering thermal runaway and facilitating rupture into normally stable regions. Future work may reveal how interactions between rheological heterogeneities, thermal gradients, and stress states could potentially determine whether asperities remain quiescent or are activated during rupture in a prospective sense.

In summary, by integrating comprehensive earthquake rupture imaging using seismic and geodetic data, as well as thermomechanical modeling, our analyses on the 2024 Mw 7.4 Calama earthquake reveal that the rupture spanned an unusually large depth range. A succession of subevents penetrated into the outer reaches of the slab, likely involving a transition from dehydration embrittlement in the cold core to thermal runaway in the warmer slab halo. The 2024 Calama event shows that even high-temperature regions of the slab, typically considered aseismic, can be dynamically activated during large events. Allowing for such rupture transitions substantially extends the total possible rupture area and seismic moment available. This calls for reassessing the seismic hazard when estimating maximum magnitudes for large earthquakes in subduction zones.

Methods

Earthquake detection using template matching

We used template matching70 to detect unreported earthquakes around the 2024 Calama mainshock, by means of the Fast Matched Filter algorithm71. This was done by analyzing continuous broadband velocity waveforms of six stations of the CSN network situated near the epicenter of the mainshock and at distances of less than 3°. Following previous regional studies20,26, we used three component records downsampled to 40 Hz and bandpass filtered from 1 Hz to 20 Hz. For the application of template matching, an initial catalog is required, for which we use the seismicity reported by CSN (www.sismologia.cl) in space-time windows, as will be explained below. For each event of the initial catalog, P-wave and S-wave arrivals for all selected stations were calculated using a local 1-D velocity model72. To estimate the templates as well as the moveouts used in the analysis, we use the vertical component to scan the P-wave and the horizontal components to scan the S-wave71. In this sense, we cut the continuous waveforms from 2 s before the theoretical arrival times until 3 s after. Thus, we made one template waveform for each component of every station selected, which represents 5 s of the recorded events.

For every event, we scanned the continuous data by moving the templates one sample, and preserving their moveouts. At every position of the sliding windows, we calculated an averaged cross-correlation coefficient (CC) over all stations and components. In order to consider only waveforms with an acceptable signal-to-noise ratio (SNR), we excluded stations with an SNR lower than 2.0 in the vertical component; others are weighted such that the sum of all weights over the stations is unity. Lastly, we removed those templates with fewer than 4 stations with acceptable SNR on the vertical component. This resulted in a time series representing the similarity between the templates and the continuous data. We used a daily detection threshold of 15 times the median absolute deviation (MAD) of the daily time-series of averaged cross-correlation coefficients to define the potential detection of an earthquake with significantly similar waveforms to the templates, assuming they occur at the same hypocentral location as the event used for the detection.

Given the possibility of obtaining consecutive detections separated by a time of less than the template waveform’s duration, we removed these consecutive detections, leaving the one with highest CC and removing the surrounding detections. The magnitudes were estimated by computing the median amplitude ratio between the waveform of the templates and the detections over the stations, assuming that a tenfold increase in amplitude corresponds to one unit increase in magnitude73.

For our analysis, we considered two cases with different spatial windows to define the initial catalogs before running template matching. The first is for comparative purposes and considers the same radius of rupture (21 km) adopted by Herrera et al. 26 for the 2020 Mw 6.8 Calama intraslab earthquake, and the second considers a greater radius, of 47 km, calculated using expressions proposed for another Mw 7.4 event74, based on the source radius estimated by Wells & CopperSmith75. In this context, we make two different catalogs as follows:

For DS1, the initial catalog contains every earthquake reported by CSN that originated between one month before and one month after the mainshock, and located at a distance less than 21 km from the reported hypocenter of the mainshock. With this criterion, 33 initial events were considered, of which 32 were used as templates, and 150 were finally reported after running template matching. For DS2, the initial catalog is composed of every earthquake reported by CSN and located in a distance of less than 47 km from the location of the mainshock, in a temporal window between one month before and one month after the mainshock. In this case, 84 initial earthquakes were considered, 82 were adopted as templates, and a total of 314 final events were reported after applying template matching (supplementary Figs. S13 and S14).

Subevent inversion for rupture process

We apply a multiple-subevent inversion method29,30 to constrain the source parameters of the subevents for 2024 Calama instead of kinematic finite-fault inversion, as the subevent parameterization avoids potential biases from assuming a fixed fault geometry and allows a more comprehensive exploration of the parameter space with fewer free parameters. Subevent inversion was also selected over back-projection, as our primary goal is to resolve down-dip rupture directivity, a characteristic to which back-projection is largely insensitive. The number of subevents is determined by iteratively adding subevents until the improvement in data fit becomes insignificant. Each subevent is characterized by 5 nonlinear parameters: horizontal location, depth, centroid time, and centroid duration, except for the first subevent, whose horizontal location is fixed at the CSN hypocenter to prevent simultaneous shifting of all subevent locations and seismogram timings. Additionally, each subevent has 5 linear parameters corresponding to its deviatoric moment tensor components.

The inversion employs a two-stage algorithm to efficiently explore parameter space. In the outer stage, we search for nonlinear location and timing parameters using a Metropolis-Hastings Markov Chain Monte Carlo (MCMC) sampler. During each MCMC random walk, one nonlinear parameter is perturbed while others remain fixed, which allows a high acceptance rate and sampling efficiency76. For each set of nonlinear parameters, we linearly invert the seismic data to estimate subevent moment tensors77. This separation of nonlinear and linear parameter estimation reduces computational cost and enhances efficiency.

We generate 192 MCMC chains and retain the best-performing 48 chains to mitigate the effects of bad initial samples and avoid local minima. A Bayesian framework is used in the inversion to incorporate data errors and model priors, which allows estimation of model uncertainties. Uniform prior distributions are assigned to nonlinear parameters, with horizontal location priors informed by the spatial density of early aftershocks. Although instrumental noise is minimal, we introduce a 10% empirical data error relative to misfit to account for inaccuracies in wave propagation assumptions. Model uncertainties are quantified as the 95% confidence intervals of the posterior probability density functions, defined by the 2.5 and 97.5 percentile values of the Markov Chain samples, without assuming a Gaussian fit to them.

We use P-wave displacement and velocity waveforms from 54 teleseismic stations, SH-wave displacement waveforms from 53 teleseismic stations, and three-component velocity waveforms from 47 regional strong ground motion stations. Data were obtained from the Global Seismic Network (GSN), the International Federation of Digital Seismograph Network (FDSN), and the Chilean National Seismological Center (CSN). Weights are adjusted to achieve comparable contributions to the misfit, with a weighting ratio of 3:1:0.04 for teleseismic P and SH waves, and regional data, respectively. Instrument responses and linear trends were removed, and teleseismic data were band-pass filtered between 0.02–0.2 Hz, while regional data were filtered between 0.02–0.15 Hz. We allow time shifts of up to 2 s for teleseismic P waves, 5 s for teleseismic SH waves, and 2 s for regional data to account for path effects and picking errors. Green’s functions were calculated using a local 1D velocity model72 for the crust and the IASPEI91 model for deeper Earth structure. Teleseismic Green’s functions were computed using a hybrid method combining the propagator matrix approach and ray theory78,79, while regional Green’s functions were computed using the frequency-wavenumber integration method80. The optimal subevent model for the Calama event is shown in Table S1.

Geodetic inversion of the slip distribution

We used GNSS observations from CSN (https://doi.org/10.7914/SN/C1), together with stations from the International GNSS Service (IGS) network81 and those installed by the ANILLO-PRECURSOR82 and IPOC83 projects. All GNSS data were processed using the differentiation strategy84, using the Bernese 5.4 software85. The daily results were accumulated to generate time series that are compatible with the ITRF2020 reference frame86. The resulting coseismic displacements are summarized in Table S2.

Based on the earthquake focal mechanism and hypocenter location, we modeled two fault planes: (1) a sub-horizontal plane (dip = 21°, strike = 172°) and (2) a sub-vertical plane (dip = 69°, strike = 341°). We compute Green’s functions for both planes using triangular elastic dislocation modeling87. We then perform a generalized least square inversion to estimate the coseismic slip distribution, where prior information is defined by the Equal Posterior Information Condition (EPIC)88. EPIC applies a spatially variable smoothing constraint based on a discrete Laplacian, which allows regions of the fault plane with dense GNSS data coverage to retain more detailed slip features while enforcing stronger smoothing in poorly constrained fault areas. We applied positivity constraints to the dip-slip components and constrained the maximum values of the slip on the strike direction. Both fault plane models achieved good fits to the GNSS data, while the vertical plane produced slightly better RMSE residuals (1.48 mm vs. 1.51 mm). Additionally, the vertical fault plane aligns more closely with the spatial distribution of observed aftershocks.

Source time function deconvolution for rupture directivity and extent

We designed a time-domain deconvolution approach to extract the source time function from observed seismic waveforms. The problem minimizes the mismatch between the observed data u(t), and the convolution of the source function s(t) with a predefined empirical Green’s function G(t),

$${\min }_{s}{\left|\left|G\left(t\right)*s\left(t\right)-u\left(t\right)\right|\right|}_{2}^{2}+\lambda \cdot {L}_{12}\left(s\right)$$
(1)

in which L12(s) is a mixed L1-L2 norm regularization term to prevent overfitting of the data. The mixed norm term is defined as

$${L}_{12}(s)={\sum }_{g=1}^{M}{{||}{s}_{g}{||}}_{2}$$
(2)

where sg is the subvector of s(t) corresponding to group size g. Here, we choose g as 20 samples (2 s window for sampling rate of 0.1 s), and we choose λ as 0.05 to balance sparsity and smoothness of the resolved source time functions.

The optimization problem is solved using the CVXPY library89, with the non-negativity constraints to reflect the physical non-negativity of the source time functions.

To test the robustness of the observed gaps in the source time functions, we incorporate a second-order difference regularization to enforce smoothing in the source time function by penalizing rapid changes in curvature,

$${\min }_{s}{{||G}(t)\,*\,s(t)\,-\,u(t){||}}_{2}^{2}+\lambda \cdot {L}_{12}\left(s\right)+\beta \cdot {{||}{D}_{2}{s||}}_{2}^{2}$$
(3)

where the finite-difference operator is represented as

$${{||}{D}_{2}{s||}}_{2}^{2}={\sum }_{i=1}^{N-2}{({s}_{i+2}-2{s}_{i+1}+{s}_{i})}^{2}$$
(4)

The results with β as 0, 102 (moderate forced smoothing), and 104 (strong forced smoothing) are shown in supplementary Fig. S12. Retrieving acceptable fits to the data requires gaps in the source time functions.

After we obtain the source time functions, we estimate the source durations for each trace. These durations are determined by identifying the main, coherent energy release that is clearly visible above noise and maintains a consistent shape across stations. We confirm its robustness by comparing our results (Fig. 3) to those derived from a standard quantitative criterion (STF amplitude ≥ 25% of the peak, used by the IRIS DMC source time function products90) (Supplementary Fig. S22). While this test results in qualitatively similar rupture parameters, the rigid threshold introduces unnatural truncations, particularly for teleseismic P-waves. Therefore, we retain our initial selections as they provide a more physically meaningful measure of source duration. These final durations are then used to correct the horizontal rupture directivity constrained from the subevent locations (25 km towards the east). We further examine the relationship between source durations and vertical slowness by fitting a linear regression model to observational data to estimate the vertical rupture directivity. The slope intercept of the regression line in Fig. 3c provides an estimate of the inverse of the vertical rupture velocity, and the x-axis intercept indicates the source duration, which allows the characterization of rupture dimension along the dip. To quantify uncertainties of the slope and the intercept, we consider two times the standard deviation errors of their respective estimates; those provide upper and lower bounds for the estimated rupture velocity and dimension, respectively.

Thermal simulations for the slab temperatures

We conduct thermal simulations for subducting slabs at Chile, Japan, and the Aleutian subduction zones. We compute two-dimensional thermal models initialized from a plate cooling model of reference plate thickness of 95 km91 based on ages of oceanic plates92, which represents the thermal state of the oceanic lithosphere at incipient subduction. For the slab surface geometry, we use a slab interface model estimated using the CSN seismicity catalog for the two northern Chile transects (Fig. 5a, b), and the slab surface from Slab241 for the other two transects (Fig. 5c, d). For the northern Chile transects, we also test the slab surface from Slab2; this does not affect our conclusions (Supplementary Fig. S21). We project convergence velocity92 onto the transects (Table S3) because the plate motion velocity is not aligned with the direction perpendicular to the trench. With these initial conditions for each subducting slab, we use a finite element model to estimate the thermal structure40. These models incorporate a kinematic slab with prescribed geometry as well as a dynamic mantle wedge with a composite rheology including both diffusion and dislocation creep. The slab decouples from the overriding plate at 50-km depth. The mesh resolution is 2 km, with refinement to 1 km at the mantle wedge and slab surface. The mantle potential temperature is 1300 °C and adiabatic temperature gradient is 0.3 °C/km91,93,94. Tests assuming that the slab decouples from the overriding plate at 80-km depth show no substantial difference from the thermal simulation results used in this study.
