Oxidative stress-induced intervertebral disc remodelling and elevated stiffness drive idiopathic scoliosis in preclinical models

Nature Communications volume 16, Article number: 8719 (2025) Cite this article

5277 Accesses
2 Citations
41 Altmetric
Metrics details

Subjects

Abstract

Adolescent idiopathic scoliosis (AIS) is the most prevalent pediatric spine disorder, developing in the absence of obvious physiological defects. Genome sequencing and functional studies have demonstrated association of musculoskeletal collagen variants and cartilaginous extracellular matrix (ECM) defects in a subset of patients. However, the underlying biological causes of AIS remain poorly understood, limiting treatment options. Using multiple zebrafish AIS models, we demonstrate that reduction-oxidation (redox) imbalances induce cell stress and collagen remodelling within intervertebral segments of the developing spine. Mutant spines are consequently stiffer, as measured by shear wave elastography, and exhibit deformations of intervertebral structures. Remarkably, elevated stiffness and intervertebral ECM phenotypes are detectable prior to scoliosis onset, suggesting a causal relationship, and can be suppressed by antioxidant treatment. Together, our preclinical studies implicate oxidative stress-induced intervertebral deformations in the pathogenesis of AIS and identify elevated spine stiffness and redox imbalance as plausible first-in-kind prognostic biomarkers and therapeutic targets.

Brain oscillatory activity in adolescent idiopathic scoliosis

Article Open access 14 October 2022

Noninvasive estimation of internal spinal alignment in patients with adolescent idiopathic scoliosis using PCdare and back shape asymmetry

Article Open access 29 March 2025

The asymmetrical ROS–METTL3–ESR1 axis in paraspinal muscle progenitor cells determines the progression of adolescent idiopathic scoliosis

Article Open access 05 March 2026

Introduction

Adolescent idiopathic scoliosis (AIS) is a common pediatric disorder characterized by lateral and rotational deviations in the spinal column that develop in the absence of obvious congenital or physiological defects¹. AIS afflicts 3–4% of children worldwide yet underlying causes are poorly understood, in part due to genetic heterogeneity and suspected environmental influences¹. Patient genome sequencing and functional genetic studies have implicated a diverse group of AIS-associated variants in scoliosis, with gene functions ranging from musculoskeletal collagen and cartilaginous extracellular matrix (ECM) formation^2,3,4, neuromuscular development⁵, planar cell polarity⁶, cilia function⁷, carbohydrate metabolism⁸, synaptic neurotransmission and central pattern generators⁹. However, over 95% of total causative genetic variance in AIS is thought to remain unknown¹⁰. Because most AIS etiological studies involve patients with established scoliotic curves, determining a biological mechanism of cause and effect is particularly challenging, and treatment options remain limited to mechanical interventions like bracing or invasive corrective surgery¹.

Zebrafish have emerged as powerful experimental models for dissecting complex biological mechanisms associated with AIS^11,12. It was discovered that neuroinflammatory signals and oxidative stress, arising from imbalances in cerebrospinal fluid (CSF) homeostasis, are both necessary and sufficient to cause AIS-like spinal curvatures in zebrafish^13,14,15. Furthermore, treatment with antioxidant and immunomodulating compounds like N-acetylcysteine (NAC) or NAC-ethyl ester (NACET, a more bioavailable form of NAC) can suppress scoliosis onset and severe spinal curve progression in zebrafish models^14,15,16. While this provides proof-of-principle that scoliosis might be managed therapeutically, the undetermined mechanisms by which oxidative stress leads to spinal curvature and their relevance to human AIS pose a barrier to clinical translation.

Here, we interrogate the downstream causes of scoliosis in the dominant SCO-spondin (sspo^dmh4/+) mutant zebrafish model of AIS¹⁵. These fish develop idiopathic-like spinal curvatures in response to oxi-inflammatory signals that are linked to the disruption of Reissner’s fiber (RF), a proteinaceous filament that threads through ventricular cavities of the spinal cord and brain. We demonstrate that abnormal axial reduction-oxidation (redox) states in sspo^dmh4/+ mutants induce both intervertebral collagen ECM remodelling defects and elevated spine stiffness that appear causally linked to the onset and progression of scoliosis. Furthermore, we characterize resulting intervertebral disc (IVD) deformations as pathophysiological defects shared between multiple additional zebrafish scoliosis models and human AIS patients. Although the clinical relevance of these findings remains to be determined, if translatable, we provide evidence that elevated spine stiffness and oxidative stress may prove valuable, first-in-kind, prognostic biomarkers and therapeutic targets for idiopathic scoliosis.

Results

sspo ^dmh4/+ mutants exhibit an elevated oxidative state in proximity to the developing spine

NACET, a potent antioxidant, can suppress the onset and severe progression of scoliosis in sspo^dmh4/+ AIS models¹⁵. To investigate how oxidative stress may influence spine development, we characterized the spatial distribution of reduction-oxidation (redox) imbalance in larval zebrafish using the cell-permeable fluorescent redox probe 2′,7′-dichlorofluorescein diacetate (DCFH-DA)¹⁷. While the probe cannot attribute redox changes to specific reactive oxygen species (ROS), it can be used as a general indicator of redox state¹⁷. Staining was performed on wildtype (WT) and sspo^dmh4/+ zebrafish at 10 days post fertilization (dpf) and 6 mm standard length (SL), prior to scoliosis onset. At this stage, sspo^dmh4/+ zebrafish appear morphologically indistinguishable from WT (Fig. 1a, b). However, elevated oxidation levels were detected in the dorsal telencephalon and cranial vessels of sspo^dmh4/+ mutants (Fig. 1c, e and Supplementary Fig. 1b), adjacent to the diencephalic choroid plexus and in close proximity to the subcommissural organ (SCO), which is the site of abnormal SCO-spondin secretion in mutant animals¹⁵.

**Fig. 1: IVD redox imbalance and ER stress precede idiopathic-like scoliosis.**

Notably, neuroinflammation and elevated TNFα reporter expression were previously identified in the brain of sspo^dmh4/+ mutants at 21 dpf¹⁵. To examine the relationship between inflammation and redox imbalance, we imaged the TNFα reporter¹⁸ at earlier stages of development. At 10 dpf, no significant difference in TNFα reporter expression was observed in the dorsal telencephalon, despite the presence of elevated ROS in sspo^dmh4/+ mutants (Supplementary Fig. 2). However, a significant elevation in TNFα reporter activity was observed within macrophages of the telencephalon at 14 dpf, as identified by co-labeling with the Tg(mpeg1::mCherry) macrophage reporter¹⁹ (Supplementary Fig. 3). These results indicate that redox imbalance precedes inflammation in the brain of sspo^dmh4/+ mutant animals.

Strikingly, elevated oxidative signals were also observed along the trunk of 10 dpf sspo^dmh4/+ zebrafish in the spinal cord, trunk vasculature and dorsal aorta, as well as in discrete peri-notochordal segments (Fig. 1d, f, m and Supplementary Fig. 1a, c, d, e). These segments correspond to developing cartilaginous intervertebral domains of the spine, as demonstrated by the complementary pattern of TgBAC(entpd5a::pkRed) reporter expression²⁰ in alternating mineralizing domains (Supplementary Fig. 1f, g). In contrast, no difference in DCFH-DA signals was observed in the trunk muscle (myotome) of 10 dpf WT and sspo^dmh4/+ zebrafish (Supplementary Fig. 1h, i). Treatment with 500 μM of NACET from 5 to 10 dpf led to the suppression of the DCFH-DA signal in sspo^dmh4/+ mutants at 10 dpf, supporting that elevated DCFH-DA staining is caused by an increase in oxidative state (Supplementary Fig. 1j).

Prior to scoliosis onset, we observed a large distribution of DCFH-DA staining levels within 10 dpf sspo^dmh4/+ zebrafish cohorts (Fig. 1m). Noting that scoliosis is not fully penetrant in sspo^dmh4/+ mutants, and can vary widely between clutches (average penetrance of 57.2% and standard deviation of +/− 29.7 %; Supplementary Fig. 1k), we next asked if differences in redox imbalance correlate with scoliosis development (typically between 14–16 dpf, Fig. 1g, h). Remarkably, DCFH-DA staining was even more pronounced in scoliotic sspo^dmh4/+ zebrafish at 14 dpf, and was not observed in non-scoliotic sspo^dmh4/+ mutants (Fig. 1i–l, n–p and Supplementary Fig. 1l, m). These results support a causal relationship between redox imbalance and spinal curvature.

To determine whether redox imbalance represents a generalizable feature of zebrafish scoliosis, or a property specific to sspo^dmh4/+ mutants, we performed DCFH-DA staining on two additional AIS models (katnb1 and vangl2) that share upstream CSF homeostasis defects but differ in underlying molecular genetic causes^21,22. Staining was performed on 14 dpf katnb1 and 5 dpf vangl2 mutants, shortly after the onset of scoliosis in the respective models. Stronger oxidation states were also observed within the central nervous system and axial midline/trunk of katnb1 and vangl2 mutants, compared with sibling controls (Supplementary Figs. 4 and 5). Overall, these data suggest that redox imbalance precedes neuroinflammation and scoliosis onset in sspo^dmh4/+ mutants, and that elevated ROS in close juxtaposition to the developing spine is associated with spinal curve progression across diverse zebrafish models of AIS.

Redox imbalance induces endoplasmic reticulum (ER) stress within intervertebral segments

The zebrafish notochord, comprised of inner vacuolated cells and outer peri-notochordal sheath cells, provides structural support to the embryo and serves as a template for spine development¹¹. Sheath cells, abundant in rough ER, are secretory cells that contribute to the notochord’s ECM-rich lamellar sheath¹¹, which segments into developing vertebrae and IVDs²⁰. Since dysregulation of redox homeostasis in cells can initiate ER stress and an unfolded protein response (UPR)²³, we hypothesized that peri-notochordal accumulation of ROS in sspo^dmh4/+ IVD segments may induce ER stress and negatively impact sheath cell function.

To assess ER stress in sspo^dmh4/+ mutants, we modified an established transgenic assay that incorporates an IRE1 endonuclease-catalyzed splicing cassette that reports on XBP1 activation via expression of a functionally inert XBP1spliced(δ)-GFP fusion protein (Supplementary Fig. 6a)²⁴. Specifically, the xbp1δ-eGFP ER stress reporter was cloned downstream of a col2a1a promoter²⁵ to direct expression within cartilaginous IVD segments and the site of observed oxidation (arrowheads, Fig. 1f, l). Basal levels of Tg(col2a1a::xbp1δ-eGFP) reporter activity and ER stress could be detected within developing IVDs of WT fish (10 dpf, 6 mm SL) (Fig. 1q) in between alternating mineralizing domains labeled by TgBAC(entpd5a::pkRed)²⁰. Strikingly, a significant increase in Tg(col2a1a::xbp1δ-eGFP) reporter activity was observed within IVDs of sspo^dmh4/+ mutant zebrafish (10 dpf, 6 mm SL) (Fig. 1r, s). Importantly, the elevated reporter activity is not due to changes in col2a1a promoter activity in sspo^dmh4/+ mutants, as no differences in the expression of a TgBAC(col2a1a::eGFP) reporter²⁶ construct were observed in 10 dpf sspo^dmh4/+ mutants compared to wildtype IVDs (Supplementary Fig. 6b–d). Overall, these results indicate an active ER stress response prior to the onset of scoliosis.

To determine whether observed ER stress was linked to oxidative stress, zebrafish were treated with 500 μM of NACET from 5 to 10 dpf. NACET treatment had no effect on Tg(col2a1a::xbp1δ-eGFP) reporter activity in wildtype zebrafish, but fully suppressed ER stress responses in sspo^dmh4/+ mutant zebrafish to wildtype levels (Supplementary Fig. 6e–i). Together, these data indicate that redox imbalances induce ER stress within the IVDs of sspo^dmh4/+ mutant animals preceding scoliosis onset. Although perdurance of the XBP1δ-GFP reporter protein confounds precise assessment of the acuteness of observed ER stress responses, the response was transient in nature as no difference in Tg(col2a1a::xbp1δ-eGFP) reporter activity was observed in sspo^dmh4/+ mutant scoliotic zebrafish at 14 dpf compared to WT (6.5 mm SL; Supplementary Fig. 6j–l), despite persistence of redox imbalance in sspo^dmh4/+ scoliotic zebrafish at this stage (Fig. 1l).

sspo ^dmh4/+ mutants exhibit IVD deformations and collagen ECM defects

To further investigate the functional consequence of oxidative stress on zebrafish IVD development, we performed high-resolution synchrotron-based X-ray micro-computed tomography (synchrotron μCT) on juvenile fish at 21 dpf (10 mm SL), when spinal curvature is well-established in sspo^dmh4/+ AIS models (Supplementary Fig. 7). Samples were stained using a diffusible iodine-based contrast enhancement, and 4–5 segments of the caudal spine were imaged at 0.36 μm voxel size to produce high-resolution 3D datasets of the mineralized skeleton and surrounding soft tissues (Fig. 2a, e and Supplementary Videos 1–4). At the stages analyzed, zebrafish IVDs have differentiated into two principal structures (Figs. 3a and 4a, b). These include an inner domain comprised of vacuolated and sheath notochordal cells; and an outer intervertebral ligament (IVL) that physically connects two adjacent vertebral bodies, comprised of layered collagen type II and elastin matrix, dense collagen type 1 matrix and collagen type 1 bundle fibers²⁷. These inner and outer intervertebral structures are functionally analogous to the nucleus pulposus (NP) and annulus fibrosus (AF) layers of the human IVD, respectively^27,28,29.

**Fig. 2: Scoliotic fish exhibit intervertebral ligament deformations.**

**Fig. 3: Histological analysis of IVL deformations within multiple zebrafish AIS models.**

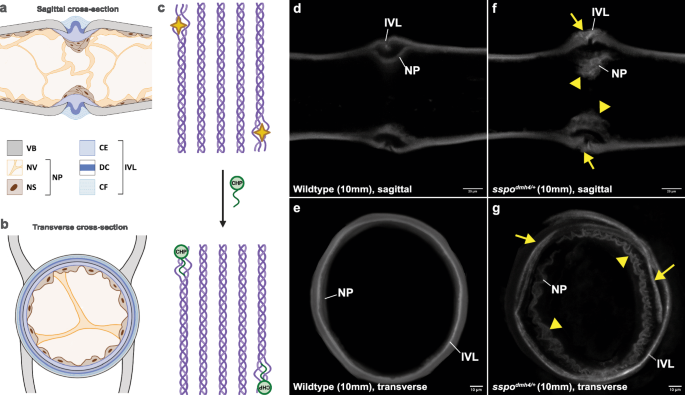

Fig. 4: sspodmh4/+ IVDs exhibit collagenous ECM damage and matrix remodelling. — **Fig. 4: *sspo*^dmh4/+ IVDs exhibit collagenous ECM damage and matrix remodelling.**

Remarkably, the IVL (AF) of sspo^dmh4/+ mutants exhibited obvious structural defects and appeared highly deformable. In wildtype zebrafish, the IVL could be identified connecting two adjacent vertebral bodies, looping outward in the coronal plane towards neighboring muscle fibers (arrowhead, Fig. 2b). This organization of IVL structure, previously described for wildtype adult zebrafish^27,28, was stable across the circumference of the IVD (Fig. 2c-c”’; Supplementary Video 5) with its dense collagen layer appearing in transverse sections as a smooth and regular band of high-contrast, circling the periphery of the intervertebral segment (arrowhead, Fig. 2d). In contrast, coronal images of sspo^dmh4/+ mutants often demonstrated an inversion of typical AF structure, with sections of sspo^dmh4/+ IVL folding interiorly towards the NP cell layers (arrowhead, Fig. 2f). Strikingly, the contour of sspo^dmh4/+ IVL layers exhibited significant deformations over short distances (Fig. 2g-g”’) and, in some instances, could be observed transitioning between wildtype and inverted orientations within 30 μm intervals (Supplementary Videos 6, 7). As a result, transverse sections of sspo^dmh4/+ mutants exhibited irregular and twisted IVL borders (arrows, Fig. 2h) displaced towards the interior of the intervertebral AF layer (arrowhead, Fig. 2h).

Similar IVL deformations were observed upon histological analysis (H&E and Picrosirius red staining) of formalin-fixed paraffin-embedded 21 dpf sspo^dmh4/+ spines (Fig. 3b–f). Notably, histology protocols had a profound effect on resulting IVL morphology, as use of formic acid (a stringent decalcifying agent) resulted in inverted or deformed IVLs in 100% of both sspo^dmh4/+ and WT intervertebral segments (Fig. 3b–d). In contrast, use of EDTA decalcification protocols yielded IVL deformations in only 18% of WT IVD segments (Fig. 3b, e), whereas 92% of sspo^dmh4/+ IVDs exhibited IVL inversion (Fig. 3b, f), consistent with synchrotron uCT analyses. Furthermore, an increased occurrence of IVL deformation was also observed in 21 dpf vangl2 and 30 dpf katnb1 mutants when compared to their normal sibling controls (Fig. 3b, g–j), supporting IVL defects as a shared phenotype across genetically diverse AIS models.

Formic acid has been documented to degrade ECM peptides and cause increased distortion to ECM morphology^30,31, implicating ECM remodelling as a possible mechanism underlying IVL deformity. To probe the structural integrity of the IVD matrix in sspo^dmh4/+ mutants, we performed collagen-hybridizing peptide (CHP) stains on axial skeleton preparations of juvenile fish at 21 dpf (10 mm SL). CHP is a synthetic construct that mimics the helical structure of endogenous collagen peptides and can bind to open regions in collagen triple helices to report on collagen ECM damage and remodelling (Fig. 4c)³². CHP staining appeared stronger in sspo^dmh4/+ mutant IVLs compared to wildtype, and highlighted irregularities in IVL structure (arrows, Fig. 4d–g) previously observed in μCT images. Furthermore, brighter and ectopic CHP signals were also observed within the NP layer of sspo^dmh4/+ mutants (arrowheads, Fig. 4d–g), indicating extensive damage to the collagen matrix, dysregulated ECM remodelling, or both. These data demonstrate abnormalities in the structural properties of the IVDs in zebrafish AIS models, both at the morphological and molecular levels.

Zebrafish AIS models exhibit stiffer spines

Viscoelastic properties of AIS patient intervertebral disc tissues have also been reported to be significantly altered. Specifically, the AF is stiffer in AIS patients compared to healthy controls, as measured by shear wave elastography (SWE)^33,34. SWE uses an acoustic radiation force to induce mechanical tissue displacement and calculates the velocity of shear waves propagating in the orthogonal direction. As tissue stiffness is directly proportional to shear wave speed, this provides a quantitative measure of tissue elasticity^35,36. To further characterize physiological defects associated with oxidative stress and scoliosis in our models, we utilized SWE to quantitatively assess zebrafish spine stiffness (Supplementary Fig. 8a–c).

To begin, we conducted SWE at 16 dpf (average SL = 7.1 +/− 0.2 mm) and 21 dpf (average SL = 8.9 +/− 0.6 mm) stages, corresponding to the onset and progression of scoliosis in sspo^dmh4/+ mutants, respectively (Fig. 5a, b). Euthanized zebrafish were embedded in low-melting agarose, and SWE was performed on the abdominal segment of the spine (note that variations in SWE ‘push’ locations and agarose density did not significantly alter shear wave velocities; Supplementary Fig. 8d, e). Remarkably, sspo^dmh4/+ shear wave velocities were significantly faster than wildtype controls at both time points (Fig. 5c, d), indicating an increase in spine stiffness in scoliotic sspo^dmh4/+ mutant zebrafish. Observed increases in spine stiffness were not likely caused by changes in vertebral bone density, as μCT analysis of the mineralized axial skeleton of adult zebrafish did not reveal significant differences in sspo^dmh4/+ tissue mineral density compared to wildtype siblings (Supplementary Fig. 9).

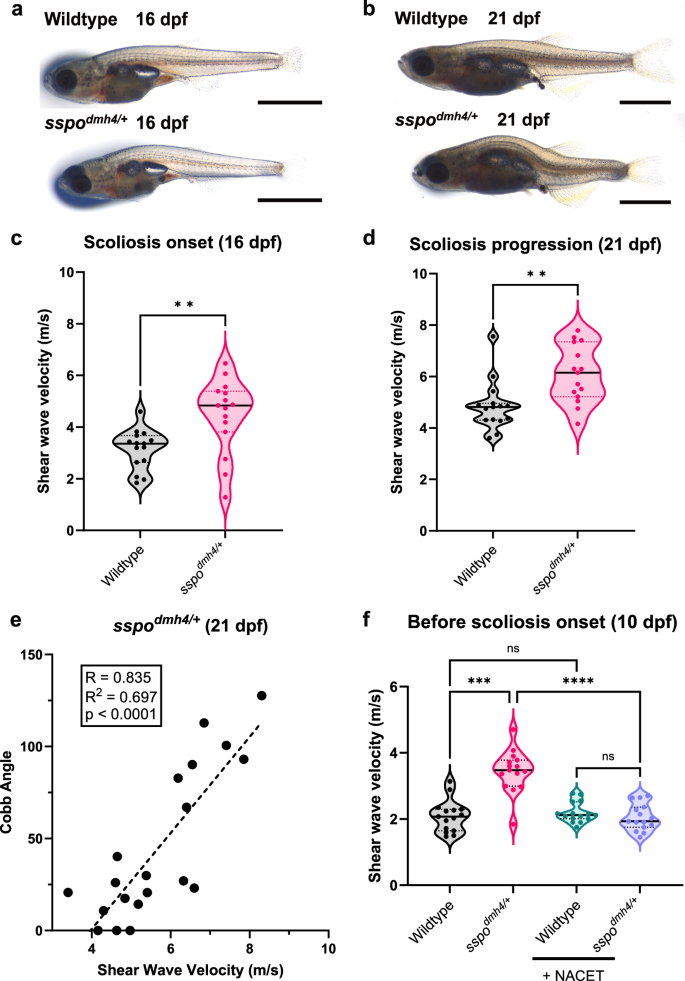

**Fig. 5: Elevated spine stiffness is observed prior to scoliosis onset, positively correlates with curve severity, and is fully suppressed by antioxidant therapy.**

To determine whether elevated spine stiffness represents a generalizable feature of zebrafish scoliosis, or a property specific to sspo^dmh4/+ mutants, we performed SWE on two additional AIS models (katnb1 and vangl2) that share upstream CSF homeostasis defects but differ in underlying molecular genetic causes^21,22. Again, significantly faster shear wave velocities were observed in scoliotic katnb1 and vangl2 mutants compared to control siblings (Supplementary Fig. 10). Therefore, our results demonstrate altered viscoelastic properties of the zebrafish scoliotic spine that parallel elevated intervertebral disc stiffness observed in human AIS patients^33,34.

Oxidative stress-induced spine stiffness is a prognostic biomarker of scoliosis

Shear wave velocities varied noticeably within sspo^dmh4/+ mutant cohorts (Fig. 5c, d). Since the penetrance (Supplementary Fig. 1k) and severity of spinal curvature is also variable among sspo^dmh4/+ zebrafish¹⁵, we hypothesized that differences in shear wave velocity/spine stiffness may directly reflect scoliosis severity. Using a second cohort of 21 dpf sspo^dmh4/+ mutants (average SL = 8.2 + /− 0.7 mm), we performed μCT imaging after SWE and performed Cobb-angle measurements of the largest spinal curvature in each animal, which is a biomarker of scoliosis severity. Remarkably, a significant and positive correlation between shear wave velocity and Cobb-angle/curve severity was observed (R = 0.835; Fig. 5e).

Elevated spine stiffness was measured after scoliosis onset and could therefore have developed as a consequence of spinal curvature. To determine the relationship between stiffness and scoliosis, we next conducted SWE on sspo^dmh4/+ and wildtype fish at 10 dpf (average SL = 4.7 +/− 0.4 mm), prior to obvious morphological phenotypes (Fig. 1a, b). Remarkably, sspo^dmh4/+ mutant spines were significantly stiffer than wildtype controls before scoliosis onset, suggesting a causal relationship (Fig. 5f). To determine whether elevated tissue stiffness was linked to elevated oxidative stress, zebrafish were treated with 500 μM of NACET from 5 to 10 dpf, prior to SWE. Strikingly, NACET treatment had no effect on wildtype control animals, but fully suppressed abnormal spine stiffness in sspo^dmh4/+ zebrafish to wildtype levels (Fig. 5f). Similarly, NACET treatment reduced abnormal spine stiffness in katnb1 zebrafish (Supplementary Fig. 10b). Together, these results directly link oxidative stress to altered viscoelastic properties of the scoliotic spine and identify elevated spine stiffness as a prognostic biomarker of spinal curvature in zebrafish AIS models.

IVD matrix defects precede scoliosis and are directly linked to oxidative stress

IVD deformations and collagen remodelling defects were observed after scoliosis onset in sspo^dmh4/+ mutants and could therefore reflect either the cause or the consequences of spinal curvature. Although SWE indicates structural defects likely precede scoliosis, it lacks sufficient spatial resolution to identify affected tissues. To further investigate whether ultrastructural ECM defects drive spinal curvature in sspo^dmh4/+ models, we performed transmission electron microscopy (TEM) on 10 dpf zebrafish (5 mm SL) prior to an obvious morphological phenotype (Fig. 1a, b). Specifically, we focused on mineralized and cartilaginous domains of the peri-notochordal ECM that template vertebral centra and IVD development, respectively (Fig. 6a).

**Fig. 6: Oxidative stress-induced ECM matrix defects precede scoliosis onset.**

In wildtype animals, a uniform layer of collagen ECM was observed within cartilaginous domains, with bundles of collagen fibers organized circumferentially around the notochord projecting out of the sagittal plane of sectioning (Fig. 6c, c’). In contrast, sspo^dmh4/+ cartilaginous segments exhibited irregularities in the thickness and orientation of collagen ECM layers (Fig. 6d, d’). Quantification of collagen ECM thickness (Fig. 6b) revealed that while the minimum thickness in any IVD segment was consistent between wildtype and sspo^dmh4/+ IVD segments, the maximum thickness and local max/min ratios were significantly higher in sspo^dmh4/+ mutants (Fig. 6g–i). Furthermore, the ECM appeared disorganized and misoriented in developing sspo^dmh4/+ IVD segments, with collagen fiber bundles observed running parallel to the sagittal plane (Fig. 6d, d’). Similar ECM thickness defects and collagen fibril disorganization defects were observed in vangl2 mutant AIS models at 10 dpf (Supplementary Fig. 11a–d, g). Although the penetrance and severity of ECM phenotypes varied among IVD segments from any given animal (Fig. 6g–i), all sspo^dmh4/+ fish (N = 9) exhibited IVD defects. Notably, collagen ECM defects were specific to IVDs and were not observed in mineralizing vertebral segments of sspo^dmh4/+ or vangl2 mutant models (Supplementary Figs. 11e, f, h and 12).

To determine whether collagen ECM defects are also linked to the elevated oxidative state observed around the IVD of sspo^dmh4/+ mutants, zebrafish were treated with 500 μM NACET from 5 to 10 dpf, prior to TEM imaging. Strikingly, NACET treatment had no effect on collagen matrix organization in wildtype animals but restored collagen fiber orientation and suppressed ECM thickness in sspo^dmh4/+ mutants to wildtype levels (Fig. 6e–i). Together, these results demonstrate that oxidative stress-induced collagen ECM defects, specific to IVD segments, precede scoliosis onset in zebrafish AIS models and may therefore be functionally linked to IVL deformations and idiopathic-like spinal curvature.

Discussion

Despite the oxi-inflammatory origins of scoliosis in zebrafish models^14,15,16, we demonstrate that pathogenic mechanisms ultimately converge on a historical focus of human AIS studies—the IVD. Trueta (1968) first reported that morphological deformations of the IVD contribute greatly to AIS spine deformity³⁷, and Harrington (1977) theorized that loss of physical properties (collagen) of the IVD might thus present as a common denominator in AIS³⁸. These ideas have since been explored, in part, by longitudinal radiographic studies of AIS patients associating IVD wedging with the early presentation and progression of spinal curvature^39,40, and mathematical modeling of AF collagen fiber imbalance as an etiological factor in scoliosis⁴¹. Although biochemical and histological studies have also identified irregular collagen and elastic properties in IVDs isolated from AIS patients^42,43,44, these defects were observed only after scoliosis onset. Here, we provide direct evidence that ROS-induced IVD stress responses, altered viscoelastic properties, and collagen ECM defects all precede spinal curvature in sspo^dmh4/+ zebrafish. Interestingly, Creb3l2/Bbf2h7, a transmembrane bZIP transcription factor, can be activated by oxidative/ER stress and has been shown in medaka and zebrafish to regulate the expression of COPII component genes for collagen export in the notochord^45,46. Although it remains to be determined how oxidative stress ultimately perturbs collagen matrix development (i.e., via abnormal protein translation, trafficking, cross-linking, etc.,) our data, together with published reports, strongly support a causal role for IVD ECM remodelling defects in the etiopathogenesis of scoliosis and highlight the relevance of zebrafish AIS models for pathomechanism discovery and therapeutic development.

At present, genetic screening appears to be ineffective for pre-onset diagnosis of AIS⁴⁷. Diagnosis can only be made after scoliosis onset, and high variability in severe curve progression makes it difficult to predict which patients may ultimately require bracing or surgical intervention. Here, we demonstrate the prognostic capabilities of SWE in zebrafish AIS models. Strikingly, we have determined that elevated spine stiffness can be detected prior to scoliosis onset. As our data complements clinical SWE studies demonstrating elevated AF stiffness in affected AIS patients^33,34, spine stiffness in sspo^dmh4/+ zebrafish might similarly be caused by observed IVD collagen remodelling defects. Indeed, spine stiffness and IVD matrix defects are both oxidative stress-dependent and mechanistically linked in sspo^dmh4/+ models, and increases in the thickness and isotropy of a medium (as observed for sspo^dmh4/+ collagen IVD matrix) are predicted to elevate medium stiffness^48,49. Although the spatial and molecular origins of elevated stiffness in sspo^dmh4/+ zebrafish remain to be determined, our data provide proof-of-concept that spine stiffness might be explored as a prognostic biomarker for AIS development. Given that SWE is a non-invasive imaging technique that is widely applied in the clinic, clinical translation of these findings could hold tremendous potential to identify patients at high risk of severe scoliosis for earlier, non-surgical intervention.

The oxidative stress-induced origin of ECM defects identified in zebrafish AIS models is equally deserving of clinical consideration. AIS is a common pediatric disorder¹. Nevertheless, it is estimated that <5% total genetic variance in AIS has been determined¹⁰, and genetic associations with cartilaginous ECM and IVD development account for only a subset of these cases^2,3,4. However, environmental variables like infection, diet, lifestyle and microbiome composition can profoundly influence ROS levels^50,51,52 and could therefore play a pervasive, yet largely unexplored role in AIS pathogenesis. In addition, neuroinflammation and oxidative stress can also have genetic origins (as in sspo^dmh4/+ mutant zebrafish) and should be explored as etiological factors driving human spinal curvature. This includes not only AIS, but other genetically defined disorders that present with both CNS oxi-inflammation and high incidences of developmental scoliosis, like DiGeorge Syndrome^53,54, Rett Syndrome^55,56, CDKL5 Deficiency Disorder^57,58, and Cerebral Cavernous Malformation^59,60.

Finally, regardless of the origins of oxidative stress, prophylactic and therapeutic administration of antioxidants has proven remarkably effective in preventing the onset and severe progression of scoliosis in zebrafish AIS models^14,15,16. Furthermore, we have demonstrated that ER stress responses, elevated spine stiffness and collagen ECM defects in sspo^dmh4/+ mutants, which are all functionally linked to spinal curvature, can be fully suppressed by NACET treatment. If oxidative stress-induced ECM remodelling defects prove relevant to patient populations, then translation of these findings could have a profound impact on the future management and prevention of human spinal curvature.

Methods

Zebrafish husbandry

Zebrafish husbandry and experimental protocols were approved by the Hospital for Sick Children’s Animal Care Committee (Animal Use Protocol #1000066437), and all protocols were performed in accordance with Canadian Council on Animal Care guidelines. Wildtype zebrafish from TU strains were used. sspo^dmh4 (15), katnb1^mh102 (21), vangl2^sfGFP (hsc170Tg)²², Tg(βactin::loxp-mCherry-STOP-loxp-zGrad) (hsc185Tg)²², Tg(foxj1a::iCre) (hsc105bTg)¹⁴, TgBAC(tnfα::GFP)¹⁸, Tg(mpeg1::mCherry)¹⁹, and TgBAC(col2a1a::eGFP)²⁶ mutant and transgenic fish used in this study have been previously described. Information on newly developed transgenic fish Tg(col2a1a::xbp1δ-eGFP) can be found below in the “Transgenesis” method section. Embryos from natural matings were grown at 28.5 °C. When required, experimental animals were euthanized with tricaine (500 mg/L; MS-222/MESAB), followed by submersion of anesthetized fish in ice water for several minutes. As laboratory zebrafish strains do not utilize a chromosomal sex determination mechanism and sex differentiation does not initiate until after ~3 weeks post-fertilization⁶¹, we cannot report sex for our embryonic and larval studies.

Zebrafish genotyping

Genotyping protocols have been described previously and can be found in the following publications: sspo^dmh4/+(¹⁵), katnb1^mh102/mh102 (²¹), vangl2^sfGFP/sfGFP (²²). Primer sequences used for genotyping can be found in Supplementary Table 1.

Conditional degradation of sfGFP-Vangl2

To conditionally disrupt Vangl2 activity, the zGrad anti-EGFP nanobody protein degradation system was used to degrade sfGFP-Vangl2 protein (vangl2^sfGFP/sfGFP line) specifically within motile-ciliated lineages of the brain and spinal cord. Briefly, a previously generated and ubiquitously expressed Tg(β-actin2::loxP-mCherry-STOP-loxP-zGrad)²² transgene was crossed to the Tg(foxj1a::iCre) line¹⁴, expressing Cre recombinase (activating zGrad) specifically within motile-ciliated cell lineages of vangl2^sfGFP/sfGFP animals. See ref. ²² for more detailed information.

Transgenesis

Entry plasmids were generated through BP recombination into respective pDONR plasmids (Invitrogen) and then cloned into standard Tol2 kit Gateway compatible vectors using LR recombination methods to create the final transgenes⁶². To generate Tg(col2a1a::xbp1δ -eGFP), a previously generated p5E-col2a1a⁶³, pME-xbp1δ-eGFP (obtained by cloning the xbp1 partial sequence using Gateway primers, detailed in Table 1, from ef1α:xbp1δ-gfp plasmid²⁴ graciously provided by Dr. Shao Jun Du), and p3E-polyA⁶² were recombined into pDEST Tol2 HR2 transgenesis vector. Embryos were injected at the one-cell stage with 25 pg of Tol2 transposase RNA and 25 pg of the transgene (plasmid). Injected embryos were then screened at 48 hpf for transgenesis marker expression. Imaging of reporter expression was performed on an Axio Zoom.V16 (Zeiss). Embryos displaying strong reporter expression were grown to adulthood and crossed to wild-type fish to establish stable F1 lines. F1 lines were then bred into sspo^dmh4/+ and maintained in sspo^dmh4/+ fish.

DCFH-DA staining

Zebrafish were collected and placed in 12-well plates containing 2 mL of 5 μM DCFH-DA (Sigma) in E3 media. Plates were kept in the dark and incubated for 15 min (5 dpf zebrafish) or 30 min (10 to 14 dpf zebrafish) at a temperature of 28.5 °C. Zebrafish were then washed three times with E3 media for 5 min each and immediately imaged.

DCFH-DA, Tg(col2a1a::xbp1δ-eGFP), TgBAC(entpd5a::pkRed), TgBAC(tnfα::eGFP), and Tg(mpeg1::mCherry) imaging

Experimental zebrafish were anesthetized with tricaine (500 mg/L) before imaging. 5 dpf, 10 dpf, or 14 dpf zebrafish were mounted dorsally or laterally in 0.8% low-melting agarose (BioShop), measured for standard length, and imaged on an LSM 710 confocal microscope (Zeiss).

Collagen-hybridizing peptide

Juvenile zebrafish were collected at 21 dpf (10 mm SL) and euthanized with tricaine (500 mg/L) on ice. Euthanized fish were fixed with 100% methanol at −20 °C for 48 h, then rehydrated with 1xPBS before the skin was gently removed with a pair of dissection forceps. Collagen hybridizing peptide (F-CHP from 3Helix, diluted in 1xPBS to 20 μM) was heated to 80 °C for activation, followed by quenching on an ice block down to room temperature. Fish were immersed in CHP for 48 h at 4 °C in the dark. After CHP staining, fish were transferred into individual tubes for soft tissue lysing in 2%KOH/ethylene glycol/1xPBS solution, then switched to 1%KOH/ethylene glycol/1xPBS when the vertebrae were exposed. Samples were placed on a nutator during tissue lysing until most of the muscle, spinal cord and ventral vasculature had been digested, then cleared with glycerol before imaging on an LSM 710 confocal microscope (Zeiss).

Transmission electron microscopy

Fish were collected at 10 dpf (5 mm SL) and euthanized with tricaine (500 mg/L) on ice. Euthanized samples were fixed in 2% paraformaldehyde and 2.5% glutaraldehyde in 0.1 M sodium cacodylate buffer for 2 h at room temperature, then transferred to 4 °C overnight. Rinsed in buffer, post-fixed in 1% osmium tetroxide in buffer for 90 min, dehydrated in a graded ethanol series (50%, 70%, 90% and 100%, 20 min each step) followed by two propylene oxide changes for 30 min, and embedded in Quetol-Spurr resin. Blocks were cured overnight in the oven at 60 °C. Fish were cut along the sagittal plane 100 μm deep into the sample. Sections 70 nm thick were cut on a Leica EM UC7 ultramicrotome, and post-stained with 2% uranyl acetate and 3% lead citrate for 20 min each and washed for 5 min after each staining. Sections were air-dried at room temperature before being imaged with a Hitachi HT7800 transmission electron microscope.

Synchrotron μCT imaging, reconstruction, and segmentation

Juvenile zebrafish were collected at 21 dpf (10 mm SL) and euthanized with tricaine (500 mg/L) on ice. Euthanized fish were fixed with 4% PFA at 4 °C overnight, then washed with 1xPBS before being stained in I2E solution (1% iodine metal in 100% ethanol) overnight at room temperature. Samples were then washed again with 1xPBS to remove excess I2E stain, then mounted in 1.5% agarose in R.O. water in 0.2 mL tubes. Synchrotron μCT was performed at the bending magnet beamline of BioMedical Imaging and Therapy beamlines (BMIT-BM) at the Canadian Light Source⁶⁴. The beamline is operated in filtered white mode; therefore, it is essential to filter the beam sufficiently to prevent radiation damage to the sample and agarose gel. Filters of 1.76 mm Al and 0.275 mm Sn were used. Detector was an indirect X-ray microscope (Optique Peter, France) combined with a sCMOS PCO Edge 5.5 camera (PCO, Germany), a 20x objective, and a 4 μm LSO:Tb scintillator to obtain an effective pixel size of 0.360μm. Generally, the dimension of scanned samples was 400 x 600 x 750 μm³. 1500 projections over 180 degrees were collected at an exposure time of 1.5 s. The sample was 25.7 m from the source, and the propagation distance was 3 cm. Phase retrieval and image reconstructions were done using the tofu reconstruction package⁶⁵.

NACET treatments

Fish were housed off-system in 500 mL of 300 mg/L Instant Ocean Sea Salt-treated water in 1.8 L tanks with 12 fish per tank. Water was changed once per day. N-acetyl-L-cysteine ethyl ester (NACET, BOC Sciences Cat# B0689-029481) was prepared as a 250 mM stock solution in 300 mg/L Instant Ocean Sea Salt dissolved in MiliQ water. NACET was administered with water changes once per day at a final concentration of 500 μM. NACET treatment occurred over the course of 5 days, starting at 5 dpf with sspo^dmh4/+ fish and at 12 dpf with katnb1^mh102/mh102 fish. The fish were fed in accordance with their regular feed schedule throughout the treatment.

Shear wave elastography (SWE)

Zebrafish spinal tissue stiffness was assessed using an SWE protocol (as described in Supplementary Fig. 8) programmed into a research ultrafast ultrasound system (Vantage 256, Verasonics Inc., Kirkland, WA, USA) with a linear ultrasound probe (L22-14vX, 18 MHz center frequency). Euthanized zebrafish were mounted ventrally in a 35 mm × 10 mm dish (Corning) filled with 1.5% low-melting agarose (BioShop). The probe was positioned longitudinally, dorsal to the zebrafish, in contact with ultrasound gel applied to agarose-embedded samples. The SWE protocol for a single acquisition consisted of two steps: 1) the induction of an acoustic radiation force through a focused ultrasound beam at a push depth between 4 and 9 mm aimed at the center of the zebrafish spine, resulting in a transient perturbation of the tissue and shear waves propagation; 2) an ultrafast Doppler sequence was created with coherent compound plane wave imaging consisting of 3 plane waves (range −3 degrees to +3 degrees, 3-degree steps) with a pulse repetition frequency of 28 kHz. Coherent compounding of the plane waves was applied using a sliding window method as in Kang et al. (window size 3, corresponding to the 3 different titled plane waves, and window step of 1), enabling a virtual framerate of 28kHz⁶⁶. Each acquisition lasted 10 milliseconds. Three acquisitions were collected per zebrafish. After scans were complete, the ultrafast imaging data were streamed to an internal network and then post-processed offline using MATLAB 2019a (The MathWorks Inc., Natick, MA, USA). Tissue velocity data were computed using a Doppler-based autocorrelation estimator, from which tissue velocity maps were reconstructed and presented as a space-time matrix showing shear wave propagation within a specific region of interest. The mean of these shear wave velocities was computed and used as a surrogate for spine stiffness (derived from the shear modulus)⁶⁷.

μCT scanning, reconstruction, and density analysis

Zebrafish were euthanized at 4mpf and fixed in 10% neutral-buffered formalin (Sigma-Aldrich). Fish were mounted in tubes using 1% agarose. Scanning was performed with a SkyScan 1275 μCT (Bruker, Kontich, Belgium) using 50 kV and 80 μA, sample rotation of 180°, image rotation steps of 0.2°, frame averaging of 10, exposure time of 55 ms, camera binning of 1 × 1, and using a pixel size of 18 μm. Projection images were reconstructed into cross-sections using SkyScan’s NRecon v.1.7.4.6 software (Bruker, Kontich, Belgium) in a range of attenuation coefficients 0–0.25, with a beam-hardening correction of 40%. The reconstructed images were stored as 16-bit TIFF images. Maximum Intensity Projections were generated (ImageJ software) for tissue mineral density analysis. The line selection tool in ImageJ was then used to manually measure the mean gray value within each vertebral centrum, which can be used as a relative measure for tissue mineral density.

Cobb-angle analysis

Lines were drawn parallel to the top and bottom of most displaced vertebrae for each curve. The Cobb angle was then measured as the angle of intersection between lines drawn perpendicular to the original 2 lines¹⁴. Analysis was conducted using ImageJ^68,69. Cobb-angle measurements for lateral and dorsal curvatures were summed to obtain a combined Cobb-angle measurement for each fish. Results were graphed, and statistical significance was calculated using GraphPad Prism 10.1.1 (GraphPad Software).

Quantification of DCFH-DA staining, Tg(col2a1a::xbp1δ-eGFP) and TgBAC(entpd5a::pkRed)

Using ImageJ FIJI, regions of interest (ROI) were selected to measure the area and integrated density of the ROI (See Supplementary Fig. 1a for ROI examples). The mean gray value of the background was also measured. The corrected total fluorescence (CTF) of the ROI was calculated as follows: Integrated Density - (Area of ROI x Mean Gray Value of Background). CTF values were then calculated relative to wildtype controls by dividing the CTF values by the average CTF wildtype value. Statistical analysis was performed using a Mann–Whitney test or a Kruskal–Wallis test in GraphPad Prism version 10.1.1 (GraphPad Software).

Quantification of TgBAC(tnfα::GFP) and Tg(mpeg1::mCherry)

Using ImageJ FIJI, cells expressing TgBAC(tnfα::GFP) and/or Tg(mpeg1::mCherry) were counted in the dorsal telencephalon region of 10 dpf and 14 dpf sspo^dmh4/+ mutants and wildtype siblings as maximum projection images encompassing a Z-range of 72 μm (for 10 dpf fish) and 108 μm (for 14 dpf fish). Statistical analysis was performed using a Mann–Whitney test or a Kruskal–Wallis test in GraphPad Prism version 10.1.1 (GraphPad Software).

Notochord ECM measurements

TEM scans at 6000x and 10,000x were selected for measurements. The ECM widths were taken with ImageJ and defined as the distance from the lumenal side of the notochord ECM to the basal side of the notochord sheath (between cyan and magenta dash Fig. 6b). Two measurements were taken from a single scanned image: a local maximum width (the thickest area along the ECM) and a local minimum (thinnest area along the ECM). The local ratio was obtained by dividing the maximum width by its paired minimum width.

Histology

Juvenile zebrafish were collected at 21 dpf (10 mm SL) or 30 dpf (13 mm SL), then euthanized on ice with tricaine (500 mg/L). Euthanized fish were fixed with 4% PFA at 4 °C overnight, then washed with 1xPBS, before decalcification with either EDTA (0.35 M EDTA with gentle rocking at 4 °C for 4 days) or formic acid (Thermo Fisher Scientific CAS: CS511-1D, gentle rocking at RT for 2–3 days). Decalcified samples were processed, put in a mold, embedded with 60 °C liquid paraffin, and transferred to a cooling plate for the wax to freeze. Embedded blocks were sectioned with a microtome, generating ribbons of 3–4 μm thin onto a water bath, then collected onto a slide and dried overnight. Samples were then deparaffinized in xylene (3 × 3 min), transferred to absolute ethanol (3 × 10 dip), 95% ethanol (10 dips), and washed with water. Then, sample processing occurred in the order of celestine blue (5 min), stain in Harris’ haematoxylin (5 min), acid alcohol (5 dips), and blue in Scott’s tapwater (1 min), with water-wash between each step. Pico-Sirius Red or H&E were then applied for 30 min, blotted dry, and dehydrated in 100% ethanol (4x), xylene (3x). 10 dips each, before being sealed with a coverslip.

Statistics and reproducibility

Statistical analyses were performed in GraphPad Prism version 10.1.1 (GraphPad Software). Two-tailed, non-parametric Mann–Whitney tests were used for comparisons between two groups, while non-parametric Kruskal–Wallis tests followed by Dunn’s multiple comparisons test were used for analyzing multiple groups. A p-value less than 0.05 was considered statistically significant. Statistical test and sample sizes can be found in the Figure legends. Individual p-value ranges are indicated in the Figure legends, and exact p-values can be found in Supplementary Data 1. The total number of zebrafish analyzed is represented by N, and individual data points, such as measured IVDs, are represented by n numbers. The detailed number of zebrafish (N) and data points (n) for each experiment can be found in the respective figure legend.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Due to their large size, μCT imaging files are available upon request. Source data are provided with this paper.
