Introduction

Monolayer a-C is a one-atom-thick amorphous material comprising two-dimensional (2D), randomly interconnected networks of carbon atoms. These 2D a-C films have recently garnered substantial attention owing to their atomically thin thickness, non-crystalline nature, and potential applications1,2,3,4,5. Since the first synthesis of monolayer a-C in 20202, current research primarily focuses on manipulating disorder structures and understanding the fundamental electrical conductivity of 2D a-C3. However, previous synthesis methods for a-C films required the use of copper substrates2,3, followed by the transfer step through a chemical etching process. This method could potentially lead to residual contaminant issues and unavoidably influence fundamental studies and commercial applications of a-C films.

Apart from the growth of 2D a-C that needs improvement, a deeper understanding of its insulating behavior is equally crucial. Previous reports primarily relied on high resistivity values around room temperatures as the main evidence to describe its transport properties and demonstrate its insulating behavior2, which is not strict enough in physics as the high temperature will obscure the intrinsic properties of the material by the increased electron hopping due to the high disorder and increased thermally activated transport. In comparison, low-temperature measurements not only reduce thermal excitation, but also enable the analysis of phenomena pertaining to quantum effects. This forms the basis for utilizing quantum tunneling to investigate insulating behavior in this experiment. Moreover, the amorphous nature, featured by the absence of long-range ordering, is also explorable at low temperatures. Thus, low-temperature measurements are generally indispensable at such conditions but challenging due to the poor in-plane electrical conductivity of a-C at low temperatures. Instead, capitalizing on the two-dimensional nature of a-C materials, quantum tunneling characterization undeniably presents a feasible option for studying electrical behavior of 2D materials at liquid helium temperature.

Herein, we present an efficient and flexible CVD method for the direct synthesis of wafer-size a-C monolayers with precise control over size and morphology on diverse substrates, thereby enabling seamless integration into standard fabrication processes. Furthermore, we investigate the low-temperature electrical properties of a-C using a unique quantum tunneling device. Our findings reveal that amorphous carbon films exhibit insulating behavior, shedding light on the understanding of amorphous insulator and showcasing the potential for developing a-C film-based devices.

Results

Synthesis and characterization of 2D a-C

The process of synthesizing monolayer a-C film using a carbon-doped molybdenum (C-Mo) film is illustrated schematically in Fig. 1a–b. First, a C-Mo film with a thickness of ~2 nm was deposited on the Si/SiO2 wafer via magnetron sputtering, serving as the precursor (see Supplementary Figs. 1–3, for additional details), as indicated in Fig. 1a. Then, the C-Mo film is heated in a CVD furnace (Supplementary Fig. 4). During this process, the molybdenum evaporates, and carbon atoms coalesce to form an a-C film, progressing from stage I (Fig. 1a) to stage II (Fig. 1b). The experimental procedure can be found in the “Methods” section, along with detailed information provided in Supplementary Figs. 5–9.

Fig. 1: Direct growth and atomic structure of monolayer amorphous carbon (a-C) on the SiO2/Si substrate.
Fig. 1: Direct growth and atomic structure of monolayer amorphous carbon (a-C) on the SiO2/Si substrate.
Full size image

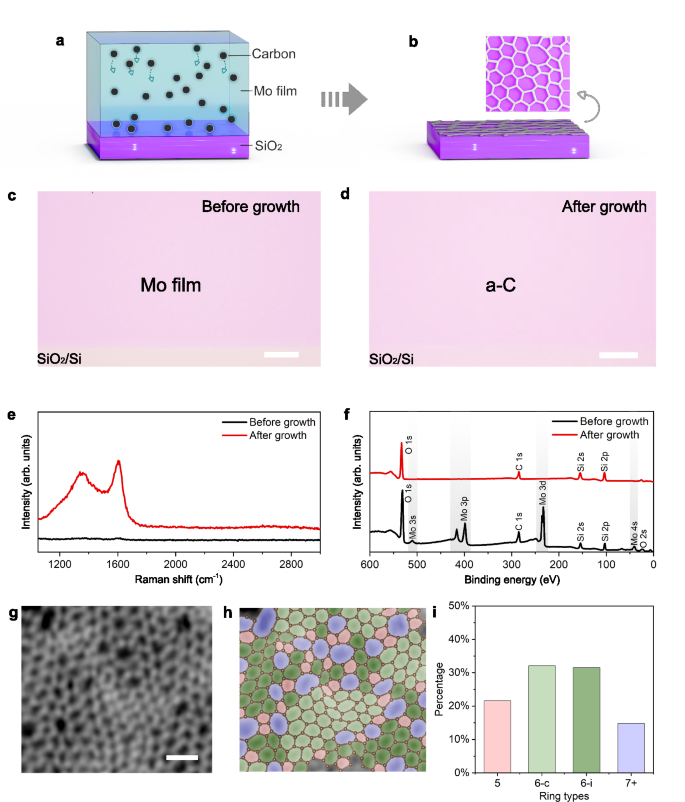

a, b Schematic diagrams for the 2D a-C synthesis using C-doped Mo films. c, d Optical images of Mo films before (c) and after synthesis (d) at 650 °C for 1 h. e, f Typical Raman (e) and X-ray photoelectron spectroscopy (XPS) (f) spectra of Mo film (black) and synthesized a-C (red). g, h Representative denoised annular dark-field scanning transmission electron microscopy (ADF-STEM) image and the corresponding color overlays of monolayer a-C. Each color corresponds to a specific type of carbon ring: pink for five-membered rings (5), green for six-membered rings (crystallite regions in light green (6-c) and isolated hexagonal regions in dark green (6-i)), and purple for rings containing seven or more carbon atoms (7 + ). i Statistics of different types of carbon rings in (h). Scale bars: 20 µm in (c, d), 0.5 nm in (g).

Optical images of the ultra-thin C-Mo precursor film and the as-synthesized 2D a-C film are presented in Fig. 1c and d, respectively, both exhibiting a uniform and continuous appearance. However, the difference between the two films is discernable in the Raman spectrum and X-ray photoelectron spectroscopy (XPS) data (Fig. 1e, f). Notably, prior to growth, no Raman peaks pertaining to carbon are observed. Following the growth process, distinct Raman D and G bands, characteristic features of graphitic materials6, become prominent. These findings suggest the formation of carbon bonding during the growth process. Importantly, the broadened nature of the Raman D and G peaks results in a slight overlap with each other, which, together with the absence of the 2D peak, signifies a lack of long-range order in the lattice7,8,9. This observation aligns with the characteristic features of previously reported a-C materials2,3. XPS analysis was employed to monitor the compositional changes of the precursor film, showing no detectable Mo signal after the growth process (Fig. 1f and Supplementary Fig. 10). This result was further validated by transmission electron microscopy (TEM) and energy-dispersive X-ray spectroscopy (EDX) characterizations (Supplementary Figs. 11 and 12). Furthermore, the Raman maps and SEM images shown in Supplementary Figs. 13 and 14 confirm the uniform nature of the synthesized a-C films. Next, annular dark-field scanning transmission electron microscopy (ADF-STEM) analysis was conducted to confirm the amorphous nature of the carbon film at atomic scale. The representative STEM image in Fig. 1g shows a typical monolayer amorphous carbon structure, characterized by a contiguous network of carbon atoms reminiscent of graphene but lacking long-range periodic order. Then, the color-coding overlays illustrated in Fig. 1h highlights the structural distinctions between the a-C and conventional graphene. Compared with uniform hexagonal rings formed by sp2-hybridized carbon atoms in graphene, the rings in the a-C may consist of 5 to 9 atoms with a non-uniform distribution. Pink represents five-membered rings, green represents six-membered rings, and purple represents rings containing seven or more carbon atoms. The six-membered carbon rings are further subdivided into crystallite regions indicated in light green, and isolated regions indicated in dark green, following the method reported previously3, where the crystallites are defined as regions comprising at least a central hexagon with six adjacent hexagonal rings. The statistics for the different types of carbon rings in Fig. 1i show ratios consistent with those previously reported for the monolayer a-C material3. More statistical analyses based on the STEM images further substantiate the absence of long-range periodicity (Supplementary Fig. 15). Finally, the TEM/STEM images acquired from multiple locations (Supplementary Figs. 16 and 17) and selected-area electron diffraction (SAED) patterns obtained from micron-scale regions further confirm the amorphous nature of the a-C films (Supplementary Fig. 18).

Figure 2 shows the wafer-size 2D a-C films, high-resolution sample patterning, and substrate engineering. Figure 2a showcases 2-inch a-C films on SiO2/Si wafer, underscoring the capability of our method in fabricating a-C films of arbitrary sizes. Raman analysis reveals the uniformity of the a-C film, as evidenced by consistent Raman D and G peaks throughout the film-covered area (Supplementary Fig. 19). Furthermore, Raman G peak intensity mapping collected at multiple positions across the a-C wafer further supports this homogeneity (Fig. 2b). Additionally, our method allows for the pre-patterning of the C-Mo precursor, facilitating the direct growth of a-C into a predetermined geometry with good uniformity (Fig. 2c–f, and Supplementary Fig. 20). This morphology-controllable synthesis, previously unattainable with copper substrate-based methods, broadens the scope of applications for amorphous materials. Furthermore, a-C can be grown on diverse substrates, as illustrated by the uniform samples on sapphire and quartz substrates (Supplementary Fig. 21). Moreover, we can also obtain a-C films with controlled thickness (Supplementary Fig. 22) equivalent to monolayer to trilayer. These results highlight the versatility of our method, including the direct synthesis of a-C on insulating substrates, establishing a robust platform for exploring wafer-scale synthesis strategies. They also underscore the potential of amorphous materials for scalable production, customizable patterning, and compatibility with diverse substrates.

Fig. 2: Controllable synthesis of a-C films.
Fig. 2: Controllable synthesis of a-C films.
Full size image

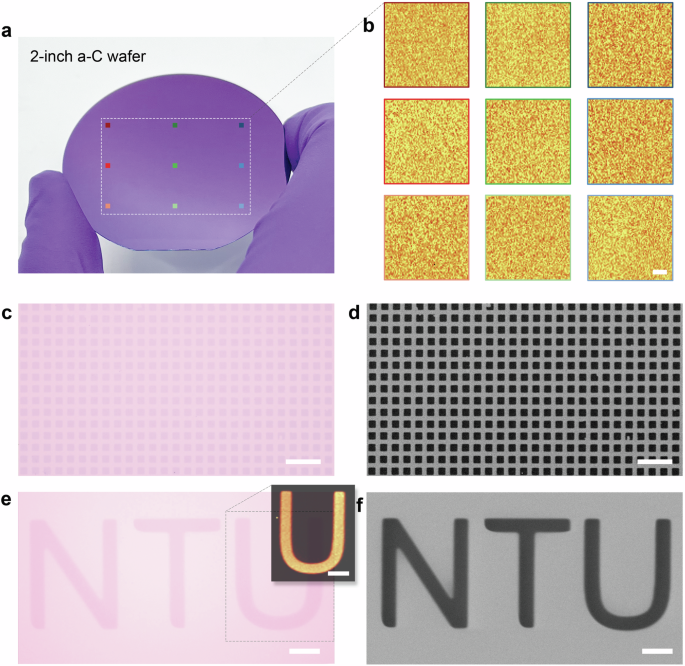

a Optical image of the synthesized 2-inch a-C wafer. b Raman G peak intensity mapping collected at multiple positions across a-C wafer, marked by the corresponding colored squares in white rectangular area of (a), demonstrating the uniform quality of the synthesized a-C film. c–f Optical images (c, e), scanning electron microscopy (SEM) images (d, f) and corresponding zoomed-in Raman G peak map (inset in e) of the synthesized a-C patterns. Scale bars: 10 µm in (b, e, f), 50 µm in (c, d).

Formation mechanism of 2D a-C

Controlled experiments, simulation and theory calculations have been performed to understand the formation mechanism of 2D a-C. Our experiments (Supplementary Figs. 5–7) show that the supply of a trace amount of tellurium (Te) source during the growth is key to facilitate the formation of 2D a-C film (Fig. 3a). To elucidate the role of Te atoms, kinetic Monte Carlo (kMC) simulations of the growth process were conducted. Given that the research on monolayer a-C system is still in its early stages and lacks qualitative understanding2,3,10, a coarse-grain kMC model based on energy-driven kMC (EDkMC)11,12,13,14 was developed to understand the experimental results qualitatively. Density function theory (DFT) calculations were also employed to evaluate carbon-substrate interactions, subsequently used as an input of van der Waals (vdW) parameters in kMC simulations (Fig. 3d). More details can be found in the “Methods” section and Supplementary Fig. 23. Simulations indicate that a minute a-C sheet emerges from the nucleus on an amorphous SiO2 covered substrate during growth, featuring a lattice composed of hexagons randomly mixed with pentagons, heptagons, and octagons. Yet, compared to planar graphene lattices, the presence of non-hexagon rings induces off-plane buckling15, particularly pronounced on the weakly interacting SiO2 substrate. This off-plane buckling can accumulate during growth, biasing the growth of the carbon sheet into a 3D amorphous structure (Fig. 3b) that agrees with experimental observations (inset of Fig. 3d and Supplementary Fig. 5).

Fig. 3: Theoretical analysis of Te-assisted synthesis of monolayer a-C film.
Fig. 3: Theoretical analysis of Te-assisted synthesis of monolayer a-C film.
Full size image

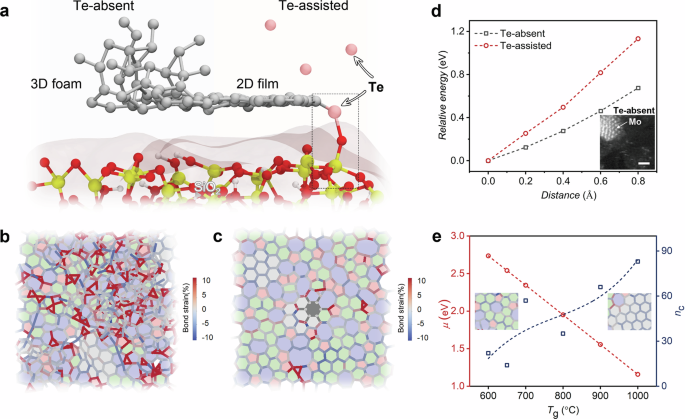

a Schematic of the a-C morphology and the role of Te. The black rectangle indicates the atomic structure of the contact interface for density function theory (DFT) calculations, where atoms of C, Si, O, and Te are colored gray, yellow, red, and pink, respectively. b, c Simulated structures representing two typical growth modes on amorphous SiO2 substrate surfaces: a-C foam grown at Tg = 650 °C without Te in (b) and 2D a-C film grown at Tg = 650 °C with Te assisted in (c). The number of atoms in each red, green, and purple ring is less than, equal to, and larger than 6, respectively. Gray denotes crystalline hexagonal rings. Red and blue colors denote tensile and compressive strains in bonds, respectively. d Relative energies Er vs. distance dr obtained from DFT calculations. Inset is the STEM image of sample grown in a Te-absent atmosphere. e The dependence of chemical potential μ (red) and crystallinity nc (blue) on growth temperature Tg. nc denotes the number of crystalline hexagonal rings colored gray in Supplementary Fig. 24. The dashed red and blue curves are guides to the eye. Insets are parts of simulated a-C films grown at 600 °C and 900 °C, respectively. Scale bars: 1 nm in inset of (d).

In reality, the growth front of carbon film must contain carbon radicals with dangling bonds for the growth to proceed. DFT calculations show that a free Te atom could bond between an oxygen atom of the substrate and a carbon radical at the rim of a carbon film (Fig. 3a, d). Such bridge bonding significantly strengthens the interaction between the carbon film and the substrate, particularly along the film’s rim. Incorporating this effect into our kMC simulations leads to an effective suppression of the off-plane buckling of carbon sheets, ultimately yielding a nearly flat 2D a-C film (Fig. 3c) that echoes our experimental results.

Note that the relatively flexible Te bonds at the growth temperature Tg is crucial for the growth of 2D a-C, as the breaking of a part of these unstable bonds is necessary to maintain the growth. Without this feature, Te atoms would either be consumed by covalently bridging the carbon film and substrate or terminate the growth by bonding to all carbon radicals at the growth front. Furthermore, the influence of Tg on growth was investigated. Despite the intrinsic randomness of the kMC method, the simulations suggested a trend that carbon film crystallinity is enhanced with increasing Tg, reaching a higher crystallinity at Tg = 900 °C (Fig. 3e and Supplementary Fig. 24), which is consistent with the STEM and Raman results that observed nanographene features at 850 °C (Supplementary Figs. 8 and 25). Theoretical analysis reveals that a reduced temperature favors the formation of amorphous carbon, and the Te atoms further promote the transformation of a-C into 2D sheets.

Low-temperature quantum tunneling measurements

Then, the in-plane measurements conducted on a-C films revealed a high electrical resistance, as shown in Supplementary Fig. 26, consistent with the insulating behavior reported in previous studies2,3. However, since these measurements were performed at high temperatures on the highly disordered carbon materials, charge transport is expected to occur via temperature-activated electron hopping. So, the data collected essentially reflects the transport mechanism of electron hopping. Notably, even for graphene, in-plane measurements can display similarly high resistance dominated by electron hopping when excessive cracks or holes are introduced during the transfer process. Therefore, more direct and effective methods are required to elucidate the origin of the insulating behavior and its relation to the amorphous nature. Thus, low-temperature electrical measurements are required to gain insights into the insulating behavior and other physical properties of the synthesized 2D a-C film. Previous studies encountered challenges due to excessive resistance, limiting measurements to near or above room temperature2,3. In this study, employing an innovative architecture to measure out-of-plane tunneling properties allowed for exploring quantum-scale characteristics at liquid helium temperatures. The device architecture involved a tunneling field-effect transistor with a-C serving as a thin insulating barrier. Its detailed vertical structure is shown in Fig. 4a. Multiple tunneling junctions were fabricated on the same piece of a-C, enabling the comparison of tunneling behavior across different areas for inhomogeneity evaluation. The gold electrodes were employed as the top electrodes, ensuring stability and a consistent Fermi level. The graphene electrode ensures that the bottom gate can adjust the position of the electrode Fermi level, thereby enabling the characterization of a broader range of transport properties. Out-of-plane measurements were conducted between a top gold electrode and its vertically corresponding bottom graphene electrode.

Fig. 4: Tunneling characteristics for the Au/a-C/graphene transistor.
Fig. 4: Tunneling characteristics for the Au/a-C/graphene transistor.
Full size image

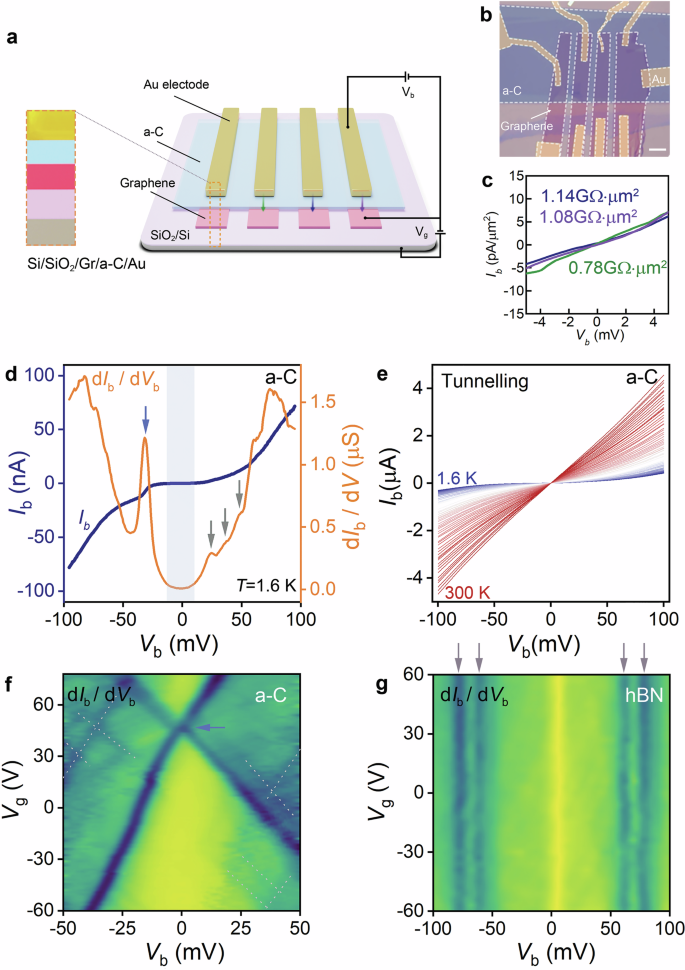

a Schematic structure of our tunneling device. b Optical image of the experimental device. The dashed line outlines the boundary of each structure. c The tunneling resistance close to the zero-bias region across different flake areas indicated by corresponding-colored arrows in (a). Around the zero-bias, the Ib−Vb relation is linear. Their similarities attest to the homogeneity across different regions of the sample. d Tunneling current (Ib) and differential conductance dIb/dVb as a function of source-drain bias at Vg = −40 V, T = 1.6 K. e The temperature evolution of Ib−Vb of the vertical tunneling measurement. f The dIb/dVb map as a function of Vb and Vg at 1.6 K. The blue arrow and gray dashed lines indicate the defect state, corresponding to the same-colored arrow in (d). g The dIb/dVb map of comparative hBN tunneling device at 1.6 K. The gray arrows indicate the vertical feature from phonon-assisted tunneling, which is unaffected by the gate and thus appears vertical. The tunneling current, bias voltage, and bottom gate voltage are denoted as Ib, Vb, and Vg, respectively. Scale bar: 5 µm in (b).

The I–V characteristics curves were measured at 1.6 K unless specified otherwise. The principle of I–V relation is generally described by

$$I\left({V}_{{{\rm{b}}}}\right)\propto \int d{E}_{F}{{\rm{D}}}{{\rm{o}}}{{{\rm{S}}}}_{{{\rm{B}}}}\left({E}_{F}\right){{\rm{D}}}{{\rm{o}}}{{{\rm{S}}}}_{{{\rm{T}}}}\left({E}_{F}+{{\rm{e}}}{V}_{{{\rm{b}}}}\right)T\left({E}_{F}\right)[f\left({E}_{F}-{{\rm{e}}}{V}_{{{\rm{b}}}}\right)-f({E}_{F})]$$

where DoSB(\({E}_{F}\)) and DoST (\({E}_{F}\) \(+\,{{\rm{e}}}{V}_{{{\rm{b}}}}\)) denote the density of states for the bottom and top electrodes, respectively. \({V}_{b}\) is the tunneling bias shown in Fig. 4a. \(T\left({E}_{F}\right)\) represents the transmission rate through the tunneling barrier which is influenced by the barrier’s bandgap. \(f({E}_{F})\) is the Fermi- Dirac distribution, with an exponential dependence on the temperature16.

As shown in Fig. 4c, the \(I-{{V}}_{{{\rm{b}}}}\) curves of all our devices are linear around zero bias and the linear region reveals high resistivity across three tunneling junctions, confirming the reproducible insulating behaviors of our a-C film on a μm scale, which addresses the limitations of STEM characterization, as it is confined to evaluating material homogeneity and reliability at the local nm scale. Next, we inspect the entire profile of the I–V curve. Aside from the linear behavior at small bias, it exhibits an exponential dependence behavior at higher biases (Fig. 4d). This behavior, transitioning from linear to exponential with increasing bias, is similar to that observed in crystalline insulators like hexagonal boron nitride (hBN)16, as shown in Fig. 4d. The presence of an exponential dependence at high bias, suggests high on-off ratio like that of hBN tunneling transistors, thus offering potential applications in certain types of logic circuits. The bottom gate Vg introduces an additional degree of freedom to adjust the on-off ratio, which can modulate the extent of the linear region as illustrated in the Vb–Vg mapping (Fig. 4f). Meanwhile, we can observe some peaks in the dIb–dVb curve, as indicated by the blue and gray arrows. These peaks correspond to the X-shaped features marked by the same-colored arrows/dashed lines in the Vb–Vg mapping of Fig. 4f, which are attributed to defect states at the SiO2/graphene or graphene/a-C interface17,18. This observation is a result of the tunability of the bottom gate. Interestingly, the vertical stripes, observed in ordered crystal tunneling barriers of hBN and regarded as an indication of phonon-assisted tunneling17,18,19 (Fig. 4g), were not observable in a-C devices. This might further prove the absence of long-range ordering and thus support our claim of the amorphous nature of a-C19. These electrical measurements result at low temperatures where quantum effects dominate, provide robust evidence and valuable insights into such amorphous insulating materials.

In addition, we further investigated the temperature-dependent behavior of the vertical tunneling device. The evolution of Ib–Vb shape with respect to temperature is predominantly governed by the Fermi-distribution function \(f({E}_{F})\). As temperature increases, the exponential region diminishes, progressively giving way to the linear region (Fig. 4e), a behavior analogous to that observed in hBN. However, in contrast to insulating crystalline hBN, our theoretical calculations suggest that a-C may not possess a well-defined band gap as influenced by the amorphous nature of the atomic arrangement (Supplementary Figs. 27 and 28). Meanwhile, the average optical bandgap estimated using the Tauc method is 2.3 eV, which is generally consistent with previous reports (Supplementary Fig. 29)2.

Discussion

In summary, we have successfully achieved the direct synthesis of monolayer a-C on wafer-scale substrates, offering precise control over its size, thickness, and pattern. The experiments and theoretical analyses reveal a Te-assisted growth mechanism of monolayer 2D a-C films. Moreover, the quantum tunneling characterization conducted on a-C films confirmed their homogeneity and intrinsic insulating behavior. Our results provide a flexible CVD method to directly synthesize wafer-size a-C patterns on diverse substrates. Our quantum tunneling device for investigating amorphous carbon also provides a protocol for studying insulating amorphous materials.

Methods

Deposition of precursor C-Mo film

Magnetron sputtering was used to deposit the precursor C-Mo film. An initial pre-sputtering step was performed using a carbon target to ensure the carbon content within the chamber and effectively establish a consistent carbon background. Then, switched to the Mo target and proceeded to sputter a 2 nm layer of molybdenum onto the substrate, resulting in a carbon-doped Mo film deposition. It is important to note that the carbon film was not sputtered directly, as the growth process necessitates the assistance of Mo to obtain a uniform monolayer amorphous carbon structure. Other evaporation methods, such as electron beam evaporation, are also possible, and the core is to perform coating in a carbon-containing chamber.

Synthesis of a-C film

First, the precursor C-Mo film covered sample was placed in a one-side closed quartz boat at the central heating zone of the CVD furnace (Supplementary Fig. 4). Meanwhile, the tellurium (Te) particle (50 mg) and molecular sieves (4 Å, 350 mg) were located at the closed side of the quartz boat (about 5 cm away from the sample) to serve as the precursor for the subsequent reaction. The molecular sieves were used to absorb and trap the Te atoms, ensuring that only trace amounts of the Te atoms were involved in the reaction. The concentration-controlled Te source played a pivotal role in removing molybdenum and forming the a-C film while avoiding direct reaction with the Mo film and the formation of molybdenum telluride. (Supplementary Figs. 5–7). Note that the CVD tube environment needed to be thoroughly evacuated to ensure the absence of excess oxygen residue, as the carbon is sensitive to oxygen and easy to oxidize during the heating process. Therefore, the reaction chamber was evacuated to a base pressure of 1 Torr and held for 30 min, followed by introducing argon gas to the reaction chamber until reaching atmospheric pressure. Repeat this evacuate/purge cycle three times before growth to minimize the presence of oxygen within the chamber (below 1000 ppm) and ensure a more controlled growth environment. For growth, the reaction is carried out at atmospheric pressure. The synthesis of a-C is also sensitive to the growth temperature (Supplementary Fig. 8). The furnace was heated to an optimized growth temperature (Tg) of 650 °C in 30 min and kept at this temperature for 1 h with the mixed gas of H2/Ar with 10 and 70 sccm as the carrier gas. After growth, the furnace was naturally cooled down to room temperature.

AFM, XPS, SEM, and Raman characterization

AFM analysis was performed using the Asylum Research Cypher AFM in tapping mode. The XPS spectra were measured by the Kratos AXIS Supra spectrometer with a dual anode Al-Kα (1486.6 eV) X-ray monochromatic source. SEM analysis was performed using the FESEM JEOL JSM-7600F field emission scanning electron microscope. Raman measurements were performed by WITEC alpha 200R Confocal Raman system with a 532 nm excitation laser. To avoid samples overheating, the adopted laser powers were kept below 1 mW. The time-dependent Raman study of a-C was shown in Supplementary Fig. 9, to evaluate the material stability under 1 mW laser irradiation.

STEM and SAED characterization

The STEM samples were prepared by wet-etching method. The poly methyl methacrylate (PMMA) was spin-coated on the a-C film covered SiO2/Si substrate. Then, the samples were immersed in the NaOH solution (1 M) to etch the SiO2 layers and rinsed with DI water sequentially to remove any NaOH residue. Afterward, the PMMA-coated a-C film was carefully transferred to a Protochips heating E-chip or Quantifoil Au grid and baked at 80 °C to ensure better contact. Finally, to remove the PMMA, the sample was submerged in acetone and subsequently baked under vacuum at 250 °C for 60 min. Note that this process may lead to film rupture and should be performed with caution. The STEM characterization was conducted using JEOL ARM200F equipped with the CEOS aberration corrector, operating at 80 kV. Experiments were carried out with the Protochips Aduro heating holder at 300 °C. TEM and SAED analysis were performed using JEOL 2200FS. In an alternative heating process, a-C samples were annealed in a quartz tube under vacuum of about 10−5 mbar at 650 °C for 2 h and then cooled to room temperature. Further STEM characterization was conducted using a Nion U-HERMES100 microscope under an acceleration voltage of 60 kV (Supplementary Fig. 25), and further EDS characterization was conducted using a JEOL GRANDARM2 microscope under an acceleration voltage of 80 kV (Supplementary Fig. 11). Raw ADF-STEM images were denoised using a double-Gaussian filter.

Device fabrication and electrical measurement

First, a graphene (Gr) flake was exfoliated onto a Si/SiO2 (285 nm) substrate. Subsequently, the exfoliated Gr was selectively etched into separated ribbons to serve as the bottom electrode, employing a standard EBL-RIE method with a PMMA layer as etch resistant mask. Then the more robust trilayer a-C ribbon grown at 650 °C was selected to be transferred onto the Gr using a PPC-assisted method. Following each transfer process, the structure underwent annealing at ~400 °C in an Ar/H2 atmosphere to eliminate any residual contaminants and ensure a clean surface. Finally, the Ti/Au (5/70 nm) electrodes were fabricated to independently contact with graphene and a-C using a standard e-beam lithography (EBL) process followed by electron-beam evaporation and lift-off process. Low-temperature transport experiments were carried out in a top-loading Helium-4 refrigerator. Triax cables, the triax connector and Second Order Low Pass Filter were used to conduct signals with the highest sensitivity. The Sourcemeter 2636B was utilized to test the DC current, while the lock-in SR830 was applied for the AC measurement.

Kinetic Monte Carlo (kMC) algorithm

All simulations were carried out with a periodic boundary condition along the xy-direction, with neighboring periodic images separated by a vacuum space along the z-direction. In each simulation, the growth starts from a 12-atom nucleus, as colored gray in Fig. 3b, c. For simplicity, the unit cell is always 30 Å × 30 Å along the xy-directions, which corresponds to a uniform nuclei density. Equation (1) in Supplementary Note 1 is used to describe the interaction between carbon atoms and the substrate. To interpret the DFT results into parameters that can be used in kMC simulations, we fit Supplementary Equation (1) with the results presented in Fig. 3b. Then, parameters are obtained as \(\widetilde{\sigma }=3.4\) Å, \(\widetilde{\varepsilon }=0.08\,{{\rm{eV}}}\) for carbon radicals (i.e., carbon atoms with less than 3 C-C bonds/atom) under the Te atmosphere, and a much weaker interaction of \(\widetilde{\sigma }=3.4\) Å, \(\widetilde{\varepsilon }=0.0045\,{{\rm{eV}}}\) for any other carbon atoms, presuming that ρ = 1.9 × 1019 m−2. A series of growth temperatures of Tg∈[600, 1000] °C were tested. We have also considered the change of chemical potentials of carbon feedstock associated with Tg (Fig. 3c and Supplementary Fig. 24). More calculation details are shown in Supplementary Note 1.

DFT calculations

The DFT calculations were implemented by using Vienna ab-initio simulation package (VASP)20,21,22. The Perdew-Burke-Ernzerhof (PBE) with generalized gradient approximation (GGA) was employed for the exchange-correlation function23. A plane wave basis with a cutoff energy of 400 eV was chosen in this work. A 3 × 3 × 1 k-point mesh was used in these calculations. We considered the vdW interaction using the DFT-D3 method24. Meanwhile, the dipole correction to the total energy was adopted. A vacuum layer along the out-plane direction of 15 Å was constructed to restrain the interactions between adjacent slabs. The residual force and energy convergence thresholds were set to 0.05 eV Å−1 and 10−4 eV Å−1, respectively. The structure of amorphous SiO2 (Supplementary Fig. 23) is obtained by REAXFF molecular dynamics at 2500 K and then optimized. The total energy Et was recorded as a function of the relative distance dr = d − d0, where d is the distance between the carbon film and the substrate, while d0 is the d at which Et is minimal. The relative energy Er = Et − Et0 is plotted in Fig. 3d, where Et0 is the minimal Et. Noticeably, the Te–O bond energy from our calculation is 0.99 eV, and the Te–C bond energy is known as 1.12 eV25. These low bond energies indicate Te- bonds are unstable under the growth temperature and can break from time to time.
