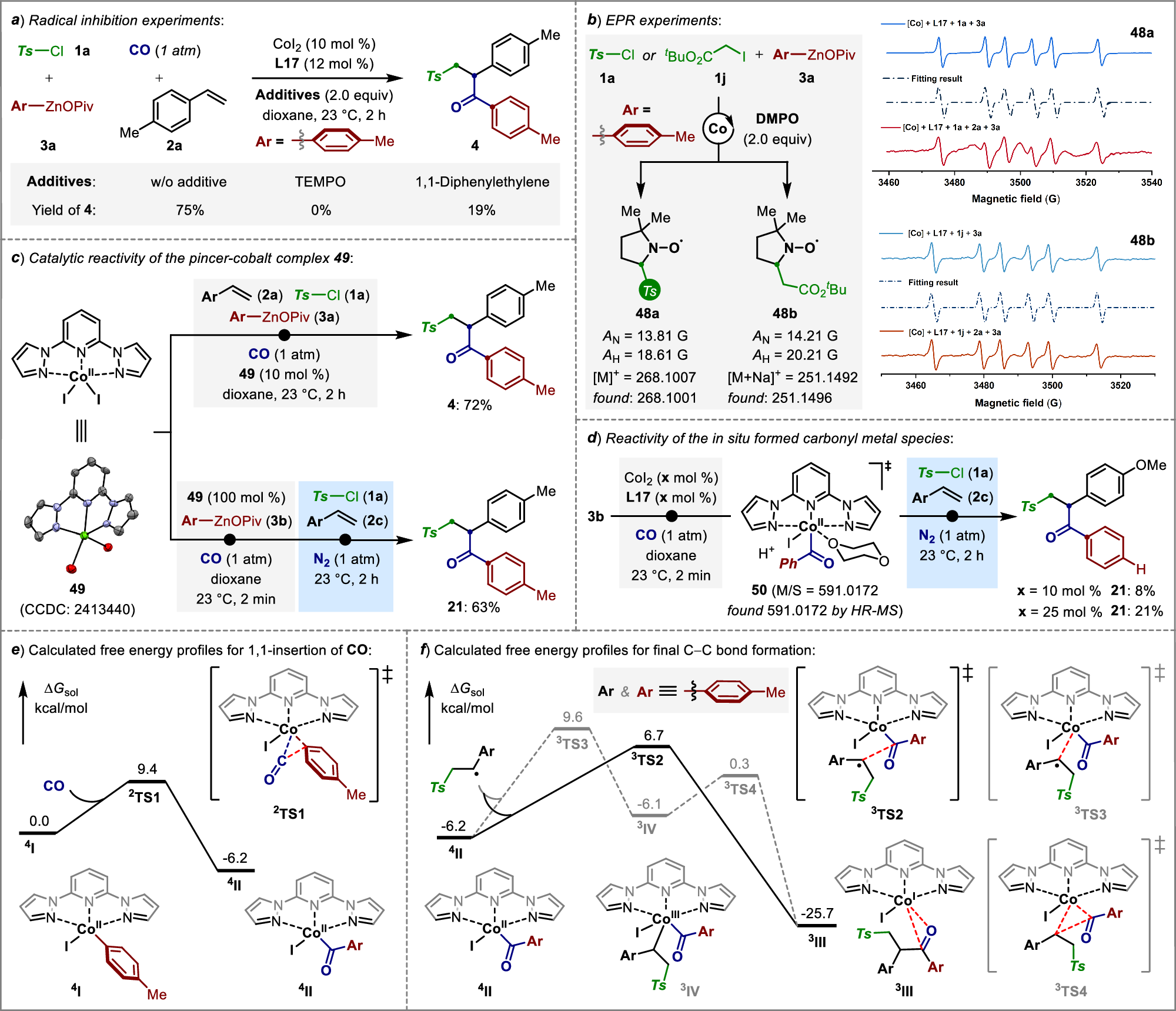

Fig. 3: Mechanistic studies.
From: Pincer-cobalt boosts divergent alkene carbonylation under tandem electro-thermo-catalysis
a, b Radical evidences. c, d Control experiments with pincer cobalt complex 49. e, f DFT calculations for the mechanistic studies. The computed energy profiles depict the most favorable spin states of the species, while the energies of the less favorable spin states are detailed in the Supporting Information (see Figs. S27 and S28).
