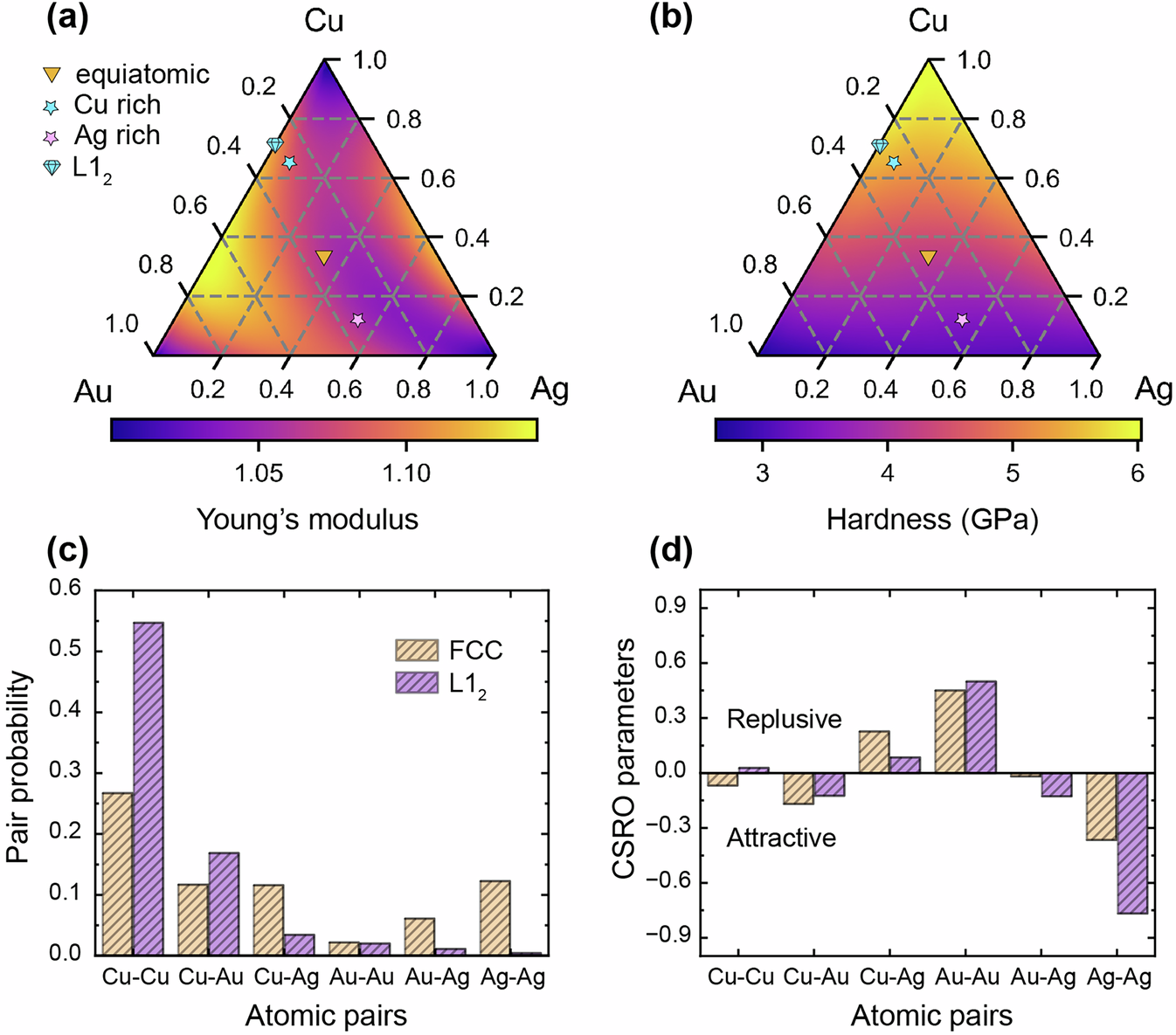

Fig. 4: Simulated elastic properties and short-range order distribution in the CuAuAg alloy.

From: Damascus-style hierarchical microstructures enable a strong and ductile medium-entropy alloy

Fig. 4

a Practical-to-ideal ratio of Young’s modulus, b distribution of hardness, c pair probability and (d) CSRO parameters of FCC and L12 in the Cu-rich phase, composition of L12 configuration is set to Cu75Au20Ag5, and FCC configuration is set to Cu50Au20Ag30. The values presented are deterministic results from a single, converged CVM simulations for each structure type. Each bar represents a unique, calculated physical quantity (pair probability or CSRO parameter) for a specific atomic pair within that simulated equilibrium state.
