Introduction

The evolution of plasma environments is defined and governed by intricate balances between ionising processes, chemical rearrangements, and neutralisation reactions such as mutual neutralisation (MN) and dissociative recombination (DR). Measuring and explaining these processes in detail is fundamental to understanding and modelling non-local thermal equilibrium (non-LTE) environments, from low-temperature interstellar media1,2,3 through cool atmospheric plasma4,5,6,7,8 and stellar atmospheres9,10,11, to high-pressure discharges and high-temperature plasma12,13.

The \({{{\rm{O}}}}_{2}^{+}\) + O− mutual neutralisation reaction is expected to occur in essentially any high-pressure air or oxygen discharges14. Both ions are present in the mesosphere, and, although O− is nominally a minor constituent, the \({{{\rm{O}}}}_{2}^{+}\) + O− MN reaction is expected to be of significance, given the large cross sections of MN reactions. For example, recent ionospheric models15 suggest that the related reaction of O+ with O−7,16 is a significant source of the O(5So)  → O(3P) 135.6 nm airglow emission, as observed by the Hopkins Ultraviolet Telescope17. Another natural phenomenon where the MN of \({{{\rm{O}}}}_{2}^{+}\) with O− is expected to be important is sprites (see e.g.,18,19), which are upwards discharges occurring in conjunction with lightning. The primary sprite activity occurs for only a few tens of microseconds, but certain features persist for much longer. Because they are transient in a non-LTE environment, the full atmospheric ionic reaction scheme does not have time to develop, and the charged-particle density can reach values as high as  ≈ 1011 m−3 19. Therefore, MN, including MN between \({{{\rm{O}}}}_{2}^{+}\) and O−, is expected to be important in such environments.

In the MN of \({{{\rm{O}}}}_{2}^{+}\) with O− at very low collision energies in the centre-of-mass frame (Ec.m ≈ 0 eV), the following final sets of products are energetically allowed:

$${{{\rm{O}}}}_{2}^{+}(\,{}^{2}{\Pi }_{g})+{{{\rm{O}}}}^{-}(\,{}^{2}{{\rm{P}}})\to {{{\rm{O}}}}_{2}^{*}(\,{}^{2S+1}\Lambda )+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+1-10\,{{\rm{eV}}}$$
(1)
$$\to {{\rm{O}}}(\,{}^{3}{{\rm{P}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+5.45\,{{\rm{eV}}}$$
(2)
$$\to {{\rm{O}}}(\,{}^{1}{{\rm{D}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+3.50\,{{\rm{eV}}}$$
(3)
$$\to {{\rm{O}}}(\,{}^{1}{{\rm{D}}})+{{\rm{O}}}(\,{}^{1}{{\rm{D}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+1.53\,{{\rm{eV}}}$$
(4)
$$\to {{\rm{O}}}(\,{}^{1}{{\rm{S}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+{{\rm{O}}}(\,{}^{3}{{\rm{P}}})+1.28\,{{\rm{eV}}}$$
(5)

where the quoted energies correspond to the kinetic energy released in each reaction outcome, given that both reactants are in their electronic and rovibrational ground states. The quoted values are determined using the NIST atomic spectra database20 and the NIST Chemistry WebBook21. For Ec.m ≈ 0 eV, reaction (1) represents all possible final states of pure MN with no molecular dissociation, while reactions (2–5) represent every possible final channel for MN accompanied by molecular dissociation.

Until recently, experimental studies of MN involving molecular ions in flow tubes22,23,24 and merged-beams experiments25,26 were limited to measurements of overall reactivities without detailed information on the reaction mechanisms or the final states formed. The Double ElectroStatic Ion Ring ExpEriment (DESIREE) facility27,28, with its combination of stored and merged ion beams and coincident imaging detection, has now made such studies possible8,29. The properties of MN reaction products, including their kinetic energies, are of great importance in oxygen-containing plasmas. There, products with large kinetic energies may excite other plasma constituents in collisions or contribute to plasma cooling when leaving the region. In addition, electronically excited atomic and molecular products may instead emit characteristic red (630 nm), green (558 nm)30,31, and blue photons32 responsible for atmospheric airglows.

A recent study of the MN of NO+ and O− at DESIREE reported that MN is predominantly accompanied by dissociation of the NO molecule8, which contrasts with earlier flowing afterglow results for the MN between NO+ and a number of anions33,34,35. In addition, it was concluded that the reaction occurred via a two-step process involving a pre-dissociating NO* Rydberg state8. However, very little is known about the role of the rovibrational energy in molecular ions on the MN dynamics. To study this effect, long-time ion-beam storage is extremely useful, as it allows the ions to relax vibrationally. The reaction can be studied at both short and long storage times, and the results can be compared. In the related DR process between a free electron and \({{{\rm{O}}}}_{2}^{+}\), a strong dependence is observed on the vibrational quanta, with the quantum yields of different oxygen product states varying up to a factor of 2 as a function of vibrational quantum number30,31,36,37. Using DESIREE’s unique capabilities, we are now able to investigate the influence of vibrational excitations in a molecular MN reaction for the first time. Thus, a good understanding of the properties of atomic and molecular ions and the details of their interactions in natural plasma, including mutual neutralisation between \({{{\rm{O}}}}_{2}^{+}\) with O−, will help to better understand atmospheric phenomena.

Here, in the most detailed study so far on the MN of \({{{\rm{O}}}}_{2}^{+}\) with O− at low collision energies, Ec.m ≤ 0.1 eV, we report that the reaction is completely dominated by dissociation into three products, in which the process proceeds in a two-step mechanism via Rydberg states in O2, which we identify. In addition, we find that the intensity of one of the reaction channels depends strongly on the vibrational state of the \({{{\rm{O}}}}_{2}^{+}\) parent ion.

Results

General details about the two ion-beam storage rings, data acquisition, subsequent analysis, and Monte Carlo simulations of the reaction outcome, are found in the Methods section, the Supplementary Information (SI), and in references6,8,27,28. Briefly: the two ion beams are stored in their separate rings, merged into the interaction region where MN may take place, and then de-merged into their respective rings. The kinetic energy released in the reaction is manifested as recoil momenta of the neutral particles relative to the centre of mass of the collision system. The recoil momenta, and thus the kinetic energy of each particle, can then be directly measured in the lab frame. Coincidence measurements allow the number of products to be determined, and the total kinetic energy released into the products after each MN event, \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\), to be measured. This energy corresponds to the sum of: (i) the energy released in the reaction, EK, given in reactions (1–5) for zero ion-ion collision energy with \({{{\rm{O}}}}_{2}^{+}\) and O− in their electronic ground states; (ii) the collision energy Ec.m. of the two ions; (iii) the change in rovibrational internal energy between the reactants and products, ΔE(v, J), i.e., \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}={E}_{{{\rm{K}}}}+{E}_{{{\rm{c.m.}}}}-\Delta E(v,J)\).

Kinetic energy release spectra

Analysis of the coincidence events allows separate kinetic-energy release spectra to be obtained for the two-body and three-body data8, which, in general, is expected to correspond to excitation and fragmentation of O2 formed in the MN process, respectively. The contribution of the three-body events to the two-body spectrum is inferred by randomly selecting two out of three events from the three-body data. After comparison of the two spectra (see the SI), we conclude that no measurable two-body channels are populated, and that the data are completely dominated by three-body MN events. We thus conclude that the oxygen molecule predominantly fragments when \({{{\rm{O}}}}_{2}^{+}\) and O− are mutually neutralised in low-energy collision, Ec.m ≤ 0.1 eV.

The three-body \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) spectrum obtained from analysis of all coincidence events at a collision energy of Ec.m ≤ 0.1 eV is shown in Fig. 1a. Experimental data (filled circles) are plotted with statistical uncertainties. The upper x-axis shows the equivalent total 3D atom displacement, TD, on the detector (see the SI). Data are consistent with the reaction proceeding via channels (2–4) only. The O(3P)+O(3P)+O(3P) channel (2) and the O(1D)+O(3P)+O(3P) channel (3) are found to be the dominant products, and approximately equally important, while the O(1D)+O(1D)+O(3P) channel (4) is much lower in intensity. Although the kinetic energy released into channel (5) lies only 0.3 eV lower in energy than that released into channel (4), and could be attributed to the tiny feature observed at lower \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) values (labelled with a ‘*’ in Fig. 1a), we show later that this assignment can be ruled out based on the reaction dynamics. Given the small separation (TD  ~2 cm), we assign this tiny feature to false coincidences (see the “Methods” section and the SI for more details).

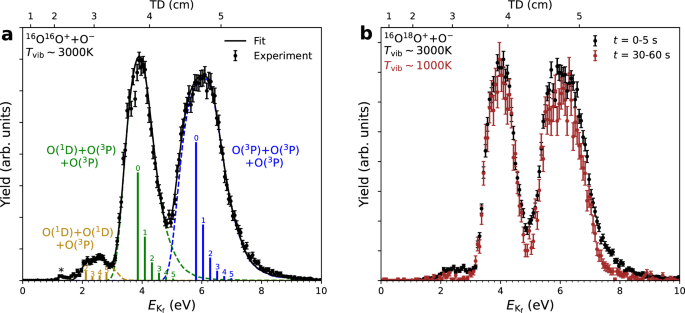

Fig. 1: Coincident three-body total kinetic energy release, \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\), and corresponding Total Displacement, TD, distributions.
Fig. 1: Coincident three-body total kinetic energy release, $${E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}$$ E K f , and corresponding Total Displacement, TD, distributions.
Full size image

Experimental data are plotted as filled circles, and the error bars are the standard deviations. Individually simulated distributions are plotted as dashed lines, and the solid line represents the total fit, with the positions of the \({{{\rm{O}}}}_{2}^{+}(v,{J}_{{{\rm{avg}}}})\) rovibrational energies represented by the vertical bars. a Data for MN of 16,16\({{{\rm{O}}}}_{2}^{+}\) + O− at storage times 0-10 s (vibrational temperature Tvib ~ 3000 K). The feature labelled with a '*' is discussed in the main text. b Data for MN of 16,18\({{{\rm{O}}}}_{2}^{+}\) + O− at storage times 0–5 s (black circles, Tvib ~ 3000 K) and 30–60 s (red circles, Tvib ~ 1000 K).

Given the ion source conditions, see e.g.,8, and based on the observed shift and broadening of the peaks, the rovibrational energy, \({E}_{v,{J}_{{{\rm{avg}}}}}\), of the \({{{\rm{O}}}}_{2}^{+}\) ions is described by an initial 3000  ± 500 K Boltzmann distribution. While this accurately describes the fit to the two dominant peaks (as seen in the v-numbered bars in Fig. 1a), the smaller peak is only described by non-Boltzmann, individually-fit high-v contributions. This strongly indicates that this reaction depends on the vibrational state of the \({{{\rm{O}}}}_{2}^{+}\) ions.

To investigate this further, the experiment was repeated using the 16,18\({{{\rm{O}}}}_{2}^{+}\) isotopologue, which introduces a small permanent molecular dipole moment, allowing IR-vibrational cooling during ion storage8. The vibrational lifetimes have been calculated previously, and are on the order of seconds38. A storage lifetime of 60 seconds was chosen, which ensured close to complete depletion of the higher (v ≥ 4) vibrational states, without requiring unnecessarily long total data acquisition times (see the SI). The resulting spectrum is shown in Fig. 1b, which displays \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) data from MN events analysed from two different slices of ion-storage times.

As expected, the features get narrower with time, due to the vibrational cooling of 16,18\({{{\rm{O}}}}_{2}^{+}\), see e.g.,8. As the lifetimes differ largely from higher to lower vibrational states, a thermal distribution is not expected after storage for more than 30 s. However, the later data is reasonably well described by a Tvib = 1000 K vibrational distribution (see the SI). When compared to the 16,16\({{{\rm{O}}}}_{2}^{+}\) data, the first small peak appears significantly smaller, likely due to an isotope effect, but more importantly it almost vanishes during cooling. This indicates that only the higher vibrational states of the \({{{\rm{O}}}}_{2}^{+}\) ion contribute to this channel. We determine the population of the different sets of electronically excited oxygen atoms at the two corresponding vibrational temperatures: namely, 3000 K and 1000 K, with an uncertainty of  ± 500 K, as shown in Table 1.

Table 1 Population and quantum yields of the different sets of oxygen atoms in the MN of \({{{\rm{O}}}}_{2}^{+}\) with O−
Full size table

The quantum yield is found to be dominated by ground state O(3P) with about 84%. In comparison, the DR \({{{\rm{O}}}}_{2}^{+}\) produces about 50% excited atoms, including a small yield of O(1S), thus contributing to the green and red airglows31,36. Here, however, due to the relatively lower yield of O(1D), MN is thereby not expected to be a major source of airglow, but rather results mainly in ground-state O(3P) fragments with high kinetic energies. The quantum yield varies little between the two temperatures: the loss of O(1D) atoms from the third channel at the lower temperature is partly compensated by an increase in the second. Therefore, the quantum yield is expected to be nearly the same for any vibrational temperature.

Mutual neutralisation reaction dynamics

The three-body reaction dynamics can be studied by converting particle position and time data into Dalitz coordinates, η1, η2 (see the “Methods” section, the SI, and refs. 8,39,40):

$${\eta }_{1}=\frac{{E}_{1}-{E}_{2}}{\sqrt{3}E};\quad {\eta }_{2}=\frac{2{E}_{3}-{E}_{2}-{E}_{1}}{3E}$$
(6)

In Fig. 2a(i), we indicate the relations between the velocity vectors of three separating atoms of equal mass at different Dalitz coordinates, representing different distributions of the total kinetic energy release \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}=E={E}_{1}+{E}_{2}+{E}_{3}\), among three atoms with individual kinetic energies E1, E2, and E3, respectively. The axes for E1, E2, and E3 are indicated by the dotted lines in Fig. 2a(i). In Dalitz representations, knots and diagonal lines reflect the intrinsic dynamics which led to the atoms receiving their observed kinetic energies and momenta, as indicated by the break-up geometries shown in Fig. 2a(i). Since the three oxygen atoms are identical, each Dalitz plot has three-fold symmetry.

Fig. 2: Dalitz representation analysis for the observed three-body product channels with extracted intermediate kinetic energy release \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) distributions.
Fig. 2: Dalitz representation analysis for the observed three-body product channels with extracted intermediate kinetic energy release $${E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}$$ E K i distributions.
Full size image

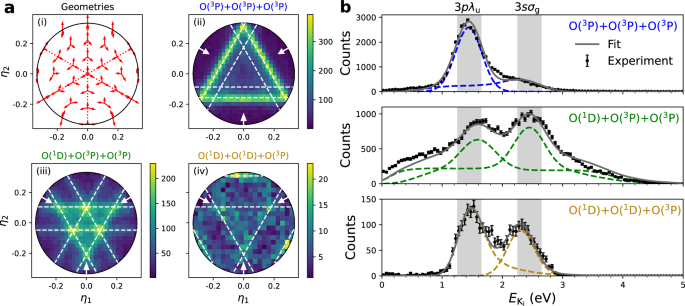

a Dalitz representation analysis showing (i) the relation between Dalitz coordinates η1, η2 and break-up geometries, with the red dotted lines indicating the energy axis of each atomic product; (ii), (iii), and (iv): Experimental Dalitz plots for the \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) in the following reaction channels: (2) O(3P)+O(3P)+O(3P); (3) O(1D)+O(3P)+O(3P); and (4) O(1D)+O(1D)+O(3P), respectively. The white arrows denote the energy axis of each oxygen atom, and the white dashed lines are shown to highlight the observed structures. b Extracted \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) distributions for the formation of the different intermediate states of \({{{\rm{O}}}}_{2}^{*}\) in the following reaction channels: (2) O(3P)+O(3P)+O(3P); (3) O(1D)+O(3P)+O(3P); and (4) O(1D)+O(1D)+O(3P), respectively. Experimental data are plotted as filled circles, and the error bars are the standard deviations. Individually simulated distributions are plotted as dashed lines, and the solid line represents the total fit. The \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) regions indicated by the grey vertical bands correspond to electronically excited states in O2 associated with two electronic configurations (3pλu (λ = Σ, Π, Δ) and 3sσg).

Dalitz distributions for each of the three peaks observed in the experimental \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) data from Fig. 1a are plotted in Fig. 2a(ii-iv), respectively. The dominating three-fold diagonals in Fig. 2a(ii) indicate directly that the mechanism forming these products is a two-step process. In the first step, the outermost (most loosely bound) electron in O− is transferred to \({{{\rm{O}}}}_{2}^{+}\) forming an excited neutral molecule \({{{\rm{O}}}}_{2}^{*}\), which dissociates later in a second step, well separated in time from the first step. That is, the intermediate products \({{{\rm{O}}}}_{2}^{*}\) and O are spatially well separated when \({{{\rm{O}}}}_{2}^{*}\) dissociates. The time-scale for the dissociation must be considerably shorter than the flight-time of the products from the interaction point to the detector, which, in the current experiment, is  ≈ 10 μs.

The observed features of high intensities in Fig. 2a(ii) correspond to a well-defined fraction of the maximum available energy, \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\), for one of the O atoms. This unambiguously shows that the intermediate \({{{\rm{O}}}}_{2}^{*}\) state is formed with a specific amount of internal energy in the initial electron transfer step of the reaction. Some additional events are observed inside the dominating triangle of the Dalitz plot in Fig. 2a(ii), although of much lower intensity, indicating a second intermediate state. White dashed lines are shown to highlight these features. Although Fig. 2a(iii) shows different structures to that of Fig. 2a(ii), the features again indicate a two-step process. Here, however, two very distinct sets of lines are clearly seen, whose intersections give rise to the bright knots, meaning that this product channel is definitely reached via two different intermediate states. Finally, though with fewer statistics, structures are also identified in Fig. 2a(iv) (as highlighted by the white dashed lines) for the production of O(1D)+O(1D)+O(3P).

Given the two-step nature of these reactions, further dynamics can be retrieved, and the reaction can be described as follows:

$${{{\rm{O}}}}_{2}^{+}+{{{\rm{O}}}}^{-}\to {{{\rm{O}}}}_{2}^{*}+{{\rm{O}}}+{E}_{{K}_{{{\rm{i}}}}}\to {{\rm{O}}}+{{\rm{O}}}+{{\rm{O}}}+{E}_{{{{\rm{K}}}}_{{{\rm{f}}}}},$$
(7)

i.e, momentum conservation allows us to determine the kinetic-energy release, \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\), related to the intermediate first step (see the “Methods” setion and the SI). Here, we assume that the O atom no longer participates in the reaction after the initial electron-transfer step, i.e. no further energy is then exchanged between O and \({{{\rm{O}}}}_{2}^{*}\). Calculated \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) data are plotted in Fig. 2b, with the top, middle, and bottom panels corresponding to the intermediate states in O2 involved in the reactions producing O(3P)+O(3P)+O(3P), O(1D)+O(3P)+O(3P), and O(1D)+O(1D)+O(3P), respectively. In the case of reactions producing O(1D)+O(3P)+O(3P), no definitive selection could be made, and a broad background is present. However, the clear peaks observed correspond directly to the features in the associated Dalitz plot. The peaks are narrower in these figures than in the three-body \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) data, indicating that the intermediate neutral state possesses a similar equilibrium geometry to the parent cation, such that vertical electron capture processes are favoured. For the fully ground-state products, O(3P)+O(3P)+O(3P) (top panel), an intense peak is observed, which reinforces the conclusion that one intermediate state is predominantly involved. However, the broad shoulder at larger \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) does confirm a contribution from a second intermediate state. In the middle panel, corresponding to production of O(1D)+O(3P)+O(3P), the two distinct peaks, with similar amplitude (green curve, corresponding to Fig. 2a(iii)), similarly confirm the involvement of two different intermediate states. Finally, in the bottom panel, corresponding to production of O(1D)+O(1D)+O(3P), despite the lower level of statistics, two peaks appear in the gold curve, corresponding to Fig. 2a(iv), at similar positions but with different relative amplitudes.

Discussion

The present results are explained in the framework of the two-step reaction model8. The \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) regions indicated by the grey vertical bands in Fig. 2b correspond to electronically excited states in O2 associated with two electronic configurations, namely the 3pλu (λ = Σ, Π, Δ) and 3sσg configurations. As a p-electron is transferred from O−, formation of Σ-, Π-, and Δ-states is possible. In Fig. 3a, b, we plot the potential-energy curves (adapted from van der Zande et al.41, and Morrill et al.42) of these two configurations and with these state symmetries. The \({{{\rm{O}}}}_{2}^{+}\) potential has been shifted by the electron affinity (EA) of O such that the energy of the intermediate \({{{\rm{O}}}}_{2}^{*}\) Rydberg states directly corresponds to the intermediate kinetic energy release \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\), and the energies of the different final O+O+O states to \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\). Contributions from rotational energies are neglected.

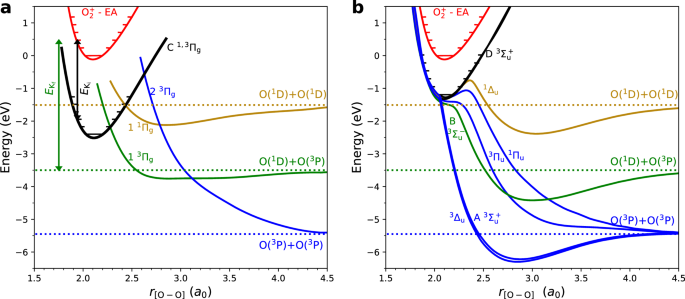

Fig. 3: Potential energy curves relevant to the \({{{\rm{O}}}}_{2}^{+}\) + O− MN reaction.
Fig. 3: Potential energy curves relevant to the $${{{\rm{O}}}}_{2}^{+}$$ O 2 + + O− MN reaction.
Full size image

a 3sσg Rydberg states in O2. b 3pλu Rydberg states in O2. Data are adapted from van der Zande et al.41 and Morrill et al.42. The \({{{\rm{O}}}}_{2}^{+}\) potential has been shifted by the electron affinity (EA) of O to illustrate the kinetic energies \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) and \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\) in the two-step process for the reaction \({{{\rm{O}}}}_{2}^{+}(v=2)+{{{\rm{O}}}}^{-}\to {{{\rm{O}}}}_{2}^{*}(v=2)\) + O(3P) + \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\to\) O(1D) + O(3P) + O(3P) + \({E}_{{{{\rm{K}}}}_{{{\rm{f}}}}}\), as an example.

The peak close to 2.5 eV in Fig. 2b, ascribed to the 3sσg configuration, matches well the expected \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) of the C 1,3Πg Rydberg state, corresponding to the black potential-energy curve in Fig. 3a. The predissociation pathways of this state are well known from measurements of electron capture by \({{{\rm{O}}}}_{2}^{+}\) from neutral Cs by van der Zande et al.41. They reveal that this state primarily dissociates diabatically to the O(1D)+O(3P) channel, in agreement with the present results, and this occurs via the dissociative 1 3Πg state (the green curve in Fig. 3a), which has a favourable crossing with the C state at v = 1. Dissociation to the O(3P)+O(3P) channel is also open but with a much weaker coupling41, which explains the smaller amplitude of this channel in the O(3P)+O(3P)+O(3P) data (top panel in Fig. 2b). For higher vibrational levels, van der Zande et al. also report on dissociation to the O(1D)+O(1D) channel, due to the favourable crossing with the 1 1Πg state (the gold curve in Fig. 3a)41, which is consistent with our observation of a peak for this channel at an intermediate kinetic energy release around \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}}\) = 1.5 eV (the gold curve in Fig. 2b, bottom panel).

Contributions from 3pλu states are more difficult to disentangle, as several states with allowed Σ−, Π−, and Δ−symmetries lie very close in energy. In this region, strong mixing between valence and Rydberg states is reported43. For example, the 3Πu state, which plays an important role in the DR of \({{{\rm{O}}}}_{2}^{+}\), has its Rydberg and valence states only differing by one orbital, resulting in strong interaction. The 3\({\Sigma }_{u}^{-}\) state, responsible for the Schumann-Runge continuum in the photoabsorption spectrum of O2, also exhibits strong mixing with Rydberg states above 9 eV44 (here corresponding to \({E}_{{{{\rm{K}}}}_{{{\rm{i}}}}} < \) 1.7 eV). We therefore rely on more advanced theoretical calculations to get a better understanding of these dissociation pathways.

From O2-electron impact studies45, and theoretical calculations by Lewis et al.43,46 and Morill et al.42, we find that most of the dissociating states shown in Fig. 3b can be described adiabatically as quasi-bound states. Only one state directly couples to the O(1D)+O(3P) channel, namely the B 3\({\Sigma }_{u}^{-}\) state (the green curve in Fig. 3b), whereas dissociation to the O(3P)+O(3P) pair can occur via a number of states (the blue curves in Fig. 3b). Since these states lie close in energy, and are described by the same valence electron, the electron coupling mainly depend on the involved state symmetries. For the vibrational coupling, since the electronic states possess a vibrational wavefunction similar to that of the \({{{\rm{O}}}}_{2}^{+}\) ion, vertical electron capture processes are expected to dominate. However, perturbations due to the strong interaction with the valence states may occur. This could explain the observed slight shift to higher energy of this peak in the O(1D)+O(3P) data (middle panel in Fig. 2b), which may be attributed to capture into the flat region of the B 3\({\Sigma }_{u}^{-}\) potential.

Intriguingly, coupling to the O(1D)+O(1D) channel is also found to involve a small energy barrier, corresponding to v = 2 in the 1Δu state (the gold curve in Fig. 3b). Assuming vertical electron capture, the observed \({{{\rm{O}}}}_{2}^{+}\)-vibrational dependence of this channel has a clear explanation: Only vibrationally excited \({{{\rm{O}}}}_{2}^{+}(v\ge 2)\) would overcome this energy barrier, and these states cool away in 16,18\({{{\rm{O}}}}_{2}^{+}\) during ion-storage as shown in Fig. 1. The final outcome of the lower vibrational levels of the 1Δu state is, however, less clear. A recent experimental study has identified radiative transitions from this state to the a 1Δg state47. Such stabilised O2 products are not observed in our data (see the SI), which suggests predissociation via other states is favoured, possibly via rotational coupling.

The exclusion of the O(3P)+O(1S) channel, i.e., reaction (5), can be understood from this model: there are no readily accessible potentials that couple out to this channel from the Rydberg states involved here. Dissociative recombination studies indicate that this exit channel is only directly accessible from \({{{\rm{O}}}}_{2}^{+}(v > 9)\)31,48, as confirmed by the theoretical calculations by Guberman49. It is therefore no surprise that it is not observed in the present experiment.

In order to evaluate the contribution from each intermediate state, Monte Carlo simulations were performed in the framework of the Free-Rotor model. This assumes that the O2 molecule rotates freely, with no exchange of energy between the two neutral products, O2 and O, after electron transfer or during dissociation, see e.g.,8,50. The result of the fits from the simulated distributions is shown in Fig. 2b, and is used to determine the branching between the two intermediate O2 states. The retrieved values are shown in Table 2. The quoted uncertainties reflect the model limitations, as discrepancies are observed between the best fit and the experimental data. This is noticeable in the fit to the data leading to the production of O(3P)+O(3P)+O(3P) (top panel in Fig. 2b), where two shoulders arise on both sides of the main peak, which can not be solely explained by the contribution from the 3sσg state. In a similar fashion, in the fit to the O(1D)+O(3P)+O(3P) data (middle panel in Fig. 2b), the left and right sides of the peaks are found to be underestimated/overestimated, respectively. These shoulders arise mainly due to the misidentification of the atomic oxygen product in the electron-transfer step, which may not be well described in our model, although we cannot rule out the possibility of non-vertical electron capture processes contributing to these features. However, in all three cases, the main features of the peaks are well reproduced by the model, which supports the idea that vertical transitions into these Rydberg states dominate the spectra.

Table 2 Branching fractions into the intermediate states leading to the final three sets of atomic products
Full size table

By combining the results of Tables 1, 2, the total branching into the two intermediate classes of states is found to be 43% and 57% for the 3sσg and 3pλu states, respectively (for Tvib = 3000 K). These results should be most useful for benchmarking theoretical models of mutual neutralisation reactions involving molecules.

In summary, extracting product information and reaction dynamics in the mutual neutralisation of molecular ions is a challenge. Combining the already powerful techniques of merged ion beams and coincident product imaging with cryogenic ion storage, as is uniquely offered by the DESIREE facility, provides not only high-quality data but a crucial window into the molecular dynamics, allowing us to disentangle the detailed mechanisms behind the mutual neutralisation process, and to identify specific intermediate states. Here, this has been applied to the mutual neutralisation of \({{{\rm{O}}}}_{2}^{+}\) and O−. We find that the reaction predominantly results in complete dissociation into three different sets of electronic states of atomic oxygen products. Through analysis of the energy partitioning, we conclude that the reaction occurs through a sequential process. From the available potential-energy curves, we determine that the intermediate step involves two classes of O2 Rydberg states, which we identify, and where strong Rydberg-valence interactions control the dynamics. Storage of the 16,18\({{{\rm{O}}}}_{2}^{+}\) isotopologue allows us to investigate the effects of vibrational cooling, which reveal a strong dependence of the reaction outcome on the initial \({{{\rm{O}}}}_{2}^{+}\) vibrational population for one of the channels, and that this effect is explained by an energy barrier associated with the intermediate state coupling out to this exit channel. As all of these aspects have not been reported before, these results may be expected to be important for the development of models of high-pressure air and oxygen discharges, including transient atmospheric phenomena such as sprites.

Methods

The experiment was carried out at the double electrostatic ion-beam storage ring DESIREE at Stockholm University, presented in Fig. 427,28. The setup consists of two electrostatic ion-beam storage rings, each of 8.7 m circumference, with a common straight section including a set of seven, independently controllable drift tubes. Molecular O2 was used as a source gas to produce the \({{{\rm{O}}}}_{2}^{+}\) cation beam in an electron cyclotron resonance (ECR) ion source (Pantechnik Monogan). The \({{{\rm{O}}}}_{2}^{+}\) ions were extracted and accelerated to a final beam energy of 17.504 keV, and then injected into the asymmetric ring, as shown in Fig. 4. The O− beam, produced by caesium sputtering of a SnO2 cathode (National Electrostatics Corp.), was extracted and accelerated to 7.504 keV and injected into the symmetric ring.

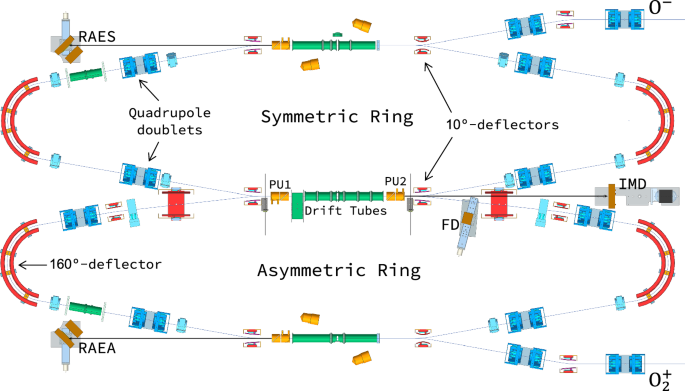

Fig. 4: Schematic of the experimental setup at DESIREE.
