Temperature-dependent mechanism evolution on RhRu₃O_x for acidic water oxidation

Abstract

The oxygen evolution reaction, as the anodic reaction of many electrochemical devices, plays a crucial role in energy conversion. However, the insufficient stability of non-iridium-based materials during the oxygen evolution reaction has severely limited the large-scale application of such devices. Here, using a home-made operando differential electrochemical mass spectrometry system, we show a temperature dependent mechanism evolution effect of RhRu₃O_x in the oxygen evolution process, which highlights the role of temperature in triggering mechanism evolution. This effect enriches the strategies for pathway manipulation. Since different kinetic pathways can influence catalyst stability, this finding suggests that temperature-dependent pathway regulation may serve as an approach to optimize stability. To evaluate the potential of RhRu₃O_x for practical applications, we assemble it into a proton exchange membrane electrolyzer and demonstrate its stability at room temperature for over 1000 hours at a current density of 200 mA cm⁻². Density functional theory studies suggest that the existence of a kinetic barrier related to lattice oxygen activation might be the reason for the observed temperature dependent behavior of RhRu₃O_x at elevated temperatures.

Introduction

To get rid of the dependence on fossil fuels, the directly use of renewable energy to drive substance conversion and realize an efficient and clean energy utilization system is the ultimate vision to achieve sustainable development^{1,2,3,4,5,6,7,8,9,10}. As a clean, recyclable energy, hydrogen (H₂) fuels can be generated through water electrolysis with zero-carbon emission. Proton exchange membrane water electrolysis (PEM-WE) is a technique that can convert intermittent power into H₂, as its high current density and hydrogen purity are unmatched by conventional alkaline water electrolysis (AWE) technology^6,11. Nevertheless, its large-scale application is strongly constrained by the anodic oxygen evolution reaction (OER), as iridium (Ir)-based materials, with scarce reserves¹² (0.02 − 0.10 ng_Ir/g) and high price, are currently the only catalysts considered OER-suitable^13,14,15. So far, ruthenium (Ru)-based materials have been recognized as potential Ir-alternatives in PEM-WE devices with even much active OER activity¹¹. Many efforts have been made to improve the stability of Ru-based catalysts, especially in three-electrode systems. However, as revealed by experimental analysis and the Pourbaix diagram^1,16, under the potential of OER, Ru species will inevitably undergo peroxidation to form dissolvable RuO₄ with poor stability, making them unstable when applied in PEM-WE devices for practical H₂ evaluation. This Ru dissolution process is related to its OER lattice oxygen mechanism (LOM). On the contrary, the OER adsorbate-evolving mechanism (AEM) can benefit a more stable metal status as the lattice oxygen won’t evolve in the reaction^11,17. Thus, the mechanism evolution might be an efficient route to boost the acidic stability of Ru-based electrocatalysts, which has been seldomly reported so far.

Here, we report the synthesis of a binary metal oxide (BMO), RhRu₃O_x and its temperature-dependent mechanism evolution (TDME) effect in the OER process. In a three-electrode system, RhRu₃O_x exhibited an overpotential of only 184 mV at a current density of 10 mA cm⁻², with stability exceeding 200 h, outperforming pristine RuO₂, which sustained less than 50 h. When integrated as an anode catalyst into a proton exchange membrane water electrolyzer (PEM-WE) with Pt/C as the cathode, RhRu₃O_x maintained industrially relevant current densities¹⁸ of 200 mA cm⁻² for over 1000 h at room temperature. Techno-economic analysis further confirmed its feasibility for practical applications¹⁹. However, under elevated temperatures typical of industrial conditions, Ru-based materials used as anodes led to operational instability in the PEM-WE system. To investigate the underlying mechanisms, we developed a temperature-controlled electrochemical reactor coupled with a mass spectrometer^{11,20,21,22,23}. Using this tandem experimental setup, operando isotope labeling experiments revealed a TDME effect. That is, at room temperature, RhRu₃O_x catalyzes the OER through the relatively stable AEM mechanism, while at higher temperatures, the LOM mechanism emerges, leading to a decrease in catalyst stability. Further suggested by density functional theory (DFT) calculations, we propose a plausible explanation for the high-temperature behavior of Ru-based anode catalysts and their potential applications in PEM-WE systems.

Results

Preparation and characterization of RhRu₃O_x

Herein, a series of binary metal oxides, MRu₃O_x, were synthesized by a three-step method as previously reported⁶. Firstly, the precursor salts were wet-impregnated on the structural promoter-carbon black, and then the precursor salts were reduced to form an alloy loaded on the carbon black at 900 °C in an H₂/Ar atmosphere (Fig. 1a). The presence of the structural promoter can prevent the agglomeration of the catalyst at high temperatures, thus exposing more specific surface area. Secondly, in order to eliminate the effect of non-OER current caused by carbon oxidation at the OER potential, MRu₃/C was annealed at 450 °C in air to remove carbon species, and the alloy is oxidized to the corresponding binary metal oxide in this process. Thirdly, the obtained binary metal oxides were acid-leached in 1 M HCl to remove the unstable components and obtain the MRu₃O_x. Eventually, RhRu₃O_x was optimized from a range of platinum group element binary metal oxides.

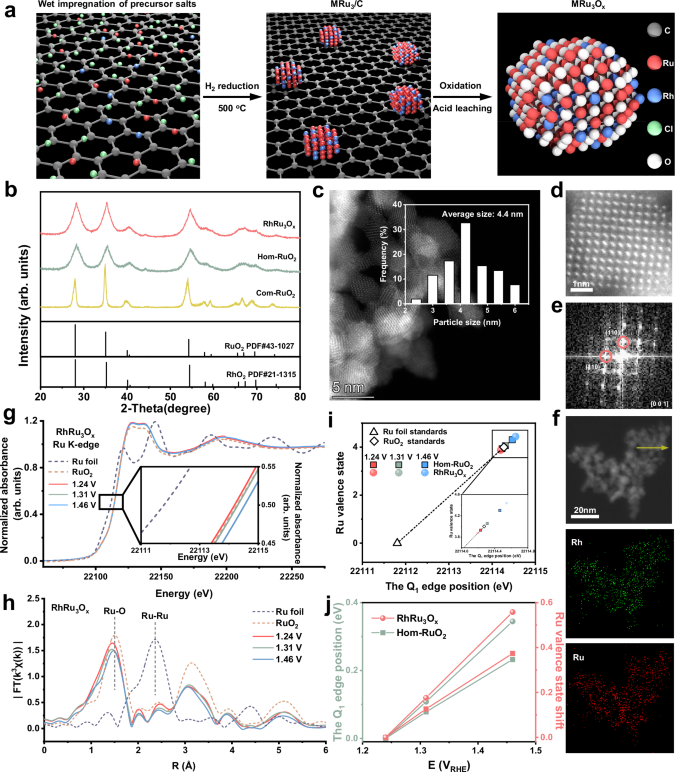

Fig. 1: Structural characterization of the RhRu₃O_x.

a Schematic diagram of MRu₃O_x synthesis process. b XRD patterns of RhRu₃O_x, Hom-RuO₂ and Com-RuO₂ (from up to bottom). c, d HAADF-STEM images of RhRu₃O_x. The inserted histogram in (c) is the particle size distribution statistics of the corresponding RhRu₃O_x NPs. e The fast Fourier transform pattern corresponds to the (d). f HAADF image and corresponding EDS elemental mapping images of RhRu₃O_x. g, h Operando X-ray absorption near edge structure (XANES) (g) and extended X-ray absorption fine structure (EXAFS) (h) spectra of RhRu₃O_x at the Ru K-edge. The black rectangle inserted in (g) shows the magnified operando spectrum. i Ru oxidation states as a function of the Q₁ edge positions. The Q₁ edge position is defined as the energy at normalized absorption of 0.5. j Energy shift of the Q₁ edge positions and Ru oxidation states shift in RhRu₃O_x and Hom-RuO₂ at different potentials compared with the corresponding sample at 1.24 V_RHE.

The X-ray diffraction (XRD) patterns (Fig. 1b) of RhRu₃O_x and Hom-RuO₂ match well with pure RuO₂ (PDF#43-1027) and RhO₂ (PDF#21-1315). Transmission electron microscope (TEM) and aberration corrected scanning TEM (AC-STEM) showed that our samples have a smaller size compared to Com-RuO₂, and the average particle size of RhRu₃O_x was 4.4 nm (Fig. 1c, d and Supplementary Fig. 1-4). From the corresponding Fast Fourier Transform (FFT) image of Fig. 1c, we can clearly see the exposed facets of RhRu₃O_x with Miller indices of {110} and {$\bar{1}$10}, together with [001] orientation (Fig. 1e). Energy dispersive spectrometer (EDS) mapping and line-scan analysis demonstrate that Ru and Rh are evenly distributed (Fig. 1f and Supplementary Fig. 5). The specific surface area of RhRu₃O_x was determined by the Brunauer-Emmett-Teller (BET) method to be 197.1 m² g⁻¹ (Supplementary Fig. 6).

The electronic structure of the catalysts was studied by X-ray photoelectron spectroscopy (XPS) and X-ray absorption spectroscopy (XAS) (Supplementary Fig. 7–10). Compared to Hom-RuO₂ and Com-RuO₂, the binding energies of Ru⁴⁺ 3d_3/2 and 3d_5/2 in RhRu₃O_x show a slight negative shift (Supplementary Fig. 9), which indicates that the Ru oxidation state on the surface of RhRu₃O_x is the lowest. Peak A in the XAS spectrum (Supplementary Fig. 10) at the O K-edge represents the electronic transitions from O 1s to unoccupied O 2p-Ru 4d_t_2g hybridized orbitals^24,25. RhRu₃O_x has the lowest peak A intensity, indicating that the 4d orbital of its metal atom is occupied more by electrons, which is consistent with the conclusion obtained in XPS.

In order to better understand the potential dependent oxidation of Ru during OER, we performed the operando XAS studies. The Ru K-edge XANES spectrum²⁶ (Fig. 1g and Supplementary Fig. 11a) corresponds to the transition from 1s to 5p. The EXAFS spectrum of RhRu₃O_x and Hom-RuO₂ shows a dominant peak at around 1.5 Å (Fig. 1h and Supplementary Fig. 11b), which was assigned to the Ru-O coordination. Figure 1i shows the relationship between the Ru valence state of the catalyst and Q₁ absorption edge position at different applied potentials. With the increase of applied potential, the Q₁ edge position of RhRu₃O_x and Hom-RuO₂ both move towards higher energy (Fig. 1j), but the slope of RhRu₃O_x is larger, indicating that it is easier to store oxidation charges under positive bias, and more oxidation charges generally lead to higher OER performance^13,14.

Oxygen evolution performance of RhRu₃O_x

The OER performance of RhRu₃O_x and control samples (Hom-RuO₂, Com-RuO₂) were carried out in 0.1 M HClO₄ using a standard RDE protocol²⁷. It can be seen from the linear sweep voltammetry (LSV) and Tafel slope curves (Fig. 2a, b, and Supplementary Figs. 12, 13) that the overpotential of RhRu₃O_x delivering 10 mA cm⁻² is 184 mV and the Tafel slope is 54.7 mV/decade (dec). Lower than Hom-RuO₂ (208 mV, 58.1 mV/dec) and Com-RuO₂ (253 mV, 66.4 mV/dec) and other platinum group elements BMO (Supplementary Fig. 14), which is in line with the operando XAFS studies discussed above. Electrochemical impedance spectroscopy (EIS) shows that RhRu₃O_x has the smallest semicircle radius compared with Hom-RuO₂ and Com-RuO₂ (Fig. 2c), which indicates that it has the lowest charge transfer resistance and the best OER kinetics. In order to fully understand the differences between RhRu₃O_x and comparison samples, we also tested the electrochemical capacitance double layer (Cdl), which is proportional to the electrochemically active surface area (ECSA). The C_dl of RhRu₃O_x is 18.77 mF, which is higher than the 12.03 mF and 3.76 mF of Hom-RuO₂ and Com-RuO₂ (Fig. 2d and Supplementary Fig. 15 and Supplementary Table 1). This indicates that forming BMO with Rh can increase the number of active sites of Hom-RuO₂.

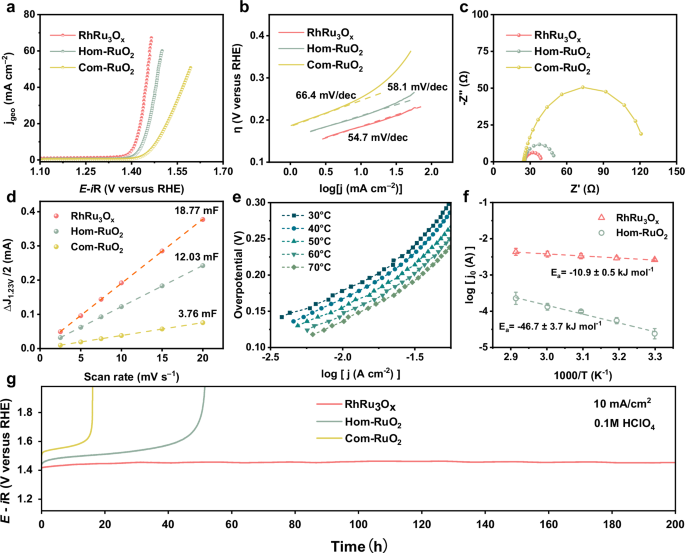

Fig. 2: OER activity of RhRu₃O_x on RDE in 0.1 M HClO₄.

a–c LSV curves (a), Tafel slope (b) and EIS Nyquist plots (c) of RhRu₃O_x, Hom-RuO₂ and Com-RuO₂. The solution resistance was determined from the intersection of the EIS curve with the real axis when the imaginary part (Z″) equals zero, yielding a value of 25.0 ± 0.4 Ω. d C_dl plots calculated from CV curves. e Tafel plots of RhRu₃O_x at different temperatures. f Arrhenius plot of OER exchange current density of RhRu₃O_x and Hom-RuO₂. g Stability tests of RhRu₃O_x, Hom-RuO₂ and Com-RuO₂. All the error bars mentioned above represent the standard deviations of 3 independent experimental data.

To assess the kinetic optimization introduced by Rh incorporation, we further investigated the Tafel slopes (Fig. 2e and Supplementary Fig. 16) of RhRu₃O_x and Hom-RuO₂ at elevated temperatures (30, 40, 50, 60 and 70 °C). The Arrhenius plots calculated from the temperature-dependent Tafel slope show that the apparent activation energy (E_a) of RhRu₃O_x is 10.9 ± 0.5 kJ mol⁻¹ (Fig. 2f), only about a quarter of that of Hom-RuO₂ (46.7 ± 3.7 kJ mol⁻¹), indicating enhanced reaction kinetics.

In addition, we also tested the stability of the catalysts using chronopotentiometry, as shown in the Fig. 2g, RhRu₃O_x showed stability of over 200 h at 10 mA cm⁻² in 0.1 M HClO₄, which is much higher than Hom-RuO₂ and Com-RuO₂. In addition, the S number of RhRu₃O_x at 200 h is 2.01 × 10⁵ (Supplementary Fig. 17 and Supplementary Note 1), even higher than that of rutile IrO₂ (~1 × 10⁵, Sigma-Aldrich)¹⁵. Through the characterization of RhRu₃O_x after stability test, we found that neither the morphology nor the electronic structure had obvious changes (Supplementary Figs. 18–20).

H₂ production evaluation of RhRu₃O_x under practical electrolyzer conditions

Given the comparable performance of RhRu₃O_x in RDE, we decided to evaluate its activity under practical electrolyzer conditions employing a membrane electrode assembly (MEA), which better represents real device architecture. We assembled the PEM-WE devices with RhRu₃O_x as anode catalyst and Pt/C as cathode catalyst, with platinized Ti fiber felt as anode porous transport layer (PTL) and carbon paper as cathode PTL (Fig. 3a, b and Supplementary Fig. 21). As shown by the current–voltage characteristic (I–V) curves (Fig. 3c), MEA using RhRu₃O_x as the anode catalyst layer requires only 1.76, 1.90, 1.99, and 2.06 V to achieve a current density of 500, 1000, 1500, and 2000 mA cm⁻² at room temperature, respectively. While compared to Com-RuO₂ (2.15 V) and Hom-RuO₂ (2.36 V) to achieve 1 A cm⁻² at room temperature RhRu₃O_x shows apparently stack voltage drop.

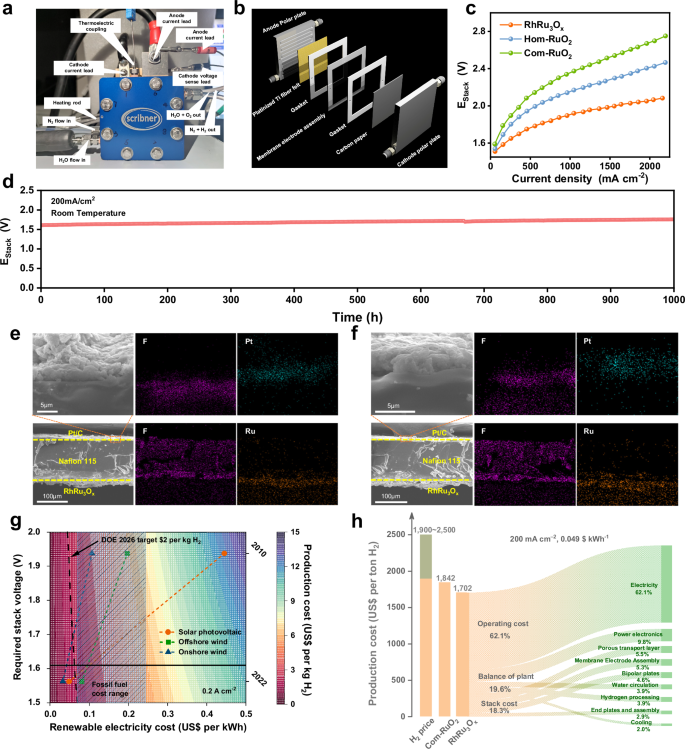

Fig. 3: PEM-WE device performance and techno-economic analysis.

a, b photograph (a) and Schematic diagram (b) of the PEM electrolyzer. c I–V curves of the PEM electrolyzer using RhRu₃O_x, Hom-RuO₂ or Com-RuO₂ as anodic catalyst and Pt/C as cathodic catalyst obtained in 18 MΩ DIW at room temperature with Nafion 115 membrane. d Chronopotentiometry curve of the PEM electrolyzer using RhRu₃O_x as anodic catalyst and Pt/C as the cathode catalyst operated at 200 mA cm⁻² at room temperature with Nafion 115 membrane. e, f Cross-sectional SEM and corresponding EDX mapping of Pt/C || Nafion 115 || RhRu₃O_x without stability test (e) and after 1000 h stability test (f). g TEA for H₂ production by PEM technology at 200 mA cm⁻², where the black horizontal solid line represents the voltage required by RhRu₃O_x at 200 mA cm⁻², the black diagonal dashed line represents DOE’s 2026 H₂ production cost target, and the region with a diagonal pattern represents the fossil fuel cost range. h The subdivision cost of H₂ production by PEM technology at a given electricity price of 0.049 $ kWh⁻¹ and a current density of 200 mA cm⁻².

The current density-high frequency resistance (J-HFR) curve (Supplementary Fig. 22) shows the shape of first decreasing, then increasing and then decreasing, and it also shows the trend of gradually shifting to the right with Com-RuO₂, Hom-RuO₂, RhRu₃O_x. This indicates that the mass transfer resistance of the catalyst layer composed of RhRu₃O_x is also the lowest among the three (Supplementary Note 2).

What is more, in practical electrolyzer production, stability may play a more important role. Therefore, we performed the chronopotentiometry test at 200 mA cm⁻² with RhRu₃O_x as the anode catalyst and DIW as the electrolyte at room temperature (Fig. 3d). During its 1000 h operation time we do not see the obvious stack voltage increase, indicating that RhRu₃O_x is one of the few catalysts with stability more than three orders of magnitude (10³ h) in PEM-WE devices, which also proves that RhRu₃O_x ranks among the most advanced Ru based OER catalysts available today (Supplementary Fig. 23 and Supplementary Table 2)^{1,2,3,4,5,6,7,8,9,10}. From the cross-section of the Pt/C || Nafion 115 || RhRu₃O_x (Fig. 3e, f), there is no significant change even after 1000 h of operation. In contrast, Hom-RuO₂ showed obvious deterioration within 150 h under the same conditions (Supplementary Fig. 24).

Techno-economic analysis

To confirm the economic potential of producing H₂ with RhRu₃O_x as a PEM-WE anode catalyst, based on a recently reported model¹⁹ and our integrated test system, we simulated techno-economic analysis (TEA) for H₂ production on an industrial scale (Supplementary Table 3 and Supplementary Note 3). The parameters used in TEA are derived from literature reports^18,19,28,29 and the industrial scale pilot data we described above. H₂ production costs are assessed using the International Renewable Energy Agency’s global weighted average levelized cost of electricity (LCOE) for solar photovoltaic (Supplementary Note 3), which is 0.049 $ kWh⁻¹, at an industry-relevant current density (0.2 A cm⁻²). The LCOE for solar photovoltaic and onshore wind power has already met the US Department of Energy (DOE)‘s 2026 H₂ production target³⁰ of 2 $ ${{{\rm{kg}}}}_{{H}_{2}}$ ⁻¹ (Fig. 3g), and the LCOE for offshore wind power is also approaching the target.

In order to know whether our process can be profitable after scaling up production, we have listed the subdivision cost of the entire process in Fig. 3h, in which the electricity cost accounts for the highest proportion (62.1%). With the development of renewable energy generation technology, we believe that the cost of H₂ will be further reduced. In addition, according to the assessment of the International Energy Agency (Supplementary Note 3), the global average levelized cost of hydrogen production from coal is between 1.9 to 2.5 $ ${{{\rm{kg}}}}_{{H}_{2}}$ ⁻¹, and the cost of H₂ production with RhRu₃O_x as the PEM-WE anode catalyst is 1.7 $ ${{{\rm{kg}}}}_{{H}_{2}}$ ⁻¹, which is lower than the cost of hydrogen production from coal, so the process is profitable.

Investigation of stability difference

After verifying the stability and profitability of RhRu₃O_x at 200 mA cm⁻², we wondered if there were other ways to increase the current density and thus further widen the profitability range. We have two options: one is to increase the stack voltage, and the other is to increase the operation temperature. However, as indicated by Pourbaix diagram, excessive stack voltage may cause the dissolve of Ru species¹⁶, so it seems not a proper option. We thus focus on changing the stack operation temperature to increase the current density. When we raise the temperature, the current density does increase at the same voltage (Supplementary Fig. 25). Nevertheless, the stack voltage showed an apparently increase when we performed the chronopotentiometry test (Supplementary Fig. 26). These phenomena have aroused our great curiosity why does the temperature increase also lead to the performance of RhRu₃O_x to be unstable.

As reported previously²⁰, if lattice oxygen participates in surface reconfiguration processes such as bonding and bond breaking in the OER process, that is, following the lattice oxygen oxidation mechanism (LOM), the stability of the catalyst will be notably affected. The relatively stable catalysts generally follow the adsorbate evolution mechanism (AEM) in which lattice oxygen does not participate in the reaction¹¹. However, these two different mechanisms are often used to explain the stability differences between different catalysts²¹. This inspires us to ask whether the same catalyst will follow different reaction mechanisms at different temperatures, resulting in changes in catalyst stability when the temperature changes.

In order to uncover the mystery of the stability deterioration of RhRu₃O_x at high temperatures, we decided to conduct the isotope ¹⁸O labeling experiment. However, soon we found that we were stuck in another swamp, the reactor connected to the mass spectrometer could not meet our requirements for collecting signals under variable temperature. There are two reasons: First, the traditional configuration cannot accurately control the temperature; Second, both the mainstream Wolter-Heitbaum configuration²² and the rarely used Bruckenstein configuration²³ require a porous, hydrophobic polymer membrane to separate the reaction chamber from the vacuum chamber, but in our tests, we found that the airtightness of the polymer membrane hardly meets the vacuum requirements of the mass spectrometer at high temperatures²³.

Therefore, we designed a electrochemical reactor configuration coupling with mass spectrometer (Fig. 4a, b), we name it operando temperature-controlled differential electrochemical mass spectrometry (TC-DEMS). With the help of this tandem experimental device (Supplementary Fig. 27), we conducted our isotope ¹⁸O labeling experiments. RhRu₃O_x was labeled with ¹⁸O in H₂¹⁸O/0.1 M HClO₄ (Supplementary Fig. 28), followed by thorough rinsing with H₂¹⁶O to remove all the possible ¹⁸O species absorbed by the van der Waals force.

Fig. 4: Operando TC-DEMS performance and suggested protocol for OER.

a, b photograph (a) and Schematic illustration (b) of the operando TC-DEMS set up. c, d Triangular potential applied at room temperature (c) and 60 °C (d) and corresponding MS signal. The upper panel shows the potential (black, left axis) and current density (red, right axis) in relation to time. The lower panel shows the MS signals for ³²O₂ (m/z = 32, orange) and ³⁴O₂ (m/z = 34, blue). e, f The integrated peak area of m/z = 32 (e) and m/z = 34 (f) at different cycles and different temperatures. g Ratio of peak area of ³⁴O₂: ³²O₂. h Recommended protocol for Operando TC-DEMS experiments in OER.

We then applied a triangular wave potential to the reactor containing H₂¹⁶O/0.1 M HClO₄ (Fig. 4c, d) to dynamically scan the redox region of the catalyst while the mass spectrometer collected the mass signal of ³⁴O₂ (¹⁶O  +  ¹⁸O) and ³²O₂ (¹⁶O  +  ¹⁶O). This waveform was chosen as it enables continuous access to both metal oxidation and charge transfer from lattice oxygen ligands to the metal centers, thereby providing real-time insights into potential-dependent mechanistic evolutions. Compared with static methods like chronopotentiometry or at open circuit potential, triangular scanning offers broader mechanistic coverage across a wide potential window.

At room temperature, the ³⁴O₂ signal closely followed the shape and change trend of ³²O₂ (Fig. 4c and Supplementary Fig. 29a). We integral the peak area of ³⁴O₂ and ³²O₂ (Fig. 4e, f), and find the ratio of ³⁴O₂:³²O₂ is about 0.4% (Supplementary Table 4), corresponding to the natural abundance of ¹⁸O of 0.2%. Moreover, the ratio of ³⁴O₂:³²O₂ is independent of the number of cycles (Fig. 4g blue line).

However, when we follow the same procedure except to elevated the temperature to 60 ^oC (Fig. 4d), we get a notably different information than at room temperature, the signal shape of ³⁴O₂ is no longer the same as that of ³²O₂ (Fig. 4f and Supplementary Fig. 29b), and the peak area gradually decreases with the number of cycles (Fig. 4g gray line). At the outset, the ratio of the integral peak area of ³⁴O₂:³²O₂ is higher than 0.4%, but gradually decreases to around 0.4% as the cycle happens³¹. This means that ¹⁸O was already present in the lattice of RhRu₃O_x during the labeling process and was gradually replaced by ¹⁶O during the application of triangular wave potentials.

It is worth noting that the gradual decline in the ³⁴O₂:³²O₂ ratio over time may also be influenced by thermal isotope exchange or structural reorganization. For example, ICP confirms that Ru dissolution slightly increases under elevated temperatures (Supplementary Fig. 30), which may contribute to the concurrent loss of lattice incorporated ¹⁸O. However, XPS reveals no obvious changes in the electronic structure of RhRu₃O_x, suggesting that reorganization remains relatively moderate (Supplementary Fig. 31). Although these factors may affect the rate or extent of ³⁴O₂ release, they do not undermine the mechanistic implication. The observed ³⁴O₂:³²O₂ signal, notably exceeding the natural abundance baseline after H₂¹⁶O rinsing, can be unequivocally attributed to the incorporation of ¹⁸O into the catalyst lattice. Furthermore, to exclude the possibility that the elevated ³⁴O₂:³²O₂ signal at 60 °C originated from thermal isotope fractionation, we conducted a control experiment using H₂¹⁶O/0.1 M HClO₄ electrolyte under identical electrochemical conditions. As shown in Supplementary Fig. 32, the ³⁴O₂:³²O₂ ratio remained consistently at ~0.4% throughout the measurement, which matches the natural isotopic background. This control experiment establishes a temperature-specific baseline at 60 °C, confirming that no isotope fractionation occurs at 60 °C. Accordingly, the elevated ³⁴O₂:³²O signal observed in the labeling experiment (Fig. 4g) should be attributed to the participation of lattice oxygen.

Together, these findings provide compelling evidence that the OER mechanism of RhRu₃O_x at high temperatures changes from a complete AEM to lattice-involved mechanism (Supplementary Fig. 33 and Supplementary Note 4). This awakened us that a single catalyst may exhibit distinct mechanistic pathways depending on the operating temperature—a phenomenon herein referred to as the TDME effect. Specifically, the TDME effect can be considered as a gradual mechanistic evolution, in which lattice oxygen becomes increasingly involved in the reaction as temperature rises, while the AEM pathway may still remain operative. This phenomenon reflects a progressive shift in the relative contributions of different OER pathways at different temperatures. Notably, this TDME behavior provides a reasonable mechanistic explanation for the aforementioned instability of RhRu₃O_x under high-temperature PEM-WE conditions. Considering the great potential of the TDME effect in researching and developing water oxidation catalysts, based on our experience of multiple failures before finally obtaining a high-quality mass spectrometry signal, we provide a protocol in the form of a logical flow chart to help readers better design experiments, detect errors, and modify reactors (Fig. 4h).

In addition, to reinforce the TDME effect suggested by operando TC-DEMS, we conducted Raman spectroscopy measurements under isotope labeling conditions. RhRu₃O_x was reacted in electrolytes prepared with H₂¹⁸O at room temperature and 60 °C. As shown in Supplementary Fig. 34, the sample before labeling exhibits two characteristic vibrational modes at 523 and 643 cm⁻¹, corresponding to the E_g and A_1g modes of Ru–O bonding^32,33, respectively. Upon labeling at room temperature, these peaks remained unchanged, indicating negligible participation of lattice oxygen. In contrast, the sample labeled at 60 °C displayed clear redshifts to 518 and 636 cm⁻¹, respectively, confirming that ¹⁸O was incorporated into the lattice of RhRu₃O_x^34,35. Nevertheless, these redshifts remained below the theoretical maxima for oxygen isotope substitution, which could be attributed to the surface-localized ¹⁸O exchange and the partially involved LOM pathway during the catalytic process (Supplementary Note 5). The above temperature-dependent isotopic results provide compelling spectroscopic evidence that lattice oxygen involvement becomes significant at elevated temperatures, further supporting the TDME hypothesis.

To further rationalize the TDME behavior, it is essential to address a seemingly paradoxical observation: the onset of the mechanistic shift is not accompanied by a significant change in the Tafel slope. (Fig. 2e). This phenomenon, however, is not inherently paradoxical. As reported by Shinagawa et al. in alkaline OER³⁶, the Tafel slope is jointly governed by the electron transfer characteristics of the rate-determining step (RDS) and the surface coverage of intermediates formed in preceding steps. Even if the RDS changes, the Tafel slope may remain largely unaffected if the coverage of key intermediates does not vary notably³⁷. Our microkinetic modeling under acidic OER conditions (Supplementary Note 6 and Supplementary Fig. 35) further supports this notion, demonstrating that distinct RDS scenarios can produce similar Tafel behavior due to the dominant influence of intermediate coverage. These results suggest that relying solely on Tafel slopes may overlook subtle mechanistic changes, particularly in complex multistep acid OER electrocatalytic systems. In addition to the microkinetic analysis, the intrinsic nature of the LOM pathway also helps explain this apparent inconsistency. Specifically, the RDS in the AEM mechanism (M–O + H₂O → M–OOH + H⁺ + e⁻) involves proton-coupled electron transfer and is thus governed by electrochemical kinetic. In contrast, the typical RDS in the LOM mechanism (M–O* + M–O_lat → O₂ + M* + M_vac) does not involve electron transfer and is primarily controlled by thermodynamic Brønsted–Evans–Polanyi (BEP) relationships^13,38. Such an electron-transfer-independent step falls beyond the descriptive capacity of electrochemical kinetic parameters, such as the Tafel slope. Therefore, even though the underlying mechanism begins to involve LOM at elevated temperatures, the Tafel slope may remain largely unchanged. Based on the microkinetic analysis and the electron-transfer-independent nature of the RDS in the LOM pathway, the occurrence of a mechanistic evolution does not necessarily lead to a significant change in the Tafel slope; the two are neither sufficient nor necessary conditions for each other.

After having a certain understanding of the TDME effect, the next critical task is to develop effective strategies for the controllable regulation of TDME behavior. Typically, the activation of the LOM pathway is triggered by an upward shift of the O 2p band toward or even above the Fermi level (E_f), rendering lattice oxygen oxidizable and thus capable of participating in the reaction^1,39. It is worth noting that an increase in temperature will lead to thermal broadening of the Fermi-Dirac distribution⁴⁰. As a result, O 2p states that are fully occupied and lie below E_f at room temperature may develop partial hole character under thermal excitation, thereby electronically activating lattice oxygen and enabling the LOM pathway. To avoid thermally induced LOM activation, it is critical to ensure that the O 2p band remains below the Fermi level at the intended operating temperature. However, the position of the O 2p band should not be lowered arbitrarily. If it becomes too deep, the hybridization between O 2p and Ru 4d orbitals will be weakened, leading to reduced Ru–O covalency and a lower Ru vacancy formation energy, which in turn increases the risk of metal dissolution and structural degradation^41,42. This trade-off highlights a seesaw relationship between Ru–O covalency and the O 2p band position: while elevating the O 2p band enhances covalency and bonding stability, an excessively high O 2p level can cross the Fermi level at the operating temperature, thereby triggering the LOM pathway and accelerating structural degradation.

Based on this understanding, we propose an electronic structure design strategy guided by the target operating temperature. Specifically, the suitable O 2p band position should be determined in reverse from the desired working temperature range, such that even under thermal excitation, the O 2p states remain below E_f, effectively suppressing or delaying the onset of LOM. In practice, this can be achieved by incorporating dopants to moderately downshift the O 2p band, thereby increasing the activation energy required for lattice oxygen oxidation. Additionally, selecting dopants with appropriate ionic radii can induce local lattice contraction or strain, enhance structural compactness, and suppress oxygen diffusion and O–O coupling processes, thereby further delaying the onset of the LOM mechanism from a structural perspective.

Theoretical analysis

To provide theoretical insights into the mechanisms of the switch of the RhRu₃O_x, DFT computations were performed. The detailed computational methods are available in the Methods section. Firstly, it is assumed that incorporating a minor quantity of Rh would negligibly affect the surface state of the parental RuO₂(110). The Rh-doped models are constructed based on this surface with a distinguished surface state. Hence, we first conduct the surface state verification on RuO₂(110), and the results are presented in Fig. 5a, b. Obviously, under the potential for OER, RuO₂(110) will be pre-covered by 1 ML O*. Comparative analysis of various Rh doping sites within the RuO₂ matrix demonstrates that incorporation of Rh at the coordination unsaturated site (CUS) represents the most energetically favorable configuration, as depicted in Fig. 5c. With this derived structure, it is now feasible to explore the OER mechanism of the RhRu₃O_x.

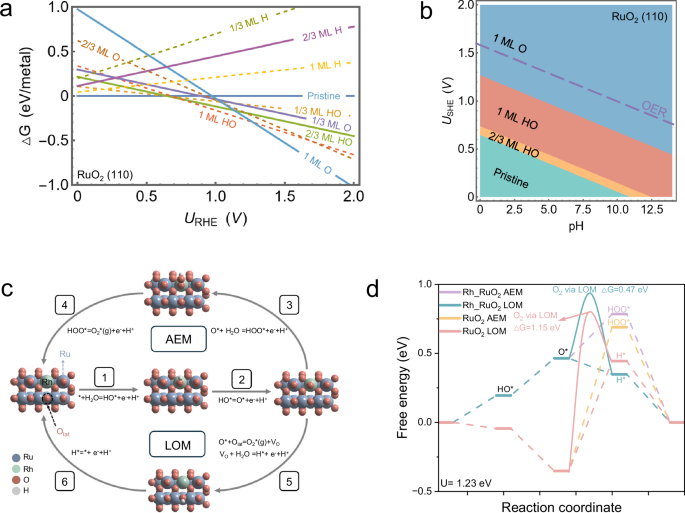

Fig. 5: Computational analysis of the surface state and illustration of the OER mechanism.

a, b Calculated 1D surface Pourbaix diagram as a function of potential vs. RHE (pH 1; temperature=298.15 K) (a) and 2D surface Pourbaix diagram as a function of potential vs. SHE and pH (temperature: 298.15 K) (b) of RuO₂ (110). c, d AEM and LOM OER mechanisms illustration (c) and relevant free energy diagrams of these two mechanisms on RhRu₃O_x and undoped RuO₂ (d).

The reaction pathways for the two distinct OER mechanisms are illustrated in Fig. 5c. Steps 1 through 4 delineate the associative AEM, while steps 1, 2, 5, and 6 outline the LOM. Subsequently, the free energy diagrams for these two mechanisms are computed upon RhRu₃O_x and undoped RuO₂. The results are presented in Fig. 5d. The Gibbs free energy (ΔG) of the rate-determination step (RDS) for AEM and LOM on RhRu₃O_x is 0.32 eV (HOO*) and 0.27 eV (O*), respectively. Clearly, RhRu₃O_x is supposed to exhibit an increased propensity for LOM. However, the operando TC-DEMS experiments reveal that, under the room temperature conditions, RhRu₃O_x predominantly employs AEM, rather than LOM. This preference is attributed to the kinetic barrier associated with the activation of lattice oxygen in the LOM pathway, which becomes a significant factor at lower temperatures. As indicated by the green peak in Fig. 5d, the activation barrier for this process is approximately 0.47 eV, which is much higher than ΔG for both AEM and LOM. In standard conditions, the presence of this activation barrier renders the LOM difficult to initiate. However, this barrier can be effectively surmounted at elevated temperatures, as implied by the Ab initio molecular dynamics (AIMD) simulations in Supplementary Fig. 36. Specifically, when the temperature is increased to 360 K, the average activation barrier for the LOM pathway decreases to 0.34 eV, indicating that higher temperatures facilitate a more favorable LOM process.

Discussion

In summary, we synthesized a RhRu₃O_x catalyst with notable activity and stability in acidic OER. The notable performance of RhRu₃O_x operating in the PEM-WE device also shows its application value in practical hydrogen production. More importantly, we discovered a so-called temperature-dependent mechanism evolution (TDME) effect for RhRu₃O_x during the OER process through the operando TC-DEMS technology. The reaction path follows AEM at low temperatures, while LOM is involved at high temperatures. This discovery further enriches the toolbox for regulating OER reaction pathways. We believe that the design principles established in this study for modulating TDME behavior, along with the TDME concept itself, may potentially be extended to the understanding and optimization of a broader range of transition metal–based OER catalysts.

Methods

Materials

Rhodium (III) Chloride Hydrate (RhCl₃ Rh 38.5–42.5%), Ruthenium (III) chloride hydrate (RuCl₃ Ru 35.0–42.0%), Palladium (II) chloride (PdCl₂ Pd 59–60%), Chloroplatinic (IV) acid hydrate (H₂PtCl₆ Pt 37.5%), Hexachloroiridium (IV) Acid Hydrate (H₂IrCl₆ Ir 36.0–44.0%) and perchloric acid (HClO₄ 70.0–72.0%) were purchased from Sigma–Aldrich Co., Ltd. Hydrochloric acid (HCl 36.0～38.0%) and isopropyl alcohol ( ≥99.95%) were purchased from Sinopharm Chemical Reagent Co., Ltd. Carbon black (BP2000) was purchased from Cabot Carbon Ltd. HiSPEC 40% Pt on Vulcan XC-72R (Pt/C 40 wt%) was purchased from Johnson Matthey Catalyst Co., Ruthenium dioxide (RuO₂) was purchased from Premetek Co., Ltd. Nafion solution (5 wt%) was purchased from DuPont Co. Heavy-oxygen water (97.5% ¹⁸O) was purchased from Henan Herunsheng Isotope Technology Co., Ltd. All reagents were purchased without further purification. Ultrapure Milli-Q water (18.2 MΩcm⁻¹) was used to prepare samples and electrolyte solutions.

Synthesis of catalysts

In a typical synthesis procedure, 0.2 mmol of RhCl₃ was added to 20 ml of HCl, dissolved until clear, then 130 ml of deionized water (DIW) was added, followed by 0.6 mmol of RuCl₃. The mixture was then ultrasonic treated for 2 h. Add 325 mg carbon black (Cabot, BP2000), the weight of which is 4 times the weight of the total metal in the precursor, and stir for 18 h to disperse to ensure uniform dispersion. Next, a rotary evaporator is used to dry the mixture at 80 °C, 100 rpm, 8 × 10³ Pa to collect the remaining powder. The dried powder was placed in H₂/Ar (5% H₂) flowing at 900 °C for 2 h, and annealed in air at 450 °C for 3 h, and the heating rate was 5 °C/min. Take 50 mg of the sample and put it into 20 ml, 1 M HCl for acid leaching for 12 h, centrifuge, and then centrifuged and washed with deionized water for 3 times. Finally, the samples were dried overnight in an oven at 60 °C to obtain RhRu₃O_x catalyst. Other samples of different binary metal oxides MRu₃O_x (M = Ir, Pd, Pt, Ru) are prepared in the same way, but with different precursors.

Characterizations

X-Ray powder diffraction (XRD) was carried out on a X‘Pert MPD X-ray diffractometer with Cu Ka radiation (λ = 1.5406 Å). The morphology of the samples was analyzed by a Hitachi 7700 transmission electron microscope (TEM). High-resolution TEM (HRTEM) and corresponding energy dispersive X-ray (EDX) spectral element mapping were performed on JEM-F200 with an accelerated voltage of 20–200 KV and beam current ≥ 2.5 nA @ 0.7 nm Probe Size. High-angle annular dark-field scanning TEM (HAADF-STEM) images were recorded on the FEI Titan cube Themis G2 300 with a 200 kV probe corrector. The surface area was calculated by nitrogen adsorption-desorption isotherm using the Brunauer-Emmett-Teller (BET) method on Micromeritics ASAP 2460. The X-ray photoelectron spectra (XPS) spectra was collected on Thermo Scientific ESCALAB 250Xi, the monochromatic X-ray source is Al kα 150 W with a beam spot of 500 μm. The X-ray absorption edge spectra were collected on the BL14W1 beamline of Shanghai Synchrotron Radiation Facility (SSRF) and analyzed with the software of Ifeffit Athena. The Q₁ edge position is defined as the energy at normalized absorption of 0.5. ICP data were obtained by Thermo Fisher iCAP RQ, and all powder samples were dissolved in boiling aqua regia. The Ru: Rh molar ratio of our sample is about 3.12:1, so we noted it as RhRu₃O_x. Raman spectra were captured using a LabRAM HR Evolution spectrometer with an excitation wavelength of 633 nm.

Electrochemical measurements

Electrochemical measurements were carried out at room temperature in a water-jacketed five-neck cell (C011, Tianjin Aida) using a standard three-electrode configuration connected to a Multipotentiostat (IM6ex, ZAHNER Elektrik, Germany) in an O₂-saturated 0.1 M HClO₄ (pH = 1 ± 0.02) electrolyte, which was freshly prepared by diluting 1.66 mL of HClO₄ (Sigma–Aldrich) with deionized water to a final volume of 200 mL. A Pt foil (Pt 210, Tianjin Aida) and Hg/Hg₂SO₄ (Saturated K₂SO₄, Tianjin Aida) were employed as the counter and reference electrode, respectively. In a typical test, 5 mg of catalyst was added to 1 ml of isopropyl alcohol and 20 µl of Nafion solution (5 wt%; Sigma-Aldrich) and ultrasonicated 1 h to yield a homogeneous catalyst ink. To avoid the impact of the carbon oxidation current generated by the glass carbon electrode or the contact resistance generated by the passivation of other electrode materials on the stability test, we chose the Au electrode to test our samples. Before electrode preparation, the Au electrode (area, 0.19625 cm², Tianjin Aida) surface was cleaned by Plasma Cleaner (Harrick PDC-002) at 740 V DC, 40 mA DC, 29.6 W for 2 min. After the cleaning procedure, 16 µl catalyst ink was cast on the Au electrode in four drops, and dried in vacuum at room temperature after each drop (catalyst loading: 0.4 mg cm⁻²). The prepared Au electrode was assembled with the RDE assembly (Pine Instruments) as the working electrode at a rotation rate of 2500 r.p.m. For the OER experiment, LSV tests were recorded with a scanning rate of 10 mV s⁻¹ in the potential range of 1.1–1.8 V versus RHE. All potentials were measured against the MMS reference electrode and converted to the reversible hydrogen electrode (RHE) scale by using E (vs RHE) =  E (versus MMS) + 0.645 + 0.0591 × pH^43,44. Electrochemical impedance spectroscopy (EIS) data were collected from 0.1 Hz to 100 kHz, at an amplitude of 5 mV at 1.45 V (versus RHE). The current density-time (i-t) curves were measured by chronopotentiometry testing at 10 mA cm⁻². ECSA is calculated by: ECSA = C_dl/C_s, where C_dl is the double-layer capacitance and C_s is the specific capacitance. According to previous reports^6,43, C_s = 0.035 mF cm⁻² was selected for calculation. C_dl is obtained from C_dl = i_c/ν, where i_c is the charging current and ν is the scanning rate. To obtain i_c and ν, we performed CV tests at several different scan rates (2.5, 5.0, 7.5, 10, 15, and 20 mV s⁻¹) in the non-Faraday potential region of 1.18–1.28 V (versus RHE). S number is calculated by the following formula: $S={n}_{{O}_{2}}/{n}_{{Ru}({{\rm{Dissolved}}})}$, where ${n}_{{O}_{2}}$ is the evolved oxygen (calculated from the total charge Q, ${n}_{{O}_{2}}$ = it/4eN_A) and ${n}_{{Ru}({{\rm{Dissolved}}})}$ is the amount of dissolved total Ru (${n}_{{Ru}({{\rm{Dissolved}}})}={c}_{{Ru}\left({{\rm{Dissolved}}}\right)*{V}_{{Solution}}}/{M}_{{Ru}}$) measured by inductively coupled plasma-mass spectrometry (ICP-MS). To correct the ohmic drop, all potentials measured in RDE are calibrated using 100% iR compensation.

PEM–WE measurements

The membrane electrode assembly (MEA) was prepared by the catalyst coating (CCM) method. The ionomer of 30 wt% of the total anode catalyst was uniformly mixed with the anode catalyst (40 wt% for the cathode) in a solvent with a volume ratio of isopropyl alcohol to water of 1:1. A 3 mg cm⁻² anode catalyst layer (RhRu₃O_x, Hom-RuO₂, Com-RuO₂) and a 0.6 mg cm⁻² Pt/C layer were formed by vacuum adsorption air brush at 40 °C on a coffee-colored Teflon high temperature cloth (Jiangsu Aokai New Material Technology Co., Ltd.). Hot press transfer was then performed on a blank membrane electrode (Nafion 115, thickness: 127μm, Anhui Contango New Energy Technology Co., Ltd.) of 2*2 cm² at 135 °C, 11 T, 5 min (Model 4386, Carver, Inc.). The assembly of PEM-WE is shown in (Fig. 3a, b). In order to reduce the contact resistance, platinum-plated titanium alloy material is selected to make the anode polar plate, the anode PTL is platinized titanium fiber felt (0.25 mm, SCI Materials Hub), the gaskets of specific thickness on both sides are made of polytetrafluoroethylene (PTFE), the cathode PTL is carbon paper, and the cathode polar plate is made of graphite. All PEM-WE tests were performed on an integrated electrolysis system (Scribner 600 PEM Electrolysis Test System). The electrolyte we used was 18 MΩ DIW, and the flow rate was 100 ml/min. The cathode carrier gas was N₂, and the flow rate was 40 ml/min. I–V curves were measured with scan current mode at 50–2200 mA cm⁻² at room temperature and ambient pressure. The stability test was carried out with constant current mode at 2000 mA cm⁻² at room temperature (or 60 °C) and ambient pressure.

Operando TC-DEMS

The operando TC-DEMS measurements were carried out in a homemade electrochemical reactor configuration (Yu-Qu configuration) coupling with a differential electrochemical mass spectrometer (Linglu QMG 250) and connected by a quartz capillary tube. In order to control the temperature more accurately, we also added a water-cooling system around the heating jacket to ensure the control temperature accuracy of ±0.1 °C. The working electrode used is to air-spray the catalyst on a 1*1 cm² glass carbon sheet with a load of 0.4 mg cm⁻², the counter electrode is a carbon rod, and the reference electrode is an Ag/AgCl solid electrode. In the ¹⁸O labeling step, we flushed the Ar flow to remove air from the reactor for 15 min, then we ran the reactor and heat up to target temperature. Next, we maintain a constant current mode of 10 mA cm⁻², and if the required voltage is close to the RDE test results, we label it in H₂¹⁸O/0.1 M HClO₄ for 20 min (Raman spectra were collected under the same electrochemical labeling conditions); If inconsistent, the experiment can be corrected by referring to the reasons for possible failure summarized in our protocol.

The reactor and electrodes were then washed with a large amount of ¹⁶O water and soaked with ¹⁶O water three times for 5 min each time to remove any ¹⁸O species adsorbed on the catalyst by van der Waals force. Then, reassembling the operando TC-DEMS equipment and flushed Ar flow to the reactor for 15 min. The baseline signal of all mass-selected products (m/z = 32 and 34) needs to be stabilized before heating up to the target temperature, which usually takes about 20 min. The mass signal was smoothed by averaging every twenty data points. If the signal baseline is still unstable after 30 min, check the air tightness of the reactor itself and the connection of the quartz capillary ends. After heating to the target temperature, a triangular wave potential of 1.1–1.7 V versus RHE is applied at a sweep rate of 2 mV s⁻¹. If the signal peak can be seen to be notably higher than the baseline, the test is completed. The signal peak usually has a delay of about 400 s after the application of the angular wave potential due to capillary injection. If there is no signal peak notably higher than the baseline, please refer to our protocol again to check.

The Tafel slopes of RhRu₃O_x and Hom-RuO₂ at 30, 40, 50, 60 and 70 °C were measured in the same reactor. The apparent activation energy (E_{a, app}) is derived from the following formula:

$$\frac{{{\rm{d}}}({{{\rm{logj}}}}_{0})}{{{\rm{d}}}\left(\frac{1}{{{\rm{T}}}}\right)}=-\frac{{{{\rm{E}}}}_{{{\rm{a}}},{{\rm{app}}}}}{2.303{{\rm{R}}}}$$

(1)

Where j₀ is the exchange current density, which can be calculated from the slope and intercept of the Tafel diagram, the formula is as follows:

$${{\rm{\eta }}}=\frac{2.303{{\rm{RT}}}}{{{\rm{\alpha }}}{{\rm{F}}}}*\log \left({{{\rm{j}}}}_{0}\right)-\frac{2.303{{\rm{RT}}}}{{{\rm{\alpha }}}{{\rm{F}}}}*\log \left({{\rm{j}}}\right)$$

(2)

$${{{\rm{j}}}}_{0}={10}^{\left(-\frac{{{\rm{intercept}}}}{{{\rm{slope}}}}\right)}$$

(3)

Computational details

Spin-polarized density functional theory (DFT) computations were conducted via the Vienna ab initio simulation package (VASP)⁴⁵, in which the projector augmented wave (PAW) method^46,47 was employed. Plane-wave basis set⁴⁷ was chosen to expand the Kohn-Sham⁴⁸ wave functions to consider the valence electrons. The relevant kinetic energy cutoff was set at 520 eV. The revised Perdew–Burke–Ernzerhof (RPBE) functional⁴⁹ was employed as a parametrization to the general gradient approximation (GGA)⁵⁰ to compute the electron exchange and correlation interactions. All geometrical structures were allowed to be relaxed until the force subject to each atom less than 0.05 eV/Å. The Brillouin zone was sampled by a (3×3×1) k-point mesh⁵¹. To separate two periodic surfaces along the z-direction, a 15 Å vacuum slab was employed. The two bottommost layers were held stationary at their bulk lattice positions, while the remaining layers were permitted to undergo relaxation. The Python Materials Genomics (pymatgen)⁵² and Atomic Simulation Environment (ASE) libraries⁵³ were employed to handle crystal structure manipulation, input generation, and the evaluation of surface stabilities. The computational parameters for bulk structures were derived from the Materials Project database⁵⁴. Prior to the study, a series of more rigorous computational methodologies were assessed, encompassing increased kinetic energy cutoffs, expanded k-point mesh grids, reduced convergence thresholds for forces, augmented layer thickness, and expanded unit cell dimensions. Nevertheless, the variations in binding energies and the optimized adsorption geometries were found to be negligible. The methodologies for the surface Pourbaix diagrams computations were referred to the work by Hansen et al.⁵⁵, with the thermodynamics calculated by employing the computational hydrogen electrode model, introduced by Nørskov et al.⁵⁶, as a function of pH and electrochemical potential. Corrections for zero-point energy (ZPE) and entropy were referenced from previous investigations⁵⁷ at standard conditions (298.15 K). Moreover, solvation corrections were specifically applied to the HO* intermediates, considering the pronounced stabilization effect attributable to hydrogen bonding interactions, with correction values cited from the literature⁵⁸. To further probe the temperature-induced effect on the mechanism evolution from AEM to LOM, ab initio molecular dynamics (AIMD) simulations^59,60 were performed using the VASP code, employing the RPBE exchange–correlation functional. The simulations utilized a plane-wave basis set with an energy cutoff of 400 eV and applied Gaussian smearing with a width of 0.1 eV. All simulations were carried out at the Γ-point with a time step of 1 fs, and the system temperature was maintained at 360 K using a Nosé thermostat over the course of 10,000 simulation steps. The structures obtained after 5000 steps were used for further analysis. To note, the relevant structures after 5000 steps are presented in GitHub in an interval of 100 steps.
