Introduction

A significant unresolved constraint on martian planetary differentiation is the efficiency of sulfide segregation. This process fundamentally controls martian chalcophile element budgets, such as sulfur (S) and copper (Cu). However, we currently lack robust constraints on sulfide segregation during martian differentiation derived from martian samples. Although evidence from silver (Ag) partitioning systematics in high-pressure experiments suggests limited sulfide segregation on Mars1, this inference requires robust validation. Copper isotopes (δ65Cu) provide a powerful tracer to address this knowledge gap. Specifically, sulfide–silicate partitioning induces significant equilibrium Cu isotopic fractionation, as Ni-poor sulfides preferentially incorporate isotopically light Cu2,3. This significant fractionation contrasts with the minimal fractionation (∆65Cumetal-silicate about +0.1‰ to +0.2‰2,3) characteristic of high-temperature metal–silicate equilibration associated with core formation. Therefore, δ65Cu serves as a highly diagnostic indicator of sulfide-dominated processes.

Current constraints on the Cu isotopic composition of bulk silicate Mars (BSMa) remain limited. Existing constraints on martian δ65Cu rely on a single measurement (δ65Cu = −0.15‰ for a shergottite melt glass4), which is insufficient to represent the BSMa. Therefore, determining the BSMa δ65Cu will allow comparative planetology to assess whether martian differentiation proceeded similarly to that of Earth and the Moon, or whether it followed a distinct pathway. Insights from the isotopic signatures of Earth and the Moon underscore this importance. Published data indicate that the bulk silicate Earth (BSE) exhibits δ65Cu values of +0.07 ± 0.10‰2 and +0.06 ± 0.20‰5, which are indistinguishable within uncertainties. These values are constrained through analyses of diverse terrestrial igneous suites, including mid-ocean ridge basalts (MORBs), ocean island basalts (OIBs), komatiites, and peridotites2,5. Herein, we adopt the δ65Cu value of +0.07 ± 0.10‰ owing to its lower uncertainty. This lower uncertainty arises because the value includes komatiites rather than peridotites, as the latter are more susceptible to alteration and possess complex petrogenetic histories. The BSE exhibits a heavy δ65Cu signature relative to its modeled bulk composition, supporting substantial sulfide segregation during differentiation2. Similarly, the bulk silicate Moon (BSMo) δ65Cu value is significantly higher, at +0.57 ± 0.15‰, as constrained by low-Ti basalts6. Additionally, local metal–silicate equilibration and metal trapping in mantle cumulates may have caused heterogeneity within the lunar mantle during solidification of the lunar magma ocean7, adding complexity to the interpretation of the BSMo signature. The δ65Cu value of BSMo exceeds that of chondrites2,6,8,9,10,11. However, the origin of the elevated BSMo δ65Cu value is debated, as two distinct processes could explain the removal of isotopically light Cu from the silicate reservoir: sulfide segregation2,3 versus devolatilization12,13. Paquet et al.6 suggested that volatile loss induced the isotopically heavy Cu signature in BSMo, whereas Xia et al.3 attributed this signature predominantly to sulfide segregation. This highlights the challenge in uniquely assigning δ65Cu variations to specific processes and emphasizes the non-negligible role of volatile loss.

To address the knowledge gap regarding the δ65Cu of the BSMa and to quantify the effects of sulfide segregation during martian differentiation, we present a Cu isotopic dataset for a diverse suite of martian meteorites (13 shergottites and 2 nakhlites). By integrating these data with a revised differentiation model, we: (1) constrain the δ65Cu of the BSMa; (2) assess the relative contributions of sulfide segregation versus volatile loss to the BSMa’s Cu isotopic signature; and (3) constrain S-Cu co-evolution during martian magma ocean (MMO) crystallization. This study provides important isotopic evidence to help resolve the martian sulfide segregation issue and advances our understanding of martian core–mantle differentiation and chalcophile budgets.

Results and discussion

Chemical and copper isotopic compositions of martian meteorites

To provide petrographic context, features of the measured martian meteorites are detailed in Supplementary Note 1 and Supplementary Figs. 1–11. Chemical compositions are detailed in Supplementary Data 1. Measured δ65Cu values for the martian meteorites are summarized in Table 1 and Fig. 1. Analytical accuracy was confirmed using geological reference materials (BHVO-2, BIR-1a, and JP-1), and the measured δ65Cu values for these reference materials are consistent with published reference data (Table 1). Isotopic analyses (n = 6) of multiple fragments from individual meteorites revealed consistent δ65Cu values. Heterogeneities exceeding analytical uncertainty were observed in limited instances (n = 2), potentially attributable to the nugget effect in coarse-grained gabbro (e.g., Northwest Africa (NWA) 6963) and the anomalous shergottite Zagami. Furthermore, no measurable Cu isotopic variation was observed between the weathered exterior and less altered interior of NWA 13276, confirming that terrestrial weathering did not significantly alter the Cu isotopic composition.

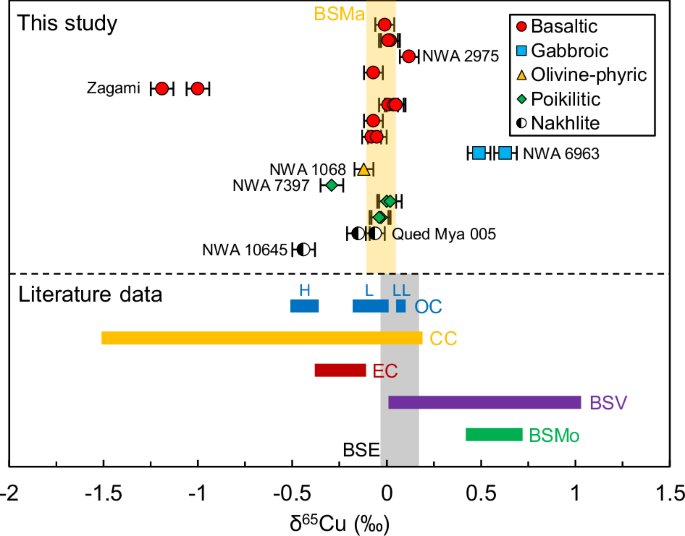

Fig. 1: Copper isotopic compositions of celestial reservoirs.
Fig. 1: Copper isotopic compositions of celestial reservoirs.
Full size image

Error bars represent 2 SD (based on the precision of standard solutions applied to samples). Chondritic δ65Cu ranges, including ordinary chondrite (OC), carbonaceous chondrite (CC), and enstatite chondrite (EC), are compiled from the literature2,8,9,10,11. Compiled δ65Cu values are compared with bulk silicate Earth (BSE, defined by MORBs, OIBs, komatiites, and peridotites2), bulk silicate Moon (BSMo, defined by lunar basalts6), and bulk silicate Vesta (BSV, defined by eucrites48).

Table 1 Copper isotopic compositions of the measured samples and geological reference materials
Full size table

Shergottites exhibit a broad range of δ65Cu values, from −1.19‰ (Zagami) to +0.63‰ (NWA 6963). Given their extreme values relative to other shergottites, Zagami and NWA 6963 are identified as outliers and excluded from further analysis of the dominant shergottite group. The remaining shergottites (n = 11) define a narrower δ65Cu range from −0.29‰ to +0.12‰, with a mean value of −0.05 ± 0.21‰ (2 SD). Within this shergottite group (excluding outliers), a correlation is observed between δ65Cu values and their established geochemical classification: intermediate shergottites (0.3 <(La/Yb)CI < 0.814) versus enriched shergottites (La/Yb)CI > 0.814) (Fig. 2a). The two nakhlites analyzed yielded δ65Cu values of −0.44‰ to −0.06‰, both lower than the mean value (−0.05‰) of the dominant shergottite group.

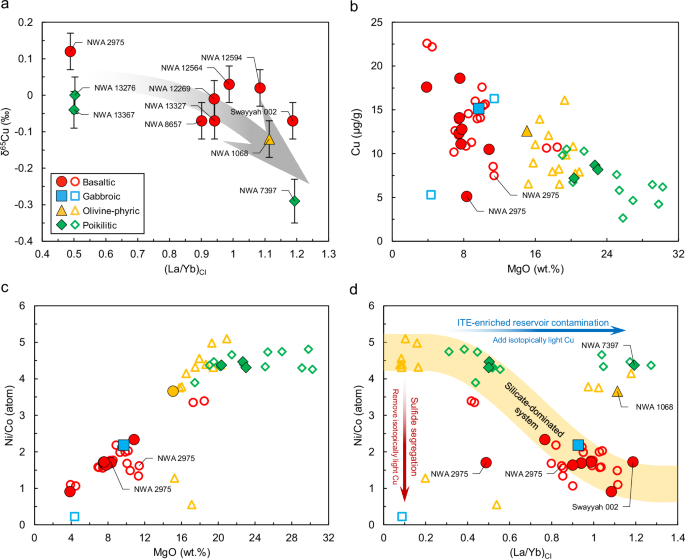

Fig. 2: Isotope and element systematics in shergottites.
Fig. 2: Isotope and element systematics in shergottites.
Full size image

Solid symbols represent data from this study, and open symbols denote literature data from Wang and Becker19 and the data compilation by Udry et al. 14. The complete compiled dataset is provided in Supplementary Data 5. A unified legend applies to all panels. Error bars represent 2 SD (based on the precision of standard solutions applied to samples). Uncertainties for the mean values of replicate samples are assigned as the maximum of these 2 SD values. CI chondrite reference values are from Sun and McDonough97. a δ65Cu and (La/Yb)CI exhibit a negative correlation. b Cu and MgO contents show a negative correlation in most shergottites. c Ni/Co ratios and MgO contents display a positive correlation. d Ni/Co versus (La/Yb)CI categorizes shergottites into three evolutionary groups: silicate-dominated, sulfide segregation, and ITE-enriched reservoir contamination. The orange-shaded field denotes the proposed silicate-dominated trend.

Copper isotopic fractionation during magmatic processes

Martian meteorites exhibit resolvable δ65Cu variations (Fig. 1). Zagami and NWA 6963 were excluded from consideration due to potential non-magmatic alteration or contamination (Supplementary Discussion 1). Similar to terrestrial systems where high-degree mantle melting induces limited Cu isotopic fractionation‌2,5,15, sulfide-dominated processes likely dominate Cu isotopic fractionation during martian magmatism. This dominance stems from sulfides’ important role in controlling Cu partitioning during peridotite melting16 and preserving siderophile/chalcophile signatures in shergottites17,18. Therefore, sulfide-undersaturated magmas lacking sulfide segregation have the potential to preserve mantle-derived Cu isotopic compositions. Evidence for sulfide saturation processes is recorded in geochemical indicators. Specifically, sulfide-undersaturated magmas exhibit incompatible Cu behavior, with concentrations increasing systematically during magmatic evolution19 (Fig. 2b). In contrast, samples like NWA 2975 exhibit anomalous Cu depletion coupled with heavy δ65Cu (Fig. 2a, b), indicating having undergone sulfide segregation. This sulfide saturation is linked to NWA 2975’s anomalously low FeO content (17 wt.% versus 19–24 wt.% in other analyzed shergottites), as sulfur content at sulfide saturation (SCSS) decreases with decreasing melt FeO content20,21. The Cu/Zr ratio remains stable during sulfide-absent melting and early-stage mafic magma differentiation but is sensitive to sulfide segregation events22. Consequently, the lack of Cu/Zr-MgO correlation in shergottites (Supplementary Fig. 12) suggests the absence of widespread sulfide segregation. Most samples cluster at Cu/Zr ≈ 0.3–0.4, consistent with this interpretation. However, elevated ratios in olivine-phyric and poikilitic shergottites likely reflect nugget effects (Supplementary Discussion 2), rather than sulfide segregation processes. Collectively, these observations indicate that martian mantle-derived melts are dominantly sulfide-undersaturated.

However, MMO differentiation produces a heterogeneous martian mantle, as recorded by incompatible trace element (ITE) systematics (e.g., rare earth element (REE) patterns, 87Rb-86Sr, 147Sm-144Nd, and 176Lu-177Hf) of shergottites23,24,25,26,27. ITE-depleted signatures reflect early cumulates, whereas ITE-enriched signatures are preserved in mantle domains formed by the crystallization of late-stage melts23,24,25,26,27. The residence of ITE-depleted reservoirs in the mantle is broadly accepted, but the source of ITE-enriched reservoirs remains debated. In particular, some studies propose the martian crust as a possible ITE-enriched reservoir28,29. Despite uncertainty in the specific mechanism, the covariation between δ65Cu and (La/Yb)CI (Fig. 2a) indicates that isotopically light Cu signatures associate with ITE-enriched components. This coupling may reflect complex magma evolution concentrating isotopically light Cu within ITE-enriched mantle domains. Alternatively, it could indicate that the lower crust is the ITE-enriched source of shergottites. Support for the latter scenario comes from terrestrial analogs, which show that late-stage crystallization of basaltic magmas in lower crust generates isotopically light Cu signatures through sulfide enrichment in mafic cumulates30,31,32. Therefore, mixing between isotopically light Cu reservoirs (e.g., ITE-enriched mantle domains or lower crust) and ITE-depleted mantle sources could generate the observed ITE-δ65Cu covariation.

To trace the effects of sulfide segregation and mixing with an ITE-enriched reservoir, we utilize Ni/Co and (La/Yb)CI ratios. These proxies co-vary during silicate-dominated processes (e.g., fractional crystallization and partial melting) but decouple under secondary mechanisms. The Ni/Co systematics reveal key constraints. Nickel and cobalt are compatible in olivine/pyroxene, with Ni being more compatible33, leading to Ni depletion in residual melts and a strong MgO-Ni/Co correlation (Fig. 2c). This correlation and bulk Ni/Co <6 preclude significant meteoritic contamination (bulk Ni/Co ≥20 in chondrites and iron meteorites34). Regarding the (La/Yb)CI proxy, ratios increase during magmatic evolution as La is more incompatible than Yb. Notably, decoupling between Ni/Co and (La/Yb)CI (Fig. 2d) reveals distinct secondary processes. Specifically, sulfide segregation preferentially depletes Ni owing to its stronger chalcophile affinity relative to Co35, thereby reducing Ni/Co ratios below values expected from silicate-dominated trend (e.g., NWA 2975). For assimilation of ITE-enriched reservoirs, this process elevates (La/Yb)CI values but minimally affects Ni/Co ratios due to the reservoirs’ relatively low Ni and Co concentrations, inherited from MMO late-stage melts or the lower crust. Consequently, assimilation amplifies REE pattern variations while preserving primordial Ni/Co (e.g., NWA 1068 and NWA 7397). Overall, this diagnostic framework reveals three principal processes governing shergottite Cu isotopic fractionation (Fig. 2d). First, silicate-dominated processes yield uniform δ65Cu values (−0.03 ± 0.08‰), reflecting the mantle pristine signature. Second, under reducing conditions, segregation of Ni-poor sulfide melts preferentially removes isotopically light Cu2,3,36, resulting in residual silicate melts enriched in heavier Cu isotopes (e.g., NWA 2975). Third, mixing with ITE-enriched reservoirs induces isotopic variability (e.g., NWA 1068 and NWA 7397). Consequently, Cu isotopic variability in shergottites is dominantly controlled by sulfide saturation history and mixing between distinct mantle sources during martian magmatism.

Regarding nakhlites, these cumulate-rich rocks originate from low-degree melting of ITE-depleted mantle sources37,38,39,40, yet exhibit characteristics of aqueous alteration (e.g., iddingsite41) and potential crustal contamination37. Nakhlites exhibit lower δ65Cu values than most shergottites (Fig. 1), implying contributions from ITE-enriched components or alteration effects. However, the limited nakhlite dataset (n = 2, with measurable δ65Cu variations) precludes robust conclusions. The isotopic difference between shergottites and nakhlites likely reflects differences in melt extraction degree (high- versus low-degree partial melting) and/or post-magmatic alteration, highlighting the need for expanded nakhlite Cu isotopic analyses.

Copper isotopic composition of BSMa and bulk Mars

The identification of sulfide segregation and mixing with ITE-enriched reservoirs as principal controls on shergottite δ65Cu variations enables the constraint of the pristine Cu isotopic composition of the BSMa. This requires isolating samples preserving the pristine mantle-derived signatures, minimizing influences from both secondary alteration and significant magmatic modification. To ensure robust statistics and equal weighting among meteorites, δ65Cu values for shergottites with multiple subsamples (e.g., NWA 12594, NWA 12564, NWA 13367) were averaged prior to screening. This approach prevents over-representation of individual meteorites with more replicates in subsequent analyses.

To isolate the pristine mantle signature, we employed a two-step screening protocol. First, we focused on removing meteorites affected by non-magmatic processes to establish a dataset documenting igneous processes. Samples showing characteristics of non-magmatic alteration (Zagami, NWA 6963) or potential aqueous alteration/crustal contamination (Qued Mya 005, NWA 10645) were excluded. This initial filtering yielded eleven meteorites interpreted as mantle-derived melts recording magmatic effects, exhibiting δ65Cu values ranging from −0.29‰ to +0.12‰ (mean: −0.05 ± 0.21‰, 2 SD). Subsequently, a second distinct screening step was applied to this group of eleven meteorites to specifically target and minimize the influence of magmatic processes, thereby isolating the signature of the pristine martian mantle. Meteorites exhibiting geochemical signatures of sulfide segregation (NWA 2975) and strong contributions from ITE-enriched reservoir mixing (NWA 7397, NWA 1068) were excluded. This two-step screening resulted in a final suite of eight meteorites that represent the unmodified Cu isotopic composition of the BSMa. The δ65CuBSMa value is thus defined by the mean of these eight averaged compositions, yielding −0.03 ± 0.08‰ (2 SD). In particular, this BSMa composition is slightly lower than, but overlaps within uncertainty with, the BSE estimate of +0.07 ± 0.10‰2 (Fig. 1).

Quantitative modeling of martian differentiation requires knowledge of the bulk Mars composition (δ65CuBM). However, significant δ65Cu heterogeneity among chondrite groups2,8,9,10,11 (Fig. 1 and Supplementary Data 2) reflects primordial diversity in planetary building blocks, necessitating model-dependent assumptions regarding Mars’ accretionary components. Previous oxygen isotope-based accretion models proposed distinct mixtures: Lodders and Fegley42 proposed 4% CI, 11% CV, and 85% H chondrites, while Sanloup et al. 43 estimated 45% EH and 55% H chondrites. Recent isotopic evidence44,45,46,47 supports limited carbonaceous chondrite contributions (<6%), consistent with the model proposed by Sanloup et al.43. Using this preferred accretion model and incorporating chondritic Cu abundances and isotopic data2,8,11, our mass balance calculation yields a δ65CuBM of −0.30 ± 0.09‰ (Supplementary Method 1). The isotopic offset between the bulk Mars and BSMa compositions implies that isotopically light Cu was likely sequestered into the core or lost via evaporation during planetary differentiation.

Modeling S-Cu behavior during martian differentiation

To decipher the processes recorded in the Cu isotopic signature of BSMa, which serves as a key constraint on volatile depletion and core–mantle differentiation, we model S and Cu partitioning and isotopic fractionation. Three key stages influence δ65Cu in the silicate reservoir: magma ocean devolatilization, metal segregation, and sulfide segregation. Magma ocean devolatilization enriches the silicate residue in isotopically heavy Cu, consistent with observations on the Moon6 and Vesta48. Metal segregation preferentially incorporates isotopically heavy Cu into the iron alloy liquid, leaving an isotopically lighter silicate residue2,3. In contrast, sulfide segregation enriches the silicate reservoir in isotopically heavy Cu2,3. Quantitative modeling is required to distinguish these overlapping isotopic effects and quantify their net contribution to δ65CuBSMa.

The contribution of early volatile loss to the martian Cu isotopic composition was evaluated. Mars completed its primary accretion within 5 million years of calcium–aluminum-rich inclusion formation49, while the nebular gas was still present50. During this stage, energy from giant impacts51, rapid pebble accretion52, and the radioactive decay of 26Al53 collectively caused global melting and volatile escape. Critically, the H2-rich nebular atmosphere surrounding Mars significantly suppressed the extent of isotopic fractionation during evaporation54. Potassium (K) isotopes served as our proxy for Cu volatility. This approach is justified because: (1) both K and Cu exhibit similar depletion patterns in volatile-depleted, sulfur-poor bodies like the Moon6; and (2) K is lithophile, ensuring its isotopic signature reflects only volatile loss, and is unaffected by metal segregation or sulfide segregation events that influence Cu. Based on mass balance calculations (Supplementary Method 1) using a chondritic accretion model (45% EH and 55% H43) and end-member signatures (data from Wasson et al.55 and the data compilation by Hu et al.56; Supplementary Data 2), the predicted bulk Mars δ41KBM is −0.63 ± 0.22‰. This contrasts sharply with the measured BSMa δ41KBSMa value (δ41KBSMa = −0.28 ± 0.18‰57). To reconcile this difference, Rayleigh fractionation modeling (Supplementary Method 2) constrained by previous work54 under H2-rich conditions was employed, using fixed fractionation factors of αCu = 0.9998 and αK = 0.9992. Modeling results (Fig. 3a) indicate ~35% K depletion. Under the assumption of equivalent volatile loss fractions for Cu (based on their correlated volatile behavior), the resultant increase in δ65Cu is 0.09‰, yielding δ65CuMMO-volatile ≈ −0.21‰ (Fig. 3a). Consequently, volatile loss alone cannot explain the observed heavy δ65CuBSMa signature.

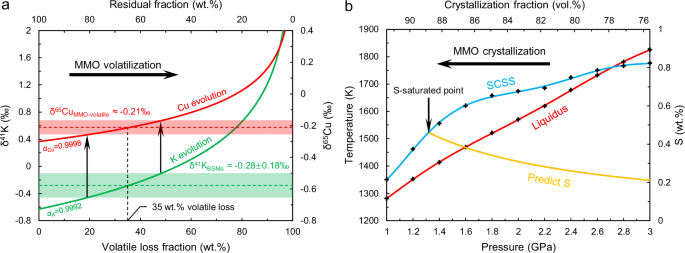

Fig. 3: Martian magma ocean (MMO) evolutionary signatures during devolatilization and crystallization.
Fig. 3: Martian magma ocean (MMO) evolutionary signatures during devolatilization and crystallization.
Full size image

a Copper and potassium isotope systematics reveal distinct fractionation extents. Potassium isotopes (δ41K) exhibit greater fractionation than Cu isotopes (δ65Cu) at equivalent volatile loss fraction. Rayleigh fractionation modeling (fractionation factors α from Sossi et al. 54; Supplementary Method 2) indicates ~35% K depletion. Assuming analogous Cu volatility, δ65Cu increases by 0.09‰. Value for δ41KBSMa follows Tian et al. 57, δ65Cu and δ41K of bulk Mars derive from mass balance calculations (Supplementary Method 1). b The alphaMELTS 1.9 simulations (0.2 GPa step size) reveal that the basal liquidus temperatures (in K) and the sulfur content at sulfide saturation (SCSS; in wt.%) decrease with MMO crystallization. Polynomial fits through discrete steps (black crosses) illustrate relationships between crystallization progress and residual melt properties. Predicted S contents (in wt.%) are calculated by mass balance, assuming full S retention in silicate melt until sulfide saturation. SCSS parameterization follows Blanchard et al. 21.

Subsequently, the S-Cu behavior during core formation was quantified using a single-stage accretion and two-stage core formation model (adapted from O’Neill58), based on the accretion scenario of Sanloup et al. 43. During the first stage (Fig. 4a), our model focused on metal segregation under the pressure (P) and temperature (T) conditions estimated for the final major equilibration event between the MMO and the iron alloy liquid. These conditions (~14 GPa and ~2100 K59) align with constraints from martian siderophile element systematics59,60,61. To determine the MMO composition during metal segregation, we performed mass balance calculations. These calculations incorporated experimentally determined metal–silicate partition coefficients for S62 and Cu63 (Supplementary Methods 3–5). This yielded initial MMO concentrations of ~515 μg/g S and ~10 μg/g Cu. Critically, the SCSS for initial MMO (~17.7 wt% FeO43) at 14 GPa and 2100 K is ~3666 μg/g (based on the parameterization by Blanchard et al.21; Supplementary Method 6). This SCSS value far exceeds the modeled S concentration, indicating sulfide undersaturation was maintained during metal segregation. Concurrently, iron alloy liquid incorporates isotopically heavy Cu (∆65Cumetal–silicate about +0.1‰ to +0.2‰2,3, with a conservatively adopted value of +0.1‰), and applying this fractionation reduces the δ65Cu of the post-volatile MMO by 0.09‰ to −0.30‰. However, this modeled post-metal-segregation δ65Cu is lighter than the observed BSMa value, revealing an isotopic discrepancy.

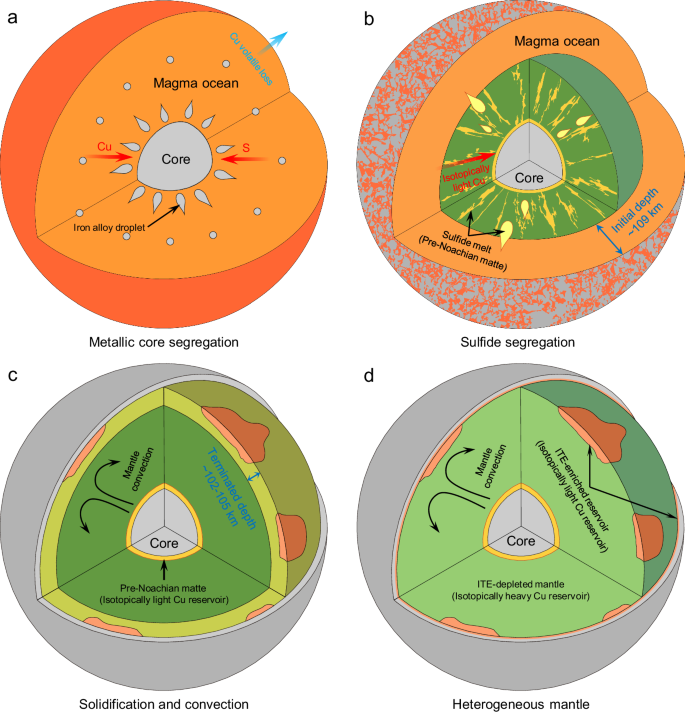

Fig. 4: Schematic diagram of the proposed martian evolutionary model in this study.
Fig. 4: Schematic diagram of the proposed martian evolutionary model in this study.
Full size image

a Early core formation involved preferential sequestration of chalcophile elements into the metallic core (~16.1 wt.% S and ~345 μg/g Cu). The pre-metal segregation composition was modeled as a mixture of 45% EH and 55% H chondrites43, with evaporated Cu subtracted (Fig. 3a). Partition coefficients of S and Cu followed literature parameterizations62,63 (Supplementary Methods 3–5). b Progressive magma ocean crystallization triggered sulfide droplet exsolution (SCSS parameterized by Blanchard et al. 21; Fig. 3b), with sulfide droplets subsequently percolating downward to the core. ‌c The Pre-Noachian matte delivered a significant flux of chalcophile elements to the core. However, declining sulfide transport efficiency terminated this process. Final core concentrations (~16.1 wt.% S, ~354 μg/g Cu; mass balance calculation, this study) only minimally modified by subsequent minor S additions (~0.02% of the bulk core, far less than the pre-existing S). Residual melts enriched in ITEs formed ITE-enriched mantle domains that potentially retained isotopically light Cu. d Insufficient mantle convection produced a heterogeneous martian mantle, and ITE-enriched mantle domains or the lower crust may serve as reservoirs for isotopically light Cu.

The isotopic discrepancy necessitates a process to enrich the silicate reservoir in isotopically heavy Cu. Although some models propose that S loss via degassing may be significant64,65, others argue for S retention in planetary cores66,67. Owing to uncertainties in S evaporation efficiency, our model therefore focuses on late-stage sulfide segregation (the second stage of core formation) during magma ocean crystallization as the primary mechanism for S depletion in the silicate reservoir. In the cooling and crystallizing magma ocean, sulfur concentrated in the residual melt. Concurrently, decreasing T–P and evolving MMO composition (constrained by alphaMELTS 1.9 simulation68,69,70; see Methods section for details) progressively reduced the SCSS21,71, eventually triggering sulfide saturation (~89% crystallization, ~109 km depth; Fig. 3b). This sulfide segregation depth is consistent with independent estimates of a range of 40–320 km72. The resulting immiscible dense iron sulfide melts (i.e., Pre-Noachian matte, analogous to Earth’s Hadean matte58; Fig. 4b) were enriched in isotopically light Cu (∆65Cusulfide–silicate about −0.80‰ to −0.89‰, parameterized by Xia et al.3) and began to percolate downward73. Critically, nickel depletion (<25 μg/g; Supplementary Method 7) in the residual melt, caused by olivine and/or pyroxene crystallization33, enabled significant Cu isotopic fractionation3. Rayleigh fractionation modeling (Fig. 5a; Supplementary Method 7) incorporating Cu sulfide–silicate partitioning coefficients74 and isotopic fractionation factors3, constrained the isotopic composition of residual MMO to reach a δ65CuBSMa value at the depth of 102–105 km. This depth represents the shallowest source region from which sulfide droplets can effectively reach the core.

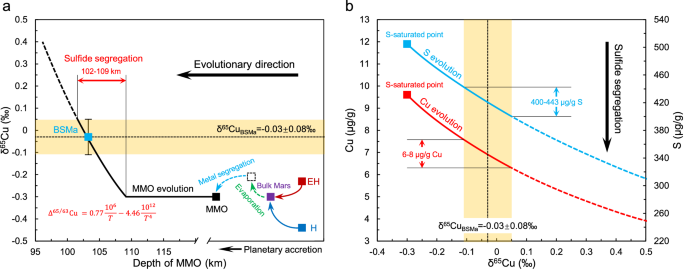

Fig. 5: Martian evolutionary signatures recorded in δ65Cu.
Fig. 5: Martian evolutionary signatures recorded in δ65Cu.
Full size image

Dashed lines in panels a and b represent extrapolated trends, assuming continued sulfide segregation during martian magma ocean (MMO) evolution. The bulk Mars was modeled as a mixture of 45% EH and 55% H chondrites43, incorporating literature Cu abundances and isotopic data2,8,11. Copper sulfide-silicate isotopic fractionation coefficients (Δ65/63Cu) were parameterized following Xia et al. 3. The error bar for BSMa represents 2 SD of representative samples. a Progressive enrichment in heavy isotopes (δ65Cu from −0.30‰ to +0.05‰) reflects the history of sulfide segregation. An inflection point at 109 km depth marks the onset of sulfide saturation, while the δ65Cu upper limit of BSMa indicates the effective percolation threshold of sulfide melts at 102 km depth. b Systematic covariation between Cu-S depletion and δ65Cu in residual melts (values converted to BSMa averages) results from variations in the extent of sulfide segregation.

At depths shallower than 102–105 km, lower geothermal temperatures suppressed further percolation of sulfide droplets into the core (Fig. 4c). Sulfide droplets exsolved at shallower depths may still percolate downward, but are unable to migrate sufficiently to reach the core (i.e., segregate from BSMa). Consequently, a portion of sulfide melts, enriched in isotopically heavy Cu relative to the bulk segregated sulfide (which is enriched in isotopically light Cu), was trapped within the crystallized magma ocean. These residual sulfides were subsequently redistributed by mantle overturn and convective mixing. This trapping mechanism enriched the BSMa in isotopically heavy Cu, thereby reconciling the modeled core formation result with the observed BSMa signature. Simultaneously, it established the primordial S and chalcophile element (such as Cu) inventory of the martian mantle.

Martian mantle heterogeneity and S-Cu abundance constraints

Although evidence exists for past mantle overturn75,76 and potential present-day convection77, the δ65Cu heterogeneity in martian mantle-derived materials suggests preservation of ITE-enriched reservoirs. Additionally, isotopic constraints (Re-Os in shergottites78,79 and Sm-Nd/Lu-Hf in regolith breccia NWA 703425) challenge the interpretation that martian crust is the dominant source of shergottite ITE-enriched components. If validated by further evidence, this perspective would imply that such ITE-enriched mantle domains represent a primary source of ITE-enriched components. Critically, the persistence of these localized mantle reservoirs indicates inefficient martian mantle convection (Fig. 4d). Within this framework, the mantle S-Cu abundances defined for BSMa therefore likely reflect the composition of the broader ITE-depleted mantle.

Building upon the constraints provided by Cu isotopes, our model estimates a martian mantle Cu abundance of 6–8 μg/g (Fig. 5b). Although our estimate for the mantle is higher than previous meteorite-based inversions (2–3 μg/g19,80,81), both estimates fall within the same order of magnitude. Our model also yields a core concentration of ~354 μg/g, which is slightly lower than the previous estimate of ~560 μg/g81. For sulfur, we estimate a mantle content of 400–443 μg/g (Fig. 5b; upper limit without accounting for evaporation losses), consistent with sulfur-poor mantle models (e.g., 360 ± 120 μg/g19 and 200–450 μg/g18) but significantly lower than sulfur-rich proposals (2000–2200 μg/g82 and a maximum of 1000 μg/g83). The discrepancies between our estimates and previous work potentially stem from our different approach, which uses cosmochemical constraints derived from integrating accretionary parameters and Cu isotopes, whereas prior studies relied predominantly on geochemical inversions19,80,81,82,83. Critically, our model suggests that sulfide segregation during MMO crystallization further reduced the mantle inventories of chalcophile elements, which is inconsistent with sulfur-rich mantle models. This depletion is consistent with the core’s sulfur-rich signature (~16.1 wt.%, within the reported range of 3.5–25 wt.%42,43,80,81,84,85,86,87). Together, this sulfur-rich core and sulfur-poor mantle configuration reflect the efficient sequestration of S and chalcophile elements into the core during planetary differentiation. Consequently, the mantle’s depletion in S provides a key explanation for the suppression of sulfide saturation in derivative magmas.

Notably, our model neglects the potential contribution of interstitial melts retained during crystallization. Although compaction likely expelled most melt from the solidifying cumulates, trapped intergranular melts could add incompatible elements to ITE-depleted mantle domains. Owing to uncertainties in quantifying solid compaction efficiency during MMO evolution, the estimated S and Cu abundances in the martian mantle should be considered approximate. Nevertheless, by using the martian differentiation model to constrain mantle S-Cu abundances with δ65Cu, this study highlights the important role of sulfide segregation in controlling global-scale distributions of chalcophile elements.

Methods

Sample description and analytical preparation

Samples were obtained from meteorite dealers. The analyzed martian meteorites include 13 shergottites and two nakhlites (Table 1), all classified as igneous rocks. Except for the witnessed fall Zagami, all specimens were recovered as hot desert finds. Optical and electron microscopy observations revealed minimal evidence of terrestrial weathering in most samples (Supplementary Figs. 1–11 for representative images). However, some samples (e.g., NWA 6963; Supplementary Fig. 13) exhibited terrestrial contamination features, including trace amounts of terrestrial carbonates.

Before chemical and isotopic analysis, visually contaminated areas were manually removed, and samples were leached in 0.1 N HCl for 1 min to remove potential terrestrial weathering contaminants (particularly carbonates). The leached fragments were then pulverized into fine powders using an agate mortar for subsequent major/trace elements analyses and isotopic measurements. Additionally, NWA 13276 chip 2 was sampled from the weathered exterior portion of NWA 13276 chip 1 and was measured without acid leaching to specifically monitor terrestrial weathering effects.

Petrographic characterization

Petrographic analyses were conducted at the Center for Lunar and Planetary Sciences, Institute of Geochemistry, Chinese Academy of Sciences, using the FEI Scios-FIB field emission scanning electron microscope (SEM) equipped with energy dispersive spectrum (EDS). The beam accelerating voltage was 20 kV, and the beam current was 0.8 nA. Elemental mapping was performed using the TESCAN Integrated Mineral Analyzer (TIMA) at the State Key Laboratory for Critical Mineral Research and Exploration, Institute of Geochemistry, Chinese Academy of Sciences. The TIMA system is equipped with an auto-scanning electron microscope (ASEM) and four EDS detectors. The beam accelerating voltage was 25 kV, and the beam current was 9.49 nA.

Elemental composition

Major and trace element concentrations were measured using a Thermo Fisher inductively coupled plasma mass spectrometry (ICP–MS) X2 at the Guizhou Tongwei Analytical Technology Co., Ltd. Details can be found in Li et al.88. Analytical accuracy was assessed via analyses of geostandard BCR-2. The relative standard deviations for duplicates are reported in Supplementary Data 1.

Chemical pretreatment

Copper purification was performed at the Isotope Geochemistry Laboratory, China University of Geosciences (Beijing), using the procedure of Liu et al.89 modified from Maréchal et al.90. Samples containing ≥500 ng Cu were digested in distilled HF-HNO3 (volume 1:1) at 130 °C for 48 h, dried, re-dissolved in aqua regia, and evaporated to dryness. The residues were dissolved in HCl, dried, and finally re-dissolved in 1 ml 8 N HCl with 0.001% H2O2 for column chemistry. The resulting solution was loaded into a column containing pre-cleaned AG-MP-1M resin (100–200 mesh) to separate Cu from the matrix. The column procedure was repeated twice (for a total of three cycles). Purified Cu solutions were dried and re-dissolved in 3% HNO3 for isotopic analysis.

Copper isotopic analysis

Copper isotopic compositions were measured on a Thermo Scientific Neptune multi-collector inductively coupled plasma mass spectrometry (MC–ICP–MS) at the Isotope Geochemistry Laboratory, China University of Geosciences (Beijing). The sample-standard bracketing method was employed to correct for instrumental mass bias. The Cu isotopic compositions are reported as δ65Cu relative to the standard reference material (SRM) NIST976: δ65Cu=[(65Cu/63Cu)sample/(65Cu/63Cu)NIST976−1]×1000. Measurement uncertainties are reported as the long-term precision during the course of the measurement session, which is constrained to the 2 SD of the bracketed standard GSB-Cu. Each sample solution was measured three times. The internal precision (2 SD) of three-time measurements of each sample is usually lower than 0.04‰, and thus we report the long-term precision of each measurement session as the errors. Total Cu blank is <1 ng, which is negligible compared to ≥500 ng Cu loaded on the column. The GSB-Cu standard yielded a δ65Cu value of +0.44 ± 0.04‰ relative to NIST 97689. Each sample was measured in three blocks of 40 cycles with an integration time of 4.194 s.

The alphaMELTS 1.9 simulation

MMO crystallization processes were modeled using alphaMELTS 1.9 software68,69,70. The initial simulation parameters were derived from our chemical and physical modeling of Mars (Supplementary Method 3), which referenced published studies43,55,60,62,81,91,92,93 and incorporated mass balance calculations. This yielded parameters for bulk Mars, the BSMa, and the core (Supplementary Tables 1, 2). Owing to the limitations of the software in simulating crystallization above 3 GPa (MELTS mode), we used the residual melt from 24.4% partial melting of BSMa to approximate melt compositions at 75.6% crystallization, corresponding to a 3 GPa magma ocean. A batch melting model was employed, as magma ocean crystallization approximates equilibrium once residual melt fraction exceeds 20%23,94. This assumption reflects a predominantly convective magma ocean, in which suspended crystals remain in chemical equilibrium with the melt. This strategy circumvents uncertainties in high-pressure thermodynamical calculations. Simulations were initialized with the BSMa composition (major elements excluding S) for magma ocean crystallization, and theoretically no late-stage metal alloy exsolution. To suppress metal alloy formation, alphaMELTS 1.9 parameters were adjusted accordingly. The melt was simulated in 0.2 GPa pressure intervals under isobaric cooling to track temperature changes and crystallization progress. Each pressure step was modeled as equilibrium crystallization, with residual melt compositions from the previous step (i.e., manual fractional crystallization was applied between steps). Full computational settings and methodological workflows are provided in the Supplementary Data 3. Simulation outputs, including pressure-dependent crystallization fractions, solid and residual melt compositions, and melt liquidus temperatures, are summarized in Supplementary Data 4.
