Fig. 12: Terpolymerization using BMA and material properties of the terpolymers. | Nature Communications

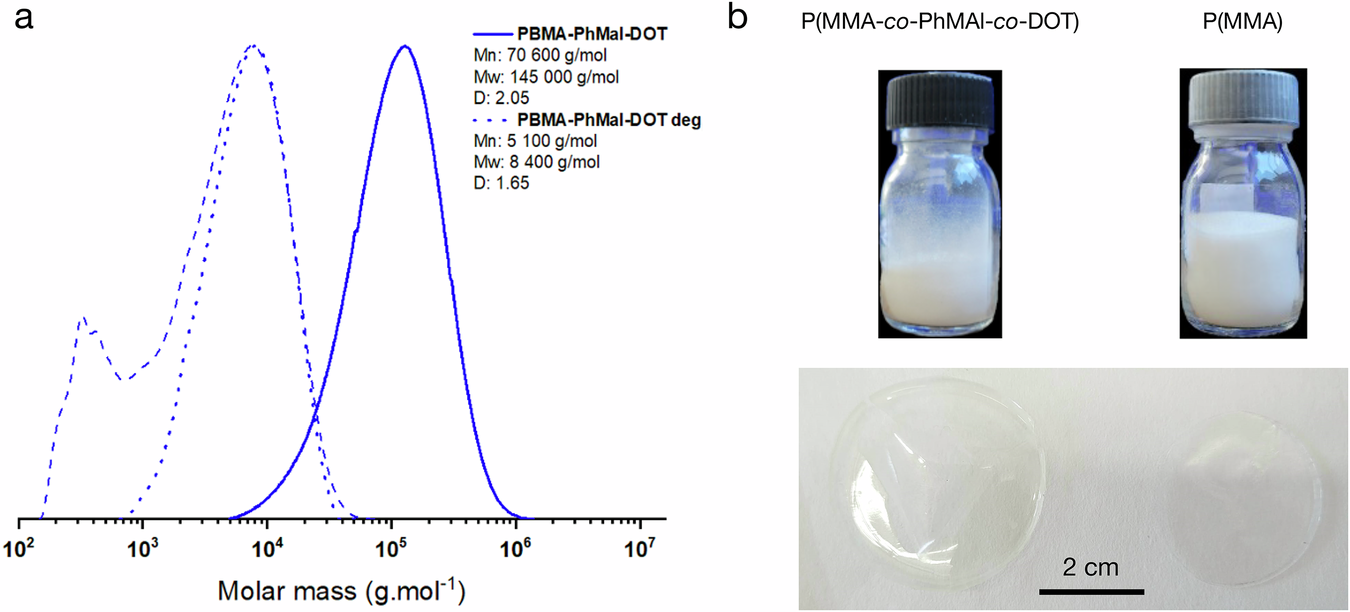

Fig. 12: Terpolymerization using BMA and material properties of the terpolymers.

From: The successful impossible radical ring-opening copolymerization of thionolactones and methacrylates via an auxiliary third comonomer

Fig. 12

a SEC analyses (DRI signal) before (solid blue) and after degradation (dashed light blue) for the model-designed conditions from MMA but taking BMA: [BMA]0:[PhMal]0:[DOT]0 = 90:18:28 (68.8%/19%/12.2%), 30% solvent (Supplementary Table 2 entry 5). The degradation was performed using NH3 in methanol for 17 h. The dotted grey curve is the deconvoluted signal of the degraded oligomers. b Isolated reference P(MMA-co-PhMal-co-DOT) and reference PMMA, and the corresponding films made by solvent casting.
