Fig. 2: Electrochemical performances of NCM@LOBO and b-NCM CAMs. | Nature Communications

Fig. 2: Electrochemical performances of NCM@LOBO and b-NCM CAMs.

From: Conductive binary Li borate glass coating for improved Ni-rich positive electrode in sulfide-based all-solid-state Li batteries

Fig. 2

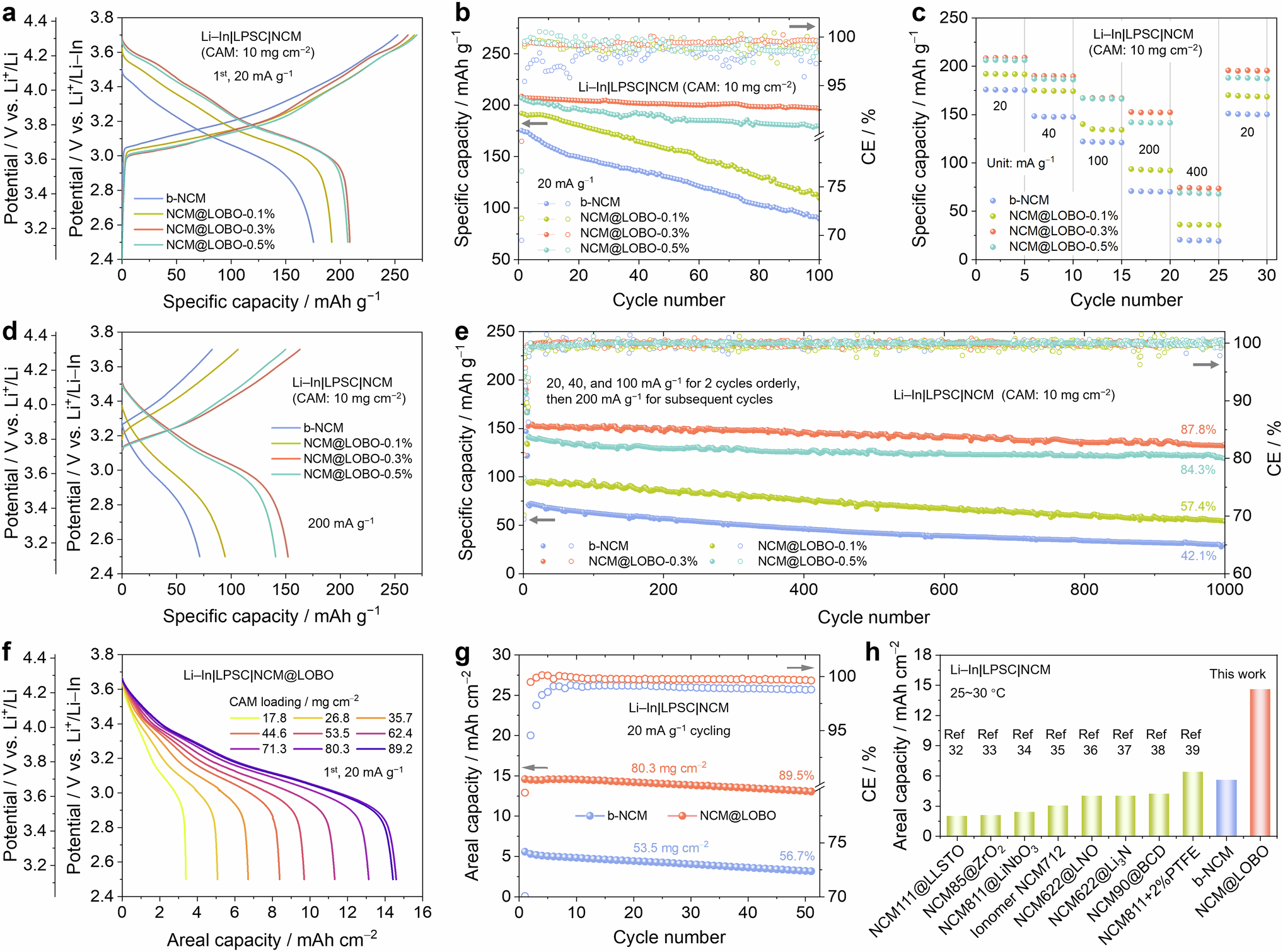

a Voltage profiles at a specific current of 20 mA g−1, b cycling stability, c rate capability, d voltage profiles at a specific current of 200 mA g−1, and e long-term stability. f Maximum areal capacities, and g stability under maximum areal capacity. h Maximum areal capacity comparison, also including other reported CAMs, such as NMC111@LLSTO56, NCM85@ZrO257, NCM811@LiNbO354, NCM712+ionomer58, NCM622@LiNbO359, NCM622@Li3N60, B-coated/doped-NCM9061, and NCM811+2%PTFE62.
