Introduction

Ferrimagnetic insulating garnets such as crystalline Yttrium Iron Garnet (YIG, Y3Fe5O12) are key across spintronics to photonics and phononics, thanks to their exceptional magnetic, magneto-optical and mechanical properties. The record-low magnetic damping of crystalline YIG, for example, allows the propagation of spin waves across millimetre distances, making it the material of choice for energy-efficient signal transmission and computing in the field of magnonics1,2,3, as well as for the study of fundamental physical phenomena such as Bose-Einstein condensation4, and quantum computing in hybrid systems5. In this framework, the realization of three-dimensional magnetic nanostructures6,7, such as metamaterials8, curvilinear and interconnected nanoarchitectures9,10,11, chiral and topological spin textures12,13,14, enables the discovery of novel effects and the design of new functions in nanodevices. Prototypical examples in the field of spintronics include 3D domain-wall memories15,16 and logic17, laying the foundations for three-dimensional integrated magnetic platforms. In magnonics18,19, the three-dimensional control of magnetism unlocks new possibilities for engineering non-reciprocal phenomena in magnonic circuits20,21,22, or to exploit the spin-wave band gaps in 3D magnonic crystals23,24. Moreover, exploiting the third dimension allows for dense scalable networks25,26,27, vertically coupled systems28,29,30 and both spatial and frequency multiplexing for signal processing31,32. Eventually, this additional degree of freedom can favour emerging coupling phenomena in hybrid and quantum systems33,34,35.

For all these applications, the nanoscale manipulation of the magnetic properties of YIG and the nanofabrication of crystalline YIG-based devices is essential. Yet, high-quality YIG nanopatterning presents formidable challenges, and methodologies natively capable of three-dimensional patterning are missing. This is due to the complex crystalline structure of YIG, which often leads to a degradation of the material properties following conventional 2D nanofabrication36,37 via etching38,39, lift-off 40, or irradiation41,42,43, and is not compatible with native direct-write three-dimensional nanofabrication techniques such as Focused Electron or Ion Beam Induced Deposition (FEBID/FIBID)44,45,46, and Two-Photon Lithography (TPL)47. As a result, so far, the realization of three-dimensional YIG structures is limited to specific geometries such as suspended resonators48, or meandering structures49 realized using complex lithographic processes. The direct writing of arbitrary-shaped three-dimensional magnetic nanopatterns in crystalline YIG is thus an open challenge.

Here, we exploit a sharp permanent transition in the magnetic properties induced by a focused continuous-wave UV laser, for creating three-dimensional modulations of the magnetic properties of single-crystal YIG(111) thin films, without altering significantly the film topography and crystalline structure. In particular, the perpendicular magnetic anisotropy (PMA) of YIG sharply rises to \(\sim 30\) times its pristine value in a confined volume down to 100 nm in size, whose depth can be continuously tuned with the laser power, allowing to induce complex three-dimensional anisotropy profiles and spin textures throughout the volume of the film. Furthermore, by irradiating through the transparent GGG substrate, we realize buried patterns localized at the bottom YIG/GGG surface, and align them with the top patterns in a cross-bar array configuration. With the support of structural characterisation techniques and finite-element numerical simulation, we developed a model for the interaction of the laser light with the YIG film. The induced three-dimensional patterns are explained in terms of depth-dependent local heating due to linear laser absorption, and subsequent re-crystallization in a strained state characterized by enhanced perpendicular magnetic anisotropy. By studying the magnetization dynamics in the 3D nanostructured system, we observe large modulations of the spin-wave band structure and the emergence of novel non-reciprocal spin-wave modes, whose dispersion and spatial localization are tunable with the laser power. Finally, we harness this capability to realize direct-write three-dimensional magnonic crystals.

Results

Three-dimensional magnetic nanopatterning

The studied system consists of 1 μm-thick single-crystal YIG films grown via liquid phase epitaxy on a GGG(111) substrate (See Supplementary Fig. 8). Figure 1a illustrates the irradiation process, where a focused UV 405 nm continuous-wave laser is raster scanned in ambient conditions on the sample surface50 (see “Methods”).

Fig. 1: Three-dimensional control of magnetism in single-crystal YIG films via laser irradiation.
Fig. 1: Three-dimensional control of magnetism in single-crystal YIG films via laser irradiation.
Full size image

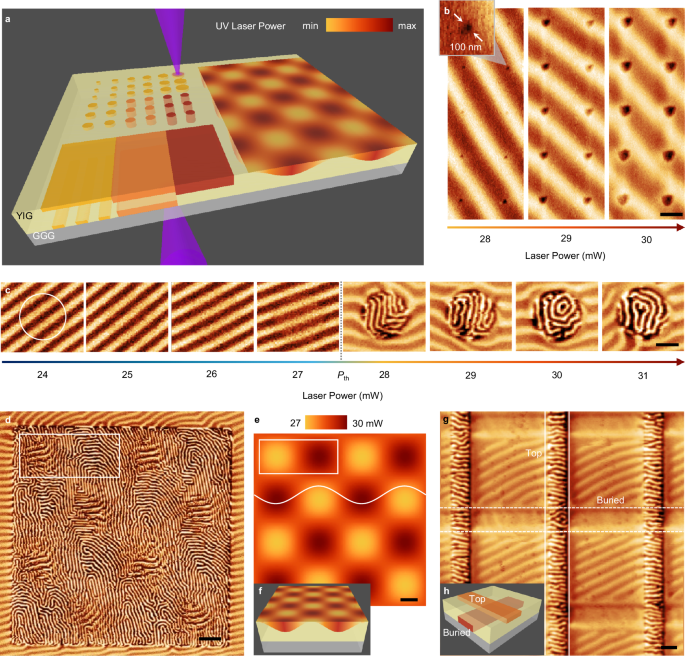

a Sketch of the patterning process. A focused continuous-wave UV laser is scanned on a single-crystal YIG film in ambient conditions, leading to three-dimensional magnetic patterns with tunable magnetic properties. b Magnetic domain structure of arrays of nanodots down to 100 nm in lateral size, obtained via single-shot irradiation with different laser power, measured via Magnetic Force Microscopy (MFM) at remanence. Scale bar: 1 μm. c 5 μm-size circular areas obtained by raster-scanning at different laser power. Above the threshold power Pth complex patterns of narrow stripe domains are stabilized, featuring a spatially sharp reduction in periodicity, tunable with the laser power, and enhanced MFM magnetic contrast. Scale bar: 2 μm. d–f Continuous three-dimensional patterning, obtained irradiating with a spatially varying sinusoidal power profile coded in the power map (e), resulting in a continuous point-by-point depth-control (as sketched in f). The MFM (d, white rectangle) shows the gradual spatial variation of the domain structure enabled by the 3D modulation of the magnetic properties. Scale bars: 5 μm. g, h Cross-bar array consisting of 2 μm-wide tracks localized at the top and bottom surfaces of the YIG film. The buried tracks were obtained by irradiating through the transparent GGG substrate. Scale bar: 2 μm.

We first irradiated 5 μm-size dot-shaped regions with different laser power, and measured the magnetic domain structure at remanence via Magnetic Force Microscopy (MFM) (Fig. 1c). Pristine YIG exhibits weak stripe domains with a periodicity of \(\sim\) 1.6 μm, consisting of an alternating small out-of-plane component of the magnetization, while the magnetization predominantly lies in the sample plane. Conversely, upon irradiation, we identified two regimes, separated by a sharp threshold laser power \({P}_{{{{\rm{th}}}}} \sim \,27.5\,{{{\rm{mW}}}}\). Below threshold, no major change is observed, apart from a slight reduction of the MFM magnetic contrast. Conversely, above threshold, we observed the onset of narrow stripe domains with periodicity down to \(\sim \,\)0.6 μm, which then gradually increases with the laser power. Importantly, such a threshold leads to extremely sharp pattern edges where the magnetic properties change abruptly, and to the possibility of realizing nanosized patterns well below the nominal laser spot size of 1.2 μm, by irradiating around the threshold power. For example, Fig. 1b shows mono-domain dot arrays down to ~ 100 nm in size, realized by irradiating with single 50 μs-long pulses. By controlling the pattern geometry and irradiation power, a rich variety of magnetic features such as circular, bubble domains or zig-zag stripes, can be stabilized at remanence and manipulated with external fields (Supplementary Fig. 3). For all these patterns, we set a fixed laser irradiation time to ensure precise control of the magnetic properties while preserving the surface quality of the exposed area. The effect of laser irradiation time is further discussed in Supplementary Fig. 4.

So far, a uniform irradiation was employed within each pattern. However, by varying the laser power point-by-point in a “grayscale” fashion, we obtained a graded magnetic nanomaterial. Figure 1d shows the MFM domain structure (topography in Supplementary Fig. 5) obtained with a sinusoidal spatial variation of the laser power, as shown in the corresponding spatial power map of Fig. 1e. Such spatially varying magnetic properties give rise to a complex magnetic landscape, where large stripe domains coexist with narrow stripes at low power, then gradually disappear as the power increases (dashed rectangle from left to right). As explained in depth below, such complex texture originates from the three-dimensional modulation of the thickness of the modified magnetic volume, induced by the spatially-varying laser power (schematically shown in Fig. 1f).

Finally, we demonstrate the direct realization of buried structures by irradiating through the transparent GGG substrate. Figure 1g shows the MFM image of a 2 μm-wide cross-bar array, where top vertical tracks are aligned with horizontal buried tracks localized at the GGG/YIG interface, as schematically shown in Fig. 1h. Combining three-dimensional tuning with straightforward access to the buried bottom interface enables the realization of vertically coupled devices and complex 3D networks in thin YIG films. Besides, irradiation and alignment through the substrate also enables to access YIG films where metallic functional layers or nanostructures are already present on the surface.

In addition to enabling flip-chip patterning, the GGG substrate plays a crucial role in ensuring the high magnetic quality of the YIG film, thanks to its low lattice mismatch, which results in a unstrained pristine state. However, the substrate does not directly influence the patterning mechanism, as the optical power is fully absorbed within the YIG layer (see Supplementary Fig. 2). Its role may become more significant in the case of thinner YIG films, where heat dissipation and thermal gradients are more strongly affected by the substrate’s thermal properties.

Magnetic properties and static micromagnetic modelling

To better understand and quantify our observations, we acquired local hysteresis loops of the irradiated areas via Magneto-Optical Kerr Effect (MOKE). Figure 2a, b report the in-plane loops as a function of the patterning laser power. As expected for weak stripe domains51, the pristine loop (black line) has a switching-type behaviour at low fields, and a gradual saturation up to μ0Hsat = 3.3 mT, associated to the reorientation of the out-of-plane component of the stripes. Strikingly, we observe that Hsat increases with the laser power up to 67 mT (Fig. 2c), i.e., more than 20-fold with respect to the pristine area indicating an increase of the out-of-plane anisotropy. Conversely, the MOKE signal amplitude does not change appreciably, suggesting that the saturation magnetization does not change significantly (see Supplementary Fig. 6). Besides, the MOKE out-of-plane hysteresis loops, shown in Supplementary Fig. 7, are consistent with an increase of PMA and are in good agreement with the corresponding micromagnetic simulations. In order to correlate such macroscopic magnetic properties with the domain nanostructure, we acquired MFM images as a function of the external in-plane field (insets of Fig. 2a). The irradiated areas (red squares) feature narrow stripe domains which are still visible at a 50 mT field, consistently with a large increase of the perpendicular magnetic anisotropy upon irradiation.

Fig. 2: Giant tuning of perpendicular magnetic anisotropy and domain structure.
Fig. 2: Giant tuning of perpendicular magnetic anisotropy and domain structure.
Full size image

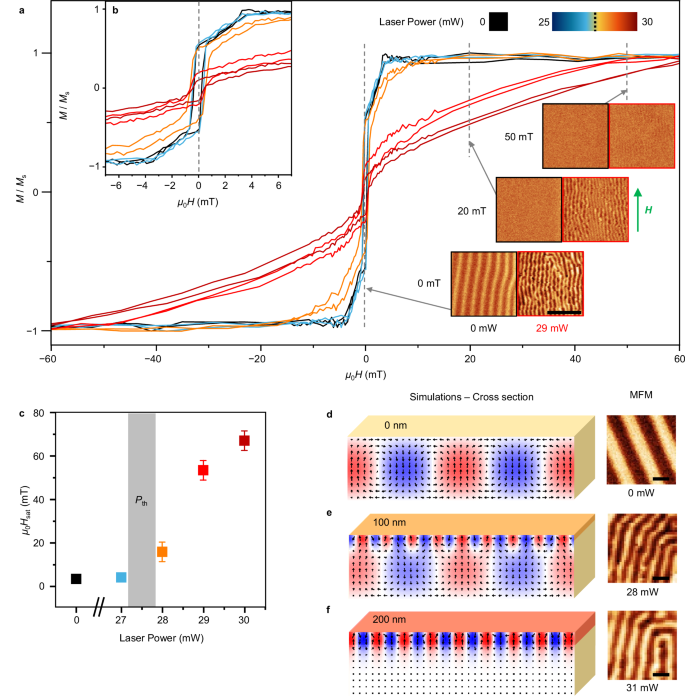

a, b Local in-plane hysteresis loop of areas irradiated with different laser power, measured by Magneto-Optical Kerr Effect (a), and zoomed-in view of the central region of the loops (b). Below Pth (blue curve) we observe only minor changes with respect to the pristine film (black curve). Above Pth (orange, red curves) instead the loops are elongated, with enhanced saturation field. The insets of panel (a) show the magnetic domain structure of the pristine (black border) vs irradiated (red border) areas, at different in-plane external fields, corresponding to the dashed lines in the hysteresis loop. The stripe domains disappear below 5 mT in the pristine region and above 50 mT in the irradiated region. Scale bar: 5 μm. c Measured saturation field Hsat as a function of the irradiation power, showing a ~ 20-fold increase with respect to pristine areas. d–f Micromagnetic simulations of the three-dimensional spin texture, and corresponding MFM images, showing the transition from weak large stripe domains in the pristine film (d), to narrow stripes localized within the top irradiated surface (f). Scale bars: 1 μm.

In order to assess the enhancement in perpendicular magnetic anisotropy, we modelled our system via micromagnetic simulations52 (Fig. 2d-f). For the pristine YIG film, a good agreement is obtained setting a saturation magnetization MS = 140 kA/m” and an exchange stiffness A = 4 pJ/m, typical of YIG, and the perpendicular uniaxial anisotropy energy density to KU = 200 J/m3. Based on the SEM cross-sections of Fig. 3a (see section below), the irradiated samples were simulated considering a bicomponent system where the bottom volume is pristine YIG, while the top-modified region has an enhanced value of KU. As shown in the simulated spin texture of Fig. 2e-f, the onset of narrow stripe domains in the top layer is well reproduced setting KU = 6000 J/m3 in the top volume, i.e., about 30 times the pristine value. Furthermore, both the increase of the stripes periodicity53 and the gradual disappearance of the bottom stripe domains with the laser power (as shown in Fig. 1f) are nicely explained by the gradual increase of the thickness of the modified volume, in agreement with the experimental SEM characterisation.

Fig. 3: Structural and optical characterisation.
Fig. 3: Structural and optical characterisation.
Full size image

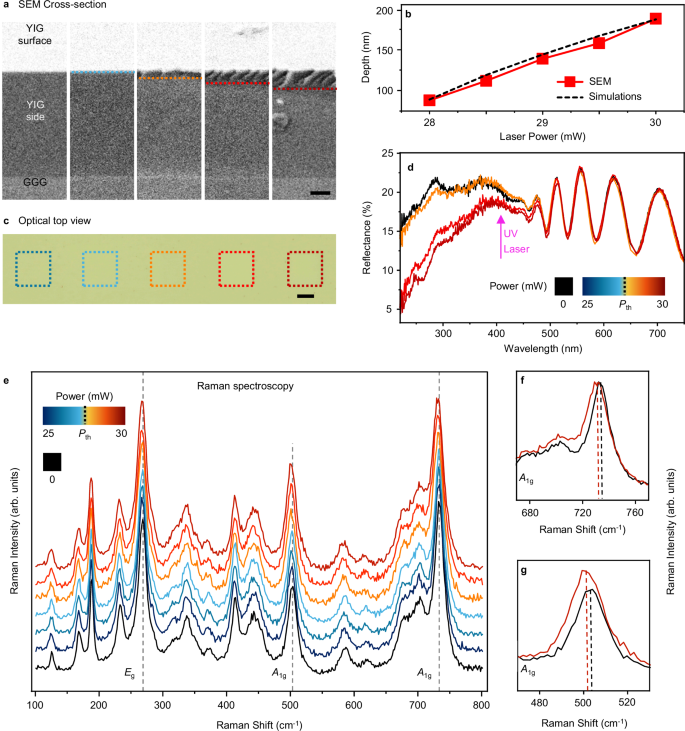

a Tilted cross-sectional Scanning Electron Microscopy images showing a tunable increase of the thickness of the modified volume with the laser power, enabling three-dimensional nanopatterning capabilities. The YIG surface appears smooth, while the sidewall roughness in the modified volume suggests strain relaxation at the edge. Scale bar: 200 nm. b Experimental data measured from images in panel (a) and simulated values (see Supplementary Fig. 2) of the modified depth as a function of the laser power. The plot reveals a nearly linear relation which allows for continuous depth-control. c Optical images of the irradiated areas, showing no sizeable optical contrast within the patterns at all powers. Scale bar: 25 μm d Spectral reflectance as a function of the irradiation power. In the YIG transparency window above λ = 450 nm, no sizable difference is observed between the irradiated and pristine regions. The oscillatory behaviour due to thin film interference is consistent with a 1 μm-thick film. Below 450 nanometres, in the YIG absorption band, the regions irradiated above Pth display lower reflectivity, indicating an enhanced optical absorption upon irradiation, suggesting the creation of oxygen vacancies. The 405 nm UV writing laser (pink) is efficiently absorbed by YIG. e–g Raman spectra of the YIG film as a function of the irradiation power, and corresponding zoomed in view of the A1g (f, g) peak regions. The characteristic modes of single crystal YIG are present at all powers, with a minor left-side broadening and red-shift especially of the A1g peaks, above the threshold power, indicating a strained system.

Structural and optical characterisation

To directly investigate the properties of the patterns and their three-dimensionality, we performed an in-depth structural and optical characterisation. Figure 3a shows a Scanning Electronic Microscope (SEM) 20 deg-tilted cross-section acquired on a sample irradiated at different powers and subsequently cleaved across the patterns, where the YIG sidewall and top surface are visible. The images reveal a sharp contrast between the brighter smooth sidewall of the bottom pristine YIG and the top modified volume, whose depth can be continuously varied by irradiation. The corresponding relation between laser power and modified depth is presented in Fig. 3b, with a roughly linear trend in the studied power range, in good agreement with numerical simulations of Supplementary Fig. 2. Interestingly, while the patterns’ surface appears smooth, the top modified volume features corrugated sidewalls, consistently with the effect of residual strain relaxation upon cutting, suggesting the presence of strain within the modified volume. Indeed, for laser power larger than 30 mW, the patterns initially appear mechanically stable, but can develop cracks due to strain relaxation within minutes after irradiation.

Additionally, to better investigate the structural properties, we acquired micro-Raman spectra (Fig. 3e) on regions irradiated with different laser power. The spectra are remarkably similar to that of the pristine YIG, indicating no major structural changes in the whole power range, and that high crystalline quality and lattice orientation is preserved (see also Electron Backscatter Diffraction data of Supplementary Fig. 8). We also observed a left-broadening and a red-shift up to 3 cm-1 as the laser power increases above threshold, which is particularly evident for the A1g peaks at 504 cm-1 and 732 cm-1 associated with oxygen breathing modes54 (Fig. 3f-g). This is consistent with a transient laser heating-induced re-crystallization of YIG in a strained state, characterized by less energetic vibrational modes55, and enhanced perpendicular magnetic anisotropy. Notably, strain-induced anisotropy is one of the most effective methods for establishing PMA in YIG thin films. In fact, both experimental and theoretical studies demonstrated how a tensile in-plane strain can generate a large magnetoelastic anisotropy in negative magnetostrictive materials like YIG56,57,58. While this is typically achieved through global processes, such as post-growth annealing, doping, or lattice mismatch with the substrate, our findings indicate that strain engineering via direct laser writing can also play a significant role.

Besides, the optical reflectance spectra in Fig. 3d show higher optical absorption below 450 nm, indicating the formation of oxygen vacancies upon irradiation59,60, which may give rise to the strained state59,61 and contribute to the perpendicular magnetic anisotropy by enhancing the magnetostriction coefficient58. Similar reflectance oscillations are instead observed above 450 nm, indicating only minor changes of the optical properties in the visible range (see also optical image in Fig. 3c). Noteworthy, the patterning UV laser wavelength (405 nm, violet arrow) is efficiently absorbed by YIG within the first hundreds of nanometres, allowing for an effective heat confinement in the vertical direction. This is the key mechanism enabling the three-dimensional tunability as a function of the laser power, as confirmed by our finite-elements methods modelling of the laser-YIG interaction discussed in Supplementary Note 2, and Supplementary Fig. 1,2.

In order to investigate the stability of the laser-driven modifications and the role of strain and oxygen stoichiometry, we took MFM images of patterned squares before and after performing a rapid thermal annealing at 850 °C in oxygen atmosphere. Supplementary Fig. 9 highlights that the new strained phase is robust against conventional thermal treatments, confirming the presence of a permanent structural modification upon laser irradiation above threshold. On the other hand, we observed that sub-threshold modifications can be reversed via thermal annealing, making the patterning fully reconfigurable under these conditions and establishing a promising platform for future investigations.

Tailoring spin waves

To explore the potential of three-dimensional YIG nanopatterning in magnonics, we first studied the spin-wave properties of uniformly irradiated regions via Brillouin Light Scattering microscopy (micro-BLS) (Fig. 4a). An external magnetic field Hext was applied parallel to the microwave antenna used for exciting spin waves in the Damon-Eshbach (DE) configuration, where the spin-wave wavevector k lies in the plane of the film, and is perpendicular to the magnetic field (Fig. 4b). Figure 4c shows micro-BLS spectra as a function of the excitation frequency for different Hext. In the pristine YIG (black curves), the BLS spectra feature a single intense peak and a weaker shoulder at lower frequencies. In the regions irradiated below threshold, i.e., up to 27 mW (blue curves), the BLS spectra remain nearly unchanged, in agreement with the static magnetic characterisation. On the contrary, above the threshold power (orange and red curves), the BLS spectra undergo a substantial evolution. In particular, new, less intense peaks appear at low frequencies, and the most intense peak first slightly broadens and shifts (at 28 mW), and then splits into a double peak (at 29 mW).

Fig. 4: Three-dimensional control of spin-wave dispersion and localization.
Fig. 4: Three-dimensional control of spin-wave dispersion and localization.
Full size image

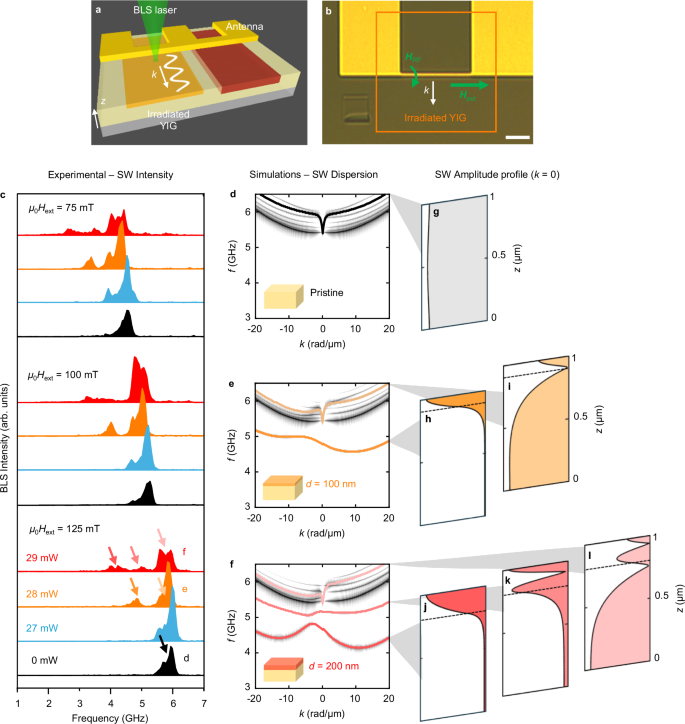

a Sketch of the experimental setup. Extended square areas are irradiated with different uniform laser power. Radiofrequency antennas are fabricated on top of the irradiated regions for exciting spin waves via an oscillating magnetic field HRF. The local spin-wave spectra are acquired via Micro-Brillouin Light Scattering using a focused laser, in presence of a static magnetic field Hext applied parallel to the antenna. b Optical image of the sample. Scale bar: 10 μm. c Micro-BLS spectra for different irradiating laser power, measured for different values of external field Hext. Below threshold (in blue), the spectra are nearly unchanged with respect to the pristine sample (in black). Above threshold (in orange, red), additional low-frequency peaks appear which rapidly evolve increasing the laser power. d–f Micromagnetic simulations of the spin-wave dispersions with μ0Hext = 125 mT in the non-patterned film (d), for a 100 nm thick modified volume (e) and for a 200 nm thick modified volume (f). The corresponding experimental peaks are indicated by color-coded arrows in (c). g–l Simulated spin-wave amplitude profiles through the thickness of the film, for the modes highlighted in (d–f) at k = 0. The simulations show the appearance of additional non-reciprocal modes upon irradiation, localized within the modified volume, and finely controllable with the irradiation power.

Hence, to better interpret the experimental results, we simulated the spin-wave dispersion for μ0Hext = 125 mT (see also Methods). In the pristine YIG (Fig. 4d), the DE mode (thick black curve) has an almost uniform spatial profile through the film thickness at k = 0 (Fig. 4g). Several perpendicular standing spin-wave modes are also present, due to the rather large thickness of the film (see thermal BLS in Supplementary Fig. 10). The calculated dispersion curve is in good agreement with the micro-BLS experiments, where the ~ 6 GHz peak (black arrow) corresponds to the (DE) mode.

Similarly, for simulating the irradiated samples, we considered the same bicomponent system as in the static simulations of Fig. 2d–f, where the top modified volume of thickness d, retrieved from SEM measurements, has an enhanced perpendicular magnetic anisotropy (see “Methods”). The simulations (Fig. 4e, f) reveal significant changes of the spin-wave dispersion, which nicely explain the experimental features of Fig. 4c, where color-coded arrows indicate the peaks corresponding to the simulated modes.

First, new dispersive modes at low frequency appear, whose behaviour and number changes significantly with d. Their amplitude profiles (Fig. 4h, j–k) show that they are mainly localized in the top modified volume, rapidly vanishing through the thickness. In particular, for both d = 100 nm and d = 200 nm, the lowest frequency modes can be interpreted as the DE mode of the top volume. The other mode, only present for d = 200 nm, can be considered as the first perpendicular standing spin-wave mode, featuring one node through the top volume thickness (Fig. 4k). Interestingly, the high frequency mode (the most intense peaks in Fig. 4c) significantly shifts its localization towards the bottom (Fig. 4i, l) and can be considered as the DE mode of the bottom non-modified volume.

Secondly, the marked difference between the positive (k > 0) and negative (k < 0) branches of the dispersions indicate a strongly non-reciprocal spin-wave propagation62. This is induced by the different out-of-plane anisotropy in the pristine bottom layer and the modified top layer, and the effect becomes more pronounced as the thickness of the modified volume increases (Fig. 4d–f). Accordingly, the presence of double peaks in Fig. 4c can be ascribed to the complex non-reciprocal dispersion and to the hybridisation with volume modes in the patterned regions.

These same phenomena also hinder an accurate estimation of the damping parameter in both pristine and patterned regions via micro-BLS measurements of the decay length of spin waves excited by RF antennas. In particular, the coexistence and interaction of Damon-Eshbach and perpendicular standing spin wave modes affect both the excitation efficiency of the antenna and the spatial mode profile. As a result, the observed decay of the spin-wave amplitude is strongly influenced by multiple overlapping modes with different propagation characteristics. This makes it difficult to reliably extract the intrinsic Gilbert damping from the measured decay length.

However, it is important to note that neither a larger Gilbert damping nor a slight topographic dip in irradiated areas would account for such features, that can ultimately be attributed to the enhanced PMA (see Supplementary Fig. 11). This demonstrates that laser-written three-dimensional anisotropy profiles enable the effective control over the spin-wave 3D spatial localization, magnonic bandstructure and non-reciprocity with potential application in vertically integrated magnonic devices.

Direct-write magnonic crystals

We harnessed these capabilities to directly fabricate proof-of-principle magnonic crystals based on non-uniform perpendicular magnetic anisotropy.

As illustrated in Fig. 5a, a first experimental demonstration is provided by spin-wave spectroscopy performed with a Vector Network Analyzer (VNA) on a magnonic crystal positioned between two RF stripline antennas, separated by 100 μm, and used for the excitation and detection of spin waves under an in-plane magnetic field μ0Hext = 95 ± 5 mT in the DE configuration (see “Methods”). The magnonic crystal is made of three laser-written lines, each 1.5 μm-wide and separated by l = 25 μm (MFM image shown in Fig. 5b). This periodic modulation is designed to induce Bragg reflection, thereby modifying the spin-wave transmission spectrum. The results are presented in Fig. 5c. While both the pristine material and the magnonic crystal display a similar overall transmission window ( ~4–5 GHz) with comparable maximum intensity, the magnonic crystal clearly exhibits additional transmission minima at discrete frequencies, corresponding to wavevectors k = nπ/l derived from Bragg’s law39. The bandgap formation confirms the successful realization of a magnonic crystal through direct laser writing. In contrast, the dips observed in the pristine spectrum are attributed to the hybridization of the DE spin-wave mode with perpendicular standing spin-wave (PSSW) modes63.

Fig. 5: Direct-write magnonic crystals.
Fig. 5: Direct-write magnonic crystals.
Full size image

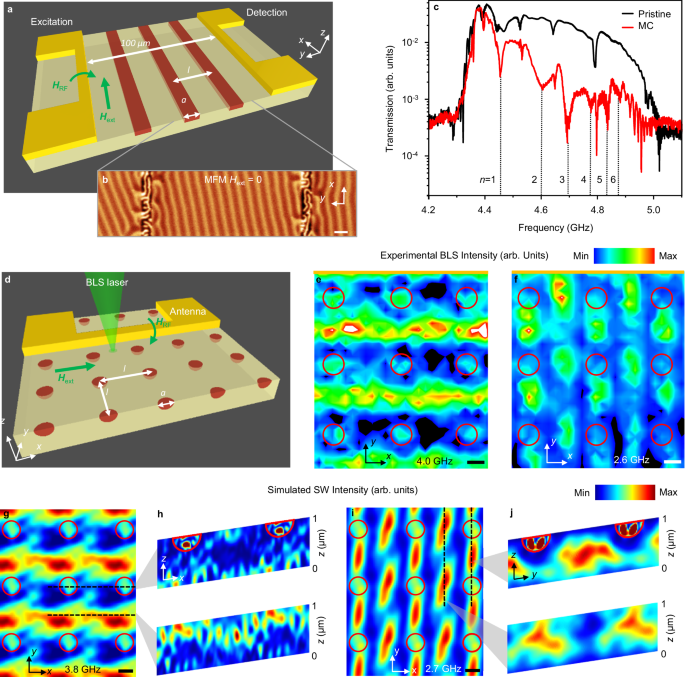

a Schematic of the propagating spin-wave spectroscopy experiment. A magnonic crystal (MC) consisting of three patterned lines having a width of a = 1.5 µm and a periodicity of l = 25 μm acts as a Bragg reflector for spin waves. Excitation and detection are performed with two stripline antennas separated by 100 μm, applying a 95 mT in-plane static magnetic field in the DE configuration. b MFM image of the magnonic crystal showing two lines with narrower stripe domains due to the laser-induced PMA enhancement. Scale bar: 1.5 µm. c Spin-wave transmission spectra of the pristine material (black curve) and the magnonic crystal (red curve). While the transmission window remains unchanged, the formation of band gaps (vertical dotted lines), consistent with Bragg reflection is observed in the magnonic crystal. d Schematic of the Brillouin light scattering experiment. A magnonic crystal with a periodic circular anti-dot lattice is realized via single-shot irradiation of the red areas. The dot diameter is a = 600 nm and the lattice constant is l = 2 μm. A stripline antenna is fabricated on top of the magnonic crystal for spin-wave excitation. The spin-wave intensity is mapped via micro-BLS in a 75 mT static magnetic field applied along x. e, f Micro-BLS spin-wave intensity maps showing horizontal spin-wave channels between the dots in the 4.0 GHz mode (e), and vertical spin-wave channels with a spatially oscillating intensity in the 2.6 GHz mode (f). g, i Simulated spin-wave intensity maps corresponding to measured spin wave modes in (e, f). h, j Cross-section view of the simulated spin-wave intensity through the thickness of the film, extracted along the dashed lines in (g, i). In both cases, the three-dimensional magnetic properties profiles determine a non-uniform spin-wave intensity and localization within the volume of the film. Scale bars: 500 nm.

Furthermore, we fabricated a second magnonic crystal consisting of a square lattice of circular dots, single-shot irradiated with a 27.5 mW laser power (see “Methods”). The dots diameter is a = 600 nm, while the lattice constant is l = 2 μm. Micro-BLS in the DE configuration (see Fig. 5d), with a 75 mT external magnetic field, was used to acquire 2D maps of the spin-wave intensity of the two main detected modes at 4.0 GHz (Fig. 5e) and 2.6 GHz (Fig. 5f). The spatial localization of both modes is strongly affected by the irradiated dots, similarly to bicomponent magnonic crystals64,65,66,67. In particular, the 4.0 GHz mode (Fig. 5e) extends within the horizontal channels confined between the irradiated dots, and has a sizeable intensity within the dots as well. Conversely, the 2.6 GHz mode (Fig. 5f) extends along vertical channels and its intensity spatially oscillates with the same periodicity of the antidot lattice, with an opposite phase in adjacent channels. The maps of both modes are in good agreement with the simulations shown in Fig. 5g, i (see “Methods”).

Remarkably, the confinement of the magnetic anisotropy patterns induces non-uniform spin-wave profiles across the thickness. In particular, the simulated cross-sections (Fig. 5h, j) show that, in the channels containing (not containing) the dots, both modes extend mainly in the bottom (top) volume. This gives rise to a spatial oscillation of the spin-wave intensity throughout the volume that, combined with the in-plane spatial modulation typical of 2D magnonic crystal, generates fully three-dimensional spin-wave mode profiles. In perspective, the possibility of controlling point-by-point the modified volume thickness allows to realize, in a single step, YIG-based complex “multicomponent” crystals or grayscale magnonic metamaterials where the spin-wave properties are tailored via smooth three-dimensional magnetic anisotropy landscapes.

Discussion

We demonstrated the creation of three-dimensional nanoscopic modulations in the magnetic anisotropy of crystalline Yttrium Iron Garnet, via direct irradiation with a continuous-wave UV laser in ambient conditions, preserving the crystalline quality. The 3D tunability and spatial resolution arises from linear absorption mechanisms, which enable to confine and finely modulate the volume subject to the heat-triggered phase transition with an experimental lateral minimum feature size of 100 nm and continuous depth-control. Furthermore, we demonstrated that such modulations can be induced at the buried GGG/YIG interface, as well, by irradiating through the transparent GGG substrate. In parallel, direct modification via other mechanism such as non-linear multiphoton absorption with ultrafast lasers could be investigated.

We exploited this capability for tailoring the static and dynamic magnetic properties, realizing 3D magnonic crystals and nanostructures. In such systems, the spin texture, spin-wave band structure and spatial localization are governed by the vertical extension of the modified volume. This opens the way to a new class of nanomaterials requiring a three-dimensional tuning of the magnetic properties, enabling novel nanoscale, low-loss, and reconfigurable magnonic devices. The technique is also highly complementary to other methods that can induce temporary changes in magnetic properties to excite and control spin waves. In principle, these approaches could be combined to selectively create permanent three-dimensional patterns alongside dynamic regions within the same YIG system.

The technique is straightforward, rather inexpensive and potentially easily transferable towards industrial applications. We believe it represents a new valuable tool enabling the single-step realization of nanodevices exploiting spatially varying magneto- and magneto-optical properties, overcoming some of the hurdles of conventional nanofabrication, and opening the path towards three-dimensional metamaterials and devices based on crystalline magnetic garnets. Beyond magnetism, a similar concept could be applied to other crystalline complex oxides, where new functionalities would arise from tailored three-dimensional modulations of their structural properties.
