Introduction

The timing and rate of early crustal growth on Earth remains contentious due to the scarcity of very ancient (>3.5 Ga) rocks. Long-lived radiogenic isotope systems like Nd and Hf offer invaluable insight into early crustal differentiation processes through the formation of two complementary reservoirs, the continental crust and the depleted mantle. Current models are mainly based on Hf isotope compositions of the robust accessory mineral zircon and predominantly measure growth of felsic crust1,2,3. Available evidence suggests the earliest crust was mafic in composition4,5,6,7, however, directly measuring early mantle depletion, as a proxy for crustal growth, is challenging because Archaean mantle-derived mafic rocks are typically highly metamorphosed and do not preserve their original bulk isotopic compositions8. Being SiO2-poor, mafic rocks are also not well represented in the zircon Hf crustal record9. Therefore, new approaches are required to better define the isotopic evolution of the depleted mantle. The 87Rb–87Sr isotope system has a half-life of ~49.61 billion years10 and has long been recognised as a sensitive tracer of both crustal and planetary differentiation processes. Plagioclase feldspar is a major repository of Sr in most igneous rocks and has very low Rb/Sr, allowing for the accurate determination of initial Sr ratios in well-preserved samples11,12. Importantly, plagioclase dominates the Sr budget in some mantle-derived rocks, such as anorthosites.

The strontium isotope compositions of early lunar rocks and meteorites are well constrained13,14,15. However, there are few reliable data for the early Earth, largely because the Rb-Sr system is easily disturbed by post-crystallisation processes, especially in hydrous environments. Rubidium is a moderately volatile element, whereas strontium is moderately refractory. The Earth is depleted in rubidium (Rb/Sr ≈ 0.03, as estimated from the Ba/Sr of chondrites, terrestrial Rb/Ba, and isotopic compilations15,16,17,18,19) relative to carbonaceous chondrites (Rb/Sr ≈ 0.3), and its initial 87Sr/86Sr is therefore poorly constrained and depends on the timing and extent of volatile depletion during accretion. Prior to the Moon-forming giant impact, the proto-Earth may have evolved for millions of years with significantly elevated Rb/Sr20,21,22. The most unradiogenic terrestrial 87Sr/86Sr previously measured precisely is from ~3.5 Ga barites22, however, their composition is distinctly more radiogenic than the presumed bulk Earth at that time. This indicates that either barite incorporated some crustal Sr, or the bulk Earth has a higher initial 87Sr/86Sr or time-integrated 87Rb/86Sr than typically assumed22,23. However, a very high initial Earth 87Sr/86Sr is at odds with estimates of the lunar initial 87Sr/86Sr, assuming the Earth and Moon equilibrated at the time of the giant impact20. Therefore, more accurately defining the strontium evolution of the early Earth has important implications for both crustal evolution and planetary differentiation processes.

Compared to the Rb-Sr isotope system, the radiogenic 40K-40Ca isotope system has a short half-life of 1.3 billion years. Magmatic processes strongly fractionate K/Ca, with the most significant radiogenic ingrowth generated by high K/Ca Archaean felsic crust. The much shorter half-life of 40K relative to 87Rb and the much higher concentrations of Ca in plagioclase compared to Sr means that, compared to Sr isotopes, plagioclase is more retentive of its primary Ca isotopic signature during later disturbance events24. The mantle, with a very low K/Ca ratio of ~0.01 and thus a near constant Ca isotope composition through time, acts as a baseline from which ancient crustal contamination of mantle-derived magmas, or major isotopic disturbances, can be detected. Measurements of 40Ca/44Ca are expressed here in parts per million as ∆′42/4440Ca915a, internally normalised to 42Ca/44Ca, and externally to SRM 915a25. Most estimates of the ∆′40Ca915a composition of either the present-day or ancient mantle range between –20 and –100 ppm25,26,27,28,29. The total radiogenic ingrowth for the mantle from the Earth’s formation to the present is ~12 ppm, assuming a K/Ca of 0.01, a negligible difference well within the range of estimated mantle compositions. By applying coupled radiogenic K-Ca and Rb-Sr isotope measurements to plagioclase grains, crustal contamination can be detected. Only intrusions returning mantle-like ∆′40Ca915a compositions are used here to define the mantle evolution for Sr isotope ratios.

Here, we apply high-precision microanalytical techniques to retrieve the Ca and Sr isotopic record of plagioclase crystals from a suite of Eoarchean to Mesoarchean anorthosites and related rocks to better constrain the evolution of the early mantle. This approach allows for the detection of crustal contamination using radiogenic Ca isotopes, while Rb-Sr disturbance can be monitored using high spatial resolution LA-MC-ICPMS micro-sampling. We show that these samples retain mantle-like Ca isotope signatures, precluding any significant contamination by felsic crust, and preserve unradiogenic initial Sr isotope ratios, including the lowest terrestrial 87Sr/86Sr ratio yet measured, recorded in plagioclase from the 3.7 Ga Manfred Complex of the Yilgarn Craton. From these results, we propose a refined Bulk Earth strontium isotope evolution model consistent with isotopic equilibration between the Earth and Moon during the terminal giant impact. The emergence of terrestrial depleted mantle signatures after ~3.5 Ga indicates that significant continental growth commenced relatively late in Earth history.

Results and discussion

Strontium and calcium isotopic compositions of Archaean anorthosite complexes

Archaean anorthosite complexes are a distinctive minor component of many Archaean terranes. They are cumulates formed from broadly basaltic, possibly hydrous, mantle-derived parental magmas, likely in an oceanic setting; however, a more direct analogy to modern tectonic settings is not possible30,31. Megacrystic calcic (An80±10) plagioclase is characteristic of these complexes and is an ideal candidate for determining initial Sr and Ca ratios due to the low parent-daughter ratios for both isotope systems. Three Archaean anorthosite-bearing complexes, the 3.73 Ga Manfred Complex, Western Australia32, the 2.94 Ga Fiskenæsset Complex, Greenland33, and the 2.81 Ga Windimurra Igneous Complex, Western Australia34, were selected for radiogenic Sr and Ca isotope analysis (Sample descriptions available in Supplementary Data 1). All have mantle-like hafnium isotopic compositions33,35,36. Coarse (~0.5–10 cm) plagioclase crystals from anorthosites and leucogabbros that are calcic, dark grey coloured (due to fine magmatic inclusions), optically clear and preserve sharp magmatic twinning were selected for in situ Sr analysis by LA-MC-ICPMS (Supplementary Figs. 1–3). Plagioclase domains that were fractured, contained mosaic textures, or were white in colour—indicating the expulsion of primary inclusions during recrystallisation and a more albitic composition—were avoided. Several plagioclase grains with low 87Sr/86Sr were subsequently micro-milled and analysed for Sr and Ca isotopes by TIMS and CC-MC-ICPMS, respectively. Full analytical procedures are available in the Methods section.

Isotopic heterogeneity is common in Archaean magmatic rocks and may be attributed to open-system behaviour during metamorphism or alteration37. In situ studies of minerals such as zircon38,39, apatite, titanite, and allanite40,41,42,43 have been used recently to screen for open-system behaviour and to clarify the Archaean Hf and Nd isotopic records. As plagioclase is easily altered in the presence of fluids and Rb and Sr are relatively mobile, in situ techniques are particularly advantageous for successfully determining primary Archaean initial 87Sr/86Sr in the pristine portions of crystals. Samples selected for this study are well-preserved Archaean examples; however, all have experienced post-crystallisation processes of varying intensity. As radiogenic ingrowth corrections for 87Sr/86Sr are minimal in well-preserved plagioclase, re-equilibration of primary plagioclase with radiogenic fluids during metamorphism or subsequent low-temperature alteration is the primary source of potential disturbance. For each studied intrusion, the lowest age-corrected plagioclase 87Sr/86Srinitial, as determined by either the LA-MC-ICPMS weighted average from low 87Rb/86Sr domains or by TIMS, is therefore taken as the best estimate of the maximum mantle 87Sr/86Sr at the time of emplacement (summarised in Table 1).

Table 1 Summary of strontium isotope measurements of Archaean anorthosites
Full size table

All samples display a degree of present-day Sr isotope heterogeneity. Individual 87Sr/86Sr measurements by both methods range between 0.69993–0.70883 for the Manfred Complex, 0.70074–0.70187 for the Windimurra Igneous Complex, and 0.70068–0.70267 for the Fiskenæsset Complex (typical 2SE of ±0.0001 for LA-MC-ICPMS and ±0.00002 for TIMS; full results presented in Supplementary Data 2–4). Relict magmatic plagioclase was found to locally retain unradiogenic 87Sr/86Sr even at high metamorphic grades provided the plagioclase crystals were sufficiently coarse and were not entirely recrystallised or altered (e.g. Fig. 1, Supplementary Fig. 4). Hydrothermal alteration was shown to cause the most scatter in 87Sr/86Sr, particularly in Manfred Complex plagioclase domains containing fine-grained secondary minerals such as epidote (e.g. Fig. 1). To isolate the freshest areas, an interpolated map of LA-MC-ICPMS point analyses was constructed across the best-preserved Manfred Complex plagioclase megacryst (Fig. 2a–d). Measurements of highly radiogenic, Rb-enriched zones are concentrated along the visibly fractured and altered (white) areas of the crystal, with low 87Sr/86Sr retained in small, optically dark plagioclase domains. From this map, the weighted mean of the two largest unradiogenic domains gave a measured 87Sr/86Sr of 0.700115 ± 17 and 87Sr/86Srinitial of 0.700050 ± 17 at 3730 Ma (95% confidence interval, n = 35; Fig. 2e, f). This measurement represents the least radiogenic 87Sr/86Sr determined precisely in any terrestrial sample to date. The Sr isotope map was then used to guide micro-milling (Supplementary Fig. 5), although the spatial resolution of the micro-milling techniques employed meant that completely avoiding fine-grained secondary minerals or fractures at depth was difficult. This resulted in mixed analyses and more scattered results extending to higher 87Sr/86Sr when measured by TIMS (87Sr/86Sr = 0.70033–0.70819; Supplementary Data 4). These results highlight the merits of high spatial resolution in situ analysis in complex mineral samples.

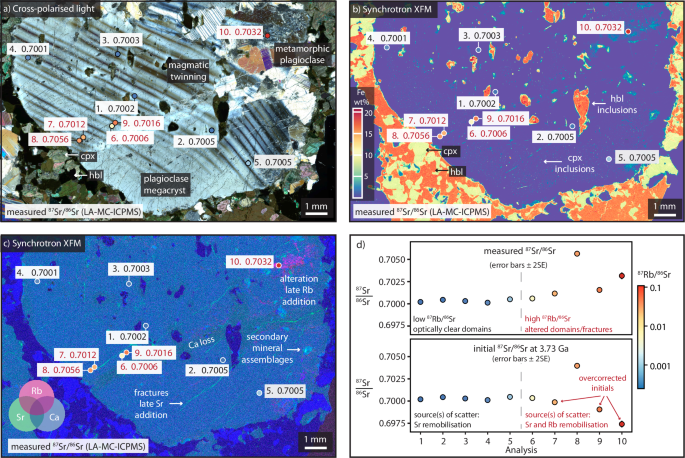

Fig. 1: Rb and Sr variability within plagioclase from the 3.73 Ga Manfred Complex.
Fig. 1: Rb and Sr variability within plagioclase from the 3.73 Ga Manfred Complex.
Full size image

Representative plagioclase megacryst from the 3.73 Ga Manfred Complex (leucogabbro 22MBN07). Localised late addition of highly mobile Rb and Sr likely occurred during the multiple thermal events that affected the Manfred Complex between ca. 3.7 and 1.8 Ga84. Measured LA-MC-ICPMS 87Sr/86Sr are plotted in the white boxes (no age corrections applied). Black text denotes Sr LA-MC-ICPMS spots placed on optically clear domains, and red text denotes spots placed on alteration zones or fractures. a Cross-polarised optical image. Magmatic twinning is visible within the plagioclase megacryst, but fractures are abundant, and some areas are partially altered and recrystallised. b Synchrotron X-ray fluorescence microscopy (XFM) map of Fe concentration (wt%). Fine magmatic clinopyroxene (cpx) and coarse hornblende (hbl) inclusions are abundant within plagioclase. c Synchrotron XFM map of Sr (green: 0–1000 ppm), Ca (blue: 0–23 wt%) and Rb (magenta: 0–520 ppm). Assemblages of fine-grained secondary minerals occur locally. Although both Rb and Sr are visibly remobilised by secondary processes, they are distributed differently. Altered Rb-enriched domains demonstrate both highly elevated Rb/Sr and 87Sr/86Sr compared to optically clear domains (e.g. analysis 10). Fractures enriched in Sr demonstrate highly elevated 87Sr/86Sr, but only moderately elevated Rb/Sr (e.g. analysis 8). d Plot of measured and initial 87Sr/86Sr for each LA-MC-ICPMS analysis (±2SE), with symbol fill colours representing measured 87Rb/86Sr. Uncertainties are smaller than most symbols. Low 87Rb/86Sr measurements require negligible radiogenic ingrowth corrections: the main source of scatter in initial 87Sr/86Sr is due to Sr remobilisation. Measurements with high 87Rb/86Sr can result in significantly overcorrected initial 87Sr/86Sr, as most of the Rb is secondary, as well as the added potential for Sr remobilisation. This demonstrates why it is crucial to only include analyses with both very low Rb/Sr and unradiogenic 87Sr/86Sr to reliably determine initial 87Sr/86Sr in Archaean materials (e.g. Fig. 2).

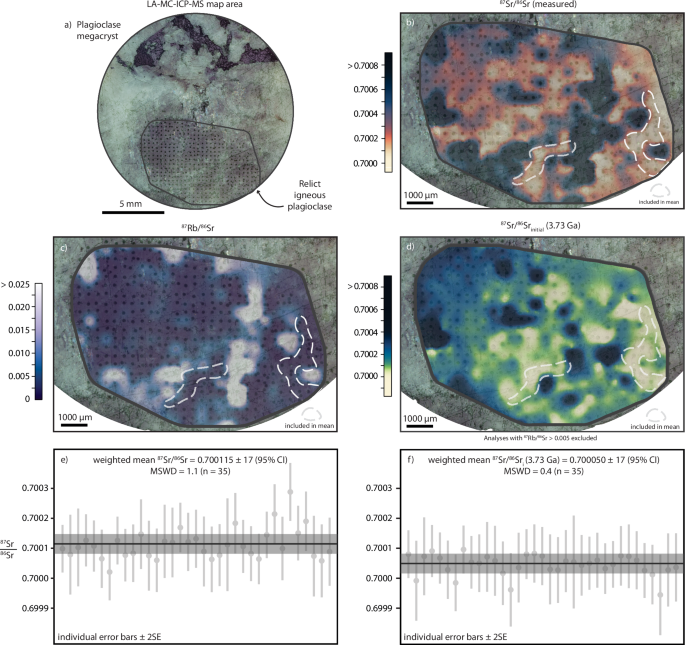

Fig. 2: Strontium isotope mapping of Manfred Complex plagioclase.
Fig. 2: Strontium isotope mapping of Manfred Complex plagioclase.
Full size image

a Optical image of plagioclase megacryst (An80) from the 3.73 Ga Manfred Complex, Narryer Terrane, Western Australia, with the area analysed by LA-MC-ICPMS enclosed by the grey line (laser ablation spots visible within this area). Fractures and altered areas appear optically white in colour relative to the fresher domains, which appear dark grey. b Interpolated map of measured 87Sr/86Sr. c Interpolated map of 87Rb/86Sr. d Interpolated map of 87Sr/86Srinitial (at 3.73 Ga). Analyses with elevated (>0.005) 87Rb/86Sr are excluded from this map to avoid overcorrecting the data. e Weighted mean of measured 87Sr/86Sr calculated for the outlined map domains in (b). Domains were selected on the basis of clusters of adjacent low 87Sr/86Sr and 87Rb/86Sr measurements. f Weighted mean of 87Sr/86Srinitial (at 3.73 Ga) calculated for the outlined map domains in (d).

All three intrusions recorded plagioclase initial ∆′40Ca915a within uncertainty of the mantle value (Fig. 3). The exceptionally well-preserved Windimurra Igneous Complex revealed a slightly elevated ∆′40Ca915a of –20 ± 15 ppm (2SE), at the upper limit of mantle estimates. In detail, results show plagioclase 87Sr/86Srinitial increasing from the lower zone (0.700829 ± 9, 2SE) to the upper zone (0.700956 ± 20, 2SE) of the intrusion with decreasing An# (Supplementary Data 3), possibly indicating a minor amount of crustal assimilation during emplacement. In contrast, the least altered samples from the Fiskenæsset and Manfred Complexes recorded more variable 87Sr/86Sr yet retain mantle-like ∆′40Ca915a of –60 ± 13 and –45 ± 14 ppm (2SE), respectively, indicating that any disturbance was relatively recent. As no evidence of a significant crustal component was detected in any of the three intrusions, all were included in the strontium evolution model.

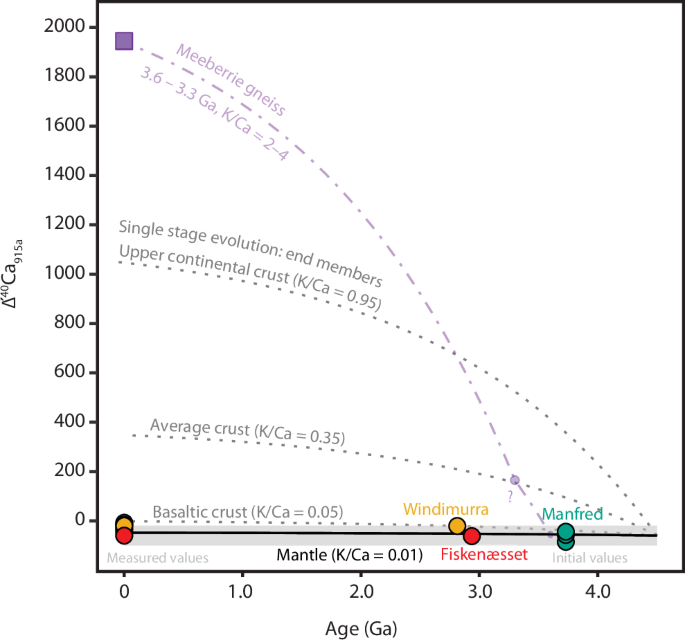

Fig. 3: Calcium isotope results.
Fig. 3: Calcium isotope results.
Full size image

Ca isotope evolution curves of the mantle and single-stage crustal end-member models24. Uncertainties are plotted as ±2SE and are smaller than the symbols. Calcium isotopes are particularly sensitive to the presence of ancient felsic crust; a 3.6–3.3 Ga sample of the Meeberrie gneiss from Western Australia (K/Ca of 2–4) has a modern ∆′40Ca915a of 1951 ± 1425,85,86, and is plotted for comparison to represent the highly radiogenic composition of potential ancient felsic crustal contaminants. The Meeberrie gneiss has multiple age components and appears to have had a multi-stage Ca isotopic evolution25; the question mark indicates that the plotted curve, with an increase in K/Ca from ~2 to ~4 at 3.3 Ga, represents only an estimate of its evolution. The Windimurra, Fiskenæsset, and Manfred Complex plagioclase samples plot within the uncertainty of the mantle value, ruling out significant felsic crustal contamination. Full results are available in Supplementary Data 5.

Initial strontium isotope composition of the Earth and Moon

The Earth’s initial 87Sr/86Sr and bulk Sr isotope evolution are not well constrained. In addition to the lack of reliable data from ancient terrestrial rocks, part of the difficulty with estimating the Earth’s Rb-Sr isotopic evolution is that the bulk Earth composition cannot be estimated from chondritic meteorites, as is the case for other isotope systems, due to the volatility of Rb13,14,22,44,45. Instead, the bulk Earth 87Sr/86Sr evolution is usually estimated by extrapolating modern bulk Earth estimates back to the basaltic achondrite best initial (BABI), which may or may not be representative of the Earth’s initial strontium isotope composition13,14. Evidence from other isotope systems indicate the Earth and Moon equilibrated during a high-energy impact46,47,48,49. If this applies to 87Sr/86Sr, lunar anorthosite data could aid in anchoring the Earth’s initial ratio. However, modelled initial 87Sr/86Sr for the Earth and the Moon are inconsistent, with complicated models proposed to explain the apparent discrepancy between homogenisation of isotope systems other than Sr15,20,22,44. Using the newly determined lowest terrestrial 87Sr/86Sr from Manfred Complex plagioclase, we revisit whether Sr isotope equilibration between the Earth and Moon is consistent with other currently available data.

Ferroan anorthosites began to crystallise from the lunar magma ocean shortly after the Moon formed—within 1000 years, for a duration of ~10 Myr according to some models50 – and can be used to estimate the lunar initial 87Sr/86Sr. Although many ferroan anorthosite samples are heavily reworked and isotopically disturbed by repeated impacts, making isochron dating challenging, relict primary plagioclase from ferroan anorthosite 60025 returned a precise Pb–Pb age of 4.51 ± 0.01 Ga51 and an unradiogenic 87Sr/86Srinitial of 0.699062 ± 115. This age is consistent with the KREEP zircon Lu-Hf model age of 4.51 ± 0.01 Ga52 and is taken here to represent the primary crystallisation age of this anorthosite derived from the lunar magma ocean. Based on Hf-W constraints and lunar magma ocean crystallisation models, the age of the Moon is likely to be several million years older, assumed here to be ca. 4.515 Ga20,50,53,54. Using the 87Sr/86Srinitial of ferroan anorthosite 60025 and an average bulk Moon 87Rb/86Sr of 0.01944 gives a lunar initial 87Sr/86Sr of 0.699061 ± 1 at 4.515 Ga (Fig. 4c). Assuming the Earth and Moon equilibrated and share this initial ratio, and that based on near-chondritic zircon Hf measurements the Manfred Complex plagioclase 87Sr/86Srinitial of 0.700050 ± 17 represents an upper limit for the primitive mantle at 3.73 Ga, this gives a maximum time-integrated 87Rb/86Sr of ~0.0897 and present-day 87Sr/86Sr of 0.7049 for the bulk Earth. This value is within the loosely constrained range of modern bulk Earth estimates for 87Rb/86Sr (0.080–0.091) and 87Sr/86Sr (~0.7043–0.7050) as derived using the Sr-Nd correlation, assuming the bulk Earth is chondritic for Nd isotopes22,55,56,57,58, in contrast to the significantly higher barite BEBI value (Bulk Earth Best Initial = 0.6994 at 4.5 Ga and modern bulk Earth = 0.7055)22. Our model provides an Earth initial 87Sr/86Sr estimate that both reconciles the Earth’s early evolution with the currently available terrestrial and lunar data and is consistent with 87Sr/86Sr homogenisation between the Earth and Moon at the time of the giant impact.

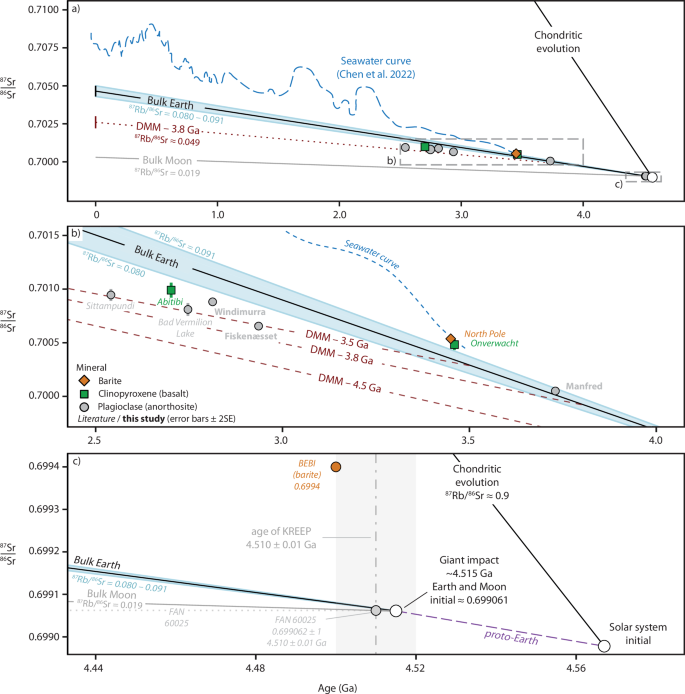

Fig. 4: Strontium isotope evolution of the early Earth.
Fig. 4: Strontium isotope evolution of the early Earth.
Full size image

a Evolution of the estimated modern bulk Earth projected back to the formation of the Earth and Moon, with the depleted mantle19 and seawater curves59 plotted for comparison. The depleted mantle curve is projected from a depleted modern mantle (DMM) value of 0.70263 ± 4419 to the bulk Earth at 3.8 Ga. The bulk Earth is Rb/Sr depleted compared to chondritic evolution, and the bulk Moon is significantly more Rb/Sr depleted44. b Archaean strontium mantle evolution. Published high-precision Sr isotope analyses of minerals from Archaean mafic rocks that have both unradiogenic measured and initial 87Sr/86Sr are included for comparison22,87,88,89,90,91 (Supplementary Data 6). Strontium isotope studies of inclusions in Archaean minerals have not been included due to the lower precision and large radiogenic ingrowth corrections applied92,93. Data from this study and the literature indicate that the depleted mantle signature became established relatively late in Earth history for strontium isotopes. The North Pole barite and Onverwacht basalt, samples previously used to define the bulk Earth Sr isotope composition, appear to reflect seawater compositions rather than pristine mantle. The Manfred Complex plots within the range of estimated bulk Earth compositions, providing an upper limit for the composition of the primitive mantle of 0.700050 at 3.73 Ga. c Model for the initial 87Sr/86Sr ratio of the Earth and Moon, assuming Rb-Sr equilibration at the time of the giant impact, taken here to occur at ~4.515 Ga52,53,54. The retarded Sr isotope evolution of the bulk Moon is a result of volatile loss (Rb) at the time of impact. A shared initial ratio of 0.699061 ± 1 at 4.515 Ga is consistent with the best preserved early terrestrial and lunar data as measured in ferroan and Archaean anorthosites15. The earlier Bulk Earth Best Initial (BEBI) value of 0.6994 determined from barite22 is plotted for comparison.

Strontium isotopic evolution of the Archaean depleted mantle

The least radiogenic results from this study, together with a compilation of published high-precision Archaean Sr isotope data from low Rb/Sr minerals plagioclase and clinopyroxene (Fig. 4a, b), show that a depleted mantle signature is globally apparent in the Rb-Sr system by ca. 3 Ga, with significant mantle depletion commencing at 3.5 Ga. Our results demonstrate good agreement with the seawater strontium isotope curve, which, although based on limited data for the early Archaean, indicates the composition of seawater deviated from the mantle by 3.5 Ga, marking the beginning of extensive exposure and erosion of felsic continental crust into the oceans59,60,61,62,63. We find no evidence for an early (>4 Ga) depleted mantle reservoir in the available data. This is consistent with previous Rb/Sr modelling that suggests juvenile crust production in the early Archaean was small in volume and predominantly mafic in composition, resulting in limited Rb/Sr fractionation in the Eoarchean mantle7.

For the long-lived radiogenic isotope systems Hf, Nd, and Sr, the depleted mantle curve has traditionally been depicted as a hypothetical line projected from the modern depleted mantle back to a bulk Earth value at 4.5 Ga. Starting the mantle depletion curve at 4.5 Ga is arbitrary, however, and is not supported by the Hf and Nd data, with recent arguments made for the depleted mantle curve to instead commence at 3.8 Ga for the Hf and Nd systems36,39. We propose that the same be implemented for the Sr-depleted mantle curve, using 3.8 Ga as a maximum age for the onset of depleted mantle evolution.

Methods

Sample selection and screening

Samples of anorthosite, leucogabbro, and associated plagioclase-rich rock were collected from outcrop of the Manfred Complex, Narryer Terrane, Western Australia, and from outcrop and drillcore from the Windimurra Igneous Complex, Youanmi Terrane, Western Australia. Samples from the Majorqap Qâva outcrop area of the Fiskenæsset Complex, Greenland, were provided by John Myers64. Representative hand sample photographs and optical photomicrographs are available in Supplementary Figs. 1–3. Samples were selected based on preservation of magmatic textures and mineral assemblages, minimal alteration and weathering, and low deformational strain. Thin sections were used to further identify the best-preserved plagioclase. Rock samples were cut using a diamond saw, and the visibly freshest domains were drilled out using a diamond drill press, then mounted in epoxy resin and polished.

Plagioclase mounts and thick sections were imaged optically using a Nikon petrographic microscope and were carbon-coated and imaged by BSE and CL using a Tescan Vega3 SEM at the CMCA, University of Western Australia. Typical SEM operating conditions were a working distance of 15 mm, 15 kV, 15 BI for BSE imaging and 20 kV, 20 BI for CL imaging. Plagioclase An contents (Ca/[Ca + Na + K] × 100, molar%) were determined using a JEOL 8530 F+ microprobe at the CMCA, University of Western Australia, operated using a 20 nA beam current, 15 kV voltage and a 10 μm defocused beam.

To investigate the mobility of Sr within plagioclase crystals, high-resolution microbeam μXRF mapping of select thin sections (e.g. Fig. 1) was performed on the XFM beamline at the Australian Synchrotron, operated by ANSTO. Maps were collected at an energy of 18,500 eV, with a beam size of 4 μm, a movement speed of 16 mm/s and a dwell time of 0.25 ms/pixel. The GeoPIXE software package was used to process data and produce false-colour element maps65.

Strontium isotopes by LA-MC-ICPMS

In situ plagioclase strontium isotopes were acquired over multiple sessions by LA-MC-ICPMS at the CMCA, University of Western Australia, using a ThermoFisher Neptune Plus MC-ICPMS coupled with a Teledyne Photon ANALYTE G2 193 nm ArF Excimer laser system, with amplifier gains calibrated before each session. Measurements were made in low resolution, with masses 83.5 (167Er++), 84Sr, 85Rb (axial), 86Sr, 86.5 (173Yb++), 87Sr, and 88Sr–measured on Faraday detectors with 1011 Ω amplifiers. Measurements of 82Kr and 83Kr beams were made using 1013 Ω amplifiers to monitor for interference by CaCa and CaAr species following the data reduction scheme of Mulder et al.66. Due to low Sr concentrations in the unknowns (~100–200 µg/g), a Jet-X sample-skimmer cone configuration was employed during this study, with ~10 mL/min N2 added to improve sensitivity and a total of 1 L/min He introduced to the cup and cell as the carrier gas. Two-pulse pre-ablations were applied to all samples and standards prior to analysis. Typical analytical conditions included 110 μm circular spots for unknowns, 50–110 μm circular spots for reference materials, 4–5 J/cm2 fluence, and a repetition rate of 10–15 Hz. Every 60 s of ablation time was followed by a 70 s washout period, the final 30 s of which was used to determine the gas blank. Unknowns were bracketed with standards throughout. An in-house plagioclase standard, Australian Andesine, was used as the primary reference material. Secondary standards included the plagioclases AMNH-107160, G29958, Hrappsey, BDL, and Lake County (characterised in-house), and ATHO-G glass was used to calibrate Rb/Sr fractionation66,67,68. Data were reduced using Iolite software and the strontium isotope DRS of Mulder et al.66, with a correction for Rb/Sr fractionation applied66,69. Results of reference material analyses, including TIMS analysis of in-house standards, are given in Supplementary Data 3–4.

Time integrated signals were monitored for anomalous spikes in 87Rb/86Sr, 88Sr and 87Sr/86Sr, indicating the intersection of inclusions or alteration zones, and were cropped where necessary to avoid mixed analyses (e.g. Supplementary Fig. 6). Analyses with anomalously high 87Rb/86Sr (>3 SD from the mean) were excluded, and the weighted mean 87Sr/86Sr and 87Sr/86Sri were determined for each sample using the published U-Pb ages for each complex32,33,34 (Supplementary Figs. 7–9). For samples where the MSWD ≈ 1, the weighted means of all analyses were used, calculated using the method of Vermeesch et al. 70. For samples where MSWD » 1, the weighted mean of a population of spatially related and least radiogenic analyses with MSWD ≈ 1 was used, where possible. If the data were too scattered and such a population could not be identified, this was taken to indicate the measured 87Sr/86Sr ratio was unlikely to represent the primary magmatic isotopic composition due to isotopic disturbance, and such data were excluded.

Analytical conditions for strontium isotope maps were the same as for point analyses. Plagioclase strontium isotope maps of one Manfred Complex megacryst were constructed using a grid of 110 μm circular point analyses spaced approximately every 300 μm, interpolated using a standard kriging method in the Surfer software package and coloured using the palettes of Crameri (2023)71. To construct the age-corrected maps, analyses with anomalously elevated Rb (87Rb/86Sr > 0.005) were excluded to avoid large overcorrections due to alteration.

Micro-mill TIMS

Samples were prepared at the University of Western Australia in the form of polished epoxy-mounted rock pieces and polished blocks (from which the polished thick sections previously analysed by LA-MC-ICPMS were cut). Plagioclase domains that were calcic, optically clear, and recorded unradiogenic 87Sr/86Sr and low 87Rb/86Sr ratios by LA-MC-ICPMS were targeted for micro-milling and solution isotope analysis. Optical, BSE, and CL images of plagioclase samples were evaluated so as to avoid fractures or alteration at the surface.

Micro-milling was performed using a New Wave MicroMill at the University of Bristol, equipped with a 500 μm diameter tungsten carbide drill bit. The sample and drill bit were thoroughly cleaned three times in an ultrasonic bath in 18 MΩ ·cm ultra pure water (UPW), once in high purity ethanol, and dried with a lint-free kimwipe prior to milling for each aliquot. A droplet of UPW was placed on the sample surface prior to milling, creating a slurry that was then collected via pipette into a clean 7 mL perfluoroalkoxy (PFA) beaker. Due to low Sr concentrations (~100–200 µg/g), four individual holes 400 × 400 μm in size were drilled per aliquot, clustered around an LA-MC-ICPMS Sr spot location, to achieve the optimal minimum loads of Sr (>25 ng) and Ca (>25 μg). To minimise the inclusion of any pervasive fine alteration in Manfred Complex sample 12N8, only one individual hole 400 × 400 μm in size was drilled per aliquot corresponding to the least radiogenic domains on the LA-MC-ICPMS Sr map, resulting in reduced loads of ~12 ng Sr and ~8 μg Ca (Supplementary Fig. 5). Aliquots of Telica plagioclase72 and of a modern marine shell were utilised as secondary reference materials following the same method outlined above. Procedural blanks were collected by lowering and engaging the drill bit into a droplet of UPW above the surface of a cleaned sample and pipetting the UPW in the same fashion as an unknown sample.

Two plagioclase crystals, ‘Australian andesine’ and ‘Lake County’ plagioclase, were characterised for use as in-house LA-MC-ICPMS strontium isotope standards. ‘Australian andesine’ is a gem-quality plagioclase crystal (An47-49) approximately 1 cm in length of unknown provenance sourced from a gem dealer, with a strontium concentration of 1048 ± 17 µg/g (2 SD, n = 6). “Lake County” is a gem-quality ‘sunstone’ plagioclase crystal (An66-68) from a porphyritic basalt flow in Lake County, Oregon, with a strontium concentration of 588 ± 11 µg/g (2 SD, n = 18). Three aliquots of randomly selected crystal fragments weighing between 0.5 and 1 mg were picked for each sample (corresponding to loads of approximately 500 ng Sr per aliquot) and were ultrasonicated in purified acetone and UPW prior to dissolution.

All samples were dissolved in 1000 µL of super pure grade concentrated HNO3 and HF (1:1), dried down, and redissolved in 550 µL of 3 M HNO3. A 50 μL aliquot of each sample was reserved for trace element analysis. The strontium fraction was then separated using Sr Spec resin73. The ‘waste’ fraction from the Sr column was put aside for Ca purification. Strontium fractions were dried and loaded onto single standard purity Re filaments with TaCl5 used as an activator to improve ionisation efficiency, following the modified method of Birck et al. 74.

Strontium isotope ratios were measured in a multidynamic collection mode using a Thermo-Finnigan Triton TIMS instrument at the University of Bristol75,76. Amplifier gains were calibrated before each session, and each filament was heated manually and analysed for up to 200 cycles with 4.194 s integration time per cycle. Strontium 87 beams were corrected for isobaric 87Rb by monitoring 85Rb and using a 85Rb/87Rb value of 2.5926577. Samples were corrected for mass fractionation by internal normalisation to 86Sr/88Sr = 0.119478, using the exponential mass fractionation law79. Reference material NIST SRM 987 was measured, with both pure and column-processed aliquots analysed in every session. Procedural blanks were in the range of 60–100 pg. All data were normalised to the NIST SRM 987 87Sr/86Sr value of 0.71024880.

Calcium isotopes

Post strontium chemistry, selected samples with unradiogenic 87Sr/86Sr were processed through calcium chemistry at the University of Bristol using the procedure outlined by Lewis et al.25. Radiogenic calcium isotope ratios were measured on the Proteus CC-MC-ICPMS/MS instrument at the University of Bristol in low mass resolution, following a modified version of the procedure of Lewis et al.25. Analyses were bracketed with measurements of NIST SRM 915a solution, with total Ca signal intensities of unknowns matched to within ±5% of the bracketing solution. Analyses of basaltic powders BHVO and GSP-2 and a modern marine shell were included as secondary reference materials. Each measurement was internally normalised to a 42Ca/44Ca ratio of 0.31221 and externally normalised to the mean of the two bracketing SRM 915a measurements. Each analysis consists of the mean of 8–16 bracketed measurements of a single sample solution, except for sample 12N8, where 4–8 bracketed measurements were performed per aliquot due to the smaller sample volumes collected. Procedural blanks were in the range of <1–2% total blank contribution.

Two aliquots, 21MBY04 and 151033, recorded anomalously elevated counts of 87Sr++, indicating that these samples were contaminated with excess Sr either during the Ca column chemistry or dilution process25. Excess K was also detected in these two aliquots and ∆′43Ca915a measurements were elevated (Supplementary Fig. 10). Due to contamination, these two samples were therefore excluded.

Radiogenic ingrowth corrections

Prior to Sr separation via Sr-specific extraction chromatography, a 50 µL aliquot of each sample, dissolved in 3 M HNO₃, was reserved for elemental and isotopic analysis. To prepare a working stock solution, 950 µL of 2% HNO₃ (v/v) was added to the aliquot, yielding a 1 mL solution. A 1:100 dilution of this stock was prepared for preliminary quantification of calcium (Ca) concentrations to guide final dilution volumes. The remaining 1 mL stock solutions were evaporated to dryness in acid-cleaned 7 mL Savillex® PFA vials on a hotplate at 120 °C. Dried residues were redissolved in 2% HNO₃ to achieve an approximate final Ca concentration of 1 µg/mL.

Elemental and isotopic measurements were performed at the Centre for Microscopy, Characterisation and Analysis, University of Western Australia using a Thermo Fisher Scientific Element XR sector field inductively coupled plasma mass spectrometer (SF-ICP-MS), equipped with a Peltier-cooled cyclonic spray chamber and a 200 µL/min PFA nebuliser. A JET nickel sampler cone and a nickel X-cone were used throughout the analysis to maximise ion transmission and sensitivity. Instrument slits were configured to low resolution (R ~ 300) for rubidium (Rb) and strontium (Sr), and medium resolution (R ~ 4000) for potassium (K) and calcium (Ca).

Blanks were analysed every 10 unknown samples. Blank subtraction was performed using the average signal of the preceding and subsequent blanks for each isotope. Final elemental concentrations of K, Ca, Rb, and Sr were calculated by external calibration using serial dilutions of single-element standards. Calibration curves were generated independently for each element from 4 to 5 concentration points spanning the expected range of unknowns. All calibration curves exhibited linearity with R² > 0.999.

Instrumental operating parameters for the Element XR were optimised to maximise ion sensitivity. Supplementary Table 2 lists the instrument parameters used for data acquisition. Limits of detection (LOD) for each element were calculated using the standard deviation of replicate blank measurements and the slope of the corresponding calibration curve:

$${{{\mathrm{LOD}}}}=(3.3\times {\sigma }_{{blank}})/m$$

Where σblank is the standard deviation of the blank signal (cps), and m is the slope of the calibration curve (cps/ppt). The LOD values are reported in parts per trillion (ppt) in Supplementary Table 3. For samples with K and or Rb concentrations below the LOD, maximum values for 87Rb/86Sr and 40K/44Ca calculated using the LOD for Rb or K are reported.

Isotopic ratios were determined using determined elemental concentrations and calculated assuming IUPAC-recommended relative atomic masses and natural isotopic abundances81,82. These values are summarised in Supplementary Table 4. Final isotope ratio relative uncertainties were calculated through quadrature propagation of the measured isotope RSDs.

Measured 87Rb/86Sr and 40K/44Ca ratios were used to determine the initial 87Sr/86Sr and ∆′40Ca915a ratios for the micro-milled samples (Figs. 3–4, Table 1, Supplementary Data 4–5, Supplementary Fig. 11). Initial 87Sr/86Sr were determined using the decay constants λ(87Rb) = 1.3972 × 10−11 a−1, and initial ∆′40Ca915a were determined using the decay constant λ(40K) = 5.51 × 10−10 a−1 and branching ratio of 0.895210,83.
