Introduction

Organic phosphorescent materials are a transformative class of luminescent materials with long lifetimes, large Stokes shifts, and stimuli-responsive characteristics, showing potential in applications such as anti-counterfeiting, bioimaging, data encryption, and sensing1,2,3,4. Phosphorescence originates from the radiative, spin-forbidden T1-S0 transition, which has inherently slow kinetics and is highly susceptible to non-radiative decay5,6 (e.g., molecular vibrations) and oxygen quenching7,8,9,10,11. Efficient phosphorescence thus requires rigid molecular structures or environments to suppress non-radiative decay12,13,14,15,16,17,18,19,20,21,22. However, current research primarily focuses on room-temperature phosphorescence (RTP) and 77 K. This is because restricted mobility in rigid systems fails to sufficiently suppress molecular thermal agitation at elevated temperatures, facilitating non-radiative transitions and quenching RTP. This constrains the development and application of organic phosphorescent materials at high temperatures.

The development of high-temperature phosphorescent materials has attracted interests of researchers, and researchers have made significant progress in this field19,22,23,24,25,26,27,28,29,30. By employing a deep eutectic solvent strategy to restrict thermal motion12, a fluidic high-temperature phosphorescent material capable of operating at 358 K has been proposed. The molecular planarization strategy13 was used to suppress luminescent molecular vibrations to construct high-temperature afterglow (HTA) materials. Recently, ultra-long HTA was achieved in a boric acid system using a charge separation and recombination strategy14. Despite these advancements enriching HTA materials, the tunability of HTA wavelength has not yet been focused. Developing flexible and tunable HTA materials based on a single luminescent molecule remains a challenge.

Kasha’s rule restricts single-molecule multicolor phosphorescence by limiting emission to the lowest excited state. To address this challenge, we propose an approach that leverages a host-guest anchoring coupled with single-bond rotors to create flexible and tunable HTA materials (Fig. 1a). Hydrogen bond networks have been identified as a promising strategy for creating rigid environments that stabilize phosphorescent molecules (as guests), thereby reducing non-radiative decay rates and enhancing phosphorescence efficiency31,32,33,34,35,36,37,38,39,40,41,42,43. Dispersing rotor-containing guest molecules in hydrogen-bond-rich matrices (Polyacrylamide, PAM) restricts thermal motion through hydrogen-bond anchoring. This enables temperature-modulated multicolor phosphorescence via rotor rotation of guest molecules (Fig. 1b). Triphenylamine derivatives with good phosphorescence properties were selected here to fabricate flexible afterglow materials44,45,46,47,48,49. To amplify the host-guest synergy, TPCA-4 and its alkaline derivative TPCS-4 have been employed as the guest molecules (Fig. 1a). Their multiple hydrogen-bonding sites endowed the systems with good phosphorescence thermal tolerance, extending the operational temperature range beyond conventional RTP systems. These materials exhibit good photophysical properties and thermal tolerance13,20,21,35,49,50,51,52,53,54,55,56,57,58,59,60,61 (Fig. 1d). Impressively, these materials exhibit pronounced afterglow under ambient daylight, with emission wavelengths dynamically shifting from 508 nm to 450 nm upon heating (Fig. 1c). This work represents advancements of tunable, flexible HTA materials using a single phosphorescent molecule, offering avenues for the design of high-performance luminescent systems under high-temperature and high-humidity conditions.

Fig. 1: Schematic of programmable high temperature afterglow polymers.
figure 1

a Structure of the single-bond rotors and the hydrogen H-bond anchoring strategy. b Simplified Jablonski diagram and c photo of dynamic HTA. d Phosphorescence thermal tolerance of flexible phosphorescent materials. RTP room-temperature phosphorescence, HTA high-temperature afterglow, HTP high-temperature phosphorescence, Abs. Absorption, Flou. Fluorescence, IC internal conversion, ISC intersystem crossing, Phos. phosphorescence, Non-rad. Non-radiative Decay, PL Q.Y. photoluminescence quantum yield, K Kelvin, nm nanometer, UV ultraviolet, S₀ singlet ground state, Sn singlet excited state).

Full size image

Results

Characterization of RTP Phenomena

Upon with their absorption band (365 nm, Figure. S2), the TPCA-4/TPCS-4@PAM samples fabricated by dispersing 1 wt% TPCA-4/TPCS-4 into a PAM film exhibited efficient photoluminescence (Figs. S3–6, absolute PLQY ≈ 61.7/51.7%) at room temperature, along with an impressive green afterglow persisting for over 13 s after removing UV irradiation (Figs. S7, 8 and Movie S1). Notably, their high QY (ΦPhos ≈ 32.36/33.77%) enabled daylight-activated afterglow via trace UV components (Figure. S9 and Movie S2). Figs. S10, 11 show 508 nm delayed emission (lifetime ≈ 774−780 ms), consistent with their 77 K solution (Figs. S12, 13) and the RTP phenomenon. Optical microscopy revealed better dispersion homogeneity of water-soluble TPCS-4 in the PAM compared to TPCA-4 (Figs. S14, 15), leading to TPCS-4@PAM becoming the focus of subsequent studies.

Characterization of HTA Phenomena

Delayed emission spectra and lifetime measurements of TPCS-4@PAM under air and vacuum (Figs. S16–18) showed phosphorescence lifetime extended by ∼100 ms in vacuum, demonstrating oxygen-dependent phosphorescence quenching. Temperature-dependent delayed emission spectra (Figs. S19, 20) and lifetime data (Figs. S21, 22) in air or vacuum confirm the phosphorescent nature of the observed afterglow and support the 5 s afterglow at 423 K (Figs. S23, 24) for TPCS-4@PAM. This phosphorescence thermal tolerance surpasses the most reported flexible organic phosphorescent materials under similar conditions. As the temperature increased, a green-to-blue afterglow transition could be observed (Figure. S23), with the details in Fig. 2a illustrating the relationship between emission wavelength, intensity, and temperature. Compared with conventional RTP materials, the TPCS-4@PAM film exhibits stronger emission intensity under elevated temperatures, which could be attributed to its drastically shortened lifetimes (from 779.58 ms to 19.03 ms) (Fig. 2d, e, detailed in Table S1). This process is further elucidated in Fig. 2b and Fig. 2c: the emission maximum blue-shifts continuously from 508 nm to 450 nm (Figs. S25, 26), accompanied by a chromaticity coordinate transition from the (0.24, 0.47) to the (0.18, 0.20). Fluorescence remained at 425 nm (Figure. S27), confirming the 450 nm delayed emission originates from phosphorescence, not thermally activated delayed fluorescence (TADF). Delayed emission spectra at 448 K under air and vacuum further reveal 3O2 sensitivity (Figs. S28). The observed lifetime far exceeds the typical microsecond-to-millisecond range of TADF, aligning with phosphorescence (Figs. S29). Lifetime attenuation indicates complete quenching above 473 K, reaching the thermal tolerance limit. TPCA-4@PAM exhibits similar dynamic HTA to TPCS-4@PAM (Figs. S30, S31), with photophysical data in Table S2.

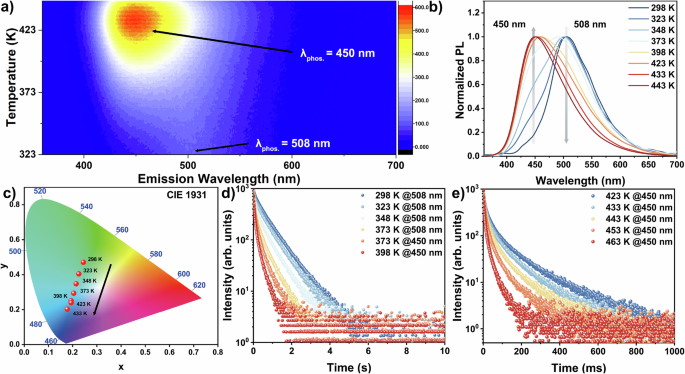

Fig. 2: Characteristics of HTA Phenomena.
figure 2

a Temperature-dependent delayed emission spectra, b normalized delayed emission spectra, c CIE coordinates, and d, e lifetime spectra of TPCS-4@PAM film (Conc = 1% wt). (PL photoluminescence, CIE Commission Internationale de l'Éclairage; Conc. concentration, wt weight percent).

Full size image

To determine the optimal guest concentration, flexible phosphorescent films with guest concentrations ranging from 0.1 wt% to 0.0001 wt% were fabricated. Powder XRD (Figure. S32) revealed that all TPCS-4@PAM films were amorphous without crystalline features. FT-IR spectroscopy (Figure. S33) confirmed that guest concentration had no significant impact in the PAM matrix across concentrations. Using the optimal excitation wavelength (Figs. S34–57, Table S3), temperature-dependent delayed emission spectra (Figs. S58–61) and lifetime measurements (Figs. S62–65, Tables S4–S7) revealed optimal properties and HTA tolerance at 0.1 wt% concentration. The lifetime retained 60 ms at 448 K (Figure. S66) with the highest PLQY at 298 K (Figs. S67–72; PLQY ≈ 67.2%, ΦPhos ≈ 36.63%, Table S8). Control experiments on guest-free PAM (Figure. S73) demonstrated that the dynamic HTA properties originate from the guest molecule.

The Origins of HTA Phenomena

To investigate the origins of the HTA phenomena in these systems, guest molecules were dispersed into hydrogen-bonded polymeric matrices (PVA, PAM) and weakened non-hydrogen-bonded matrices (PDAMA, PMMA, PVB). Delayed emission spectra showed a 508 nm emission in hydrogen-bond-rich matrices (Figs. S74, 75), whereas emission was nearly quenched in weakened/non-hydrogen-bonded matrices (Figs. S76–78). Photoluminescence spectra and PLQY confirmed this: PLQY decreased from 67.1% (PAM) to 9.4% (PVB), and ΦPhos from 36.63% to 5.27% (Figs. S79–86). These results demonstrate that the robust hydrogen-bonding interactions between guest and matrix molecules determine the generation and stabilization of ultralong RTP.

The hydrogen-bond interactions between guest molecules and the matrix not only determine phosphorescence properties but complement the rigid polymeric environment. Figure. S87 shows TPCS-4 structural analogs studied to clarify these effects: TPCS-1, TPCS-2, and TPCS-3 share a similar three-branched structure, each featuring one, two, and three single-bond rotors, respectively. TPCS-1 maintained emission at 443 K (Figure. S88), whereas TPCS-2 (Fig. S89, Temperaturemax = 373 K) and TPCS-3 (Figure. S90, Temperaturemax = 363 K) showed quenching with increasing rotor counts. In addition, lifetime data show analogous trends across Figs. S91–S96 (detailed in Tables S10–12). TPCS-2, and TPCS-4 exhibit the same three-branched structure, each featuring two single-bond rotors. However, TPCS-4 possesses twice the number of hydrogen-bonding functional groups compared to TPCS-2. TPCS-4 (Temperaturemax = 473 K) show better high temperature phosphorescent tolerance than TPCS-2. These results reveal that the number of single-bond rotors and hydrogen bonds jointly determines the performance of HTA.

DFT calculations (M06-2X/def2SVP) were used to investigate the wavelength-tunable HTA mechanism. 3D delayed emission spectra revealed that these flexible organic phosphorescent materials exhibit no delay time or excitation wavelength dependence at any temperature (Figs. S97–99), indicating no ground-state species variation. The dynamic afterglow behavior originates from excited-state species alterations in the T₁ state. Time-resolved emission spectra confirmed stable emission peaks at 77 K and 323 K over time, indicating a consistent triplet state. However, at 423 K, a blue shift occurs with increasing delay time, reflecting a transition from lower to higher energy states (Figure. S100). The biphenyl rotors in guest molecules generate multiple T₁-state conformations, driving temperature-dependent afterglow emission. Potential energy surface scans (Fig. 3a, b) revealed multiple T₁ energy minima versus a single minimum in S₀ and S₁ (Figure. S101), consistent with prior TRES and 3D delayed emission spectral analyses. Conformation optimization of these scan results yielded three distinct T₁ conformations and their energies (I1*, I2*, I3*; Fig. 3c). I1* and I2* exhibit comparable energies with a low interconversion barrier (0.677 eV, while I3* is thermodynamically stable but requires overcoming a high barrier (5.645 eV). Therefore, I1* and I2* are proposed to be the two potential conformations involved in the dynamic afterglow process. TD-DFT calculations (Fig. S102) revealed that the I1* to I2* conformational transition corresponds to a phosphorescence shift from 508 nm to 422 nm, consistent with experimental data.

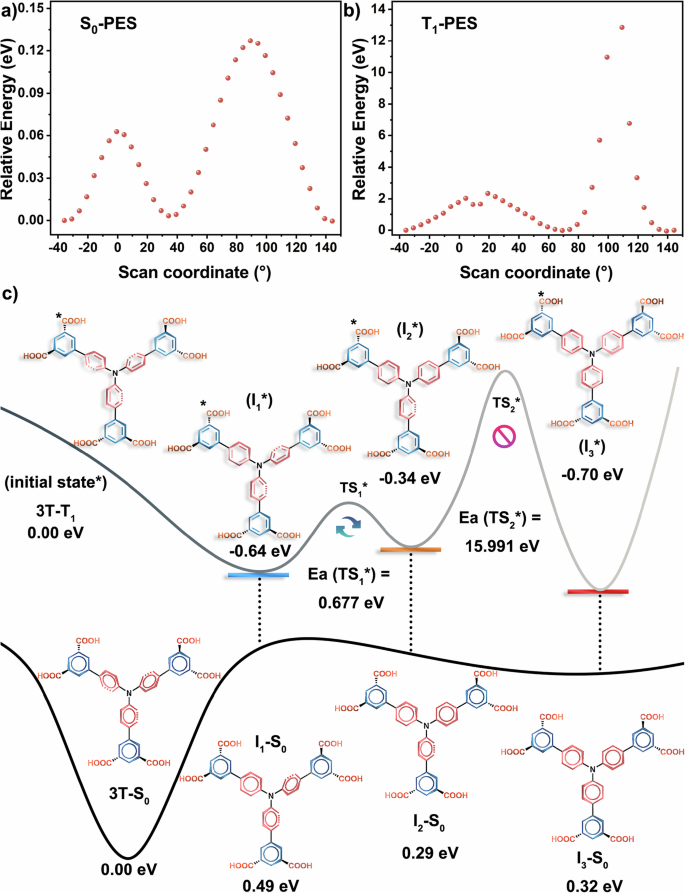

Fig. 3: Theoretical calculations.
figure 3

a, b Potential energy surface scans for the S₀ and T₁ states of TPCA-4, and (c) schematic illustration of TPCA-4 with different conformations (T: twisted) calculated using M06-2X/def2SVP. (T₁ first triplet excited state, PES potential energy surface, ³T-T₁ triplet twisted T₁ state, I intermediate).

Full size image

Construction and Application of Full-Color Afterglow

The TPCS-4@PAM showed temperature-modulated dynamic afterglow with CIE coordinates changing from (0.24, 0.47) to (0.18, 0.20). Based on this, we implemented temperature-sensitive radiative energy transfer (ET) to achieve full-color afterglow. Rhodamine B (RhB) was selected as the acceptor due to its excitation spectrum overlapping with the green afterglow emission of TPCS-4@PAM (Fig. S103). By modulating the mass ratio between donor and acceptor components, full-color afterglow emission encompassing white light (CIE: 0.33, 0.37), with chromaticity coordinates shifting from (0.24, 0.47) to (0.54, 0.39) (Figs. S104, 105) was observed. At an optimal ratio, this strategy regulated delayed emission (Fig. S106) and lifetimes (Figs. S107, 108, Table S13) with ET efficiency reaching 88.66% (Fig. S109). Temperature-tunable donor molecules enabled temperature-dependent full-color afterglow systems (Fig. S110).

We developed a stimuli-responsive anti-counterfeiting ink using aqueous TPCS-4@PAM, leveraging its thermally stable and humidity-dependent afterglow properties. This ink enables programmable phosphorescence switching under UV, heat, or humidity (Fig. 4a). Besides, it can facilitate high-resolution multi-dimensional codes for real-time humidity monitoring through reversible green afterglow modulation (Fig. 4b). The hygroscopic PAM matrix governs humidity sensitivity, with adsorbed H2O quenching emission, reversed by dehydration at 373 K, demonstrating cyclic stability over 10 heating cycles (Figs. S111–113). TPCS-4@PAM exhibited impressive stability and application potential: it maintained stable peak profiles and phosphorescent intensity during 1000 delayed emission spectral scans (Figs. S114, 115), confirming good photostability; its HTA properties persisted after 12 months under ambient conditions (Figs. S116). Spatially resolved encryption matrices fabricated from TPCS-1@PAM and TPCS-4@PAM advance dynamic information security systems (Fig. 4c).

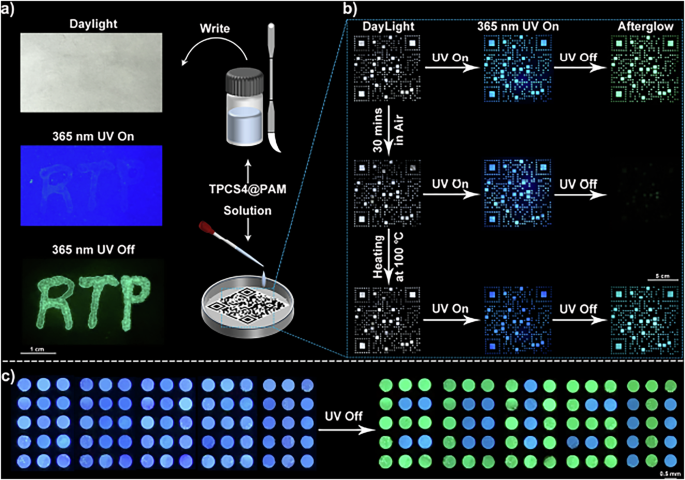

Fig. 4: Applications of organic HTA materials for anti-counterfeiting and data encryption.
figure 4

a Demonstration of cryptographic anti-counterfeiting ink using TPCS-4@PAM solution. b Development of high-resolution multi-dimensional codes with tunable afterglow properties. c Creation of an ultra-long delayed emission information encryption matrix based on TPCS-1@PAM (blue) and TPCS-4@PAM (green).

Full size image

A simulated server room validated the high-temperature monitoring capabilities of the materials using dual-emission thermo-responsive markers (Fig. 5a). The system provides three distinct optical outputs through programmable afterglow quenching: complete emission at safe temperatures, selective blue component quenching at warning thresholds (>80°C), and full quenching in error conditions (>150 °C), with humidity-responsive behavior (Fig. 5b). Real-time monitoring demonstrated ability of HTA materials to visually map thermal profiles under operational extremes (Fig. 5c), confirming their dual-parameter (temperature/humidity) sensing utility in confined electronic environments.

Fig. 5: Applications of organic HTA materials for temperature monitoring.
figure 5

a Actual photographs of the server room and the temperature sensing markers. b Operational output signals of HTA materials across different temperature ranges within the server room. c Photographs of the monitoring process at various temperatures within the server room.

Full size image

Discussion

This study introduces a valuable approach to achieve daylight-excited efficient and stable phosphorescence in flexible polymer films through host-guest hydrogen-bonding. The flexible films demonstrate good phosphorescence thermal tolerance, maintaining afterglow emission for approximately 5 seconds even at elevated temperatures up to 423 K. By integrating single-bond rotors into phosphorescent cores with multiple hydrogen-bonding sites, the flexible film with rare temperature-modulated HTA property (wavelength from 508 to 450 nm; lifetime from 836 ms-298 K to 6.34 ms-473 K) has been established. Control experiments and DFT calculations establish that guest molecular conformation-modulation drive the observed phenomena. The reversible HTA ensure the erasability of the phosphorescence, highlighting the dynamic nature of these materials. These materials show potential application value in dynamic anti-counterfeiting, information encryption, and environmental temperature monitoring.

Methods

Materials

All reagents and solvents employed were commercially available and used as received without further purification. 4,4’,4”-Nitrilotribenzoic acid (TPCA-1), 4’,4”‘,4”“‘-Nitrilotris(([1,1’-biphenyl]-4-carboxylic acid)) (TPCA-2), 4”,4”“‘,4”“‘“‘-Nitrilotris(([1,1’:4’,1”-terphenyl]-4-carboxylic acid)) (TPCA-3) and 4,4”,4”“-Nitrilotris(([1,1’-biphenyl]-3,5-dicarboxylic acid)) (TPCA-4) was purchased from Bide Pharmatech commercially. Sodium hydroxide (NaOH) and polyacrylamide (PAM) was purchased from Adamas commercially. All chemicals have a purity of 99%.

General methods

The UV-Vis absorption spectra were obtained by a Shimadzu UV-2600 spectrophotometer. Phosphorescence, and lifetime of delayed emission spectra were recorded on an Agilent Cary Eclipse spectrophotometer. Phosphorescence mode; Delay time = 4 ms; Gate time = 5 ms. Absolute PL quantum yields were determined with a spectrometer C11347-11 (Hamamatsu, Japan). Powder X-ray diffraction (XRD) was performed on a D/max 2550VB/PC. FT-IR spectra were recorded on an INVENIO S + . All the tests were performed at 25 °C if no special statement.

Preparation of PAM solution

Weigh PAM 200 mg to the 20 mL Vial and add 16 mL H2O into it, then stir the solution overnight until completely dissolved.

Preparation of TPCA-4@PAM film. TPCA-4 (2 mg, 0.00271 mmol) was dissolved in DMF (4 mL). The solution was added to the aforementioned PAM solution with stirring for 30 min. The mixed precursor solution was then cast into a polytetrafluoroethylene (PTFE) mold and heated to 60 °C under ambient pressure. Slow solvent evaporation over 12 h yielded a uniform flexible film. The obtained film was subsequently annealed in a vacuum oven at 60 °C for 12 h before characterization.

Preparation of TPCS-4@PAM film

After complete dissolution of the aforementioned PAM solution, TPCS-4 (2 mg, 0.0023 mmol) was added and stirred for 30 min to ensure homogeneous dissolution. The mixed precursor solution was then cast into a PTFE mold and heated to 60 °C under ambient pressure. Slow solvent evaporation over 12 h yielded a uniform flexible film. The obtained film was subsequently annealed in a vacuum oven at 60 °C for 12 h before characterization.

DFT calculation

Density functional theory (DFT) and time-dependent (TD) DFT calculations were performed with the Gaussian 09 (Revision E.01) software package. The ground-state (S0) geometries were optimized with the M062X and def2svp basis.
