Fig. 3: Structural characterizations of the synthesized Co-TPDC-MOF.
From: Low-strain metal–organic framework negative electrode for stable all-solid-state batteries

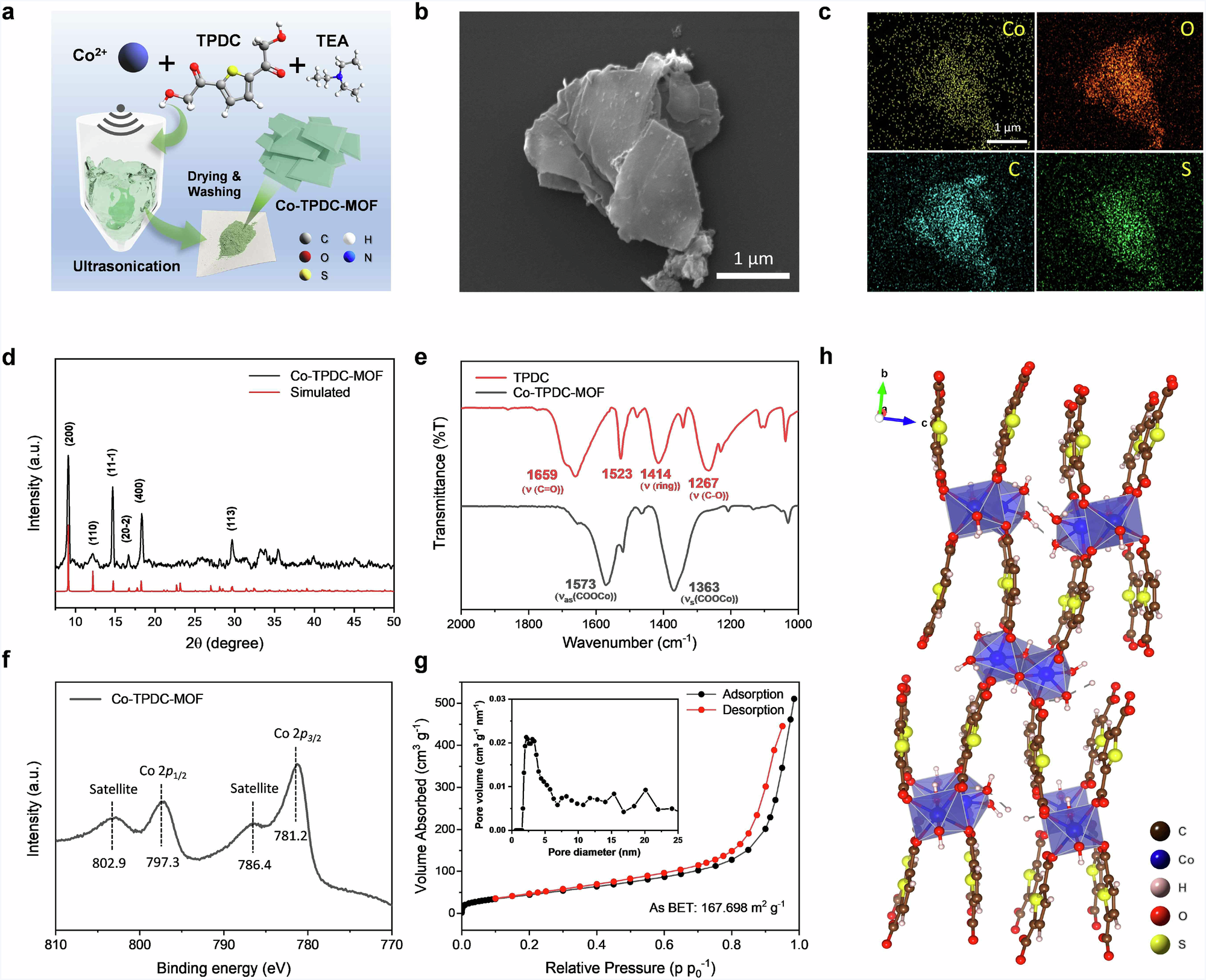

a Schematic representation of the synthesis process of Co-TPDC-MOF. SEM image (b) and EDS elemental mapping (c) of Co-TPDC-MOF, showing the uniform distribution of Co, O, C, and S elements. d XPD pattern of Co-TPDC-MOF. e FT-IR spectra of the TPDC ligand and Co-TPDC-MOF. f High-resolution Co 2p XPS spectra of Co-TPDC-MOF. g Nitrogen adsorption and desorption isotherms and the corresponding mesoporous analysis of Co-TPDC-MOF. h Crystal structure of Co-TPDC-MOF along the a-axis, visualized with VESTA54.
