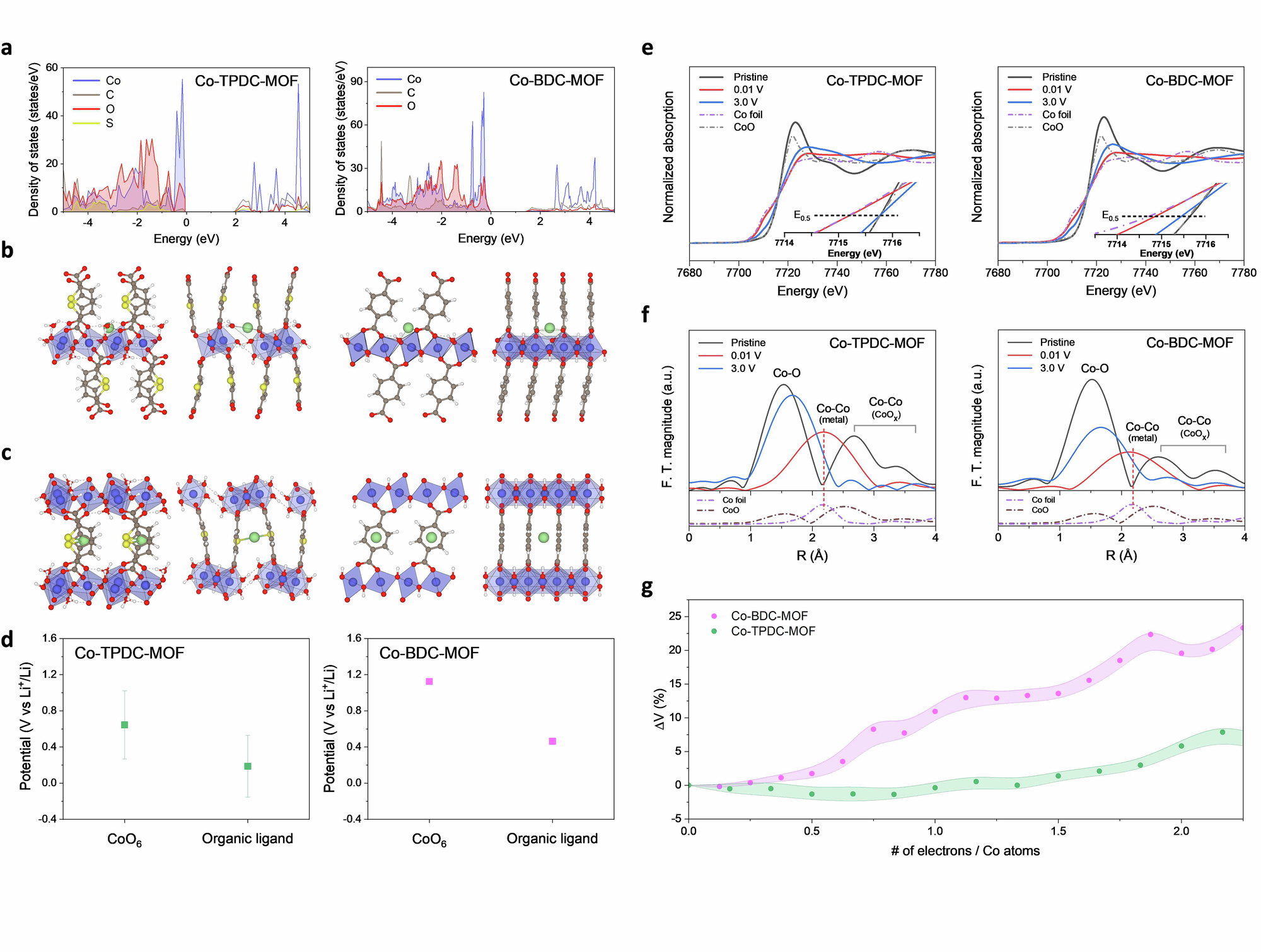

Fig. 5: DFT calculation and ex situ XAS analysis of the Li storage mechanism of Co-TPDC-MOF and Co-BDC-MOF.
From: Low-strain metal–organic framework negative electrode for stable all-solid-state batteries
