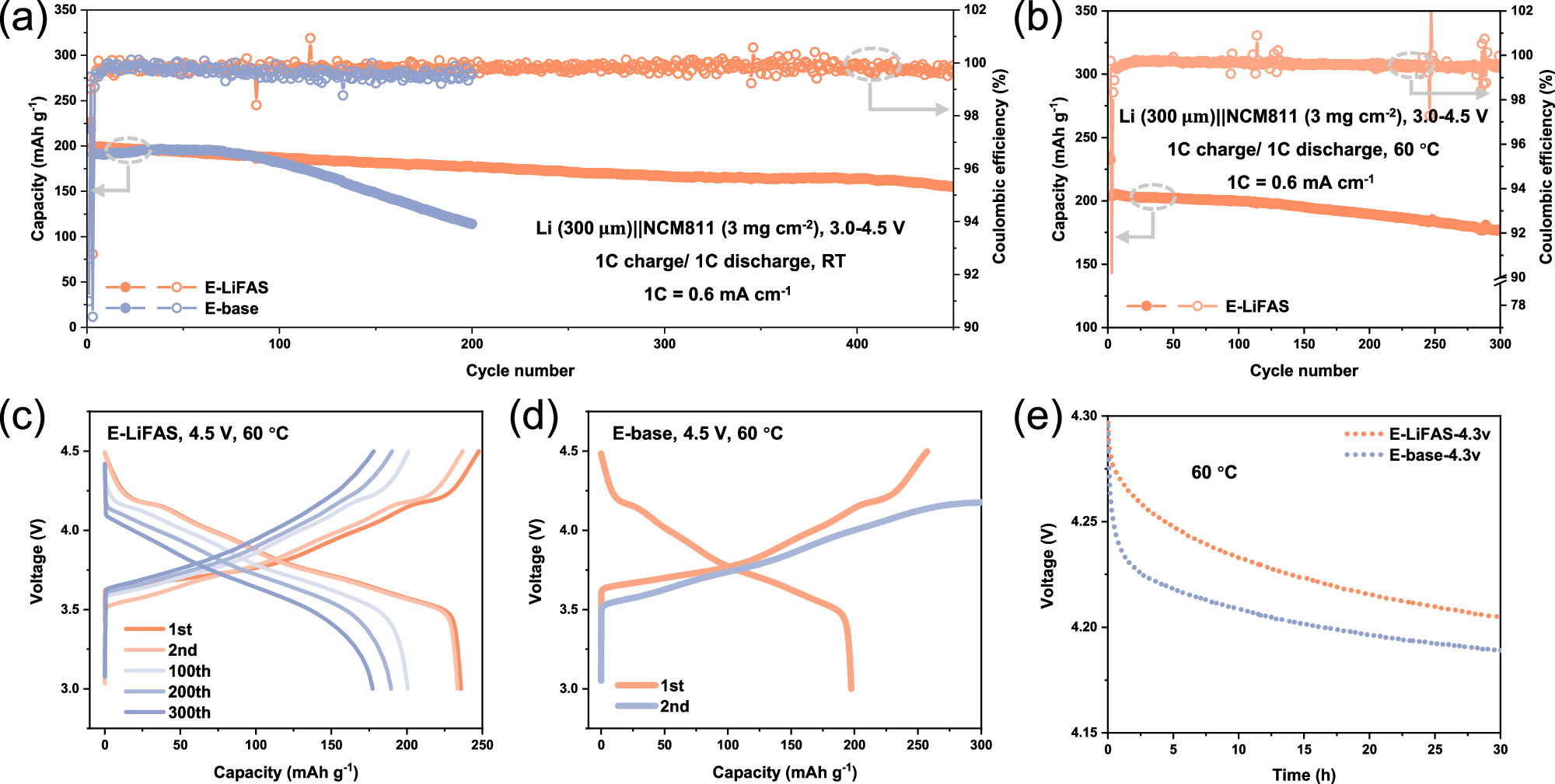

Fig. 4: Electrochemical performance and Al corrosion inhibition mechanism of Li||NCM811 metal cells.

From: Non-corrosive asymmetric fluorinated aryl sulfonimide lithium salt for high-temperature and high-voltage lithium metal batteries

Fig. 4

a Cycling performance of Li(300 μm)||NCM811(3 mg cm−2) cells between 3.0 and 4.5 V in E-LiFAS and E-base at RT. b Cycling performance of Li (300 μm)||NCM811(3 mg cm−2) cells between 3.0 and 4.5 V in different electrolytes at 60 °C. c, d Corresponding voltage-capacity curves for Li||NCM811 cells in c E-LiFAS and d E-base. e Self-discharge curves of Li||NCM811 cells stored at 60 °C. Each half-cell electrolyte volume: 70 μL.
