Introduction

Spins in semiconductors are often considered as one of the major candidates for quantum information processing1,2. They can be extremely well isolated from their environment by choosing a proper ultrapure surrounding lattice, that contains only nuclei with zero spin. Consequently, they can safely store quantum information with low error rates3. The primary obstacle in developing a spin-based quantum processor is the realization of gates between distant individual spins4,5,6. Indeed, quantum computation requires in addition to single qubit gates, a two qubit controlled rotation which rotates the spin of a target qubit if and only if the control qubit is oriented in a given direction. For impurity donors, one possible approach consists of directly coupling adjacent spins by electrically controlling their exchange interaction7. Although this method can potentially yield coupling strengths on the order of GHz8, it requires positioning the donor atoms less than 15 nm apart. This proximity requirement presents substantial challenges for the fabrication of the ancillary structures needed for control and readout of the qubit register.

Indirect coupling strategies involve using a common intermediate element such as a superconducting resonator to couple distant spins at long distances9,10,11,12. The magnetic coupling strength of a single electron spin to a superconducting resonator is however extremely small. It can be estimated from the amplitude of the magnetic field fluctuations, δB, generated by the circuit. Assuming an infinitely thin wire, the field fluctuations are given by Biot and Savart law as \(\delta B=\frac{{\mu }_{0}\delta I}{2\pi r}\) where \(\delta I={\omega }_{r}\sqrt{\hslash /(2{Z}_{0})}\) are the current fluctuations in the wire, r is the distance from the wire to the spin, Z0 the characteristic impedance of the resonator and ωr its resonance frequency13. Assuming the electron behaves as a point-like particle and the magnetic field δB is oriented in a direction perpendicular to the spin axis, the magnetic coupling is given by \({{{{\mathcal{H}}}}}_{c}=\frac{\hslash }{2}{\gamma }_{e}\delta B\,{\sigma }_{s}^{x}\left(a+{a}^{{{\dagger}} }\right)\) where γe/2π = 27.997 GHz T−1 is the electron gyro-magnetic ratio, \({\sigma }_{s}^{x}\) is a Pauli operator acting on the spin degree of freedom and a and a+ are respectively the annihilation and creation operators of an excitation (photon) in the resonator. We thus obtain the coupling constant,

$$\frac{g}{2\pi }=2.8\frac{\delta I\left[{{{\rm{nA}}}}\right]}{r\left[{{{\mathrm{\mu }}}}{{{\rm{m}}}}\right]}\left[{{{\rm{Hz}}}}\right].$$
(1)

A microwave resonator with resonance frequency in the GHz and designed with a low impedance14 exhibits current fluctuations comprised between 30 and 50 nA, which give rise to a coupling constant of only 1 kHz for a spin situated at a distance of approximately 100 nm from the circuit.

One solution to overcome this weak coupling consists of translating the spin degree of freedom into an electrical dipole. Indeed, the coupling strength of an electrical dipole to a microwave resonator may be orders of magnitude larger than for a magnetic dipole. In 2015, Viennot et al.15 used this method to translate an electron spin in a carbon nanotube into an electrical dipole, by the application of a local magnetic gradient, reaching the strong coupling regime. Along these lines, Petta and coworkers have demonstrated the strong coupling between a silicon double quantum dot and a microwave coplanar waveguide resonator16. In a follow-up experiment, they added a cobalt micro-magnet to transfer the spin degree of freedom to the position of the electron in the double quantum dot17. A spin–photon coupling rates of up to 11 MHz was reported and the strong coupling was achieved. However, due to the presence of charge noise, the spin decoherence rate was severely degraded to a few megahertz.

Clearly, using an electrical degree of freedom is a good solution for reaching the strong coupling regime between a nano-object and a microwave resonator. However, the same electrical degree of freedom makes this nano-object sensitive to electrical noise which implies a severe degradation of its coherence properties. A spin is intrinsically immune to charge noise, but its magnetic coupling to a circuit is small and thus requires large current quantum fluctuations (see Eq. 1).

Results

In this work, we couple spins to a highly non-linear circuit with huge current quantum fluctuations18,19,20. This circuit - called a superconducting flux qubit - consists of a superconducting loop intersected by four Josephson junctions, among which one is smaller than the others by a factor α. It behaves as a two-level system when the flux threading the loop is close to half a flux quantum Φ ~ Φ0/221,22,23. Each level is characterized by the direction of a macroscopic persistent current IP flowing in the loop of the qubit. The value of the persistent current IP, typically of the order of 300–500 nA, gives rise to a huge magnetic moment (~5 PHz T−1), making the energy of each level extremely sensitive to external magnetic flux. At Φ = Φ0/2, the two levels are degenerate, hybridize and give rise to an energy splitting ℏΔ called the flux-qubit gap, accompanied with large current fluctuations δI = IP. Close to Φ0/2, the effective Hamiltonian of the circuit can be written as

$${{{{\mathcal{H}}}}}_{qb}=\frac{\hslash }{2}\left(\Delta {\sigma }_{qb}^{z}+\varepsilon {\sigma }_{qb}^{x}\right)$$
(2)

where \(\varepsilon=\frac{2{I}_{P}}{\hslash }\left(\Phi -\frac{{\Phi }_{0}}{2}\right)\), \({\sigma }_{qb}^{z}\) and \({\sigma }_{qb}^{x}\) are Pauli operators acting on the subspace formed by the ground \(\left\vert 0\right\rangle\) and first excited \(\left\vert 1\right\rangle\) eigenstates of the circuit Hamiltonian. The two major issues with flux qubit designs are device-to-device gap reproducibility and coherence24,25,26,27,28. These problems have recently been solved by new fabrication techniques that allow for an extremely good control of e-beam lithography, junction oxidation parameters, and surface treatment of the sample29.

The second parameter to optimize the magnetic coupling is the distance between the spin and the circuit (see Eq. 1). The spin species should be chosen carefully to allow for this precise positioning. Here, bismuth donors in silicon (Si:Bi) are chosen since they can be implanted near the surface with good yield and low straggling30 and possess long coherence times31,32. The bismuth donor has a nuclear spin \(I=\frac{9}{2}\) and an electron spin \(S=\frac{1}{2}\). The Hamiltonian of a single bismuth donor in silicon can be written as follows

$${{{{\mathcal{H}}}}}_{{{{\rm{Si}}}}:{{{\rm{Bi}}}}}=+ {\gamma }_{e}\overrightarrow{S}\cdot \overrightarrow{B}-{\gamma }_{n}\overrightarrow{I}\cdot \overrightarrow{B}+\frac{A}{\hslash }\,\overrightarrow{S}\cdot \overrightarrow{I}$$
(3)

The first two terms in the Hamiltonian are respectively the Zeeman electronic and nuclear terms, γn/2π = 6.962 MHz T−1 being the nuclear gyro-magnetic ratio. The last term is the hyperfine coupling term (A/2π = 1.4754 GHz) and is isotropic due to the symmetry of the donor. One of the advantages of bismuth donors is their large hyperfine coupling constant, which gives rise to an electron spin resonance transition at 5A/2π =7.377 GHz without application of an external magnetic field33,34,35. As we will see in the following, this frequency range is very convenient for resonantly coupling such a spin to a superconducting flux qubit.

Device description and characterization

In this work, the Si:Bi donors are positioned at a depth of approximately 20 nm below the surface in regions of implantation of 500 × 100 nm. Each region contains a total of approximately 60 active electron spins (following Poisson statistics).

Aluminum deposited directly on top of a native silicon substrate gives rise to a Schottky barrier in which the bismuth donors may be ionized34. Indeed, aluminum has a higher work function Φ = 4.25 V than the electron affinity in silicon χ = 4.05 V. Bismuth is a shallow donor situated at EB,Si:Bi = 71 mV below the conduction band. Thus, an electron occupying the donor site is situated at a higher electro-chemical potential than the Fermi level of the aluminum, leading to spontaneous ionization of the donors in the so-called depletion zone. A well-known solution to this problem consists of introducing a thin insulating layer of silicon oxide (SiO2) in order to prevent the exchange of electrons between the substrate and the aluminum. Consequently, our sample is fabricated on a 5 nm thermally grown silicon oxide layer29. By applying a positive voltage on the top electrode, it is possible to be assured that the donors cannot be ionized. Inversely, the donors become ionized below a specific voltage threshold.

In Fig. 1a, we present a λ/2 coplanar waveguide resonator design which allows the application of this DC voltage. To achieve this goal, the resonator is terminated on the left by a capacitor and on the right by a Bragg filter (see Methods). The voltage bias is applied directly on the Bragg filter port between the central strip and the ground plane. A positive voltage V = 0.5 V should be maintained during the cool-down, such that the donors below the central conductor will retain their electrons (see Supplementary Fig. 4). A series of eleven flux qubits is connected galvanically to the central conductor of the resonator. In Fig. 1b, we present an Atomic Force Microscope (AFM) micrograph of one of these qubits. It contains a thin constriction of aluminum (20 × 500 nm) that crosses an implantation region as shown in Fig. 1c.

Fig. 1: Circuit implementation and characterization.
Fig. 1: Circuit implementation and characterization.
Full size image

a λ/2 coplanar waveguide resonator coupled galvanically to a series of flux qubits. The resonator is terminated on the left side by a capacitor and on the right side by a Bragg filter (see Methods). A DC voltage is applied between the central conductor and the ground. b Atomic Force Microscope (AFM) micrograph of one of the qubits galvanically connected to the central conductor of the resonator. c Close-up view of a 20 nm constriction in the loop of the qubit. This constriction is aligned with the implantation zone of Si:Bi donors represented as an orange rectangle. d, e Amplitude and phase of the reflected signal on the capacitor port. The total quality factor QT of the resonator is such that 1/QT = 1/Qc + 1/Ql, where Qc is the quality factor due to losses via the coupling capacitor and Ql represents the remaining losses of the circuit. f Spectroscopy of the flux qubit represented in (b) in the vicinity of Φ0/2. g Measurement of the relaxation of the qubit (in green) and of the Hahn echo decay (in blue). Pe is the probability to find the qubit in its excited state. h Measurement of the Ramsey oscillations (in red).

We now present experiments on the spectroscopic measurements for characterization of the qubit-resonator system (See Methods for more details on the experimental setup). In Fig. 1d, e, we present the amplitude and phase of the reflected signal on the capacitor port. One can extract from these measurements the frequency of the resonator ωr/2π = 9.832 GHz and its quality factor Q = 2000. In Fig. 1f, we present the spectroscopy of the flux qubit which will be used in the following experiment to detect and couple Si:Bi spins. One can extract from this measurement the qubit gap Δ/2π = 7.257 GHz and its persistent current Ip = 276 nA. We now turn to the coherence times at the so-called optimal point where the qubit frequency is minimal and thus insensitive to flux-noise to first order24,25,29. Energy relaxation decay is shown in Fig. 1g from which we extract \({\Gamma }_{qb}^{1} \sim 150\,{{{\rm{kHz}}}}\). This decay rate is considerably higher than what was obtained in ref. 29 and may be due to higher dielectric losses in the substrate due to the presence of residual dopants or to a bad interface between the epilayer and the substrate. Ramsey fringes show an exponential decay with \({\Gamma }_{qb}^{2R} \sim 630\,{{{\rm{kHz}}}}\) and pure dephasing rate \({\Gamma }_{qb}^{\varphi R}={\Gamma }_{qb}^{2R}-{\Gamma }_{qb}^{1}/2 \sim 550\,{{{\rm{kHz}}}}\). The spin-echo decays exponentially with a pure echo dephasing rate of \({\Gamma }_{qb}^{\varphi E} \sim 100\,{{{\rm{kHz}}}}\). Away from the optimal point the pure dephasing rate becomes dominated by 1/f flux noise and increases proportionally with ε, giving access to the amplitude of flux noise \(\sqrt{A}=2.0\,\mu {\Phi }_{0}\)29. This value is significantly higher than typical flux noise amplitudes for qubits fabricated with the same technique and measured under similar conditions29 and again may be related to the presence of residual dopants in the substrate.

Detection of single bismuth donors

Clearly, working at the flux qubit optimal point is required if one wishes to have a flux qubit with good coherence properties. It is therefore important to engineer the flux qubit gap to be resonant with the spins if one wishes to make a coherent exchange. We achieve resonance by applying a resonant Rabi drive on the flux qubit biased at its optimal point36. The driven Hamiltonian is written as

$${{{\mathcal{H}}}}=\hslash \frac{\Delta }{2}{\sigma }_{qb}^{z}+\frac{\hslash {\omega }_{s}}{2}{\sigma }_{s}^{z}+\hslash g{\sigma }_{qb}^{x}{\sigma }_{s}^{x}+\hslash \Omega {\sigma }_{qb}^{x}\cos \left(\Delta t\right)$$
(4)

Even if the coupling constant g is several orders of magnitude smaller than the detuning δ = ωs − Δ, one can show that this Hamiltonian is equivalent to a time-independent flip-flop Hamiltonian when the condition \(\Omega=\left\vert \delta \right\vert\) is satisfied (for more details see Methods). The advantage of this coupling scheme is that one can turn on and off the coupling by controlling the amplitude Ω of the microwave tone.

In Fig. 2a, we present a protocol to detect the presence of impurity donors or more generally any two-level systems (TLS) in the vicinity of the flux qubit. A first pulse operates a rotation of  −π/2 around the Y axis of the Bloch sphere and transfers the qubit initialized in its ground state to the \(\left\vert+\right\rangle=\left(\left\vert 0\right\rangle+\left\vert 1\right\rangle \right)/\sqrt{2}\) state. This state being an eigenstate of \(\hslash \Omega {\sigma }_{qb}^{x}/2\) should remain unchanged in the presence of a second pulse along the X axis of amplitude Ω and frequency Δ. The third pulse operates a rotation of  −π/2 around the Y axis and brings the qubit to its excited state, \(\left\vert 1\right\rangle\). The presence of an impurity donor or TLS modifies this picture when Ω = ∣δ∣37. In that case, the qubit can exchange its excitation during the application of the second pulse with a spin or TLS initially in its ground state \(\vert \downarrow \rangle\). Consequently, the flux qubit state does not reach \(\left\vert 1\right\rangle\) after the third pulse is applied.

Fig. 2: Detection of two-level systems by spin-locking.
Fig. 2: Detection of two-level systems by spin-locking.
Full size image

a A first pulse Y(−π/2) puts the flux qubit in its |+⟩ state. A second pulse X(Ωt) tunes on the interaction of the qubit with a two-level system when the condition \(\Omega=\left\vert \delta \right\vert\) is satisfied. A third pulse Y(−π/2) projects the flux qubit to its excited state \(\left\vert 1\right\rangle\) in the absence of resonant interaction. b Expectation value \( < {\sigma }_{qb}^{z} > \) of the flux qubit state, measured after the pulse sequence shown in (a), versus pulse amplitude Ω and duration t when VDC = 0.5 V. A close-up view of the region surrounded by the black dashed lines in shown in Fig. 3b. c Expectation value \( < {\sigma }_{qb}^{z} > \) of the flux qubit state as a function of pulse amplitude Ω and duration t, when VDC = −0.5 V. d Signal measured at VDC = −0.5 V and Ω/2π = 60.5 MHz, indicated by a black arrow in (c). A two-level system (TLS) of frequency \({\omega }_{s}/2\pi=\left(\Delta+\Omega \right)/2\pi=7.3175\,{{{\rm{GHz}}}}\) is detected. The dashed line is the result of a Linblad simulation assuming jump operators \({L}_{qb,s}^{1}=\sqrt{{\Gamma }_{qb,s}^{1}}{\sigma }_{qb,s}^{-}\) and \({L}_{qb,s}^{\varphi }=\sqrt{{\Gamma }_{qb,s}^{\varphi }}{\sigma }_{qb,s}^{z}\) for the flux qubit and the TLS respectively. The value of \({\Gamma }_{qb}^{1}=150\,{{{\rm{kHz}}}}\) and \({\Gamma }_{qb}^{\varphi }=40\,{{{\rm{kHz}}}}\) are taken from the qubit characterization. A fit of the experimental data gives us \({\Gamma }_{s}^{1}=140\,{{{\rm{kHz}}}}\), \({\Gamma }_{s}^{\varphi }=200\,{{{\rm{kHz}}}}\) and the coupling between the flux qubit and the TLS g/2π = 1.8 MHz.

Figure 2b shows a color plot representing the flux qubit state at the end of the sequence versus the second pulse amplitude and duration. A change in the color is observed when the qubit can efficiently exchange energy with a surrounding TLS. The measured spectrum unveils that a large number of TLSs interacts with the qubit. This spectrum may vary as a function of time on a typical timescale hours or days. Some rare events affect several TLSs together with frequency jumps that can reach tens of megahertz. The spectrum can also be modified by changing the gate voltage as shown in Fig. 2c. If the TLS is an impurity donor in the silicon wafer, it should be ionized when a negative voltage is applied. Some TLSs are strongly coupled to the qubit and can exhibit coherent exchange (see Fig. 2d) but most of them have a rather short relaxation time. In the following, we will use this short relaxation time as a way to filter the signal coming from the Si:Bi donors.

The relaxation time T1 of donors in silicon can be extremely long at low temperatures. In ref. 38, the relaxation time of a single phosphorous donor was measured to be T1 ~ 0.7 s. In ref. 35 non-radiative energy relaxation of an ensemble of bismuth donors was measured to be even longer, reaching approximately 1500 s at dilution temperatures T = 20 mK. We devise a method to filter signals from short-lived TLS. In Fig. 3a, b, we apply twice the protocol described in Fig. 2a and represent the difference between the measurement after the first and second pulse sequences. Thus, only species with a relaxation time longer than the duration of the sequence will appear. In our range of interest, three lines can still be observed. We measure signals at ωs1/2π = 7.3712 GHz, ωs2/2π = 7.3692 GHz, ωs3/2π = 7.3687 GHz, which disappear under a negative voltage bias.

Fig. 3: Detection of Bismuth donors.
Fig. 3: Detection of Bismuth donors.
Full size image

a Protocol for filtering out two-level systems with short relaxation times (\({T}_{s}^{1}\, < \!\! < \,{t}_{{{{\rm{relax}}}}}\)). To achieve this, we repeat the sequence shown in Fig. 2a and compare the results of the first (R1) and second (R2) qubit readouts. b Qubit state readout versus Rabi frequency (Ω) and interaction time (t) after the first pulse sequence (R1), after the second pulse sequence (R2) and the difference between the readout results (R1 − R2). Only spins with a relaxation time longer than the relaxation time trelax are still visible. Three Si: Bi donors are detected at ωs1/2π = 7.3712 GHz, ωs2/2π = 7.3692 GHz, ωs3/2π = 7.3687 GHz. These three spectral lines disappear when the bias voltage is tuned to VDC = −0.5 V. c Coherent oscillations between the driven flux qubit and spin 3. The dashed lines are the results of a Linblad simulation assuming jump operators \({L}_{qb}^{1}=\sqrt{{\Gamma }_{qb}^{1}}{\sigma }_{qb}^{-}\) and \({L}_{qb}^{\varphi }=\sqrt{{\Gamma }_{qb}^{\varphi }}{\sigma }_{qb}^{z}\) for the flux qubit, with \({\Gamma }_{qb}^{1}=150\,{{{\rm{kHz}}}}\) and \({\Gamma }_{qb}^{\varphi }=40\,{{{\rm{kHz}}}}\) and assuming no decoherence or relaxation from the bismuth spin. From this measurement, one can extract the coupling constant between the qubit and the spin gs3/2π = 84 kHz.

The frequencies of the detected signals are close to the zero field splitting of bismuth donors in bulk silicon (7.377 GHz) but slightly shifted. The shift of the spectral lines is due to the close proximity of the aluminum wire, which generates mechanical stress resulting from the mismatch of the coefficient of thermal expansion between the substrate and the metal. This stress induces a shift in the hyperfine coupling strength that has been experimentally measured39,40. To first approximation, one may introduce modifications to the constant A depending on diagonal terms only of the strain tensor ε. Namely,

$$\frac{\Delta A}{A}=\frac{K}{3}\left({\varepsilon }_{xx}+{\varepsilon }_{yy}+{\varepsilon }_{zz}\right)$$
(5)

with K = 19.140. Using the simulation of Supplementary Fig. 2c, we see that these frequency shifts are compatible with bismuth donors lying in the close vicinity of the constriction and we can infer their approximate distance to the circuit.

In Fig. 3c, we present the expectation value \( < {\sigma }_{qb}^{z} > \) as a function of interaction time t between one of the donors (spin s3) and the resonantly driven qubit. Coherent exchange between the driven flux qubit and the bismuth electron spin is observed. This measurement enables us to extract the coupling between the qubit and the spin, as was done previously in Fig. 2c for an arbitrary TLS. We repeat this measurement for the three single donors and find their respective coupling constants with the qubit, namely gs1/2π ~ 45 kHz, gs2/2π ~ 62 kHz and gs3/2π ~ 84 kHz. These values are in good agreement with what is expected from a simple Biot and Savart simulation (see Supplementary Fig. 2d.), assuming that spins are point-like particles.

Initialization and purcell relaxation of a bismuth donor

A first application of the coupling described herein above consists of quickly initializing the spins, without waiting for their long relaxation time. Preparing the state of the flux qubit in \(\left\vert+\right\rangle\) (or \(\vert -\rangle\)) and letting the system evolve for t = π/g will set the spin to state \(\vert \uparrow \rangle\) (or \(\vert \downarrow \rangle\) respectively), independently of the initial spin state. The purity of the spin state is affected by the flux qubit decoherence during the interaction time. One way to improve the preparation of the target state (\(\vert \downarrow \rangle\) or \(\vert \uparrow \rangle\)) consists of repeating the protocol, typically two to five times36. The repetition of the protocol improves the state initialization until it reaches an asymptotic value.

Once its state is well initialized, the spin can serve as a quantum memory for the flux qubit. In Fig. 4a, b, we present a measurement of this memory. Here, the spin is first initialized in \(\vert \uparrow \rangle\). After a waiting time twait, its state is mapped back to the qubit by allowing the system to evolve for t = π/g with a qubit prepared initially in the state \(\left\vert -\right\rangle\). This measurement enables us to extract the relaxation time of the spin, which is approximately \({T}_{s}^{1} \sim 10\,{{{\rm{s}}}}\). This relaxation time may be limited by Purcell effect via the qubit. To illustrate this point, one can drive the qubit close to resonance during the waiting time to enhance Purcell relaxation35. For instance, the relaxation rate of the spin can be increased to \({\Gamma }_{s}^{P} \sim 1\,{{{\rm{kHz}}}}\) when the driven qubit is detuned from the spin by (Ω − δs3)/2π = −4 MHz.

Fig. 4: Initialization and Purcell relaxation of the spin.
Fig. 4: Initialization and Purcell relaxation of the spin.
Full size image

a Protocol for initializing the spin state in its excited state state (Swap( + )) or in its ground state (Swap( − )) and for measuring the spin relaxation time. The pulse X(π) corresponds to the application of a pulse of amplitude Ω = ∣δ∣ in the X direction for a duration t = π/g. The pulse \(X({\Omega }^{{\prime} }{t}_{wait})\) corresponds to the application of a pulse of amplitude \({\Omega }^{{\prime} }\) in the X direction for a duration twait. The purity of the spin state after a simple Swap is around 75% but it may be increased to around 82% by repeating 3–5 times the protocol. Higher purity could be obtained if the flux qubit had longer relaxation time. b Difference between the readout results (R3 − R4) versus waiting time twait following the protocol shown in (a). Without Rabi drive (\({\Omega }^{{\prime} }=0\)), we measure the intrinsic relaxation rate of the spin. The blue dashed line corresponds to the results of a Linblad simulation using the parameters introduced in Fig. 3c, with \({\Gamma }_{s}^{1}=0.1\,{{{\rm{Hz}}}}\). The asymptotic behavior of the simulation shows that for large waiting times, the spin is cooling the qubit state before the readout R3. In presence of a Rabi drive \(\left.({\Omega }^{{\prime} }-{\delta }_{s3})/2\pi \sim -4\,{{{\rm{MHz}}}}\right)\), the spin relaxation rate is increased to \({\Gamma }_{s}^{P} \sim 1\,{{{\rm{kHz}}}}\). The green dashed line corresponds to the results of the Lindblad simulation taking into account these parameters. The asymptotic behavior of the simulation shows that the driven qubit is warming up the spin to a fully statistical mixture.

Discussion

With approximately 60 activated bismuth donors intentionally introduced in the implantation region, we were expecting to find around three spins beneath the aluminum constriction. Detecting three long-lived signals in the good frequency range is thus a strong indication (but not an absolute proof) that these signals originate from implanted spins.

As mentioned earlier, most random TLSs have a rather short relaxation time in the few microsecond range41,42. However, some rare TLSs may exhibit longer relaxation times, up to a few milliseconds43. To address this question quantitatively, we performed a statistical analysis of detectable TLSs (see Fig. 5). For a time trelax = 16 μs, the spectral density of these long-lived TLSs is around 0.22 MHz−1. As we increase trelax (32 μs or 60 μs), the spectral density of TLSs decreases to 0.17 MHz−1 or 0.09 MHz−1 respectively. At trelax = 150 μs, the TLSs become very rare with a spectral density of 0.06 MHz−1. Thus the probability to detect three random TLSs with long relaxation time (≥5 s) in a narrow frequency range of 4 MHz exists but is extremely low (much less than 1%).

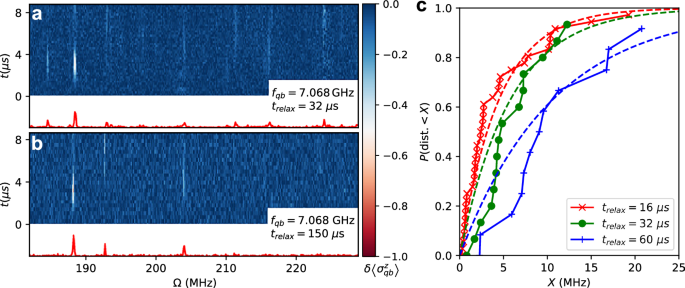

Fig. 5: Detection of random two-level systems.
Fig. 5: Detection of random two-level systems.
Full size image

a Detection of two-level systems (TLS) using protocol shown in Fig. 3a with a flux qubit at fqb = 7.068 GHz and trelax = 32 μs. b Detection of two-level systems using protocol shown in Fig. 3a with a flux qubit at fqb = 7.068 GHz and trelax = 150 μs. Only TLSs with relaxation time longer than 150 μs are still visible. c Probability P(d < X) for detecting the nearest TLS at a distance d smaller than X for different values of trelax. The dashed lines correspond to uniform distribution densities \(P(d < X)=1-\exp (-\rho X)\) with ρ = 0.22 MHz−1 (in red), ρ = 0.17 MHz−1 (in green) and ρ = 0.09 MHz−1 (in blue).

In addition, the behavior of the detected spectral lines under the application of an electric/magnetic field (see Supplementary Fig. 4 and Table 1) is in good agreement with the expected Stark/Zeeman shift of bismuth donors44.

The fidelity of the quantum memory protocol can be increased by having a qubit with longer relaxation and dephasing times. We suspect that the relatively short relaxation time of our qubit is related to the presence of residual dopants or a bad interface between the isotopically purified epilayer and the substrate. In future experiments, we could rather use a different technique where 28Si isotopically enriched regions can be directly formed on an intrinsic high resistivity sample. This technique allows for local isotopic enrichment through sputtering and implanting of a high fluence of 28Si ions45. Another important parameter to improve in further experiments is the stability of the drive power, which currently represents an intrinsic limitation of our experimental technique. Indeed, a typical microwave power stability of 0.2% will give rise to variations of the Rabi frequency of δΩ ~ 100 kHz, which is an issue for obtaining a good coherent exchange. One possible way to solve this question consists of using a double drive scheme where the flux qubit is driven simultaneously along two axes. This kind of technique has been already demonstrated for stabilizing Rabi oscillations46. It could be possible to exploit it further in order to establish an effective coupling between two spins, using the qubit as a mediator.

Methods

Experimental Setup

Experiments are performed at a temperature of  ~15 mK in a dilution refrigerator. Supplementary Fig. 1 shows a detailed schematic of the experimental setup. The sample is glued on a microwave printed circuit board made out of TMM10 ceramics, then enclosed in a copper box with low mode volume which is itself embedded into a superconducting coil that is used to provide magnetic flux biases to the qubits. To reduce low frequency magnetic noise, the coil is surrounded by a superconducting enclosure and magnetically shielded with a high permeability metal box. The apertures of the box are tightly closed using microwave absorber, in order to protect the sample from electromagnetic radiation that could generate quasiparticles.

The coil is powered by a voltage source filtered by a custom designed ultra-stable voltage to current converter. The microwaves are generated by ultra-low noise analog microwave synthesizers. The pulses are modulated at an intermediate frequency of 10–100 MHz by a Quantum Machines OPX system connected to IQ mixers. Voltage controlled attenuator is used to adjust the measurement pulse amplitude. The input line is attenuated at 4 K stage (−20 dB) and at the mixing chamber stage (−30 dB) to minimize thermal noise and filtered with homemade impedance-matched copper powder filters (−3 dB @ 10 GHz). In addition, the pulses are shaped with smooth rise and fall (~20 ns) in order to reduce the population of microwave photons in the resonator during coherent state evolution of the qubit. A DC voltage (VDC) is applied on the Bragg filter port of the resonator using a bias tee thermalized at 15 mK. Additionally, the input noise on this port is strongly filtered by an homemade Eccosorb low-pass filter (−150 dB @ 10 GHz).

Qubit state measurement is done using dispersive readout, by measuring the reflection of microwave pulses on the capacitor port of the resonator, using a custom built setup. The readout output line is filtered by two shielded double circulators and a 8–12 GHz band pass filter. The readout output signal is amplified using a low-noise cryogenic HEMT amplifier and a room temperature amplifier. After demodulation, the quadratures of the readout output pulse are sampled and averaged using the IQ inputs of the OPX system. At this point, we perform a principal axis transformation on the data points by diagonalizing their covariance matrix. Using this transformation, we extract the largest principal component of the measured (I, Q) points and obtain the state of the qubit.

Sample design and fabrication

The sample is fabricated on a 300 μm thick wafer of natural silicon covered by a 10 μm isotopically enriched epilayer containing 730 ppm of residual 29Si and background doping of approximately 3 × 1016 cm−3 phosphorus donors. Before implantation, the sample is covered by a thermally grown 5 nm width SiO2 layer. This gate oxide step is followed by a forming gas annealing to passivate dangling bounds at the SiO2/Si interface.

Bismuth donors implantation

The Si: Bi donors are located in regions of size 500 × 100 nm which are defined by e-beam lithography using a polymethyl methacrylate (PMMA) mask (200 nm). The Si: Bi donors are positioned at a depth of approximately 20 nm below the surface by ion implantation with an energy of 26 keV (see SRIM simulation in Supplementary Fig. 2). The implantation area density is 2 × 1011 cm−2, which translates into a peak density of bismuth impurities of 2 × 1017 cm−3. The implantation is followed by a cleaning step to remove the PMMA mask and a rapid thermal annealing (1000 °C, Ar, 5 s) to activate the bismuth donors. Taking into account an activation ratio of 60%30, a total of approximately 60 electron spins are present in each implantation region. Dangling bounds at the SiO2/Si interface are passivated with an evaporation of a 50 nm aluminum layer followed by a forming gas annealing (400 °C, 30 min). This aluminum layer acts as a catalyst for atomic hydrogen which efficiently passivates the interface states. Then, the sample is etched by aluminum etchant and cleaned.

Coplanar waveguide resonator fabrication

After one night of pumping, we evaporate a clean layer of 150 nm aluminum onto the chip. Optical resist (AZ1505) is spun on the sample and a λ/2 coplanar waveguide resonator is patterned by UV laser lithography. This resonator is terminated on the left side by a capacitor and on the right side by a Bragg filter. The value of the capacitance is calculated by an electromagnetic simulator (Sonnet) to be CC ~ 5 fF. The Bragg filter is formed by eleven layers of identical length LBF = 3.44 mm with alternate characteristic impedance Z1 = 35 Ω and Z2 = 80 Ω. This change of characteristic impedance is obtained by changing the width of the central conductor and its spacing to the ground. The Bragg filter is designed to have a band gap centered around 8.3 GHz with a bandwidth at −3 dB of ±2.4 GHz, in order to protect the qubits from relaxation via the line. After development, the wafer is etched with aluminum etchant, followed by cleaning in N-Methylpyrrolidone (NMP) overnight.

Flux qubit fabrication

The flux qubits are fabricated by e-beam lithography using the so-called Dolan technique. In this work, we used a trilayer process27,29, in which a germanium mask, suspended on top of a  ~650 nm thick copolymer resist is employed. To achieve this, we spin a bilayer of copolymer resist (MMA(8.5)MAA-EL7), evaporate 60 nm of germanium onto the chip and spin a high contrast e-beam resist (CSAR 62) on the top of the germanium layer. The qubits are patterned by electron-beam lithography (50 kV, 660 μC cm−2). The development takes place in a solution of methyl isobutyl ketone/ isopropanol (MIBK/IPA = 3:1) for 240 s, followed by 60 s in IPA. The chip is then loaded into a Reactive Ion Etcher (RIE) to perform plasma etching with sulphur hexafluoride (SF6) in order to form the rigid germanium mask. The rigidity and conductance of the germanium mask helps to achieve sharper resolution and more stable dimensions. Moreover, this mask is immune to oxygen ashing which allows for cleaning the region below the mask.

After the RIE process, the copolymer resist that has been exposed under e-beam lithography is developed using MIBK/IPA=3:1. Areas under the qubit are thus automatically cleaned all the way down to the substrate surface. A final step of oxygen ashing further cleans the regions where aluminum will be deposited.

The sample is then loaded into a Plassys MEB 550S electron-beam evaporator and pumped overnight. For achieving the best resolution, we evaporate a first aluminum layer of 25 nm perpendicularly onto the sample (θ1 = 0°). This is done at low temperature (~ − 50 °C) to enable fine aluminum grain size required for the realization of the constrictions. A dynamical oxidation of the first aluminum layer is performed, by introducing a dynamic flow of oxygen/argon (15–85%) at a pressure of 20 μbar for 30 min. A second layer of 30 nm of aluminum is then evaporated at a temperature of  ~7 °C with an angle θ2 ~ 35°. This angle is adjusted in order to obtain a displacement d = 420 nm with respect to the first image. Finally, we make a static oxidation at pressure of 10 mbar for 10 min. This last step encapsulates the junctions with aluminum oxide and allows for a better aging.

Ion milling recontact

Direct contact between the coplanar waveguide resonator and the flux qubit does not form conductive contact due to the native oxide formed between the fabrication steps. To establish a galvanic contact, we re-connect the qubit to the resonator by evaporating a  ~150 nm-thick aluminum on the overlap regions, with an ion milling step (Argon, Vemitter = 500 V, Ianode = 17.5 mA, 20 s) prior to evaporation in order to remove the native oxide.

Characterization of the constrictions

The width of the evaporated aluminum constrictions should be minimal to increase the coupling. As shown in Supplementary Fig. 3, constrictions may manifest a penumbra effect when the germanium mask slit is sufficiently thin. This occurs when the viewing angle of the extended source is larger than the angle of the slit opening seen from the substrate surface. By conservation of matter, the quantity of evaporated aluminum passing through the slit is always given by s × t where s is the width of the slit and t is the thickness of evaporated aluminum. However, the aluminum is evaporated over a broadened zone on the substrate, resulting in partially evaporated regions (penumbra effect). The resulting profile can be computed as a convolution of the slit with the gaussian distribution of the source width. In Supplementary Fig. 3b, we show the broadened profile evaporated on the substrate as a function of the slit width, assuming t = 25 nm, coming from a source with a gaussian distribution of diameter W = 10 mm at a distance D = 500 mm and a mask suspended at height h = 650 nm. The maximum thickness of the profile grows with the slit width (see Supplementary Fig. 3c) and saturates only above a certain slit size s ≈ 25 nm. The minimal width is  ≈13 nm. We show an AFM micrograph of a typical constriction. The height profile of the constriction along the cut indicated in Supplementary Fig. 3d is shown in Supplementary Fig. 3e and illustrates the penumbra effect.

Dynamical coupling between the flux qubit and an arbitrary two-level system

In this work, we use a coupling scheme which can be turned on and off by the application of a microwave tone. In the spirit of ref. 36, we consider that the flux qubit is biased at its optimal point and coupled to a two-level system by a coupling constant g which is several orders of magnitude smaller than the detuning δ = ωs − Δ between the resonance frequencies of the two systems. One applies a resonant Rabi drive on the flux qubit. The driven Hamiltonian can be written as

$${{{\mathcal{H}}}}=\hslash \frac{\Delta }{2}{\sigma }_{qb}^{z}+\frac{\hslash {\omega }_{s}}{2}{\sigma }_{s}^{z}+\hslash g{\sigma }_{qb}^{x}{\sigma }_{s}^{x}+\hslash \Omega {\sigma }_{qb}^{x}\cos \left(\Delta t\right)$$

Under unitary transformation \({U}_{1}=\exp \left({{{\boldsymbol{i}}}}\frac{\Delta }{2}({\sigma }_{qb}^{z}+{\sigma }_{s}^{z})t\right)\) and after rotating wave approximation, we get

$${{{{\mathcal{H}}}}}_{1}=\hslash \frac{\delta }{2}{\sigma }_{s}^{z}+\hslash \frac{\Omega }{2}{\sigma }_{qb}^{x}+\hslash g\left({\sigma }_{qb}^{+}{\sigma }_{s}^{-}+{\sigma }_{qb}^{-}{\sigma }_{s}^{+}\right)$$

In the eigenbasis \(\left\vert \mp \right\rangle\) of \(\hslash \Omega /2{\sigma }_{qb}^{x}\), the above operators can be replaced by

$${\sigma }_{qb}^{\pm }\to \left({\sigma }_{qb}^{z}\mp {{{\boldsymbol{i}}}}{\sigma }_{qb}^{y}\right)/2\\ {\sigma }_{qb}^{x}\to {\sigma }_{qb}^{z}$$

In this basis \({{{{\mathcal{H}}}}}_{1}\) can be written as

$${{{{\mathcal{H}}}}}_{1} ={H}_{0}+V\\ {H}_{0} =\hslash \Omega \frac{{\sigma }_{qb}^{z}}{2}+\hslash \delta \frac{{\sigma }_{s}^{z}}{2}\\ V =\hslash g\left(\frac{{\sigma }_{qb}^{z}-{{{\boldsymbol{i}}}}{\sigma }_{qb}^{y}}{2}{\sigma }_{s}^{-}+\frac{{\sigma }_{qb}^{z}+{{{\boldsymbol{i}}}}{\sigma }_{qb}^{y}}{2}{\sigma }_{s}^{+}\right)$$

The expression of operators \({\sigma }_{1}^{-}\), \({\sigma }_{1}^{+}\), \({\sigma }_{2}^{-}\), \({\sigma }_{1}^{+}\) under unitary transformation \({U}_{2}=\exp \left({{{\boldsymbol{i}}}}(\frac{\Omega }{2}{\sigma }_{qb}^{z}+\frac{\delta }{2}{\sigma }_{s}^{z})t\right)\) can be easily estimated using Baker Campbell Hausdorff formula

$$\begin{array}{rcl}{\sigma }_{qb}^{+}& \to &{\sigma }_{qb}^{+}{e}^{+{{{\boldsymbol{i}}}}\Omega t}\\ {\sigma }_{qb}^{-}&\to &{\sigma }_{qb}^{-}{e}^{-{{{\boldsymbol{i}}}}\Omega t}\\ {\sigma }_{s}^{+}&\to &{\sigma }_{s}^{+}{e}^{+{{{\boldsymbol{i}}}}\delta t}\\ {\sigma }_{s}^{-}&\to &{\sigma }_{s}^{-}{e}^{-{{{\boldsymbol{i}}}}\delta t}\end{array}$$

Therefore under this transformation, the Hamiltonian becomes

$$ {{{{\mathcal{H}}}}}_{2}={U}_{2}V{U}_{2}^{+}=\\ \hslash g\left(\frac{{\sigma }_{qb}^{z}+{\sigma }_{qb}^{-}{e}^{-{{{\boldsymbol{i}}}}\Omega t}-{\sigma }_{qb}^{+}{e}^{+{{{\boldsymbol{i}}}}\Omega t}}{2}{\sigma }_{s}^{-}{e}^{-{{{\boldsymbol{i}}}}\delta t}+\frac{{\sigma }_{qb}^{z}+{\sigma }_{qb}^{+}{e}^{+{{{\boldsymbol{i}}}}\Omega t}-{\sigma }_{qb}^{-}{e}^{-{{{\boldsymbol{i}}}}\Omega t}}{2}{\sigma }_{s}^{+}{e}^{+{{{\boldsymbol{i}}}}\delta t}\right)$$

If Ω = δ, only two terms of this Hamiltonian will be time independent, giving rise to an effective Hamiltonian

$${H}_{\Omega=\delta }=-\frac{\hslash g}{2}\left({\sigma }_{qb}^{+}{\sigma }_{s}^{-}+{\sigma }_{qb}^{-}{\sigma }_{s}^{+}\right)$$
